Metra SoundStage / VIBE Audio FD-PPKT-4 Ford Bronco Audio Kit (2021–2024, B&O factory-amplified)
Key features
- Fits 2021–2024 Ford Bronco with factory B&O amplification
- Excludes Bronco Sport; two-door models require amplifier-rack modification
- Six-channel DSP amplifier and PB650.1D-V4 mono amplifier
- Six cabin speakers: 4-inch dash, 6.5-inch kick-panel and rear pairs
- BAMIT12-V4 sealed 12-inch subwoofer with tailgate mounting brackets; series wiring shown in kit guide yields 4 ohms
- Axxess A2B interface retains equipped OE chimes and voice prompts
Metra SoundStage / VIBE Audio FD-PPKT-4 Ford Bronco Audio Kit (2021–2024, B&O factory-amplified) is backordered and will ship as soon as it is back in stock.
Metra SoundStage / VIBE Audio FD-PPKT-4 Ford Bronco Audio Kit (2021–2024, B&O factory-amplified) is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview

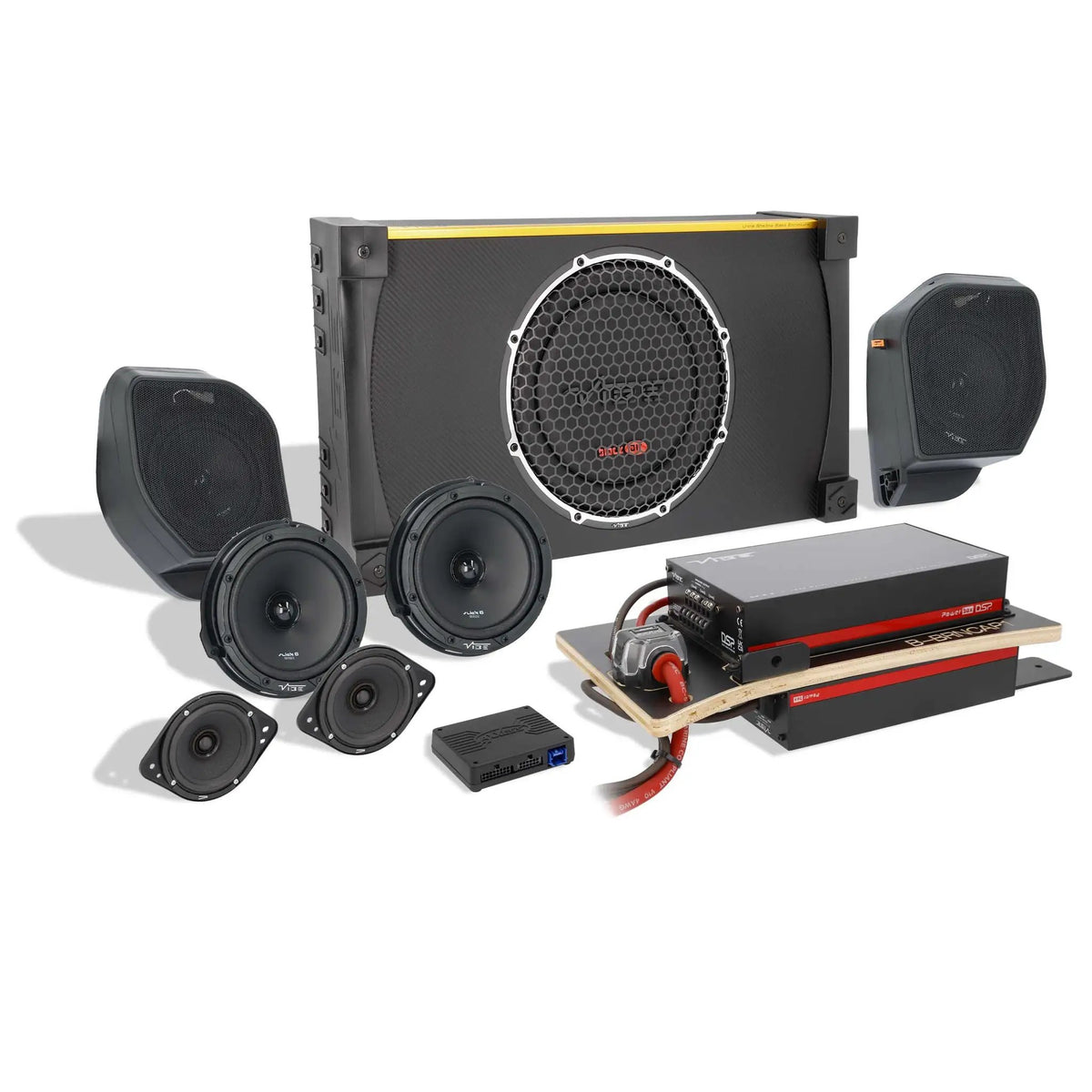

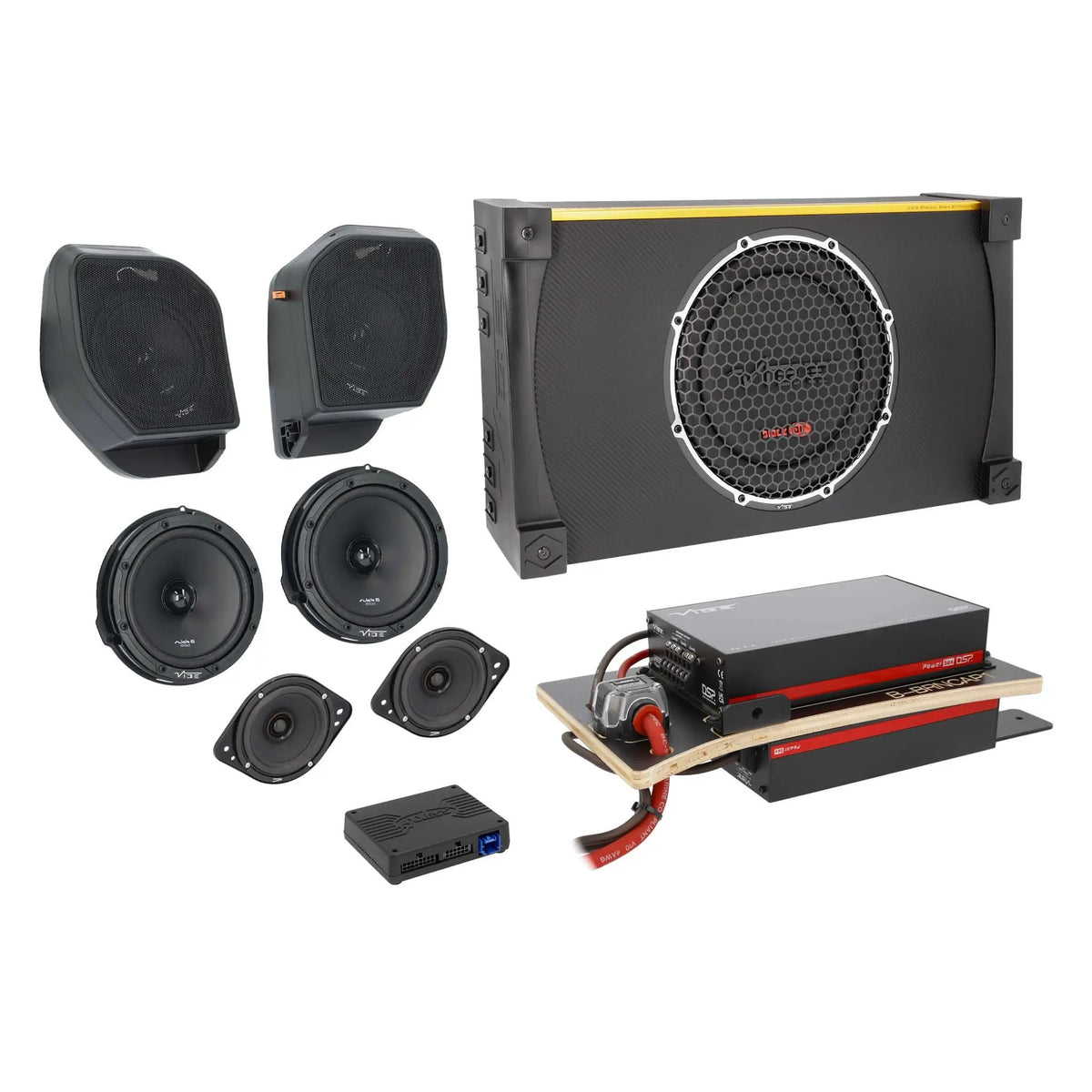

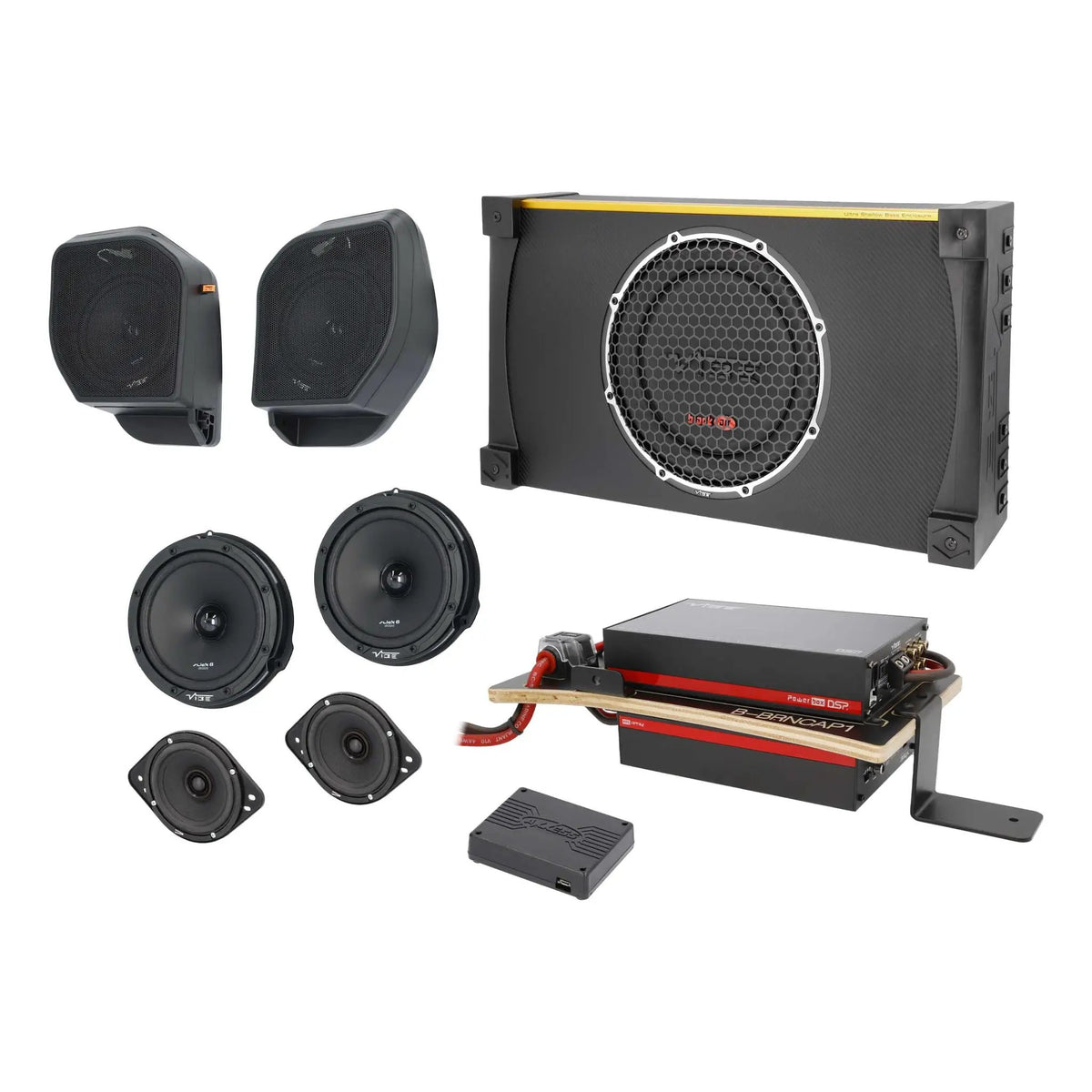

Build out the factory-amplified system in your 2021–2024 Ford Bronco with the Metra SoundStage / VIBE Audio FD-PPKT-4 Ford Bronco audio kit. It combines a six-channel DSP amplifier, a separate mono amplifier, six cabin speakers, and a sealed 12-inch subwoofer in a tailgate-mounted enclosure.
The included Axxess A2B interface connects at the factory amplifier location and retains equipped original-equipment chimes and voice prompts. This package is designed to be installed as a complete system, not split into separately installed products.
Key Features & Benefits

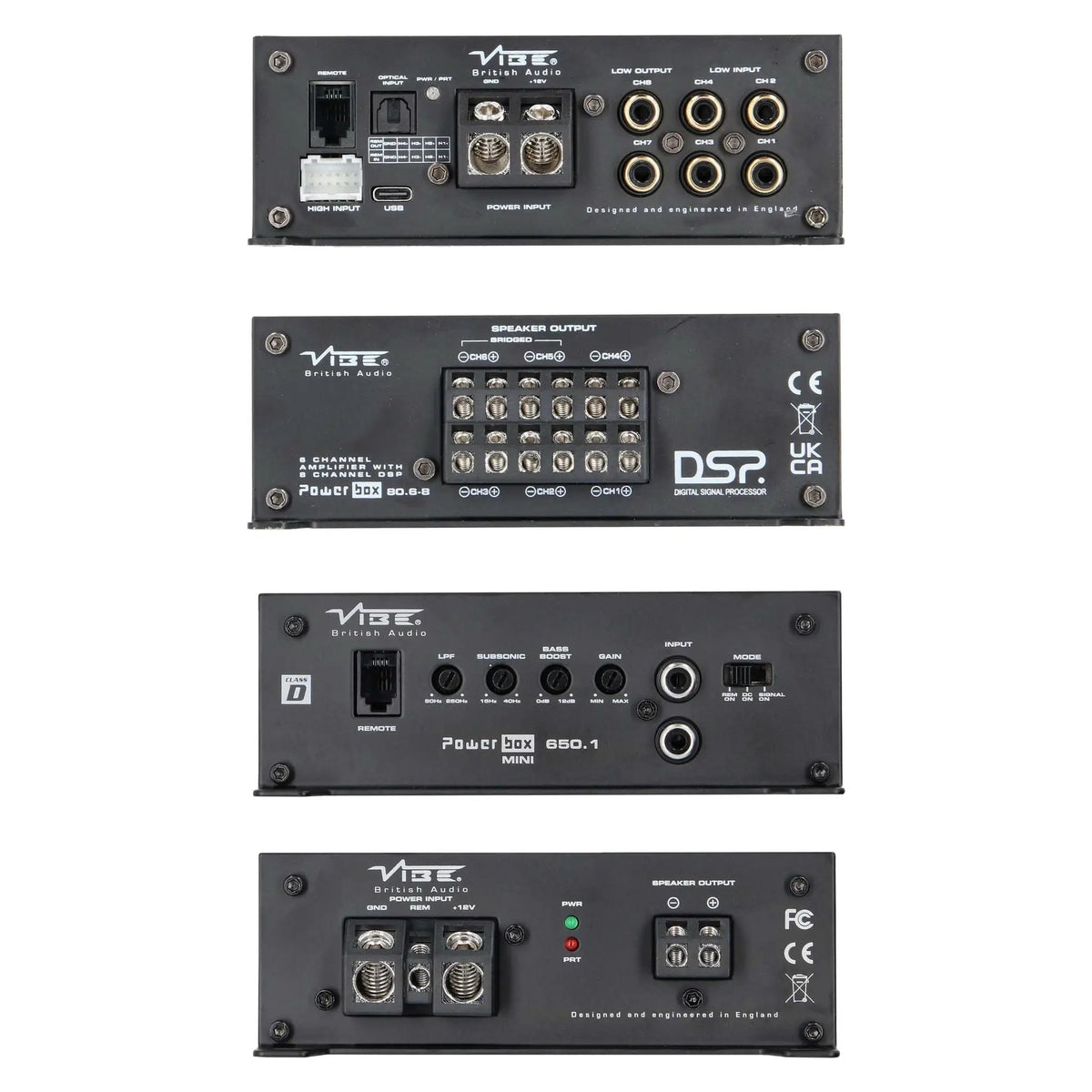

- Two amplifiers: The PB80.6-8DSP-V3 handles six amplified channels, while the PB650.1D-V4 provides a dedicated mono amplifier for the subwoofer.
- Six replacement speakers: Four-inch dash speakers and 6.5-inch front and rear pairs cover the listed cabin locations.

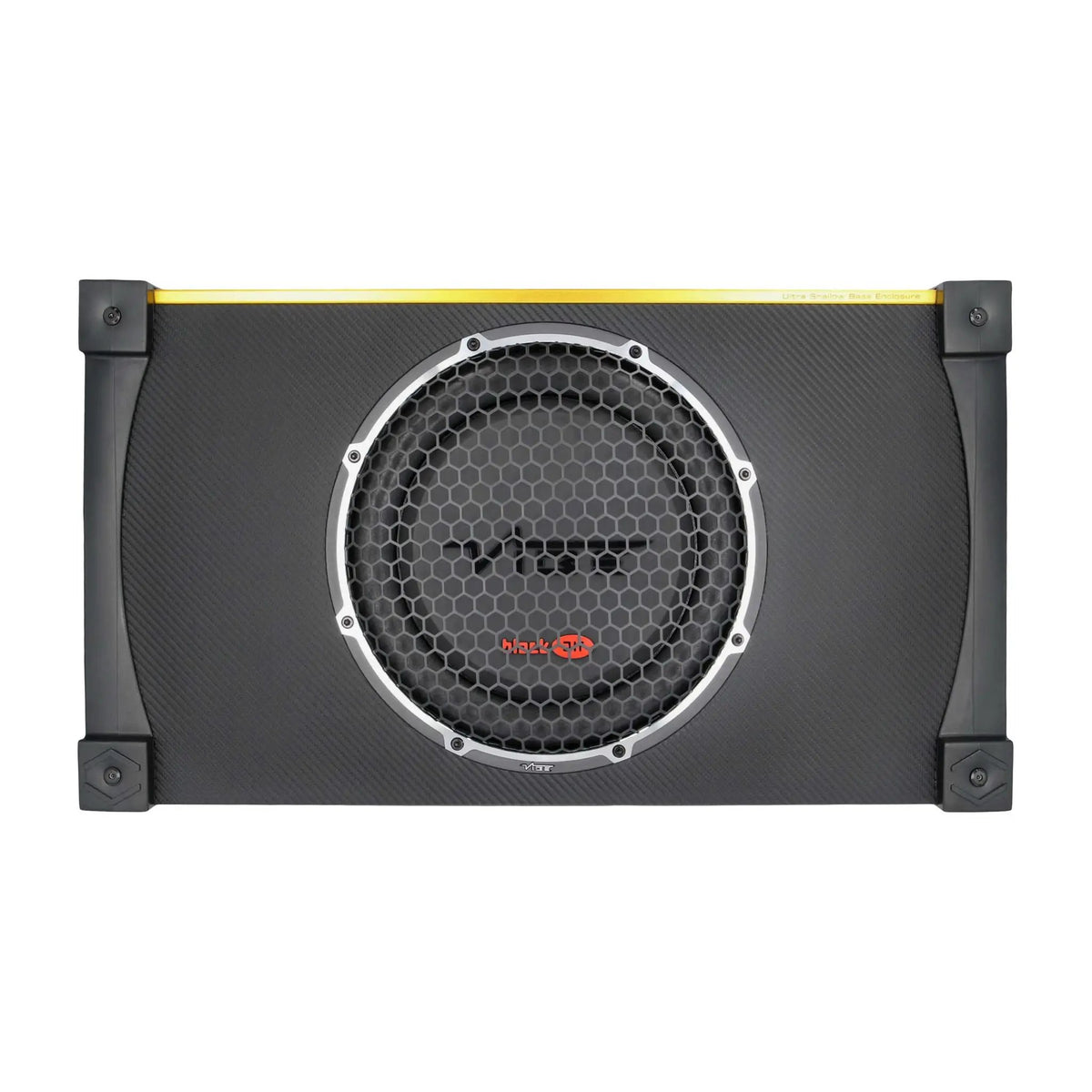

- Tailgate subwoofer: The BAMIT12-V4 pairs a dual 2-ohm, 12-inch subwoofer with a sealed enclosure and mounting brackets.
- Factory-audio integration: The Axxess A2B interface keeps equipped factory chimes and voice prompts available.
- Vehicle-specific installation parts: The package includes an application-matched amplifier rack, installation kit, speaker adapters, harnesses, and rear speaker pods.
- Vehicle-specific DSP tuning: Load the supplied tuning file using computer-based software to configure the DSP for the listed application.
Technical Specifications
| System and fitment | Metra SoundStage / VIBE Audio FD-PPKT-4; 2021–2024 Ford Bronco with factory B&O amplified audio system. Not compatible with Ford Bronco Sport. Two-door installations require modification of the amplifier rack so it fits behind the panel. |
|---|---|
| Package part numbers | BLK-FD-PPKT-3A: vehicle-specific integration and installation parts; BLK-FD-PPKT-4B: vehicle-specific integration and installation parts; BAMIT12-V4: 12-inch subwoofer enclosure. |

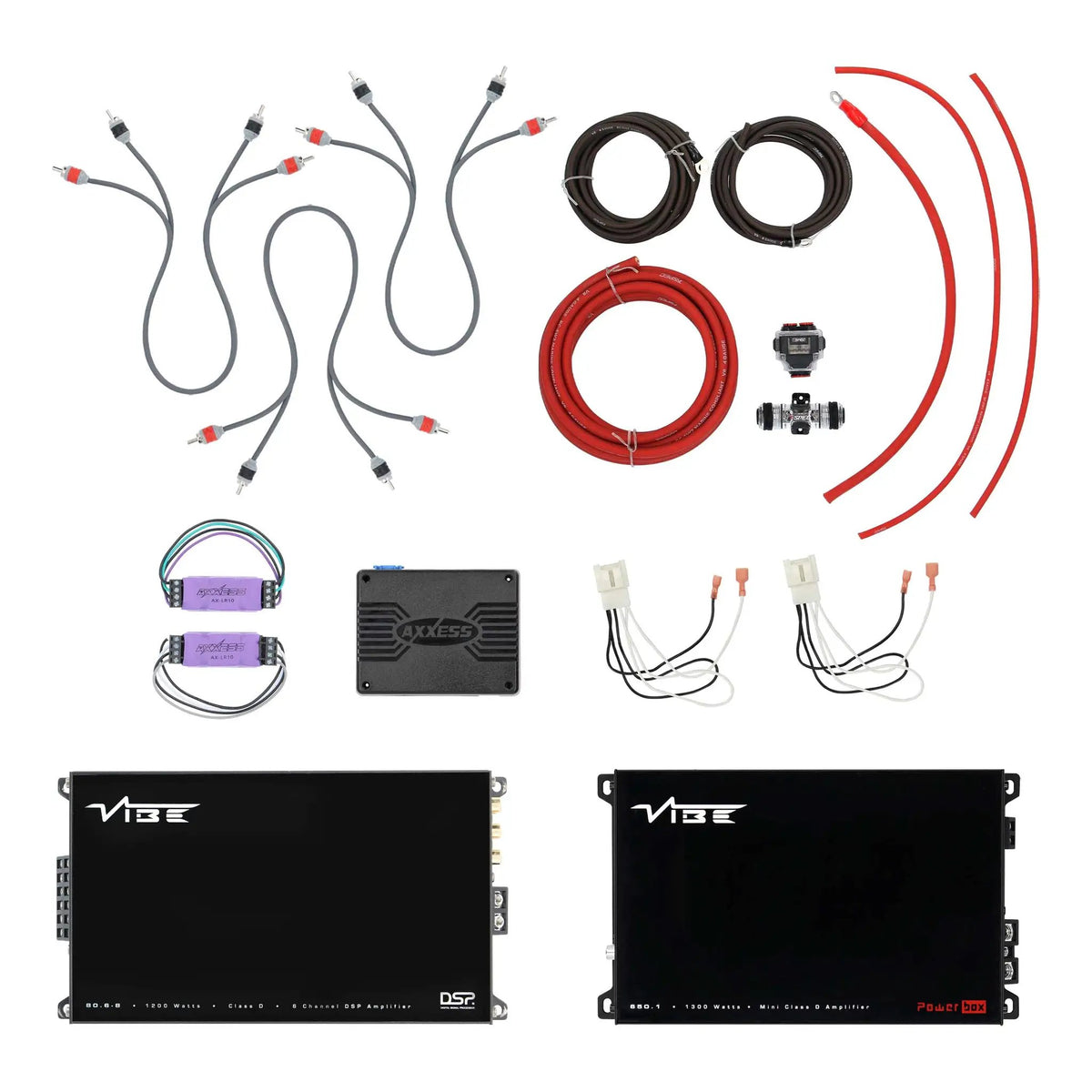

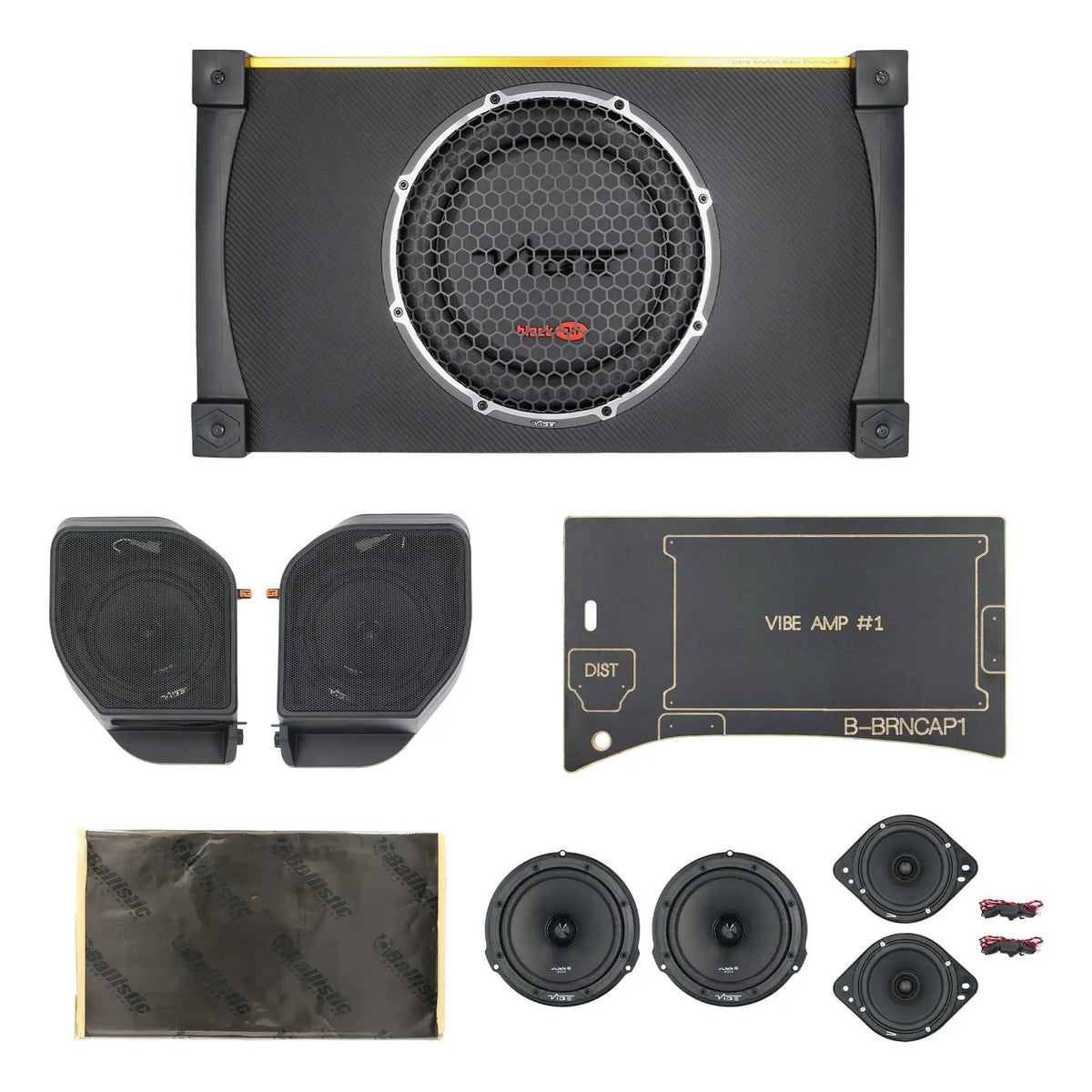

| Included system components | One PB650.1D-V4 mono amplifier; one PB80.6-8DSP-V3 six-channel DSP/amplifier combination; two 4-inch concentric dash speakers; two 6.5-inch front kick-panel speakers; two 6.5-inch rear speakers; one 12-inch subwoofer with sealed enclosure; vehicle-specific DSP tuning file for loading through computer software; application-matched amplifier installation kit; application-matched amp mounting rack; step-by-step installation documentation. |
| PB80.6-8DSP-V3 amplified channels | 6 |
| PB80.6-8DSP-V3 maximum power rating | 1200W |
| PB80.6-8DSP-V3 continuous output | 6x80W RMS into 4 ohms, stereo |
| PB80.6-8DSP-V3 specified frequency range | 20Hz – 20kHz |
| PB80.6-8DSP-V3 chassis dimensions (H × W × D) | 1.5" H x 8.6" W x 5.1" D (40mm x 220mm x 131mm) |
| PB80.6-8DSP-V3 topology and tuning | Compact Class D amplifier topology. Load the vehicle-specific DSP equalization file using computer-based software. |
| PB650.1D-V4 maximum power rating | 1200W |
| PB650.1D-V4 output at 4 ohms | 325W (rating type not specified as RMS) |
| PB650.1D-V4 output at 2 ohms | 475W (rating type not specified as RMS) |
| PB650.1D-V4 output at 1 ohm | 650W (rating type not specified as RMS) |
| PB650.1D-V4 chassis dimensions (H × W × D) | 1.85" H x 9.05" W x 5.27" D (47mm x 230mm x 134mm) |
| PB650.1D-V4 topology | Class D |
| CVEN4CN-V5 4" concentric dash speakers | Nominal driver size: 4"; speaker power capacity: 120W Peak / 60W RMS; rated sensitivity: 88dB; specified frequency range: 110Hz – 20kHz; nominal impedance: 3.2 Ohms. |
| Dash speaker installation components | Metra 82-5609 speaker adapters; Metra 72-5603 speaker harnesses. |
| SLICK6SQM-V5 6.5" front kick-panel speakers | Nominal driver size: 6.5"; speaker power capacity: 270W Peak / 90W RMS; rated sensitivity: 94dB; specified frequency range: 55Hz – 20kHz; nominal impedance: 4 ohms. |
| Front kick-panel speaker installation components | Metra 82-5605 speaker adapters; Metra 72-5602 speaker harnesses. |
| SLICK6SQM-V5 6.5" rear speakers | Nominal driver size: 6.5"; speaker power capacity: 270W Peak / 90W RMS; rated sensitivity: 94dB; specified frequency range: 55Hz – 20kHz; nominal impedance: 4 ohms. |
| Rear speaker installation component | Metra FD-BROPOD1 rear speaker pods. |
| BAMIT12-V4 12" subwoofer and sealed enclosure | Nominal driver size: 12"; speaker power capacity: 900W Peak / 300W RMS; rated sensitivity: 85dB; specified frequency range: 30Hz - 1kHz; nominal impedance: Dual 2 ohms. Enclosure mounting brackets are supplied. |
| Subwoofer voice-coil connection | The kit installation guide specifies a series connection between the two voice coils. With the included dual 2-ohm subwoofer, this produces a 4-ohm final load. Follow the kit-specific terminal diagram when connecting the enclosure. |

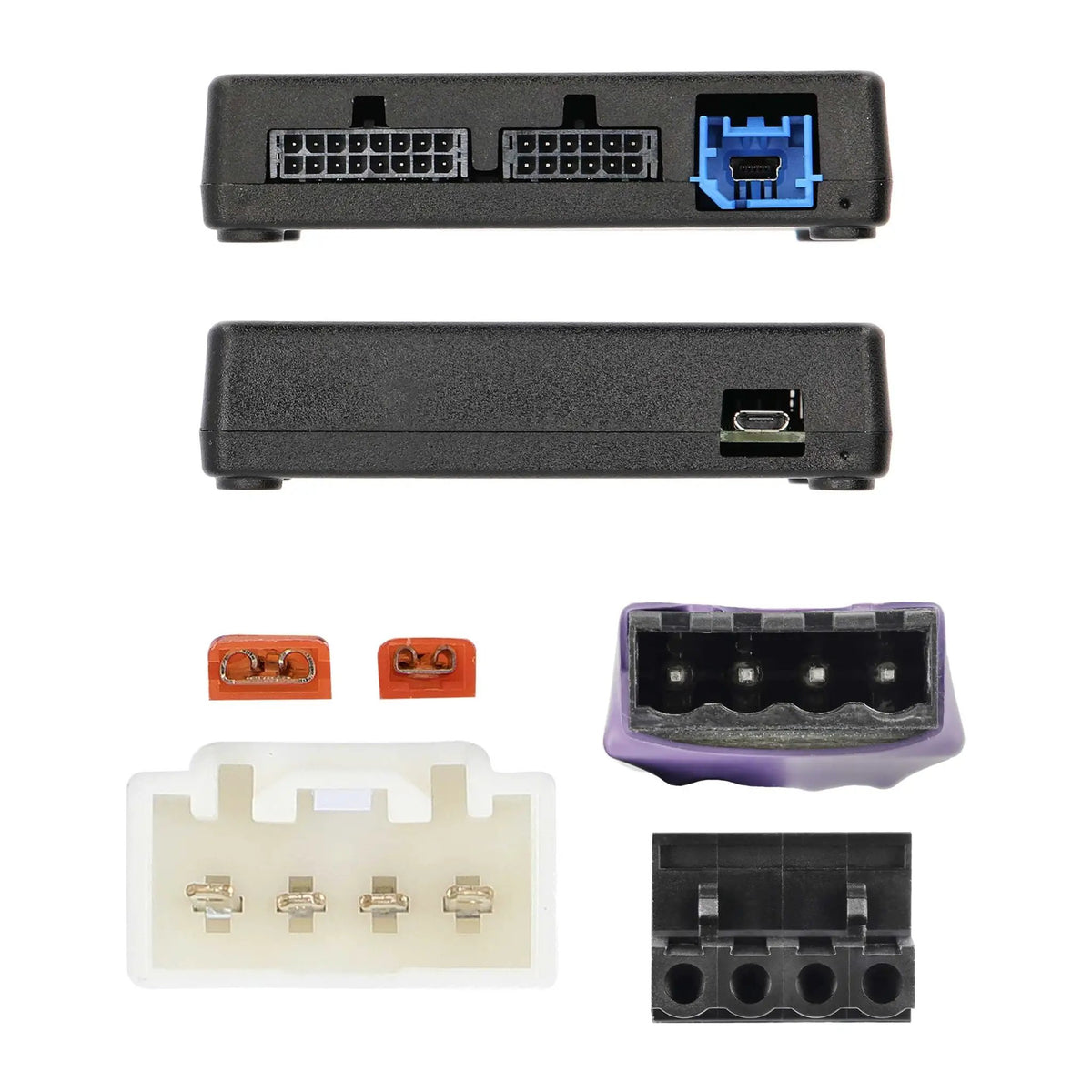

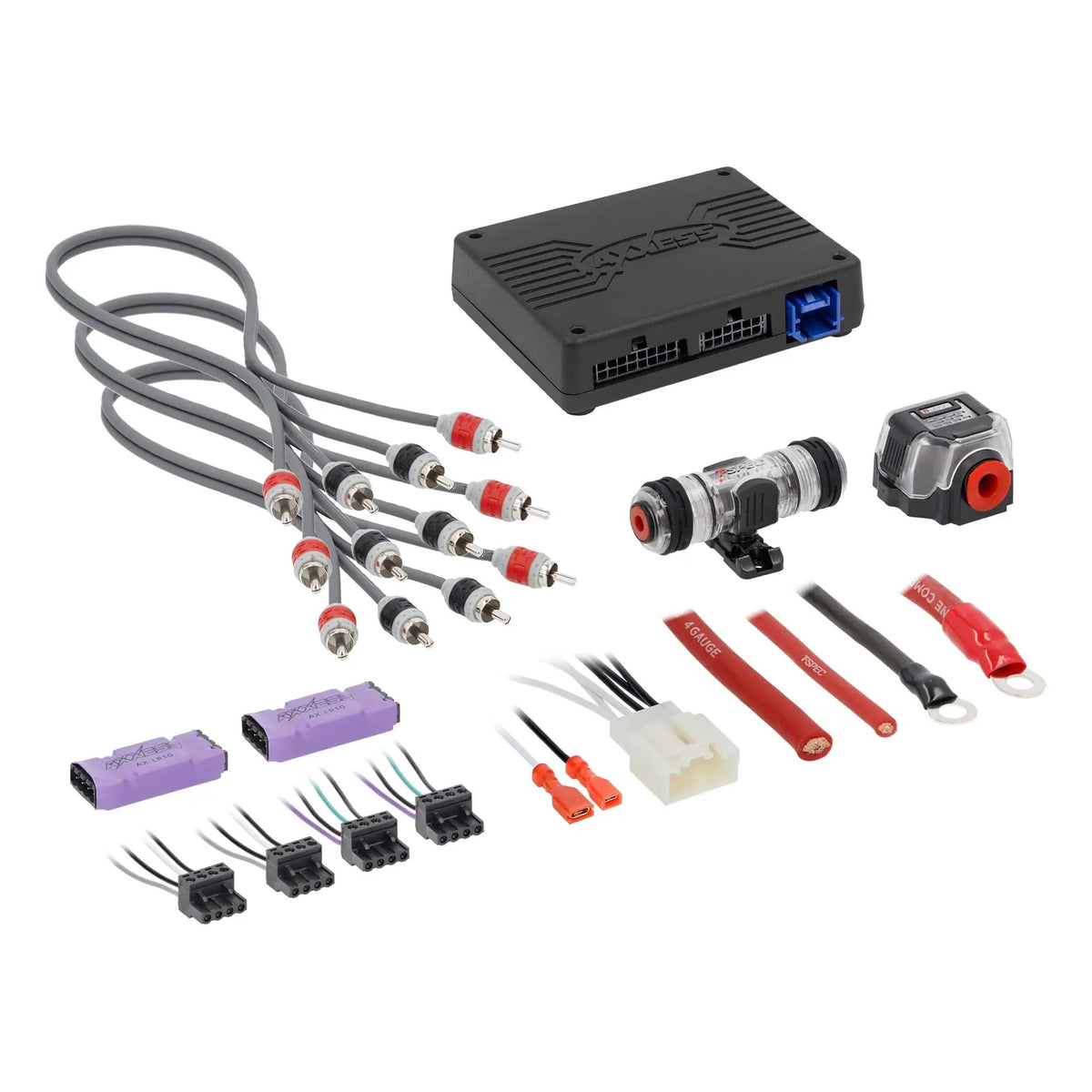

| Axxess A2B interface | Installation position: factory-amplifier location. Original-equipment chimes and voice prompts remain available when the vehicle has them. |
| Metra amplifier installation kit wiring | 4-gauge OFC power wire: 9.5 ft; 8-gauge OFC ground wire: 8 ft; 12-gauge OFC speaker wire: 12 ft. |
| Metra amplifier installation kit hardware | T-Spec VMANL watertight fuse holder with 100A MANL fuse; power distribution block; installation fasteners/hardware. |
| Metra vehicle-specific amp mounting rack | Mounting design is specific to the listed vehicle application. CNC-cut construction with holes already drilled. Mounts behind the rear seat using original-equipment bolt locations. For a two-door application, the manufacturer calls for amplifier-rack modification to clear the panel. |
| Manufacturer installation estimate | 6–8 hours for one experienced technician. |
| Manufacturer warranty | One-year warranty for the kit. |
| Rating note | The ratings above belong to the named components. Peak or maximum figures are not a continuous system rating; an output is labeled RMS only where the source explicitly identifies it that way. |
Why Choose This Product?
The FD-PPKT-4 brings the amplifiers, speakers, subwoofer, integration interface, and vehicle-specific mounting pieces together in one package for the specified Bronco audio system. The separate mono amplifier is dedicated to the subwoofer, while the six-channel DSP amplifier powers the cabin speakers and accepts the supplied vehicle-specific tuning file.
Metra specifies a one-year warranty for the kit. The component power ratings are not interchangeable: peak and maximum figures are not continuous system ratings, and only outputs expressly marked RMS should be read as RMS.
Installation & Compatibility Notes
Fitment is for 2021–2024 Ford Bronco models equipped with factory B&O amplified audio. The kit is not compatible with Ford Bronco Sport. Manufacturer application listings do not remove these audio-system and model exclusions.
Two-door Bronco installations require amplifier-rack modification to clear the panel. The rack mounts behind the rear seat at original-equipment bolt locations. Check vehicle fitment, mounting clearance, and the latest installation steps before starting. Metra estimates 6–8 hours for one experienced technician.
Connect the subwoofer voice coils in series as directed by the kit-specific terminal diagram. The included dual 2-ohm subwoofer then presents a 4-ohm final load. Use the supplied components together as the intended system; the package is not designed to be split into separately installed products.
Frequently Asked Questions
Which Ford Bronco models does the FD-PPKT-4 fit?
It is listed for 2021–2024 Ford Bronco models with the factory B&O amplified audio system. It does not fit the Ford Bronco Sport.
Does this kit work in a two-door Bronco?
Two-door installations require modification of the amplifier rack so it clears the panel.
What final subwoofer load does the included wiring connection produce?
Connecting the dual 2-ohm voice coils in series produces a 4-ohm final load. Follow the kit-specific terminal diagram.
Are the amplifier power figures all RMS ratings?
No. The PB80.6-8DSP-V3 continuous output is specified as 6x80W RMS into 4 ohms, stereo. The PB650.1D-V4 outputs are listed as 325W at 4 ohms, 475W at 2 ohms, and 650W at 1 ohm; their rating type is not specified as RMS.
What does the package include?
It includes both amplifiers, six cabin speakers, the subwoofer and sealed enclosure, Axxess A2B interface, vehicle-specific tuning file, installation kit, mounting rack, and step-by-step installation documentation.
How long does installation take?
Metra estimates 6–8 hours for one experienced technician.
