Metra SoundStage / VIBE Audio GM-PPKT-2 Chevrolet Silverado / GMC Sierra Crew Cab Audio Kit (2019–2026, non-amplified)
Key features
- Fits non-amplified 2019–2026 Silverado and Sierra Crew Cab trucks
- PB80.6-8DSP-V3 DSP amplifier plus PB650.1D-V4 mono amplifier
- Six speakers: 2.7-inch dash, 6×9-inch front-door and 6.5-inch rear pairs
- GM-SL1-10 10-inch subwoofer in a down-firing ported enclosure
- Metra AXAMP interface retains factory chimes; vehicle-specific harnesses
- Behind-seat amp rack; DSP vehicle tune loads through computer software
Metra SoundStage / VIBE Audio GM-PPKT-2 Chevrolet Silverado / GMC Sierra Crew Cab Audio Kit (2019–2026, non-amplified) is backordered and will ship as soon as it is back in stock.
Metra SoundStage / VIBE Audio GM-PPKT-2 Chevrolet Silverado / GMC Sierra Crew Cab Audio Kit (2019–2026, non-amplified) is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview
Bring DSP-controlled six-speaker audio and dedicated subwoofer amplification to a non-amplified 2019–2026 Chevrolet Silverado or GMC Sierra Crew Cab. The Metra SoundStage / VIBE Audio GM-PPKT-2 audio kit combines vehicle-specific integration parts, speakers, amplifiers, and a down-firing 10-inch subwoofer enclosure.
Key Features & Benefits
- Six-speaker DSP system: A PB80.6-8DSP-V3 six-channel DSP amplifier powers the speaker system, with a vehicle-specific tune loaded through computer software.
- Dedicated bass amplification: The PB650.1D-V4 mono amplifier is paired with a GM-SL1-10 subwoofer in a ported enclosure.
- Factory-chime retention: The AXAMP interface connects through the supplied T-harness, OE-style connectors, and RCA cables.
- Application-matched mounting: The amplifier rack mounts behind the rear seat using original-equipment bolt locations.
- Integrated installation components: The package includes vehicle-specific wiring, speaker adapters, harnesses, and installation hardware.
Technical Specifications
| System | Metra SoundStage / VIBE Audio GM-PPKT-2 |
|---|---|
| Vehicle configuration | 2019–2026 Chevrolet Silverado or GMC Sierra Crew Cab with non-amplified factory audio |
| Speaker arrangement | Two 2.7-inch dash speakers, two 6"x9" front-door speakers, and two 6.5" rear-door speakers |
| Subwoofer | GM-SL1-10, 10-inch subwoofer in a down-firing ported enclosure |
| Package part numbers | BLK-GM-PPKT-2A: vehicle-specific integration and installation parts; GM-SL1-10: 10" subwoofer enclosure |

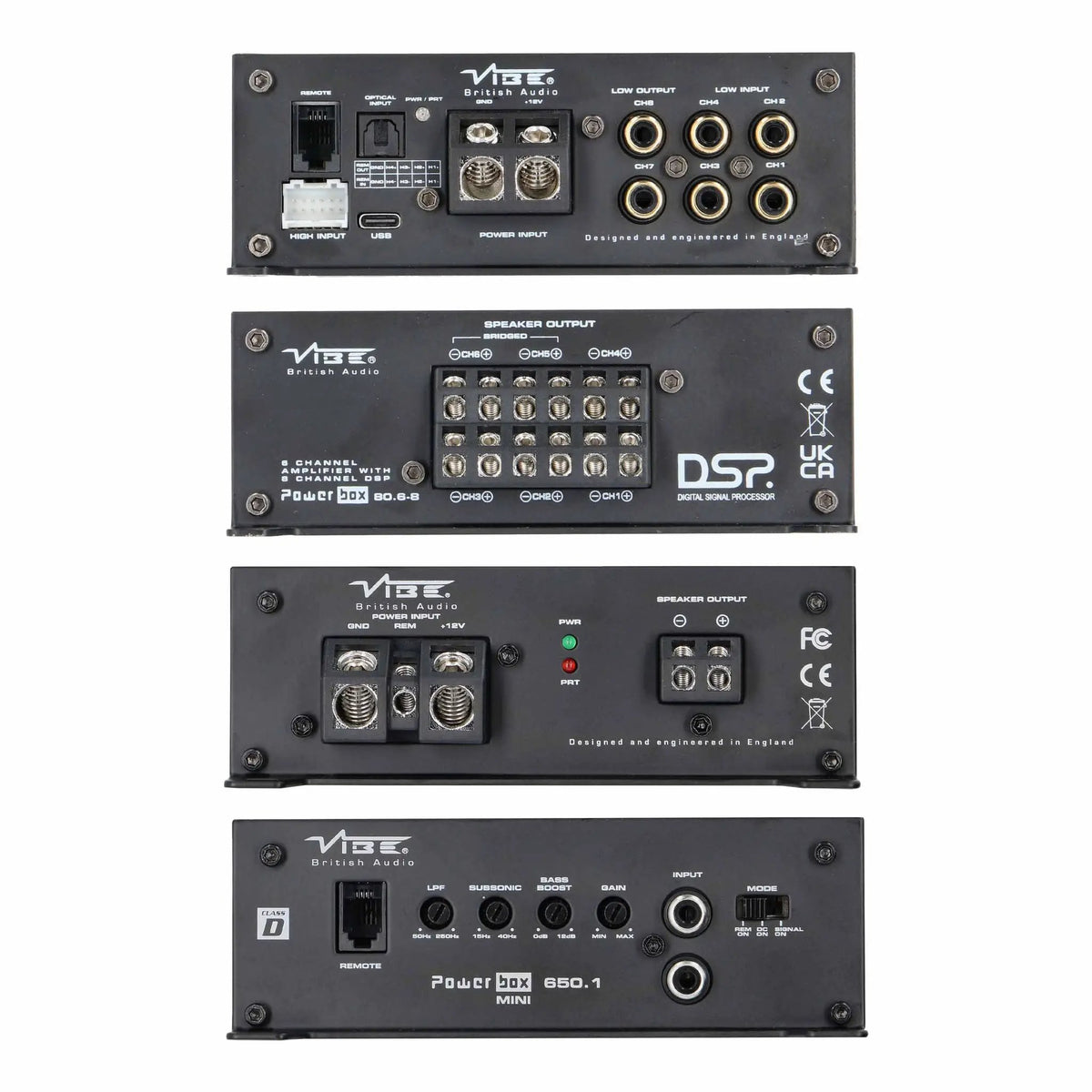

PB80.6-8DSP-V3 DSP and amplifier combo
| Amplified channels | 6 |
|---|---|
| Maximum power rating | 1200W |
| Continuous output | 6x80W RMS into 4 ohms, stereo |
| Specified frequency range | 20Hz – 20kHz |
| Chassis dimensions (H × W × D) | 1.5" H x 8.6" W x 5.1" D (40mm x 220mm x 131mm) |
| Amplifier topology | Compact Class D |
| DSP tuning | Vehicle-specific DSP equalization file loads using computer-based software |
PB650.1D-V4 amplifier
| Maximum power rating | 1200W |
|---|---|
| Output at 4 ohms | 325W (rating type not specified as RMS) |
| Output at 2 ohms | 475W (rating type not specified as RMS) |
| Output at 1 ohm | 650W (rating type not specified as RMS; published output) |
| Chassis dimensions (H × W × D) | 1.85" H x 9.05" W x 5.27" D (47mm x 230mm x 134mm) |
| Amplifier topology | Class D |
Speakers and subwoofer
| Component | Power capacity | Sensitivity | Specified frequency range | Nominal impedance |
|---|---|---|---|---|
| CVEN2.7M-V4 2.7" dash speakers | 160W Peak / 80W RMS | 87dB | 300Hz – 20kHz | 4 ohms |
| CVEN69MW-V4 6"x9" front-door speakers | 260W Peak / 130W RMS | 91dB | 40Hz – 20kHz | 4 ohms |
| OPTI6-V4 6.5" rear-door speakers | 270W Peak / 90W RMS | 94dB | 55Hz – 20kHz | 4 ohms |
| GM-SL1-10 10" subwoofer | 900W Peak / 300W RMS | 85dB | 30Hz – 1kHz | Dual 2 ohms |
Interface, wiring, and mounting components

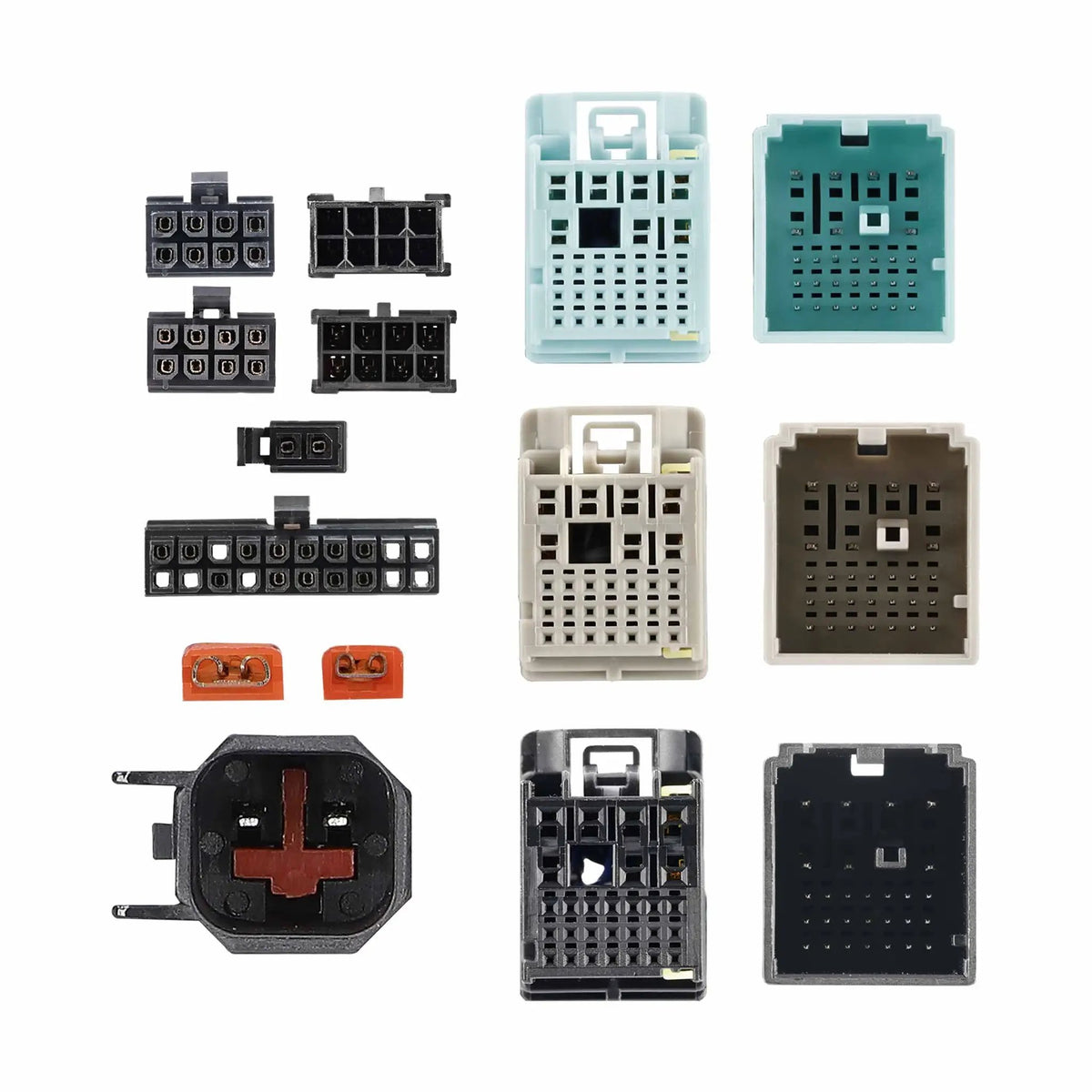

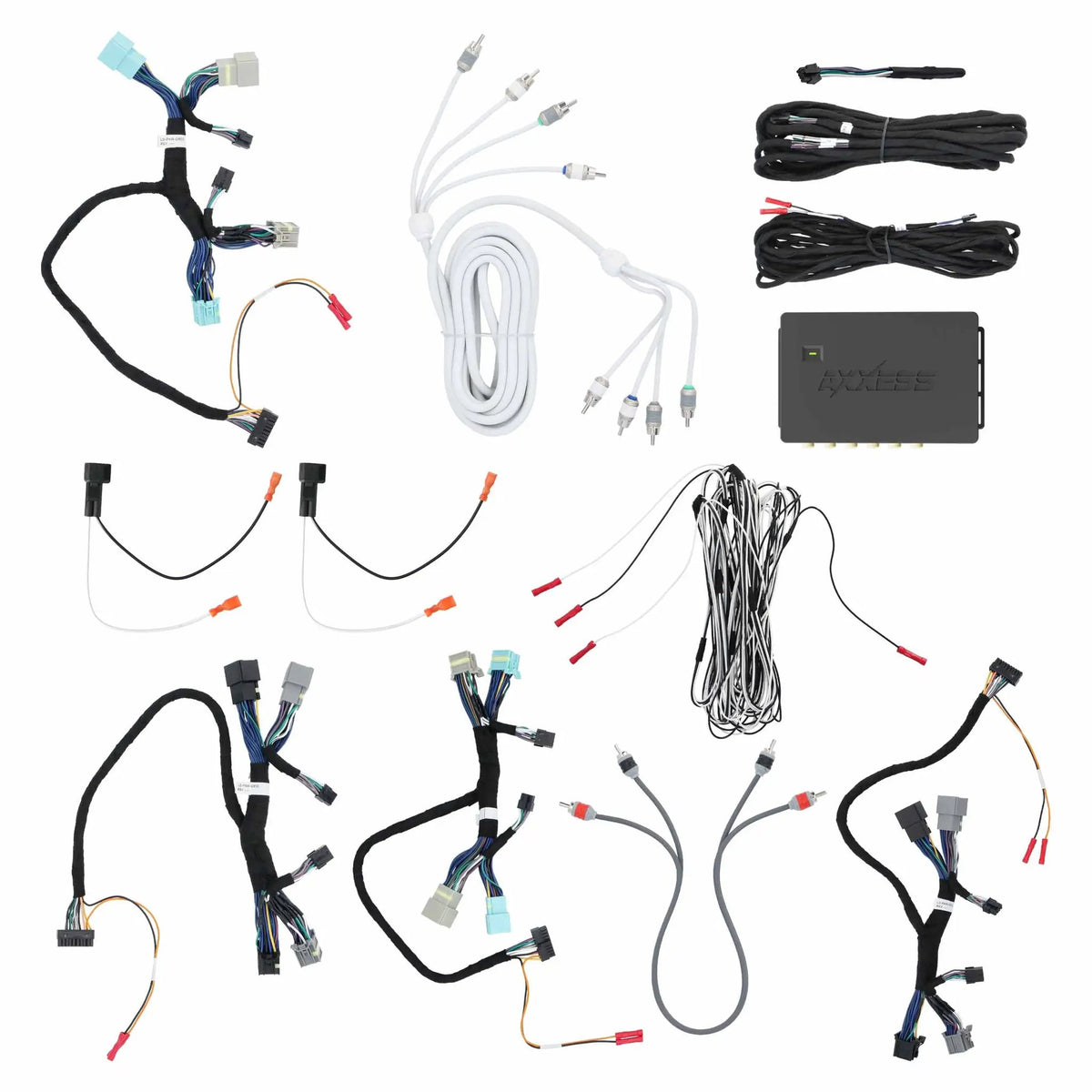

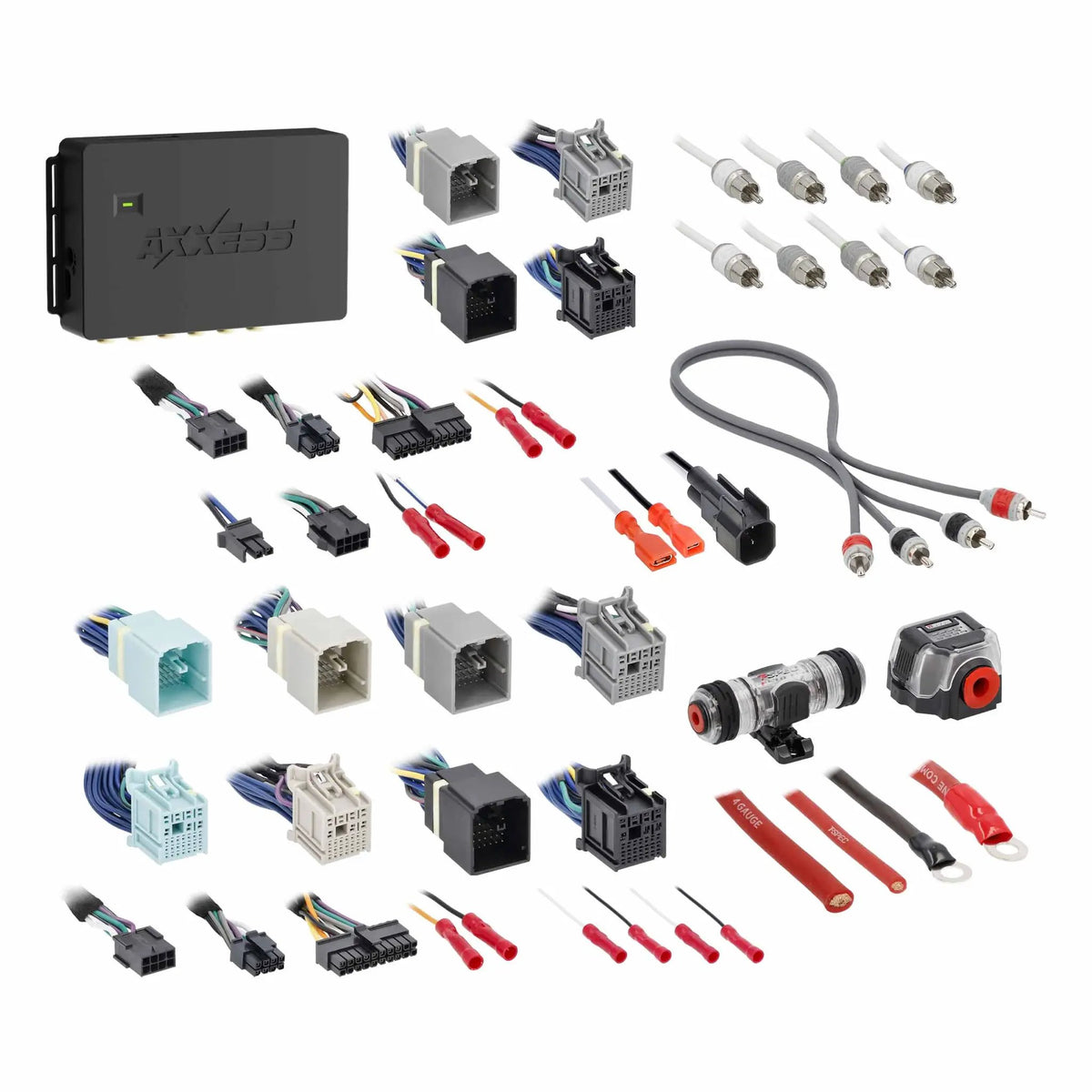

| AXAMP interface | Plug-in integration wiring; installs behind the kick panel; retains factory warning chimes; supplied T-harness, original-equipment-style connectors, and RCA cables |
|---|---|
| Speaker installation parts | Metra 82-3004 front-door adapter plates; Metra 82-3006 rear-door adapter plates; Metra 72-4572 door speaker harnesses; Metra IBSBF65 two-piece speaker baffle kit for the speaker-to-mount seal and sound path |

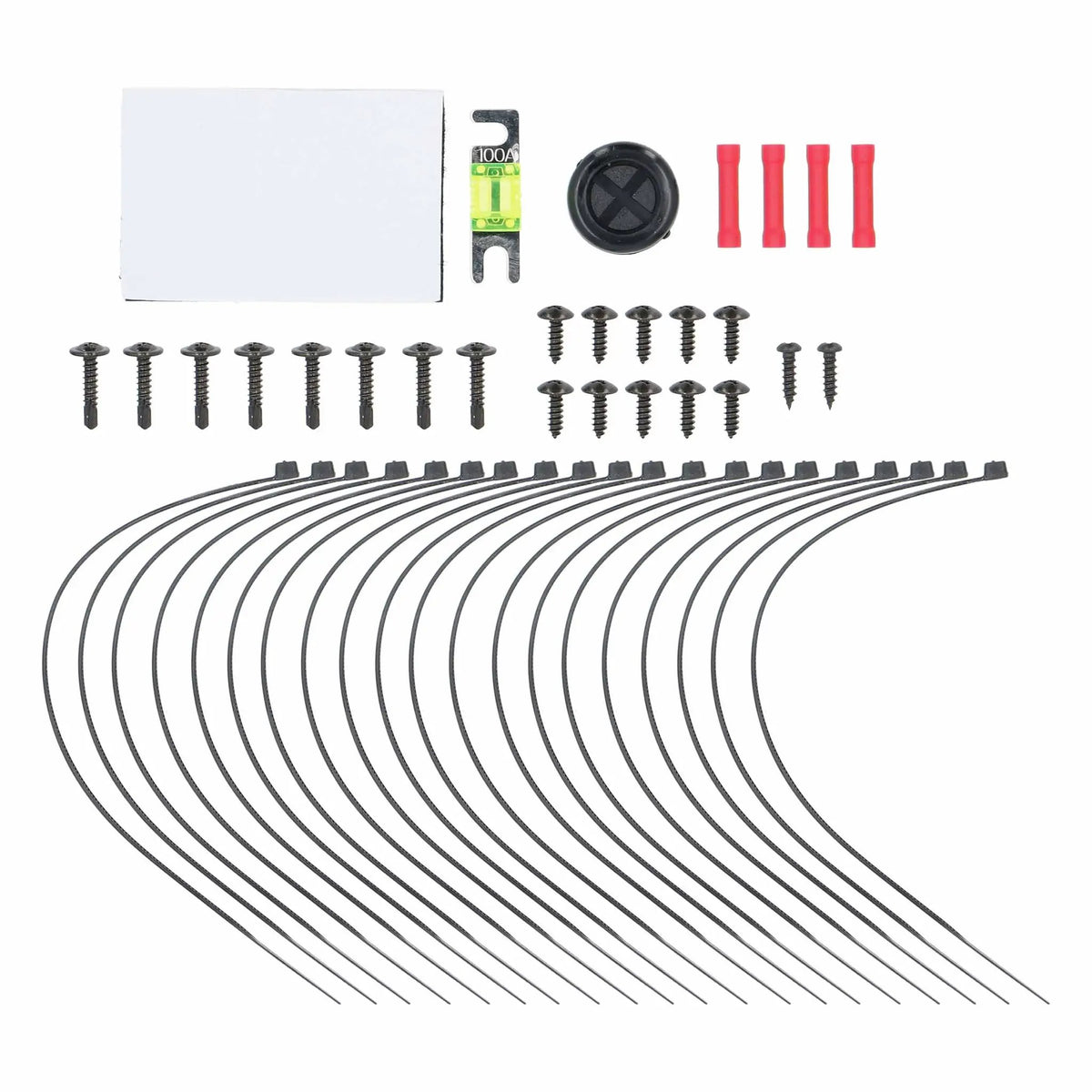

| Amplifier installation kit | Application-matched wiring; 4-gauge OFC power wire, 18.5 ft; 8-gauge OFC ground wire, 21 ft; T-Spec MANL watertight fuse holder with 100A MANL fuse; power distribution block; installation fasteners/hardware |
| Amplifier mounting rack | Vehicle-specific CNC-cut construction with holes already drilled; mounts behind the rear seat using original-equipment bolt locations |

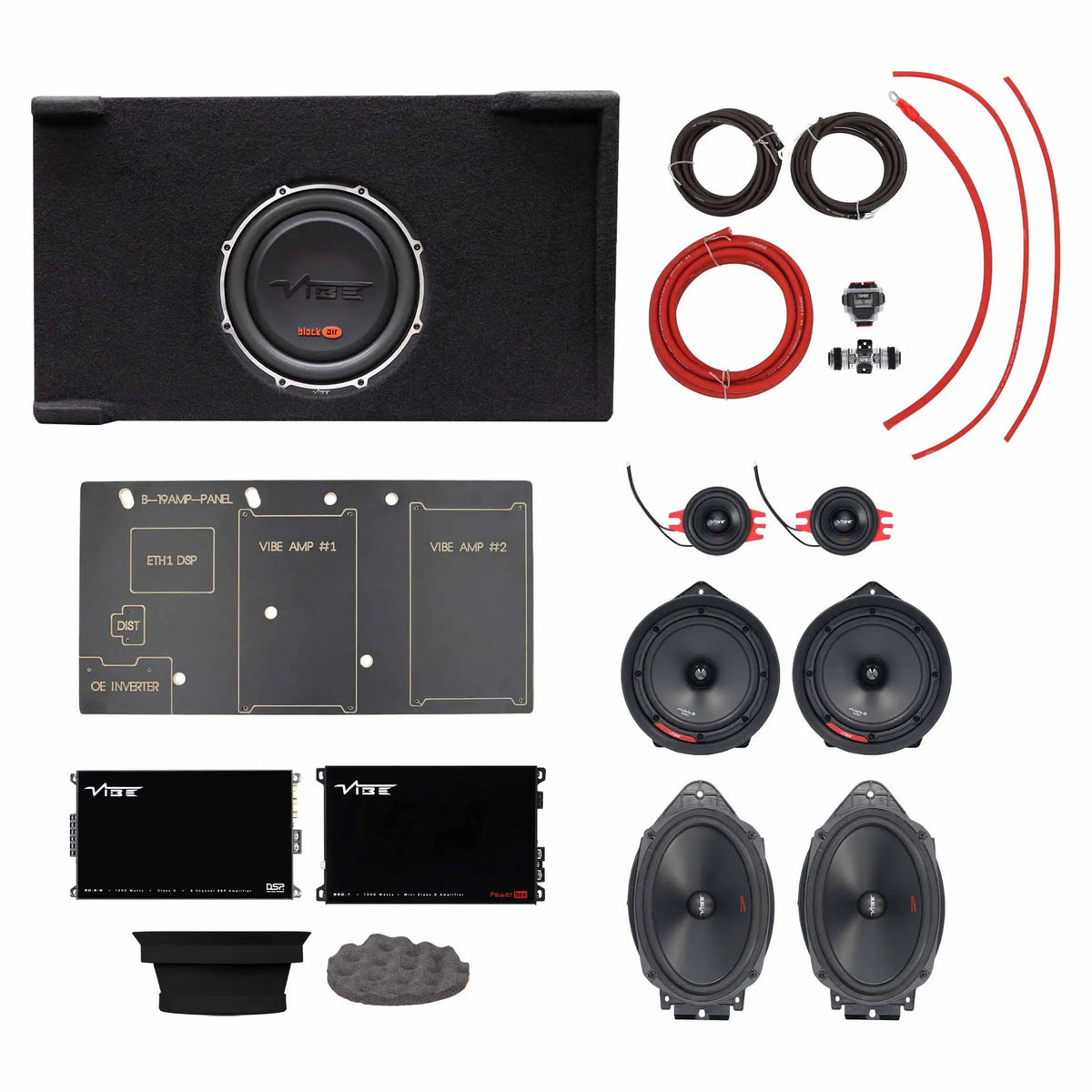

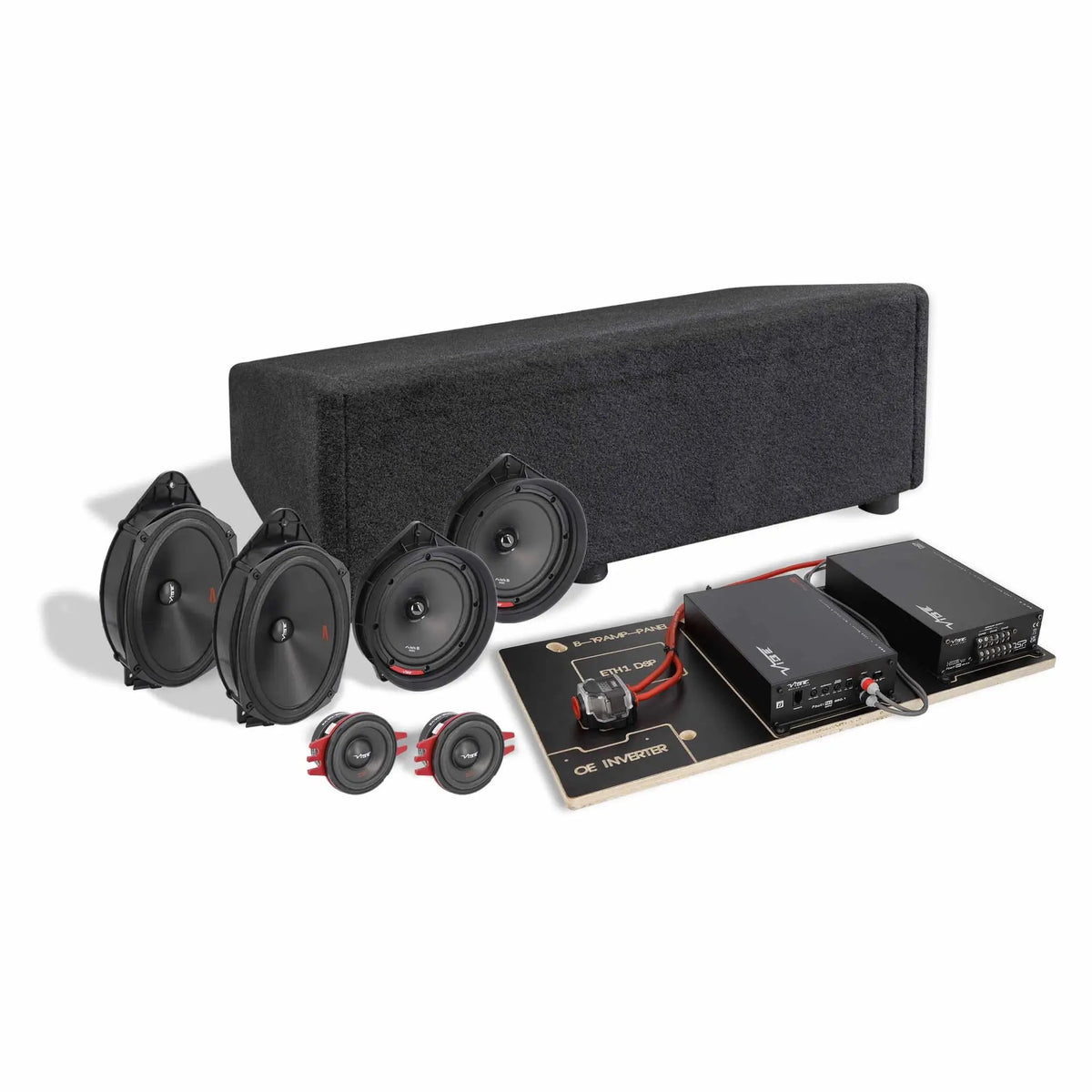

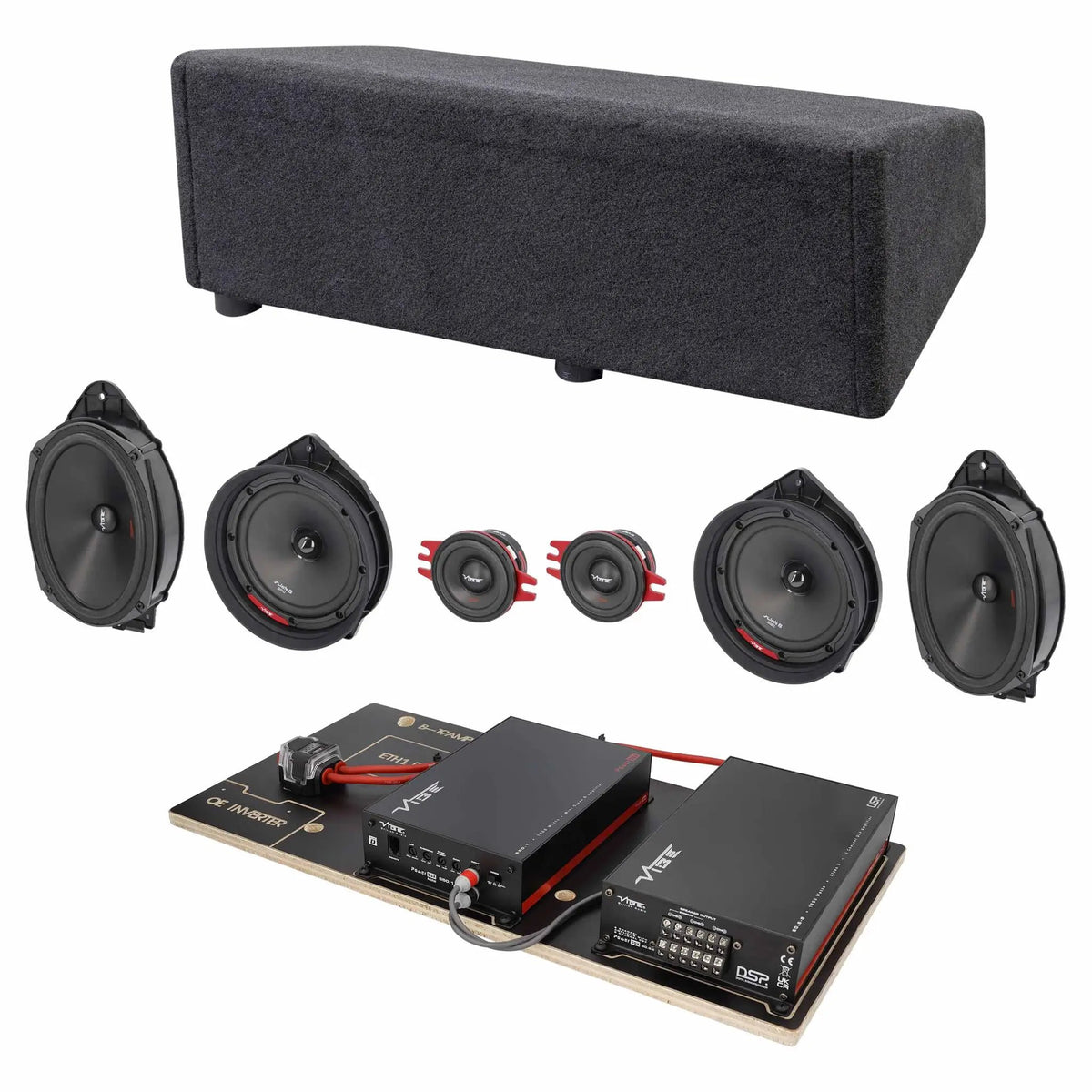

The package includes one PB650.1D-V4 mono amplifier, one PB80.6-8DSP-V3 DSP/amplifier combo, two dash speakers, two front-door speakers, two rear-door speakers, one 10" subwoofer, the 10" down-firing ported enclosure, a vehicle-specific DSP tuning file, an application-matched amplifier installation kit and mounting rack, and step-by-step installation documentation. Peak or maximum figures are not continuous system ratings; an output is labeled RMS only where stated above.
Why Choose This Product?
This kit brings speaker replacement, DSP processing, subwoofer amplification, and vehicle-specific integration together in one package. Its supplied tune is intended to be loaded through computer software, while the AXAMP interface retains factory warning chimes.
Metra specifies that the package is designed to be used as a complete system, not split into separately installed products. That makes it important to plan for the full component set and its installation before starting.
Installation & Compatibility Notes
Manufacturer vehicle applications list 2019–2026 Chevrolet Silverado 1500, 2500 HD, and 3500 HD, plus GMC Sierra 1500, 2500 HD, and 3500 HD. Fitment is limited to Crew Cab trucks with non-amplified factory audio; the application listings do not remove those requirements or other cab/body-style exclusions.
Confirm vehicle fitment, mounting clearance, and the latest installation steps before beginning. Metra estimates 6–8 hours for one experienced technician and lists a one-year warranty for the kit.
Frequently Asked Questions
Will the GM-PPKT-2 fit every Silverado or Sierra listed?
No. The listed model years and truck lines are subject to the Crew Cab and non-amplified factory-audio requirements, as well as cab/body-style exclusions.
Are the amplifier power figures all RMS ratings?
No. The PB80.6-8DSP-V3 continuous output is listed as 6x80W RMS into 4 ohms, stereo. The PB650.1D-V4 outputs are listed as 325W at 4 ohms, 475W at 2 ohms, and 650W at 1 ohm; those output ratings are not identified as RMS.
Does the interface retain factory warning chimes?
Yes. The supplied Metra AXAMP interface retains factory warning chimes and connects through the included T-harness and original-equipment-style connectors.
Can the components be installed as separate products?
Metra specifies that this package is not designed to be split into separately installed products. Use the supplied components together as the intended system.
How long does installation take?
Metra estimates 6–8 hours for one experienced technician. The amplifier rack mounts behind the rear seat, and the vehicle-specific DSP tune loads through computer software.
