Metra SoundStage / VIBE Audio JP-PPKT-1 Jeep Wrangler JL Audio Kit (2024-up, non-amplified)
Key features
- Fitment: 2024-up Jeep Wrangler JL, non-amplified; excludes 4xe
- JL Cargo Trail Rail: inaccessible with the included tailgate enclosure installed
- Power seats: amplifier-rack height may require modification
- Amplification: six-channel DSP amplifier plus PB650.1D-V4 mono amplifier
- Cabin speakers: four 1-inch tweeters and four 6.5-inch drivers
- Bass: BAMIT12-V4 sealed 12-inch subwoofer with tailgate mounting hardware; wire the dual 2-ohm coils in series for the required 4-ohm load
Metra SoundStage / VIBE Audio JP-PPKT-1 Jeep Wrangler JL Audio Kit (2024-up, non-amplified) is backordered and will ship as soon as it is back in stock.
Metra SoundStage / VIBE Audio JP-PPKT-1 Jeep Wrangler JL Audio Kit (2024-up, non-amplified) is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview

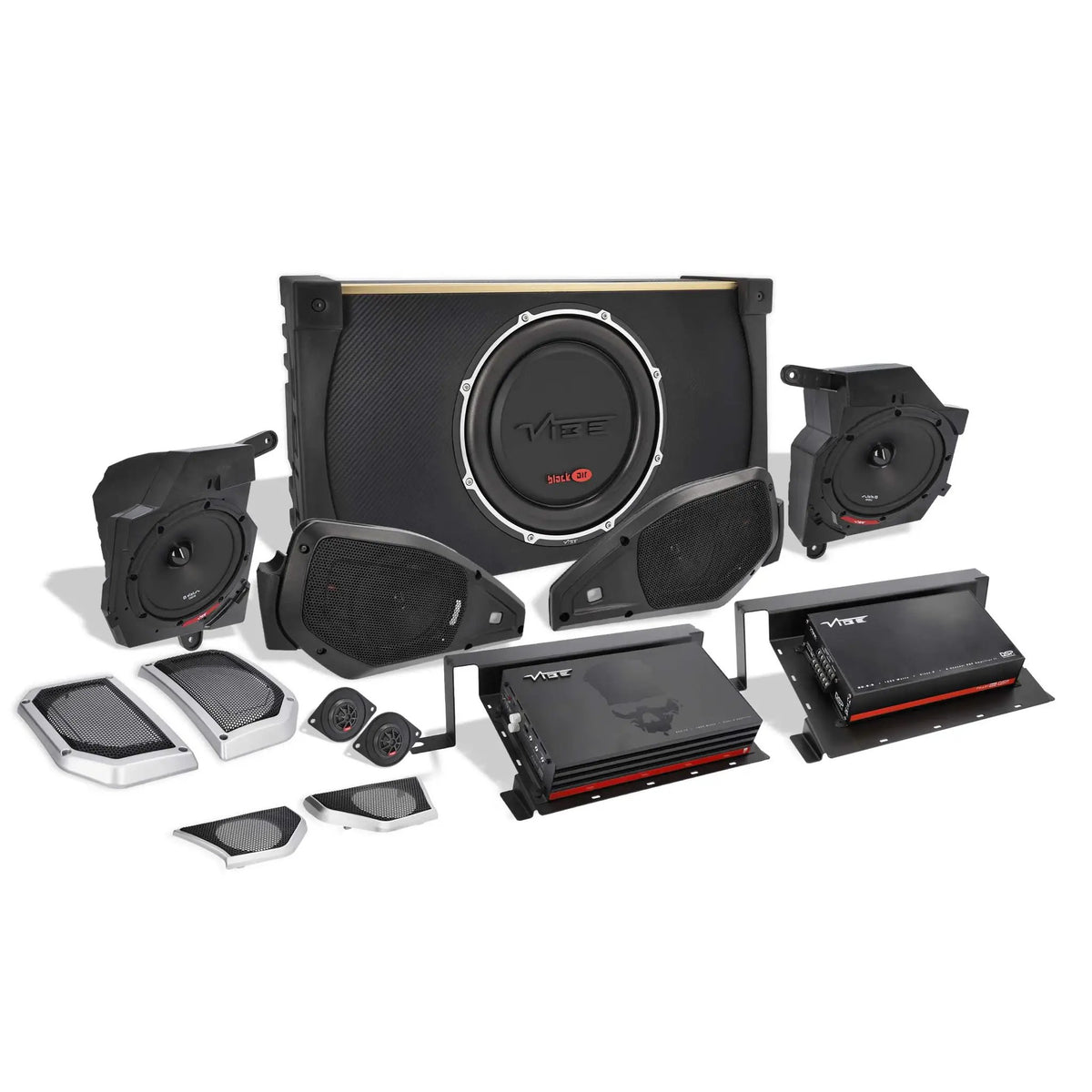

Build a matched audio upgrade for a 2024-up Jeep Wrangler JL with the Metra SoundStage / VIBE Audio JP-PPKT-1 complete audio kit. It combines a six-channel DSP amplifier, a mono amplifier, eight cabin speakers and a sealed 12-inch tailgate subwoofer for Wrangler JL models with non-amplified factory audio.
Vehicle-specific adapters, mounting racks and wiring are included to connect the system using the vehicle’s original speaker wiring. The package is designed to be installed and used as a complete system, not split into separate products.
Key Features & Benefits
- Matched amplification: The PB80.6-8DSP-V3 DSP amplifier and PB650.1D-V4 mono amplifier are supplied together for this system.
- Eight cabin speakers: Four 1-inch tweeters and four 6.5-inch drivers cover the front dash and soundbar positions.
- Tailgate subwoofer: The sealed BAMIT12-V4 enclosure includes Jeep-specific brackets for tailgate mounting.
- Vehicle-specific integration: The plug-in harness connects behind the radio and uses the original speaker wiring.

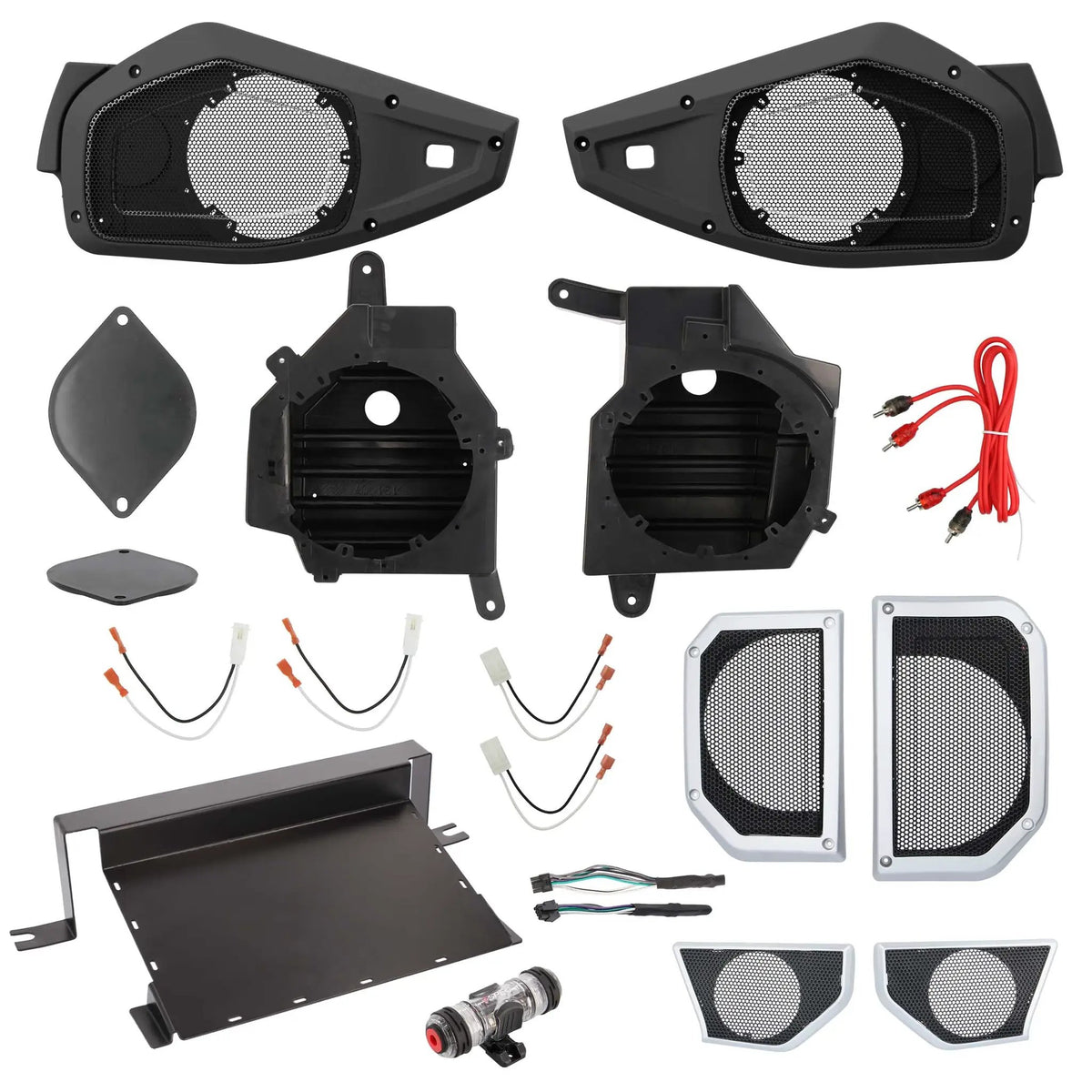

- Application-matched installation parts: Included racks, adapters, grilles, wiring and hardware support installation in the listed vehicle application.
- Vehicle-specific DSP tuning: Load the supplied equalization file through computer-based software.
Technical Specifications
| Kit | Metra SoundStage / VIBE Audio JP-PPKT-1 Jeep Wrangler JL Audio Kit |
|---|---|
| Fitment | 2024-up Jeep Wrangler JL with non-amplified factory audio; manufacturer Vehicle Applications list: 2024–2026 Jeep Wrangler |
| Exclusions and fitment notes | Not compatible with Jeep 4xe models. The application entries do not remove the factory-audio, cab/body-style or exclusion requirements. Confirm any model year later than those listed before ordering. Wranglers with power seats may require a change to amplifier-rack height. |
| System use | Use the supplied components together as the intended system. Metra specifies that the package is not designed to be split into separately installed products. |
| Package part numbers | BLK-JP-PPKT-A: vehicle-specific integration and installation parts; BLK-JP-PPKT-1B: vehicle-specific integration and installation parts; BAMIT12-V4: 12-inch subwoofer enclosure. |

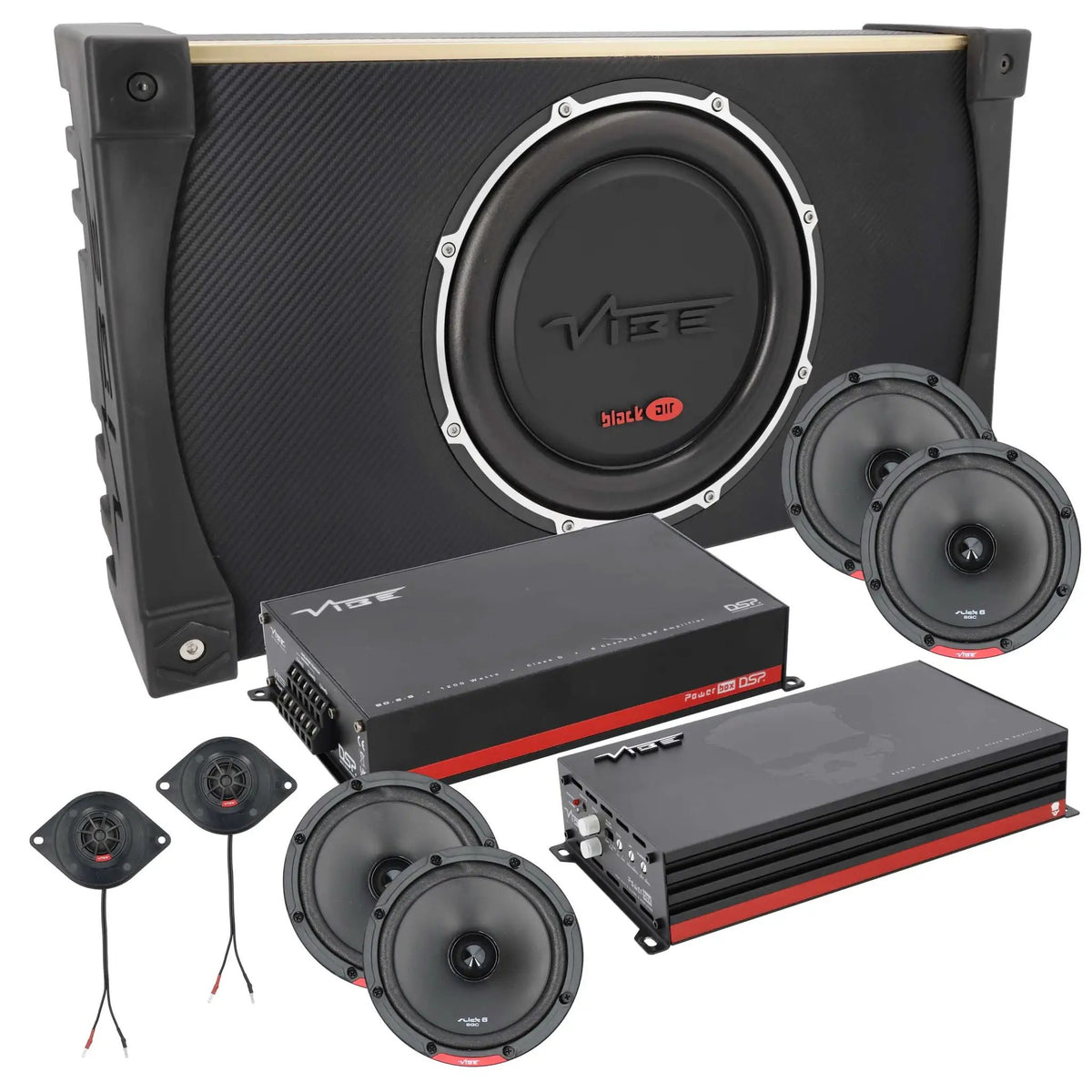

| Included items | One PB650.1D-V4 mono amplifier; one PB80.6-8DSP-V3 six-channel DSP/amplifier combination; two 1-inch front dash tweeters; two 6.5-inch front dash panel speakers; two 1-inch soundbar tweeters; two 6.5-inch soundbar speakers; 12-inch subwoofer with enclosure; vehicle-specific DSP tuning file for loading through computer software; application-matched amplifier installation kit; application-matched amp mounting racks; step-by-step installation documentation. |
Amplifiers
| Component | Specification |
|---|---|
| PB650.1D-V4 | Maximum power rating: 1200 W. Output at 4 ohms: 325 W (rating type not specified as RMS). Output at 2 ohms: 475 W (rating type not specified as RMS). Output at 1 ohm: 650 W (rating type not specified as RMS). Class D topology. Chassis dimensions (H × W × D): 1.85" H x 9.05" W x 5.27" D (47mm x 230mm x 134mm). |
| PB80.6-8DSP-V3 | Six amplified channels. Maximum power rating: 1200W. Continuous output: 6x80W RMS into 4 ohms, stereo. Specified frequency range: 20Hz – 20kHz. Compact Class D topology. Published dimensions for this kit page (H × W × D): 1.9" H x 15.4" W x 5.3" D (48mm x 391mm x 134mm). Metra gives different dimensions for this same DSP model on other kit pages; confirm chassis clearance before installation. Load the vehicle-specific DSP equalization file using computer-based software. |
Speakers and Subwoofer
| Component | Specifications and installation parts |
|---|---|

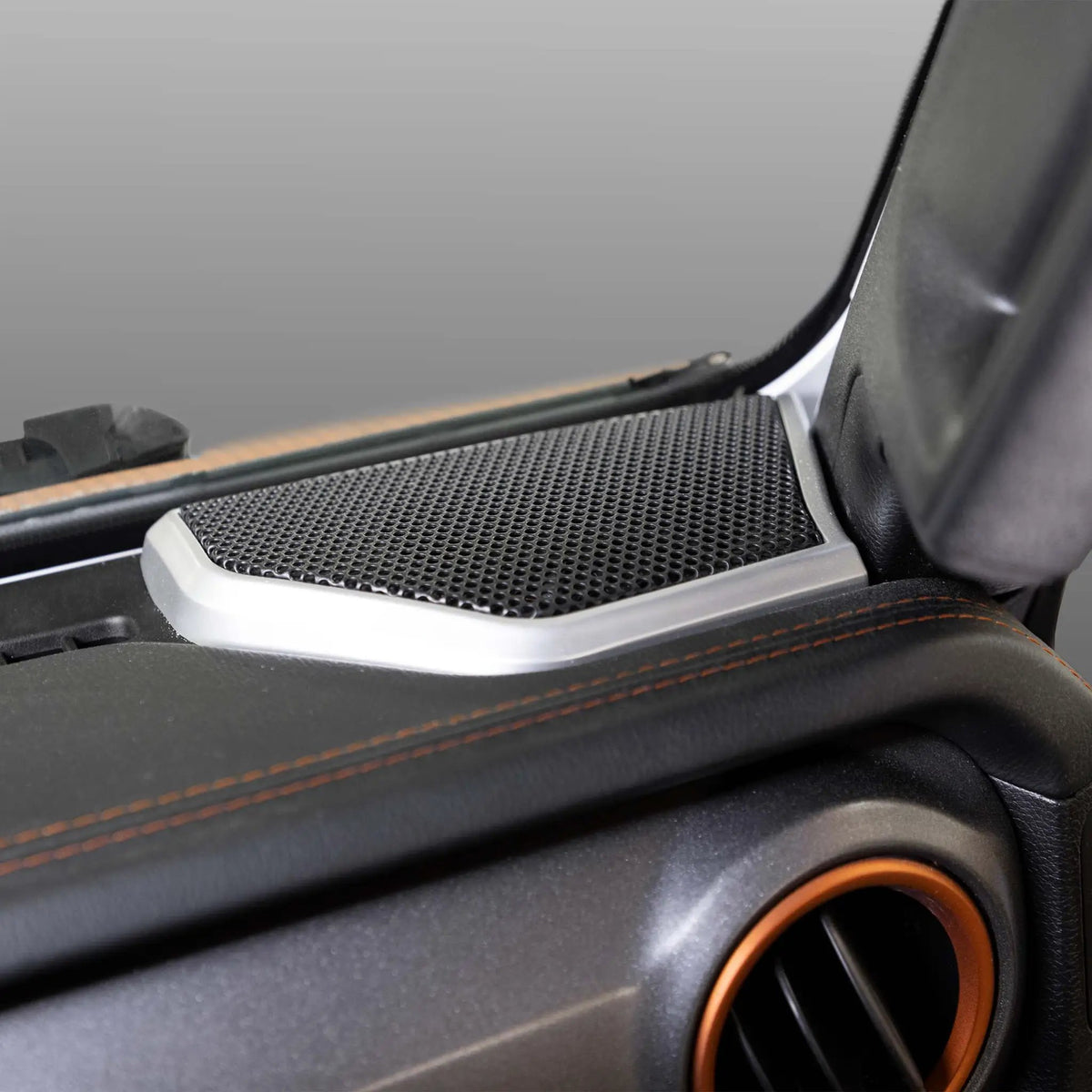

| SLICK-V4 front dash tweeters | Two 1" tweeters. Speaker power capacity: 150W Peak / 50W RMS. Rated sensitivity: 94dB. Specified frequency range: 1.5kHz - 25kHz. Nominal impedance: 4 ohms. JP-1017 grilles have injection-molded plastic surrounds, silver-painted trim and stamped-steel grille inserts. Installation components: Metra 82-3016 dash tweeter adapter plates and Metra 72-7902 dash tweeter harnesses. |

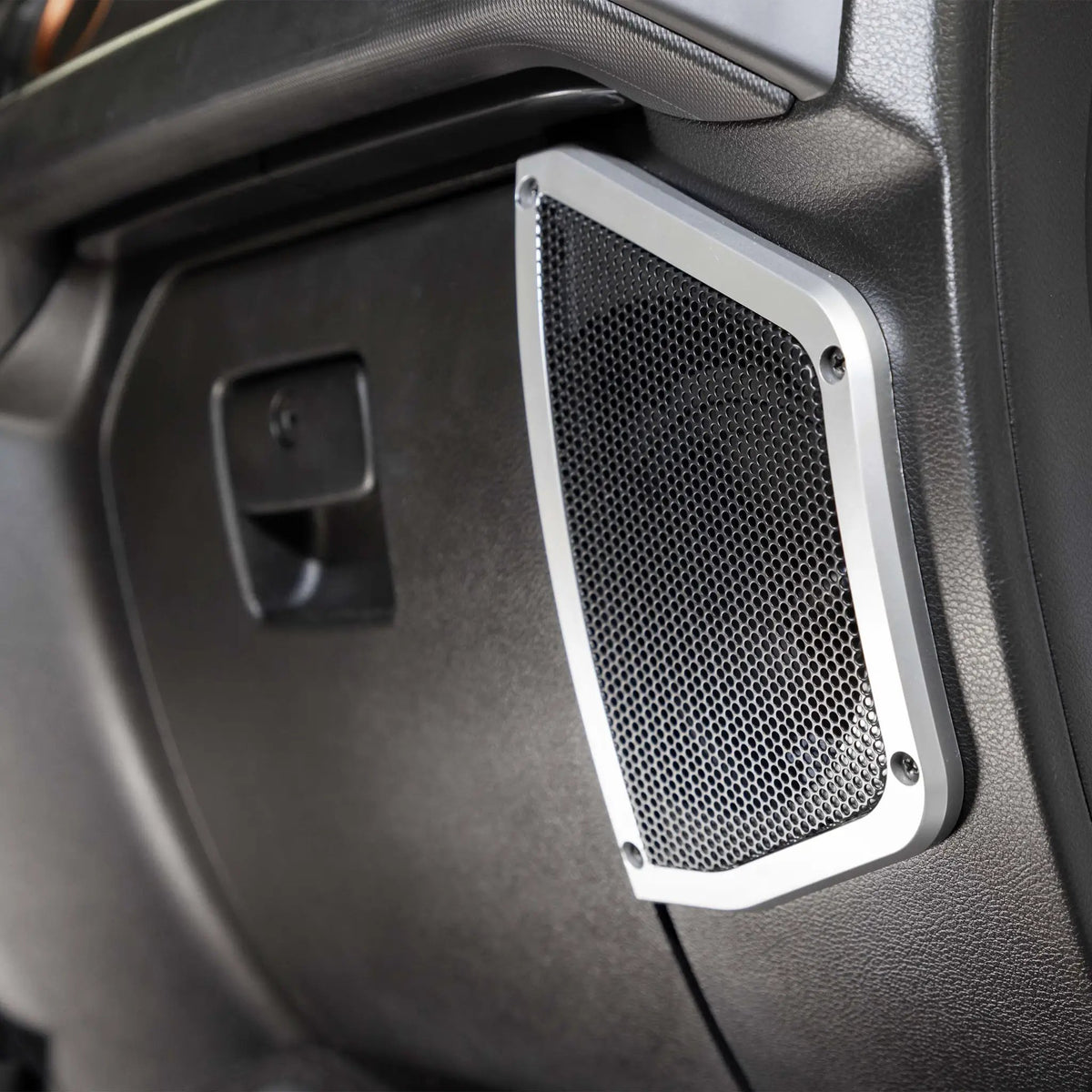

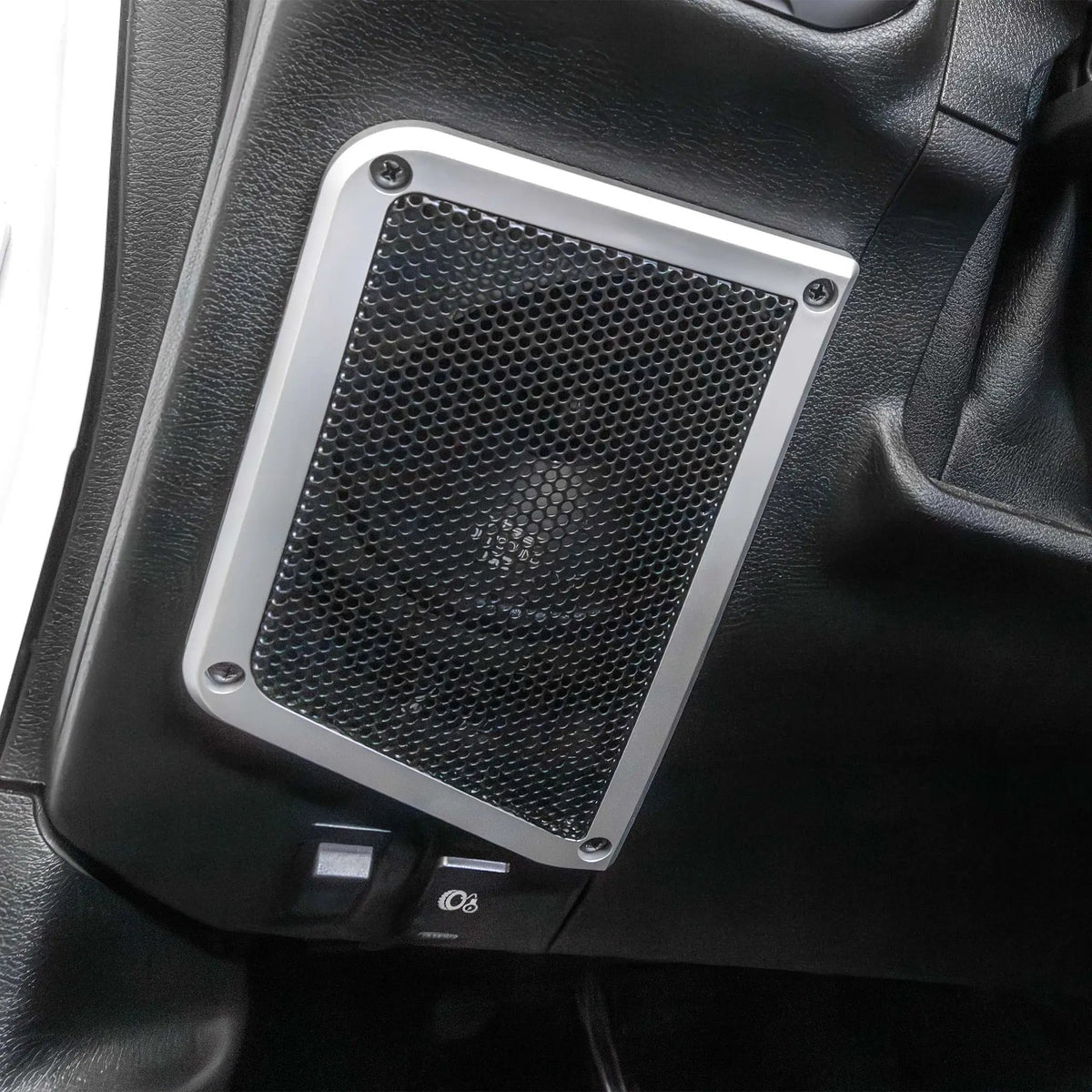

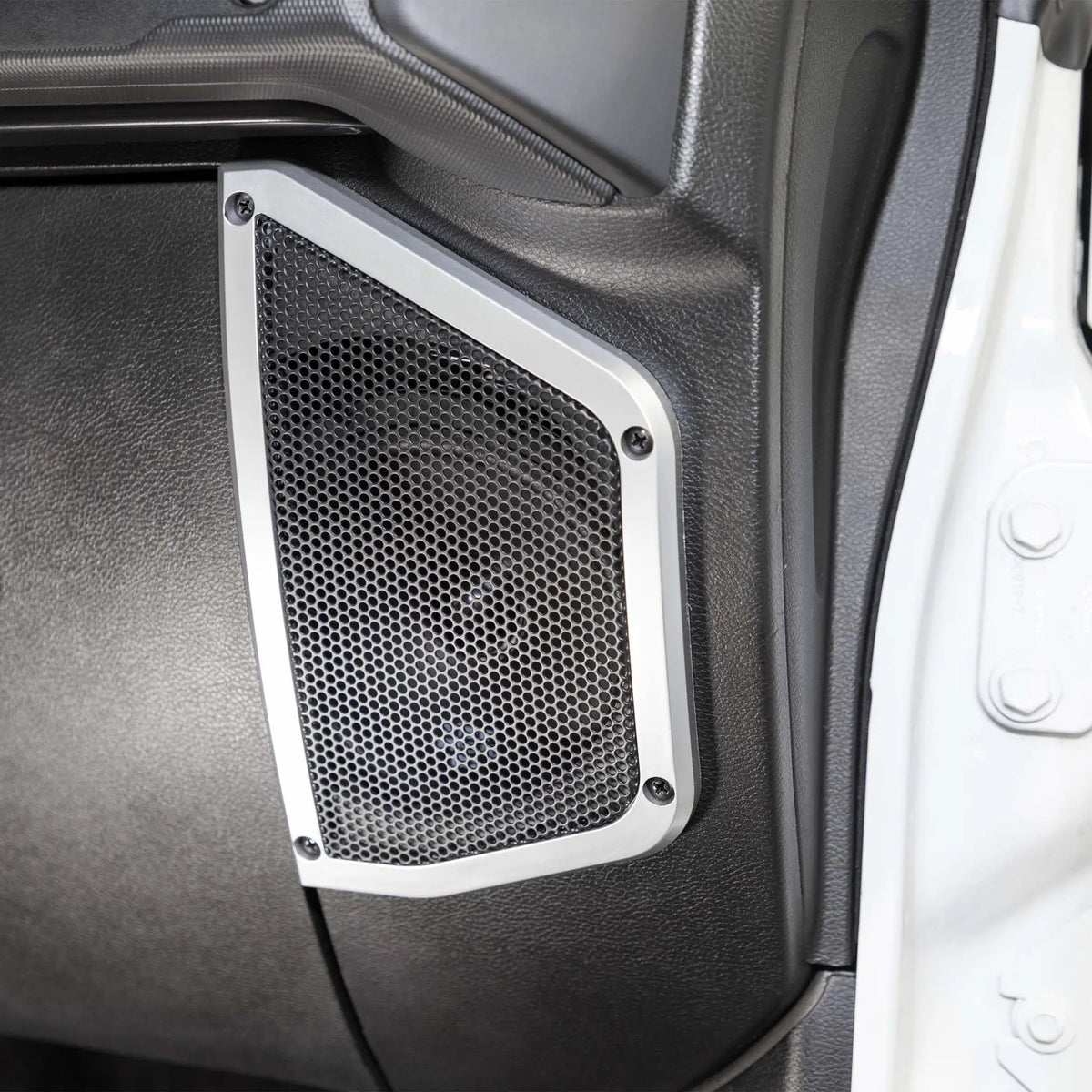

| OPTI6-V4 front dash panel speakers | Two 6.5" speakers. Speaker power capacity: 270W Peak / 90W RMS. Rated sensitivity: 94dB. Specified frequency range: 55Hz – 20kHz. Nominal impedance: 4 ohms. Installation components: Metra JP-1020 left and right lower dash speaker grille cut-ins and Metra JP-1014 lower dash sealed speaker PODs. |
| SLICK-V4 soundbar tweeters | Two 1" tweeters. Speaker power capacity: 150W Peak / 50W RMS. Rated sensitivity: 94dB. Specified frequency range: 1.5kHz - 25kHz. Nominal impedance: 4 ohms. |

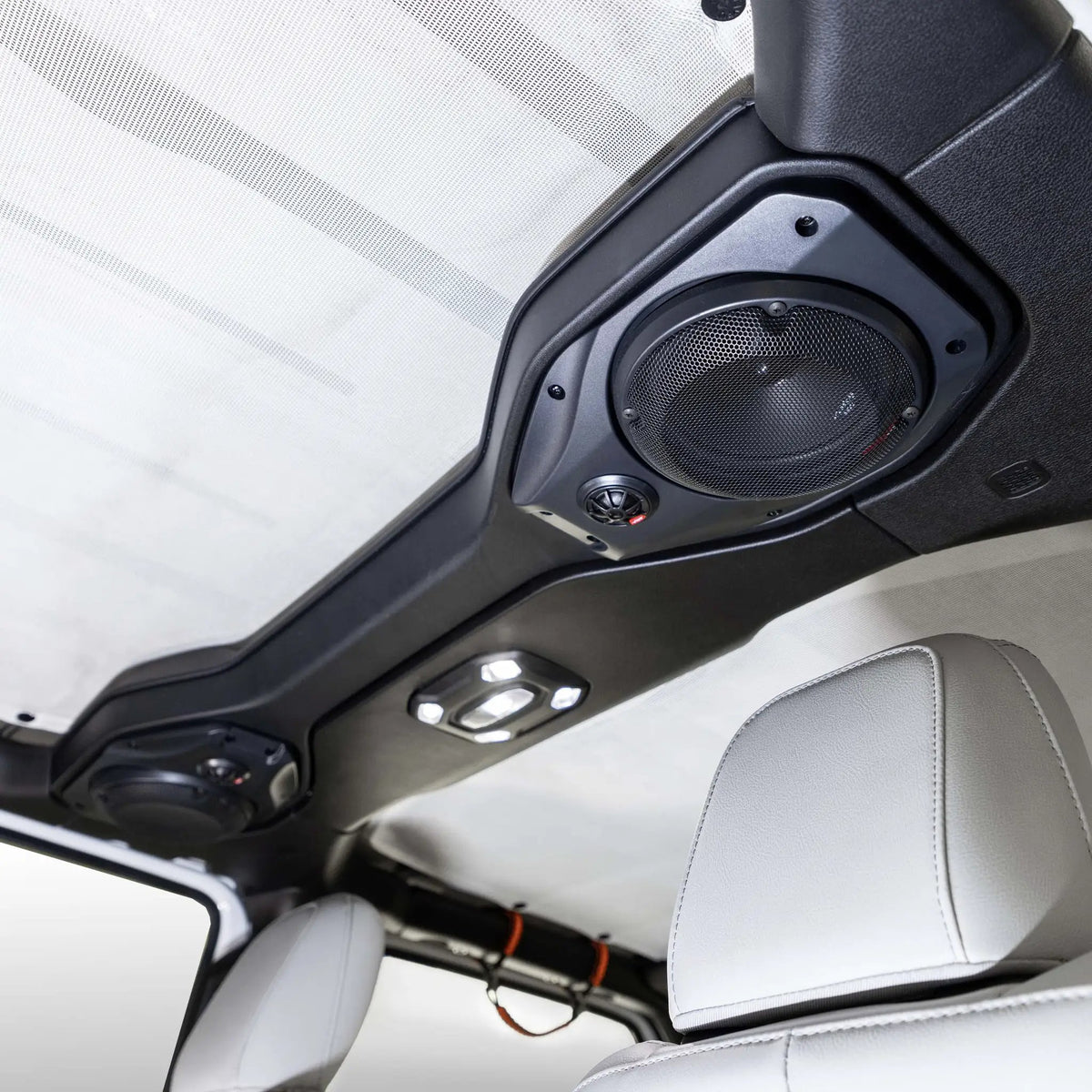

| OPTI6-V4 soundbar speakers | Two 6.5" speakers. Speaker power capacity: 270W Peak / 90W RMS. Rated sensitivity: 94dB. Specified frequency range: 55Hz – 20kHz. Nominal impedance: 4 ohms. Installation component: Metra JP-1019 soundbar speaker kit. |
| BAMIT12-V4 subwoofer and sealed enclosure | 12" subwoofer. Speaker power capacity: 900W Peak / 300W RMS. Rated sensitivity: 85dB. Nominal impedance: Dual 2 ohm. A metal protective speaker grille is supplied. Jeep-specific brackets locate the enclosure on the tailgate. |
Integration and Installation Hardware
| Component | Details |
|---|---|

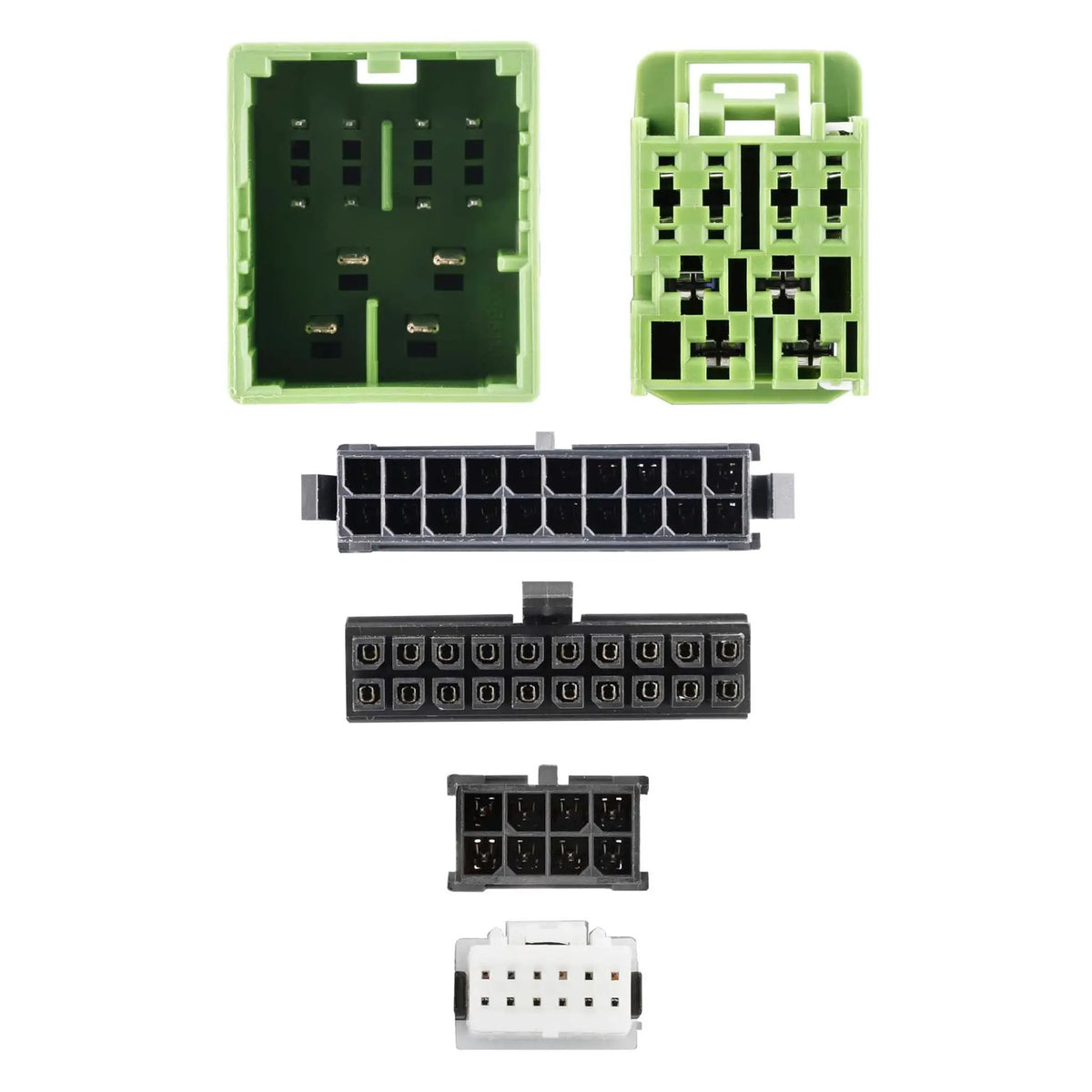

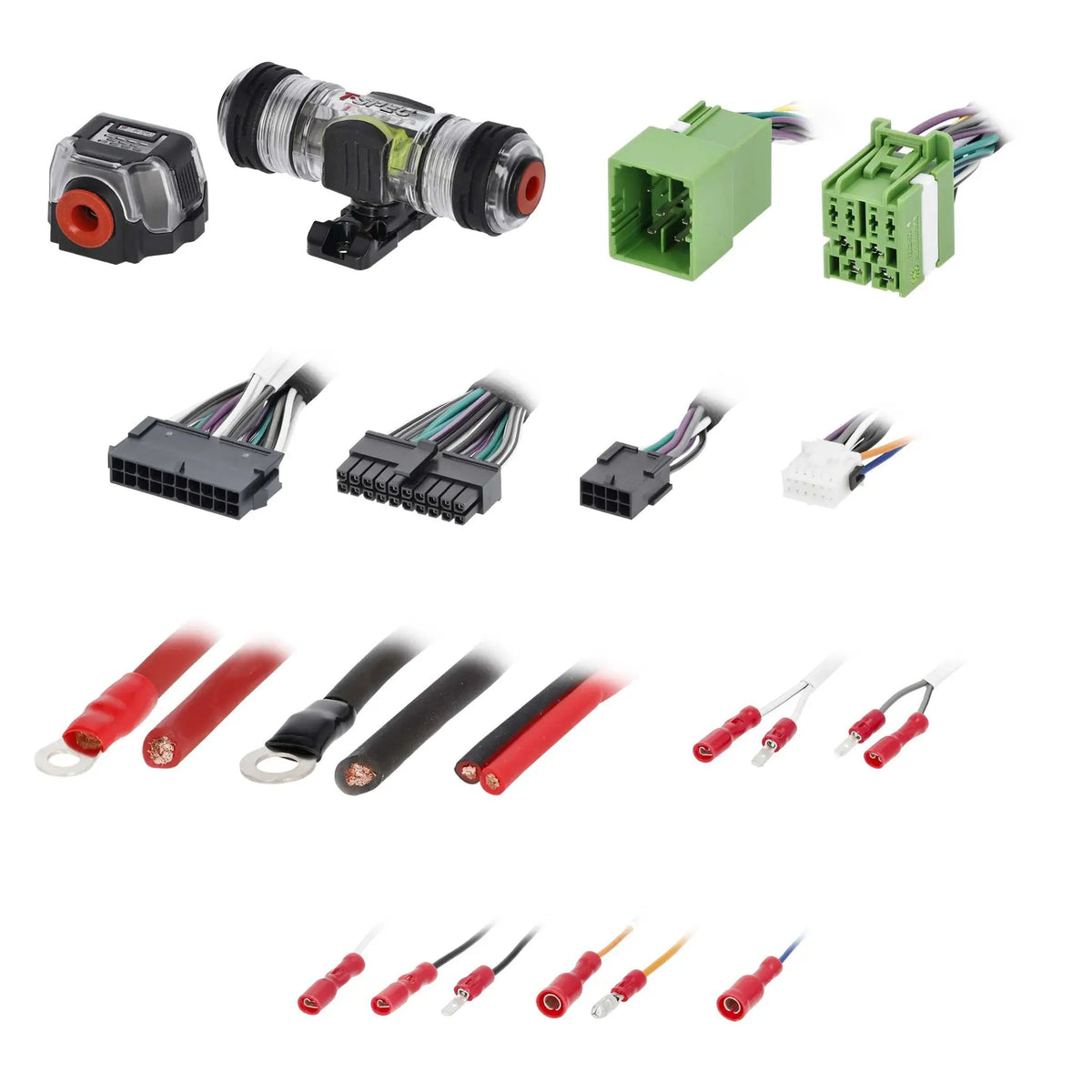

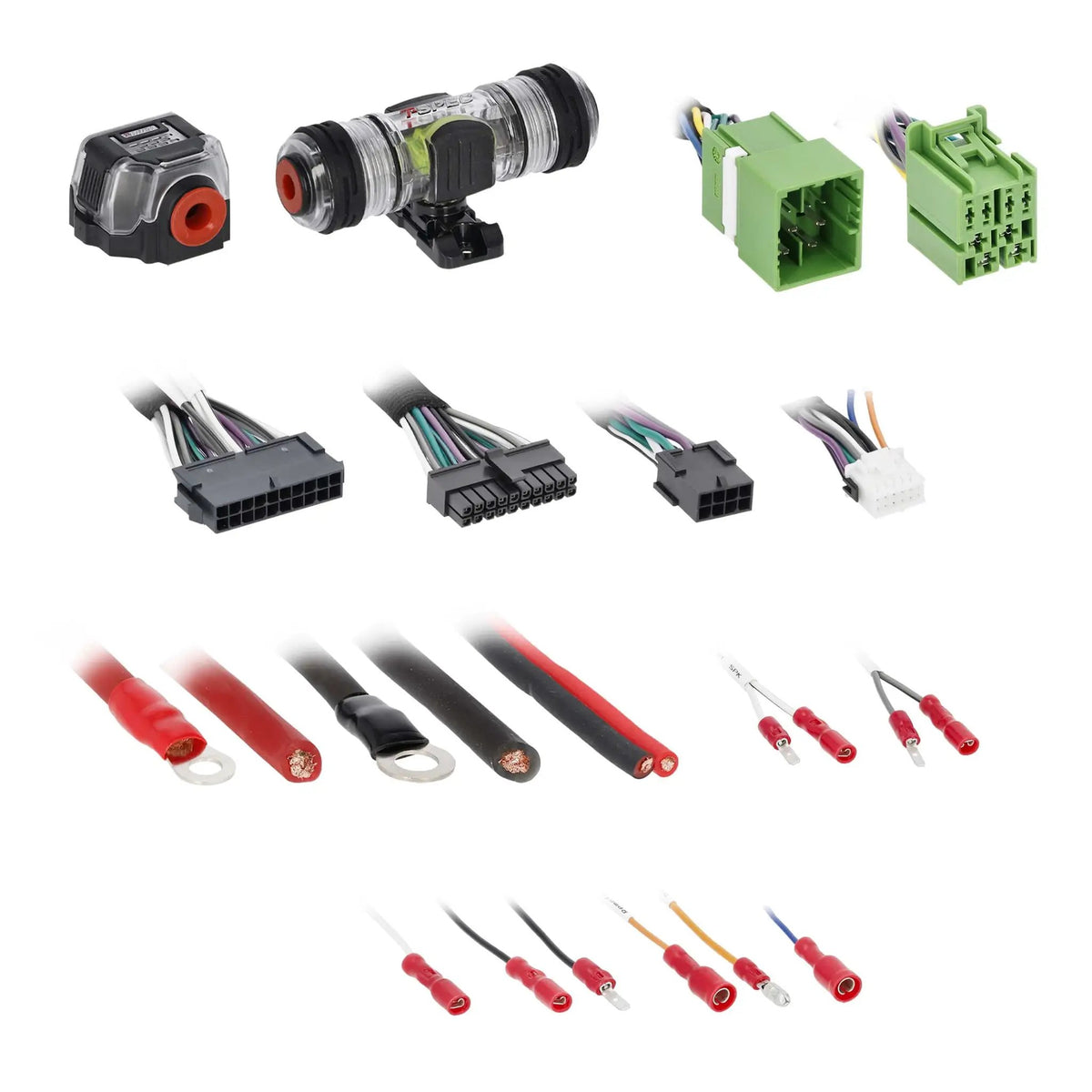

| Metra vehicle-specific amplifier interface | Plug-in integration connections. Installation position: behind the radio. Supplied connections: T-harness and original-equipment-style connectors. Connects using the vehicle’s original speaker wiring; the harness plugs into the DSP amplifier. |

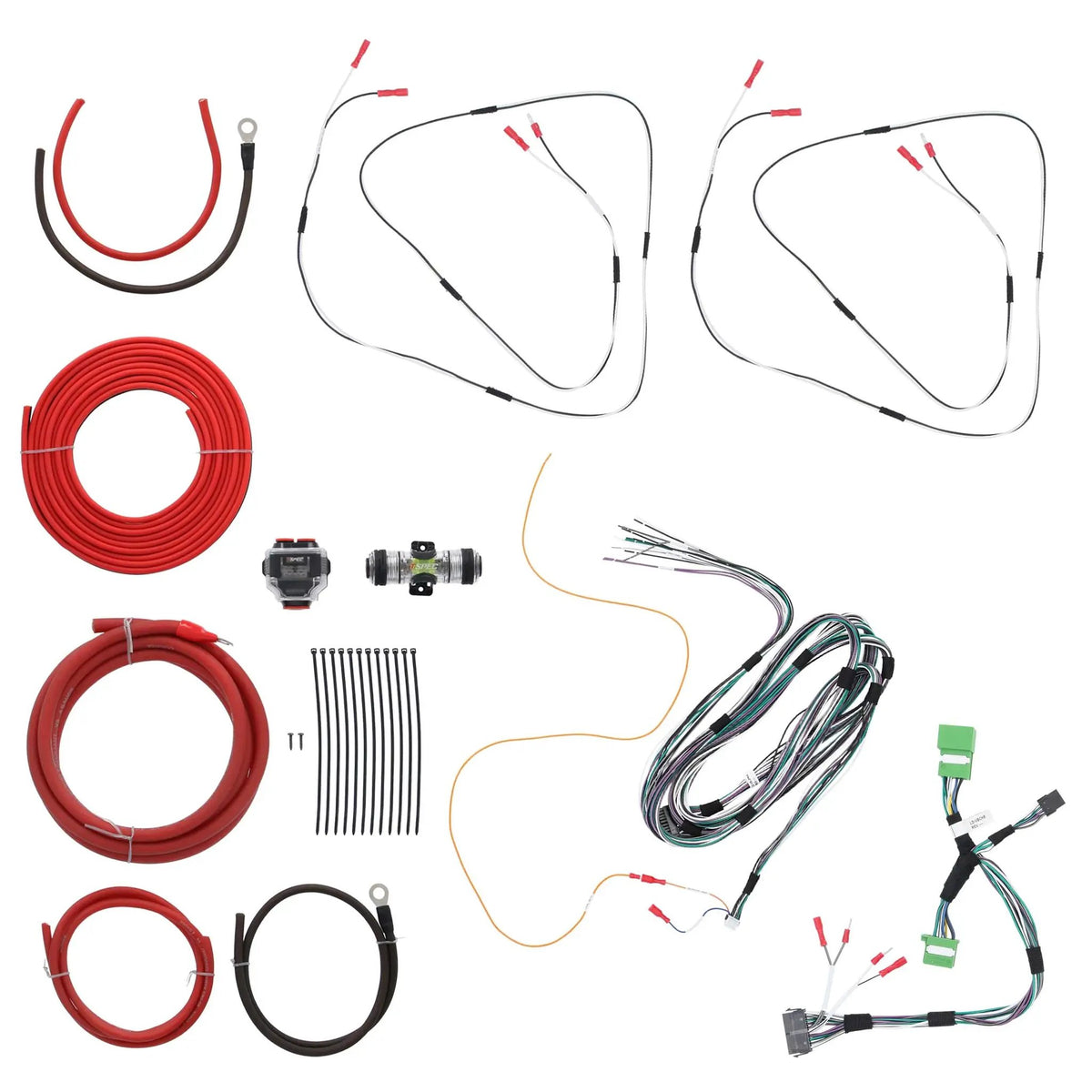

| Metra amplifier installation kit | Wiring package matched to this application. 4-gauge OFC power wire: 9.5 ft. 8-gauge OFC power wire: 8 ft. 12-gauge OFC speaker wire: 12 ft. Fuse protection: T-Spec VMANL watertight fuse holder with 100A MANL fuse. Power distribution block included. Installation fasteners/hardware supplied. |
| Metra vehicle-specific amp mounting racks | Mounting design specific to the listed vehicle application. Black powder-coated mounting plates. Racks fit under the seats and accommodate compact amplifiers. |
| Manufacturer installation estimate | Metra estimates 6–8 hours for one experienced technician. |
| Manufacturer warranty | One-year warranty for the kit. |
The ratings above belong to the named components. Peak or maximum figures are not a continuous system rating; an output is labeled RMS only where the source explicitly identifies it that way.
Why Choose This Product?
This kit brings the amplifiers, speakers, subwoofer and vehicle-specific integration parts together as one planned upgrade. Its DSP tuning file is matched to the vehicle application, while the supplied harness connects to the non-amplified factory system through the original speaker wiring.
The sealed enclosure mounts at the tailgate, but its installation makes the JL Cargo Trail Rail inaccessible. Consider that trade-off when planning how you use the cargo area.
Installation & Compatibility Notes
For the subwoofer, connect its two 2-ohm voice coils in series to create a 4-ohm final load. Follow the current installation guide for this exact kit and its wiring diagram; do not use a standalone enclosure’s alternative 1-ohm configuration for this system.
VIBE recommends unplugging the original JL/JLU factory subwoofer. Follow this complete kit’s amplifier-bypass and wiring instructions for the specified factory audio system. Confirm vehicle fitment, mounting clearance and the latest installation steps before starting. Power-seat vehicles may require a change to amplifier-rack height.
Frequently Asked Questions
Which Jeep Wrangler models does the JP-PPKT-1 fit?
It is listed for 2024-up Jeep Wrangler JL models with non-amplified factory audio. The manufacturer’s Vehicle Applications list identifies 2024–2026 Jeep Wrangler. It is not compatible with Jeep 4xe models.
What final impedance should the included subwoofer use?
Connect the BAMIT12-V4’s two 2-ohm voice coils in series for a 4-ohm final load. Use this kit’s wiring diagram and instructions.
Can I install the components separately?
No. Metra specifies that this package is intended to be used as a complete system, not split into separately installed products.
Will the subwoofer affect cargo access?
Yes. Installing the included BAMIT12-V4 enclosure makes the JL Cargo Trail Rail inaccessible.
Do the amplifier dimensions require a clearance check?
Yes. Confirm chassis clearance before installation. Metra publishes different dimensions for the PB80.6-8DSP-V3 on other kit pages, and power seats may require an amplifier-rack height change.
