Metra SoundStage / VIBE Audio JP-PPKT-3 Jeep Wrangler JL Audio Kit (2018–2023, non-amplified)
Key features
- Fitment: 2018–2023 Jeep Wrangler JL, non-amplified; excludes 4xe
- JL Cargo Trail Rail: inaccessible with the included tailgate enclosure installed
- Factory subwoofer: follow kit bypass steps; VIBE recommends unplugging it for the BAMIT enclosure
- Amplification: six-channel DSP amplifier plus PB650.1D-V4 mono amplifier
- Cabin speakers: four 1-inch tweeters and four 6.5-inch drivers
- Bass: BAMIT12-V4 sealed 12-inch subwoofer with tailgate mounting hardware; wire the dual 2-ohm coils in series for the required 4-ohm load
Metra SoundStage / VIBE Audio JP-PPKT-3 Jeep Wrangler JL Audio Kit (2018–2023, non-amplified) is backordered and will ship as soon as it is back in stock.
Metra SoundStage / VIBE Audio JP-PPKT-3 Jeep Wrangler JL Audio Kit (2018–2023, non-amplified) is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview
Build a coordinated audio upgrade for a 2018–2023 Jeep Wrangler JL with the Metra SoundStage / VIBE Audio JP-PPKT-3 non-amplified audio kit. It combines DSP amplification, eight cabin speakers and a sealed 12-inch tailgate subwoofer with vehicle-specific integration and mounting components.
The system places separate tweeters and 6.5-inch speakers in the front dash and rear soundbar. Its supplied harness connects to the non-amplified factory system through the original speaker wiring.
Key Features & Benefits
- Matched audio system: The DSP amplifier, mono amplifier, speakers and subwoofer are supplied as one system.
- Vehicle-specific integration: The plug-in harness and application-matched installation components are designed for the listed Wrangler JL application.
- Tailgate subwoofer: The sealed enclosure uses Jeep-specific brackets and includes a metal protective grille.
- Under-seat amplifier racks: The black powder-coated racks are designed for compact amplifiers and fit under the seats.
- DSP tuning file: Load the vehicle-specific file using computer-based software.
Technical Specifications
| Product | Metra SoundStage / VIBE Audio JP-PPKT-3 Jeep Wrangler JL Audio Kit |
|---|---|
| Fitment | 2018–2023 Jeep Wrangler JL with non-amplified factory audio; manufacturer vehicle applications list 2018–2023 Jeep Wrangler |
| Exclusion | Not compatible with Jeep 4xe models. Application entries do not remove factory-audio, cab/body-style or exclusion requirements. |

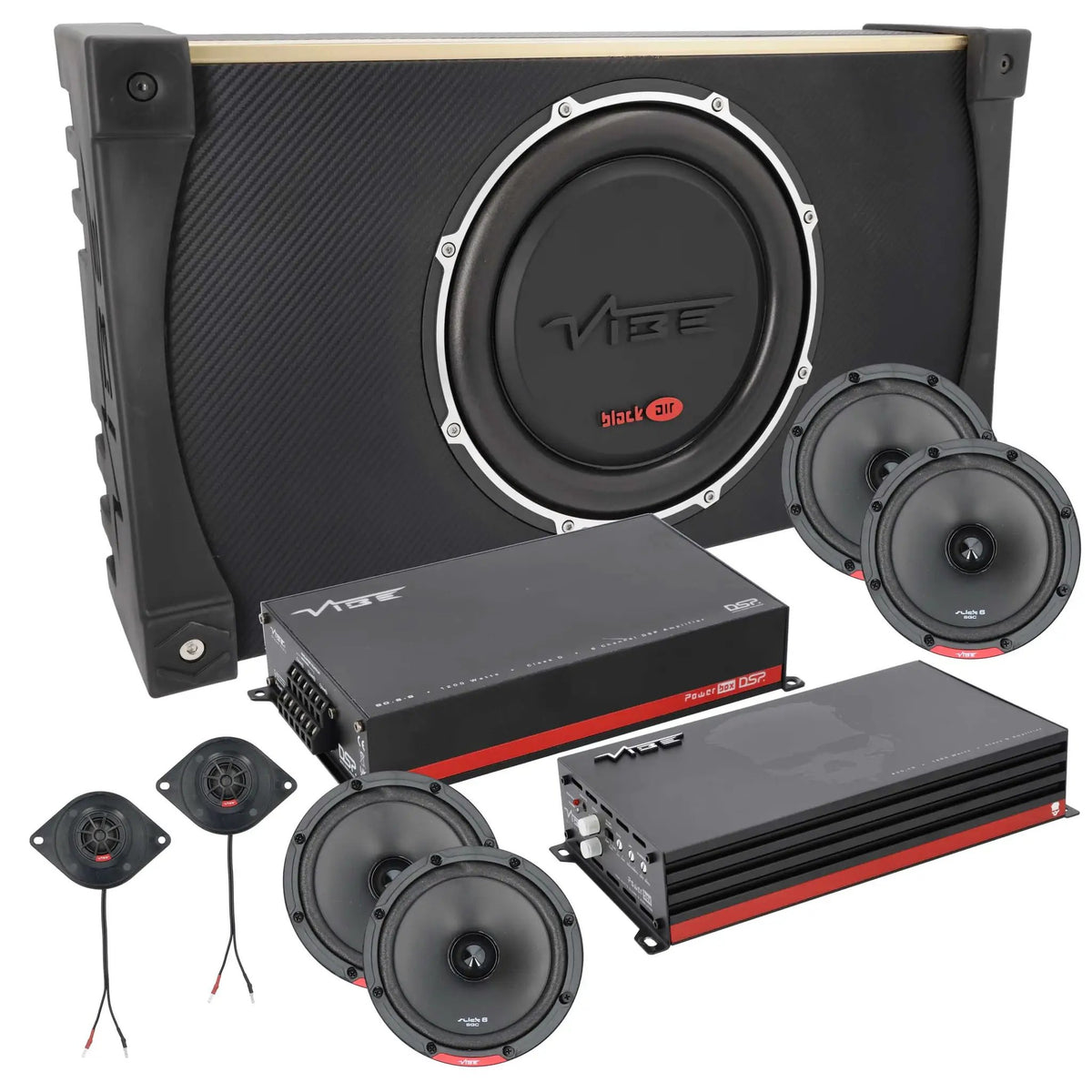

| System components | PB80.6-8DSP-V3 six-channel DSP amplifier and amplifier combination; PB650.1D-V4 mono amplifier; eight cabin speakers; BAMIT12-V4 sealed 12-inch subwoofer |
| Package part numbers | BLK-JP-PPKT-A: vehicle-specific integration and installation parts; BLK-JP-PPKT-3B: vehicle-specific integration and installation parts; BAMIT12-V4: 12-inch subwoofer enclosure |

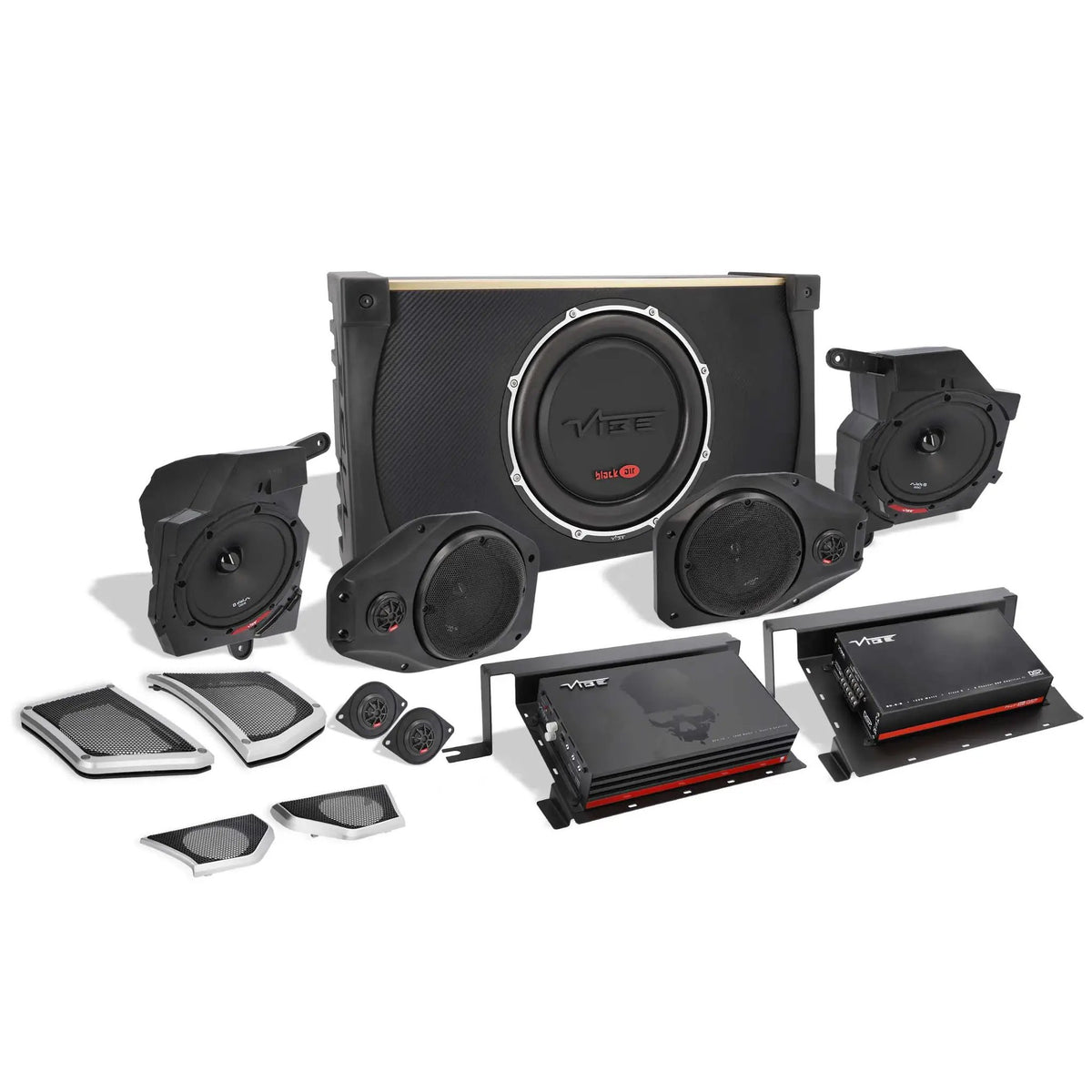

| Included items | One PB650.1D-V4 mono amplifier; one PB80.6-8DSP-V3 six-channel DSP/amplifier combination; two 1-inch front dash tweeters; two 6.5-inch front dash panel speakers; two 1-inch soundbar tweeters; two 6.5-inch soundbar speakers; 12-inch subwoofer with enclosure; vehicle-specific DSP tuning file; application-matched amplifier installation kit; application-matched amp mounting racks; step-by-step installation documentation |
| PB650.1D-V4 maximum power rating | 1200W |
|---|---|
| PB650.1D-V4 output at 4 ohms | 325W; rating type not specified as RMS |
| PB650.1D-V4 output at 2 ohms | 475W; rating type not specified as RMS |
| PB650.1D-V4 output at 1 ohm | 650W; rating type not specified as RMS |
| PB650.1D-V4 chassis dimensions (H × W × D) | 1.85" H × 9.05" W × 5.27" D (47mm × 230mm × 134mm) |
| PB650.1D-V4 topology | Class D |
| PB80.6-8DSP-V3 amplified channels | 6 |
| PB80.6-8DSP-V3 maximum power rating | 1200W |
| PB80.6-8DSP-V3 continuous output | 6 × 80W RMS into 4 ohms, stereo |
| PB80.6-8DSP-V3 specified frequency range | 20Hz – 20kHz |
| PB80.6-8DSP-V3 published dimensions for this kit page (H × W × D) | 1.9" H × 15.4" W × 5.3" D (48mm × 391mm × 134mm) |
| PB80.6-8DSP-V3 topology | Compact Class D |
| DSP tuning | Load the vehicle-specific DSP equalization file using computer-based software. Metra gives different dimensions for this same DSP model on other kit pages; confirm chassis clearance before installation. |
| SLICK-V4 front dash and soundbar tweeters | Nominal driver size: 1"; speaker power capacity: 150W Peak / 50W RMS; rated sensitivity: 94dB; specified frequency range: 1.5kHz - 25kHz; nominal impedance: 4 ohms |
|---|---|
| JP-1017 grilles | Injection-molded plastic surrounds, silver-painted trim and stamped-steel grille inserts |

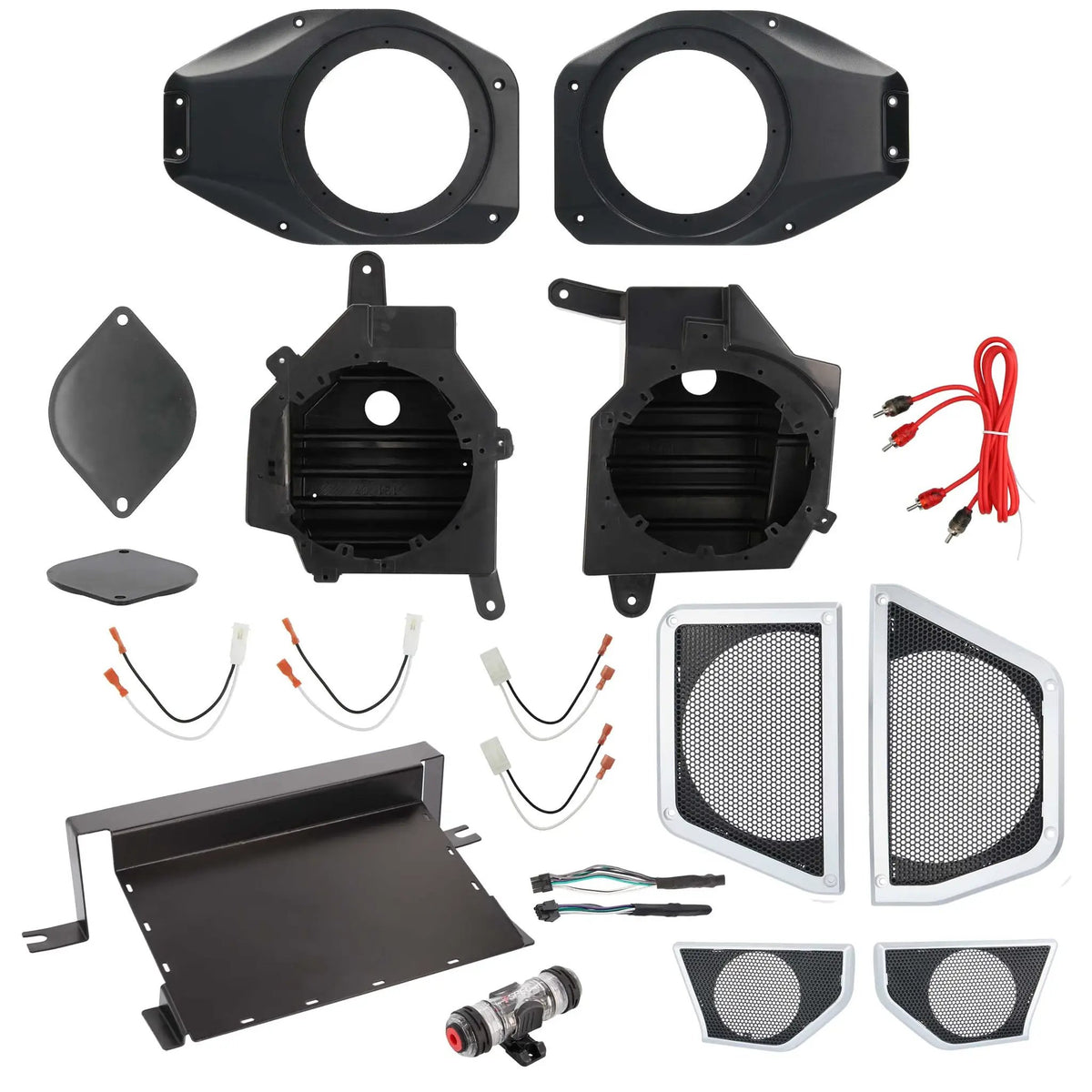

| Front dash tweeter installation components | Metra 82-3016 dash tweeter adapter plates; Metra 72-7902 dash tweeter harnesses |
| OPTI6-V4 front dash panel speakers | Nominal driver size: 6.5"; speaker power capacity: 270W Peak / 90W RMS; rated sensitivity: 94dB; specified frequency range: 55Hz – 20kHz; nominal impedance: 4 ohms |
| Front dash speaker installation components | Metra JP-1018 left and right lower dash speaker grille cut-ins; Metra JP-1014 lower dash sealed speaker PODs |
| OPTI6-V4 soundbar speakers | Nominal driver size: 6.5"; speaker power capacity: 270W Peak / 90W RMS; rated sensitivity: 94dB; specified frequency range: 55Hz – 20kHz; nominal impedance: 4 ohms |
| Soundbar speaker installation components | Metra JP-1015 soundbar speaker kit; Metra BC-SPG universal speaker grilles |
| BAMIT12-V4 subwoofer | 12-inch sealed enclosure; speaker power capacity: 900W Peak / 300W RMS; rated sensitivity: 85dB; nominal impedance: dual 2 ohm; metal protective speaker grille supplied; Jeep-specific tailgate mounting brackets |
| Vehicle-specific harness | Plug-in integration wiring; interface/harness installation position: behind the radio; supplied connections: T-harness and original-equipment-style connectors; uses the vehicle’s original speaker wiring and plugs into the DSP amplifier |
|---|---|

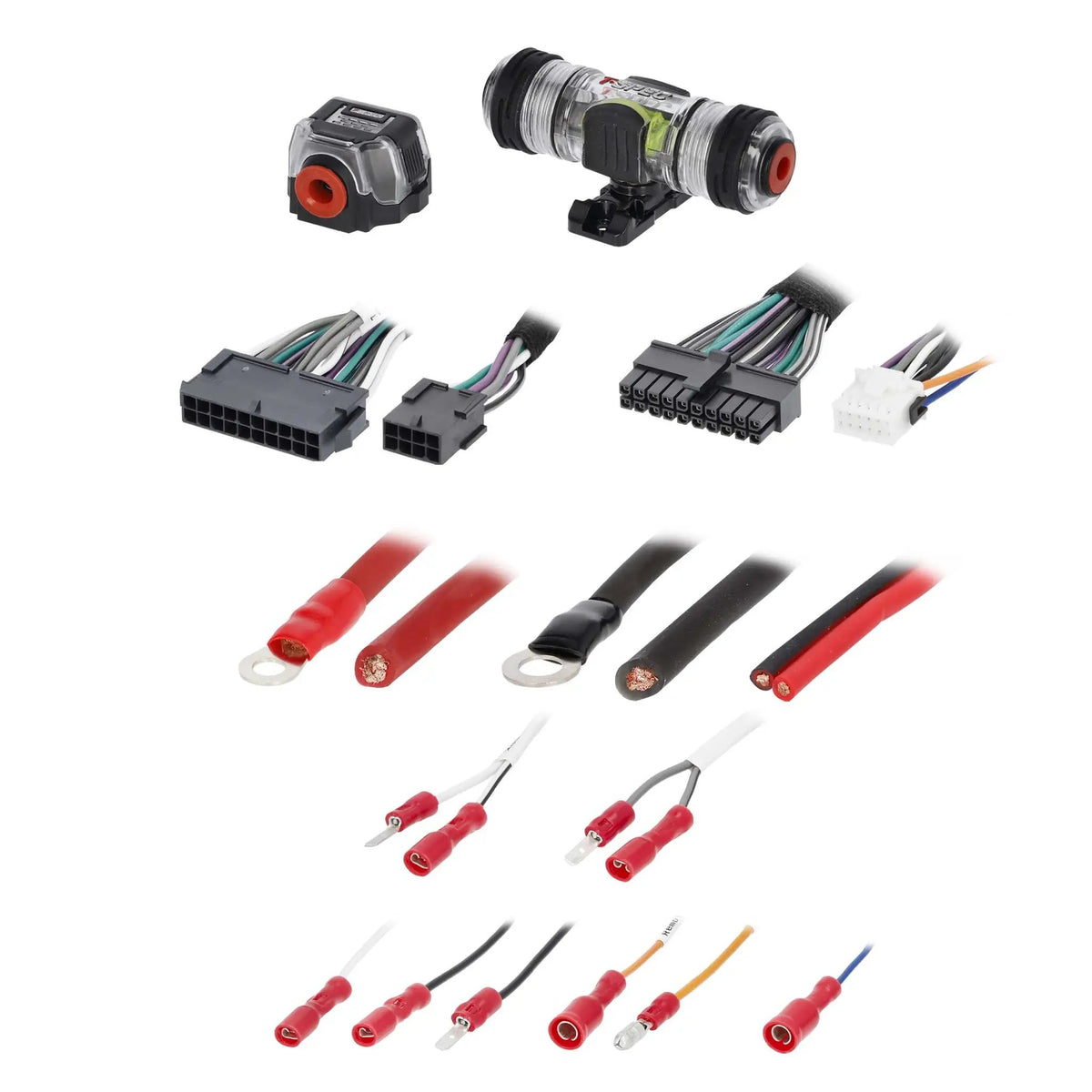

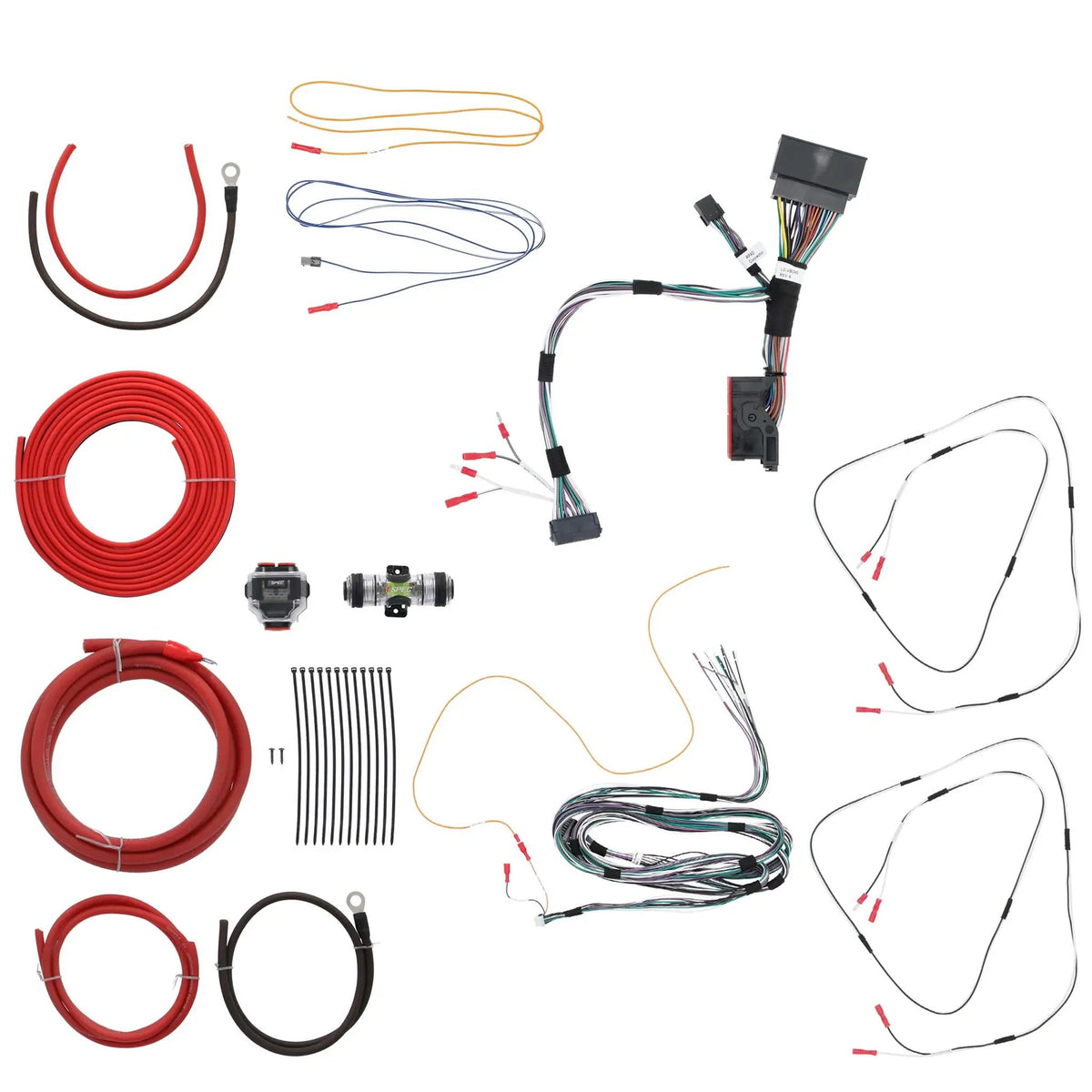

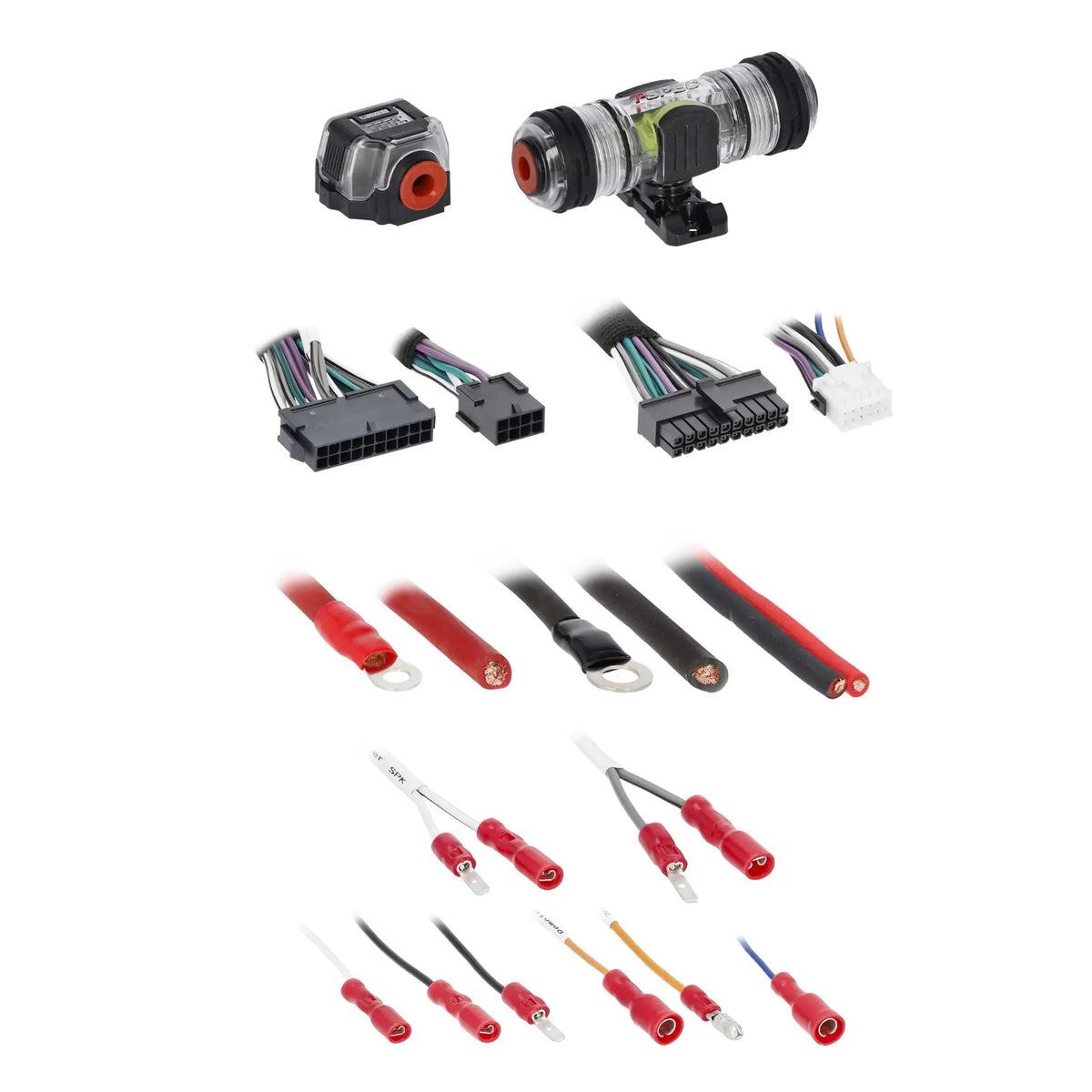

| Amplifier installation wiring | 4-gauge OFC power wire: 9.5 ft; 8-gauge OFC power wire: 8 ft; 12-gauge OFC speaker wire: 12 ft |
| Fuse and distribution | T-Spec VMANL watertight fuse holder with 100A MANL fuse; power distribution block included |
| Installation hardware | Installation fasteners and hardware supplied |
| Vehicle-specific amplifier racks | Mounting design specific to the listed vehicle application; black powder-coated mounting plates; fit under the seats and accommodate compact amplifiers |
| Manufacturer installation-time estimate | 6–8 hours for one experienced technician |
| Manufacturer warranty | One year for the kit |
Why Choose This Product?
The JP-PPKT-3 brings the amplification, speakers, subwoofer, integration harness and application-matched mounting parts together in one complete kit. The DSP file is specific to the vehicle, while the harness uses the original speaker wiring to connect the non-amplified factory system.
Metra specifies that the package is not designed to be split into separately installed products. Use the supplied components together as the intended system.
Installation & Compatibility Notes
- Confirm the audio configuration: This kit is for 2018–2023 Wrangler JL models with non-amplified factory audio. It is not compatible with 4xe models.
- Wire the subwoofer for this kit: Connect its two 2-ohm voice coils in series for a 4-ohm final load. Follow this kit’s current installation guide and wiring diagram; do not use a standalone enclosure’s alternative 1-ohm configuration.
- Plan for the factory subwoofer: VIBE recommends unplugging the original JL/JLU factory subwoofer. Follow this kit’s amplifier-bypass and wiring instructions for the specified factory audio system.
- Check cargo access: Installing the included BAMIT12-V4 enclosure makes the JL Cargo Trail Rail inaccessible.
- Check amplifier clearance: Confirm chassis clearance before installation, including for the DSP amplifier.
- Allow installation time: Metra estimates 6–8 hours for one experienced technician. Confirm vehicle fitment, mounting clearance and the latest installation steps before starting.
Frequently Asked Questions
Which Wrangler audio systems does the JP-PPKT-3 fit?
It is specified for 2018–2023 Jeep Wrangler JL models with non-amplified factory audio. It is not compatible with Jeep 4xe models.
What final impedance does the subwoofer require in this kit?
Connect the subwoofer’s two 2-ohm voice coils in series for a 4-ohm final load. Follow the kit’s wiring diagram.
Can I install the included components separately?
Metra says the package is not designed to be split into separately installed products. Use the supplied components together as the intended system.
Will the enclosure affect cargo-area access?
Yes. Installing the included BAMIT12-V4 enclosure makes the JL Cargo Trail Rail inaccessible.
Does the kit include installation parts and documentation?
Yes. It includes vehicle-specific integration and installation components, amplifier racks, wiring, hardware and step-by-step installation documentation.
