Metra SoundStage / VIBE Audio JP-PPKT-4 Jeep Wrangler JL Audio Kit (2018–2023, factory-amplified)
Key features
- Fitment: 2018–2023 Jeep Wrangler JL, factory-amplified; excludes 4xe
- JL Cargo Trail Rail: inaccessible with the included tailgate enclosure installed
- Factory subwoofer: follow kit bypass steps; VIBE recommends unplugging it for the BAMIT enclosure
- Amplification: six-channel DSP amplifier plus PB650.1D-V4 mono amplifier
- Cabin speakers: four 1-inch tweeters and four 6.5-inch drivers
- Bass: BAMIT12-V4 sealed 12-inch subwoofer with tailgate mounting hardware; wire the dual 2-ohm coils in series for the required 4-ohm load
Metra SoundStage / VIBE Audio JP-PPKT-4 Jeep Wrangler JL Audio Kit (2018–2023, factory-amplified) is backordered and will ship as soon as it is back in stock.
Metra SoundStage / VIBE Audio JP-PPKT-4 Jeep Wrangler JL Audio Kit (2018–2023, factory-amplified) is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview
Build a coordinated audio upgrade for a factory-amplified 2018–2023 Jeep Wrangler JL with the Metra SoundStage / VIBE Audio JP-PPKT-4 audio kit. It combines two amplifiers, eight cabin speakers, a sealed 12-inch tailgate subwoofer, vehicle-specific integration parts, and installation hardware.
The system is designed for the listed factory-amplified configuration. Its supplied interface and bypass harness connect the new system to the vehicle-specific audio setup.
Key Features & Benefits
- Two amplifiers: The six-channel DSP amplifier and dedicated mono amplifier serve the system’s cabin speakers and subwoofer.
- Eight cabin speakers: Four 1-inch tweeters and four 6.5-inch drivers are supplied for the front dash and soundbar.

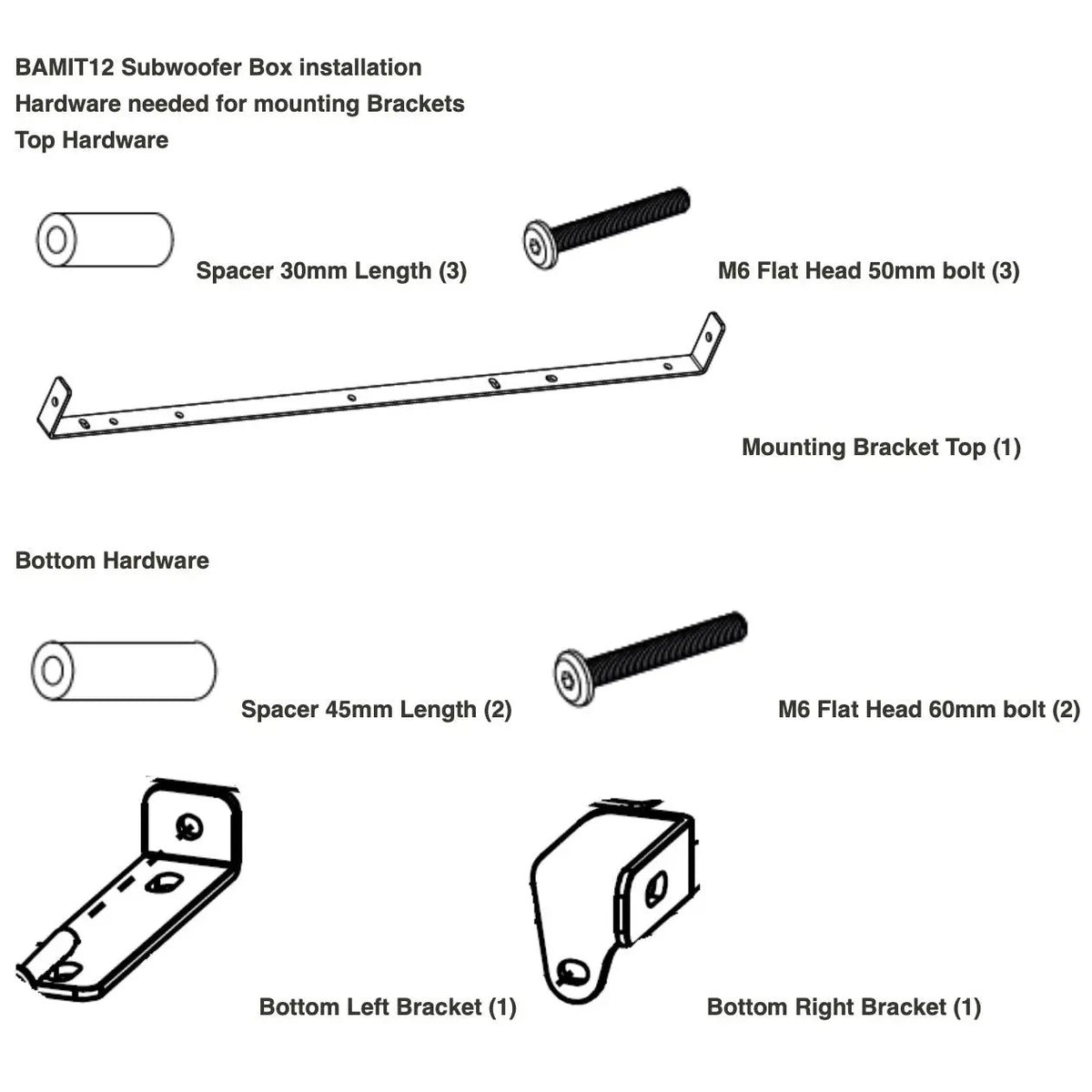

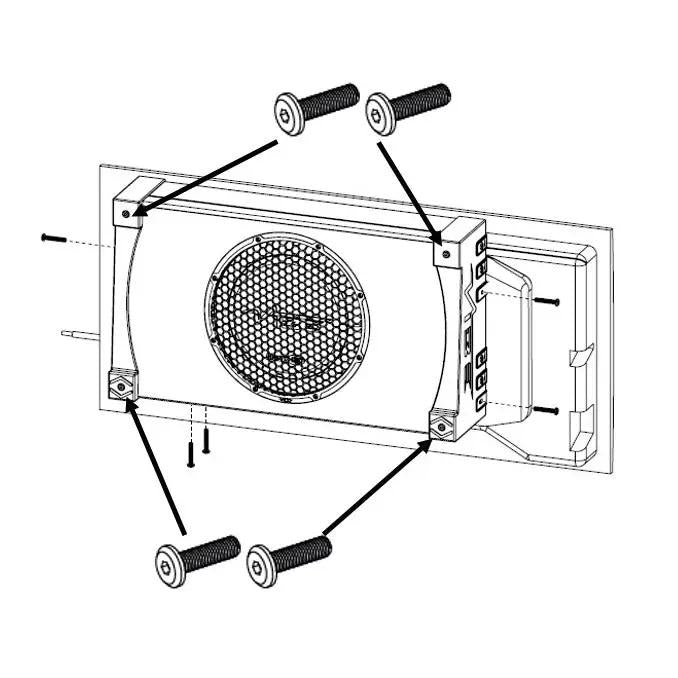

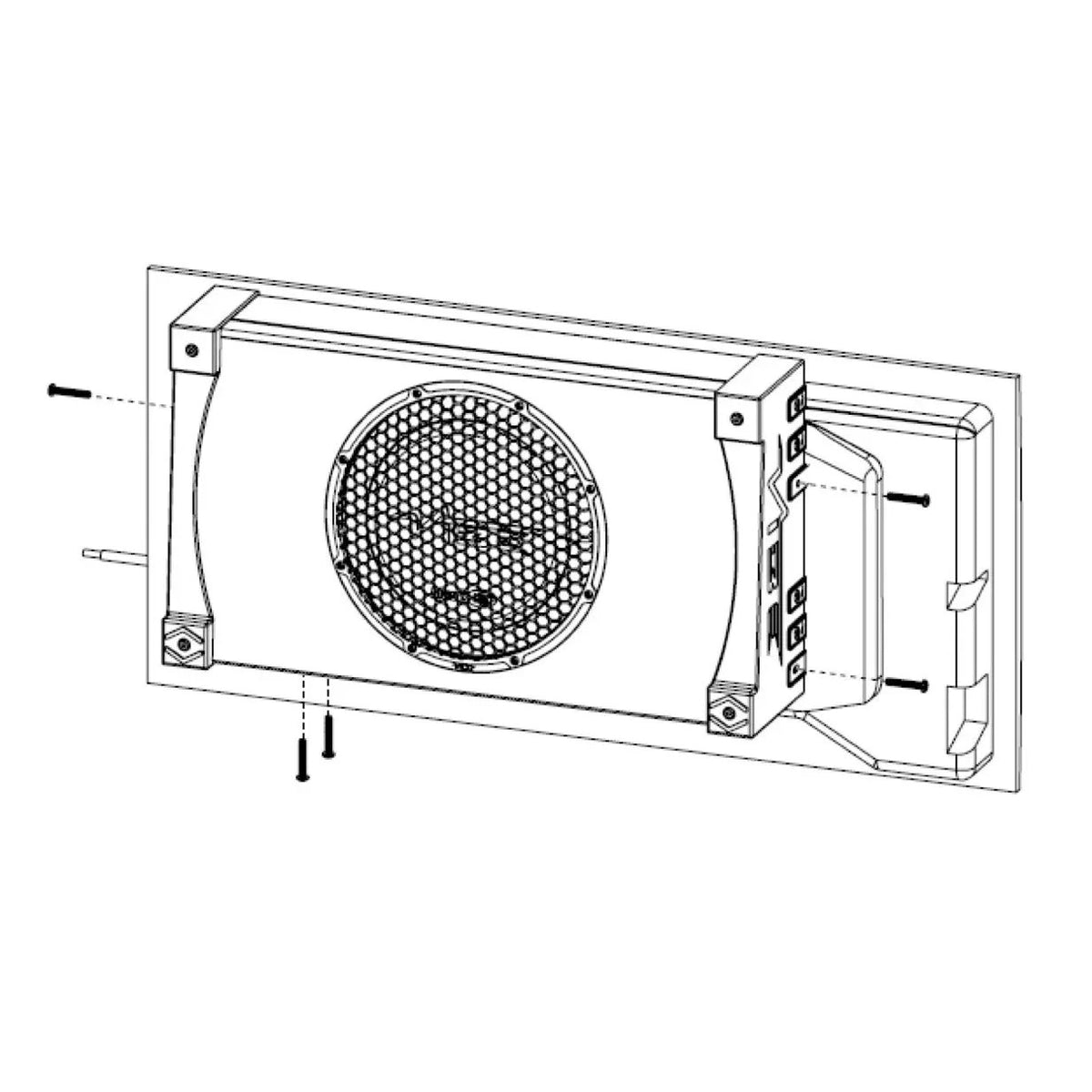

- Tailgate subwoofer: The sealed 12-inch enclosure includes Jeep-specific tailgate mounting brackets and a metal protective grille.

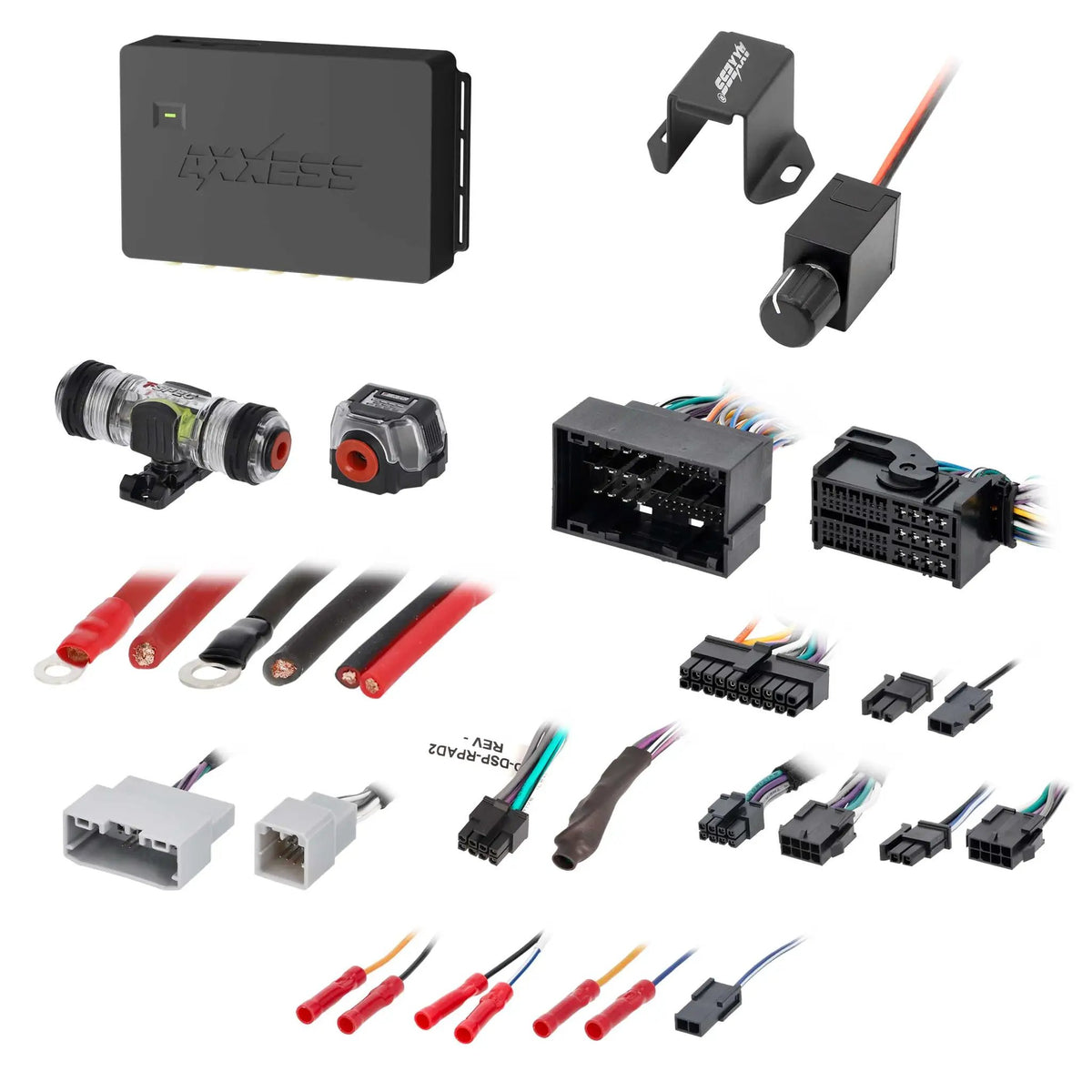

- Factory-audio integration: The Metra AXAMP interface, T-harness, and bypass harness are matched to the factory-amplified configuration.

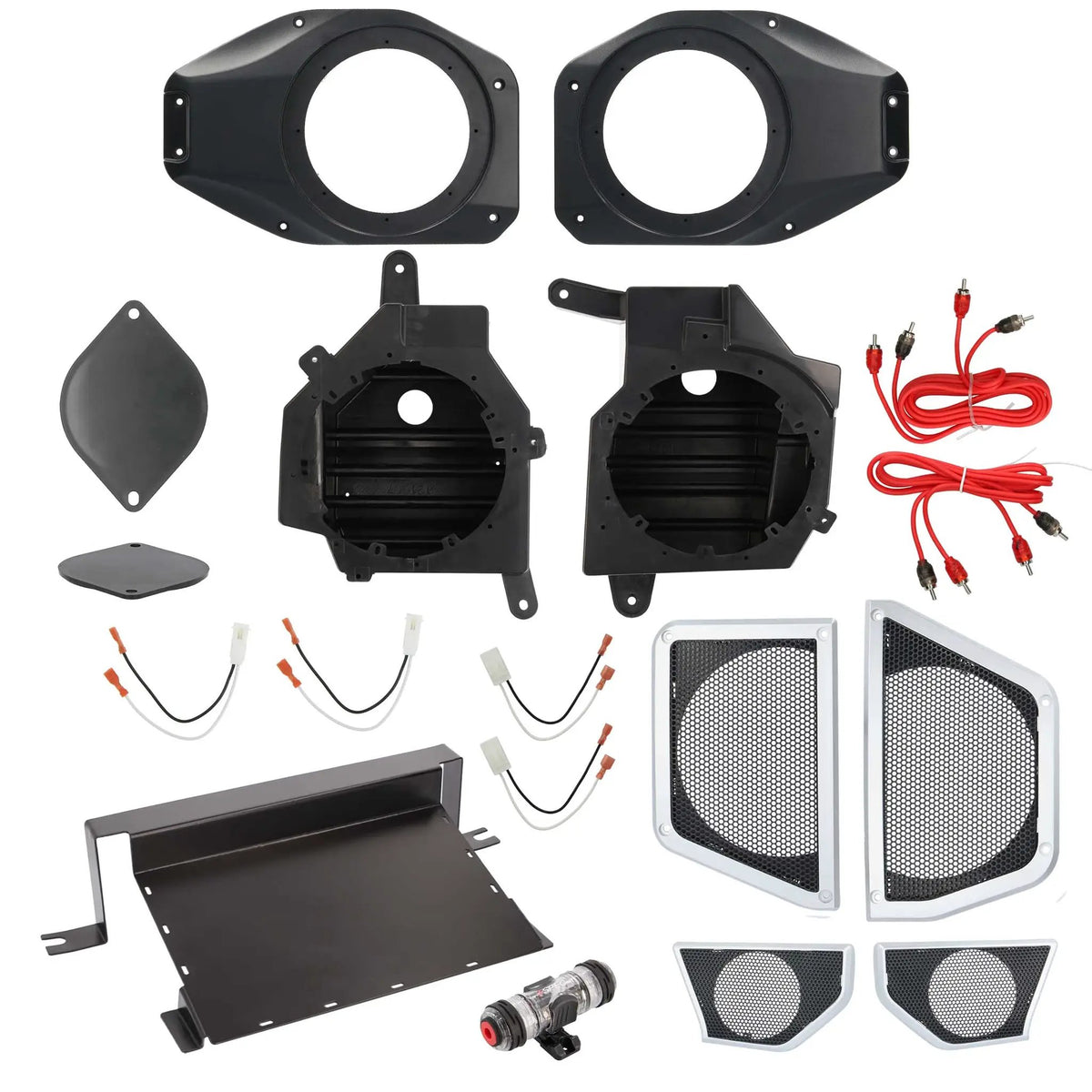

- Vehicle-specific mounting parts: The package includes under-seat amplifier racks, speaker adapters, pods, grilles, and wiring.
- DSP tuning file: Load the supplied vehicle-specific equalization file using computer-based software.
Technical Specifications
| Component | Specifications and supplied parts |
|---|---|
| PB650.1D-V4 mono amplifier | Maximum power rating: 1200W. Output at 4 ohms: 325W (rating type not specified as RMS). Output at 2 ohms: 475W (rating type not specified as RMS). Output at 1 ohm: 650W (rating type not specified as RMS). Chassis dimensions (H × W × D): 1.85" H x 9.05" W x 5.27" D (47mm x 230mm x 134mm). Amplifier topology: Class D. |
| PB80.6-8DSP-V3 DSP and amplifier combo | Amplified channels: 6. Maximum power rating: 1200W. Continuous output: 6x80W RMS into 4 ohms, stereo. Specified frequency range: 20Hz – 20kHz. Published dimensions for this kit page (H × W × D): 1.9" H x 15.4" W x 5.3" D (48mm x 391mm x 134mm). Metra gives different dimensions for this same DSP model on other kit pages; confirm chassis clearance before installation. Compact Class D amplifier topology. Load the vehicle-specific DSP equalization file using computer-based software. |
| SLICK-V4 1" front dash tweeters | Two supplied. Nominal driver size: 1". Speaker power capacity: 150W Peak / 50W RMS. Rated sensitivity: 94dB. Specified frequency range: 1.5kHz - 25kHz. Nominal impedance: 4 ohms. JP-1017 grilles: injection-molded plastic surrounds, silver-painted trim and stamped-steel grille inserts. Installation components: Metra 82-3016 dash tweeter adapter plates and Metra 72-7902 dash tweeter harnesses. |
| OPTI6-V4 6.5" front dash panel speakers | Two supplied. Nominal driver size: 6.5". Speaker power capacity: 270W Peak / 90W RMS. Rated sensitivity: 94dB. Specified frequency range: 55Hz – 20kHz. Nominal impedance: 4 ohms. Installation components: Metra JP-1018 left and right lower dash speaker grille cut-ins and Metra JP-1014 lower dash sealed speaker PODs. |
| SLICK-V4 1" soundbar tweeters | Two supplied. Nominal driver size: 1". Speaker power capacity: 150W Peak / 50W RMS. Rated sensitivity: 94dB. Specified frequency range: 1.5kHz - 25kHz. Nominal impedance: 4 ohms. |
| OPTI6-V4 6.5" soundbar speakers | Two supplied. Nominal driver size: 6.5". Speaker power capacity: 270W Peak / 90W RMS. Rated sensitivity: 94dB. Specified frequency range: 55Hz – 20kHz. Nominal impedance: 4 ohms. Installation components: Metra JP-1015 soundbar speaker kit and Metra BC-SPG universal speaker grilles. |

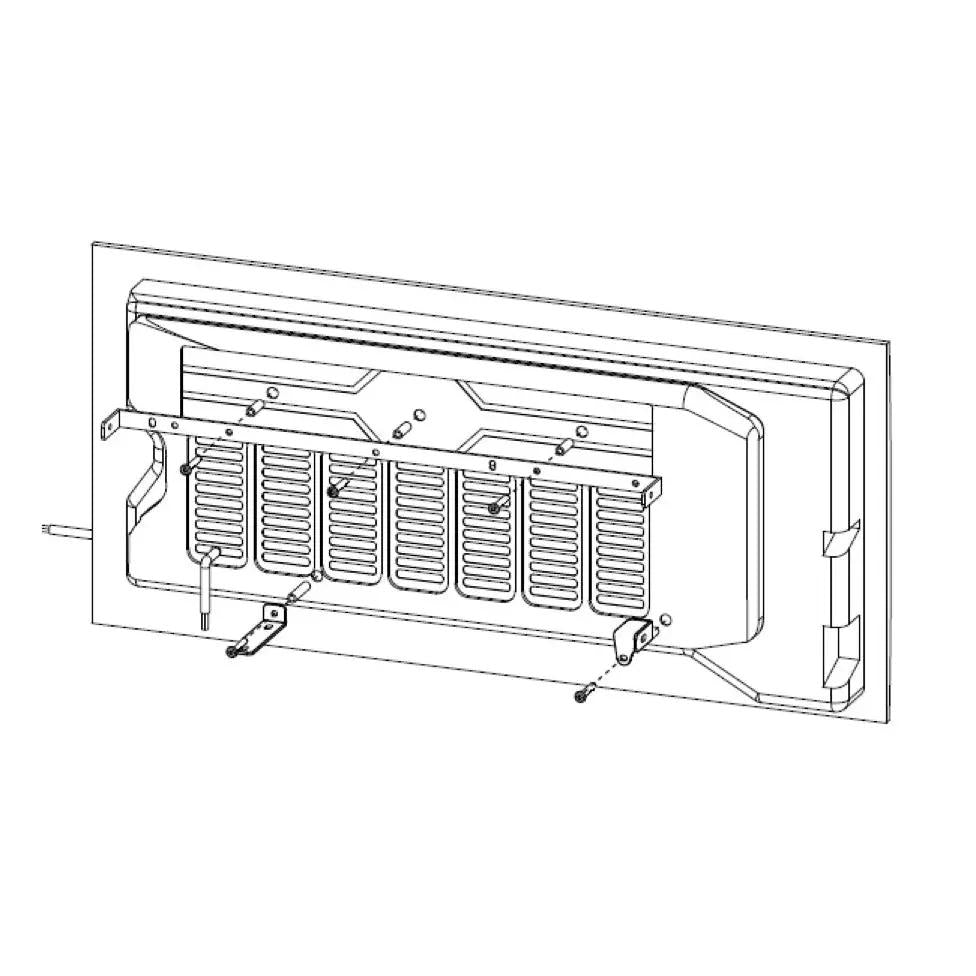

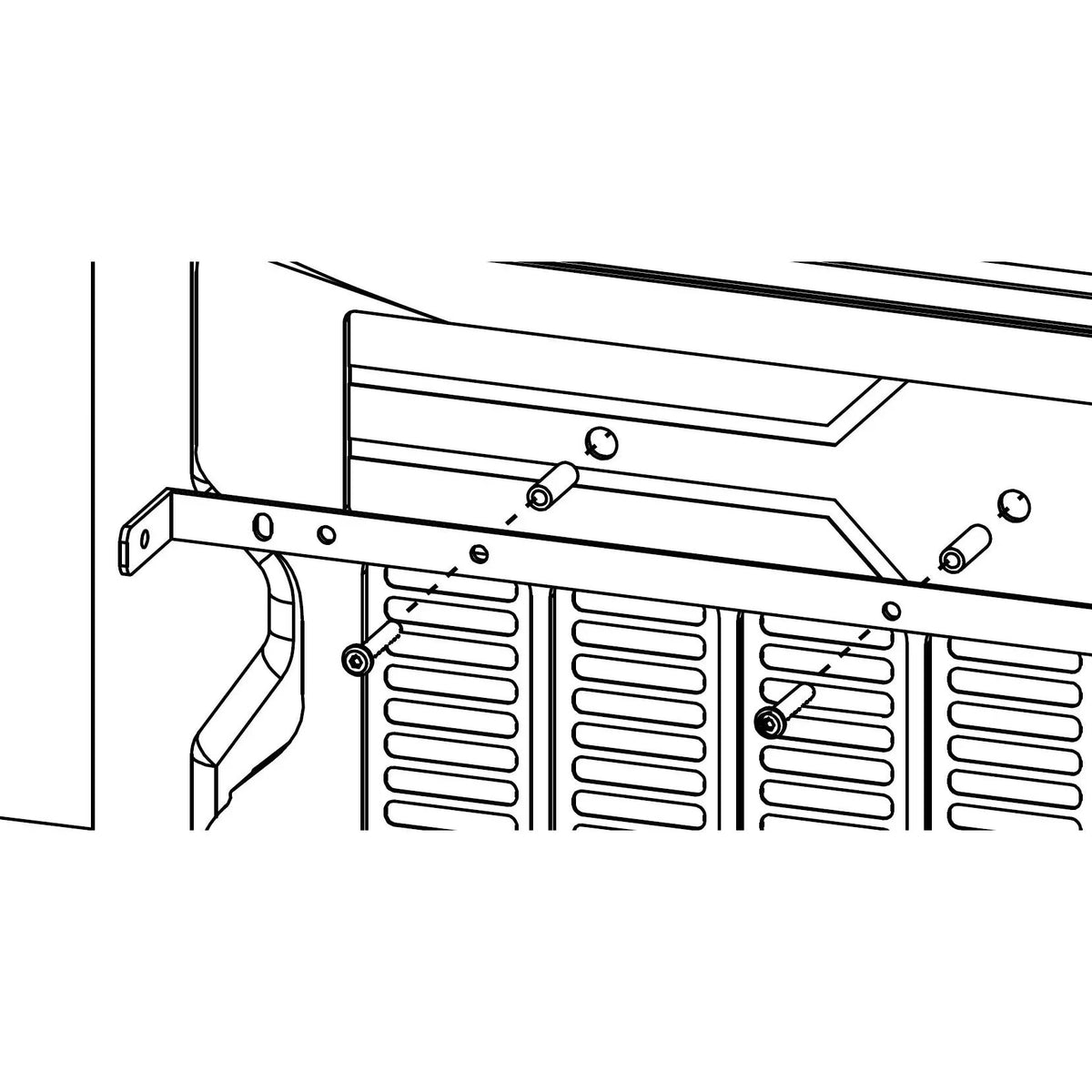

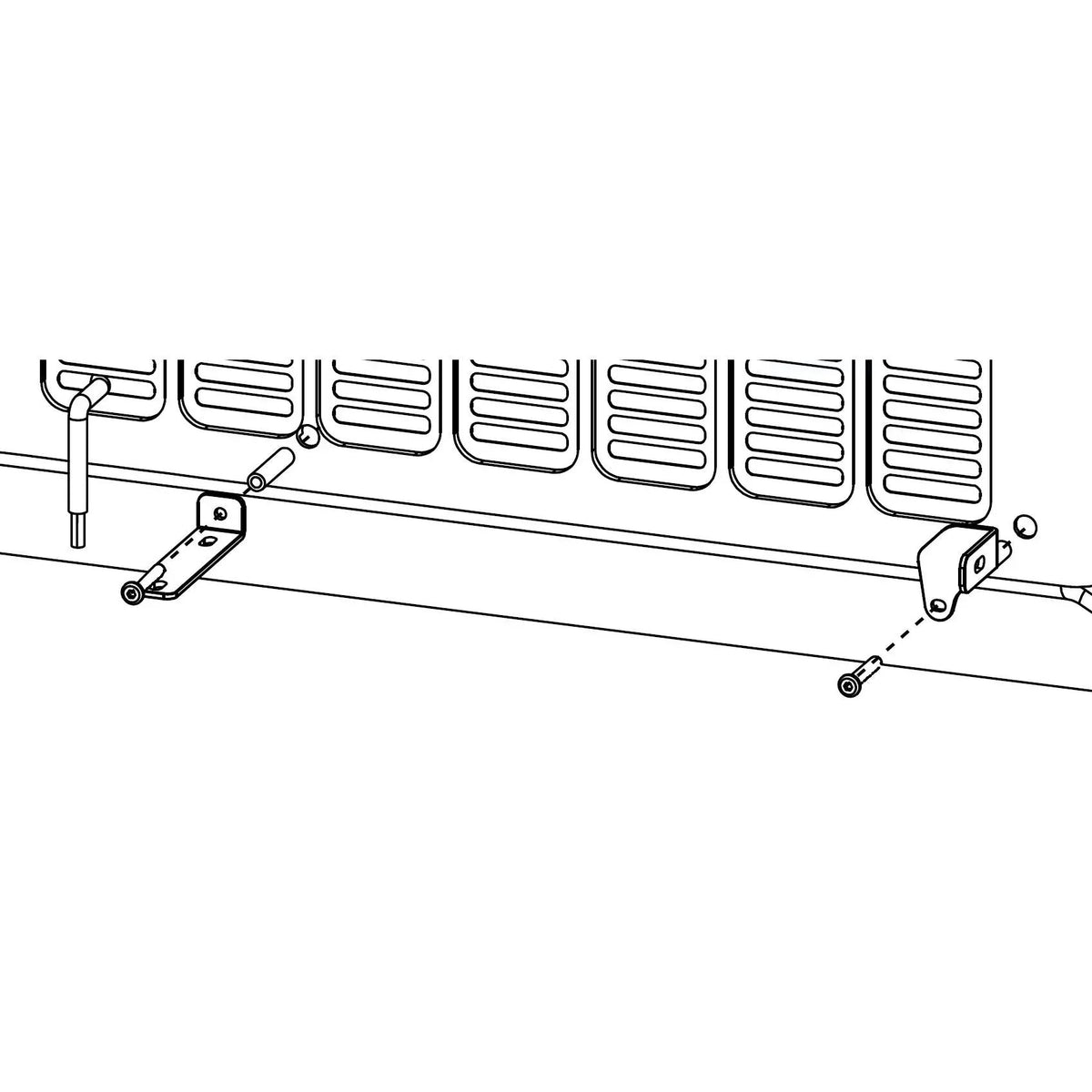

| BAMIT12-V4 sealed enclosure subwoofer | 12" subwoofer. Speaker power capacity: 900W Peak / 300W RMS. A metal protective speaker grille is supplied. Jeep-specific brackets locate the enclosure on the tailgate. Rated sensitivity: 85dB. Nominal impedance: Dual 2 ohm. |

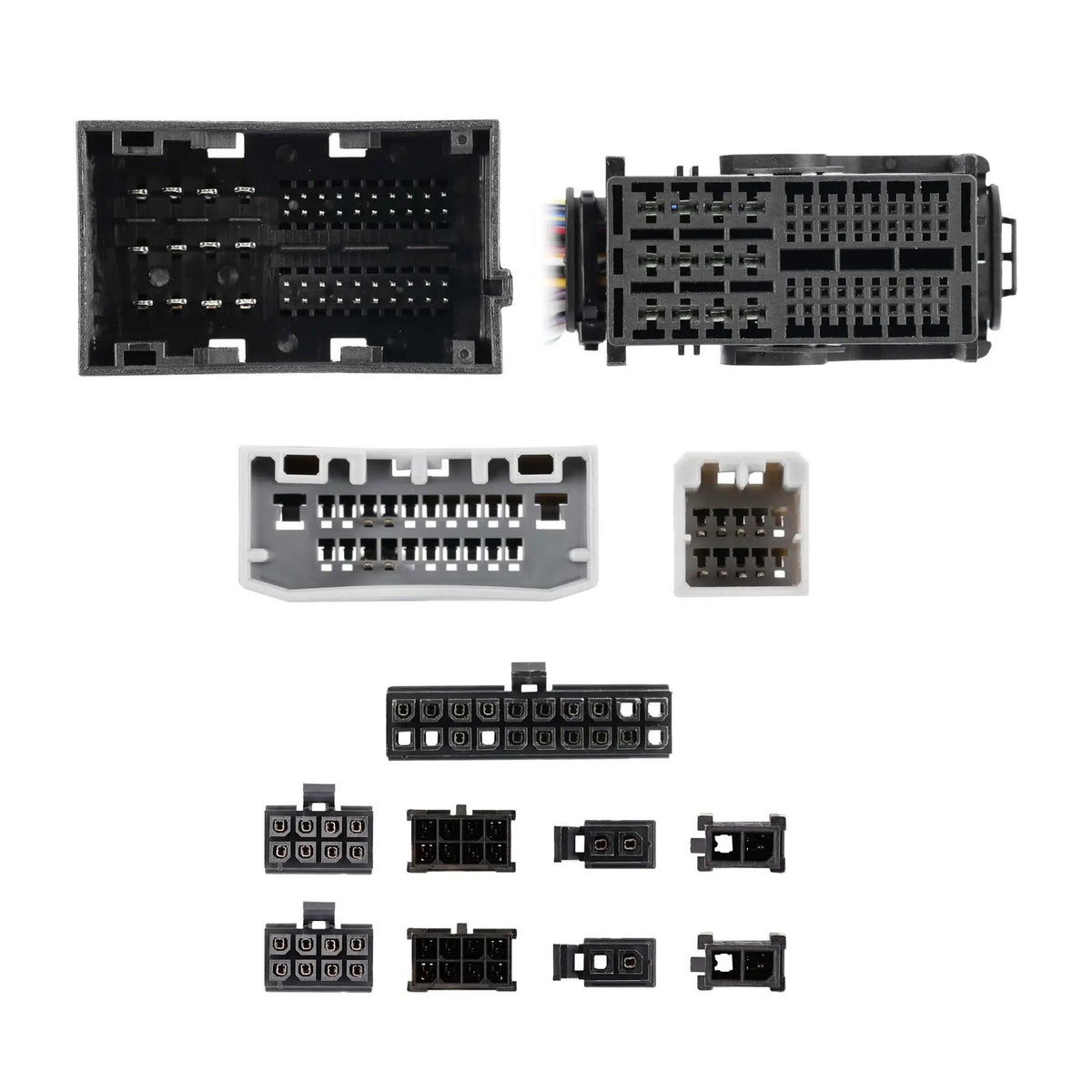

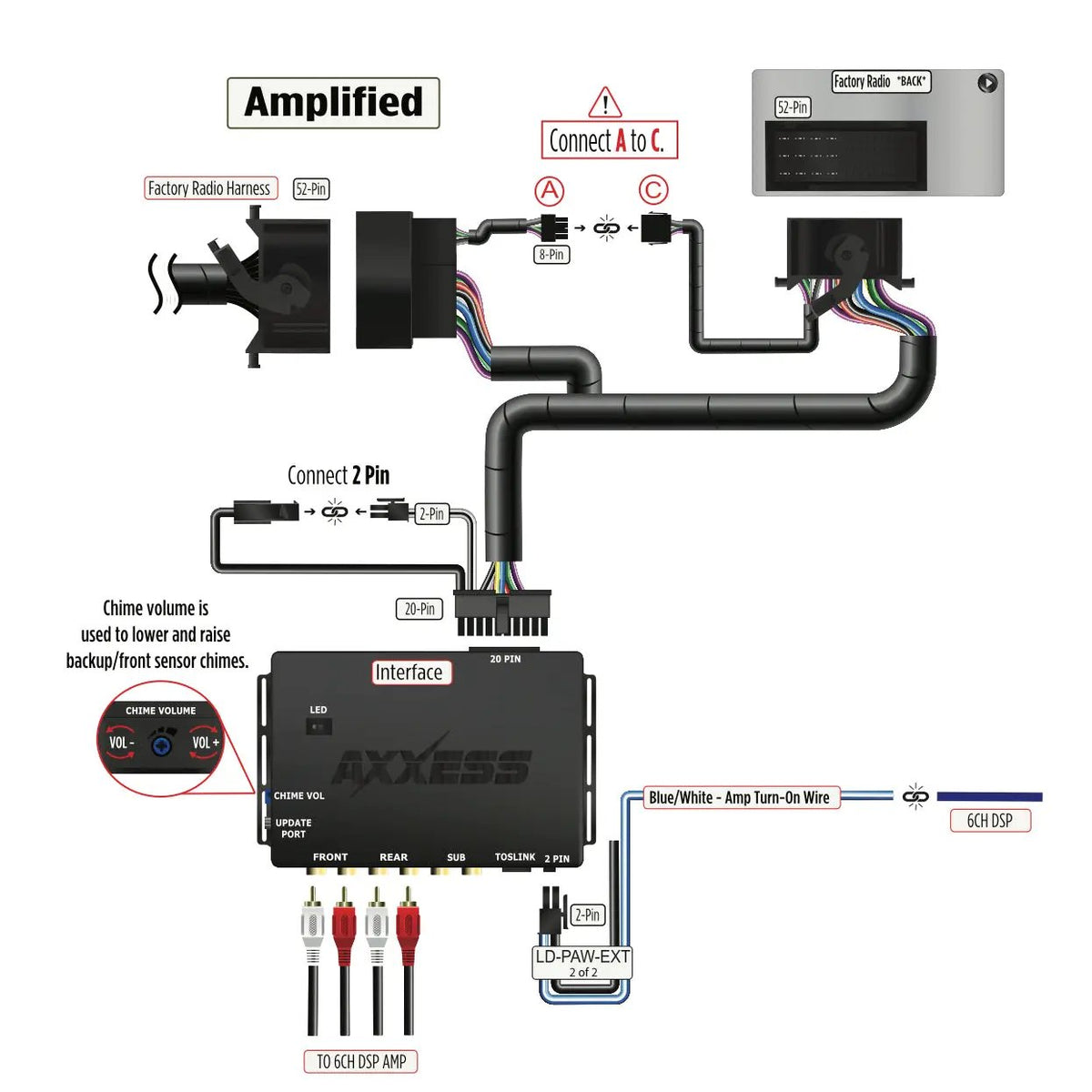

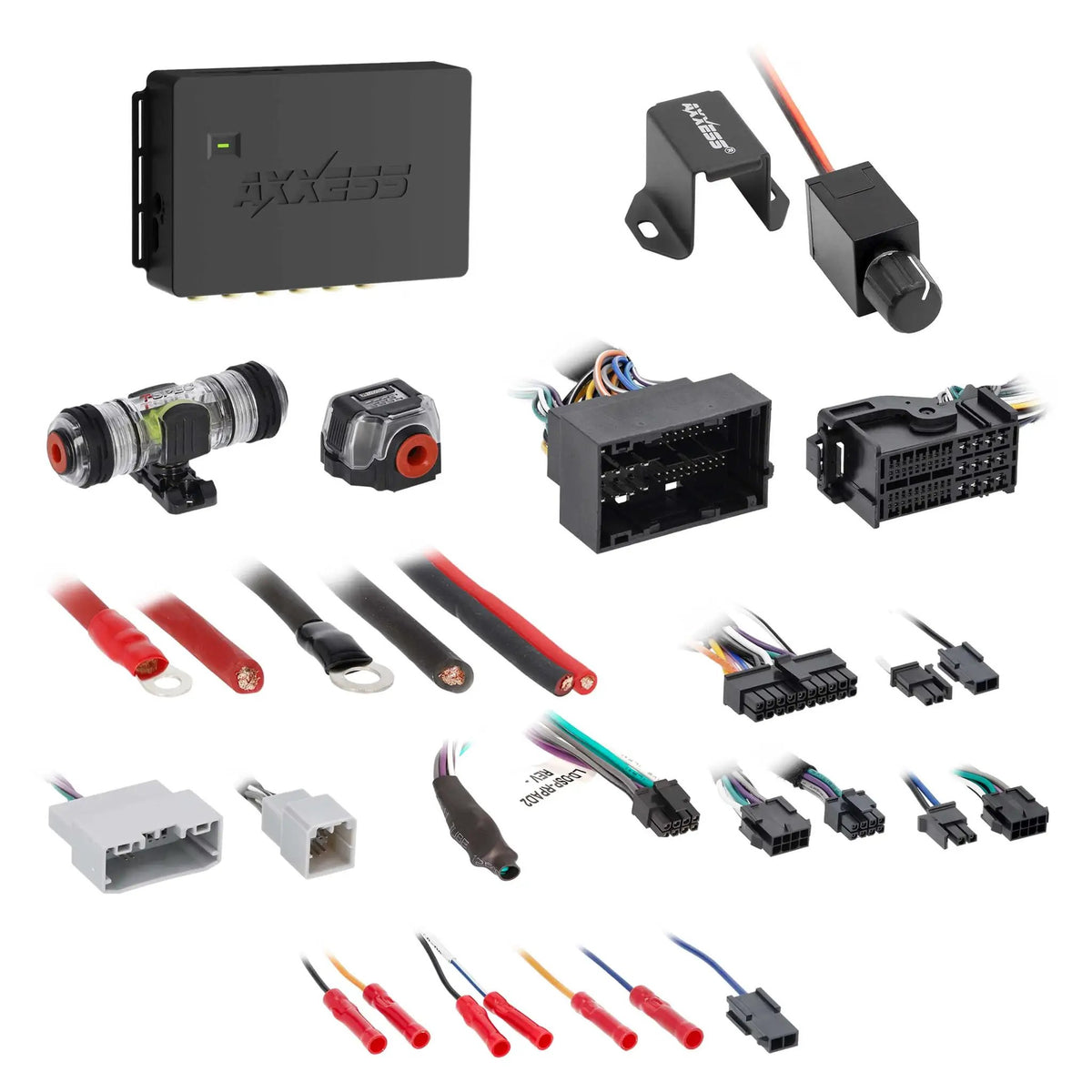

| Metra AXAMP vehicle-specific amplifier interface | Integration wiring uses plug-in connections. Interface/harness installation position: behind the radio. Supplied connections: T-harness and original-equipment-style connectors. Interface programming is supplied; RCA connections are included. |

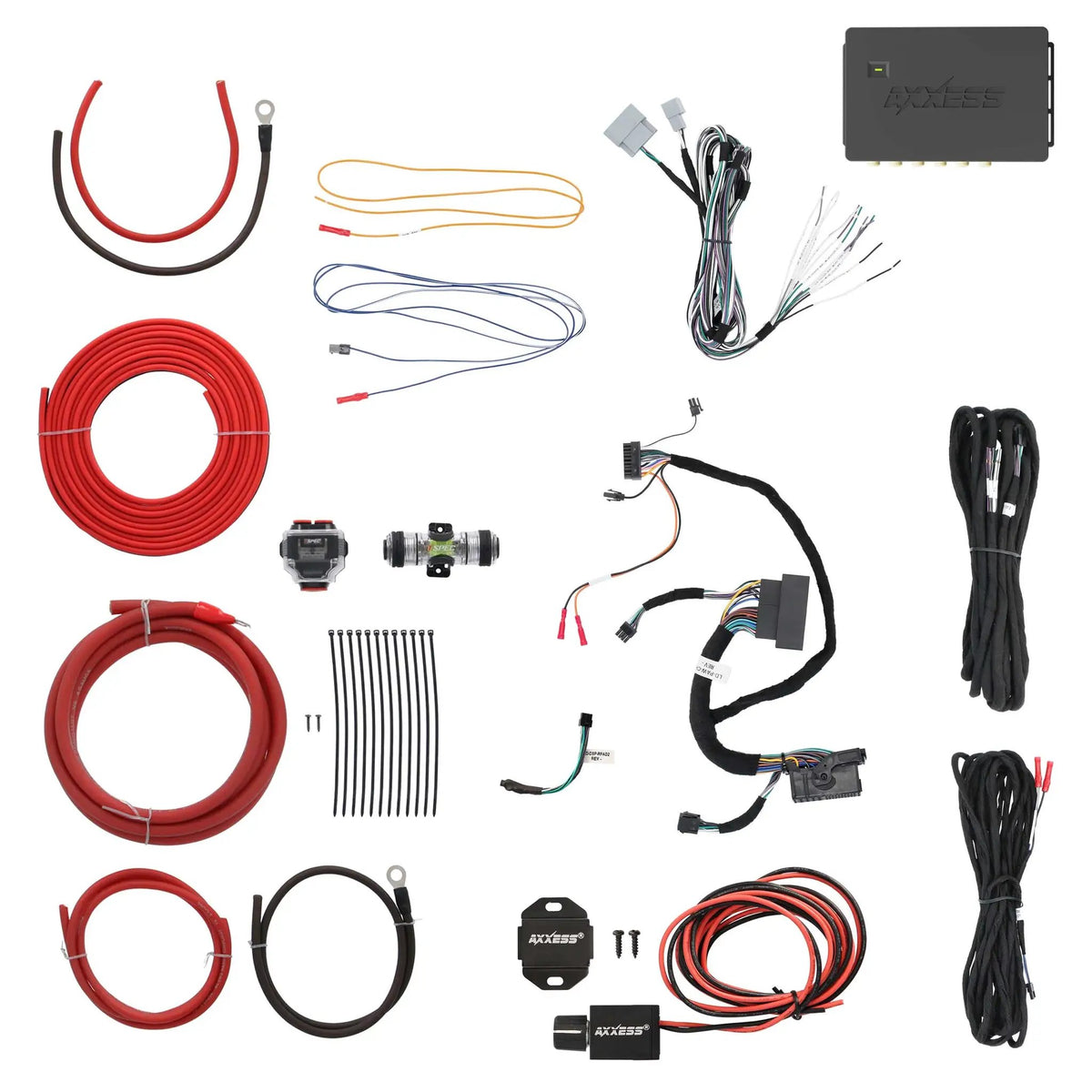

| Metra amplifier installation kit | The wiring package is matched to this application. The supplied bypass harness removes the original amplifier from the new audio signal path. 4-gauge OFC power wire: 9.5 ft. 8-gauge OFC power wire: 8 ft. 12-gauge OFC speaker wire: 12 ft. Fuse protection: T-Spec VMANL watertight fuse holder with 100A MANL fuse. Power distribution block included. Installation fasteners/hardware are supplied. |
| Metra vehicle-specific amp mounting racks | Mounting design is specific to the listed vehicle application. Mounting plates have a black powder-coated finish. The racks fit under the seats and accommodate compact amplifiers. |

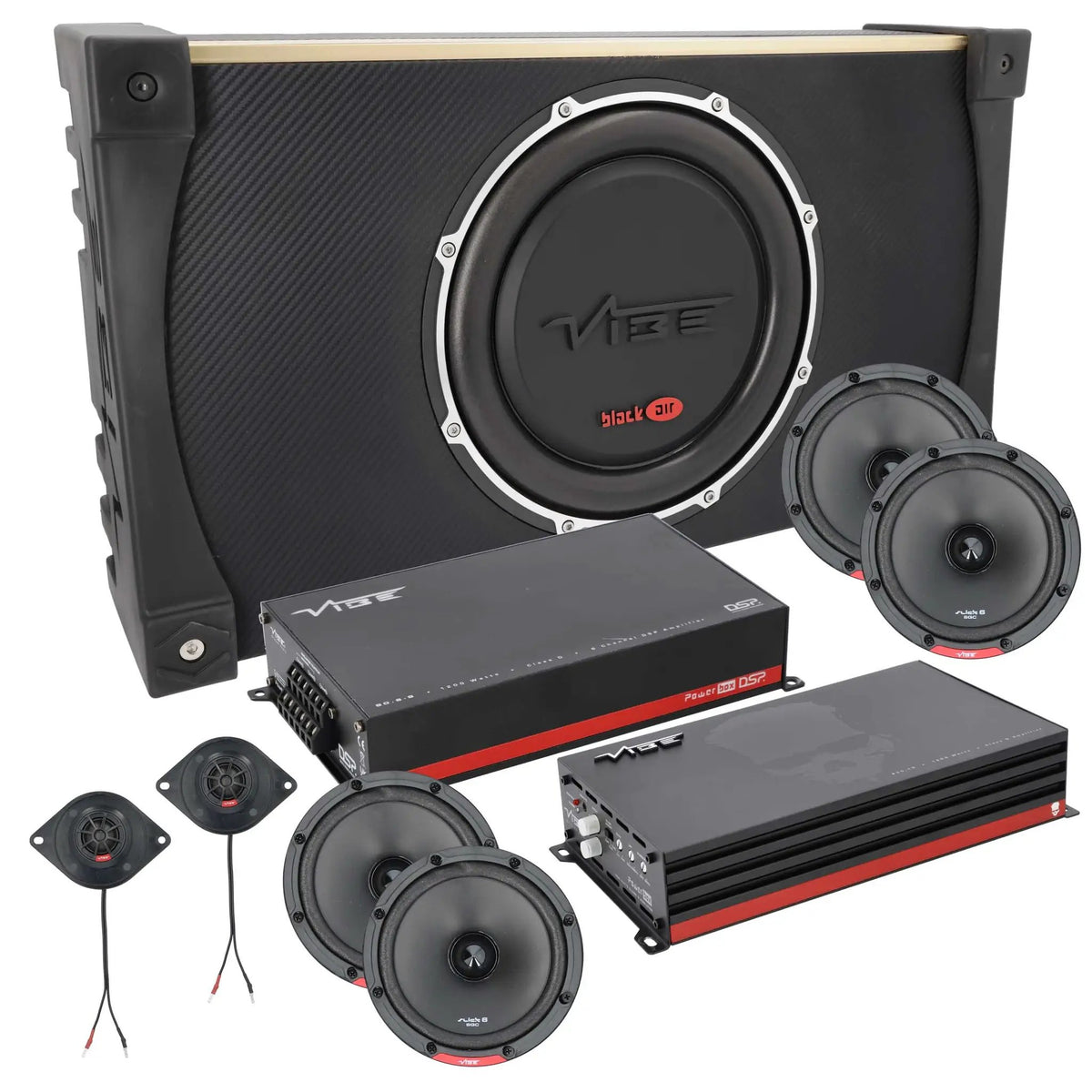

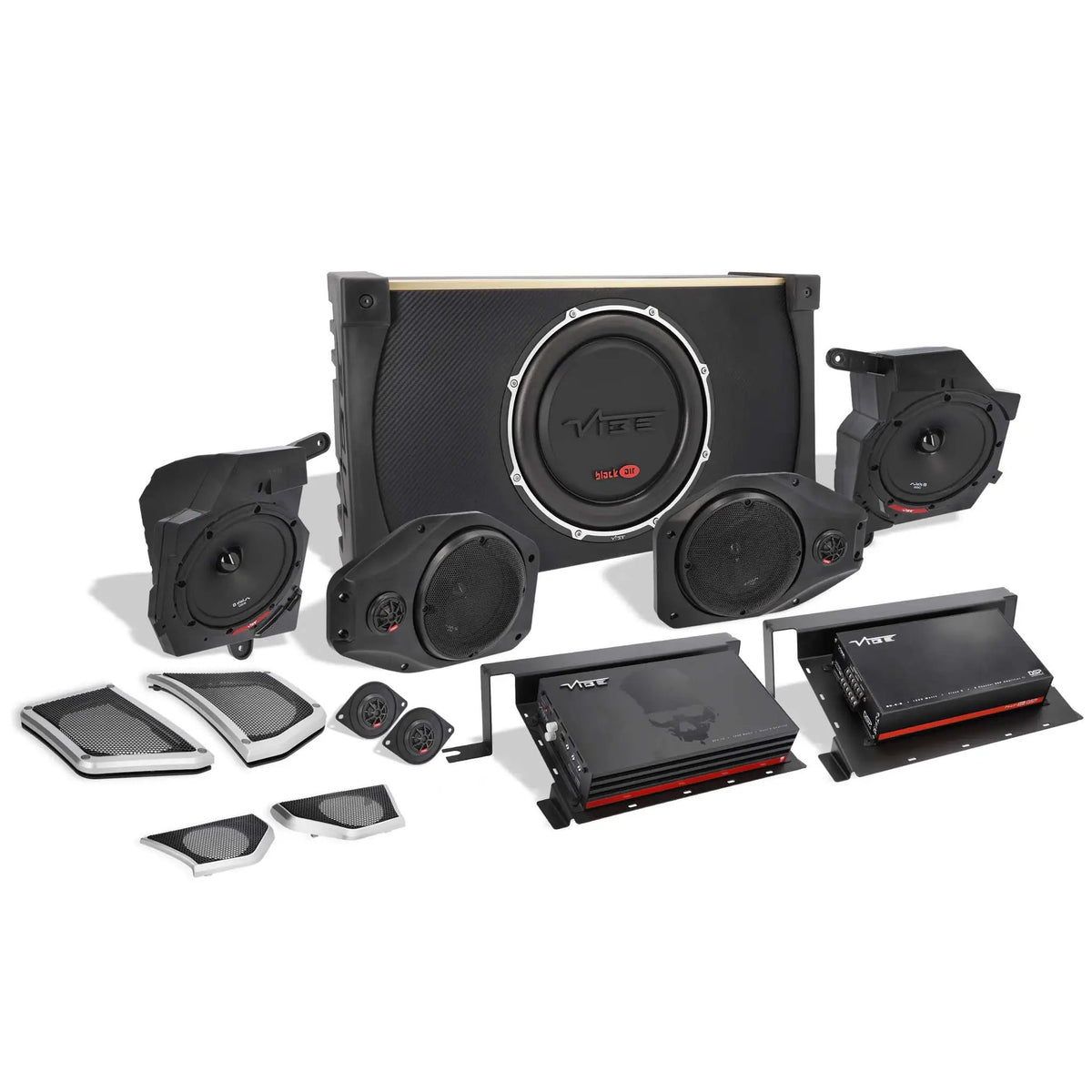

| Package components and part numbers | One PB650.1D-V4 mono amplifier. One PB80.6-8DSP-V3 six-channel DSP/amplifier combination. Two 1" front dash tweeters. Two 6.5" front dash panel speakers. Two 1" soundbar tweeters. Two 6.5" soundbar speakers. 12" subwoofer with enclosure. Vehicle-specific DSP tuning file for loading through computer software. Application-matched amplifier installation kit. Application-matched amp mounting racks. Metra amplifier integration interface. Step-by-step installation documentation. Complete system package part numbers: BLK-JP-PPKT-A: vehicle-specific integration and installation parts; BLK-JP-PPKT-4B: vehicle-specific integration and installation parts; BAMIT12-V4: 12" subwoofer enclosure. |
| Ratings and installation information | The ratings above belong to the named components. Peak or maximum figures are not a continuous system rating; an output is labeled RMS only where the source explicitly identifies it that way. Metra estimates 6–8 hours for one experienced technician. The manufacturer lists a one-year warranty for the kit. |
Why Choose This Product?
The JP-PPKT-4 brings the amplification, cabin speakers, subwoofer, integration interface, and vehicle-specific mounting parts together as one matched package. That makes it a system-level option rather than a set of products intended for separate installation.
The DSP combination provides six amplified channels and a vehicle-specific tuning file. The sealed subwoofer enclosure mounts at the tailgate, while the amplifier racks are designed for under-seat placement.
Installation & Compatibility Notes
- Vehicle fitment: For 2018–2023 Jeep Wrangler JL models with the factory-amplified factory audio configuration. Manufacturer vehicle applications list 2018–2023 Jeep Wrangler; the factory-audio, cab/body-style, and exclusion requirements above still apply.
- Exclusion: Not compatible with Jeep 4xe models.

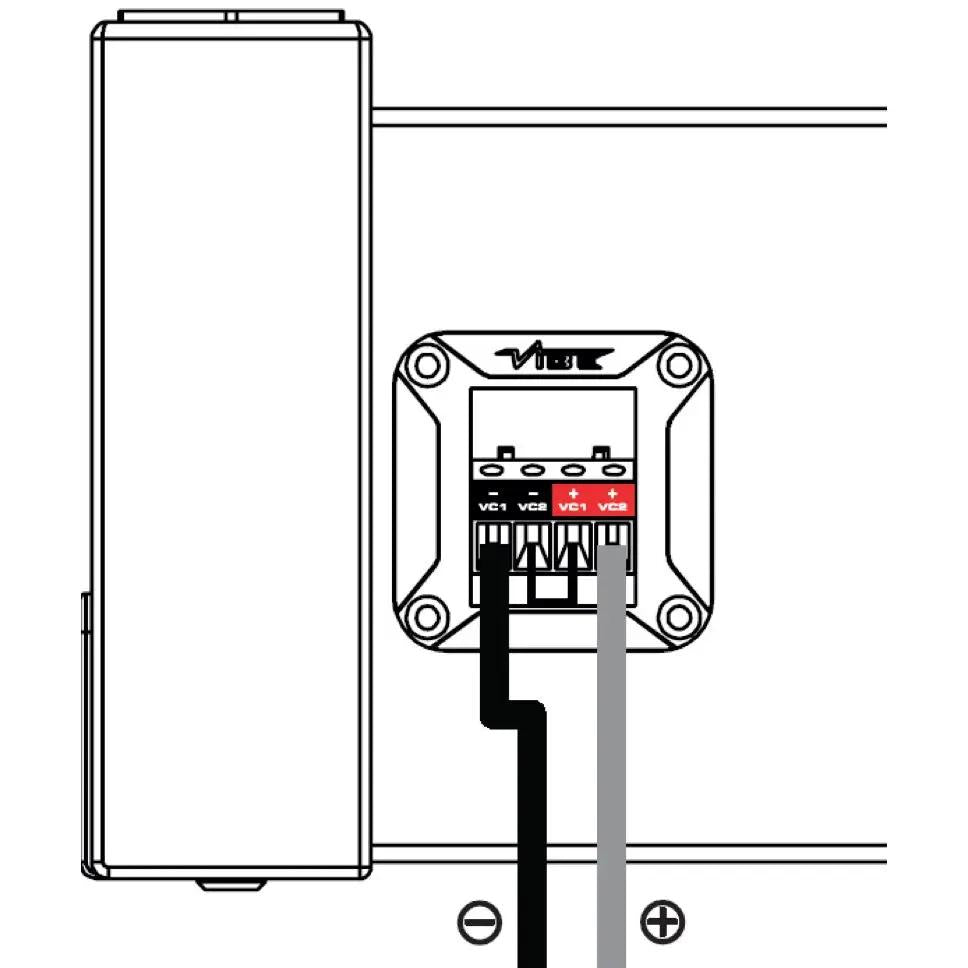

- Subwoofer wiring: Connect the subwoofer’s two 2-ohm voice coils in series for a 4-ohm final load. Follow the current installation guide for this exact kit and its wiring diagram. Do not use a standalone enclosure’s alternative 1-ohm configuration for this system.
- Factory subwoofer: VIBE recommends unplugging the original JL/JLU factory subwoofer. Follow this complete kit’s amplifier-bypass and wiring instructions for the specified factory audio system.
- Tailgate clearance: Installing the included BAMIT12-V4 enclosure makes the JL Cargo Trail Rail inaccessible.
- Amplifier clearance: Confirm chassis clearance before installation. Published dimensions for the PB80.6-8DSP-V3 on this kit page differ from dimensions Metra gives for the same model on other kit pages.
- System configuration: Use the supplied components together as the intended system. Metra specifies that the package is not designed to be split into separately installed products.
Confirm vehicle fitment, mounting clearance, and the latest installation steps before starting. Metra estimates 6–8 hours for one experienced technician.
Frequently Asked Questions
Which Jeep Wrangler models does the JP-PPKT-4 fit?
It is for 2018–2023 Jeep Wrangler JL models with the factory-amplified factory audio configuration. It is not compatible with Jeep 4xe models.
What final impedance does the subwoofer require in this kit?
Connect its two 2-ohm voice coils in series for a 4-ohm final load. Use the current guide and wiring diagram for this exact kit, not the standalone enclosure’s alternative 1-ohm configuration.
Can I install the kit’s components separately?
No. Metra specifies that this package is intended to be used together, not split into separately installed products.
Will the tailgate enclosure affect the JL Cargo Trail Rail?
Yes. Installing the included BAMIT12-V4 enclosure makes the JL Cargo Trail Rail inaccessible.
Does the package include the factory-audio integration parts?
Yes. It includes the Metra AXAMP interface, T-harness, original-equipment-style connectors, RCA connections, and an amplifier-bypass harness.
What do the amplifier power ratings mean?
The stated ratings apply to the named components. Peak and maximum figures are not continuous system ratings. Only the PB80.6-8DSP-V3 output is explicitly identified as RMS among the amplifier output figures.
