Metra SoundStage / VIBE Audio JP-PPKT-5 Jeep Gladiator JT Audio Kit (2024–2025, non-amplified)
Key features
- Fits 2024–2025 Jeep Gladiator JT, non-amplified audio
- Power seats may require modification to amplifier-rack height
- PB80.6-8DSP-V3 six-channel DSP amplifier plus PB650.1D-V4 mono amplifier
- Eight cabin speakers: four 1-inch tweeters and four 6.5-inch drivers
- JP-GL1-12 ported 12-inch subwoofer with an up-firing, under-seat layout; wire the dual 2-ohm coils in series for the required 4-ohm load
- OE speaker-wire integration harness and under-seat amplifier racks
Metra SoundStage / VIBE Audio JP-PPKT-5 Jeep Gladiator JT Audio Kit (2024–2025, non-amplified) is backordered and will ship as soon as it is back in stock.
Metra SoundStage / VIBE Audio JP-PPKT-5 Jeep Gladiator JT Audio Kit (2024–2025, non-amplified) is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview
Upgrade the cabin and add under-seat bass in a 2024–2025 Jeep Gladiator JT with the Metra SoundStage / VIBE Audio JP-PPKT-5 complete audio kit. It combines vehicle-specific integration parts, two amplifiers, eight cabin speakers and an up-firing 12-inch ported subwoofer for Gladiators with the non-amplified factory audio system.
The speakers fit the front dash and soundbar, while the subwoofer enclosure sits beneath the rear seat. Use the supplied components together as the intended system; Metra states that the package is not designed to be split into separately installed products.
Key Features & Benefits
- Vehicle-specific integration: A plug-in harness connects the non-amplified factory system to the DSP amplifier through the original speaker wiring.
- Six-channel DSP amplifier: The PB80.6-8DSP-V3 provides six amplified channels and accepts a vehicle-specific tuning file loaded through computer software.
- Separate mono amplifier: The PB650.1D-V4 provides published output ratings at 4-, 2- and 1-ohm loads.
- Eight cabin speakers: Four 1-inch tweeters and four 6.5-inch speakers serve the front dash and soundbar locations.
- Under-seat bass: The ported JP-GL1-12 enclosure places its 12-inch subwoofer beneath the rear seat, facing upward.
- Application-matched mounting: Included lower-dash speaker pods, installation parts and under-seat amplifier racks help bring the components together in the listed vehicle application.
Technical Specifications
| Product | Metra SoundStage / VIBE Audio JP-PPKT-5 Jeep Gladiator JT Audio Kit |
|---|---|
| Vehicle application | 2024–2025 Jeep Gladiator JT with non-amplified factory audio configuration |
| Manufacturer vehicle applications entry | 2024–2025 Jeep Gladiator. This entry does not remove the factory-audio, cab/body-style or exclusion requirements stated above. |

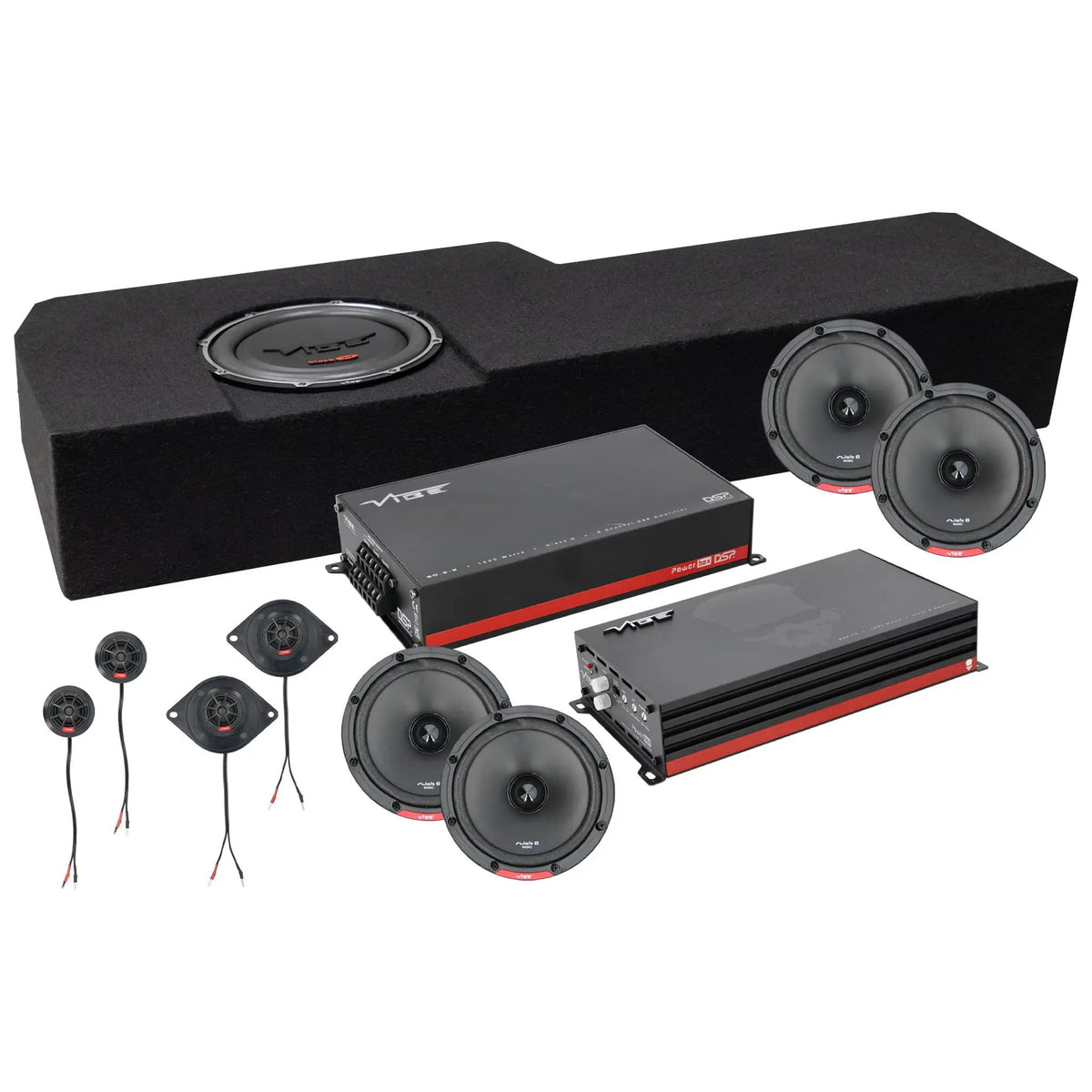

| System components | PB80.6-8DSP-V3 six-channel DSP amplifier; PB650.1D-V4 mono amplifier; eight cabin speakers; JP-GL1-12 12-inch ported subwoofer enclosure |
| System subwoofer wiring requirement | Connect the subwoofer’s two 2-ohm voice coils in series for a 4-ohm final load. Use the current installation guide for this exact kit and its wiring diagram. Do not use a standalone enclosure’s alternative 1-ohm configuration for this system. |
| Power-seat note | Gladiators equipped with power seats may require a change to the amplifier-rack height. |
| Package part numbers | BLK-JP-PPKT-A: vehicle-specific integration and installation parts; BLK-JP-PPKT-1B: vehicle-specific integration and installation parts; JP-GL1-12: 12-inch subwoofer enclosure |

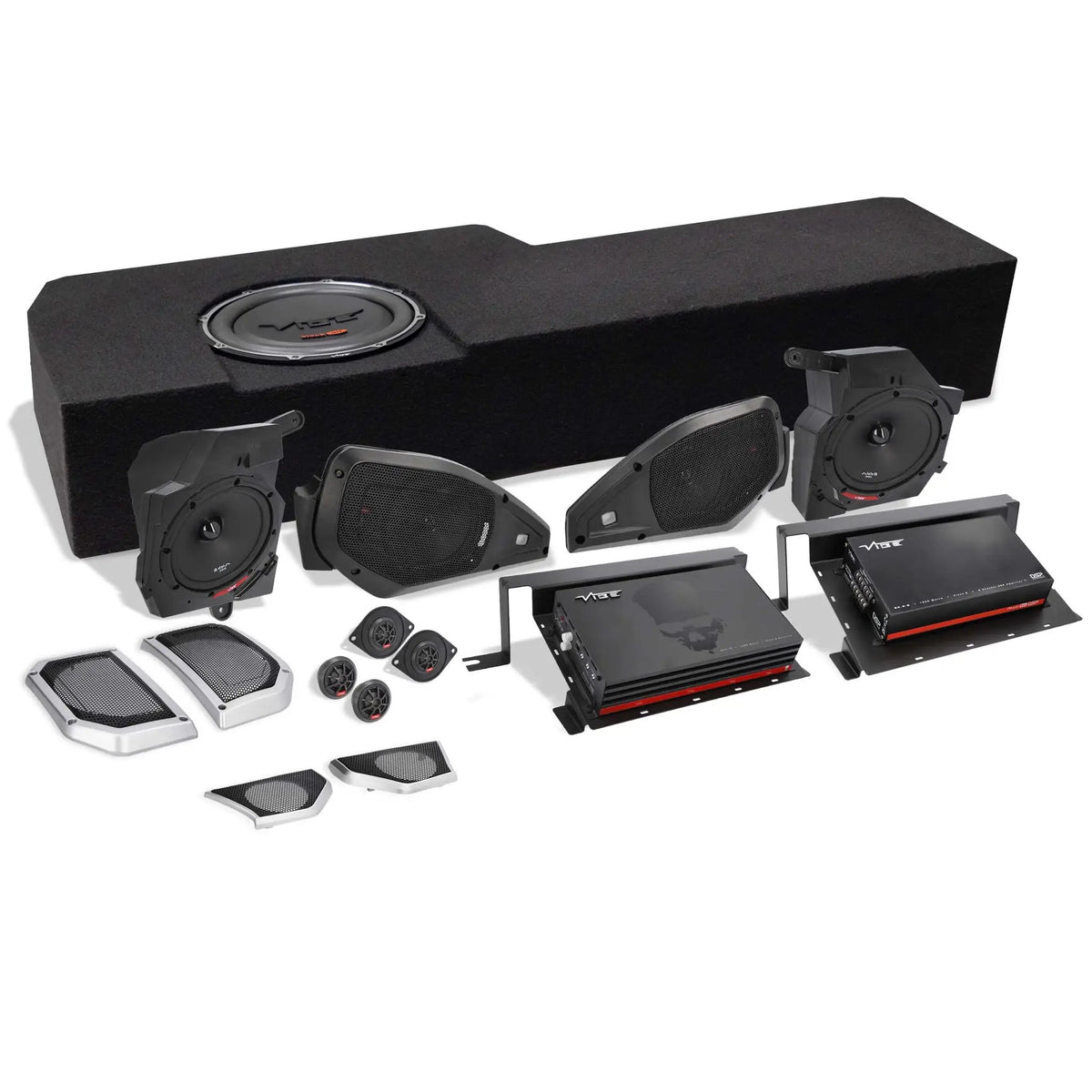

| What is included | One PB650.1D-V4 mono amplifier; one PB80.6-8DSP-V3 six-channel DSP/amplifier combination; two 1-inch front dash tweeters; two 6.5-inch front dash panel speakers; two 1-inch soundbar tweeters; two 6.5-inch soundbar speakers; one 12-inch subwoofer with ported enclosure; vehicle-specific DSP tuning file for loading through computer software; application-matched amplifier installation kit; application-matched amp mounting racks; step-by-step installation documentation |
| Installation estimate and warranty | Metra estimates 6–8 hours for one experienced technician. The manufacturer lists a one-year warranty for the kit. |

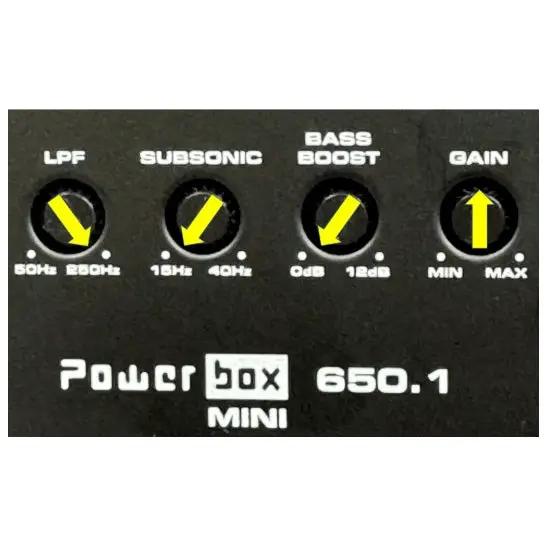

PB650.1D-V4 Mono Amplifier
| Maximum power rating | 1200 W |
|---|---|
| Output at 4 ohms | 325 W; rating type not specified as RMS |
| Output at 2 ohms | 475 W; rating type not specified as RMS |
| Output at 1 ohm | 650 W; rating type not specified as RMS |
| Chassis dimensions (H × W × D) | 1.85" H x 9.05" W x 5.27" D (47mm x 230mm x 134mm) |
| Amplifier topology | Class D |
PB80.6-8DSP-V3 DSP and Amplifier Combo
| Amplified channels | 6 |
|---|---|
| Maximum power rating | 1200W |
| Continuous output | 6x80W RMS into 4 ohms, stereo |
| Specified frequency range | 20Hz – 20kHz |
| Published dimensions for this kit page (H × W × D) | 1.9" H x 15.4" W x 5.3" D (48mm x 391mm x 134mm) |
| Topology | Compact Class D amplifier |
| DSP tuning | Load the vehicle-specific DSP equalization file using computer-based software. |
| Dimension note | Metra gives different dimensions for this same DSP model on other kit pages; confirm chassis clearance before installation. |
SLICK-V4 1-Inch Tweeters
| Locations | Front dash and soundbar |
|---|---|
| Nominal driver size | 1" |
| Speaker power capacity | 150W Peak / 50W RMS |
| Rated sensitivity | 94dB |
| Specified frequency range | 1.5kHz - 25kHz |
| Nominal impedance | 4 ohms |
| Front dash grille details | JP-1017 grilles: injection-molded plastic surrounds, silver-painted trim and stamped-steel grille inserts |
| Front dash installation components | Metra 82-3016 dash tweeter adapter plates; Metra 72-7902 dash tweeter harnesses |
OPTI6-V4 6.5-Inch Speakers
| Locations | Front dash panel and soundbar |
|---|---|
| Nominal driver size | 6.5" |
| Speaker power capacity | 270W Peak / 90W RMS |
| Rated sensitivity | 94dB |
| Specified frequency range | 55Hz – 20kHz |
| Nominal impedance | 4 ohms |
| Front dash installation components | Metra JP-1020 left and right lower dash speaker grille cut-ins; Metra JP-1014 lower dash sealed speaker PODs |
| Soundbar installation component | Metra JP-1019 soundbar speaker kit |

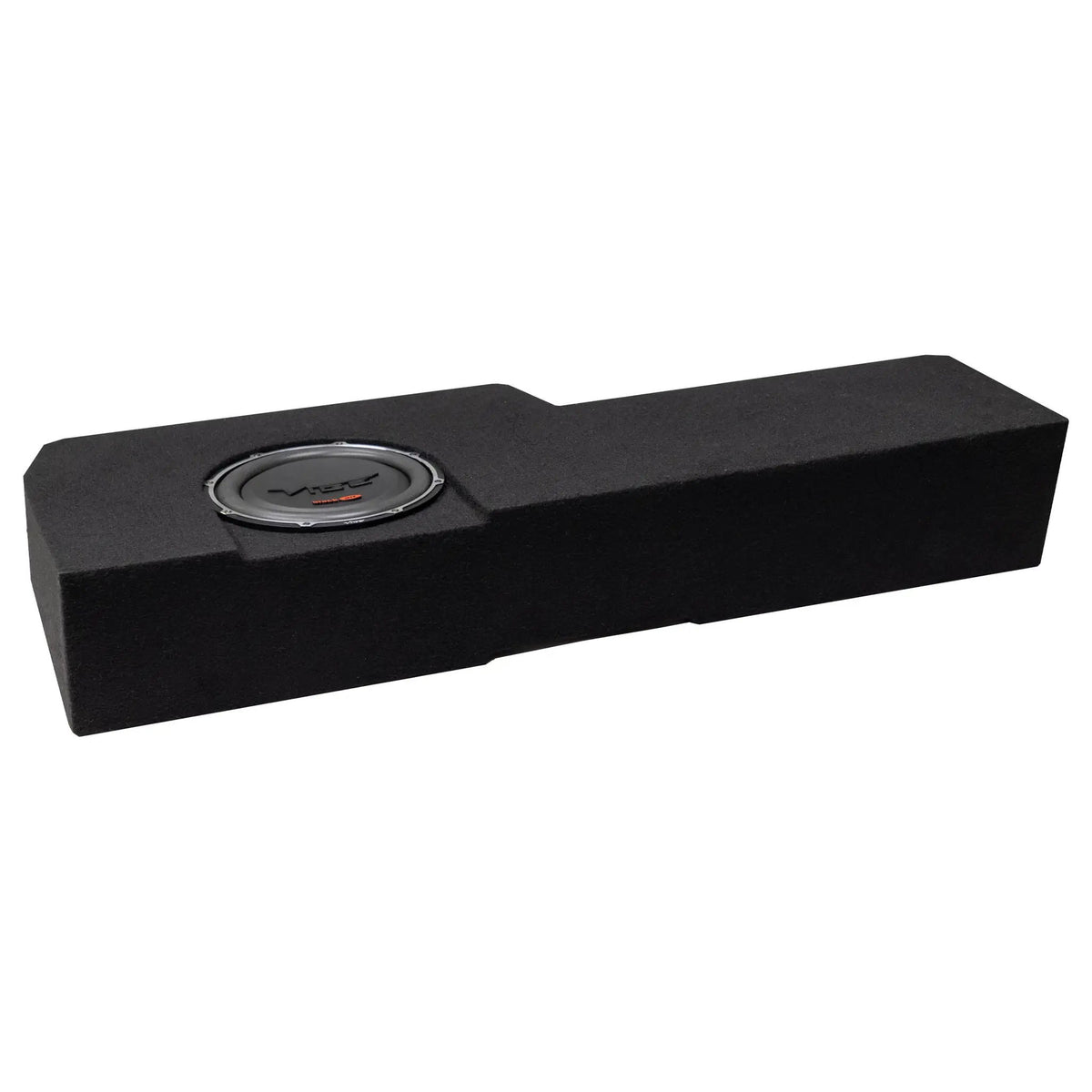

JP-GL1-12 Subwoofer and Ported Enclosure
| Speaker power capacity | 900W Peak / 300W RMS |
|---|---|
| Enclosure installation position | Beneath the rear seat |
| Subwoofer orientation | Faces upward |
| Rated sensitivity | 85dB |
| Nominal impedance | Dual 2 ohm |
Integration, Wiring and Mounting Hardware

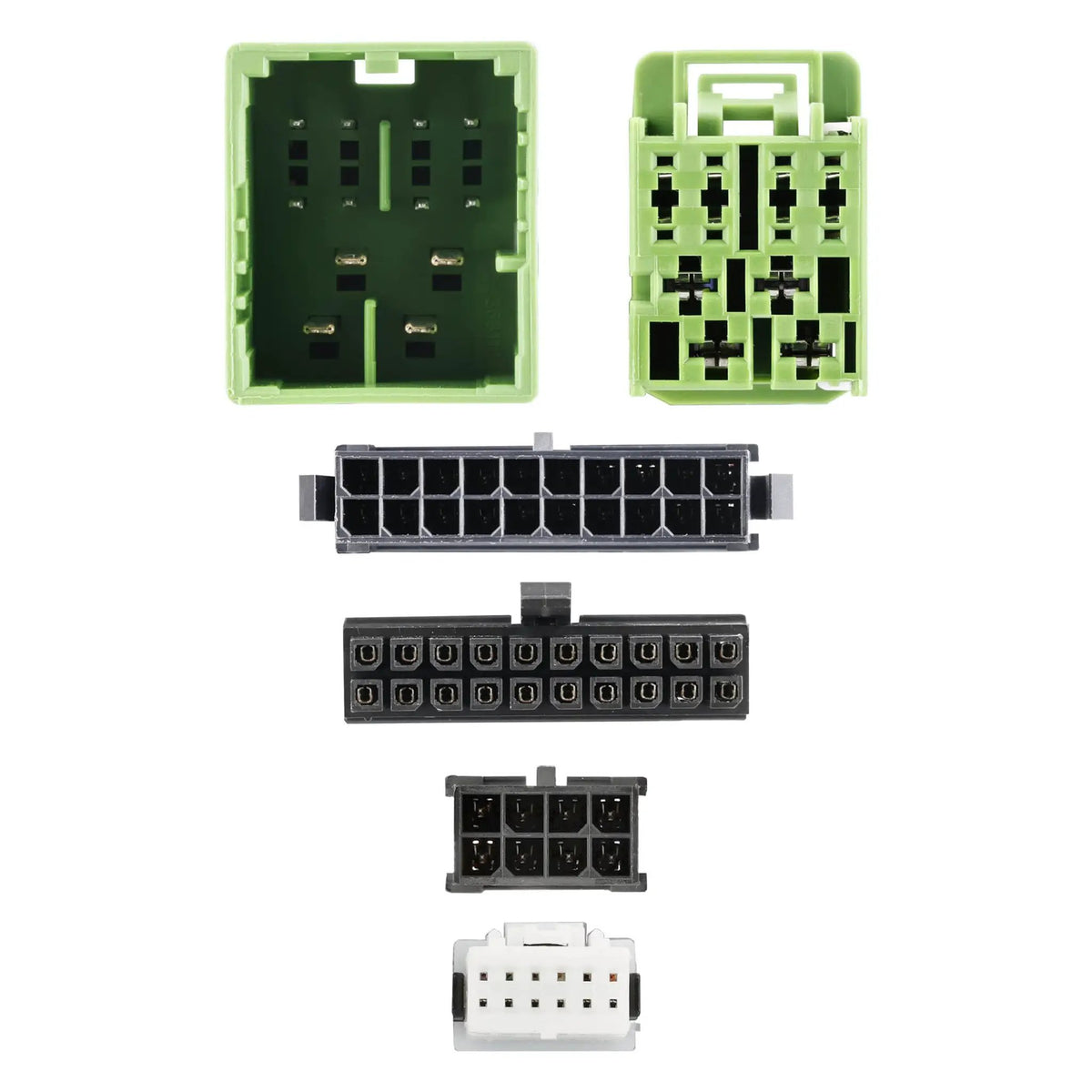

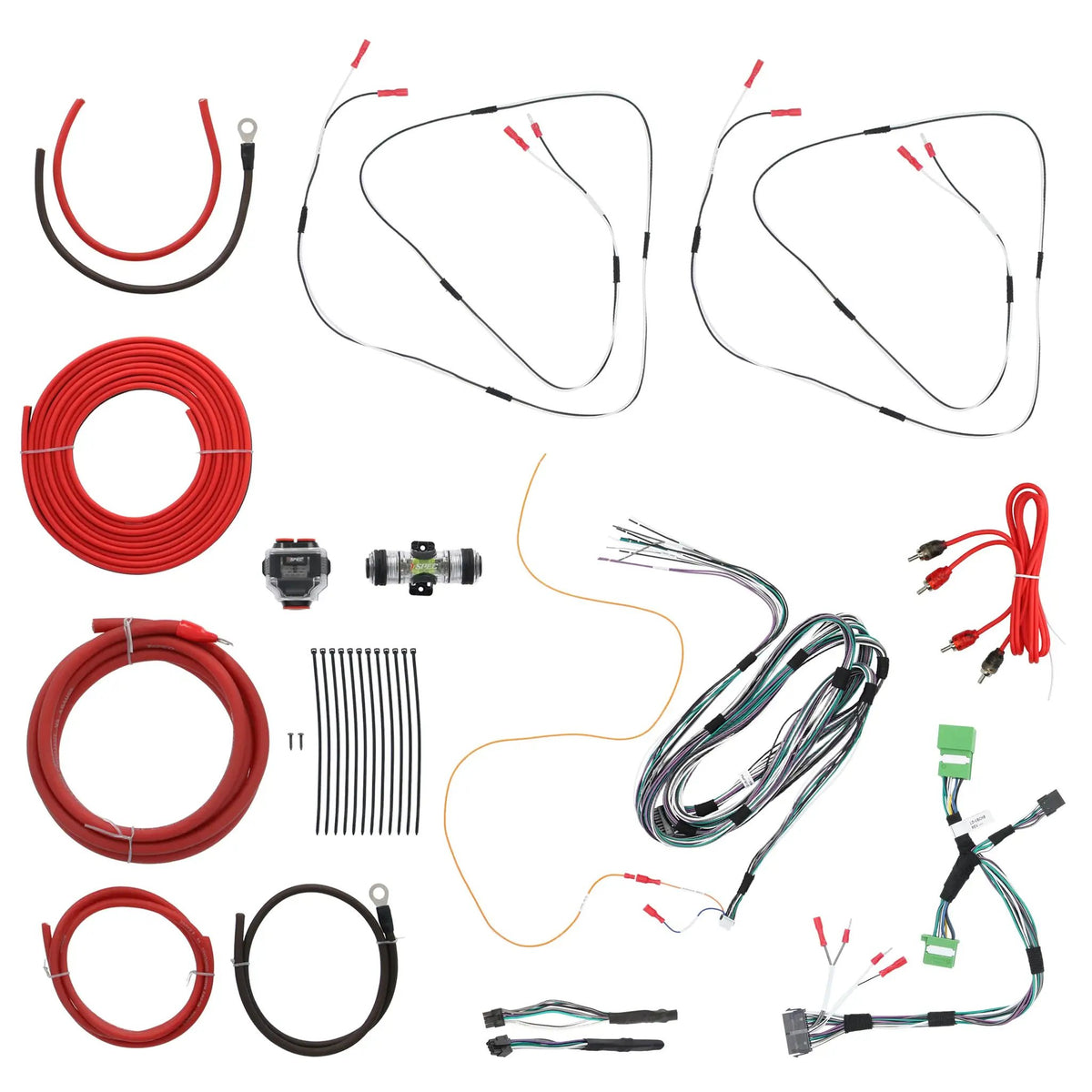

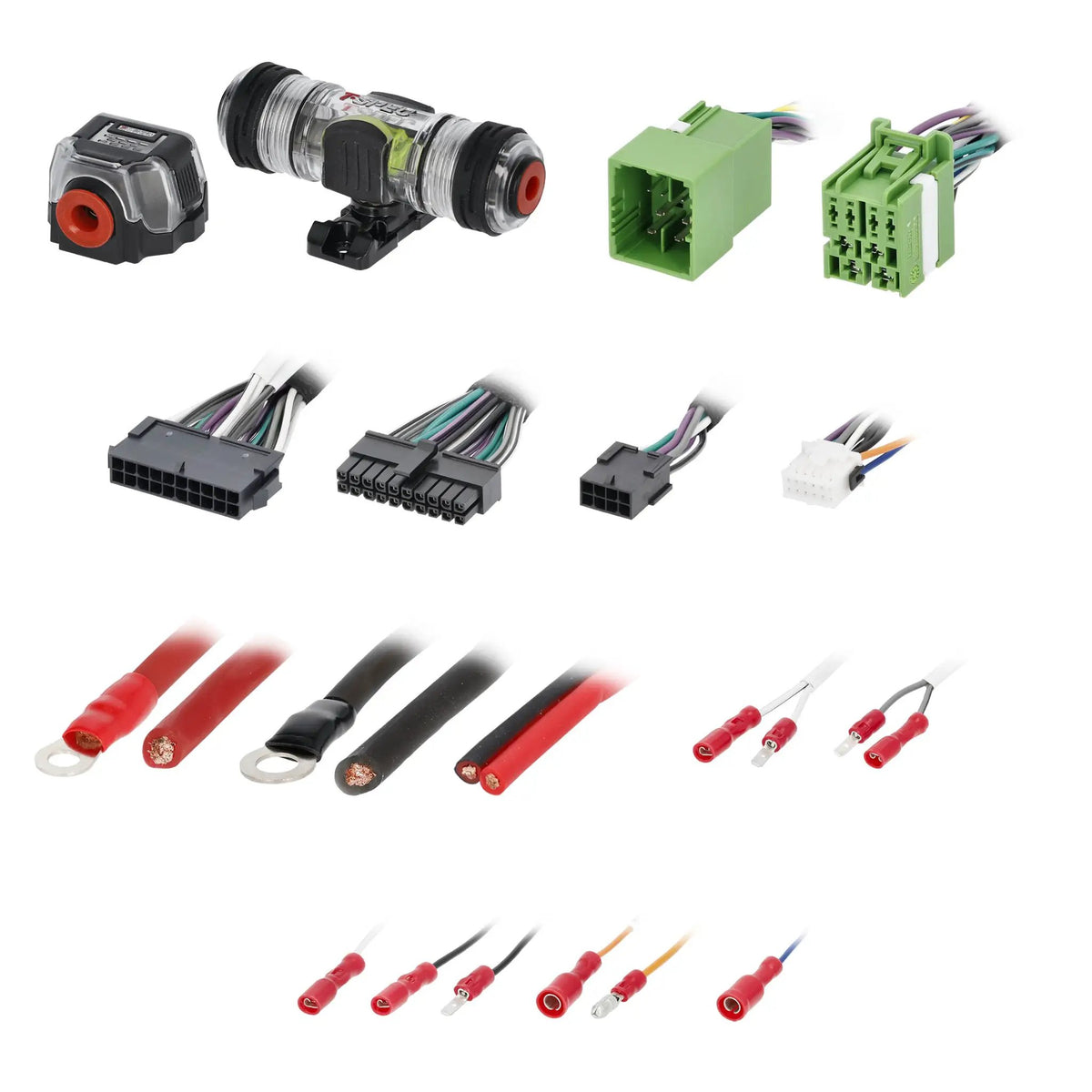

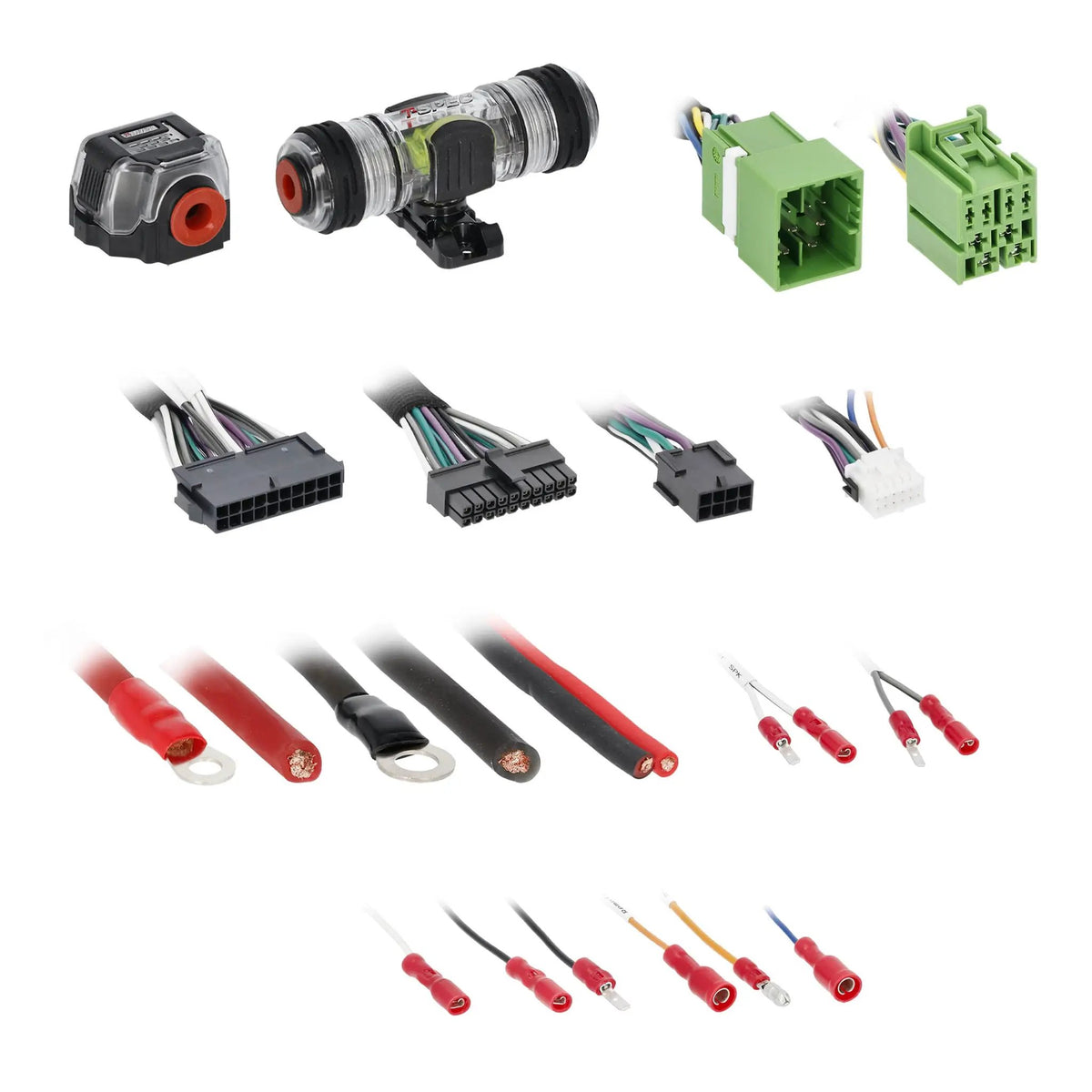

| Vehicle-specific amplifier harness | Plug-in integration connections; installs behind the radio; supplied T-harness and original-equipment-style connectors; uses the vehicle’s original speaker wiring; harness plugs into the DSP amplifier |
|---|---|
| Power wire | 4-gauge OFC power wire: 9.5 ft |
| Power wire | 8-gauge OFC power wire: 8 ft |
| Speaker wire | 12-gauge OFC speaker wire: 12 ft |
| Fuse protection | T-Spec VMANL watertight fuse holder with 100A MANL fuse |
| Power distribution | Power distribution block included |
| Fasteners and hardware | Installation fasteners/hardware are supplied. |
| Amplifier mounting racks | Vehicle-specific mounting design; black powder-coated mounting plates; fit under the seats and accommodate compact amplifiers |
Peak or maximum figures are not a continuous system rating. An output is labeled RMS only where the source explicitly identifies it that way. Ratings above belong to the named components.
Why Choose This Product?
This package brings the cabin speakers, bass enclosure, amplification and vehicle-specific integration parts together as one system. The original speaker wiring is used for the harness connection to the DSP amplifier, while the supplied DSP tuning file is intended for loading with computer software.
The front-dash and soundbar speaker sets give you two cabin listening locations, and the up-firing subwoofer uses space beneath the rear seat. The component ratings are listed separately so you can compare each speaker and amplifier on its own terms.
Installation & Compatibility Notes
This kit is for 2024–2025 Jeep Gladiator JT models with the non-amplified factory audio configuration. Check the vehicle’s audio configuration and fitment before starting; the manufacturer application entry alone does not override these requirements.
Connect the subwoofer’s dual 2-ohm voice coils in series to achieve the required 4-ohm final load for this complete kit. Follow the current installation guide and its wiring diagram, not the alternative 1-ohm configuration associated with a standalone enclosure.
Power seats may require a change to amplifier-rack height. Confirm mounting clearance, including the published DSP dimensions for this kit page, and review the latest installation steps before installation. Metra estimates 6–8 hours for one experienced technician.
Frequently Asked Questions
Which Jeep Gladiator models does the JP-PPKT-5 fit?
It is listed for 2024–2025 Jeep Gladiator JT models with the non-amplified factory audio configuration. Check the vehicle’s configuration and applicable fitment requirements before purchase.
What final impedance is required for the subwoofer in this kit?
Connect its two 2-ohm voice coils in series for a 4-ohm final load. Use the wiring diagram for this exact kit.
Does the subwoofer face up, and where does it mount?
Yes. The ported 12-inch enclosure installs beneath the rear seat with the subwoofer facing upward.
Can the package be split into separate installations?
No. Metra specifies that the package is not designed to be split into separately installed products. Use the supplied components together as the intended system.
Do power seats affect amplifier installation?
They may require a change to the amplifier-rack height. Check rack clearance and the current installation documentation for the vehicle.
What is the kit’s warranty?
The manufacturer lists a one-year warranty for the kit.
