Metra SoundStage / VIBE Audio JP-PPKT-8 Jeep Gladiator JT Audio Kit (2020–2023, factory-amplified)
Key features
- Fits 2020–2023 Jeep Gladiator JT, factory-amplified audio
- PB80.6-8DSP-V3 six-channel DSP amplifier plus PB650.1D-V4 mono amplifier
- Eight cabin speakers: four 1-inch tweeters and four 6.5-inch drivers
- JP-GL1-12 ported 12-inch subwoofer with an up-firing, under-seat layout; wire the dual 2-ohm coils in series for the required 4-ohm load
- Metra AXAMP interface and factory-amp bypass harness; under-seat racks
- Vehicle-specific DSP tune loads through computer software; 1-year warranty
Metra SoundStage / VIBE Audio JP-PPKT-8 Jeep Gladiator JT Audio Kit (2020–2023, factory-amplified) is backordered and will ship as soon as it is back in stock.
Metra SoundStage / VIBE Audio JP-PPKT-8 Jeep Gladiator JT Audio Kit (2020–2023, factory-amplified) is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview

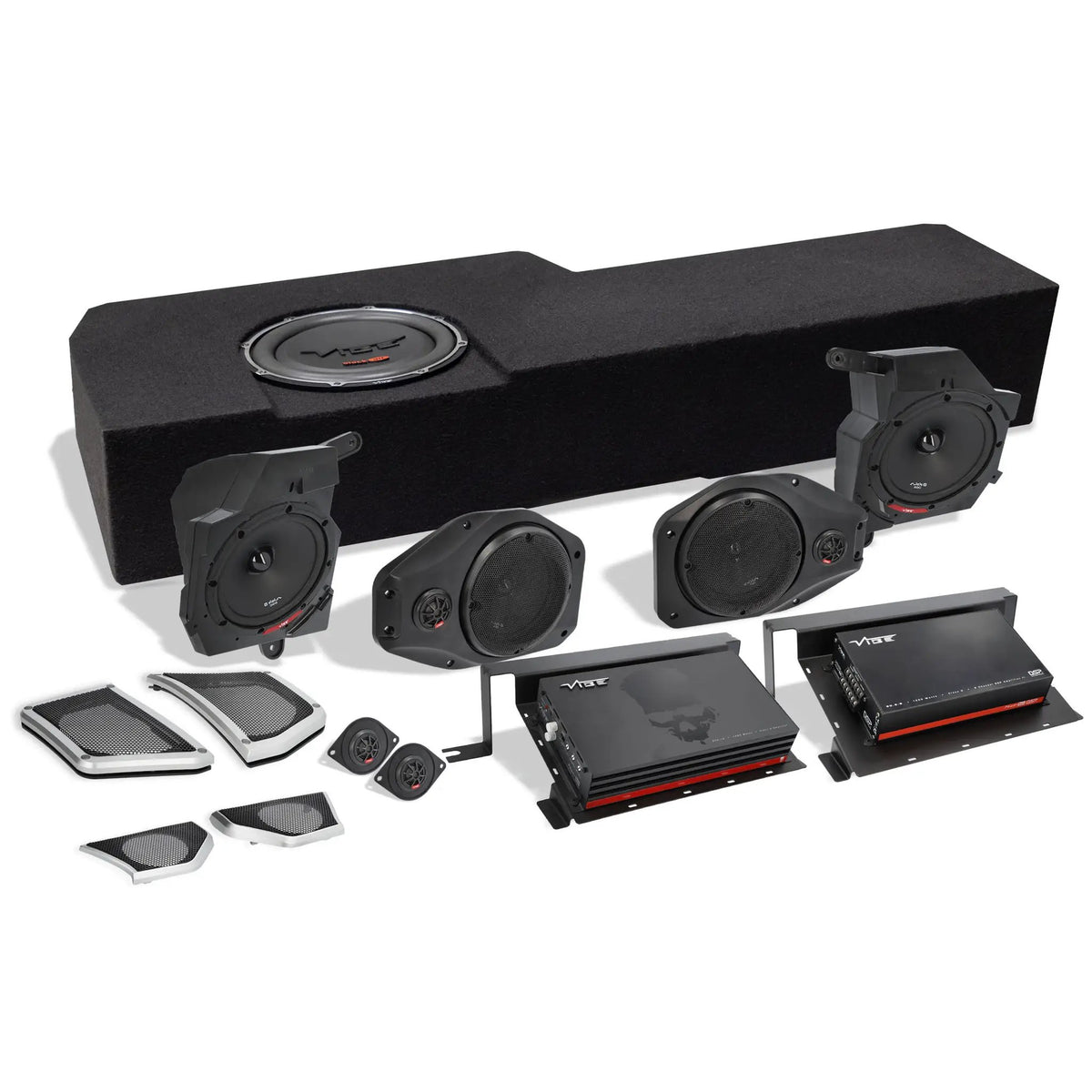

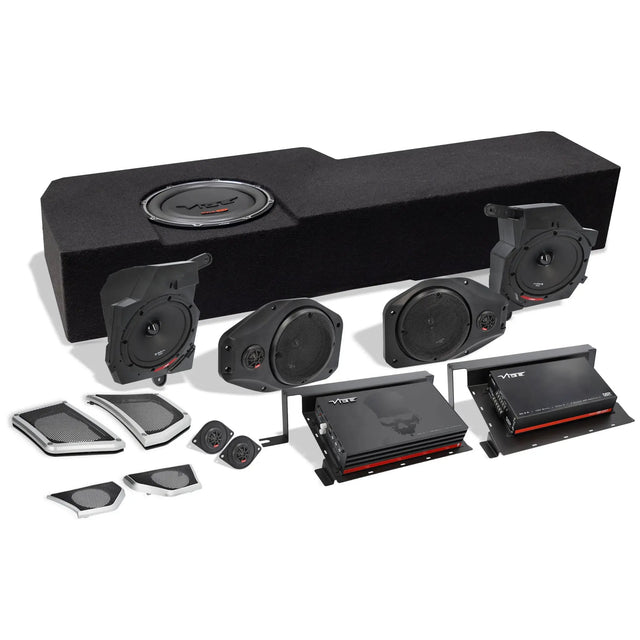

Bring a coordinated cabin-speaker and under-seat bass upgrade to your 2020–2023 Jeep Gladiator JT with the Metra SoundStage / VIBE Audio JP-PPKT-8 audio kit. It combines eight cabin speakers, a ported 12-inch subwoofer, two amplifiers, vehicle-specific integration hardware, and mounting parts for the factory-amplified audio configuration.
Key Features & Benefits
- Eight cabin speakers: Tweeters and 6.5-inch speakers for the front dash and soundbar provide speaker coverage in both locations.
- Under-seat bass: The up-firing, ported 12-inch subwoofer enclosure is designed to sit beneath the rear seat.
- Two amplifiers: The package includes a six-channel DSP amplifier and a separate mono amplifier for the system components.
- Vehicle-specific installation parts: Lower-dash speaker pods, mounting racks, and application-matched integration hardware are included.
- Factory-audio integration: The AXAMP interface and bypass harness are supplied for the factory-amplified configuration.
- Vehicle-specific DSP file: Load the included tuning file through computer software to apply the supplied vehicle-specific equalization.
Technical Specifications
| System | Metra SoundStage / VIBE Audio JP-PPKT-8 |
|---|---|
| Vehicle application | 2020–2023 Jeep Gladiator JT with factory-amplified factory audio configuration |
| System configuration | PB80.6-8DSP-V3 six-channel DSP amplifier plus PB650.1D-V4 mono amplifier; eight cabin speakers; JP-GL1-12 ported 12-inch subwoofer |
| Speaker locations | Front dash and soundbar each receive two 1-inch tweeters and two 6.5-inch speakers |
| Included package part numbers | BLK-JP-PPKT-A: vehicle-specific integration and installation parts; BLK-JP-PPKT-4B: vehicle-specific integration and installation parts; JP-GL1-12: 12-inch subwoofer enclosure |
| System installation requirement | Use the supplied components together as the intended system. Metra specifies that the package is not designed to be split into separately installed products. |
| PB650.1D-V4 mono amplifier | |
|---|---|
| Maximum power rating | 1200W |
| Output at 4 ohms | 325W (rating type not specified as RMS) |
| Output at 2 ohms | 475W (rating type not specified as RMS) |
| Output at 1 ohm | 650W (rating type not specified as RMS) |
| Chassis dimensions (H × W × D) | 1.85" H x 9.05" W x 5.27" D (47mm x 230mm x 134mm) |
| Amplifier topology | Class D |
| PB80.6-8DSP-V3 DSP and amplifier combo | |
| Amplified channels | 6 |
| Maximum power rating | 1200W |
| Continuous output | 6x80W RMS into 4 ohms, stereo |
| Specified frequency range | 20Hz – 20kHz |
| Published dimensions for this kit page (H × W × D) | 1.9" H x 15.4" W x 5.3" D (48mm x 391mm x 134mm) |
| Topology and DSP | Compact Class D amplifier topology. Load the vehicle-specific DSP equalization file using computer-based software. |
| Chassis clearance note | Metra gives different dimensions for this same DSP model on other kit pages; confirm chassis clearance before installation. |
| SLICK-V4 front-dash tweeters | |
|---|---|
| Nominal driver size | 1" |
| Speaker power capacity | 150W Peak / 50W RMS |
| Rated sensitivity | 94dB |
| Specified frequency range | 1.5kHz - 25kHz |
| Nominal impedance | 4 ohms |
| JP-1017 grilles | Injection-molded plastic surrounds, silver-painted trim and stamped-steel grille inserts |
| Installation components | Metra 82-3016 dash tweeter adapter plates; Metra 72-7902 dash tweeter harnesses |
| OPTI6-V4 front-dash panel speakers | |
| Nominal driver size | 6.5" |
| Speaker power capacity | 270W Peak / 90W RMS |
| Rated sensitivity | 94dB |
| Specified frequency range | 55Hz – 20kHz |
| Nominal impedance | 4 ohms |
| Installation components | Metra JP-1018 left and right lower dash speaker grille cut-ins; Metra JP-1014 lower dash sealed speaker PODs |
| SLICK-V4 soundbar tweeters | |
|---|---|
| Nominal driver size | 1" |
| Speaker power capacity | 150W Peak / 50W RMS |
| Rated sensitivity | 94dB |
| Specified frequency range | 1.5kHz - 25kHz |
| Nominal impedance | 4 ohms |
| OPTI6-V4 soundbar speakers | |
| Nominal driver size | 6.5" |
| Speaker power capacity | 270W Peak / 90W RMS |
| Rated sensitivity | 94dB |
| Specified frequency range | 55Hz – 20kHz |
| Nominal impedance | 4 ohms |
| Installation components | Metra JP-1015 soundbar speaker kit; Metra BC-SPG universal speaker grilles |
| JP-GL1-12 ported subwoofer enclosure | |
| Speaker power capacity | 900W Peak / 300W RMS |
| Enclosure installation position | Beneath the rear seat |
| Subwoofer orientation | Faces upward |
| Rated sensitivity | 85dB |
| Nominal impedance | Dual 2 ohm |
| Metra AXAMP vehicle-specific amplifier interface | |
|---|---|
| Integration wiring | Plug-in connections |
| Interface/harness installation position | Behind the radio |

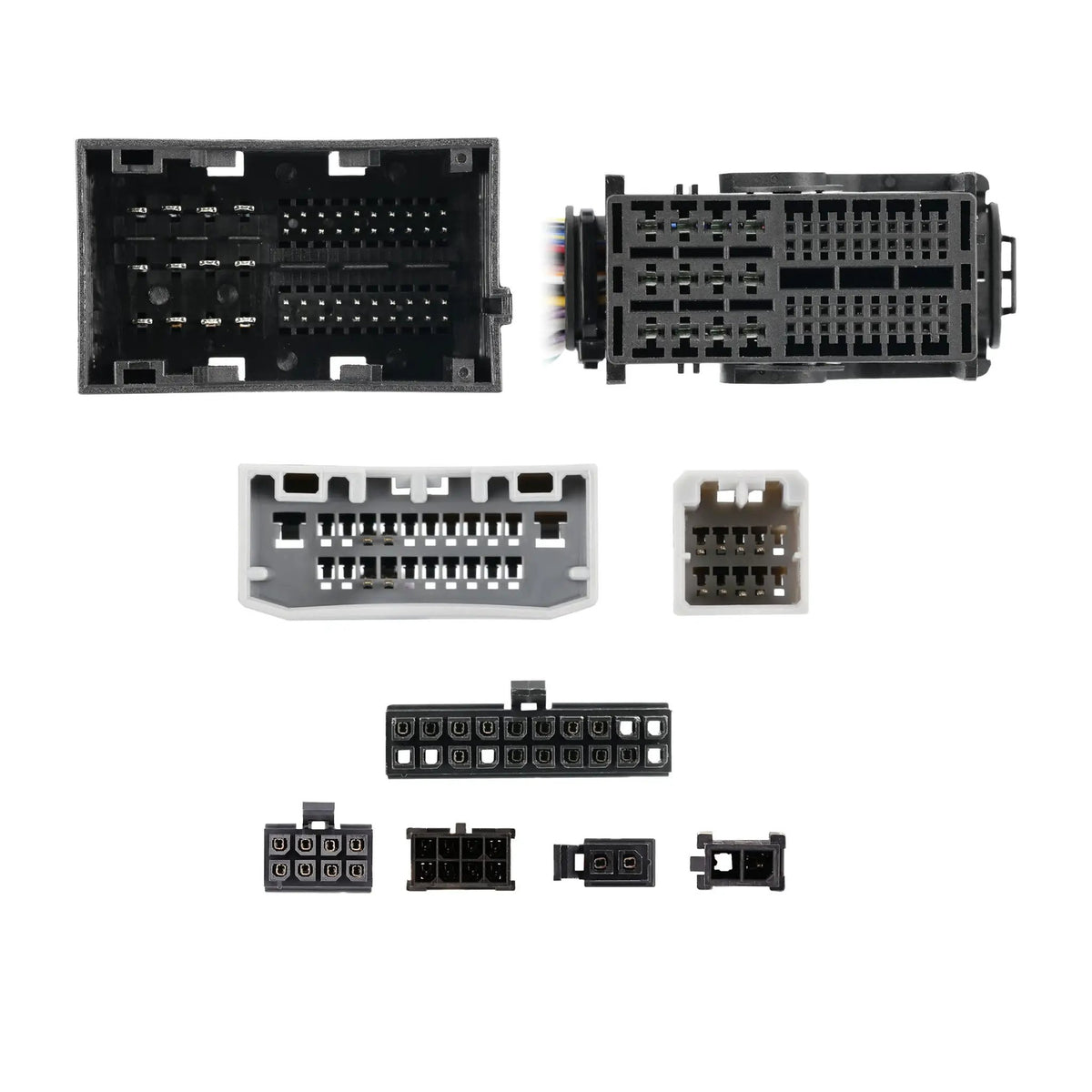

| Supplied connections | T-harness and original-equipment-style connectors |
| Additional supplied connection | RCA cables |
| Metra amplifier installation kit | |

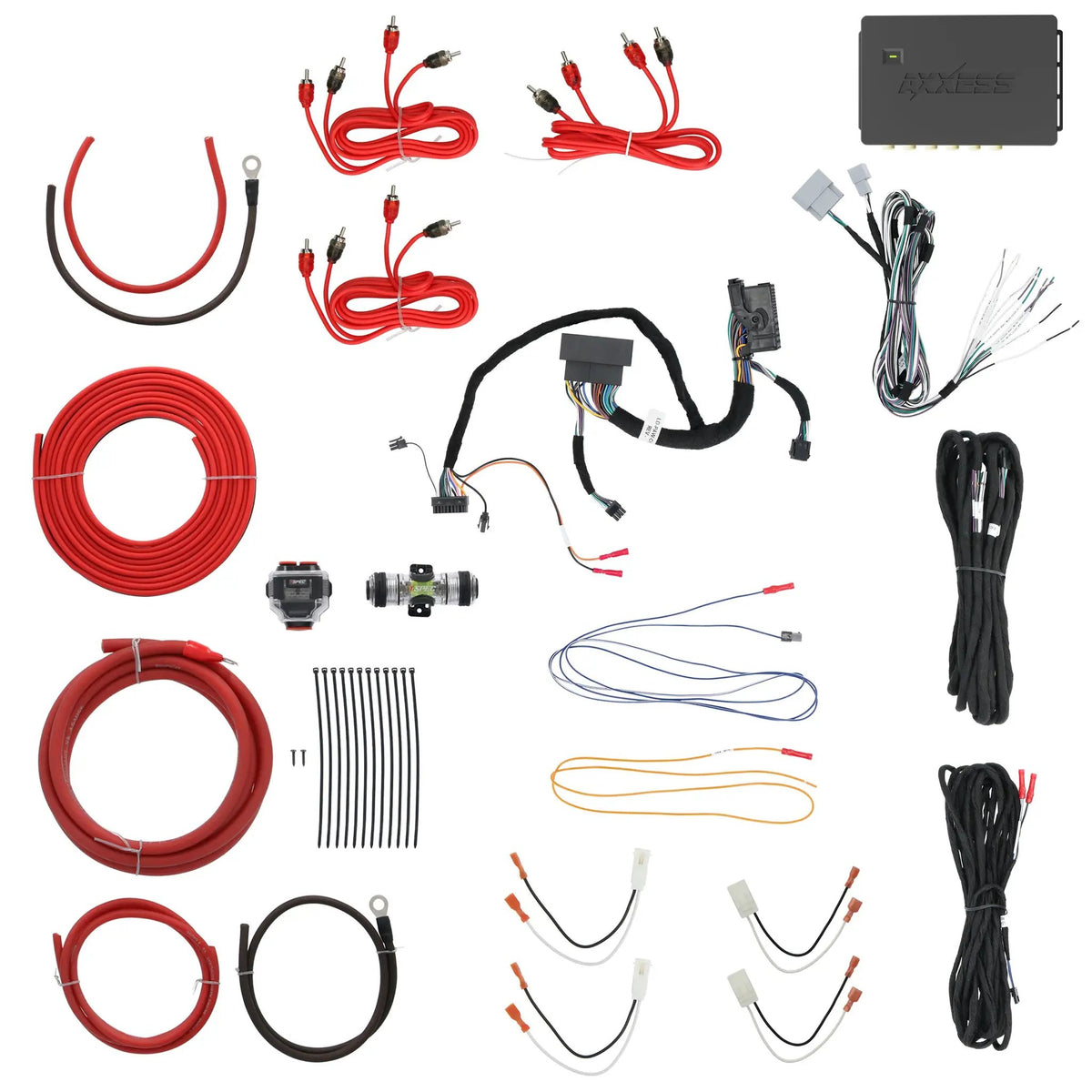

| Wiring package | Matched to this application |
| Bypass harness | Removes the original amplifier from the new audio signal path |
| Power wire | 4-gauge OFC power wire: 9.5 ft |
| Power wire | 8-gauge OFC power wire: 8 ft |
| Speaker wire | 12-gauge OFC speaker wire: 12 ft |
| Fuse protection | T-Spec VMANL watertight fuse holder with 100A MANL fuse |
| Other included installation items | Power distribution block; installation fasteners/hardware |
| Metra vehicle-specific amp mounting racks | |
| Mounting design | Specific to the listed vehicle application |
| Finish | Black powder-coated mounting plates |
| Position and fit | Fit under the seats and accommodate compact amplifiers |
| Included system items | One PB650.1D-V4 mono amplifier; one PB80.6-8DSP-V3 six-channel DSP/amplifier combination; two 1" front-dash tweeters; two 6.5" front-dash panel speakers; two 1" soundbar tweeters; two 6.5" rear soundbar speakers; 12" subwoofer with enclosure; vehicle-specific DSP tuning file for loading through computer software; application-matched amplifier installation kit; application-matched amp mounting racks; Metra amplifier integration interface; step-by-step installation documentation |
| Installation time estimate | Metra estimates 6–8 hours for one experienced technician. |
| Manufacturer warranty | One-year warranty for the kit. |
| Rating note | The ratings above belong to the named components. Peak or maximum figures are not a continuous system rating; an output is labeled RMS only where the source explicitly identifies it that way. |
Why Choose This Product?
The JP-PPKT-8 brings the speakers, bass enclosure, amplification, DSP, and vehicle-specific installation hardware together as one system. That coordinated package is intended for the listed factory-amplified Gladiator configuration, rather than separate products installed independently.
The included front-dash and soundbar speaker parts address both cabin locations, while the upward-facing subwoofer enclosure occupies space beneath the rear seat. The supplied amplifier racks are also designed for under-seat mounting.
Installation & Compatibility Notes
- Check vehicle configuration: Fitment is for 2020–2023 Jeep Gladiator JT models with the factory-amplified factory audio configuration. Manufacturer application entries list the 2020–2023 Jeep Gladiator; those entries do not remove the factory-audio, cab/body-style, or exclusion requirements.
- Wire the subwoofer correctly: Connect its two 2-ohm voice coils in series for a 4-ohm final load. Use the current installation guide for this exact kit and its wiring diagram. Do not use a standalone enclosure’s alternative 1-ohm configuration for this system.
- Plan the installation: Confirm vehicle fitment, mounting clearance, and the latest installation steps before starting. The interface and harness install behind the radio, and Metra estimates 6–8 hours for one experienced technician.
- Check amplifier clearance: The published dimensions for the DSP amplifier on this kit page differ from dimensions Metra gives for the same model on other kit pages, so confirm chassis clearance before installation.
Frequently Asked Questions
Which Jeep Gladiator models does the JP-PPKT-8 fit?
It is specified for 2020–2023 Jeep Gladiator JT models with the factory-amplified factory audio configuration. Check the vehicle’s cab/body style and exclusions against the current kit installation documentation.
What final load does the subwoofer need?
Connect the two 2-ohm voice coils in series to produce a 4-ohm final load. Follow this kit’s wiring diagram, not a standalone enclosure’s alternative 1-ohm configuration.
Can I install the kit as separate audio upgrades?
No. Metra specifies that the package is not designed to be split into separately installed products. Use the supplied components together as the intended system.
What does the 650W amplifier output rating mean?
The PB650.1D-V4 output is listed as 650W at 1 ohm, 475W at 2 ohms, and 325W at 4 ohms. The source does not identify those output figures as RMS; maximum or peak figures are not continuous system ratings.
What is included for installation?

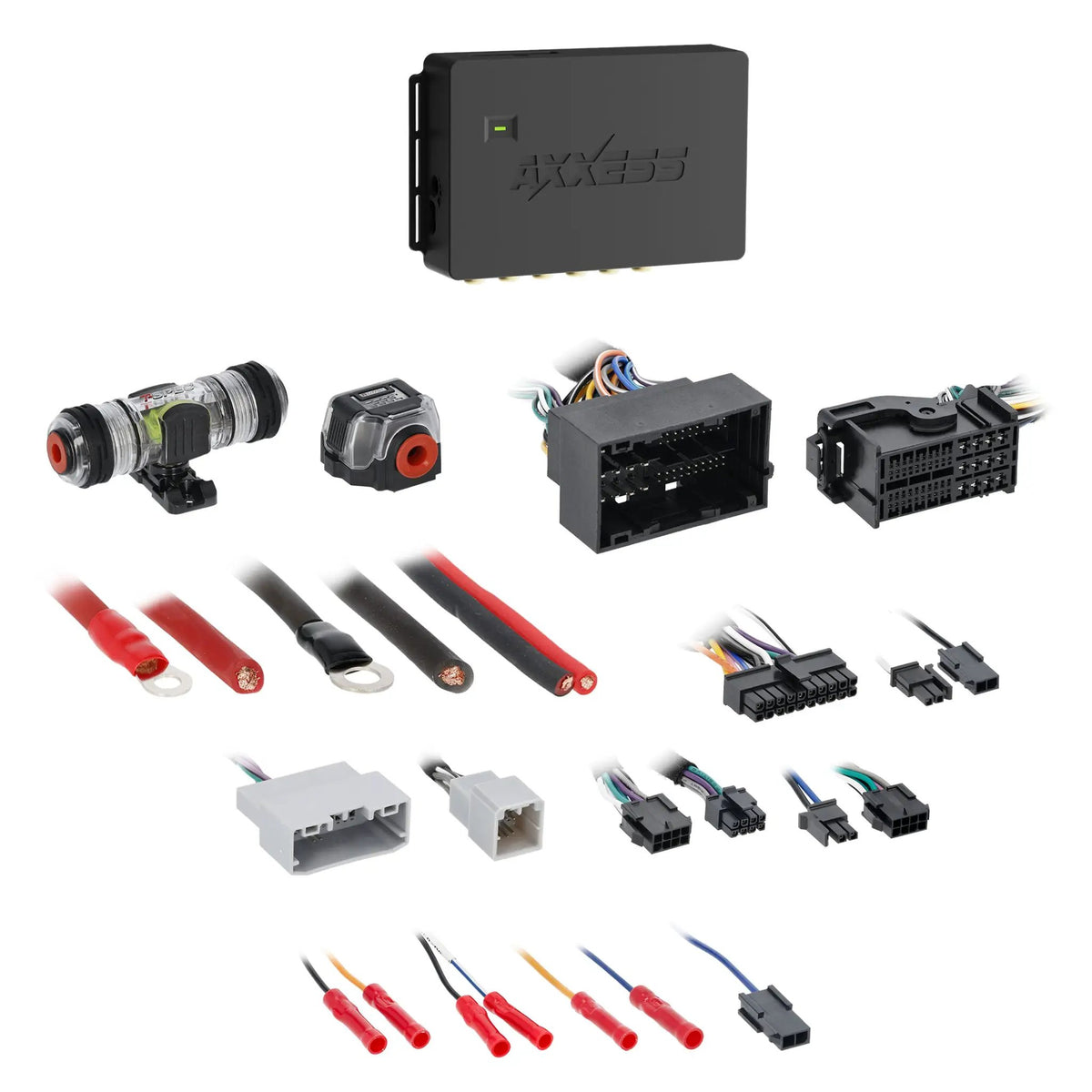

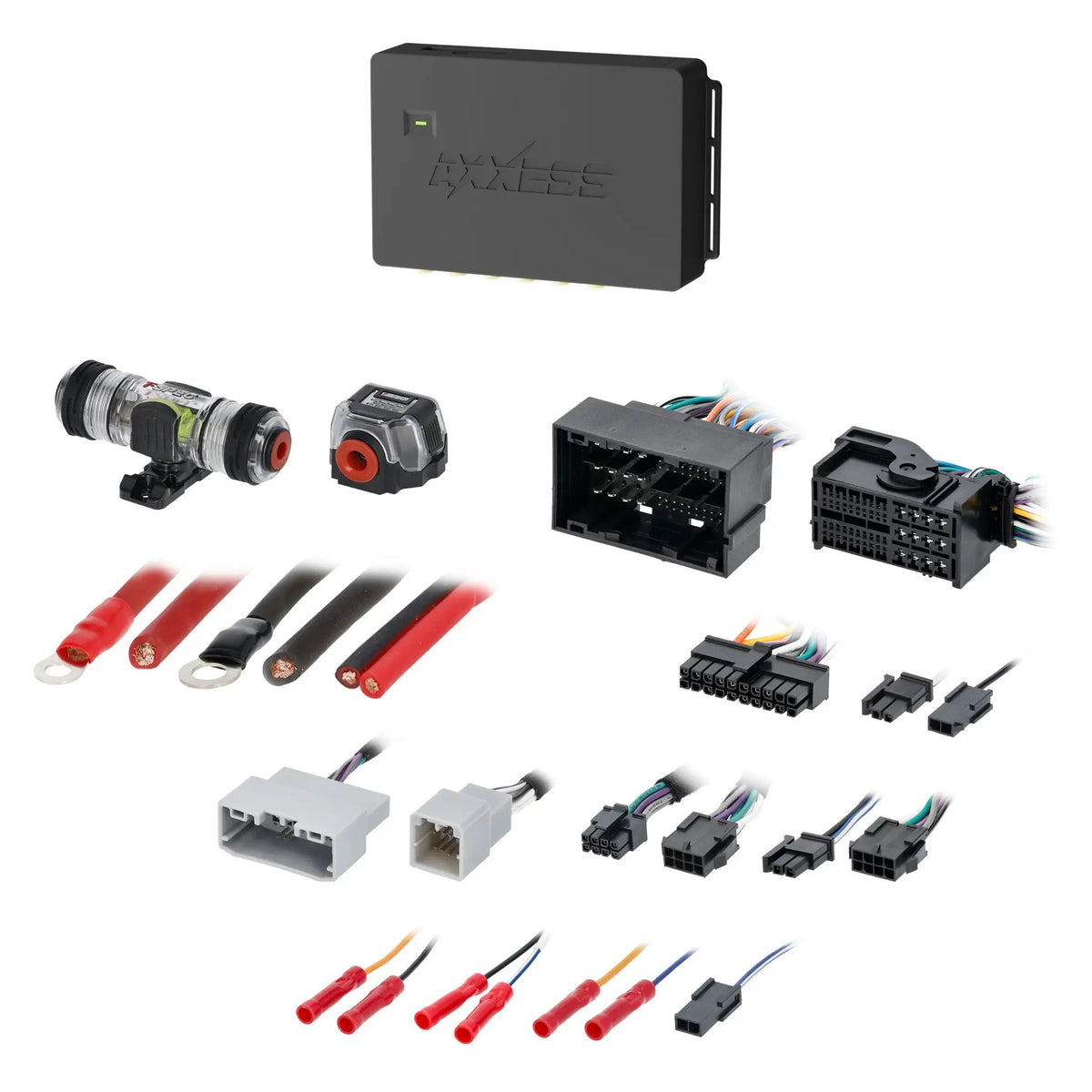

The kit includes the AXAMP interface, bypass harness, application-matched wiring and mounting parts, speaker installation components, and step-by-step installation documentation. The included wiring package lists a T-Spec VMANL watertight fuse holder with a 100A MANL fuse.
