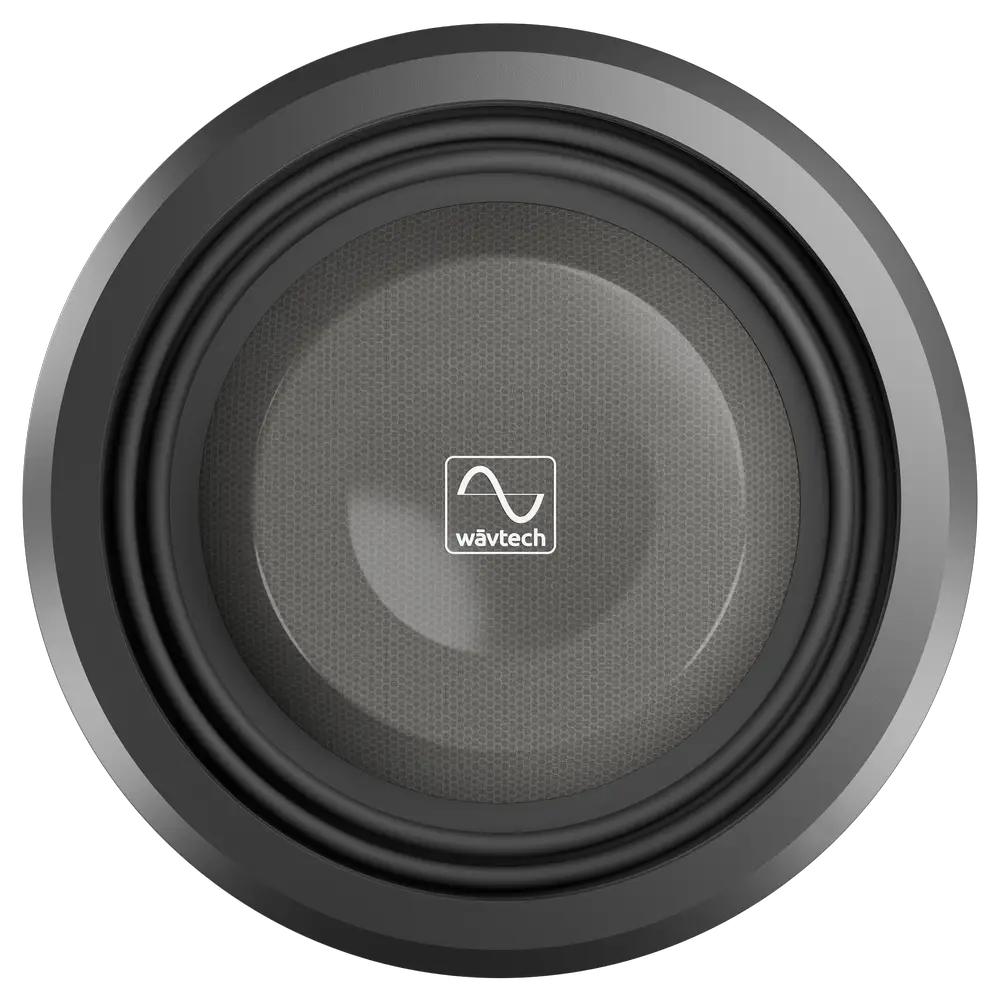

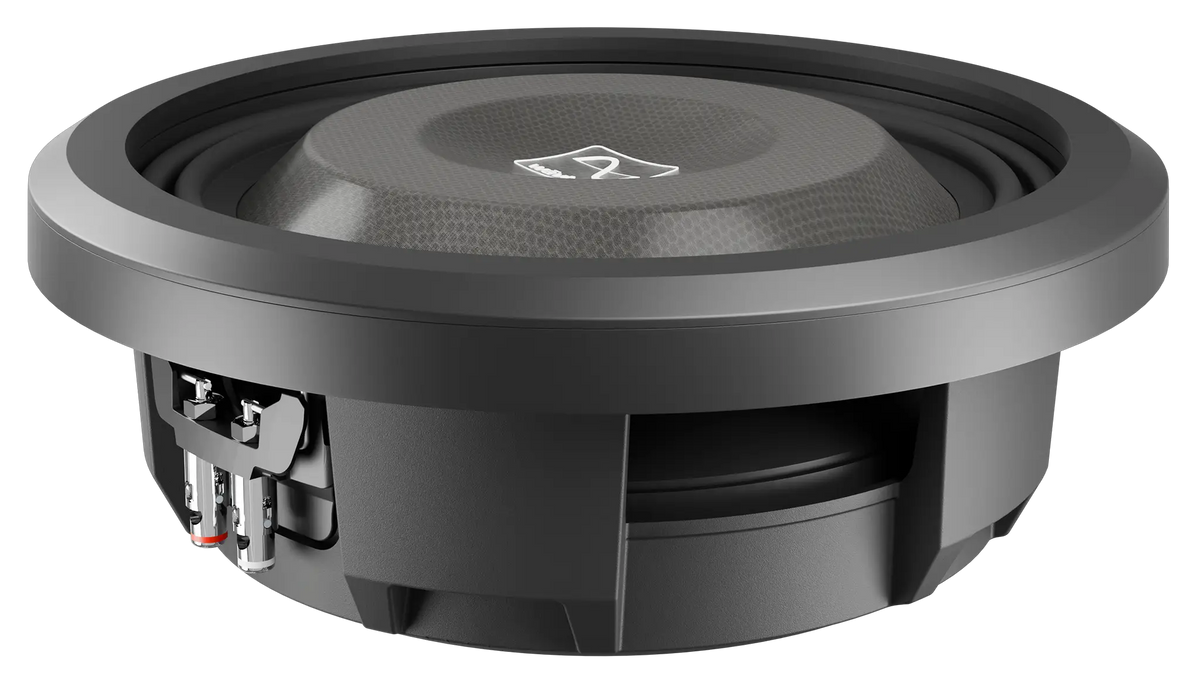

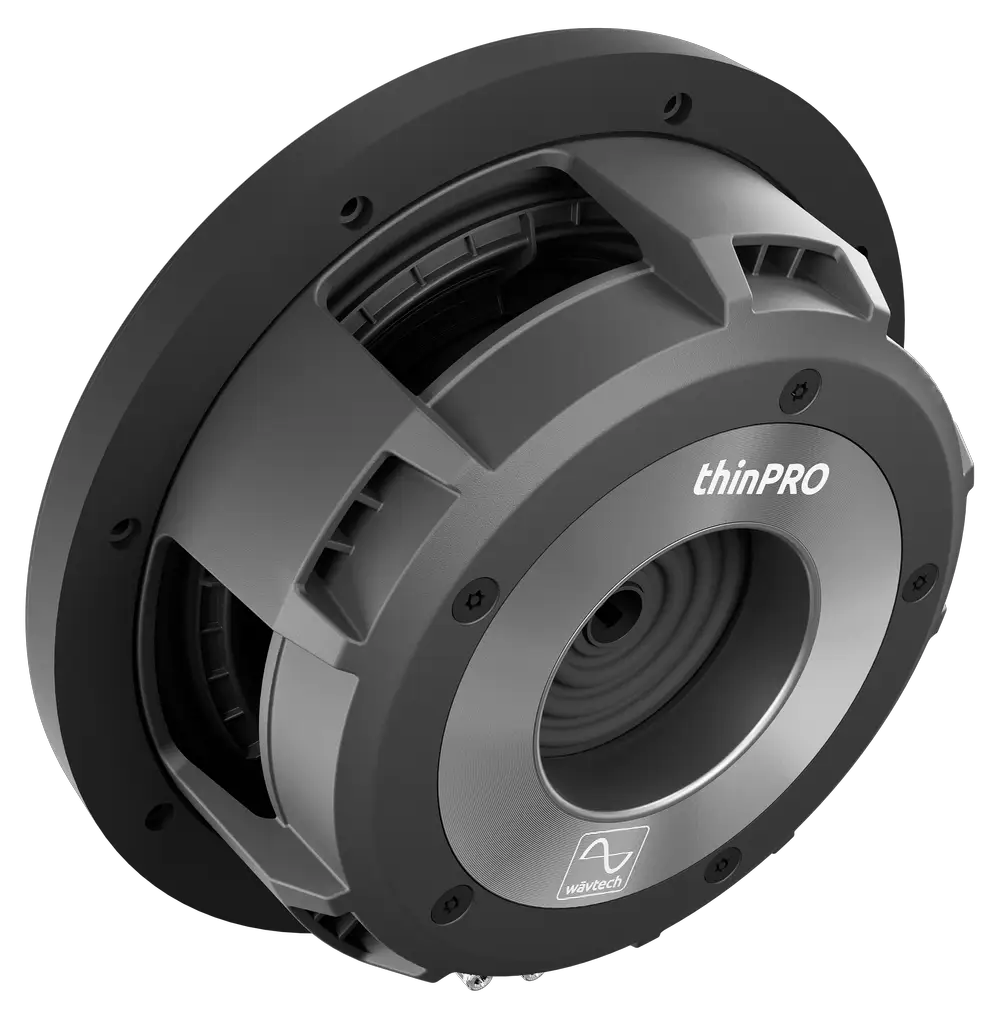

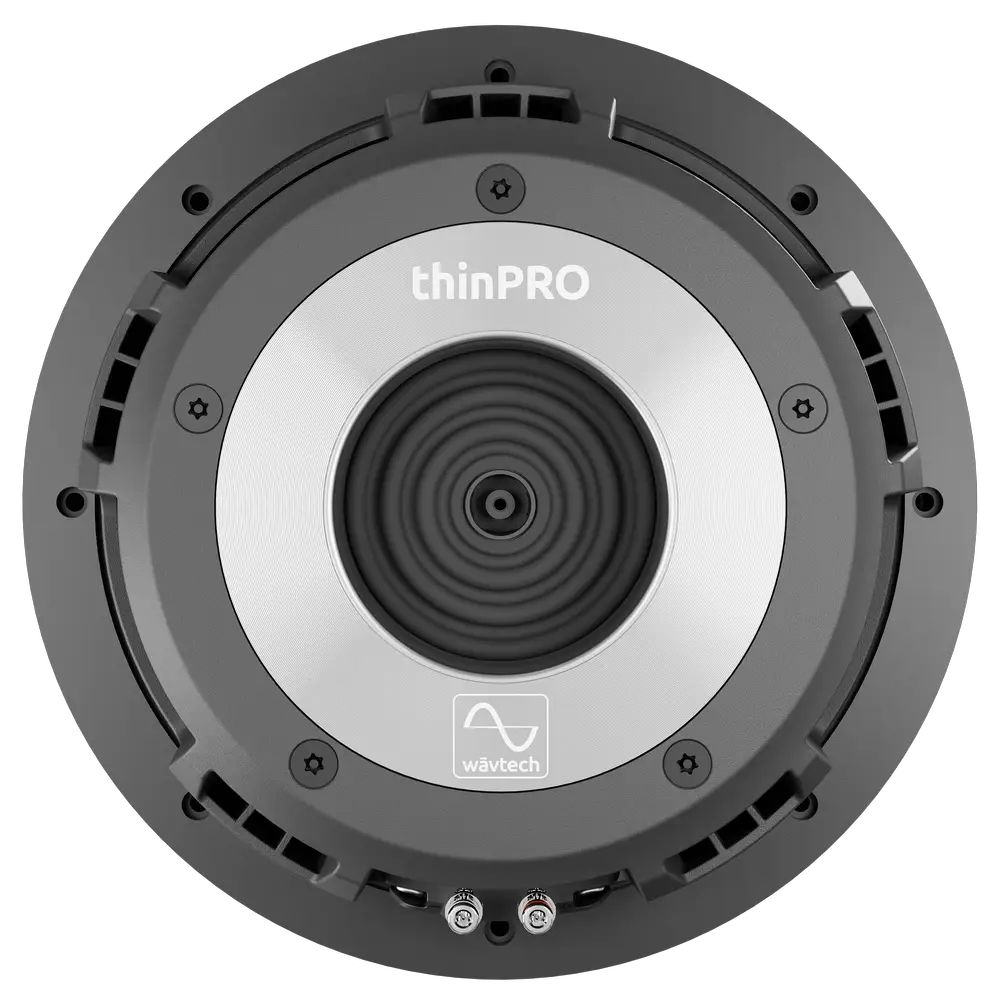

Wāvtech thinPRO10 10” Professional Series Shallow Subwoofer
Key features
- Subwoofer size: 10.0 inches
- RMS power per subwoofer: 750 W
- Voice-coil options: D2, D4
- Mounting depth: 2.9 inches
- Voice-coil diameter: 4.5 inches
- Cone: Honeycomb Nomex and glass-fiber composite
Wāvtech thinPRO10 10” Professional Series Shallow Subwoofer - Dual 2 Ohm is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview
The Wāvtech thinPRO10 10-inch shallow subwoofer brings 750W RMS power handling to compact automotive builds where installation depth is limited. Its patent-pending design pairs a shallow footprint with a robust motor assembly for serious bass in a small enclosure.
Key Features & Benefits
- Shallow mounting profile: The slim design opens up installation locations where a conventional 10-inch subwoofer may not fit.
- Controlled cone movement: The rigid, lightweight cone and dual-gap motor structure support precise motion and fast transient response.
- Heat-conscious construction: The vented voice-coil former and cast aluminum frame help manage heat during high-power operation.
- Protective grille: The grille guards the cone from debris while maintaining airflow and sound integrity.
- High-current terminals: 8AWG push terminals provide a connection point for high-current wiring.
Technical Specifications
| Specification | Value |
|---|---|
| Brand and model | Wāvtech thinPRO10 |
| Product type | 10-inch Professional Series shallow subwoofer |
| Power handling | 750W RMS |
| Mounting depth | 2.9” |
| Voice coil | 4.5” |
| Voice-coil former | 4-layer winding on vented Polymide composite former |
| Cone | Honeycomb Nomex® and glass fiber |
| Motor structure | FEA-optimized dual-gap structure with double-stacked magnets |
| Linear excursion | Up to 20mm linear xmax |
| Surround | Double-roll NBR |
| Spiders | Mirrored internal NBR spiders |
| Terminals | 8AWG push terminals |
| Frame | Vented cast aluminum |
| Dimensions | 9 1/8 in (232 mm) standard, with a 10” cutout |
| Sealed enclosure compatibility | 0.25–0.8 cu ft; sweet spot 0.35 cu ft |
| Ported enclosure compatibility | 0.4–1.0 cu ft; recommended 0.6 cu ft for best performance |
Why Choose This Product?
The thinPRO10 is designed for builds that need a 10-inch driver but have limited room behind the mounting surface. Its honeycomb Nomex® and glass fiber cone, NBR suspension components, and FEA-optimized motor structure are built to support controlled movement within that compact design.
The vented cast aluminum frame resists flex and vibration, while the mirrored internal spiders help distribute force evenly. Together, these design choices make this subwoofer a considered option for a compact sealed or ported enclosure.
Installation & Compatibility Notes
Allow for the 2.9” mounting depth and 10” cutout when checking the available space. Confirm the enclosure volume matches the selected sealed or ported design before installation.
The stated power handling is 750W RMS. Check your system requirements and subwoofer connections when selecting supporting equipment.
Frequently Asked Questions
What enclosure volume is recommended for the thinPRO10?
The sealed enclosure sweet spot is 0.35 cu ft. For a ported enclosure, 0.6 cu ft is recommended for best performance.
How much mounting space does this subwoofer need?
Its mounting depth is 2.9”, and the stated cutout is 10”. Check the available mounting area before building or selecting an enclosure.
What does the 750W RMS rating describe?
It is the subwoofer’s stated RMS power handling. It does not specify an amplifier model or system configuration.
Does the shallow design guarantee fit in my vehicle?
No. Check your vehicle’s mounting area, depth clearance, cutout, and enclosure space against the dimensions above.
