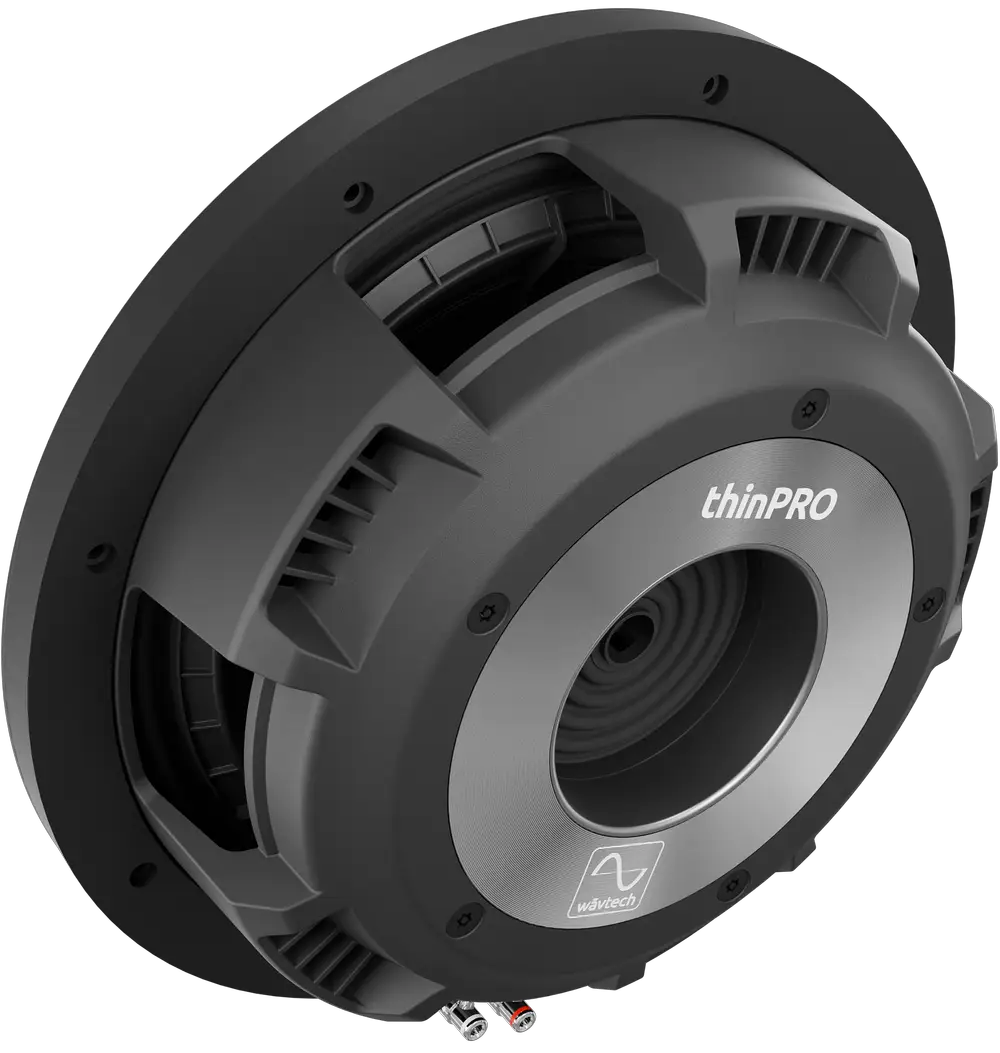

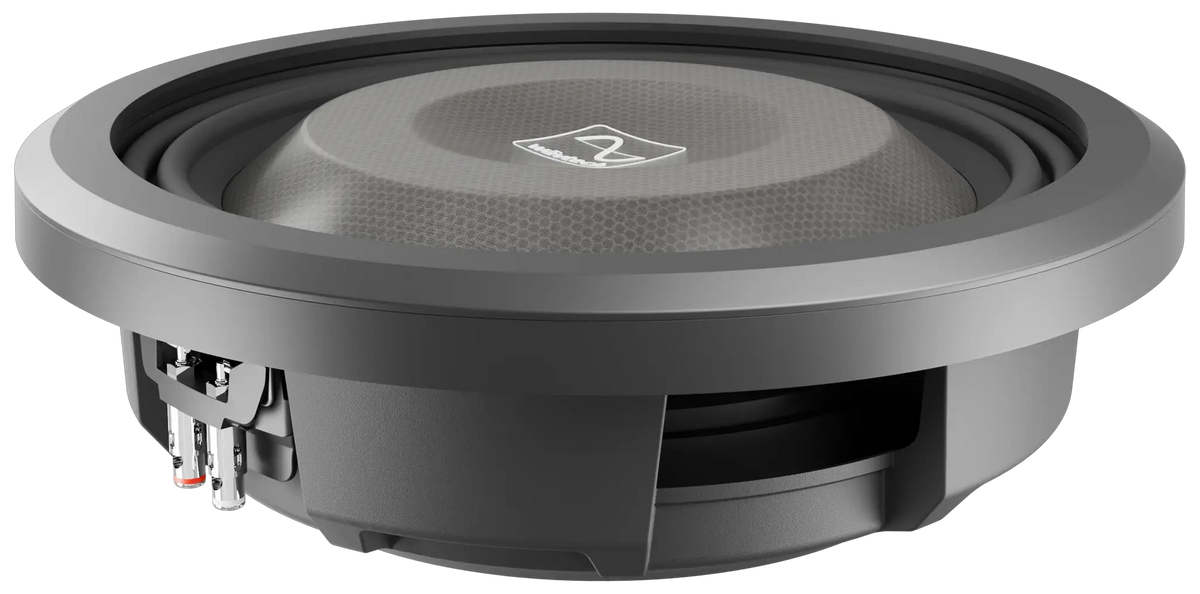

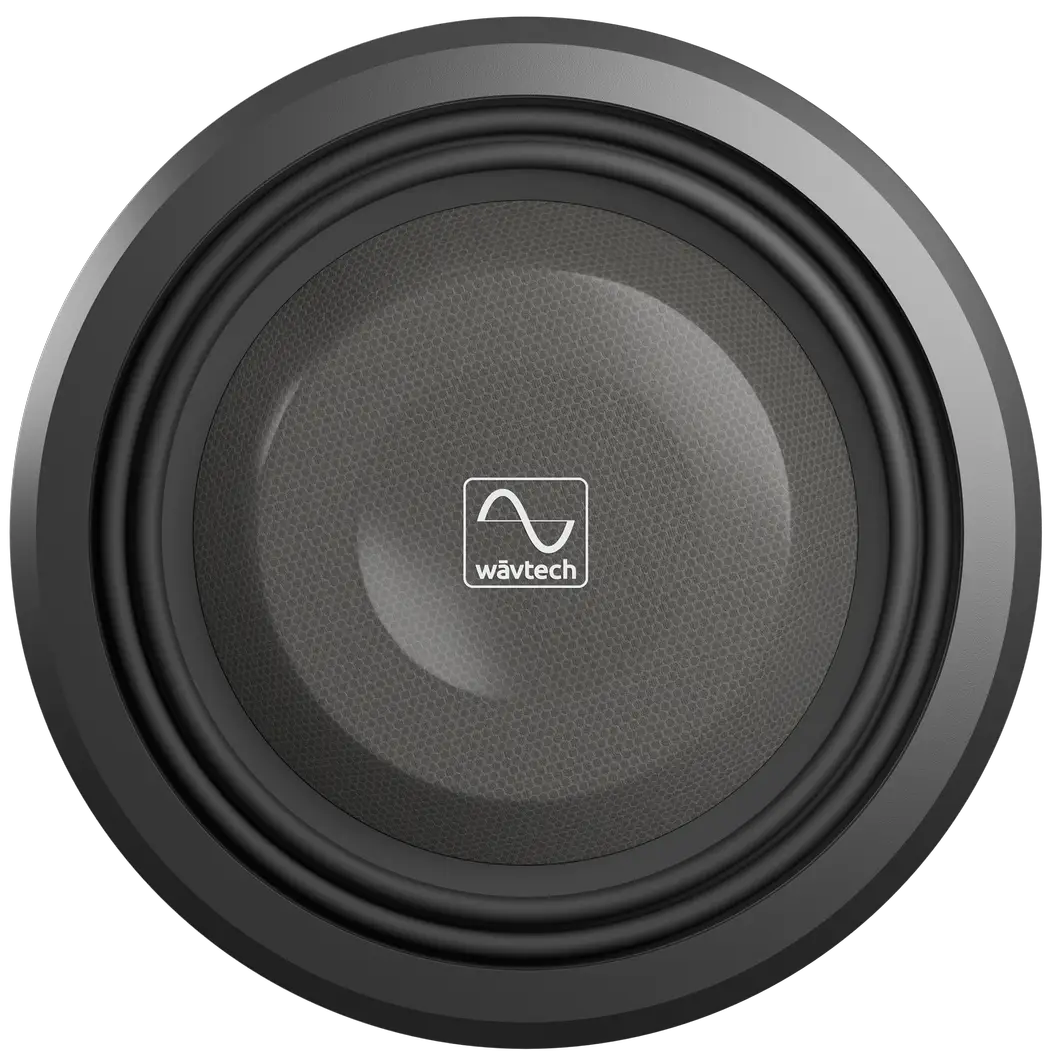

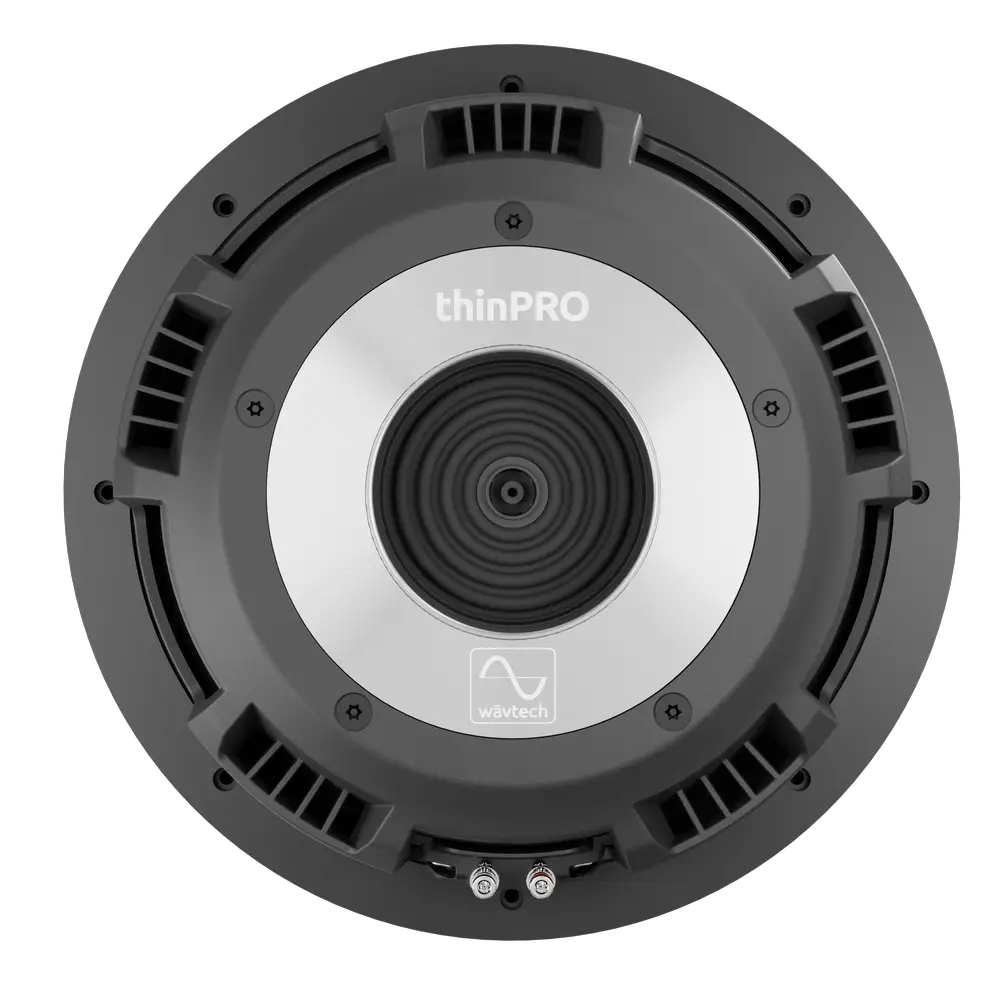

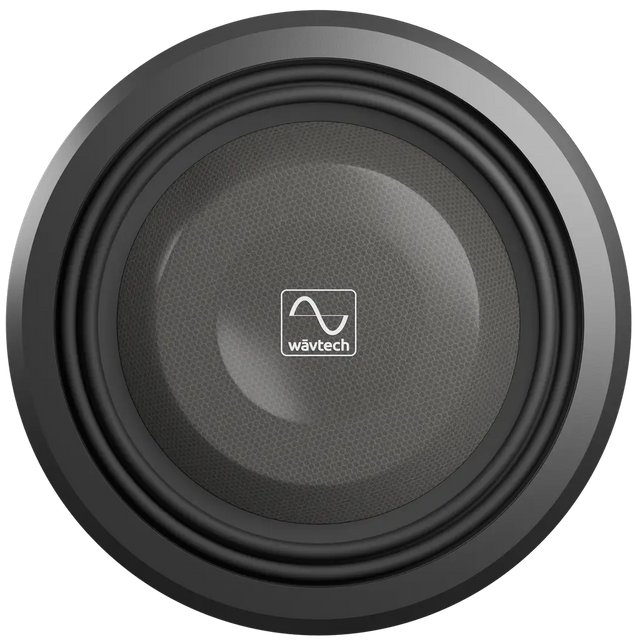

Wāvtech thinPRO12 12” Professional Series Shallow Subwoofer

Product Overview

The Wāvtech thinPRO12 is a 12-inch professional-series shallow subwoofer for adding deep, controlled bass in tight vehicle spaces. Its 3-inch mounting depth, 750 watts RMS power handling, and 20 mm linear Xmax suit compact installations where cone movement and enclosure space matter.

Key Features & Benefits

• Shallow mounting depth: The 3-inch depth helps accommodate installations such as under-seat or compact cargo-area spaces.
• High-excursion design: More than 2 inches of peak-to-peak excursion and 20 mm linear Xmax support substantial cone travel.
• Large voice coil: The 5-inch coil and four-layer winding on a vented polymide composite former support heat dissipation during demanding playback.
• Rigid cone and suspension: A Honeycomb Nomex® and glass fiber cone pairs with a double-roll NBR surround and mirrored internal NBR spiders.
• Robust connections and frame: 8 AWG push terminals and a vented cast aluminum frame provide substantial electrical and mechanical hardware.

Technical Specifications

Why Choose This Product?

The thinPRO12 combines a shallow profile with a dual-gap motor structure designed for controlled, linear cone movement. Its cone and suspension components are intended to support large excursions while maintaining stability. That combination makes it a specific option for compact sealed or ported enclosures within the stated volume ranges.

Installation & Compatibility Notes

Plan around the 3-inch mounting depth, the stated 11 1/8-inch (282 mm) dimension, and the standard 12-inch cutout. Confirm available space in your vehicle and enclosure before installation; vehicle fit depends on the space available. Pair the subwoofer with an amplifier capable of supporting its 750 watts RMS power handling.

Choose a sealed enclosure between 0.4 and 1.0 cu ft, or a ported enclosure between 0.8 and 1.5 cu ft. The stated optimum volumes are 0.6 cu ft sealed and 1.0 cu ft ported. The TP12G protective grille is sold separately.

Frequently Asked Questions

What does the 750 watts RMS rating mean?

It is the subwoofer’s stated RMS power-handling rating. The source describes it as continuous power capability, so select an amplifier with that rating in mind.

What enclosure volume does the thinPRO12 require?

The stated range is 0.4–1.0 cu ft for sealed enclosures and 0.8–1.5 cu ft for ported enclosures. The optimum volumes are 0.6 cu ft sealed and 1.0 cu ft ported.

What mounting space should I allow?

The mounting depth is 3", and the listed dimension is 11 1/8" (282 mm) with a standard 12" cutout. Check those measurements against your installation space.

Is the protective grille included?

No. The TP12G protective grille is sold separately.

Can it be installed under a seat?

The shallow design is intended for tight vehicle spaces, including under-seat installations. Confirm that the available space matches the listed mounting measurements.
