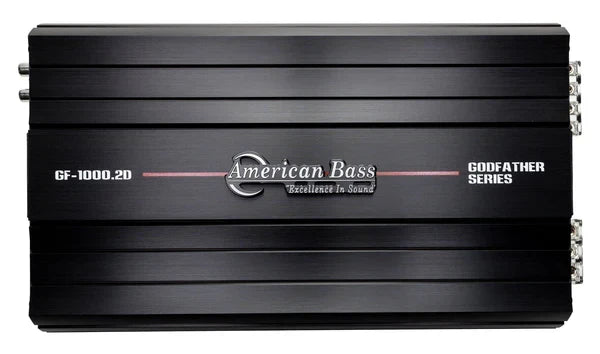

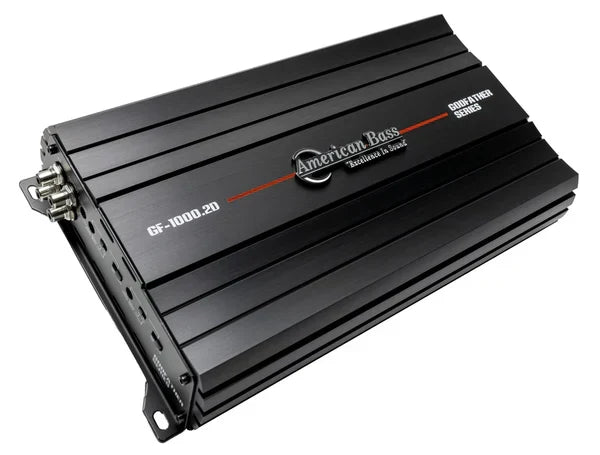

American Bass Godfather 1000.2D 2-Channel Amplifier
Key features
- Amplifier channels: 2
- RMS per channel at 4 ohms: 400 W
- RMS per channel at 2 ohms: 620 W
- Amplifier class: D
- Input sensitivity: 6V - 0.2V
- Dimensions (L × W × H): 11.82 × 7.15 × 2.33 inches
American Bass Godfather 1000.2D 2-Channel Amplifier is backordered and will ship as soon as it is back in stock.
American Bass Godfather 1000.2D 2-Channel Amplifier is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview
Get flexible two-channel power and hands-on tuning control for your car audio system with the American Bass Godfather 1000.2D amplifier. Its Class D design, linkable configuration, wired remote, and clipping indicator give you practical options for system setup and level adjustment.
Use it for a two-channel speaker system or, in mono operation at 4Ω, a subwoofer setup. The compact chassis measures 11.82L x 7.15W x 2.33H inches.
Key Features & Benefits
- Multiple power ratings: Choose between 400W x 2 at 4Ω, 600W x 2 at 2Ω, or 1300W x 1 at 4Ω mono, according to your system configuration.

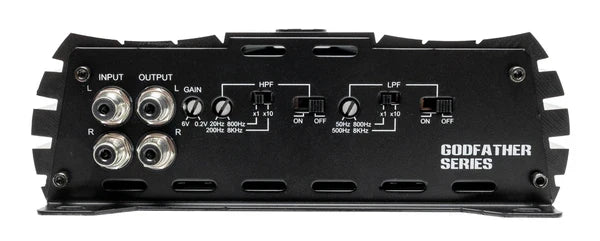

- Adjustable filters: Low-pass and high-pass controls help tailor the signal to your system’s speakers.
- Wired remote included: Adjust the amplifier level from the driver’s seat.
- Clipping indicator: Check the visual indicator while tuning to help avoid overdriving the amplifier.
- Compact dimensions: The 11.82L x 7.15W x 2.33H-inch chassis gives you a specific size to consider when planning an installation.
Technical Specifications
| Specification | Value |
|---|---|
| Number of channels | 2 Channel |
| Configuration | Full Range Digital |
| 4Ω RMS power | 400W x 2 |
| 2Ω RMS power | 600W x 2 |
| 1Ω RMS power | na |
| 4Ω mono power | 1300W x 1 |
| Frequency response | 10Hz - 38Hz |
| Signal-to-noise ratio | 85Db |
| Efficiency @ 4Ω | Over 70% |
| Damping factor | 150< |
| Input sensitivity | 6V - 0.2V |
| Subsonic filter | na |
| Low-pass filter | 50Hz - 8000Hz |
| Multiply (X1, X10) | 500Hz - 8KHz |
| High-pass filter | 20Hz - 800Hz |
| Multiply (X1, X10) | 200Hz - 8KHz |
| Bass boost @45Hz | na |
| THD @ 4Ω | <0.1% |
| Fuse rating | 100A |
| Dimensions (LxWxH) | 11.82L x 7.15W x 2.33H inches |
| Wired remote | Included |
| Clipping indicator | Included |
Why Choose This Product?
The Godfather 1000.2D combines two-channel operation with a listed 4Ω mono power rating, giving you more than one configuration to consider. Its filter controls offer adjustment ranges for system tuning, while the included remote lets you make level changes from the driver’s seat.
The clipping indicator adds a visible reference during setup. The specified chassis dimensions also help you plan where the amplifier may fit before beginning an installation.
Installation & Compatibility Notes
Check your available mounting space against the amplifier’s 11.82L x 7.15W x 2.33H-inch dimensions. Confirm that your speakers or subwoofer match the intended channel configuration and rated impedance before connecting the amplifier.
The amplifier has a 100A fuse rating. Plan the vehicle electrical installation around the product’s requirements and your system design.
Frequently Asked Questions
What power ratings are listed for the Godfather 1000.2D?
It is rated at 400W x 2 at 4Ω, 600W x 2 at 2Ω, and 1300W x 1 in 4Ω mono operation.
Can I use this amplifier with a subwoofer?
The supplied details list 1300W x 1 at 4Ω mono and describe mono operation for a subwoofer setup. Match the subwoofer’s impedance and system configuration to the amplifier rating.
What are the amplifier’s dimensions?
Its listed dimensions are 11.82L x 7.15W x 2.33H inches. Compare these measurements with your planned mounting location.
Does the amplifier include a remote?
Yes. A wired remote is included for level adjustment from the driver’s seat.
Explore More
Shop the American Bass Godfather 1000.2D at 12 Volt Outlet. Want to learn more about American Bass? Explore our American Bass brand profile.
| NO OF CHANNELS | 2 CHANNEL |
| CONGIGURATION | FULL RANGE DIGITAL |
| 4OHM RMS POWER | 400W x 2 |
| 2OHM RMS POWER | 600W x 2 |
| 1OHM RMS POWER | na |
| 4OHM MONO POWER | 1300W x 1 |
| FREQUENCY RESPONSE | 10Hz - 38Hz |
| SIGNAL TO NOISE RATIO | 85Db |
| EFFICIENCY @ 4OHM | OVER 70% |
| DAMPING FACTOR | 150< |
| INPUT SENSITIVITY | 6V - 0.2V |
| SUBSONIC FILTER | na |
| LOW PASS FILTER | 50Hz - 8000Hz |
| MULTIPLY (X1, X10) | 500Hz - 8KHz |
| HIGH PASS FILTER | 20Hz - 800Hz |
| MULTIPLY (X1, X10) | 200Hz - 8KHz |
| BASS BOOST @45HZ | na |
| THD @ 4OHM | <0.1% |
| FUSE RATING | 100A |
| DIMENSIONS (LxWxH) | 11.82L x 7.15W x 2.33H inches |
