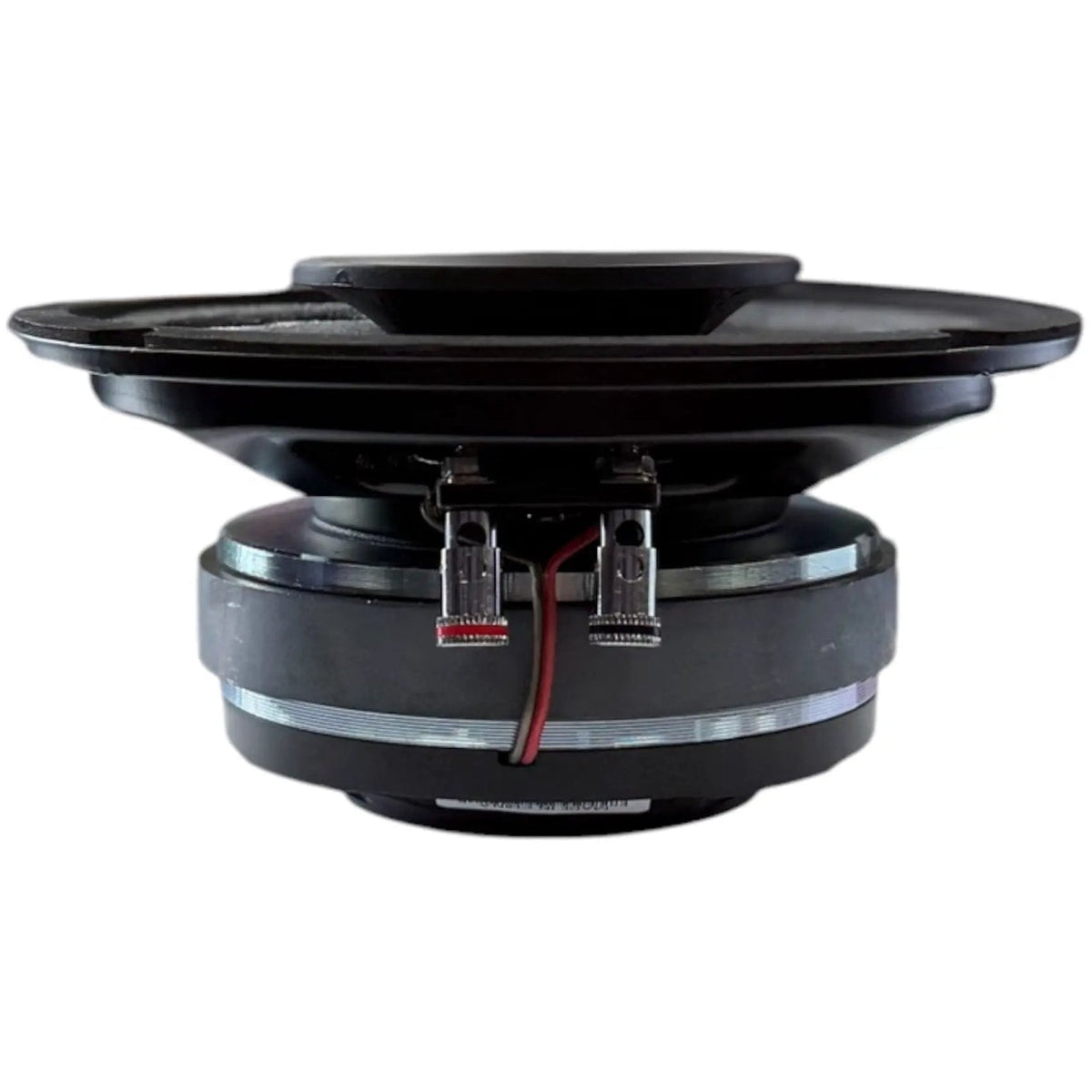

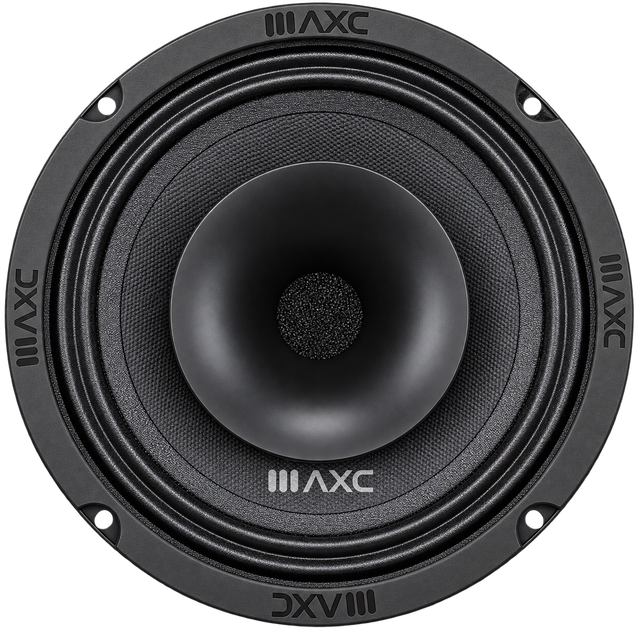

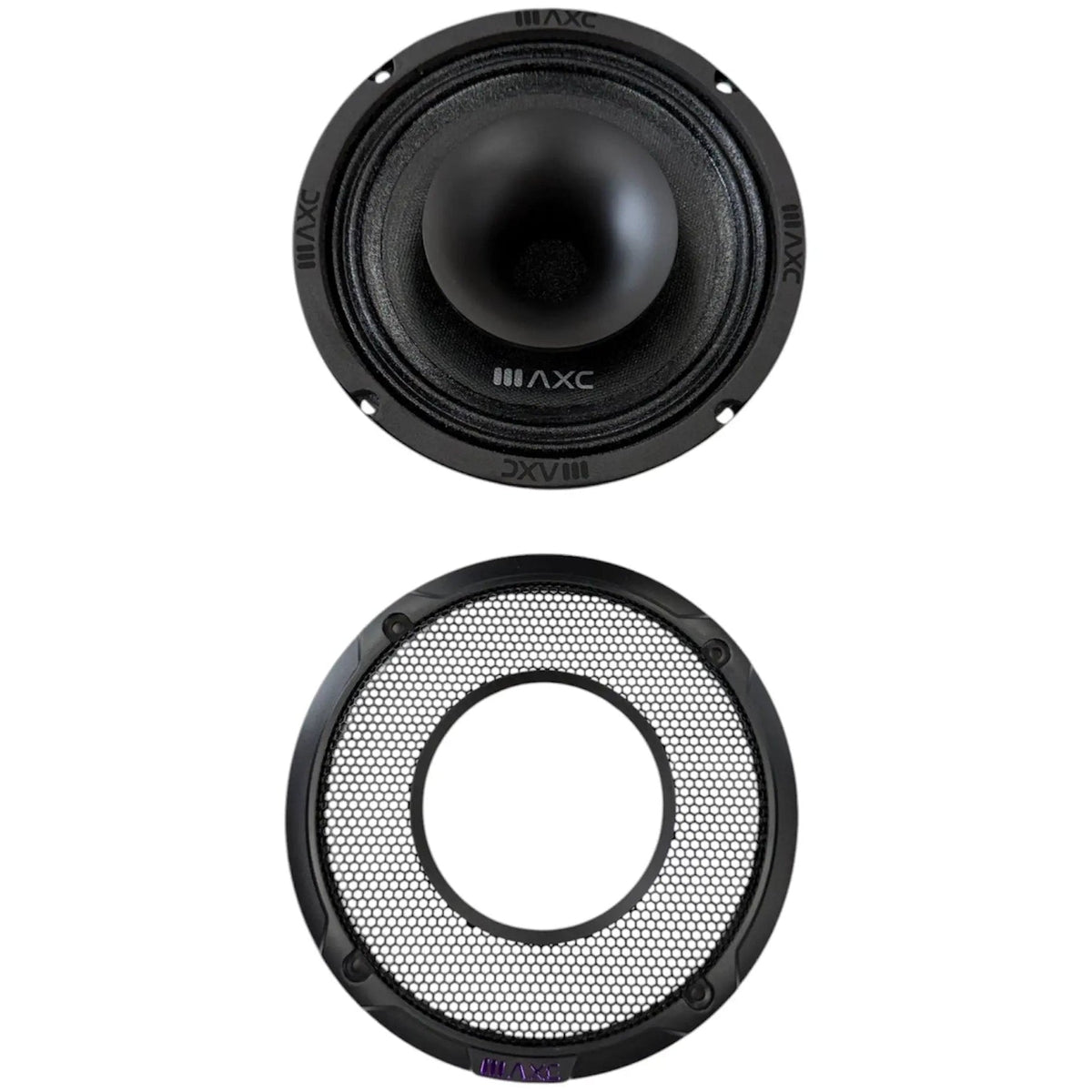

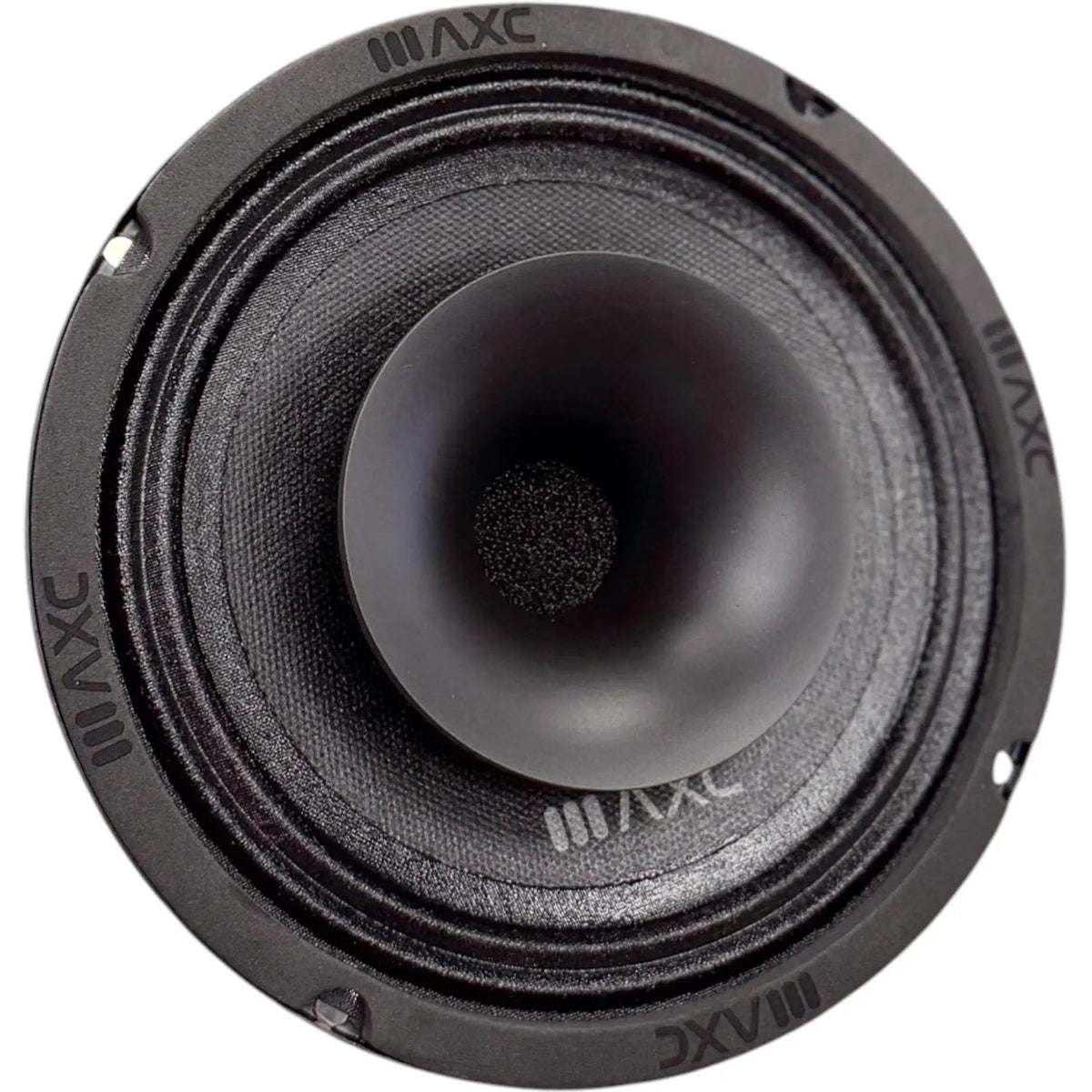

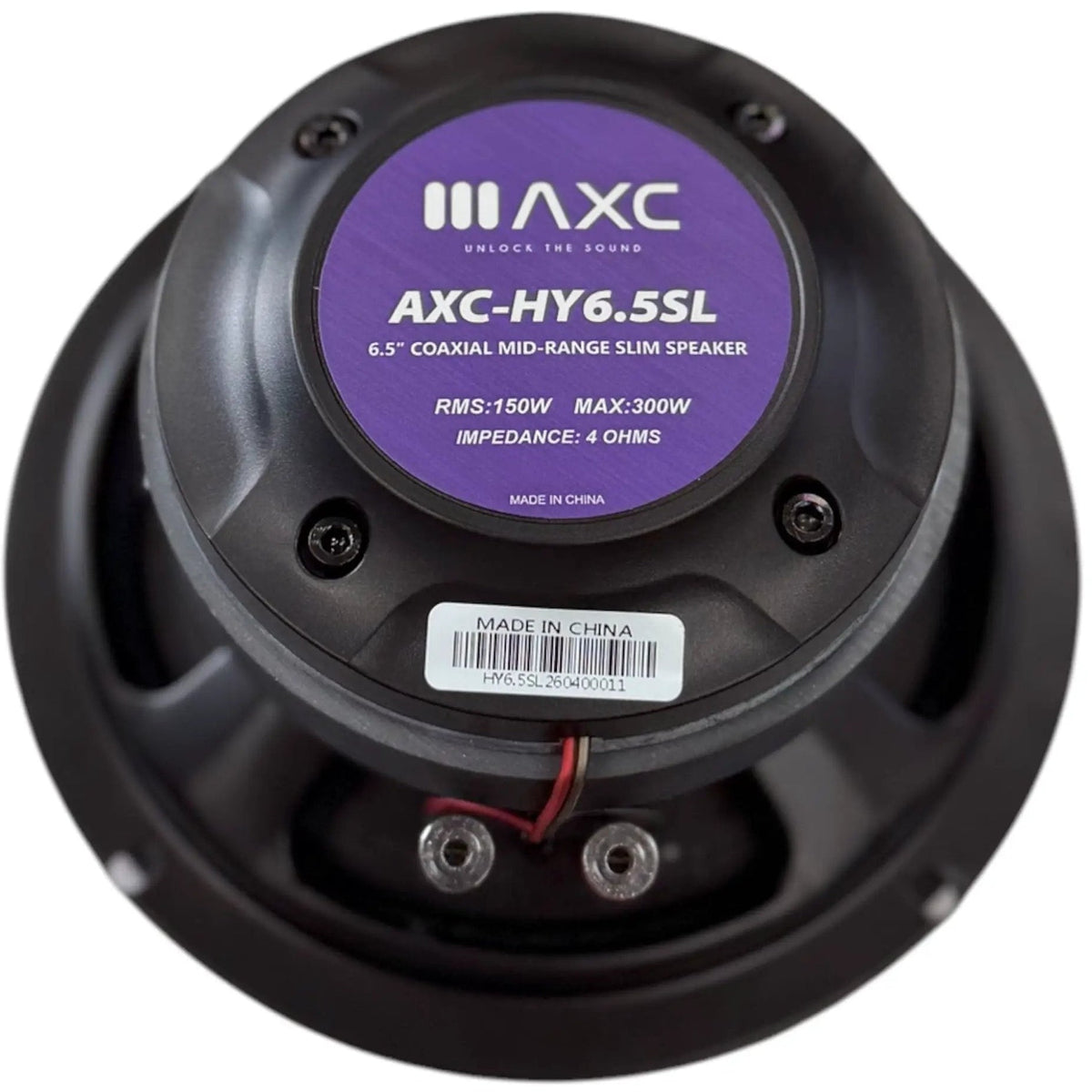

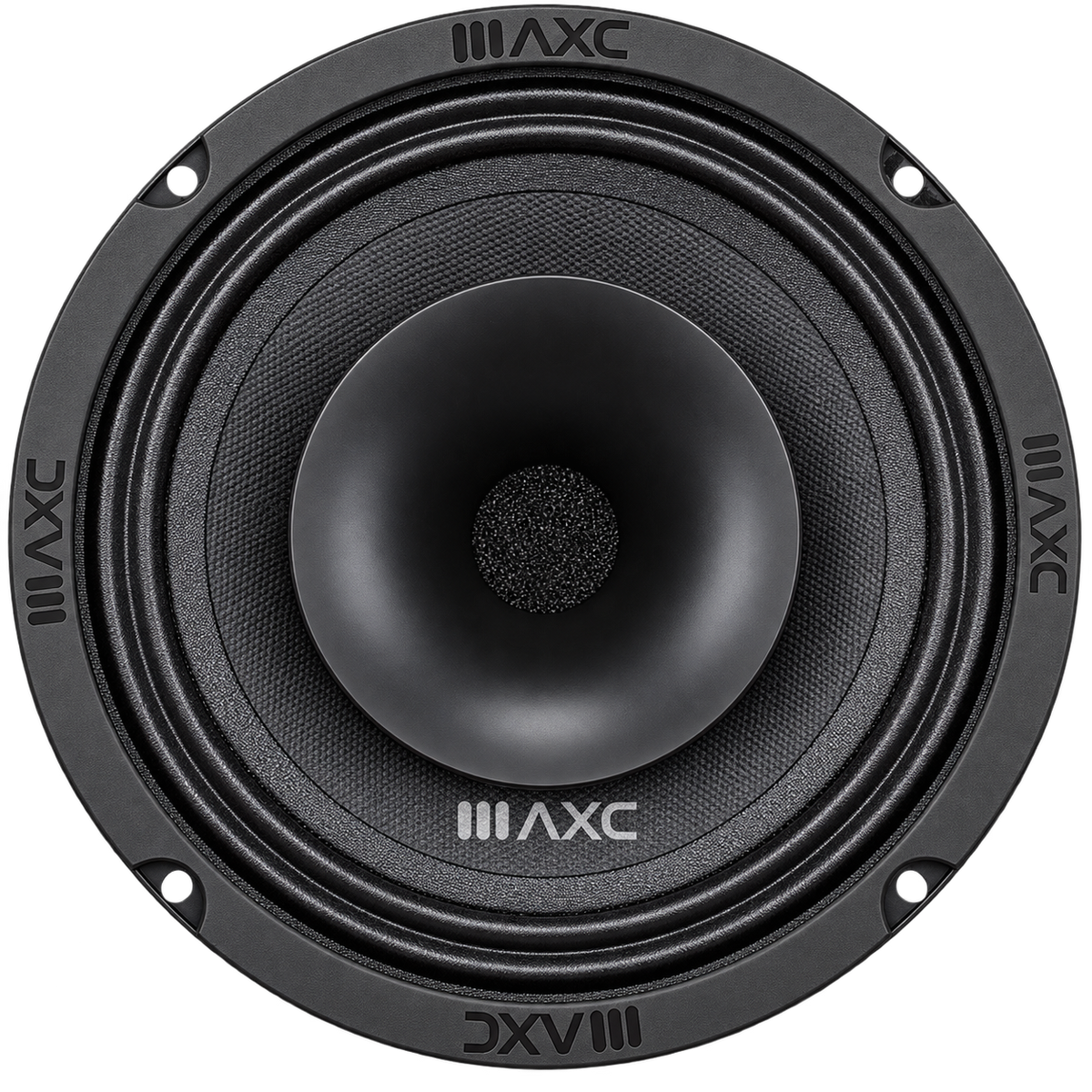

Audio Code AXC-HY6.5SL 6.5" Speaker (Single)
Key features
- Speaker size: 6.5″
- RMS power per speaker: 100 W
- Speaker impedance: 4.0 ohms
- Voice coil: 1.5-inch Kapton former with CCAW winding
- Cone: Water-resistant paper
- Surround: Cloth
Audio Code AXC-HY6.5SL 6.5" Speaker (Single) is backordered and will ship as soon as it is back in stock.
Audio Code AXC-HY6.5SL 6.5" Speaker (Single) is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview
The Audio Code AXC-HY6.5SL 6.5-inch coaxial speaker brings an integrated bullet tweeter and 100W RMS power handling to one compact driver. Its slim steel basket and water-resistant paper cone suit automotive, motorcycle, and powersports installations.
Key Features & Benefits
- Integrated bullet tweeter: Combines high-frequency output in the coaxial speaker, so no separate tweeter is required.
- 100W RMS power handling: Provides a clear power-handling figure when choosing an amplifier.
- Slim steel basket: Helps with installation in tighter mounting locations.
- Water-resistant paper cone: Makes the speaker suitable for automotive and powersports environments where moisture exposure is a concern.
- Kapton former with CCAW winding: Uses a 1.5-inch (38.3 mm) voice coil former and copper-clad aluminum wire.
- Sold individually: Each order includes one speaker; order two for a stereo pair.
Technical Specifications
| Specification | Detail |
|---|---|
| Brand | Audio Code (Audio Xtreme Code) |
| Model | AXC-HY6.5SL |
| Driver Size | 6.5 inch (165 mm) |
| Configuration | Coaxial (sold individually) |
| RMS Power Handling | 100W |
| Voice Coil Diameter | 1.5 inch (38.3 mm) |
| Voice Coil Former | Kapton |
| Winding Material | CCAW (Copper-Clad Aluminum Wire) |
| Cone Material | Water-Resistant Paper |
| Surround Material | Cloth |
| Basket Material | Steel (slim profile) |
| Magnet Material | Ferrite |
| Magnet Weight | 595.3 g |
| Tweeter Type | Integrated Bullet Tweeter |
| Color | Black |
| Application | Automotive, Motorcycle, Powersports |
Why Choose This Product?
The AXC-HY6.5SL combines its woofer and bullet tweeter in a single coaxial speaker. That design gives you a single-driver option for installations where you want integrated high-frequency output. Its slim basket is intended for tighter spaces, while the water-resistant cone supports use in automotive and powersports environments.
Installation & Compatibility Notes
The listed applications include automotive, motorcycle, and powersports systems. Check your mounting location and speaker requirements before installation; the supplied specifications do not state mounting depth or impedance.
A 2-channel amplifier rated at 75–150W RMS per channel is recommended at the appropriate impedance. A head unit alone may limit the speaker’s dynamic range. For systems with a subwoofer, the product guidance recommends a high-pass crossover around 80–100Hz. For motorcycle and powersports installations, allow adequate airflow behind the basket. For speaker-wire runs over 6 feet, 16-gauge or heavier wire is recommended.
Frequently Asked Questions
Is the AXC-HY6.5SL sold as a pair?
No. It is sold individually, with one speaker per order. Order two for a stereo pair.
Can I use this speaker in a motorcycle or powersports installation?
Yes. Its listed applications include motorcycles and powersports, and the water-resistant paper cone and slim steel basket suit locations such as fairings, saddlebag lids, and handlebar pods.
What amplifier is recommended?
The product guidance recommends a 2-channel amplifier rated at 75–150W RMS per channel at the appropriate impedance.
Does it require a separate tweeter?
No. The integrated bullet tweeter provides high-frequency output without a separate tweeter.
Should I use a crossover?
If your system includes a subwoofer, the product guidance recommends a high-pass crossover set around 80–100Hz.
