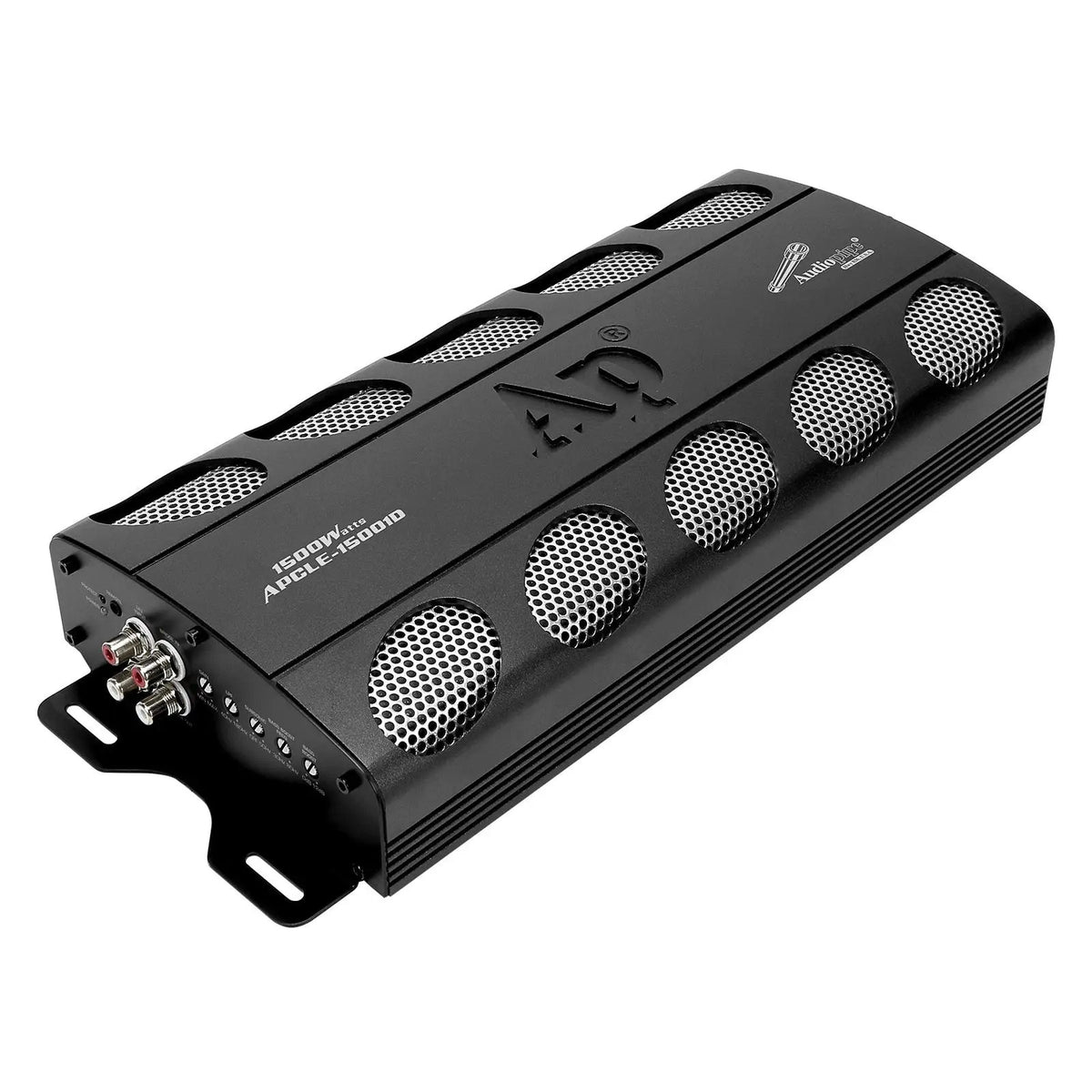

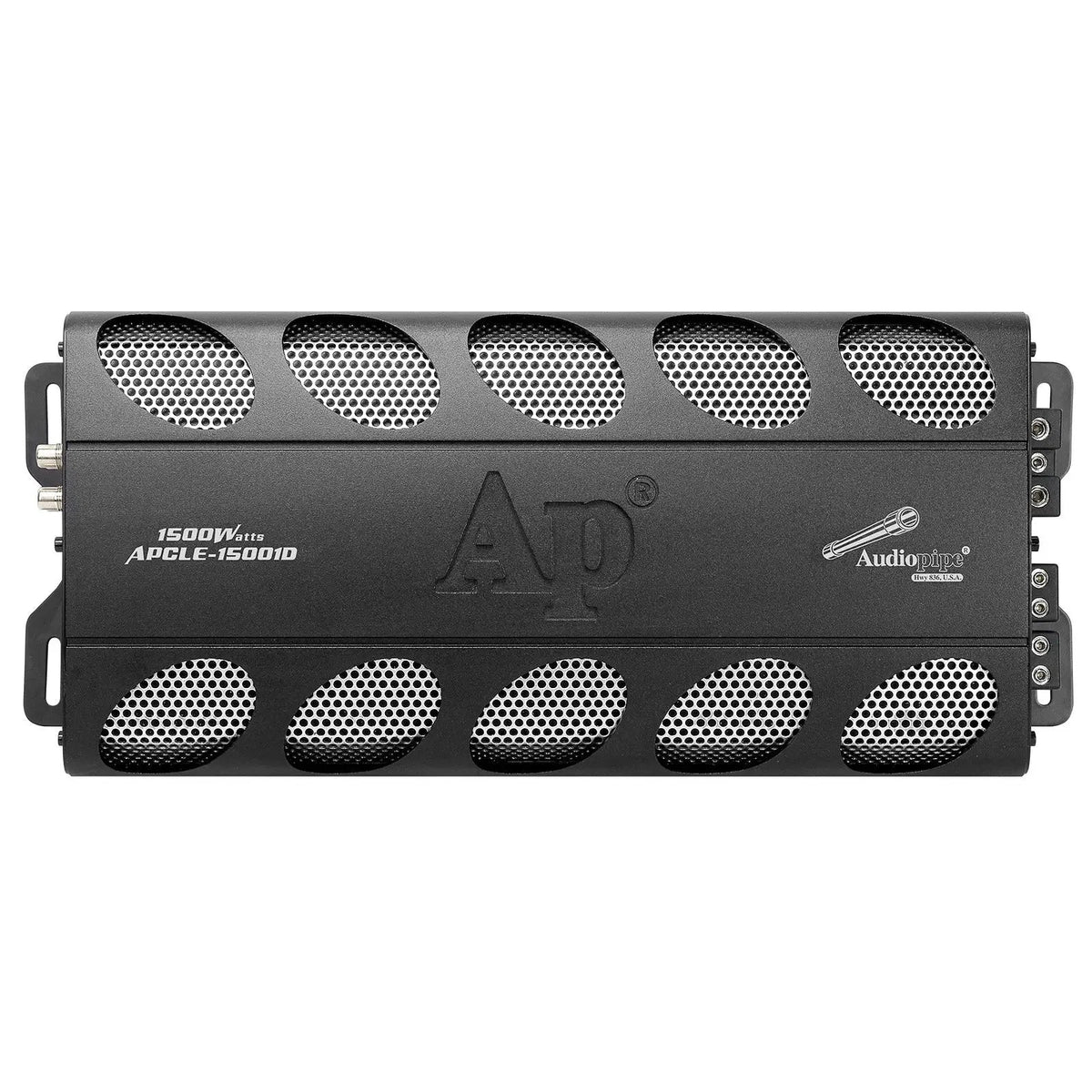

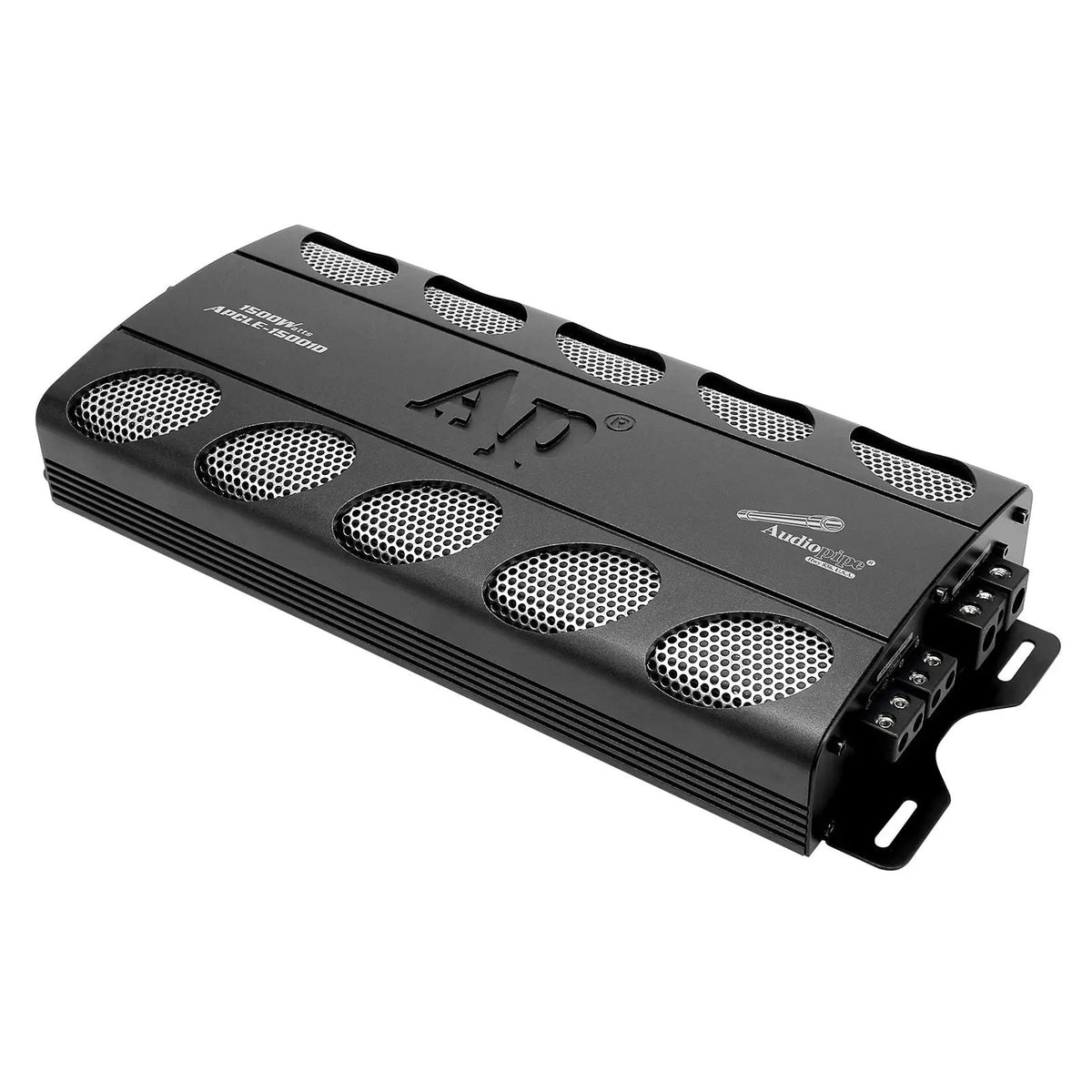

Audiopipe APCLE-15001D Class D Power Amplifier
Key features
- Amplifier channels: 1
- RMS output at 4 ohms: 600.0 W
- RMS output at 2 ohms: 1000 W
- RMS output at 1 ohm: 1500 W
- FREQUENCY RESPONSE: 15Hz-180Hz
Audiopipe APCLE-15001D Class D Power Amplifier is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview
Give your subwoofer system dedicated power with the Audiopipe APCLE-15001D Class D mono power amplifier. Its 1500-watt RMS rating at 1 ohm, MOSFET circuitry, and remote bass control make it a practical choice for shaping your system’s low-frequency output.
Key Features & Benefits
- Class D design: High-efficiency circuitry helps limit power loss while driving your subwoofer system.
- MOSFET circuitry: Supports stable signal amplification with reduced heat generation and low total harmonic distortion.
- Remote bass control: Adjust bass from the dashboard with the included remote knob.
- Adjustable subsonic filter: Set the filter within its 15–50 Hz range to tailor the amplifier’s low-frequency response.
- Built-in protection: Overload, thermal, short-circuit, and low-voltage protection help safeguard the amplifier and connected components.
Technical Specifications
| Amplifier type | Class D mono amplifier |
|---|---|
| Peak power | 1500 watts |
| Continuous power | |
| RMS @ 1 Ohm (<1% Distortion) | 1500W |
| RMS @ 2 Ohm (<2% Distortion) | 1000W |
| RMS @ 4 Ohm (<1% Distortion) | 600W |
| Frequency response | 15Hz-180Hz |
| Input sensitivity level | 6-0.2V |
| S/N ratio | >90 dB |
| Subsonic filter | 15-50Hz |
| THD (all channels driven) | <1% |
| Working voltage | 9-16V |
| Circuitry | MOSFET |
| Protection circuits | Overload, thermal, short circuit, and low voltage |
| Remote bass control | Remote bass knob included |
Why Choose This Product?
The APCLE-15001D gives you three stated RMS power ratings at different impedance loads, making those ratings useful when matching an amplifier to your subwoofer system. Its remote knob adds convenient bass adjustment, while the protection circuits support stable operation.
Installation & Compatibility Notes
Confirm that your subwoofer load and power requirements match the amplifier’s ratings before installation. The stated working voltage is 9–16V; ensure the vehicle’s electrical system and installation meet that range. Plan the mounting location and wiring for your specific system.
Frequently Asked Questions
What RMS power does the APCLE-15001D deliver?
It is rated at 1500W RMS at 1 ohm, 1000W RMS at 2 ohms, and 600W RMS at 4 ohms, with the distortion conditions listed in the specifications.
What is the subsonic filter range?
The subsonic filter is adjustable from 15–50Hz.
Can I adjust bass from the dashboard?
Yes. The amplifier includes a remote bass knob for dashboard adjustment.
What voltage range does the amplifier require?
Its stated working voltage is 9–16V.
