Audiopipe APCLE-30001D Class D Power Amplifier
Key features
- Amplifier channels: 1
- RMS output at 4 ohms: 2020.0 W
- RMS output at 2 ohms: 3000 W
- FREQUENCY RESPONSE: 15Hz-180Hz
Audiopipe APCLE-30001D Class D Power Amplifier is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview
Power a car subwoofer system with the Audiopipe APCLE-30001D Class D power amplifier. Its mono design, MOSFET circuitry, adjustable subsonic filter, and included remote bass control give you practical ways to manage low-frequency amplification.
Key Features & Benefits
- Class D mono design: The high-efficiency circuit is designed to reduce power loss while delivering subwoofer power.
- Two continuous power ratings: Choose the rating that matches your system’s load: 3000W RMS at 2 ohms or 2020W RMS at 4 ohms.
- MOSFET circuitry: Full MOSFET circuitry supports efficient operation and precise signal amplification.

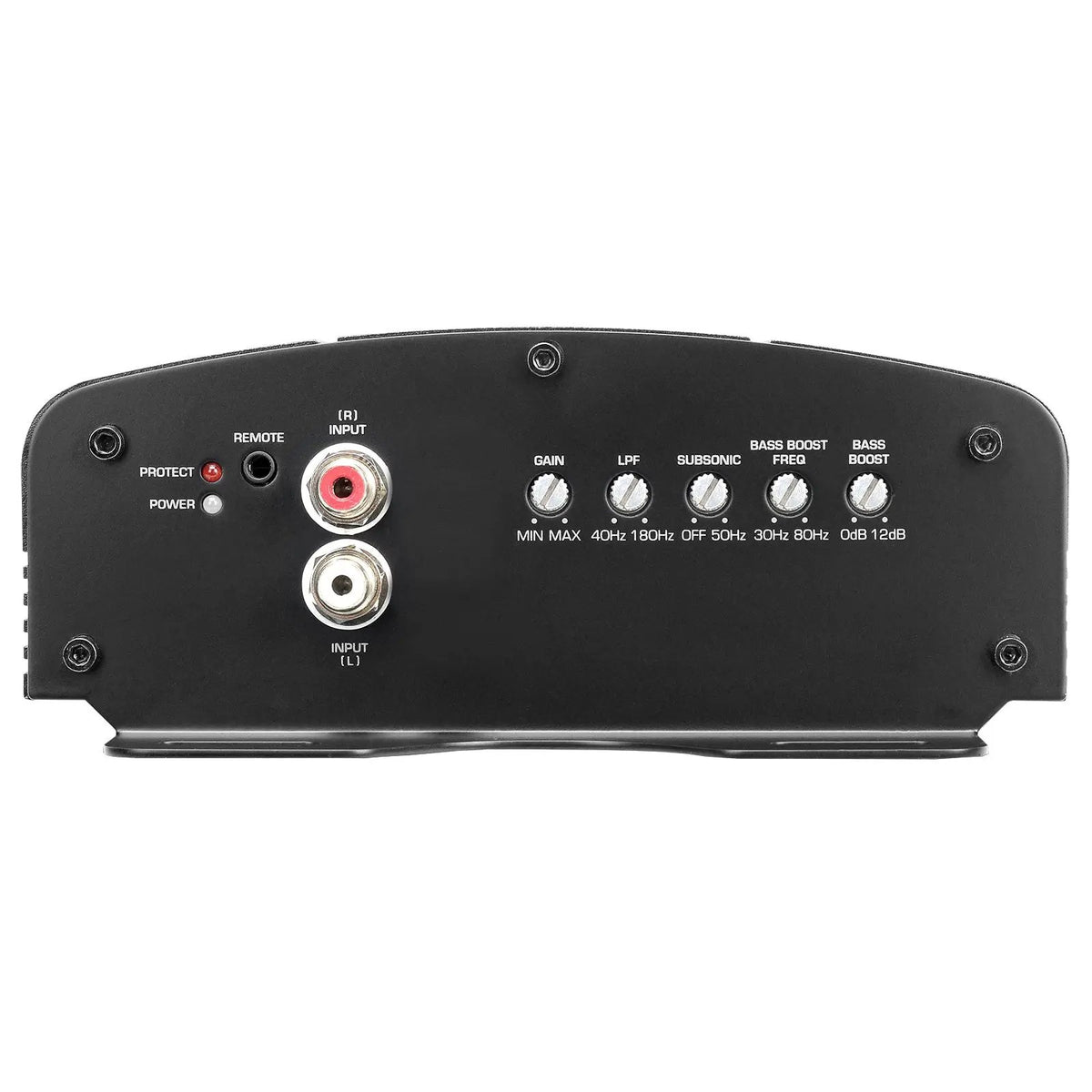

- Adjustable subsonic filter: Set the filter within its 15–50Hz range to tailor low-frequency response.
- Remote bass control included: Adjust bass level from the dashboard without interrupting playback.
- Built-in protection: Overload, thermal, short-circuit, and low-voltage protection help safeguard the amplifier and connected components.
Technical Specifications
| Specification | Value |
|---|---|
| Amplifier type | Class D mono |
| Continuous power, 2 ohms | 3000W RMS (<2% distortion) |
| Continuous power, 4 ohms | 2020W RMS (<1% distortion) |
| Frequency response | 15Hz–180Hz |
| Input sensitivity level | 6–0.2V |
| Signal-to-noise ratio | >90 dB |
| Subsonic filter | 15–50Hz |
| THD, all channels driven | <2% |
| Working voltage | 9–16V |
| Circuitry | Full MOSFET |
| Protection circuits | Overload, thermal, short circuit, and low voltage |
| Included control | Remote bass level control |
Why Choose This Product?
The APCLE-30001D combines high continuous power ratings with controls suited to tuning a subwoofer system. Its remote bass knob lets you adjust bass from the dashboard, while the adjustable subsonic filter provides a defined range for setting low-frequency response.
The stated distortion figures differ by load: less than 2% at 2 ohms and less than 1% at 4 ohms. Use those ratings when comparing the amplifier with your system’s requirements.
Installation & Compatibility Notes
Check that your system’s load matches the amplifier’s stated 2-ohm or 4-ohm power rating. The working voltage is 9–16V, so confirm your electrical system operates within that range. Plan the installation around the remote bass control’s dashboard position and the amplifier’s connection requirements.
Frequently Asked Questions
How much continuous power does the APCLE-30001D deliver?
It is rated at 3000W RMS at 2 ohms with less than 2% distortion, and 2020W RMS at 4 ohms with less than 1% distortion.
What frequency range does the amplifier cover?
Its frequency response is 15Hz–180Hz. The subsonic filter is adjustable from 15–50Hz.
Can I adjust bass from the dashboard?
Yes. A remote bass level control is included for dashboard adjustment.
What protection circuits are built in?
The amplifier includes overload, thermal, short-circuit, and low-voltage protection.
