Audiopipe APEV-400.4 Full Range Class D Transistor Amplifier
Key features
- Amplifier channels: 4
- RMS per channel at 4 ohms: 60 W
- RMS per channel at 2 ohms: 100 W
- FREQUENCY RESPONSE: 20Hz–20kHz
Audiopipe APEV-400.4 Full Range Class D Transistor Amplifier is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview

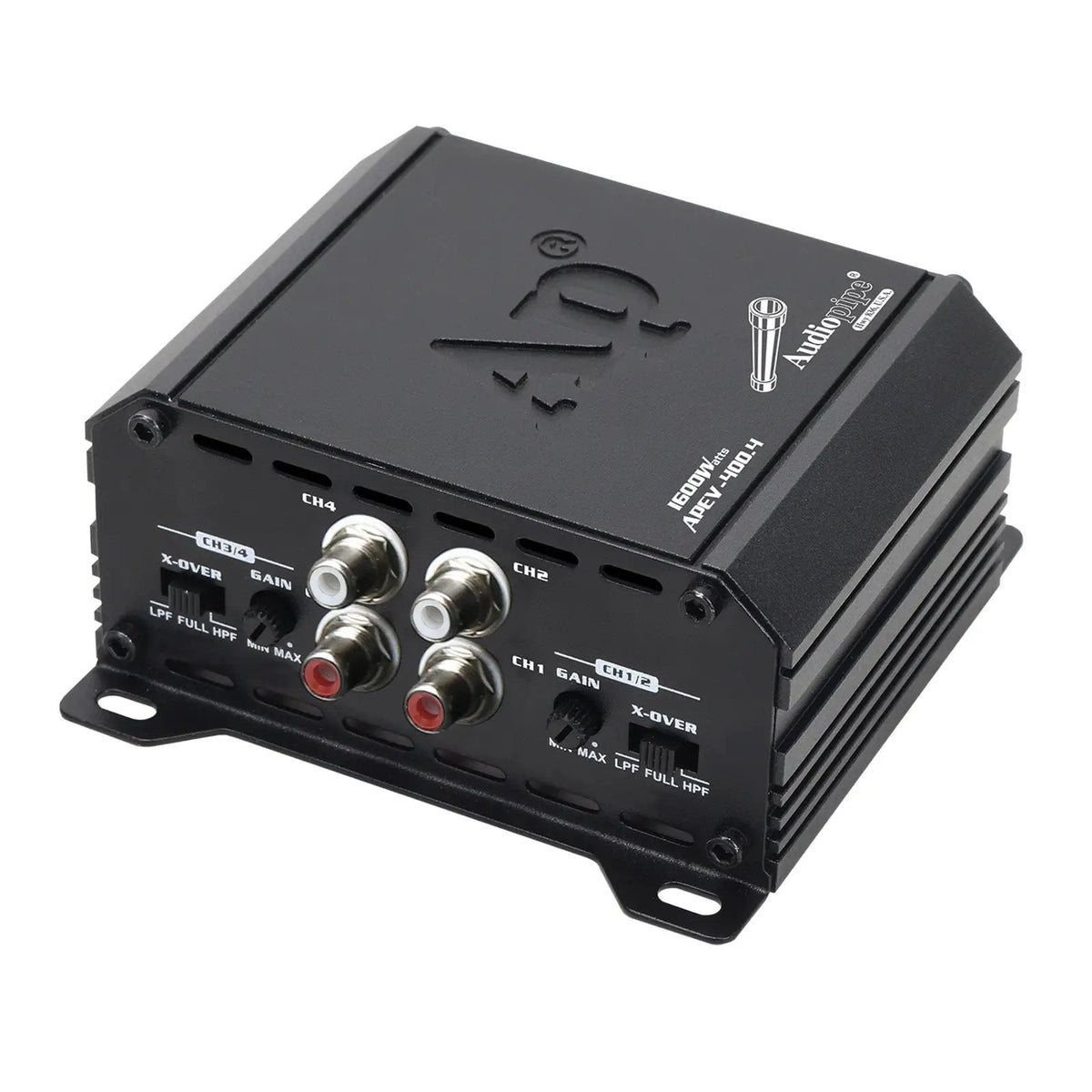

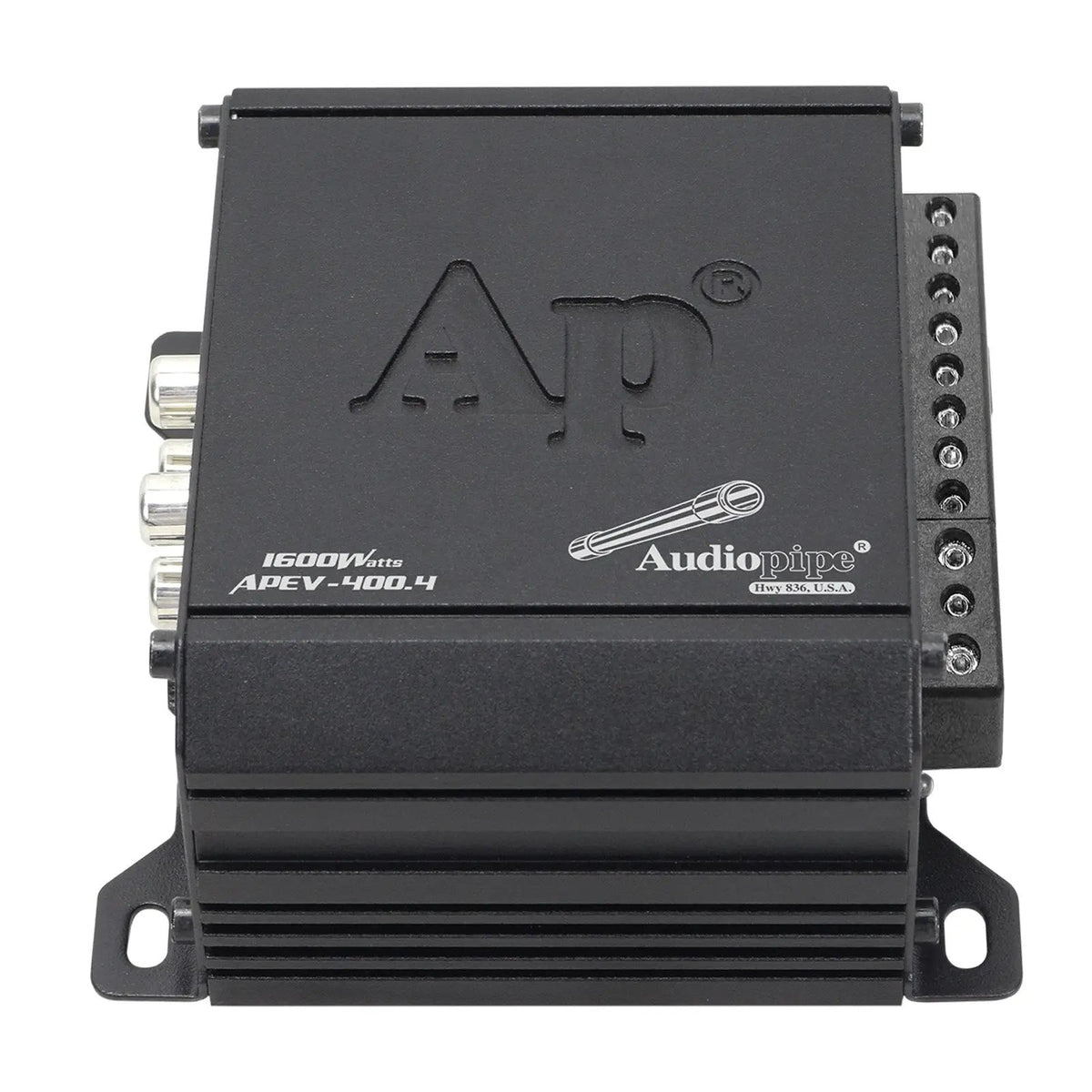

Bring four-channel power to your car audio system with the Audiopipe APEV-400.4 full-range Class D amplifier. It delivers up to 4 × 100W RMS at 2 ohms, or 2 × 200W RMS bridged at 4 ohms, in a compact chassis. Its 90Hz high-pass and low-pass crossovers let you tailor frequency routing to your system.
Key Features & Benefits

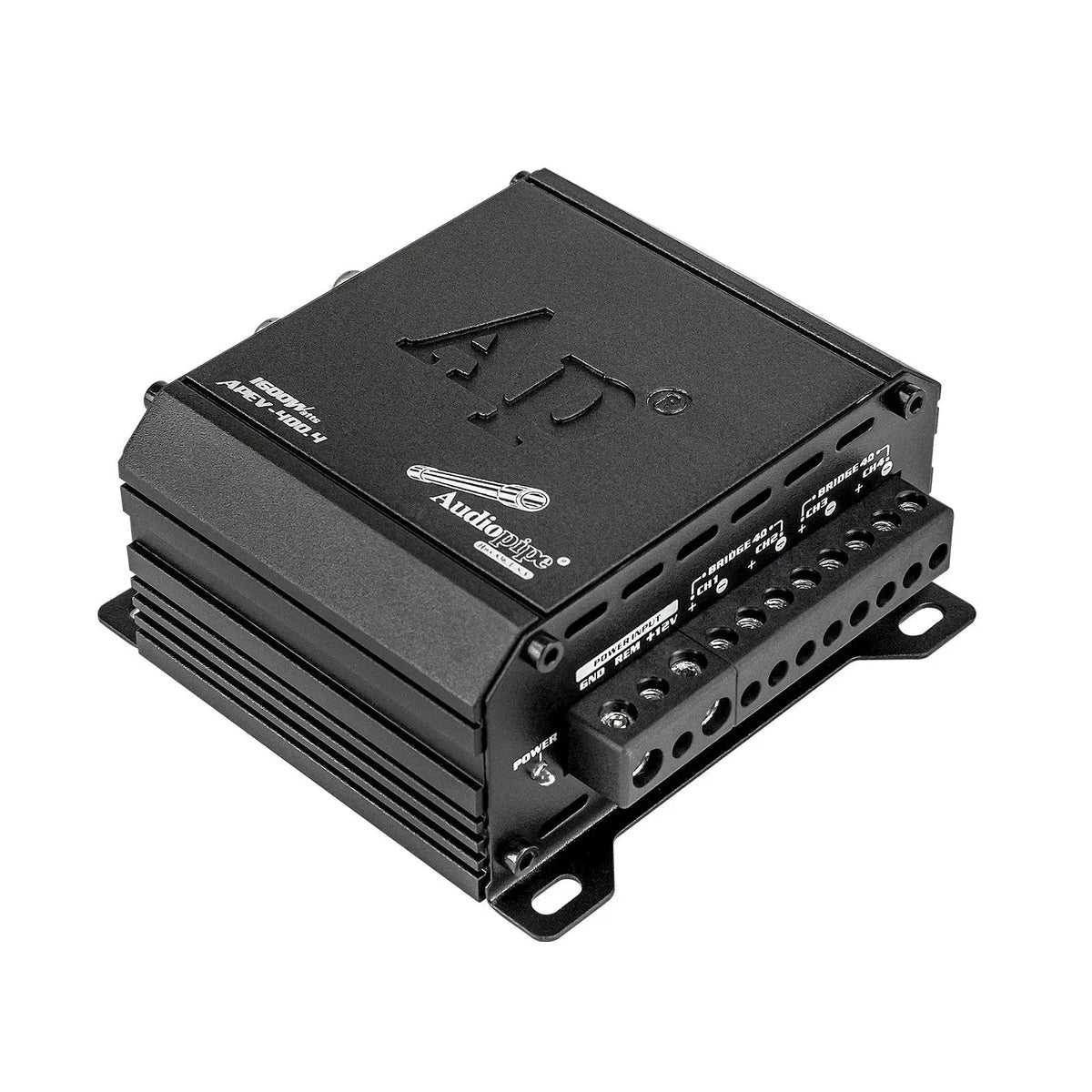

- Four-channel output: Choose stereo or bridged power ratings to suit your planned speaker setup.
- Class D design: The amplifier is designed for efficient operation with minimized heat generation.
- Full-range response: A 20Hz–20kHz frequency range covers the stated audio spectrum.

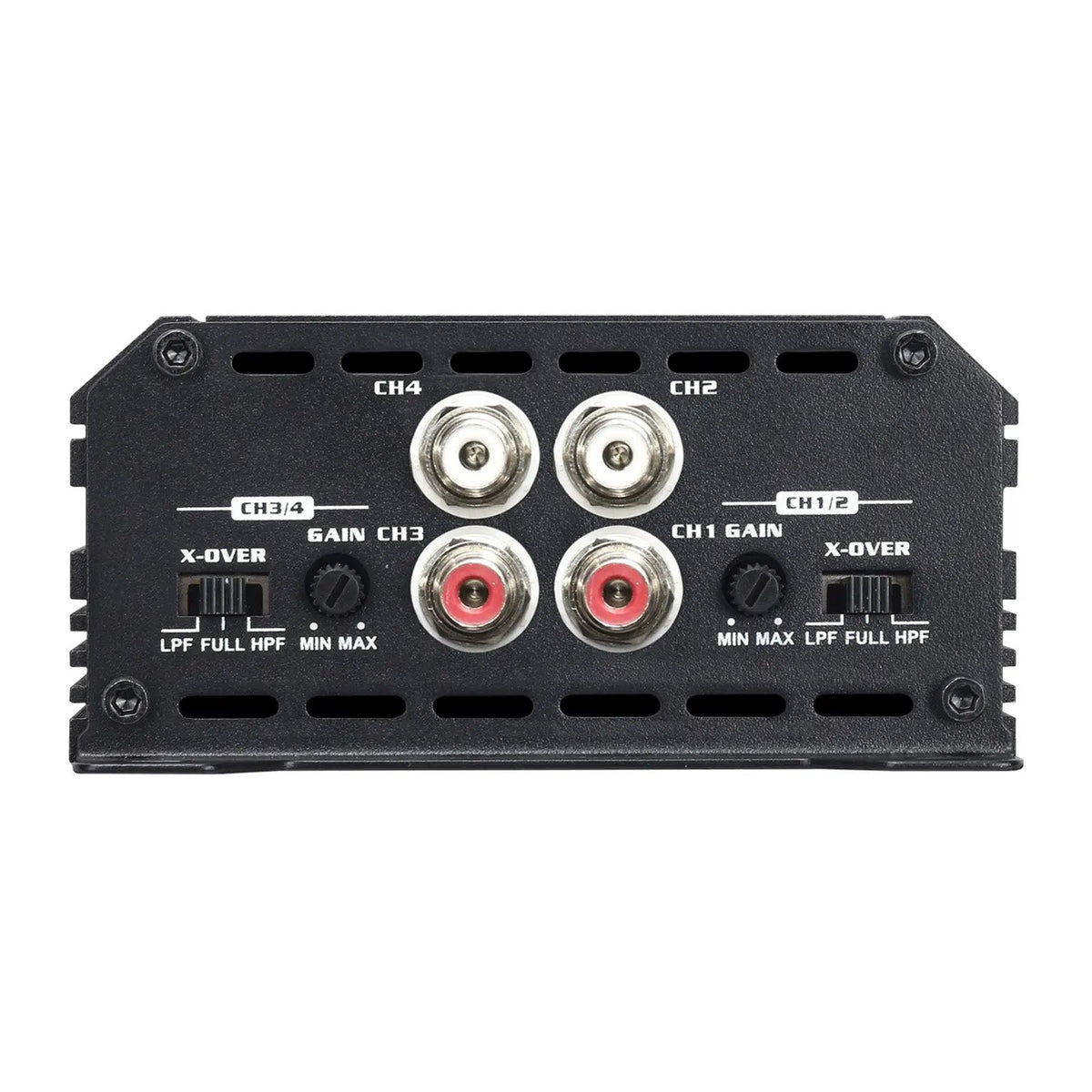

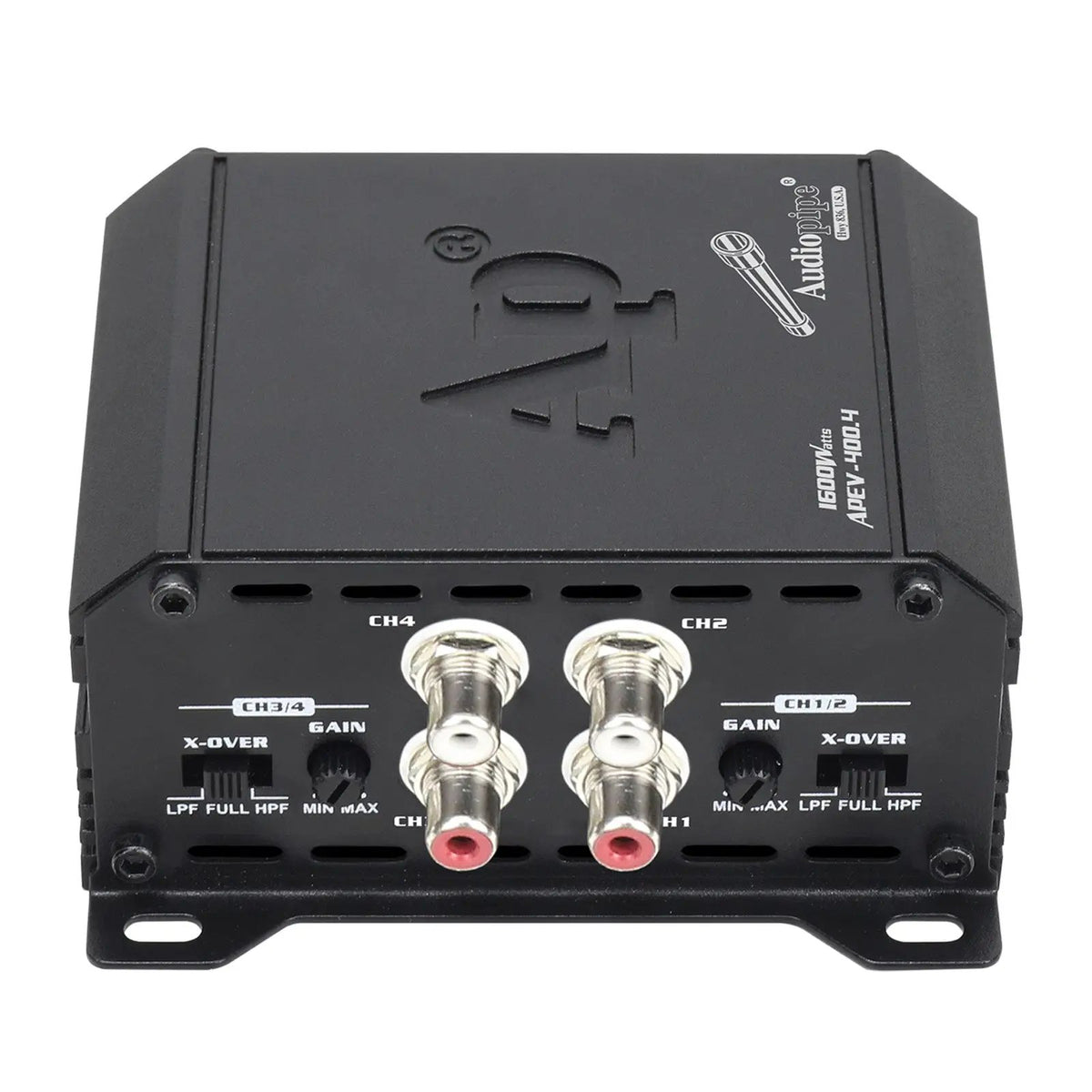

- Adjustable frequency routing: 90Hz high-pass and low-pass crossovers help direct frequencies to speakers.

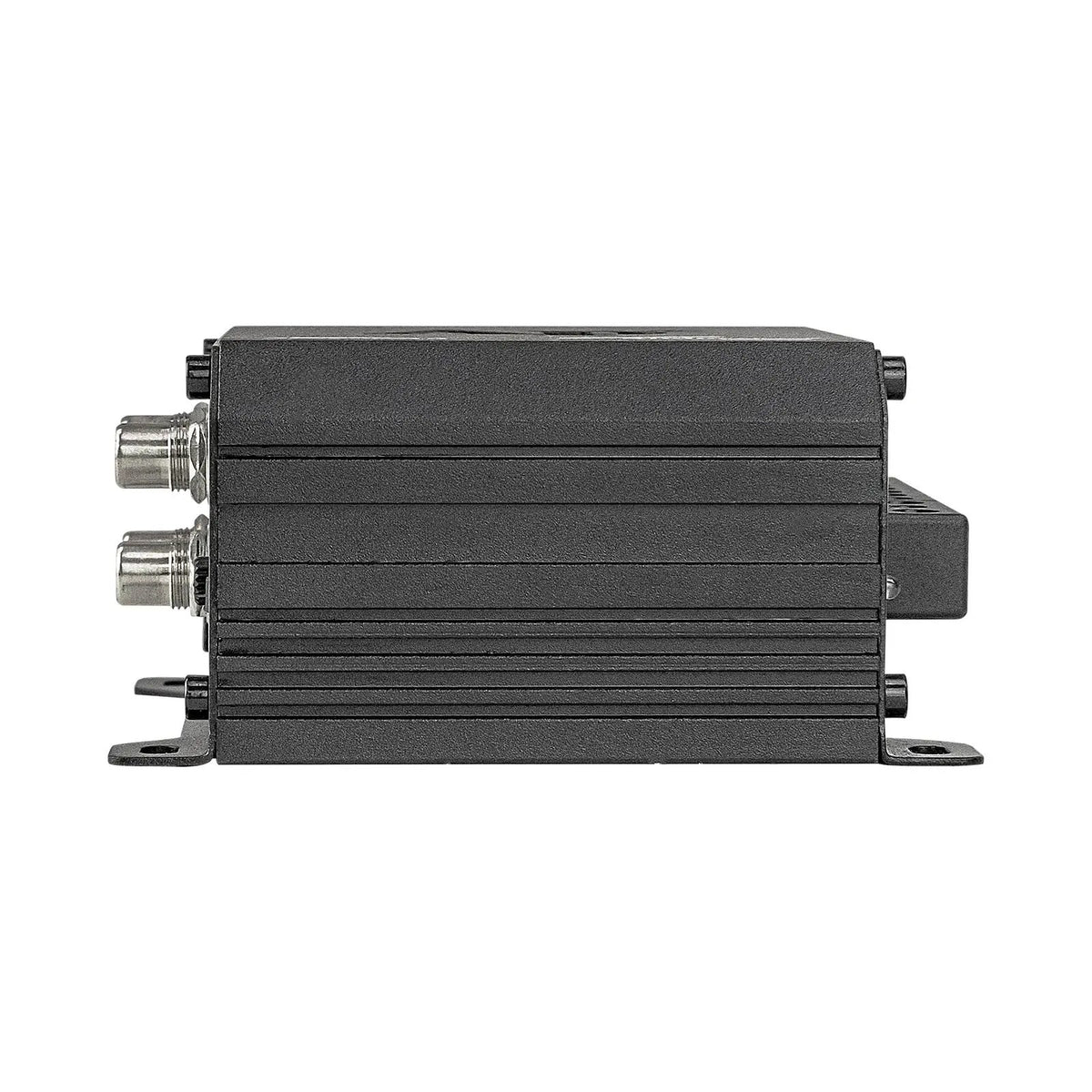

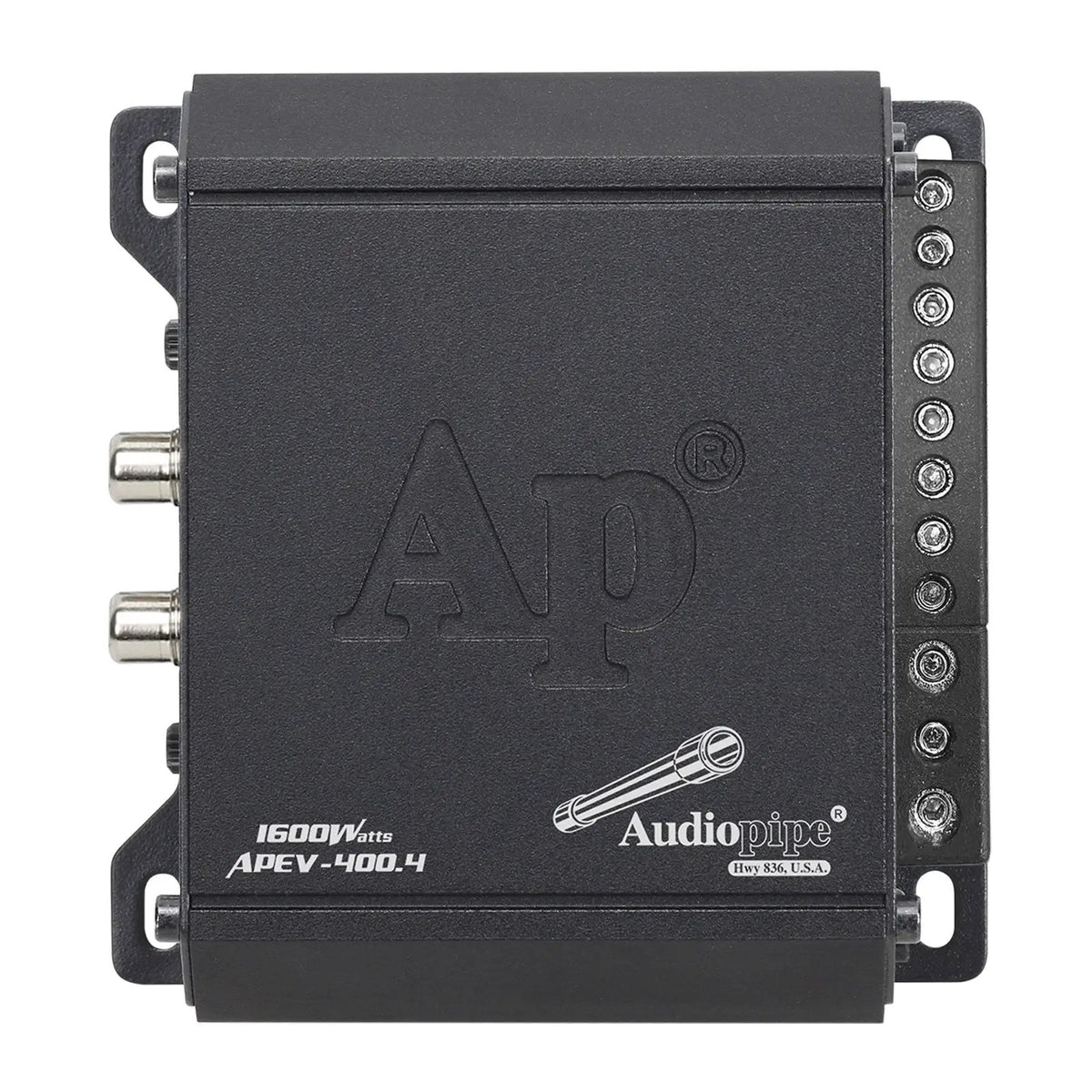

- Compact chassis: Its 4.0" × 4.1" × 2.0" size can help when installation space is limited.
Technical Specifications
Continuous power output (RMS) @1% THD, 1kHz
| Configuration | Power output |
|---|---|
| Stereo @ 4 Ohms | 4 × 60W |
| Stereo @ 2 Ohms | 4 × 100W |
| Bridged @ 4 Ohms | 2 × 200W |
| Frequency response | 20Hz–20kHz |
| Total harmonic distortion (THD) | <0.2% |
| Signal-to-noise ratio | ≥80dB |
| Input sensitivity | 0.2V–2.7V |
| High-pass crossover | 90Hz |
| Low-pass crossover | 90Hz |
| Operating voltage | 9V–16V |
| Fuse | 30A ANL |
| Dimensions (L × W × H) | 4.0" × 4.1" × 2.0" (102 × 105 × 50 mm) |
Why Choose This Product?
The APEV-400.4 gives you multiple power configurations in one small amplifier. Use its four stereo channels for multiple speakers, or refer to the bridged rating when planning a two-channel setup. The stated distortion and signal-to-noise specifications help you compare its audio performance with your system requirements.
Installation & Compatibility Notes

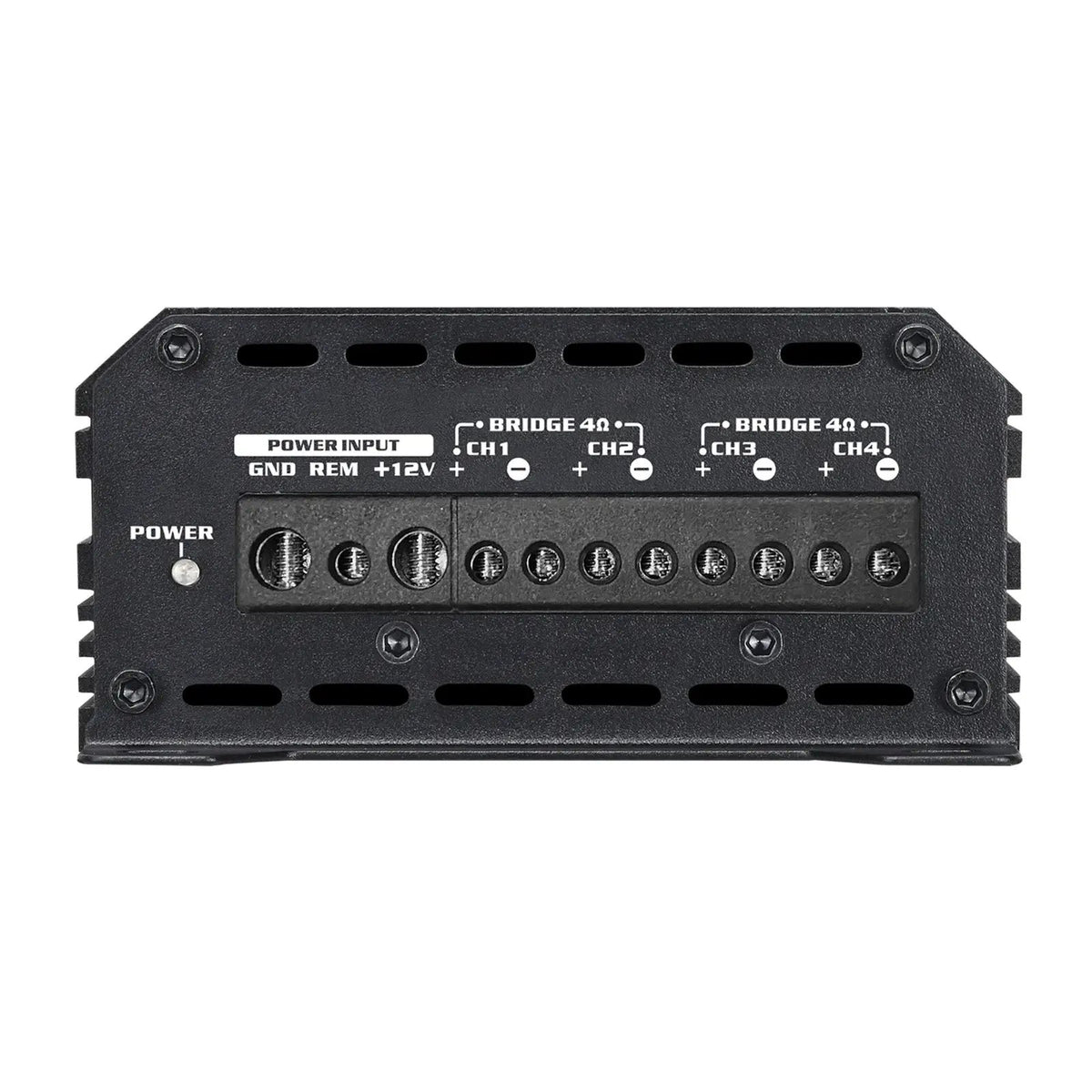

Check available mounting space against the chassis dimensions and plan for the stated 9V–16V operating range and 30A ANL fuse. Match your intended speaker loads and wiring configuration to the applicable power rating. The amplifier lists 90Hz high-pass and low-pass crossover settings.
Frequently Asked Questions
What power does the APEV-400.4 deliver?
Its listed ratings are 4 × 60W RMS at 4 ohms, 4 × 100W RMS at 2 ohms, or 2 × 200W RMS bridged at 4 ohms. These ratings are stated at 1% THD and 1kHz.
What are the crossover settings?
The amplifier has a 90Hz high-pass crossover and a 90Hz low-pass crossover.
How much installation space should I allow?
The chassis measures 4.0" × 4.1" × 2.0" (102 × 105 × 50 mm).
What electrical range and fuse are listed?
It operates from 9V–16V and lists a 30A ANL fuse.
