Audiopipe APHF-1500D-H1 1500 Watts Full Range Class D Mosfet Amplifier
Key features
- Amplifier channels: 1
- RMS output at 4 ohms: 500.0 W
- RMS output at 2 ohms: 1000 W
- RMS output at 1 ohm: 1500 W
- FREQUENCY RESPONSE: 10Hz-20KHz
Audiopipe APHF-1500D-H1 1500 Watts Full Range Class D Mosfet Amplifier is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview

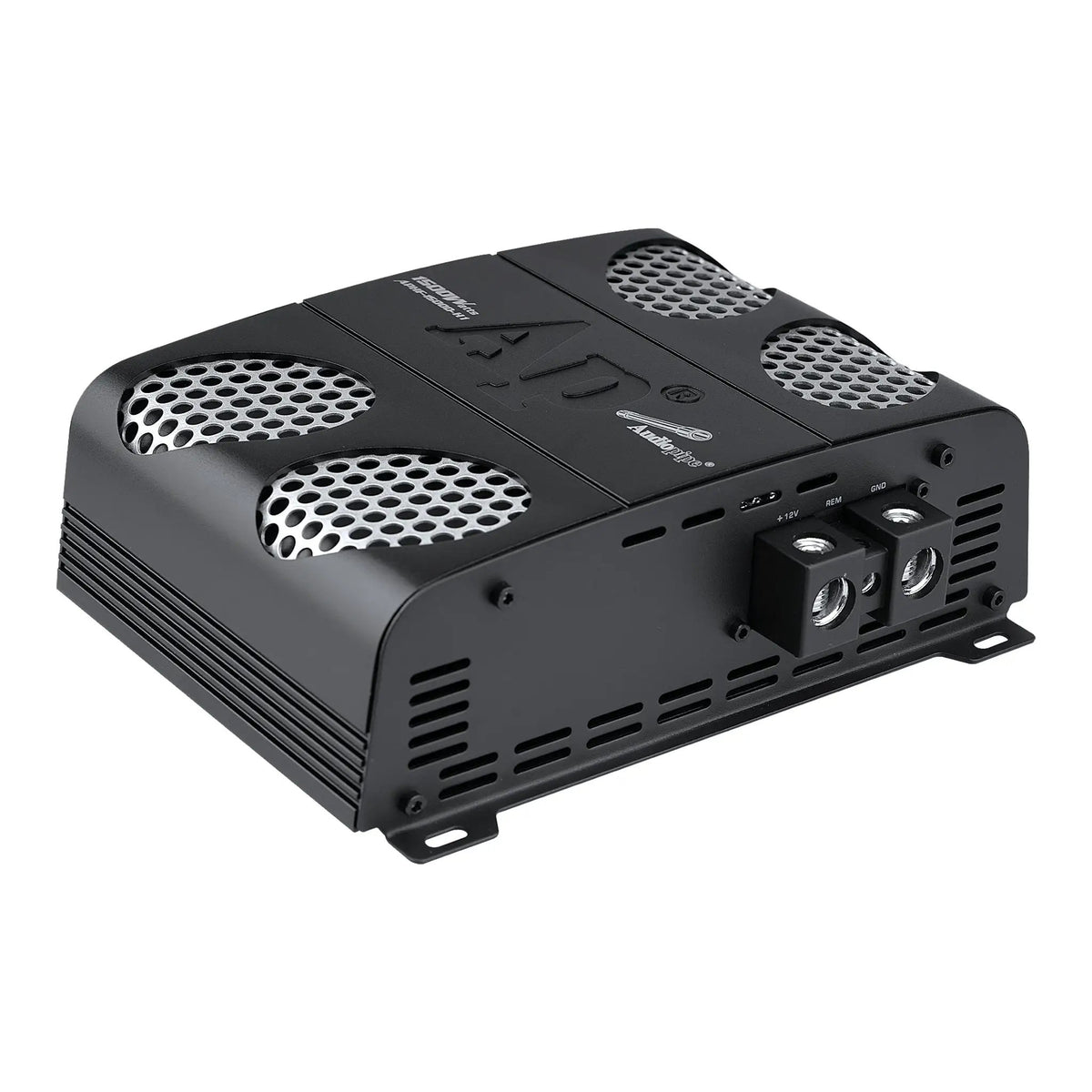

Power your car audio system with the Audiopipe APHF-1500D-H1 full range Class D MOSFET amplifier. Its full-bridge design delivers up to 1500W RMS at 1 ohm, while onboard controls let you adjust bass and monitor clipping from the driver’s seat.
Key Features & Benefits

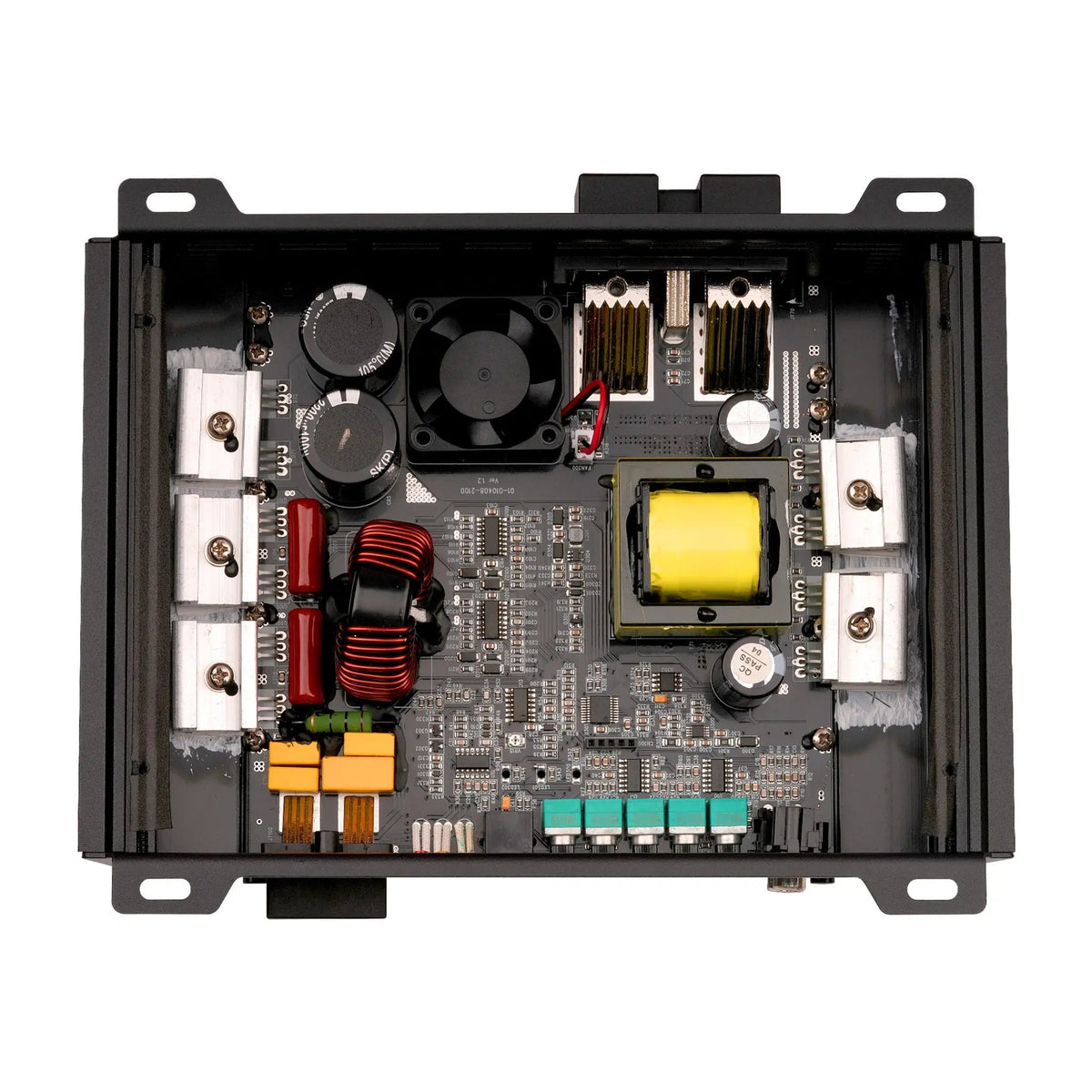

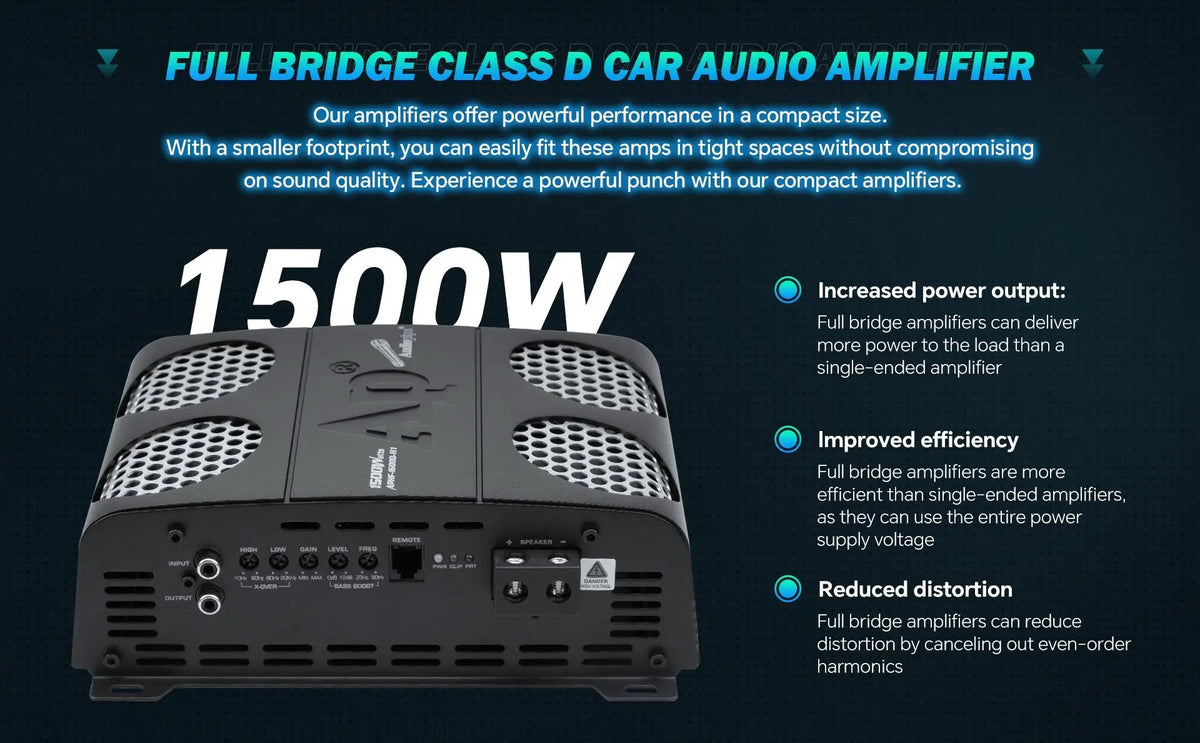

- Full-bridge Class D design: PWM and BTL circuitry combine dual internal amplifiers to deliver power efficiently in a compact heatsink.
- Three RMS power ratings: Choose the rating that matches your system’s impedance, with output specified at 4, 2, and 1 ohm.

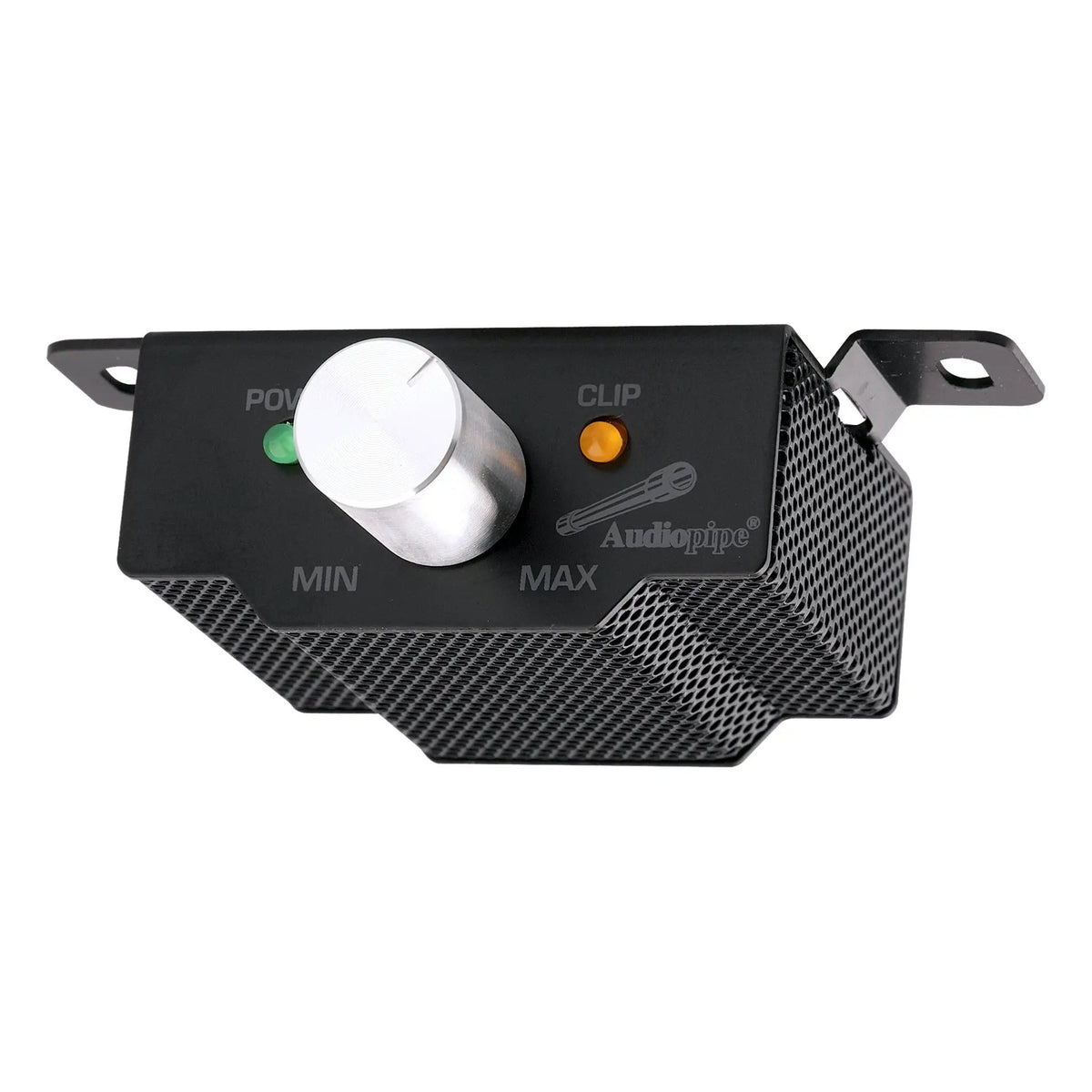

- Remote bass control: Adjust bass level from the driver’s seat using the included remote control knob.
- Clip and power indicators: The clip LED helps you monitor the signal, while the power on/off LED shows amplifier status.
- Protection features: Overload, overheat, over-voltage, and under-voltage protection help guard the amplifier during operation.
Technical Specifications
| Specification | Value |
|---|---|
| Amplifier type | Full Range Class D MOSFET |
| Maximum power output | Up to 1500 Watts |
| Continuous power output, RMS @ 4 Ohm (<1% distortion) | 500W (14.4V) |
| Continuous power output, RMS @ 2 Ohm (<1% distortion) | 1000W (14.4V) |
| Continuous power output, RMS @ 1 Ohm (<1% distortion) | 1500W (14.4V) |
| Frequency response | 10Hz-20KHz |
| Signal to noise ratio | ≥85dB |
| Input sensitivity | 0.25 - 4V |

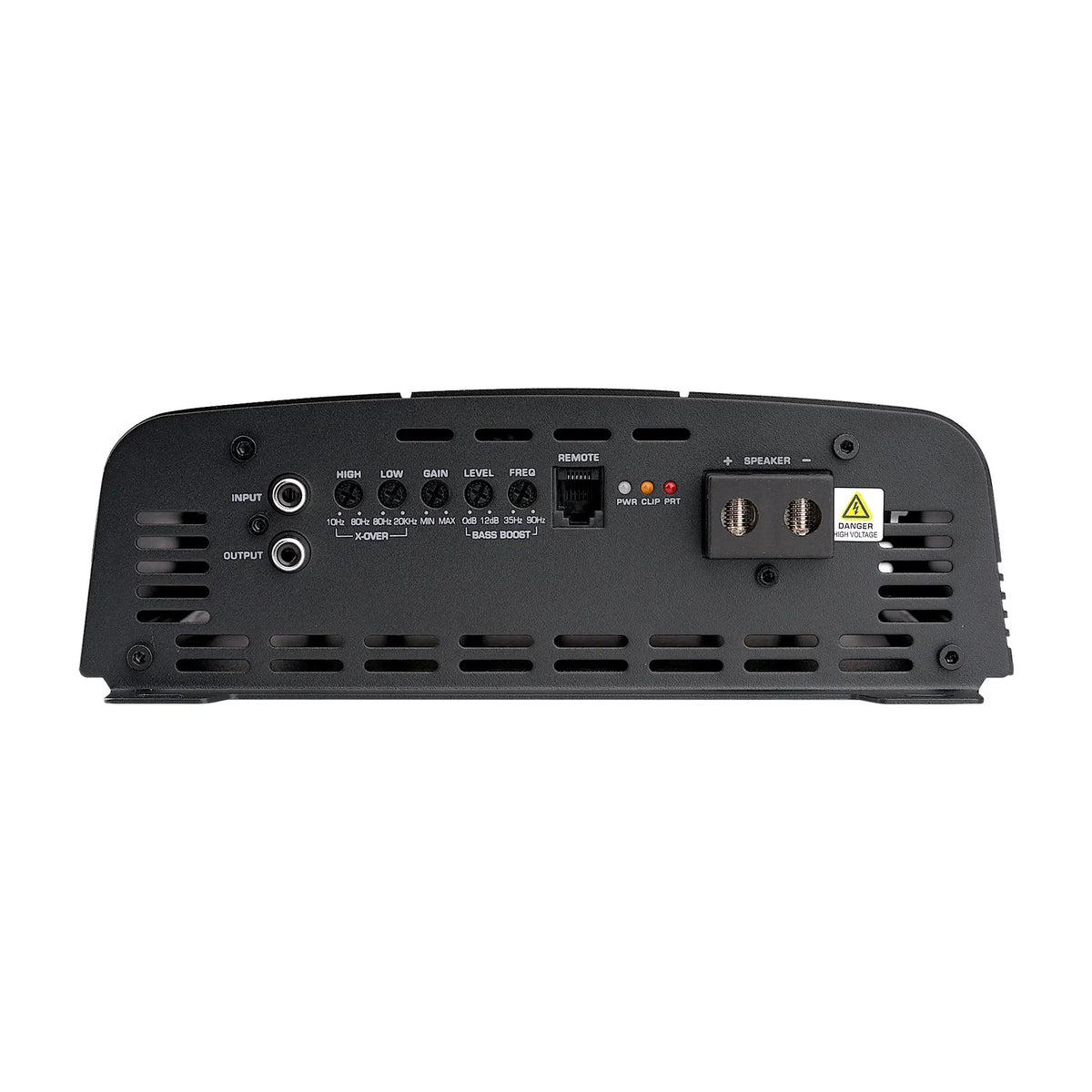

| High pass | 10Hz-80Hz 12dB/Octave |
| Low pass | 80Hz-20KHz 12dB/Octave |
| Bass boost | 0-12 dB @ 35Hz-90Hz |
| Over-voltage protection | 16V |
| Under-voltage protection | 9V |
| Dimensions (L x W x H) | 5.9" x 9" x 2.9" (150 x 229 x 73 mm) |
| Controls and indicators | Remote subwoofer volume control knob, clip LED, power on/off LED indicator |
Why Choose This Product?
The APHF-1500D-H1 offers power ratings across three impedance loads, making it easier to compare its output with your system’s requirements. Its full-range design and adjustable high-pass, low-pass, and bass boost controls provide options for shaping the signal to suit your setup.

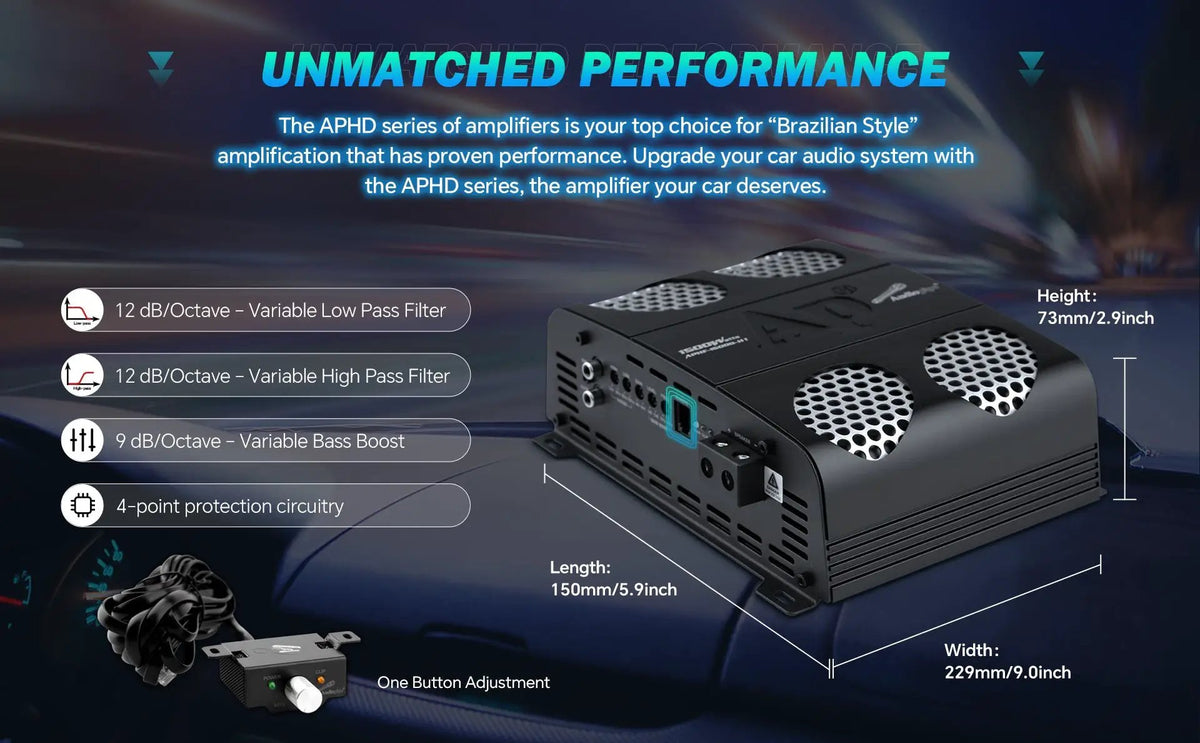

The remote bass knob and clip indicator put useful adjustments and monitoring within reach while you drive. Its compact heatsink measures 5.9" x 9" x 2.9", giving you concrete dimensions to consider when planning an installation.
Installation & Compatibility Notes
Match the speaker load to the amplifier’s rated impedance and power output. The stated RMS ratings are measured at 14.4V and less than 1% distortion.

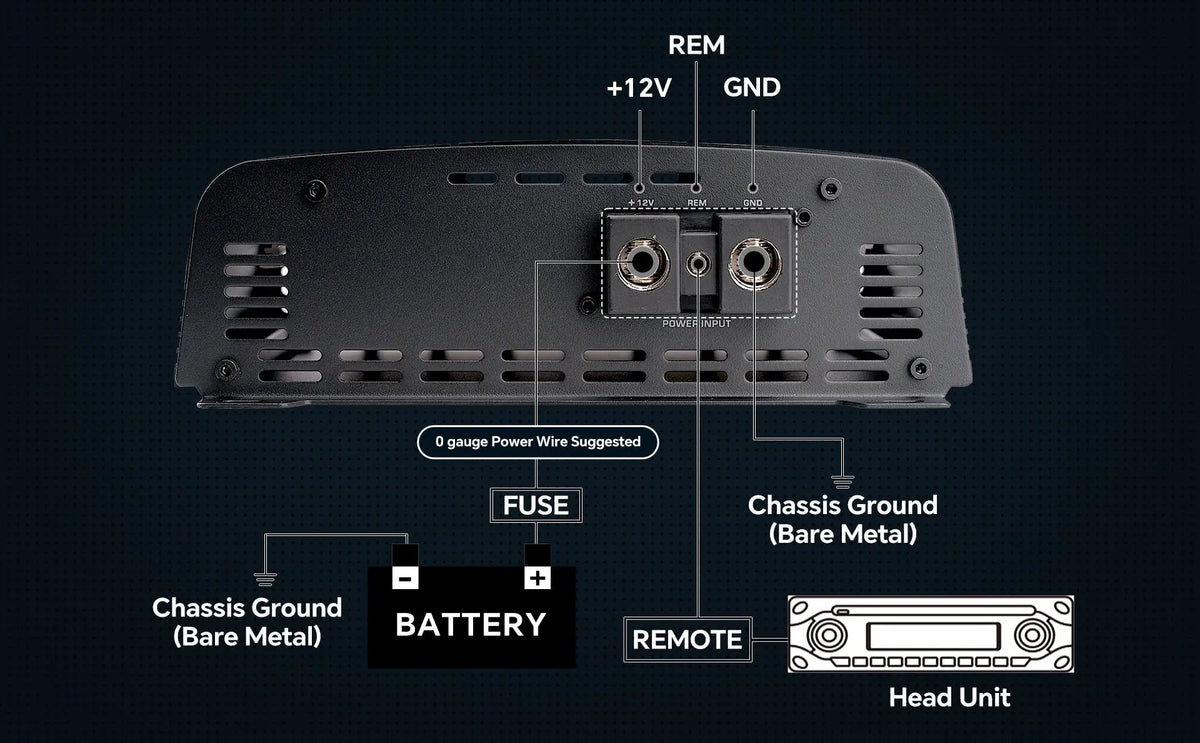

Check the available mounting space against the listed dimensions and confirm your system’s electrical requirements before installation. The amplifier’s protection thresholds are 16V for over-voltage and 9V for under-voltage.
Frequently Asked Questions
How much RMS power does the APHF-1500D-H1 produce?
It is rated at 500W RMS at 4 ohms, 1000W RMS at 2 ohms, and 1500W RMS at 1 ohm. Each rating is specified at 14.4V and less than 1% distortion.
What frequency ranges do the filters cover?
The high-pass filter is listed at 10Hz-80Hz with a 12dB/Octave slope. The low-pass filter is listed at 80Hz-20KHz with a 12dB/Octave slope.
Can I adjust bass from the driver’s seat?
Yes. The amplifier comes equipped with a remote bass control knob, along with a clip LED and power on/off LED indicator.
What are the amplifier’s dimensions?
It measures 5.9" x 9" x 2.9" (L x W x H), or 150 x 229 x 73 mm.
What should I check before choosing this amplifier?
Confirm that your speaker impedance, power requirements, vehicle electrical system, and available mounting space suit the amplifier’s specifications.
