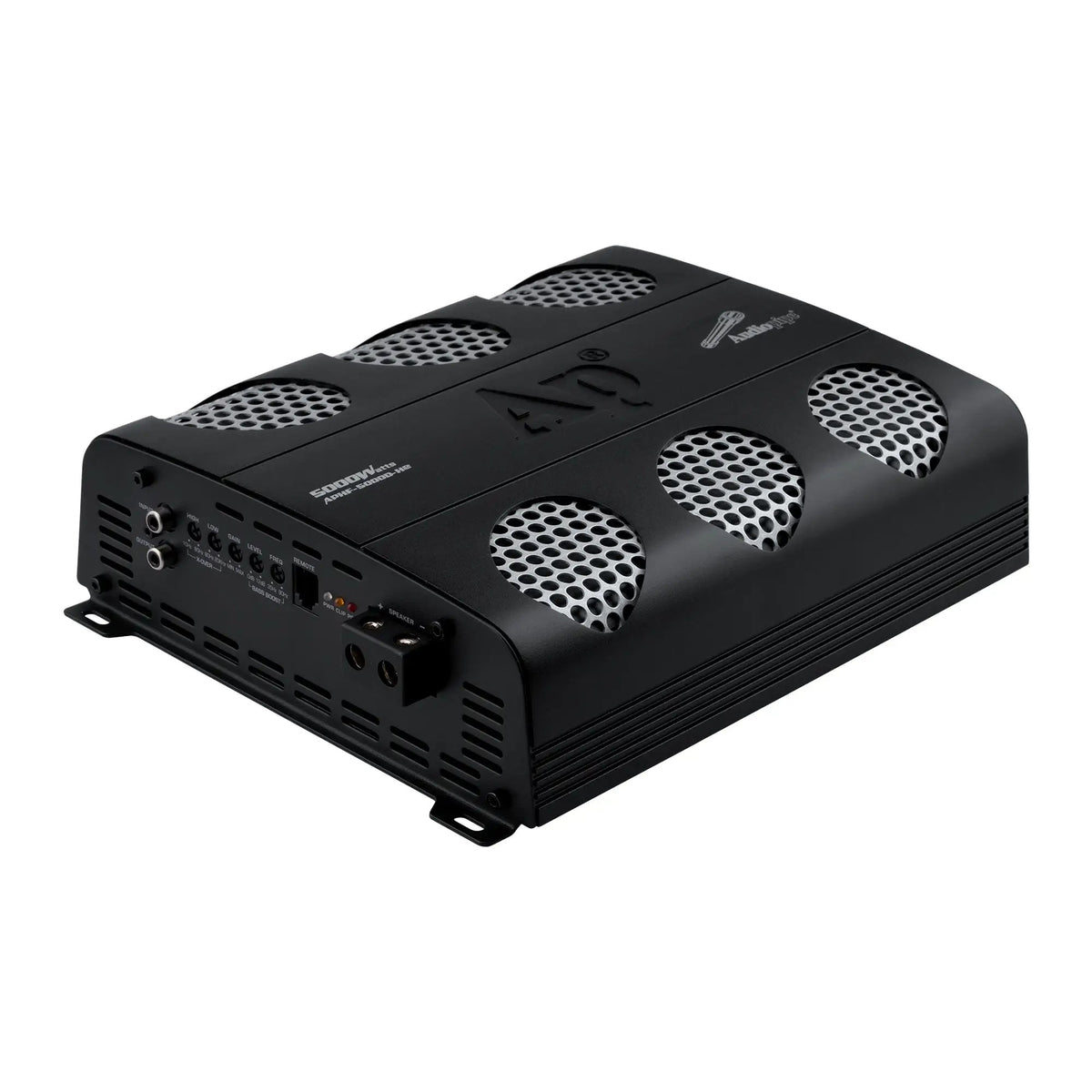

Audiopipe APHF-5000D-H2 5000 Watts Full Range Class D Mosfet Amplifier
Key features
- Amplifier channels: 1
- RMS output at 4 ohms: 2700.0 W
- RMS output at 2 ohms: 5000 W
- FREQUENCY RESPONSE: 10Hz-20KHz
Audiopipe APHF-5000D-H2 5000 Watts Full Range Class D Mosfet Amplifier is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview
Get up to 5000 watts of continuous power for your car audio system with the Audiopipe APHF-5000D-H2 full-range Class D MOSFET amplifier. Its full-bridge design combines dual internal amplifiers in BTL mode, delivering substantial output in a compact heatsink footprint.
Key Features & Benefits
- High continuous output: Delivers 5000W RMS at 2 ohms and 14.4V, with less than 1% distortion.
- Full-range Class D design: PWM technology supports efficient power delivery across the stated 10Hz–20kHz frequency response.
- Four-point protection: Protection against electrical shorts, overheating, low voltage, and overvoltage helps safeguard the amplifier.

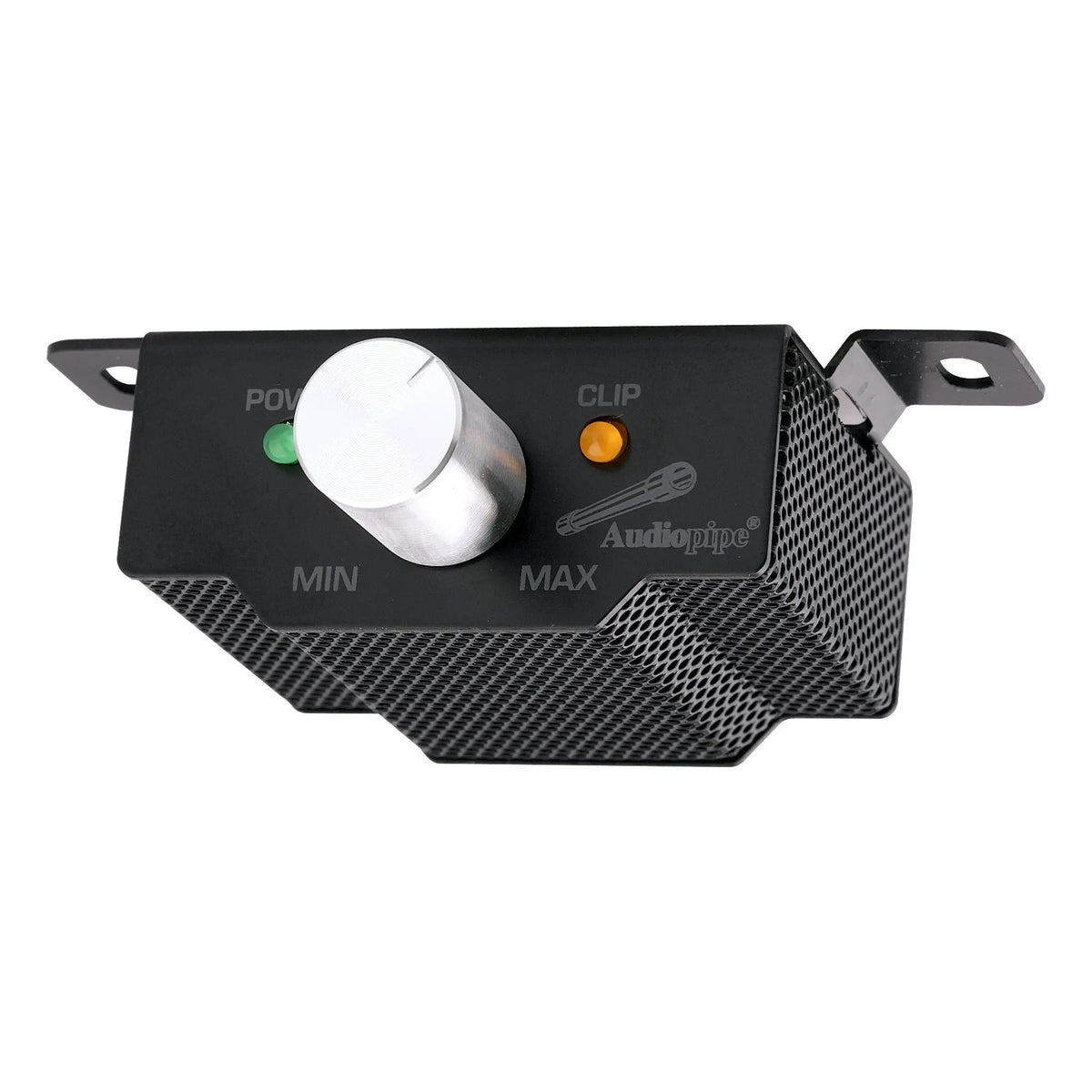

- Remote bass control: Adjust the bass level from the driver’s seat with the included remote control knob.
- Visual indicators: A clip LED and power on/off LED let you monitor amplifier status.

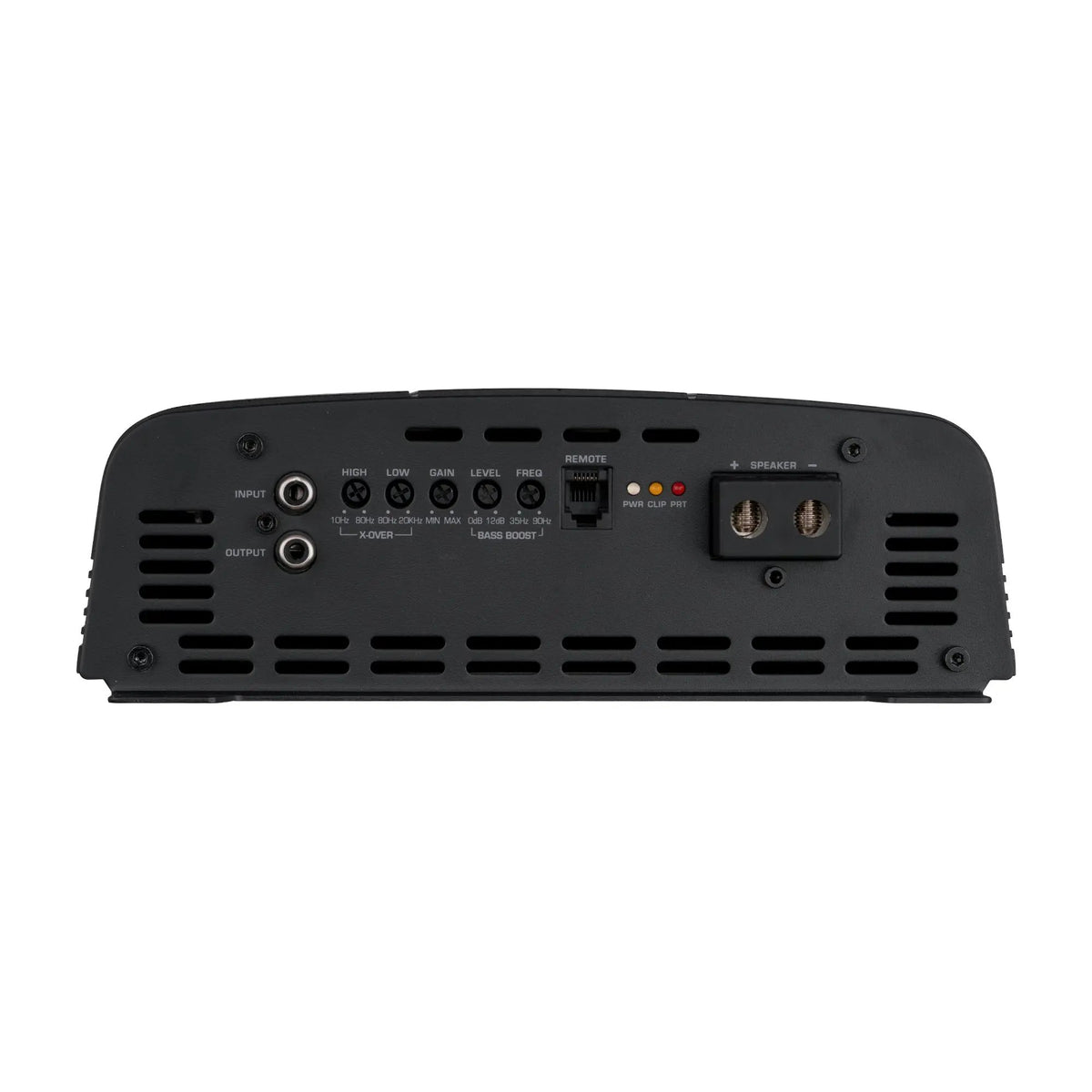

- Adjustable sound controls: High-pass and low-pass filters plus bass boost let you shape the signal.
Technical Specifications
| Specification | Value |
|---|---|
| Amplifier type | Full Range Class D MOSFET, mono |

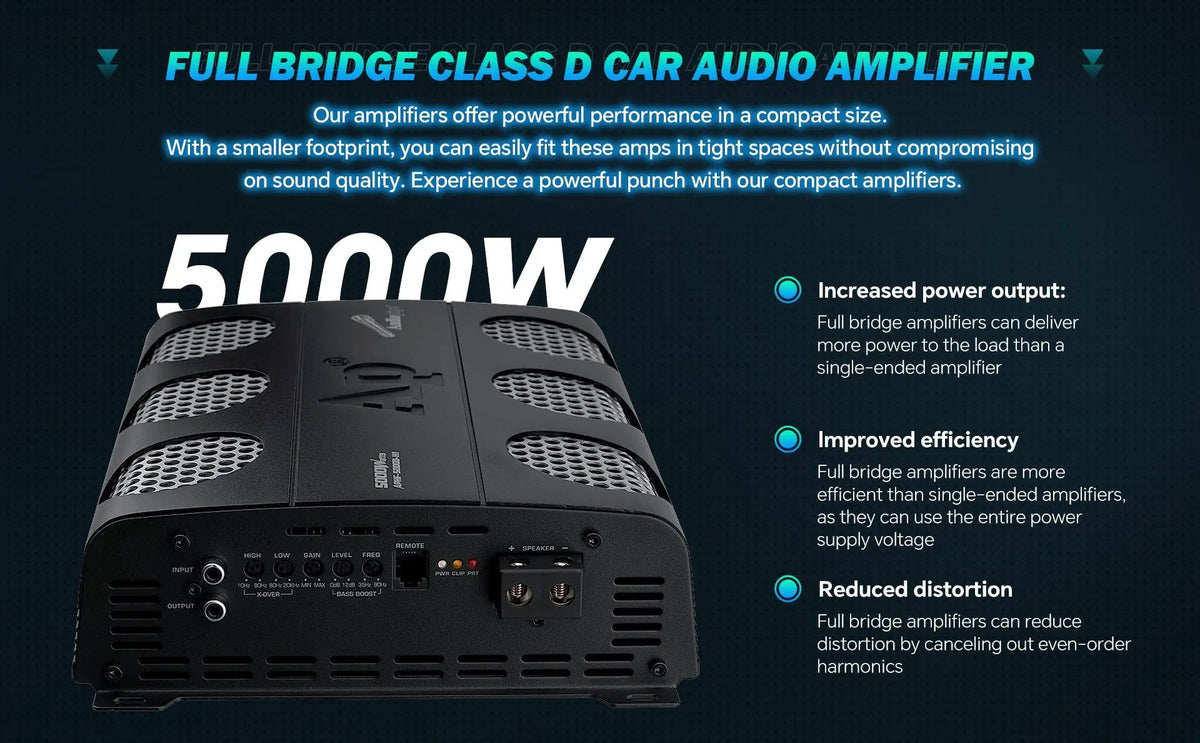

| Amplifier design | Full bridge; dual internal amplifiers in BTL mode |
| Power output, RMS at 4 ohms | 2700W at 14.4V, <1% distortion |
| Power output, RMS at 2 ohms | 5000W at 14.4V, <1% distortion |

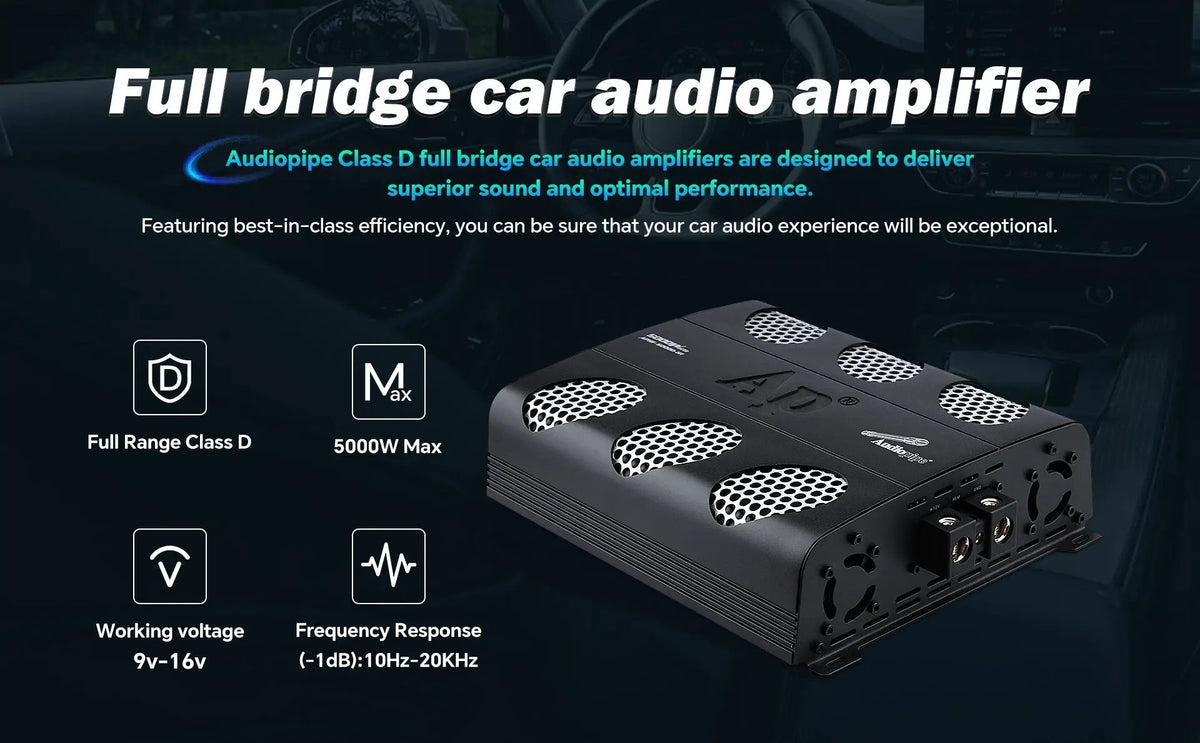

| Frequency response | 10Hz–20kHz |
| Signal-to-noise ratio | ≥85dB |
| Input sensitivity | 0.25–4V |
| Overload protection | Equipped |
| Overheat protection | Heatsink designed for overheat protection |
| Over-voltage protection | 16V |
| Under-voltage protection | 9V |
| High-pass filter | 10Hz–80Hz, 12dB/Octave |
| Low-pass filter | 80Hz–20kHz, 12dB/Octave |
| Bass boost | 0–12 dB at 35Hz–90Hz |

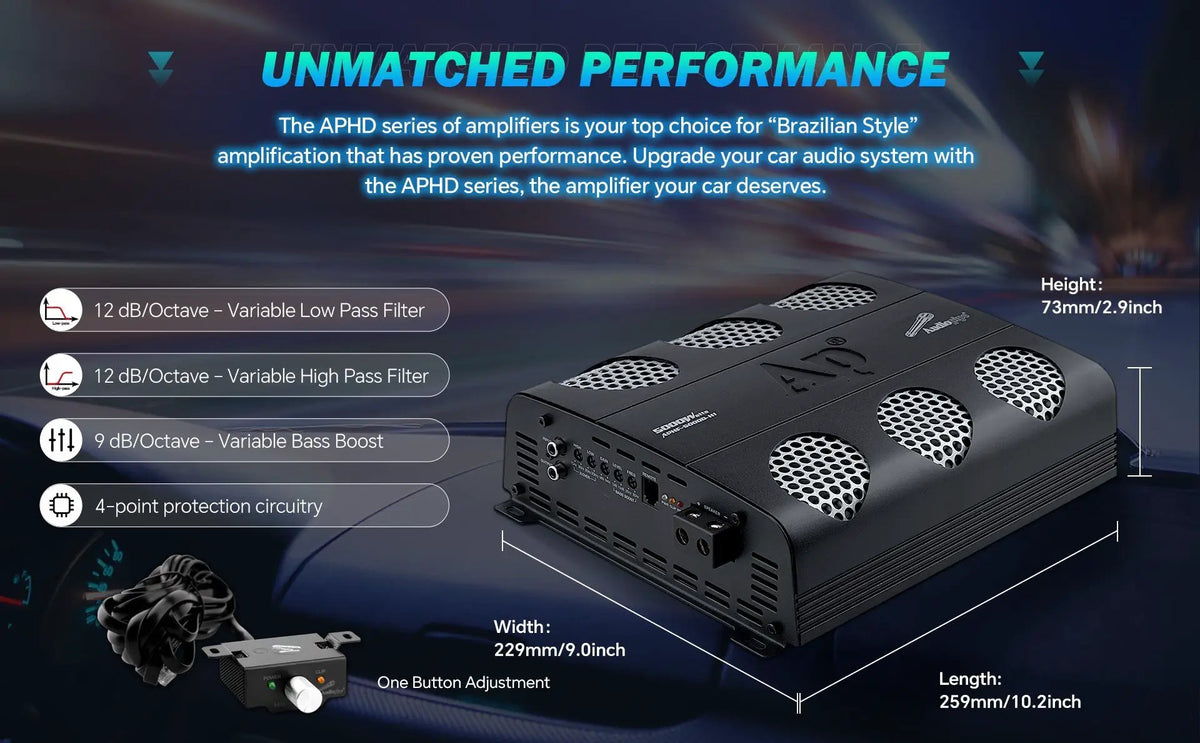

| Dimensions (L × W × H) | 10.2" × 9" × 2.9"; 259 × 229 × 73 mm |
Why Choose This Product?
The APHF-5000D-H2 combines high power ratings with a full-range design, rather than limiting its stated response to subwoofer frequencies. Its crossover controls and bass boost provide options for shaping the signal to suit your system.
The 5000W RMS rating applies at 2 ohms and 14.4V. Compare your system’s speaker load and available supply voltage with the listed ratings when choosing an amplifier.
Installation & Compatibility Notes

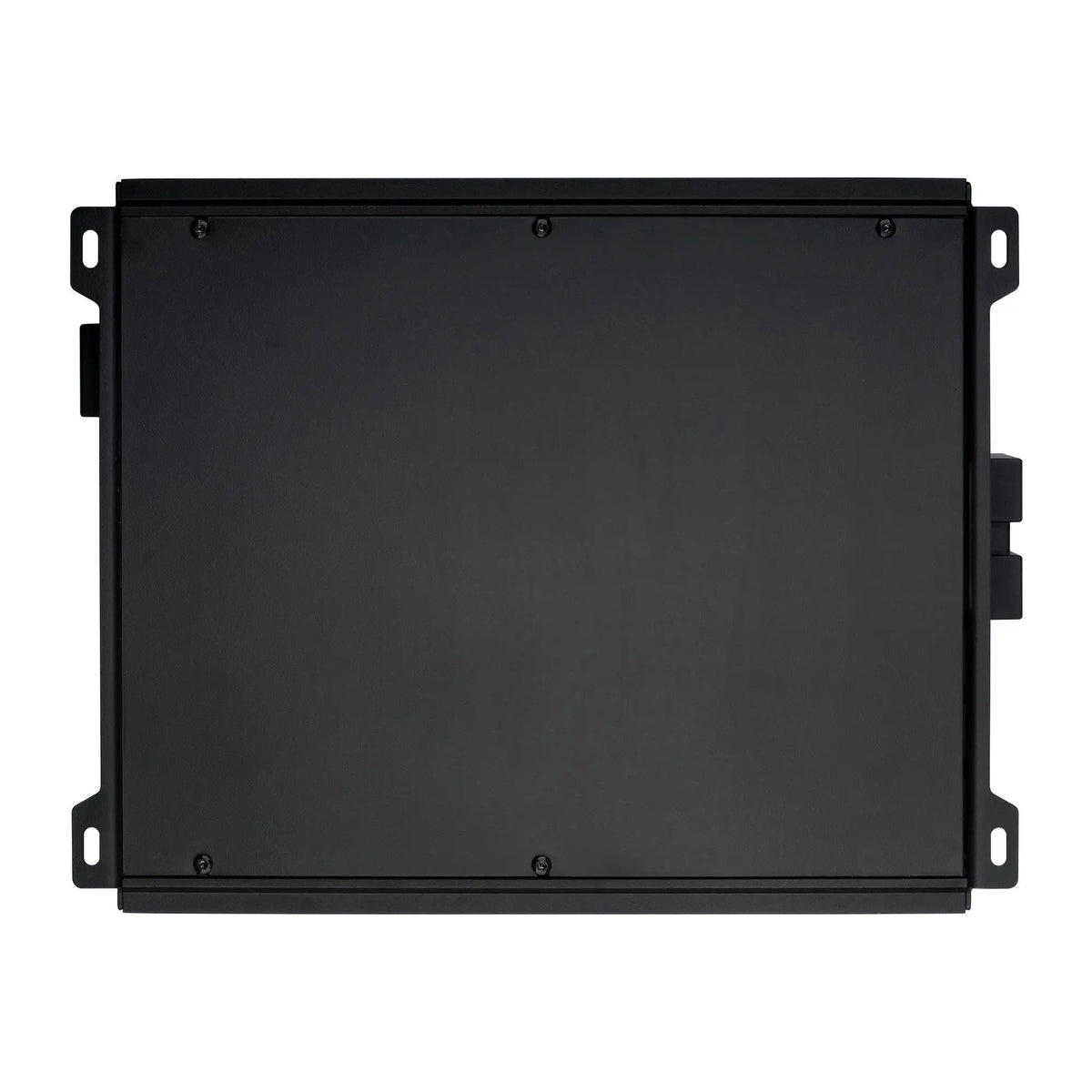

Allow for the amplifier’s 10.2" × 9" × 2.9" dimensions when planning its mounting location. Confirm that your system’s speaker load and electrical setup are appropriate for the intended power rating before installation.
The product description identifies a remote bass control knob, clip LED, and power on/off LED indicator. It does not specify other included installation accessories.
Frequently Asked Questions
How much power does the APHF-5000D-H2 produce?
It is rated at 2700W RMS at 4 ohms and 5000W RMS at 2 ohms, both at 14.4V and less than 1% distortion.
What frequency range does this amplifier cover?
Its stated frequency response is 10Hz–20kHz. The high-pass and low-pass filter ranges are listed in the specifications above.
Can I adjust bass from the driver’s seat?
Yes. The amplifier comes with a remote bass control knob, along with a clip LED and power on/off LED indicator.
What are the amplifier’s dimensions?
It measures 10.2" × 9" × 2.9" (259 × 229 × 73 mm), listed as length × width × height.
What protection features are listed?
The description lists protection against electrical shorts, overheating, low voltage, and overvoltage. The stated under-voltage and over-voltage protection values are 9V and 16V.
