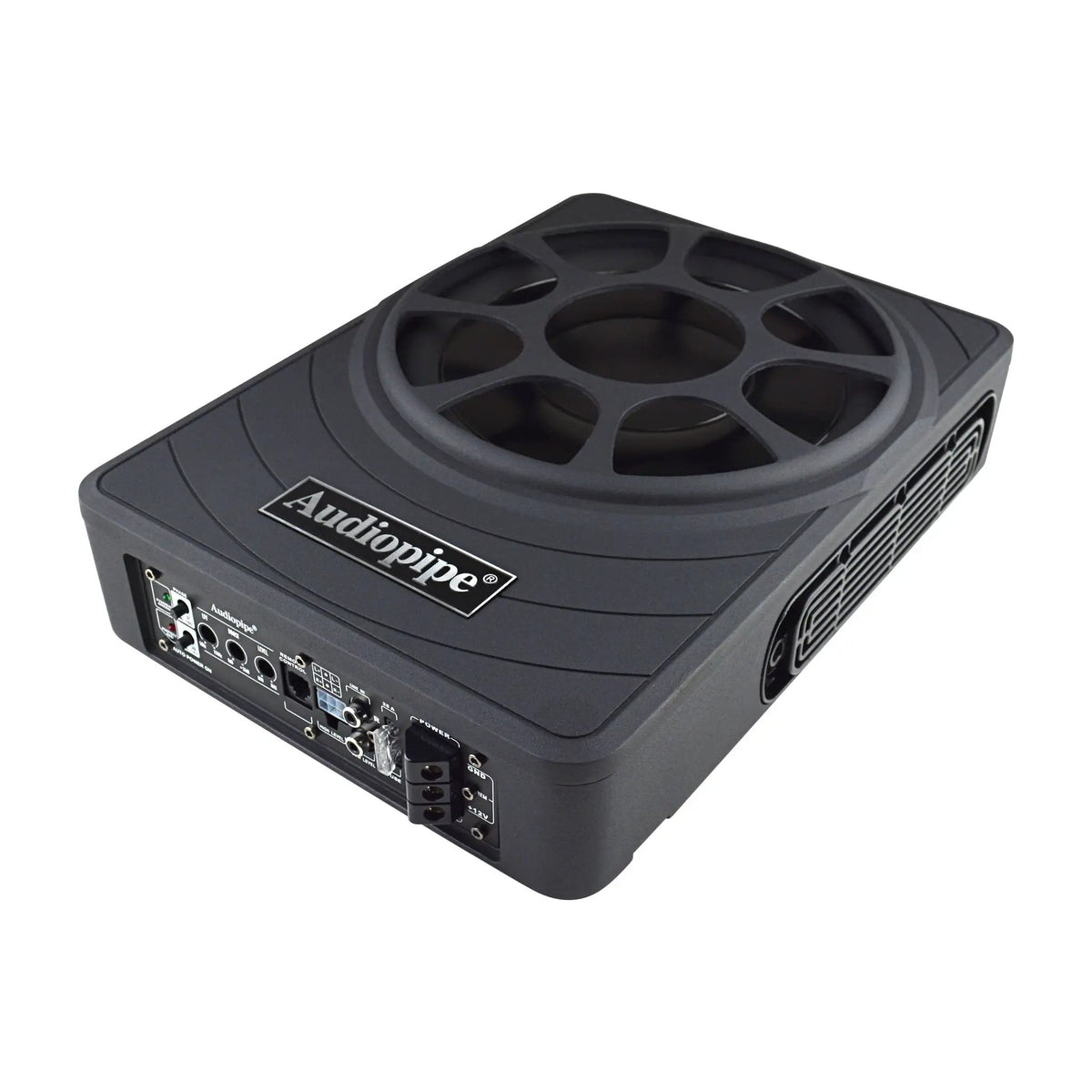

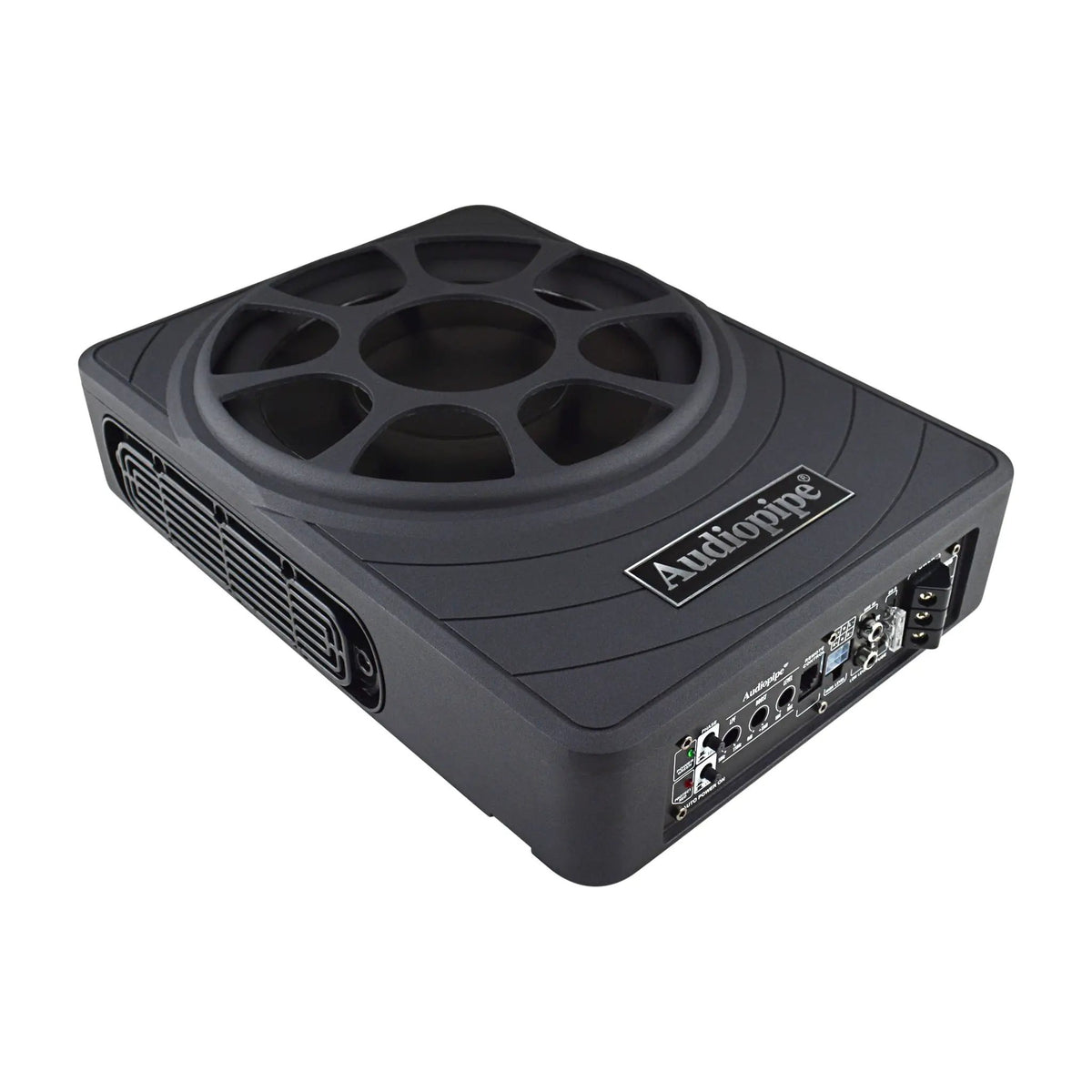

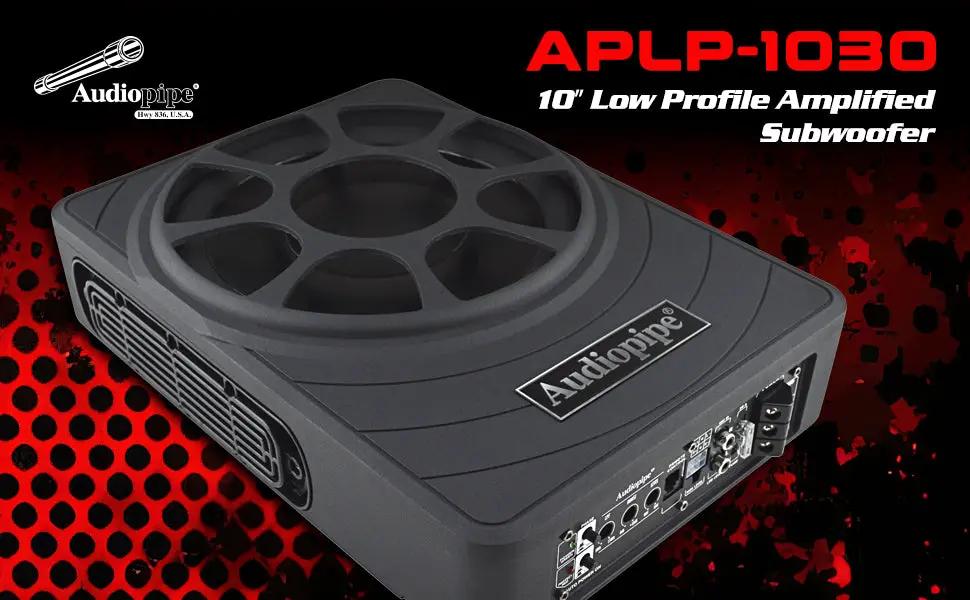

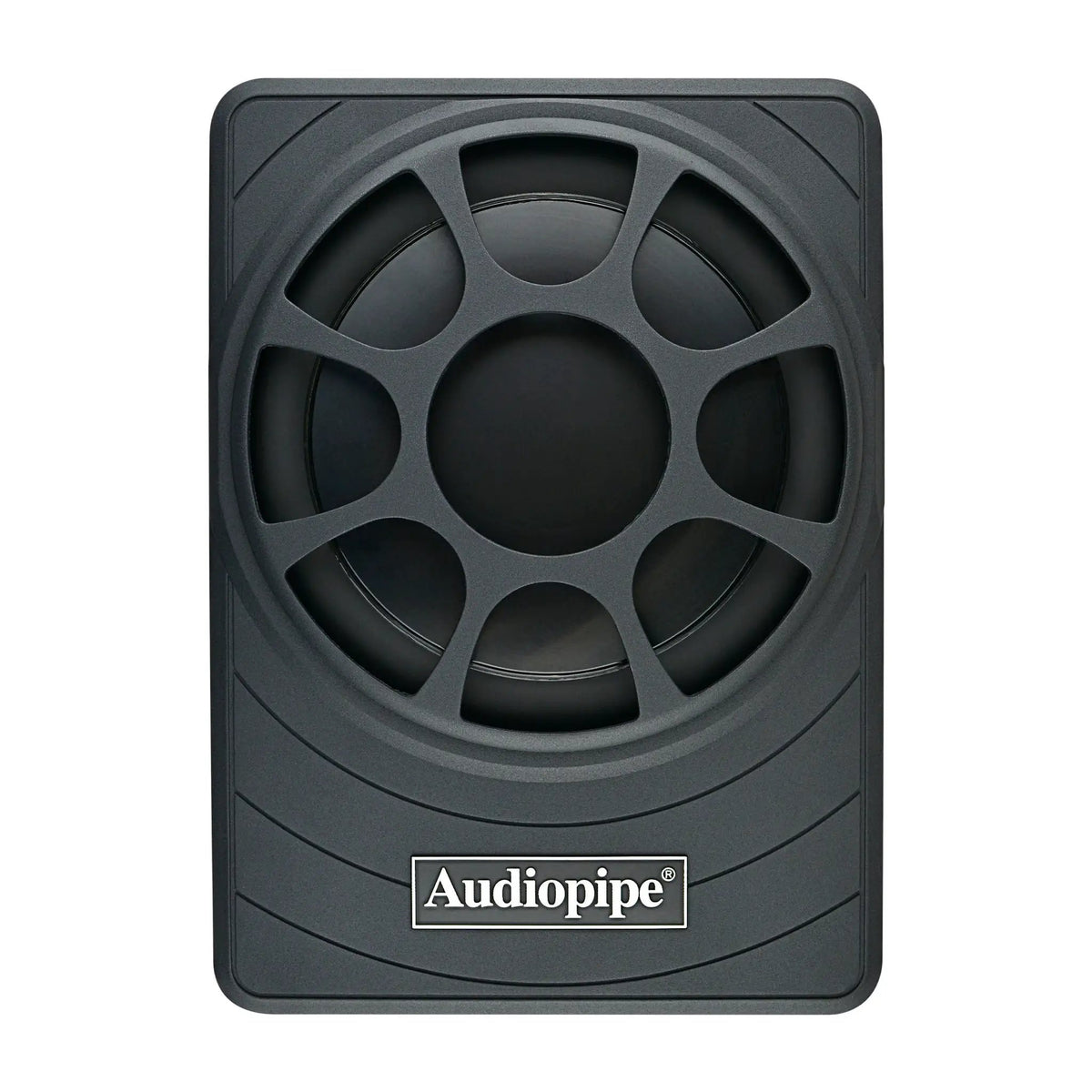

Audiopipe APLP-1030 10" Low Profile Amplified Subwoofer
Key features
Drivers and amplifier included
- Compatible woofer size: 10 inches
- Included subwoofers: 1 × 10-inch low-profile amplified subwoofer
- Amplification: P.W.M. MOSFET powered subwoofer system
- Amplifier RMS output: 250 W at 2 ohms, <0.4% THD at 14.4 V
- Audio inputs: RCA and high-level inputs
- Low-pass filter: Adjustable from 50 to 150 Hz
Audiopipe APLP-1030 10" Low Profile Amplified Subwoofer is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview
Add adjustable bass to your vehicle audio system with the Audiopipe APLP-1030 10" low profile amplified subwoofer. Its compact enclosure combines a built-in amplifier, RCA and high-level inputs, and a remote bass knob for convenient system integration and level control.
Key Features & Benefits

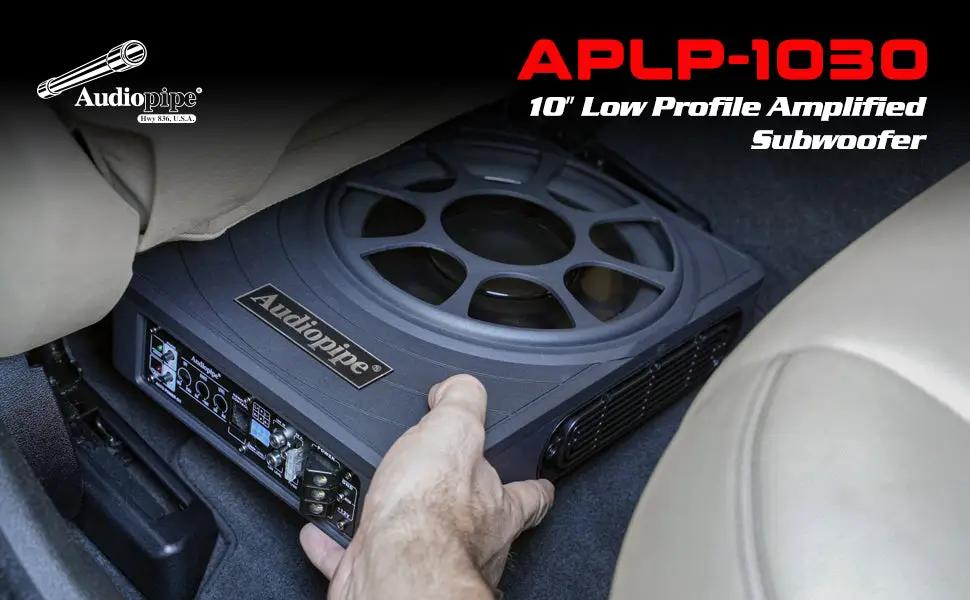

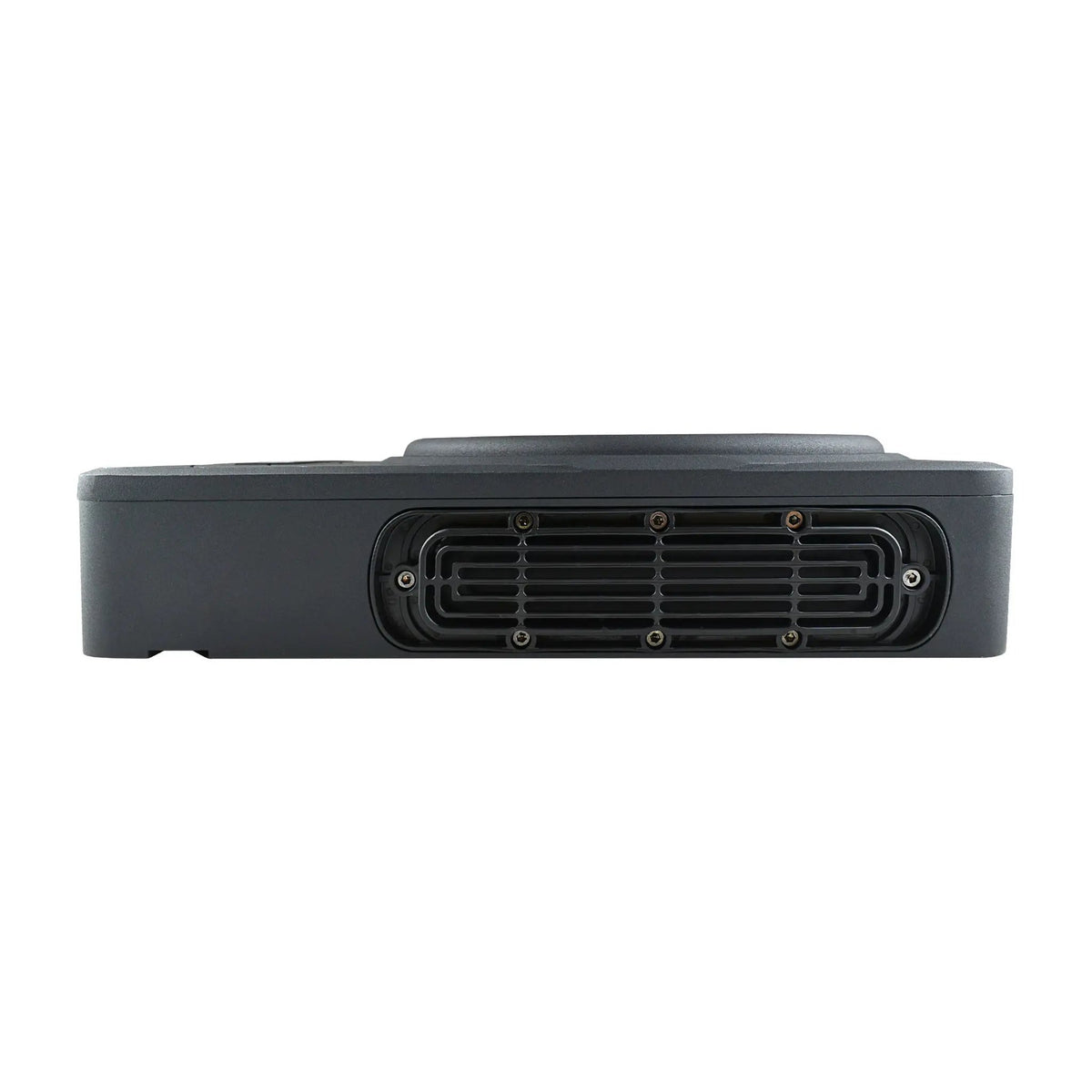

- Low-profile design: The 13.6" x 9.6" x 2.8" enclosure suits installations where space is limited.

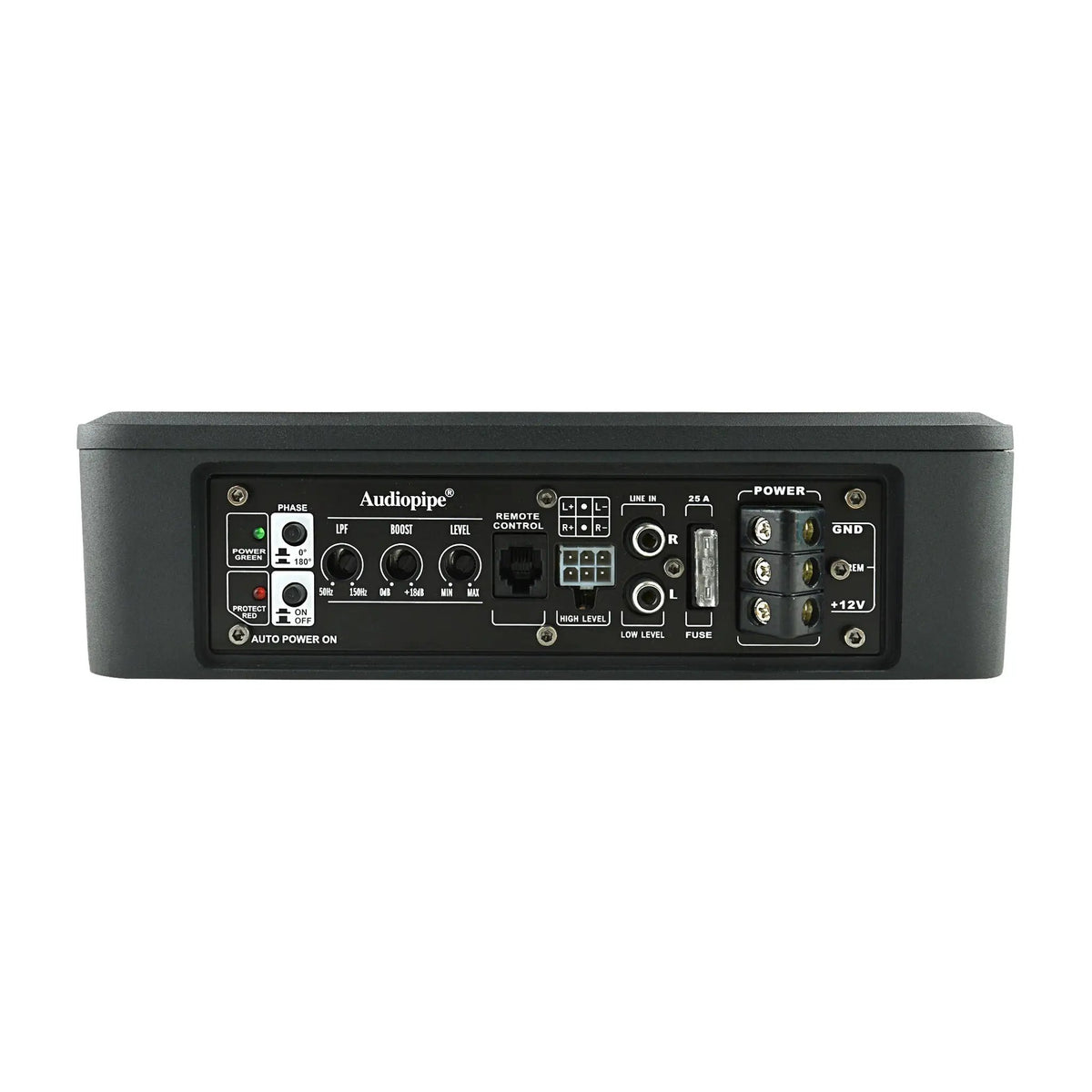

- Two input options: RCA and high-level inputs give you connection options for your audio system.

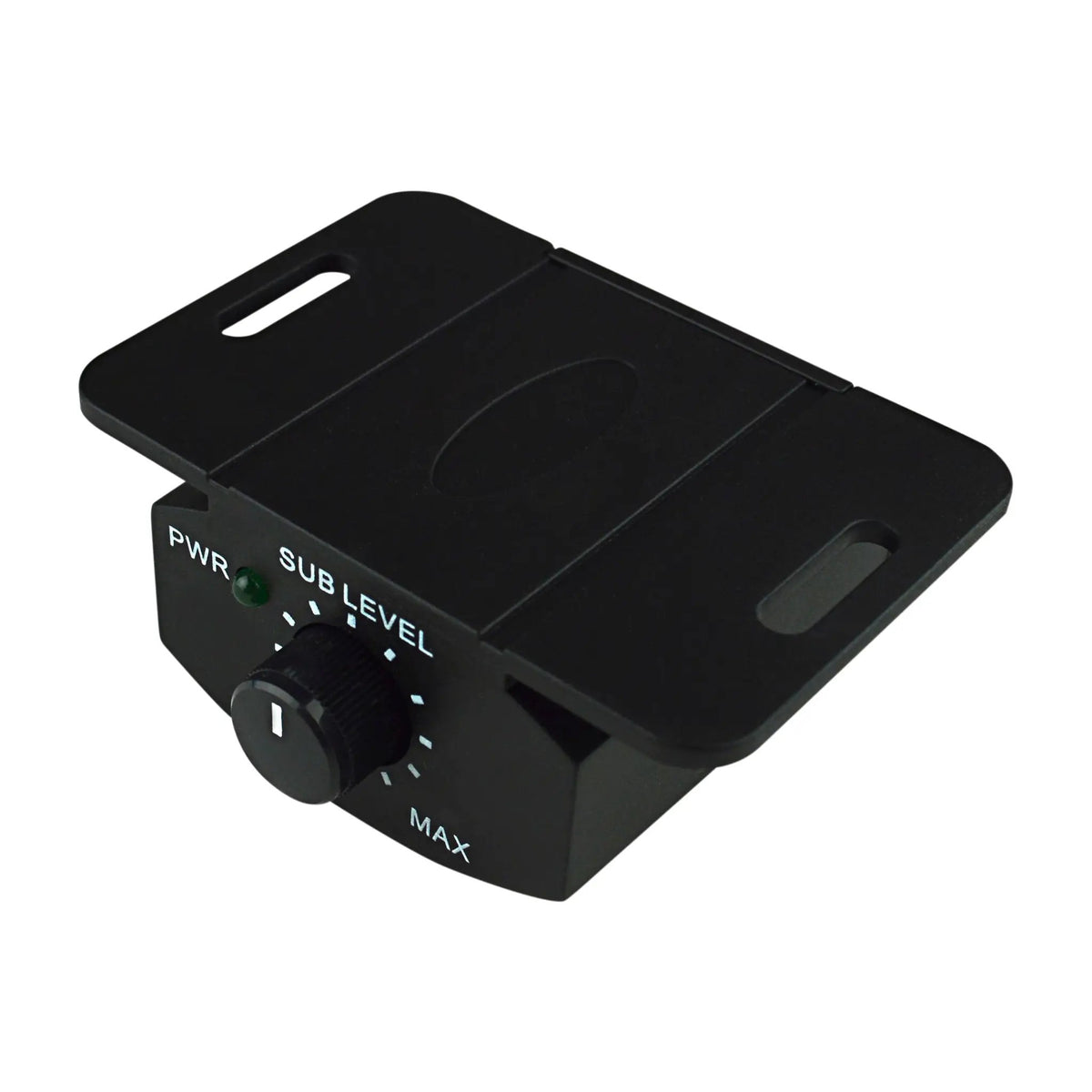

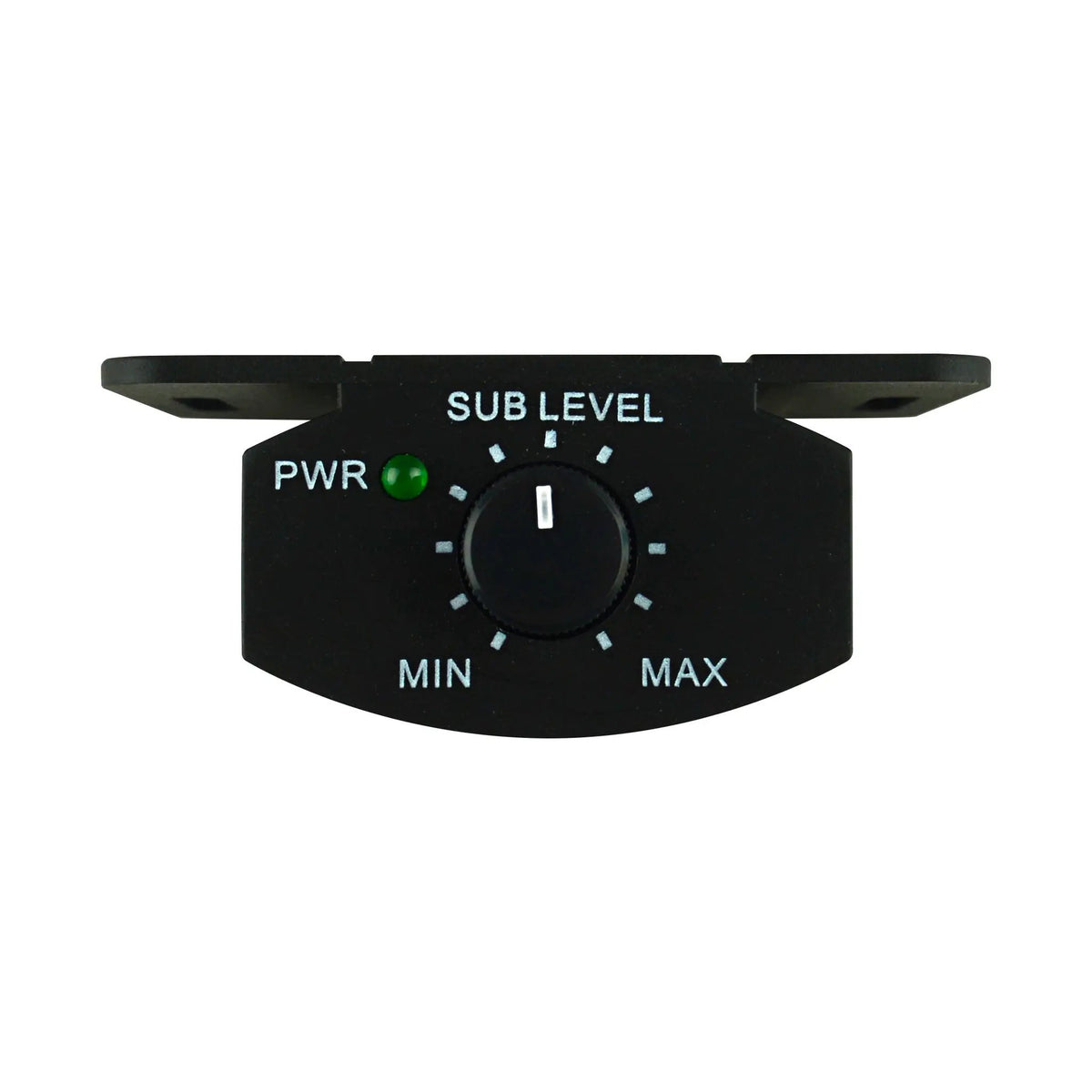

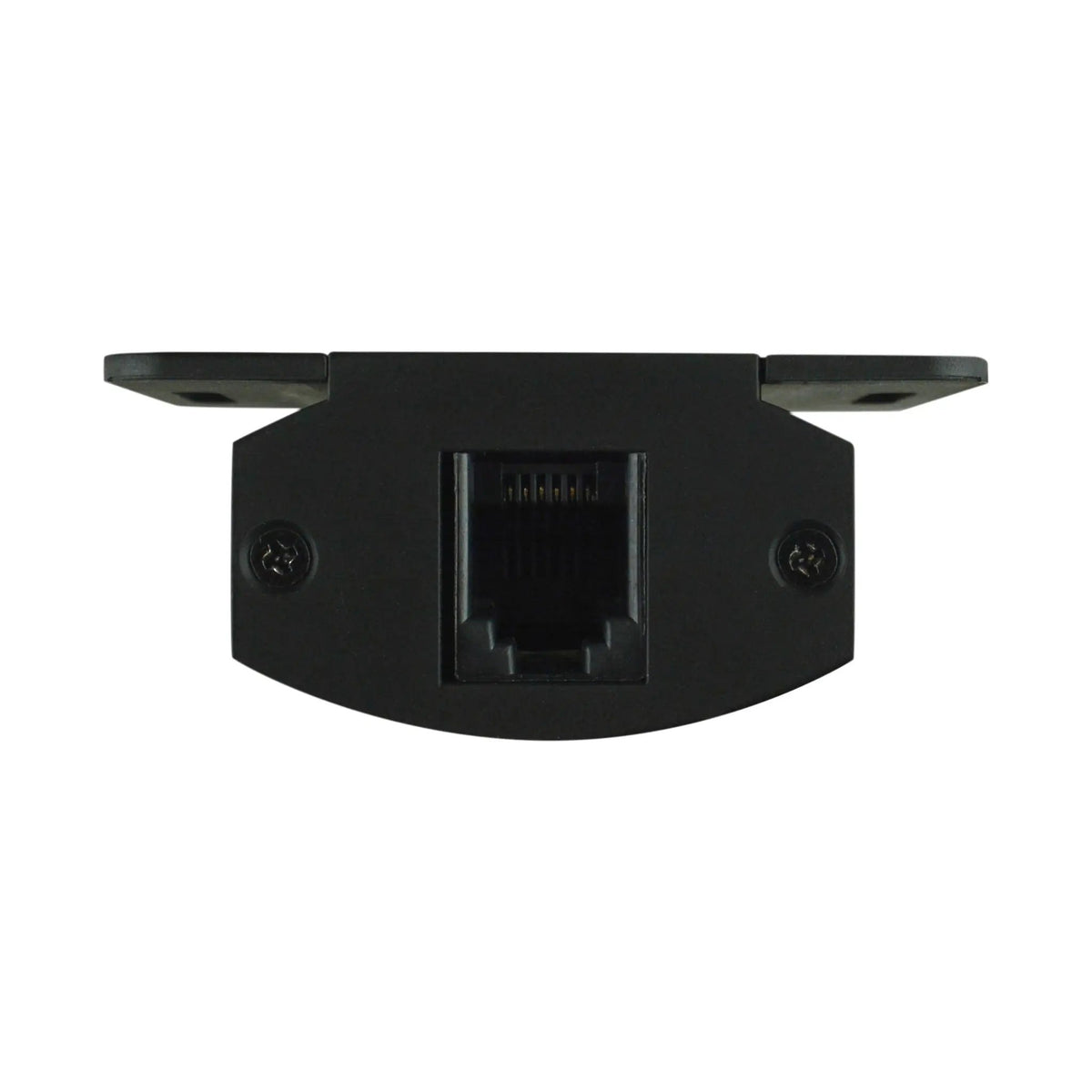

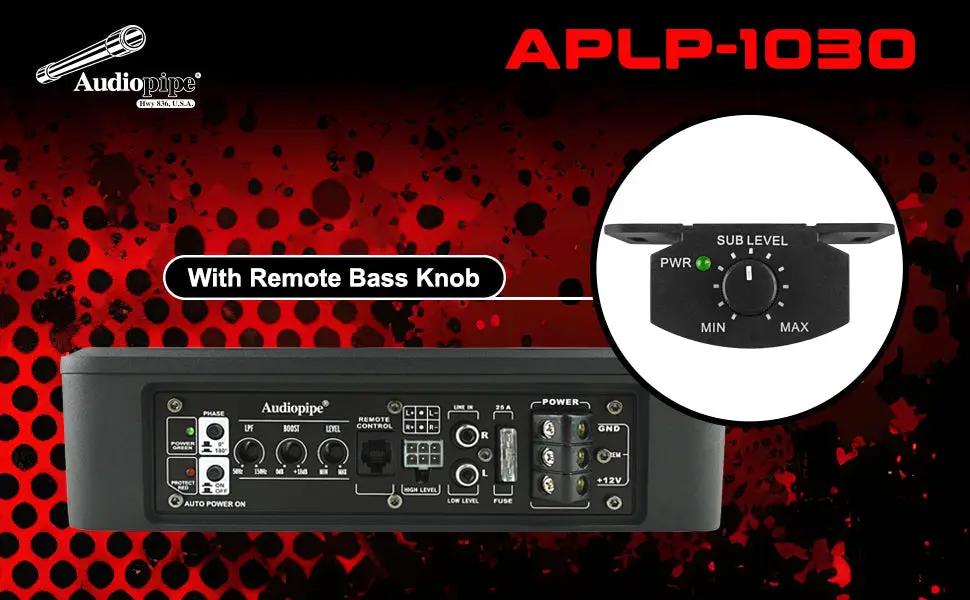

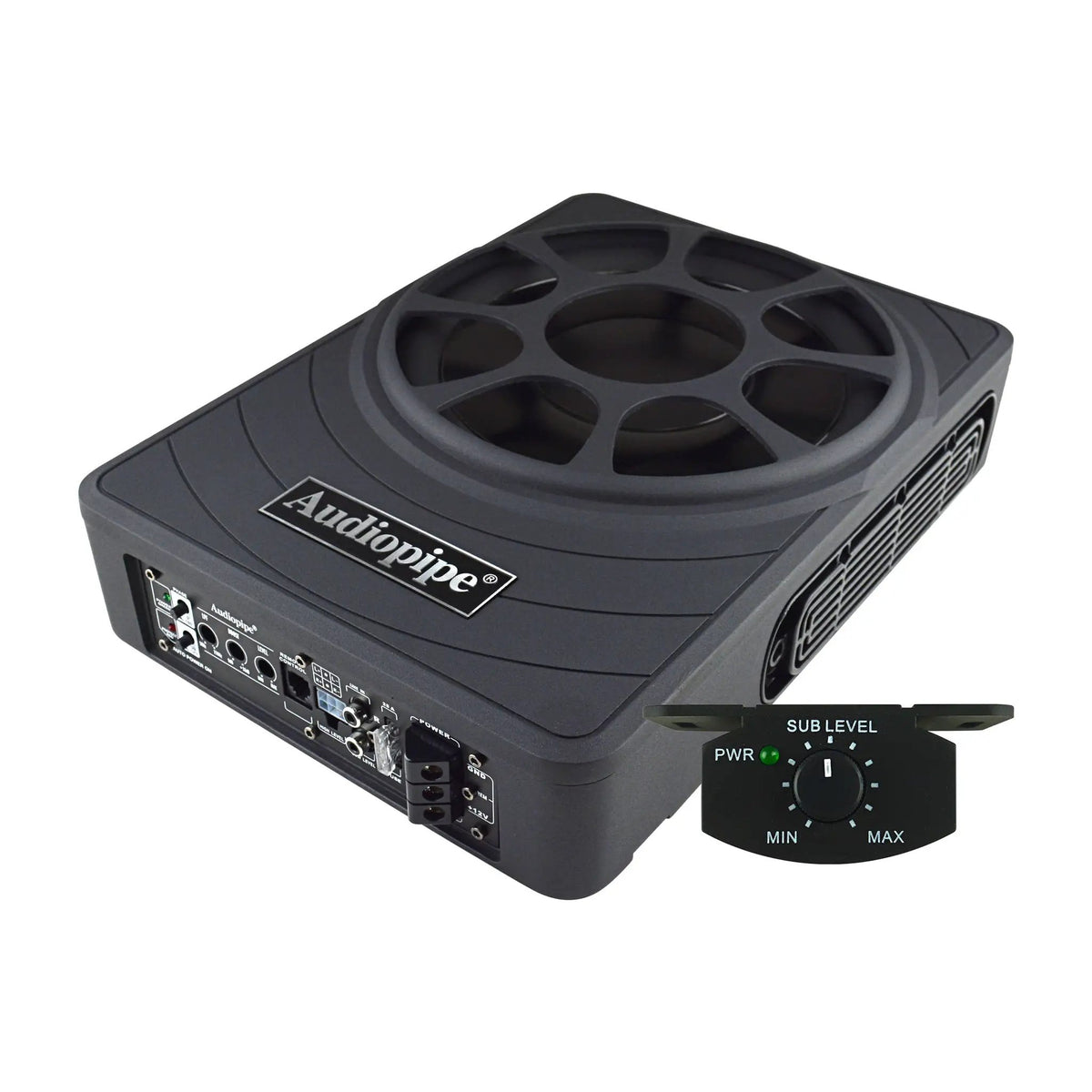

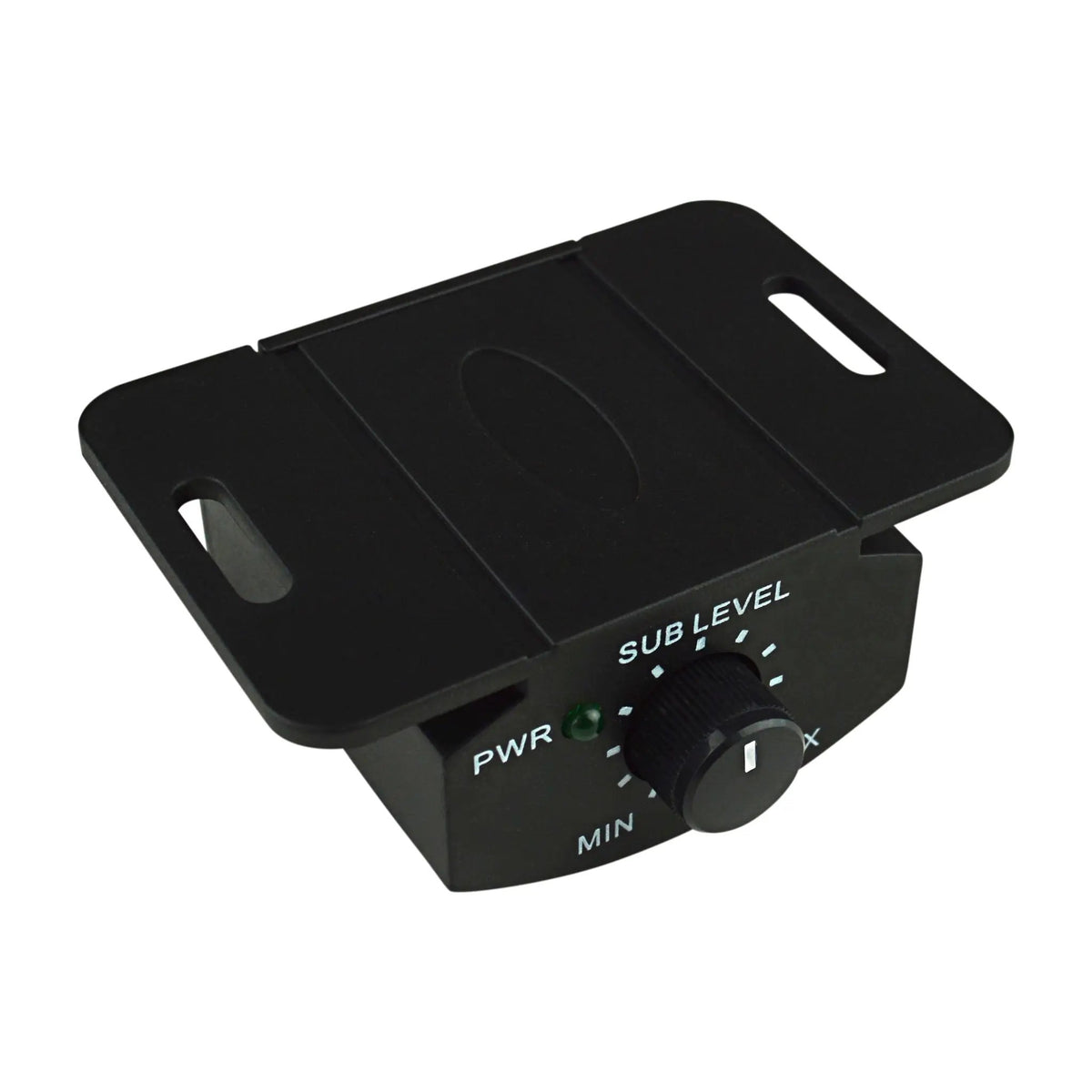

- Remote bass control: Adjust subwoofer level from the dashboard with the included remote bass knob.
- Adjustable sound: Set bass boost from 0dB to 18dB and the low-pass filter from 50~150Hz.
- Phase switch: Choose 0 or 180 degrees for installation setups such as mounting with the magnet facing out.
- Built-in protection: Thermal, short-circuit, and overload protection circuits support protected operation.
Technical Specifications
| Product type | 10" low profile amplified subwoofer |
|---|---|
| Peak power | Max @ 1 x 2 Ohms (< 1.0% THD / 14.4V): 500 WATTS |
| Continuous power | RMS @ 1 x 2 Ohms (<0.4% THD / 14.4V): 250 WATTS |
| High-level input sensitivity | 1.0V- 9.0V |
| Low-level input sensitivity | 0.1V- 6.0V |
| Amplifier circuitry | P.W.M MOSFET |
| Inputs | RCA and high level |
| Phase control | 0 degrees to 180 degrees |
| Variable bass boost | 0dB to 18dB |
| Subsonic filter | Eliminates sound frequency under 20Hz |
| Variable low-pass filter | 50~150Hz |

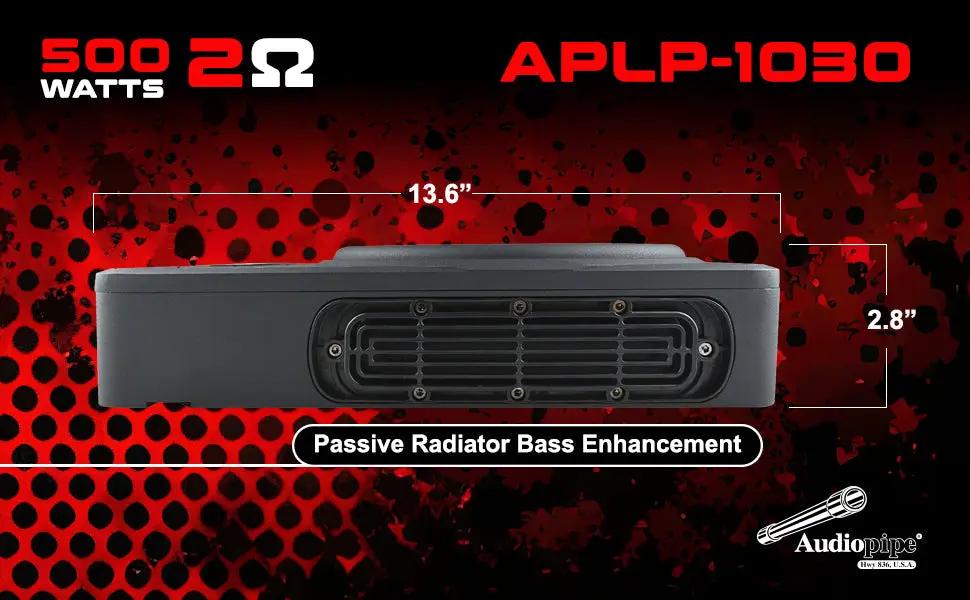

| Passive radiator | 206*52 mm (2 pcs) |
| Dimensions (L x W x H) | 13.6" x 9.6" x 2.8" |
| Dimensions (L x W x H) | 345 x 245 x 70 mm |
| Protection circuits | Thermal protection circuit, short protection circuit and overload protection circuit |
Why Choose This Product?
The APLP-1030 combines a subwoofer and amplifier in one low-profile unit, with controls for tailoring bass response to your setup. Its P.W.M MOSFET circuitry simplifies the power supply by removing output current sensing loss. The built-in subsonic filter, variable low-pass filter, and bass boost give you several ways to shape its output.
Installation & Compatibility Notes
Measure the intended mounting area and compare it with the enclosure dimensions before installation. Check that your audio system has a suitable RCA or high-level connection. The phase switch can be set from 0 to 180 degrees, including for a non-traditional installation with the magnet facing out.
Frequently Asked Questions
What are the peak and continuous power ratings?
The peak rating is 500 watts at 1 x 2 Ohms (< 1.0% THD / 14.4V). Continuous power is 250 watts RMS at 1 x 2 Ohms (<0.4% THD / 14.4V).
Can I connect the APLP-1030 to different types of audio outputs?
It has both RCA and high-level inputs. The listed input sensitivity is 0.1V- 6.0V for low-level input and 1.0V- 9.0V for high-level input.
What does the phase switch adjust?
It switches phase between 0 and 180 degrees. The product description notes this can help with custom installations, including mounting with the magnet facing out.
How much space should I allow?
The enclosure measures 13.6" x 9.6" x 2.8", or 345 x 245 x 70 mm. Check the available mounting area against these measurements.
Does it include a remote bass control?
Yes. A remote bass knob is included for controlling subwoofer level from the dashboard.
