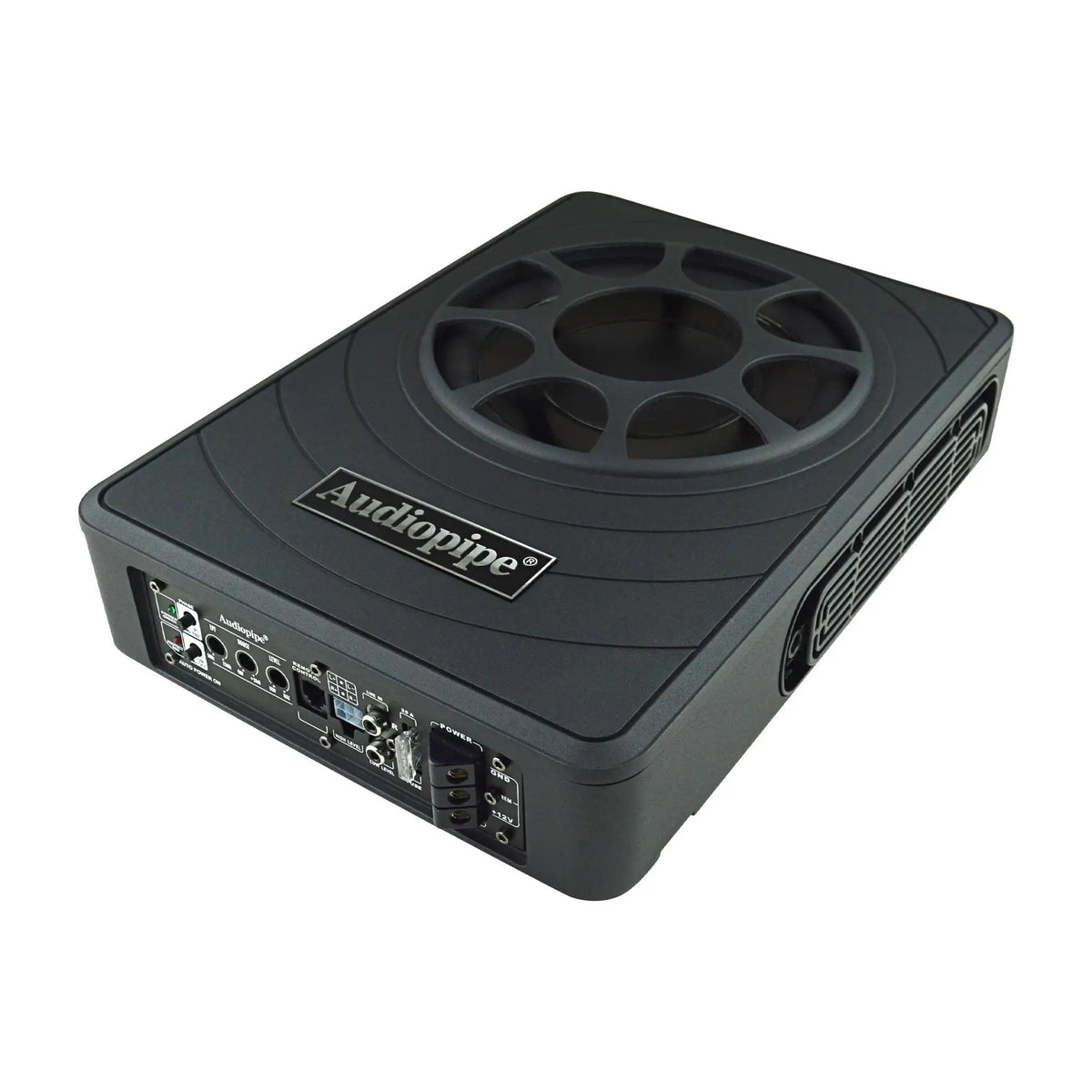

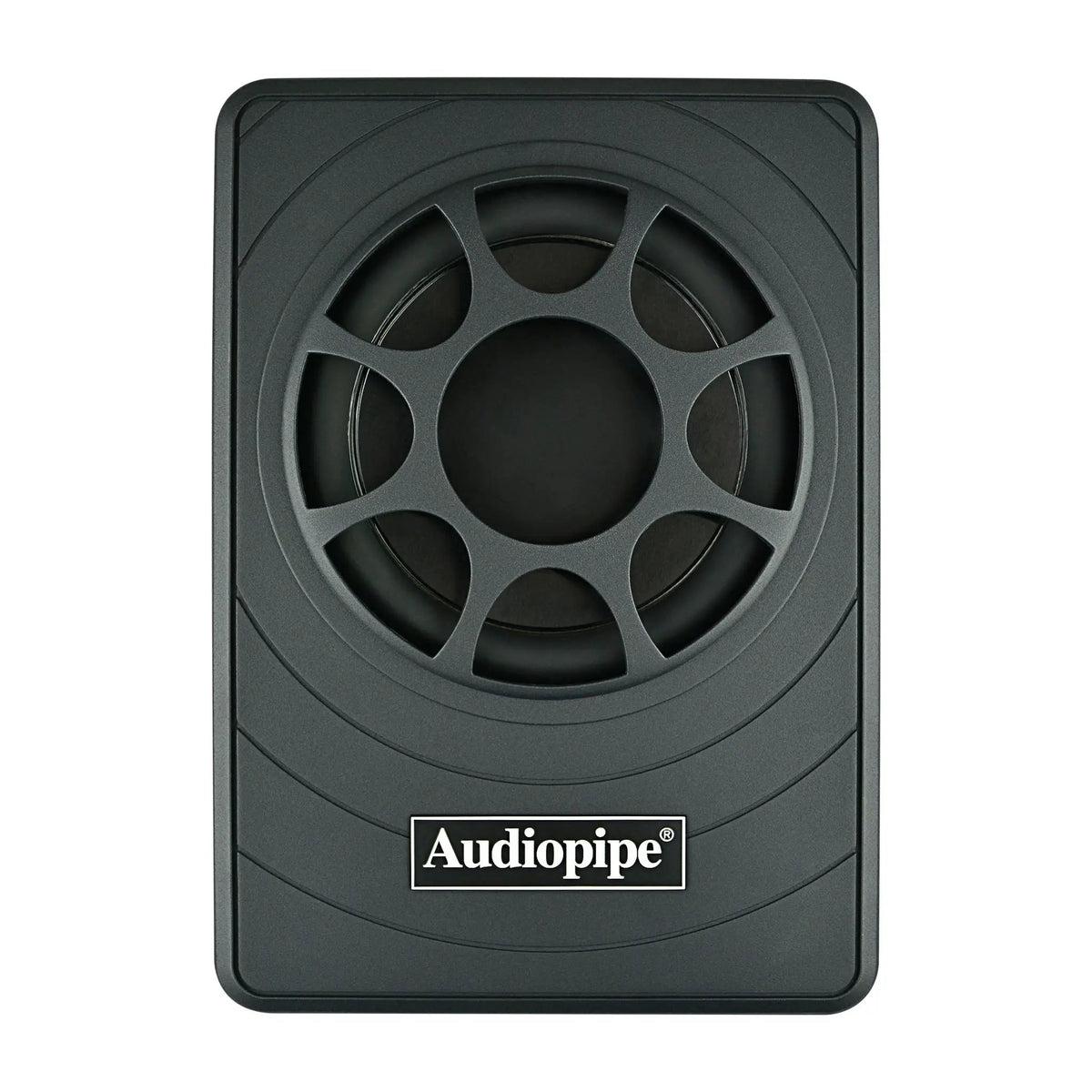

Audiopipe APLP-8300 8" Low Profile Amplified Subwoofer
Key features
Drivers and amplifier included
- Compatible woofer size: 8 inches
- Included subwoofers: 1 × 8-inch low-profile amplified subwoofer
- Amplification: P.W.M. MOSFET powered subwoofer system
- Amplifier RMS output: 175 W at 2 ohms, <0.4% THD at 14.4 V
- Audio inputs: RCA and high-level inputs
- Low-pass filter: Adjustable from 50 to 150 Hz
Audiopipe APLP-8300 8" Low Profile Amplified Subwoofer is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview

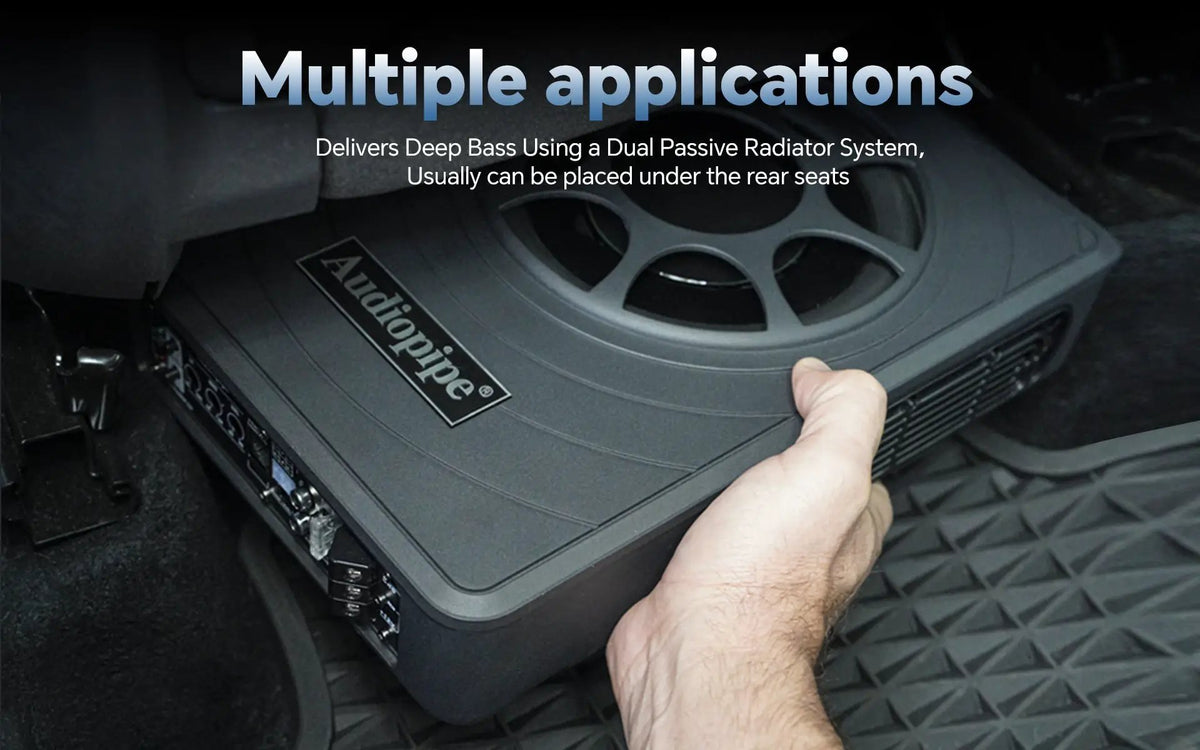

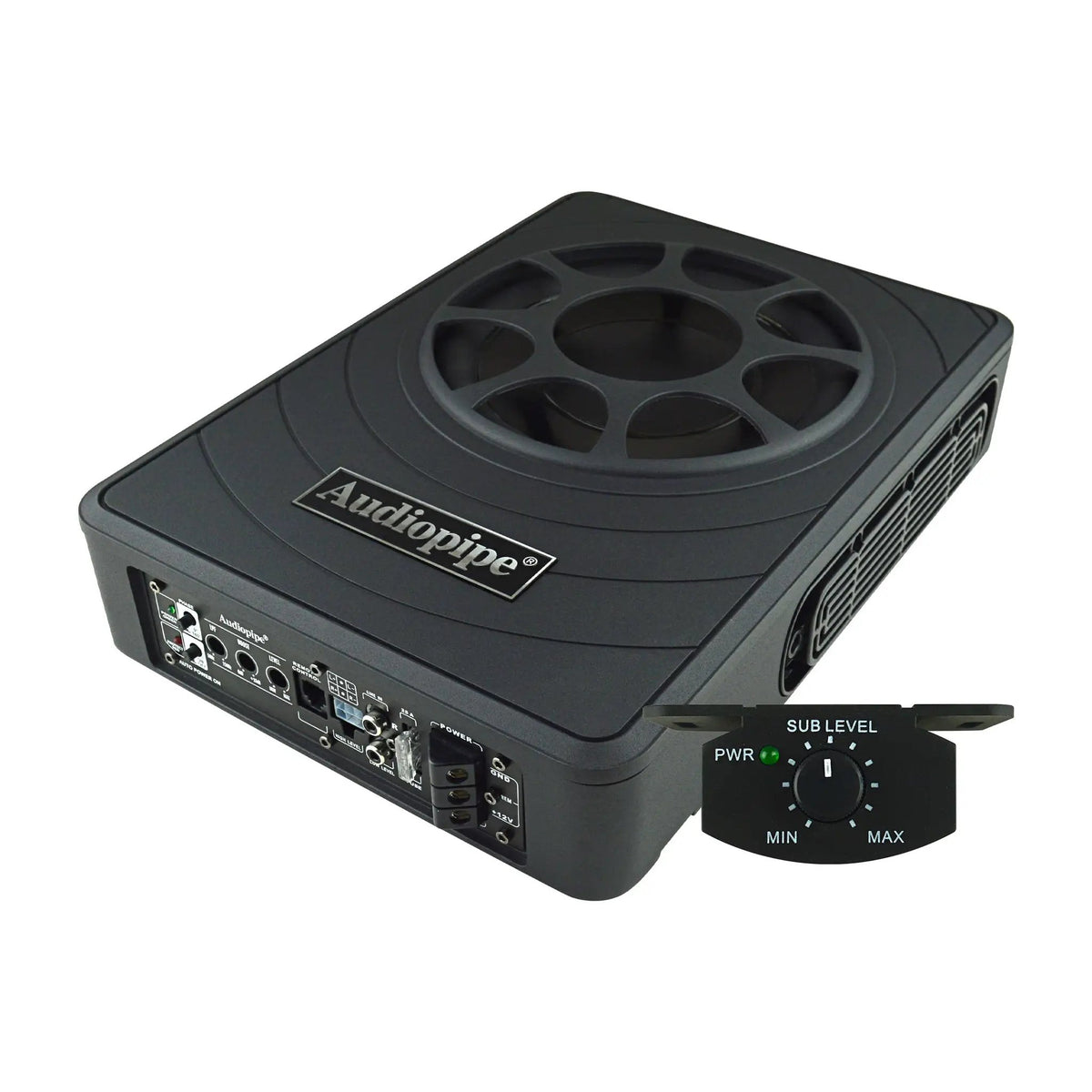

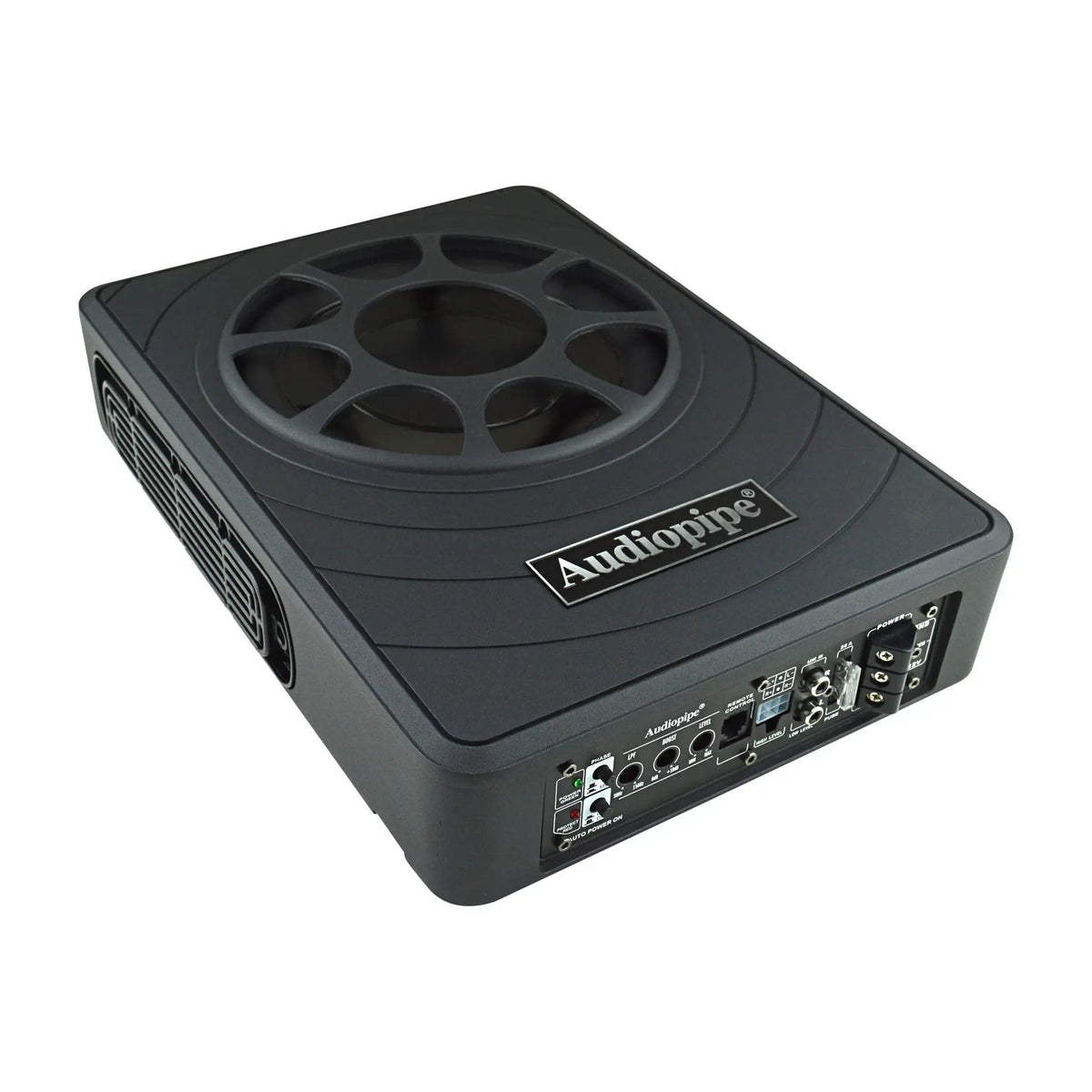

Add adjustable low-frequency output without taking up the space of a full-size subwoofer enclosure. The Audiopipe APLP-8300 is an 8-inch low-profile amplified subwoofer with RCA and high-level inputs, a remote bass knob, and a compact 13.6" x 9.6" x 2.8" footprint.
Key Features & Benefits
- Low-profile design: Its slim dimensions help you plan an installation where interior space is limited.

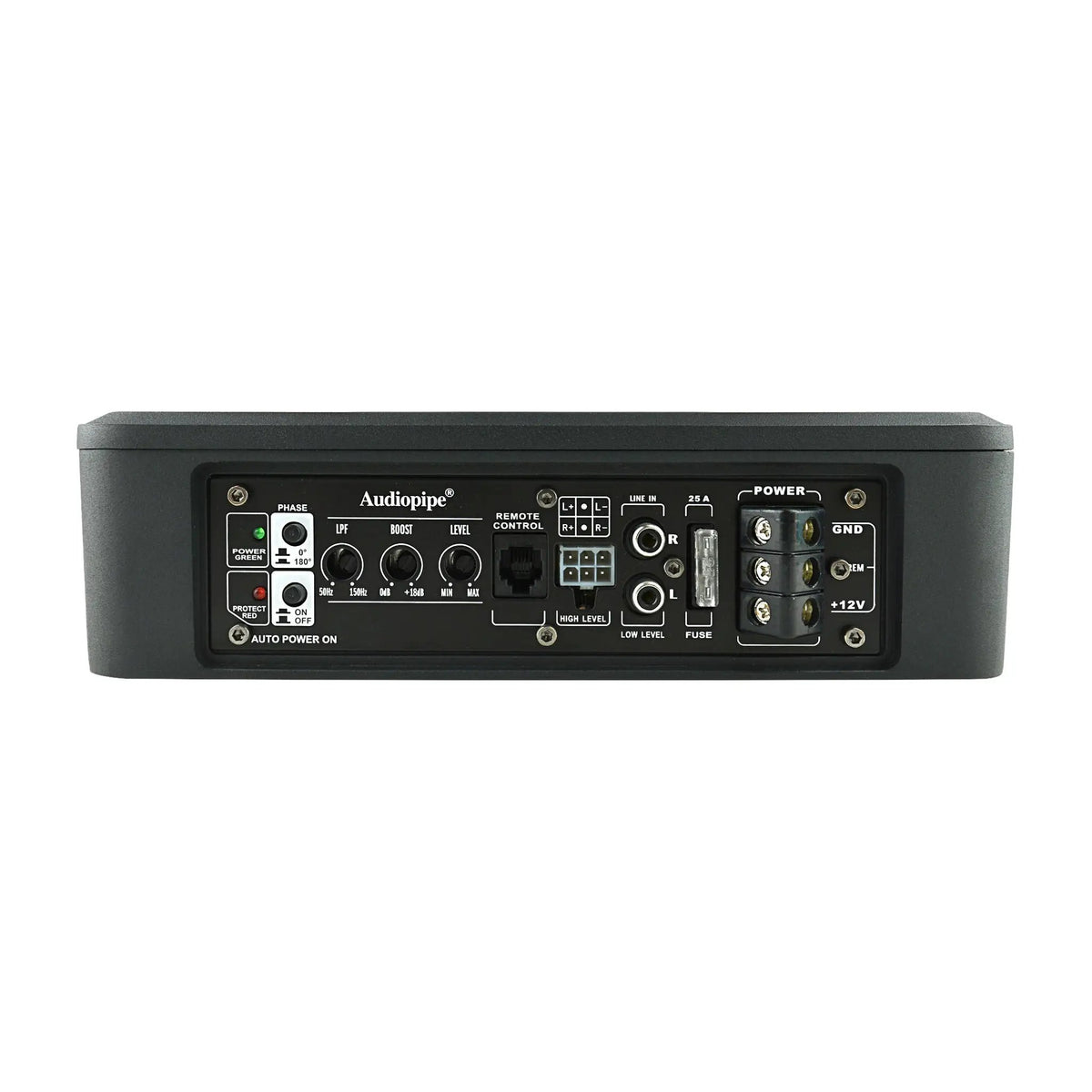

- Two input options: RCA and high-level inputs provide connection options for different audio system setups.

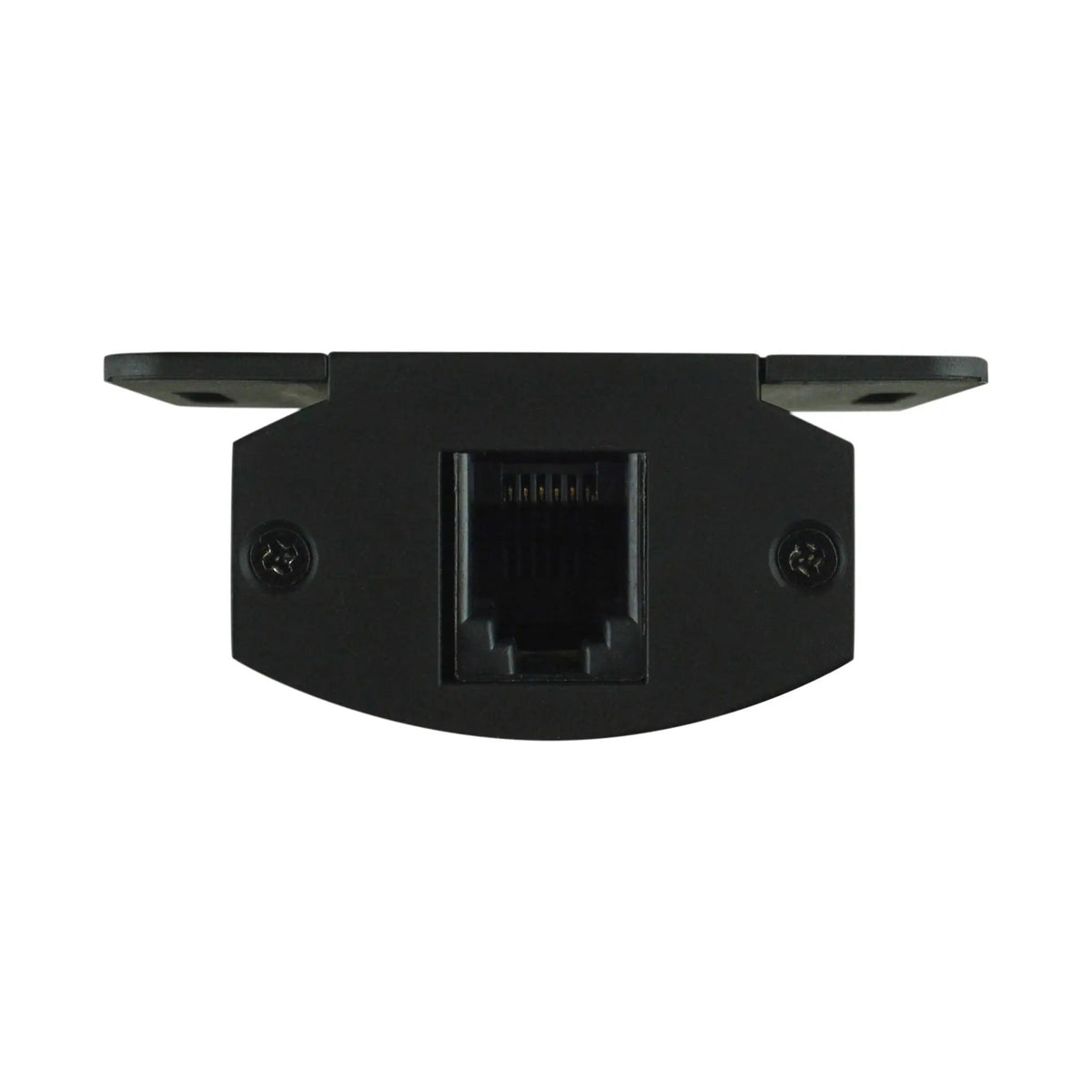

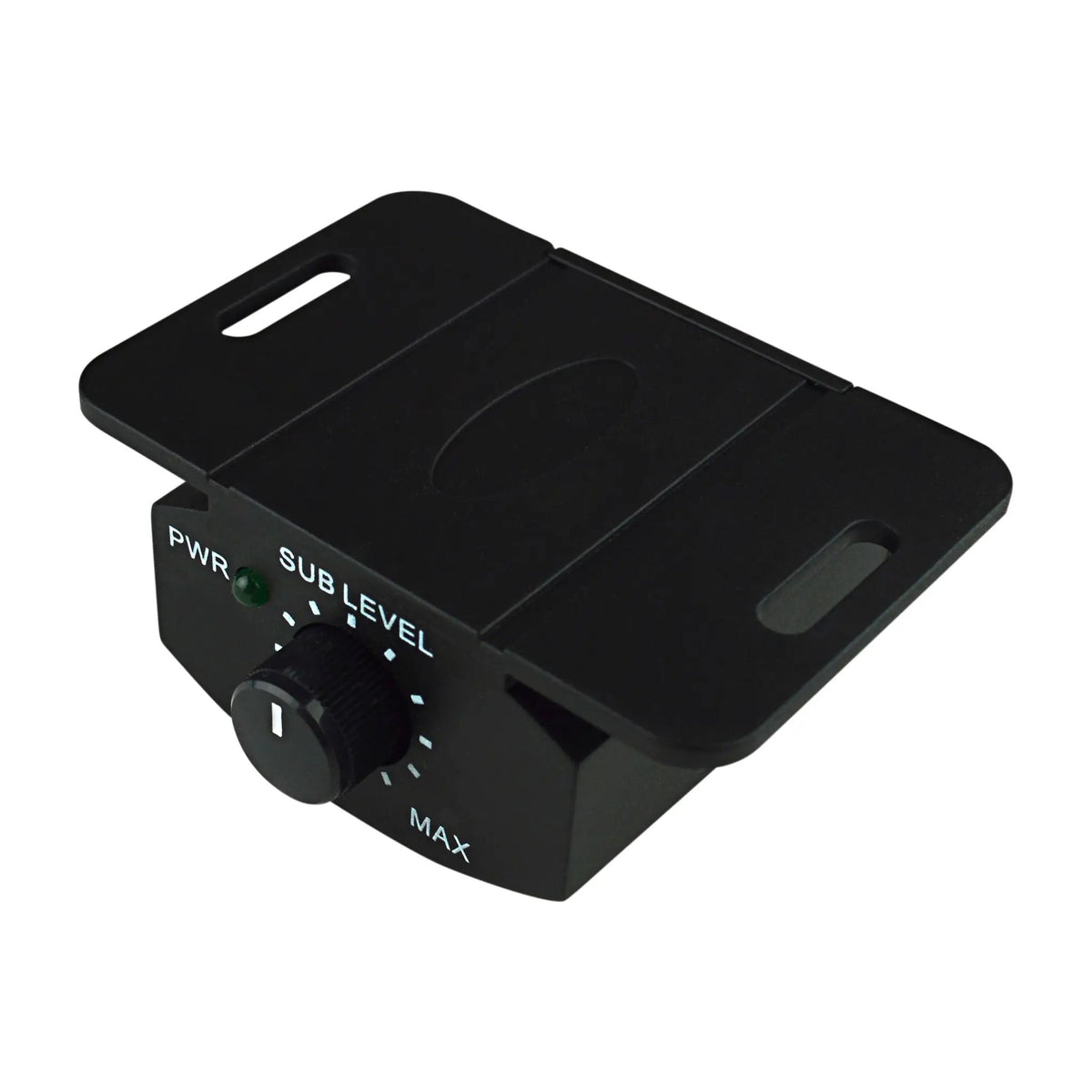

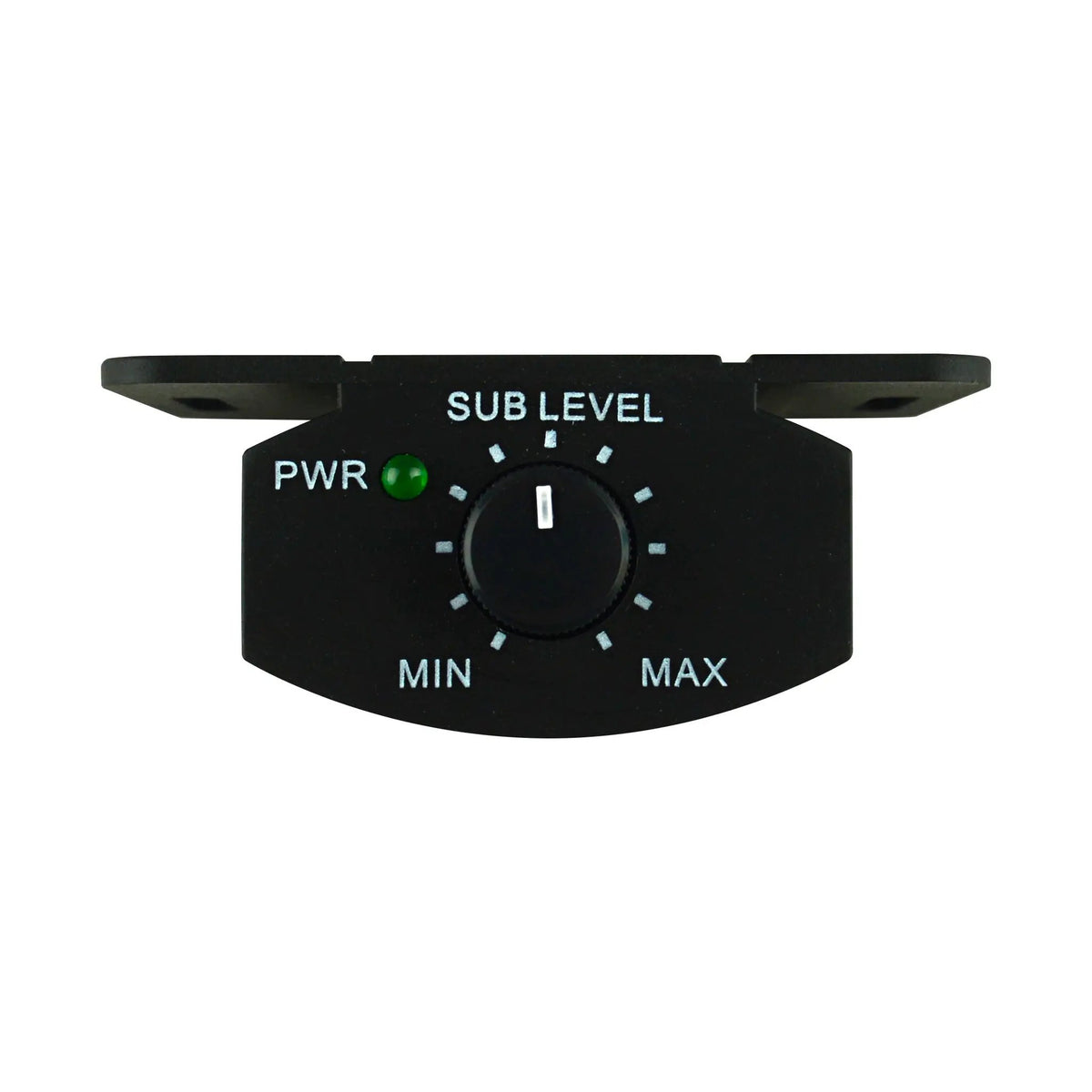

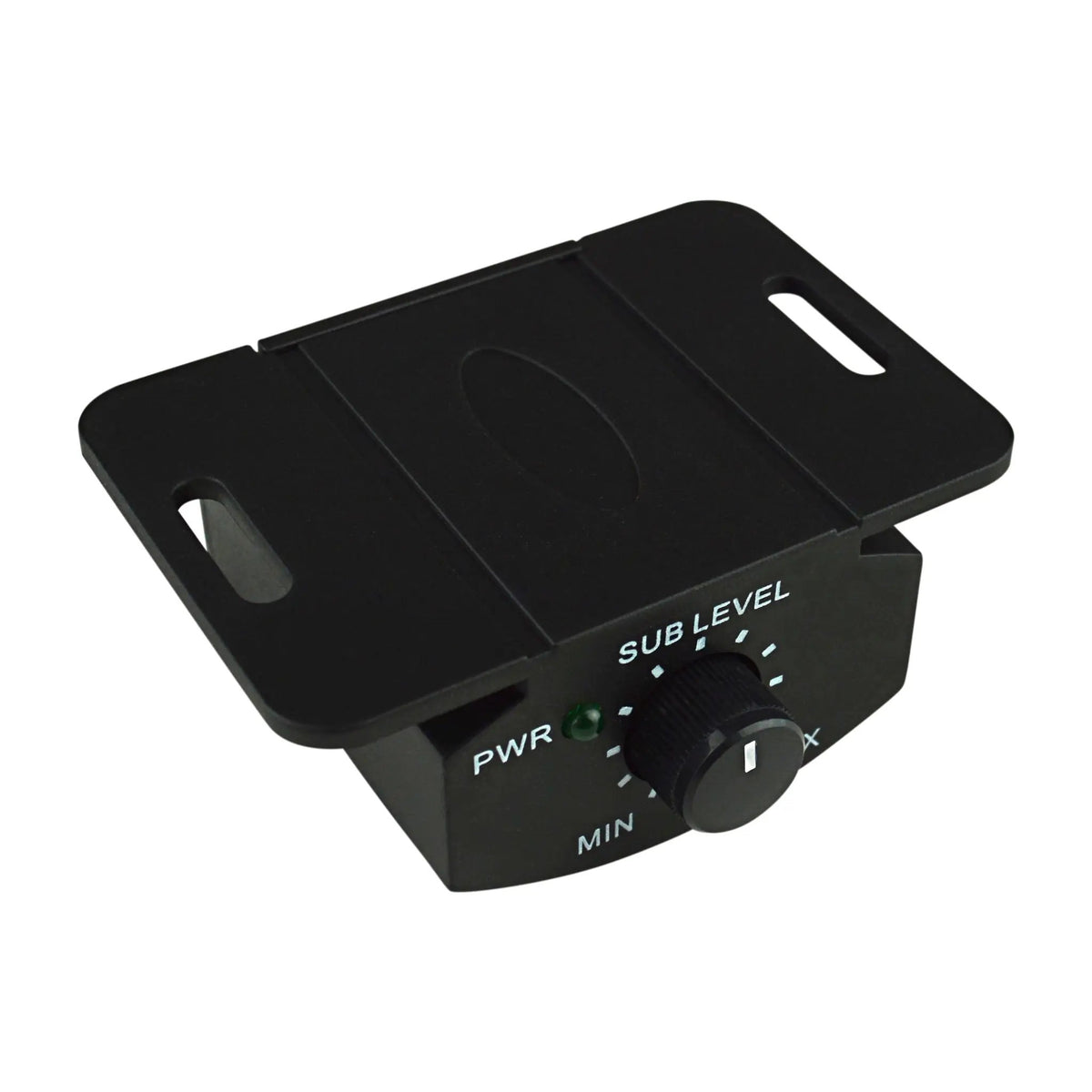

- Remote bass control: Adjust subwoofer level from the included remote bass knob at your dashboard.

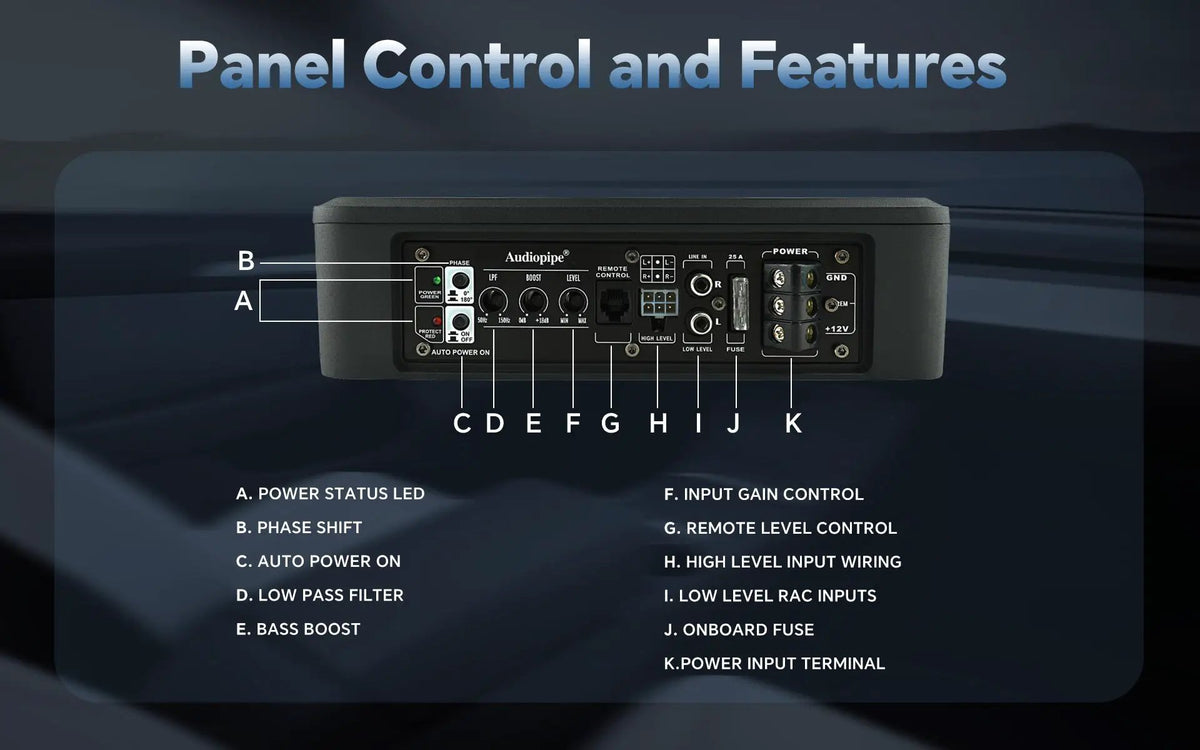

- Adjustable sound: Set bass boost from 0dB to 18dB and adjust the low-pass filter across 50~150Hz.
- Selectable phase: Choose between 0 degrees and 180 degrees for installation flexibility.
- Built-in protection: Thermal, short-circuit, and overload protection circuits help protect the subwoofer during operation.
Technical Specifications
| Specification | Value |
|---|---|
| Model | APLP-8300 |
| Subwoofer size | 8" |
| Peak power | Max @ 1 x 2 Ohms (< 1.0% THD / 14.4V): 350 WATTS |
| Continuous power | RMS @ 1 x 2 Ohms (<0.4% THD / 14.4V): 175 WATTS |
| High-level input sensitivity | 1.0V- 9.0V |
| Low-level input sensitivity | 0.1V- 6.0V |
| Bass boost | 0dB to 18dB |
| Variable low-pass filter | 50~150Hz |
| Phase control | 0 degrees to 180 degrees |

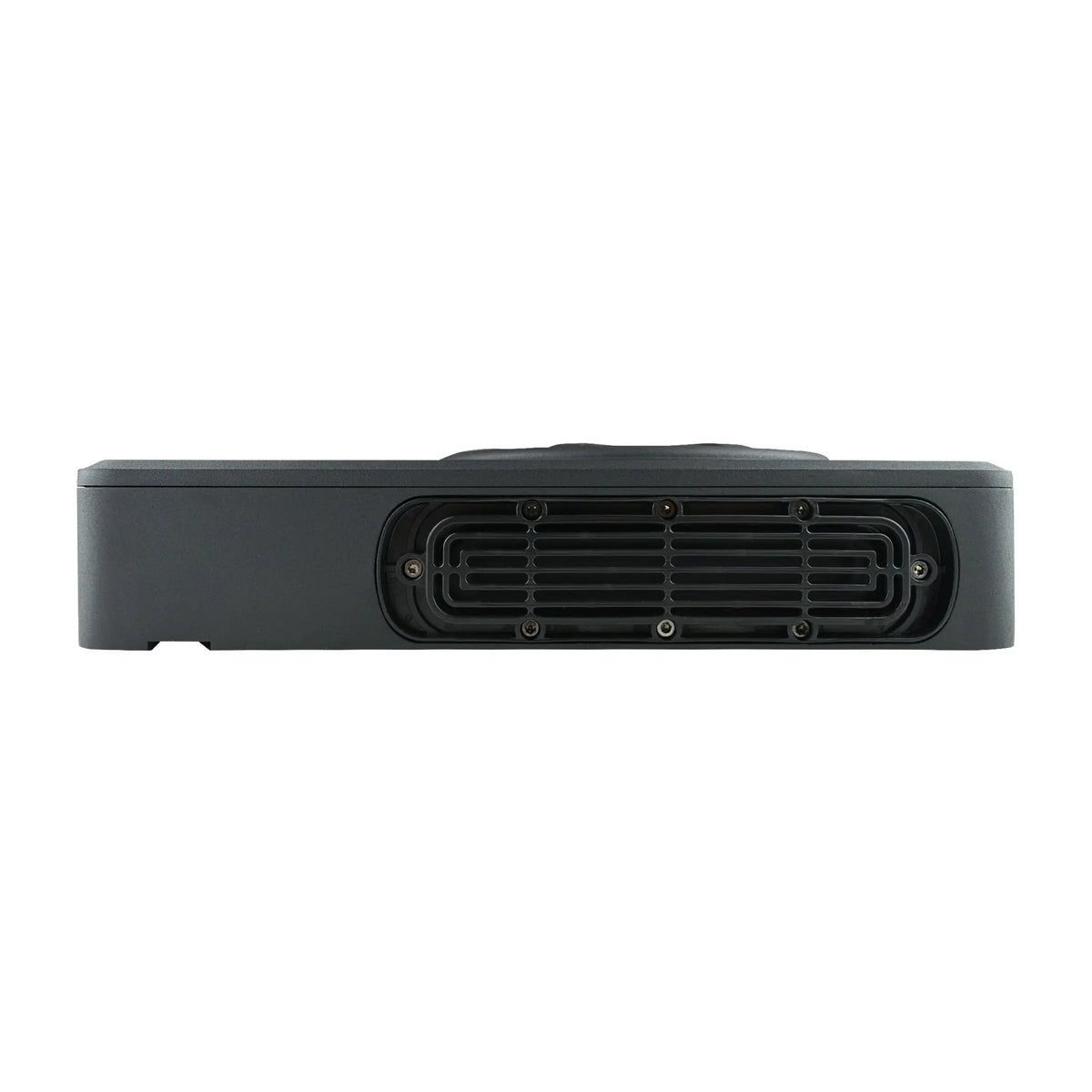

| Passive radiator | 206*52 mm (2 pcs) |

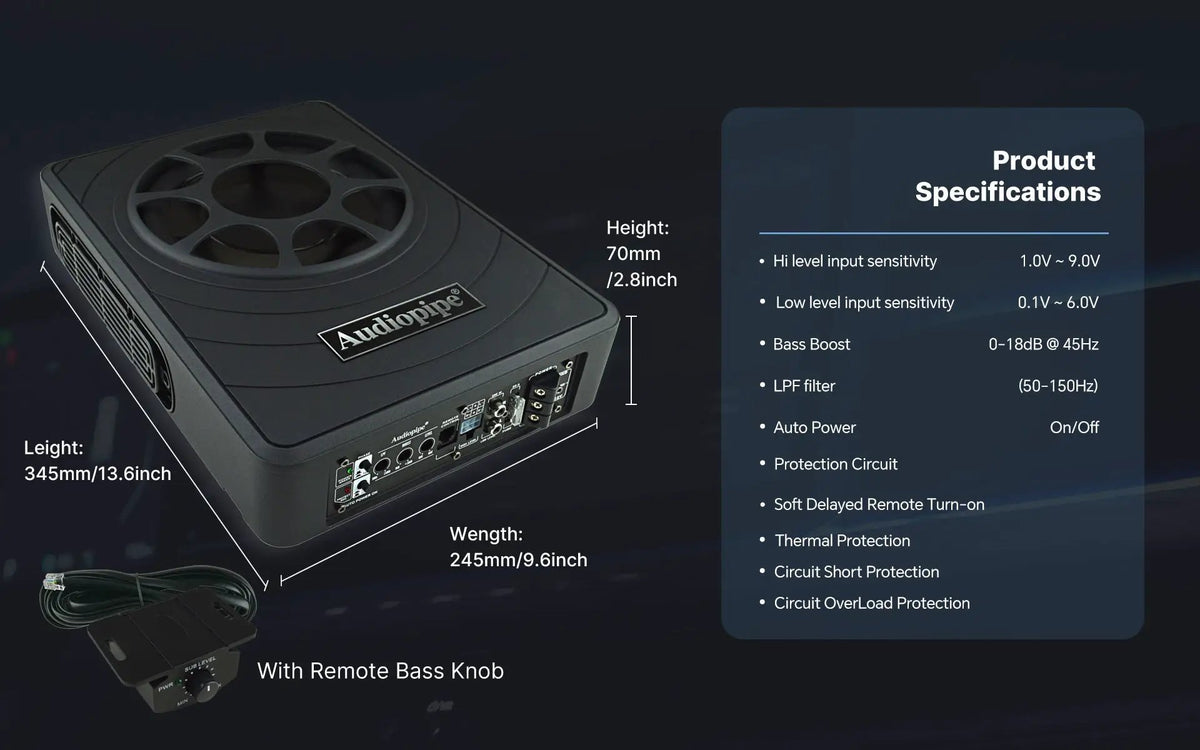

| Dimensions (L x W x H) | 13.6" x 9.6" x 2.8" (345 x 245 x 70 mm) |
| Power circuitry | P.W.M MOSFET |
| Inputs | RCA and high level |
| Protection circuits | Thermal protection circuit, short protection circuit, and overload protection circuit |
| Included control | Remote bass knob |
Why Choose This Product?
The APLP-8300 combines an 8-inch subwoofer and amplification in a low-profile unit. Its adjustable bass boost, low-pass filter, and remote level control give you several ways to tailor bass response and level to your listening preferences.
The P.W.M MOSFET circuitry and built-in protection circuits are part of its design. Its two passive radiators and compact dimensions are useful details to consider when choosing a subwoofer for a space-conscious vehicle audio setup.
Installation & Compatibility Notes
Check the installation area against the listed dimensions: 13.6" x 9.6" x 2.8" (345 x 245 x 70 mm). The unit provides RCA and high-level inputs; confirm which connection matches your audio system before installation.
The phase switch offers 0-degree and 180-degree settings, including flexibility for non-traditional mounting orientation. Plan access to the remote bass knob if you want to adjust subwoofer level from the dashboard.
Frequently Asked Questions
What is the difference between the peak and continuous power ratings?
The listed peak rating is 350 watts. The continuous RMS rating is 175 watts; each rating is specified at 1 x 2 Ohms and 14.4V, with its stated THD condition in the specifications.

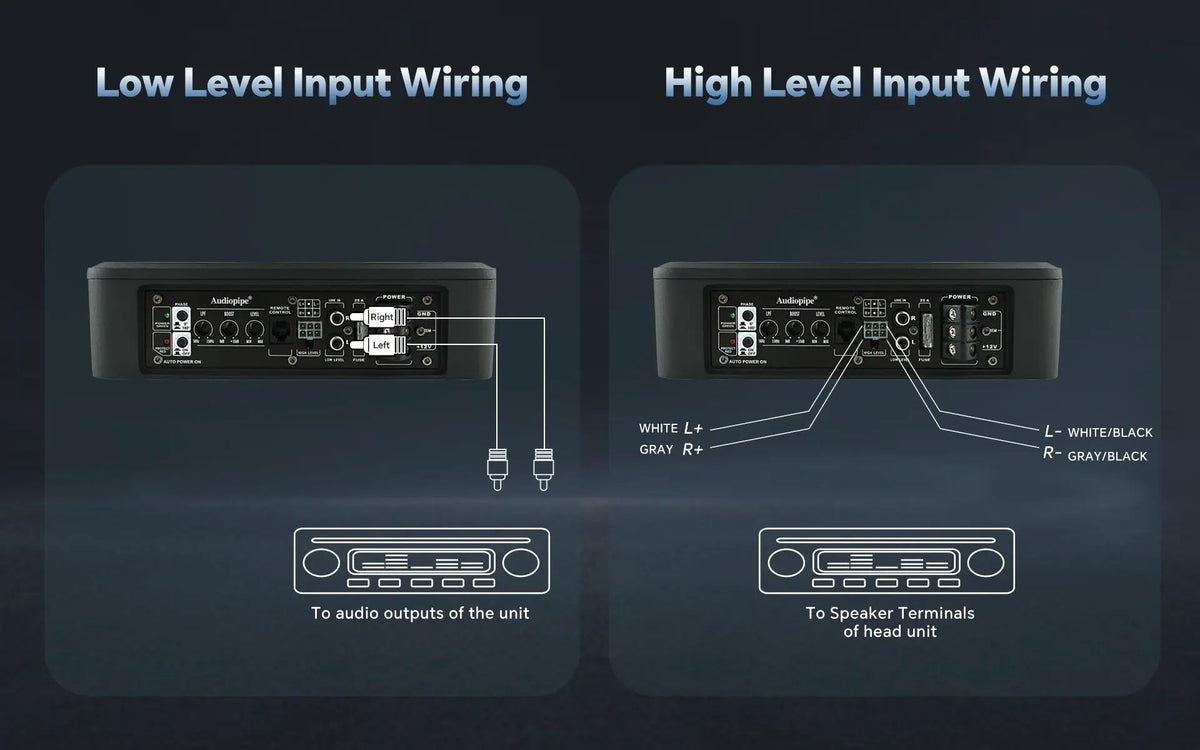

What input connections does the APLP-8300 have?
It has RCA low-level inputs and high-level inputs. The listed input sensitivity ranges are 0.1V- 6.0V for low-level and 1.0V- 9.0V for high-level.
Can I adjust bass from the driver’s seat?
Yes. The subwoofer includes a remote bass knob for controlling subwoofer level from the dashboard.
How much space should I allow for installation?
Check that the available area accommodates the unit’s dimensions of 13.6" x 9.6" x 2.8" (345 x 245 x 70 mm).
What is included with the subwoofer?
The listed included control is a remote bass knob.
