Audiopipe APLX-1300.1 1 Mono Class D Mosfet Amplifier
Key features
- Amplifier channels: 1
- RMS output at 4 ohms: 530.0 W
- RMS output at 2 ohms: 890 W
- RMS output at 1 ohm: 1300 W
- Monoblock output: Choose from three RMS power ratings to match the amplifier’s output to a supported subwoofer load.
- Class D circuitry: The amplifier’s Class D design provides efficient power output for a subwoofer system.
Audiopipe APLX-1300.1 1 Mono Class D Mosfet Amplifier is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview
Bring adjustable, low-frequency power to your car audio system with the Audiopipe APLX-1300.1 mono Class D MOSFET amplifier. It delivers 1300W RMS at 1 ohm and includes a wired remote bass knob, so you can adjust subwoofer level from the driver’s seat.
Key Features & Benefits
- Monoblock output: Choose from three RMS power ratings to match the amplifier’s output to a supported subwoofer load.
- Class D circuitry: The amplifier’s Class D design provides efficient power output for a subwoofer system.

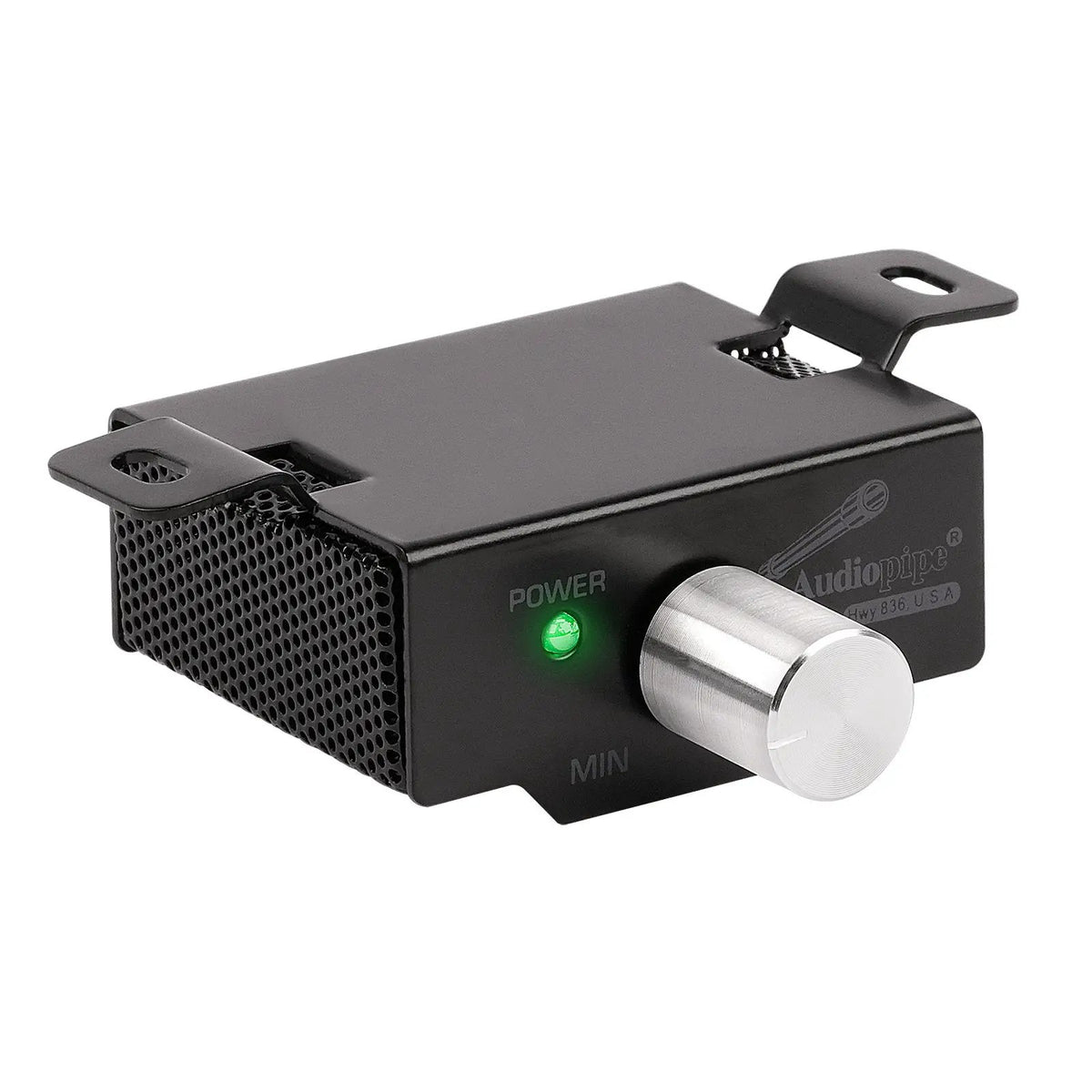

- Remote bass control: Adjust subwoofer level from the driver’s seat using the wired knob with an illuminated power indicator.

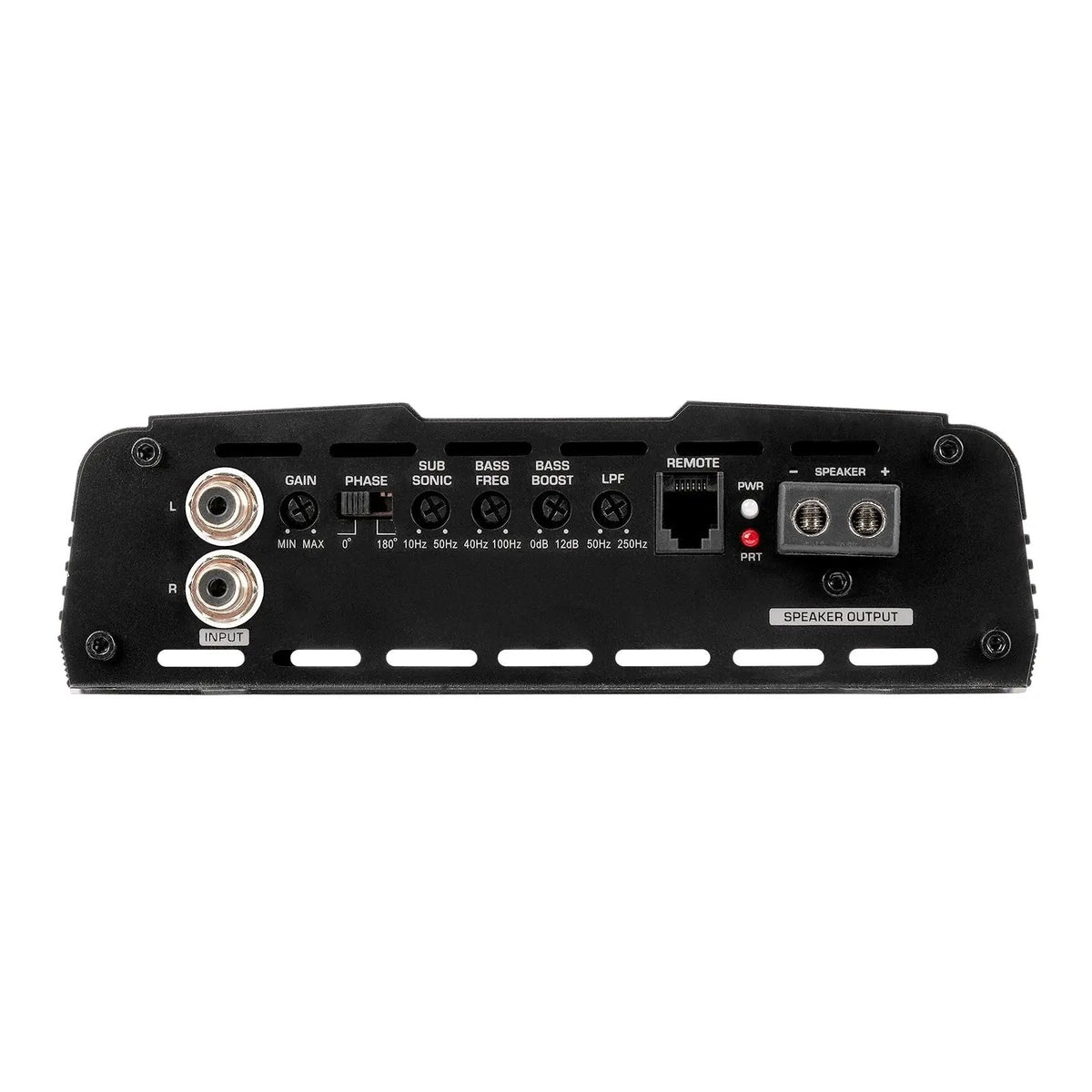

- Adjustable input sensitivity: The 0.15V–6V range lets you set input sensitivity for a compatible signal source.
- Low-frequency response: Its 10Hz–250Hz frequency response covers the bass range.
- Double-sided PCB: This board design supports heat dissipation and amplifier stability.
Technical Specifications
| Specification | Details |
|---|---|
| Model | Audiopipe APLX-1300.1 |
| Amplifier type | 1 Mono Class D MOSFET |
| RMS power @ 1 Ohm (<1% Distortion) | 1300W |
| RMS power @ 2 Ohms (<1% Distortion) | 890W |
| RMS power @ 4 Ohms (<1% Distortion) | 530W |
| Minimum load | 1 Ohm |
| Frequency response | 10Hz–250Hz |
| Input sensitivity | 0.15V–6V |
| Signal-to-noise ratio | > 80dB |
| THD | ≤ 0.5% |

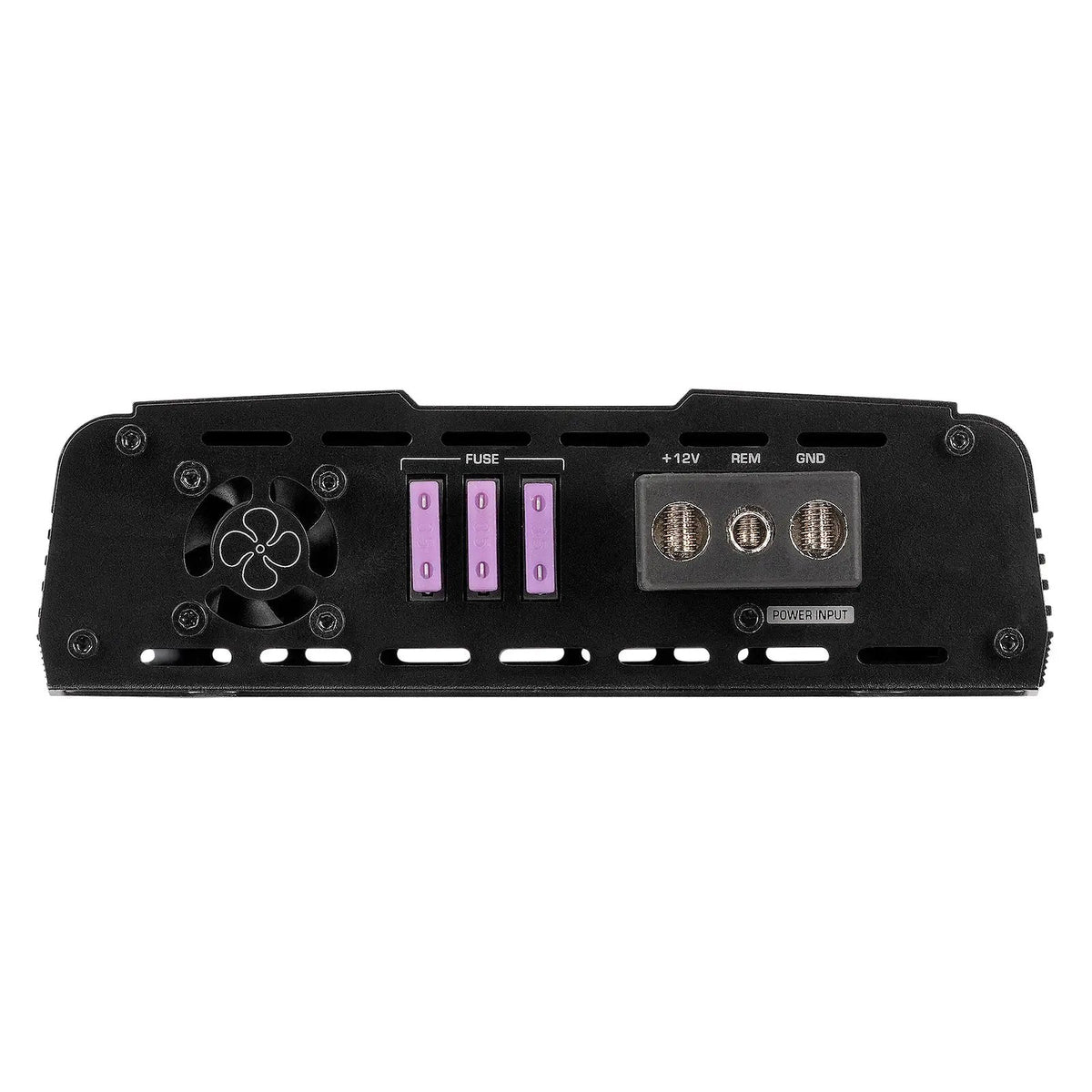

| Working voltage | 9V–16V |
| Dimensions | 12.76” x 7.09” x 2.11” (324 × 180 × 53.5 mm) |
Why Choose This Product?
The APLX-1300.1 gives you multiple documented RMS ratings across 1-, 2- and 4-ohm loads. That makes the load and power figures useful when comparing the amplifier with your subwoofer system. Its remote bass knob also puts level adjustment within reach while you drive.
Installation & Compatibility Notes
Check that your planned subwoofer load is no lower than the 1-ohm minimum and that the amplifier’s power rating at that load suits your system. Allow for the amplifier’s 12.76” x 7.09” x 2.11” dimensions when planning its mounting location. The stated working voltage is 9V–16V.
Frequently Asked Questions
How much RMS power does the APLX-1300.1 produce?
It is rated at 1300W RMS at 1 ohm, 890W RMS at 2 ohms, and 530W RMS at 4 ohms, each at <1% distortion.
What is the minimum supported load?
The listed minimum load is 1 ohm. Confirm your subwoofer system’s final load before connecting it.
Can I adjust the bass level from the driver’s seat?
Yes. The amplifier features a wired remote bass knob with an illuminated power indicator.
Will it work with my signal source?
Input sensitivity adjusts from 0.15V to 6V. Check your source’s signal level against this range when planning the system.
