Audiopipe APLX-1500.1 1 Mono Class D Mosfet Amplifier
Key features
- Amplifier channels: 1
- RMS output at 4 ohms: 560.0 W
- RMS output at 2 ohms: 950 W
- RMS output at 1 ohm: 1500 W
- Mono Class D MOSFET design: Dedicated monoblock amplification supports a subwoofer-focused system.
- Power at multiple loads: Choose from stated RMS ratings at 1, 2, or 4 Ohms to assess the amplifier against your system requirements.
Audiopipe APLX-1500.1 1 Mono Class D Mosfet Amplifier is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview
Give your subwoofer system dedicated mono amplification with the Audiopipe APLX-1500.1 Class D MOSFET amplifier. It delivers up to 1500W RMS at 1 Ohm and includes a wired remote bass knob for adjusting subwoofer level from the driver’s seat.
Its 10Hz–250Hz frequency response is designed for low-frequency audio, while adjustable input sensitivity gives you a range for matching the amplifier to your audio signal source.
Key Features & Benefits
- Mono Class D MOSFET design: Dedicated monoblock amplification supports a subwoofer-focused system.
- Power at multiple loads: Choose from stated RMS ratings at 1, 2, or 4 Ohms to assess the amplifier against your system requirements.

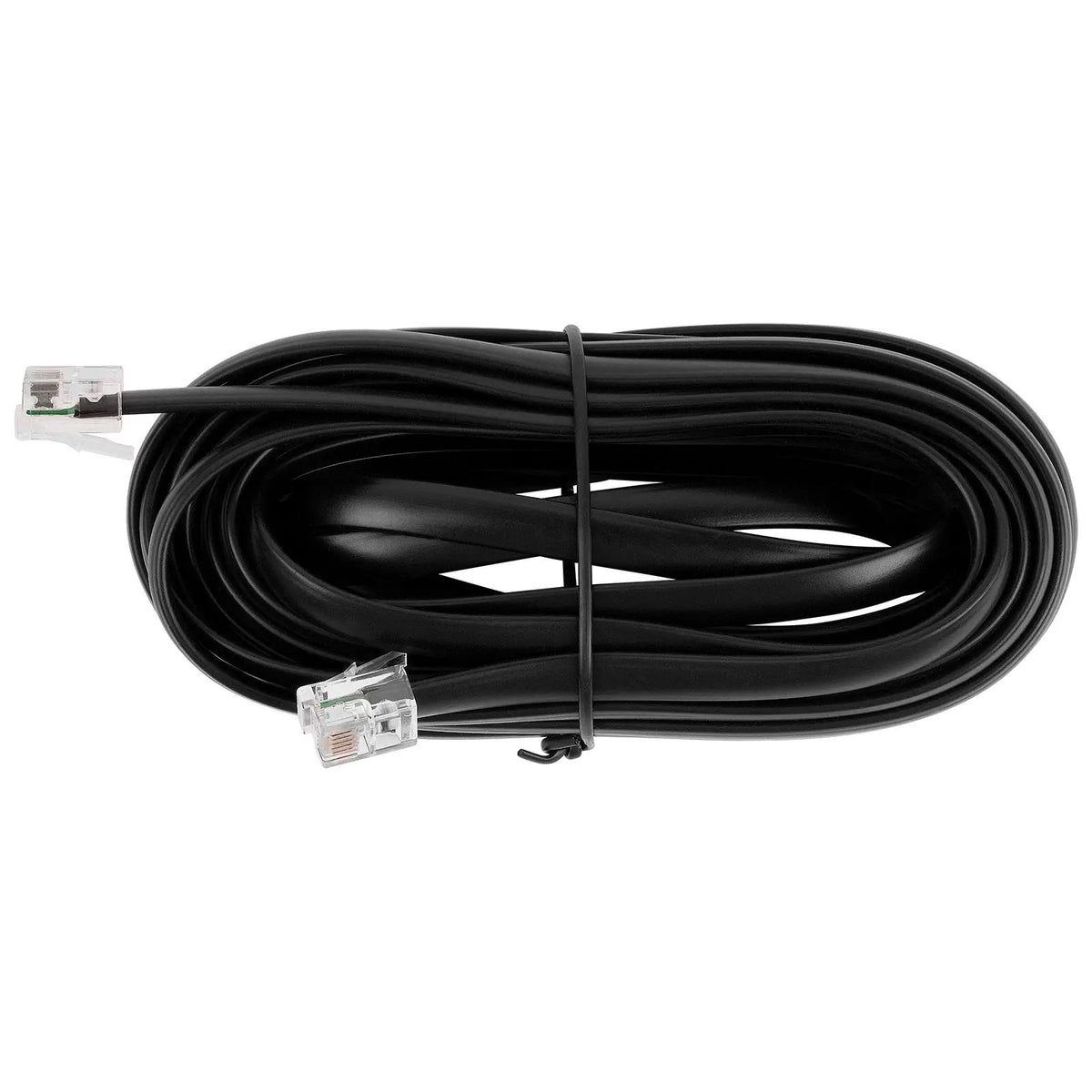

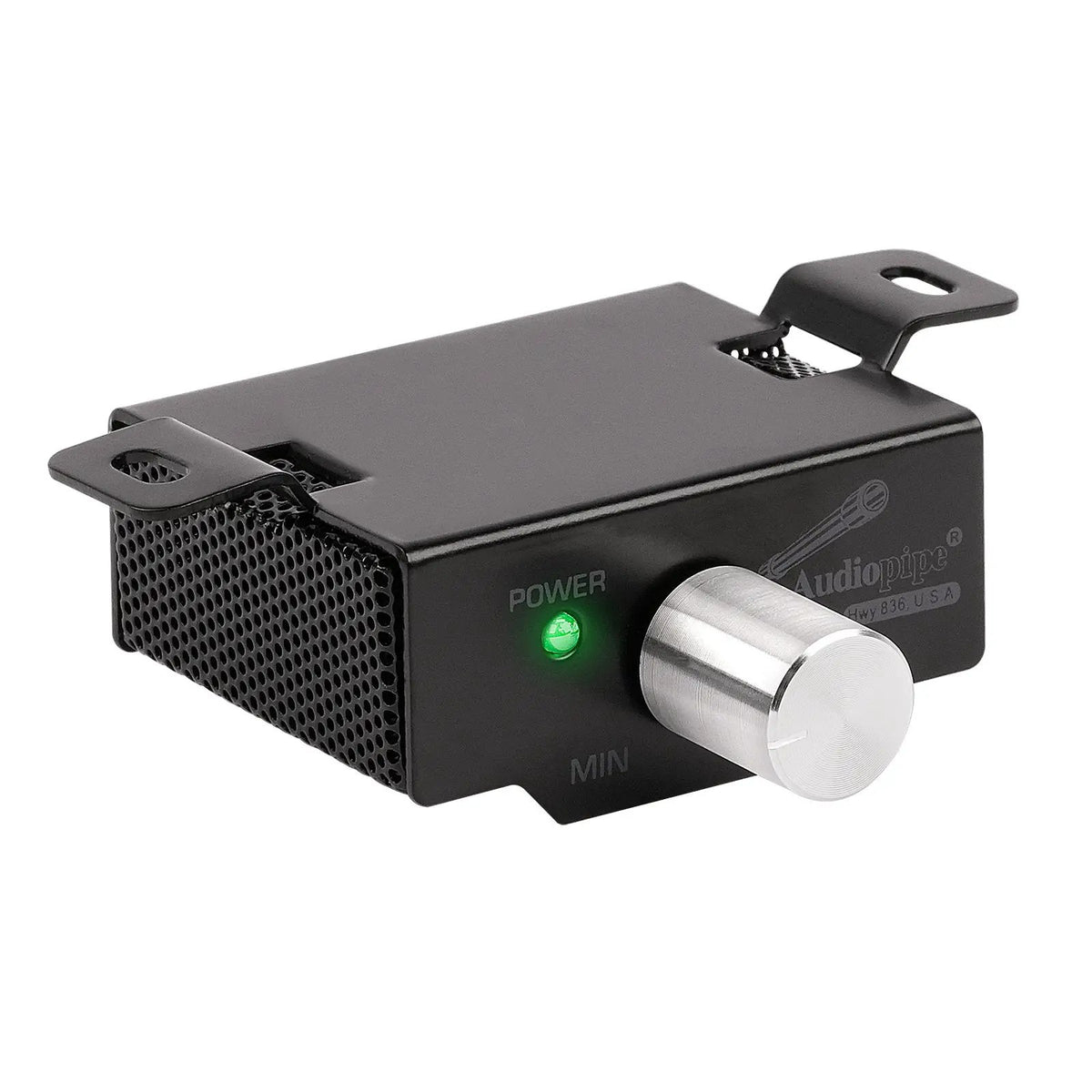

- Wired remote bass control: Adjust subwoofer level from the driver’s seat without accessing the amplifier.
- Illuminated power indicator: The remote bass knob includes a visible power indicator.
- Adjustable input sensitivity: The 0.15V–6V range provides adjustment for different audio signal sources.
- Double-sided PCB: The board design supports heat dissipation and stability.
Technical Specifications
| Specification | Value |
|---|---|
| Amplifier type | Class D mono MOSFET amplifier |
| RMS power @ 1 Ohm (<1% Distortion) | 1500W |
| RMS power @ 2 Ohms (<1% Distortion) | 950W |
| RMS power @ 4 Ohms (<1% Distortion) | 560W |
| Minimum load | 1 Ohm |
| Frequency response | 10Hz–250Hz |
| Input sensitivity | 0.15V to 6V |
| Signal-to-noise ratio | > 89dB |
| THD | ≤ 0.5% |
| Working voltage | 9V–16V |
| Dimensions | 12.76” x 7.09” x 2.11” (324 × 180 × 53.5 mm) |
Why Choose This Product?
The APLX-1500.1 gives you three stated RMS power ratings, so you can compare its output at different loads when planning a subwoofer system. Its wired remote bass knob lets you make level adjustments from the driver’s seat, and its double-sided PCB design is intended to aid heat dissipation and stability.
The amplifier’s frequency response, signal-to-noise ratio, and THD figures offer useful details for comparing it with your system’s requirements. Check the rating that corresponds to your intended load rather than relying on the highest wattage figure alone.
Installation & Compatibility Notes
The stated minimum load is 1 Ohm, and the working voltage range is 9V–16V. Confirm that your planned system’s load and electrical requirements fall within these ratings.
Measure the available mounting space against the amplifier’s dimensions: 12.76” x 7.09” x 2.11” (324 × 180 × 53.5 mm). The product details identify a wired remote bass knob; check that its placement suits your installation plan.
Frequently Asked Questions
How much RMS power does the APLX-1500.1 deliver?
It is rated at 1500W RMS at 1 Ohm, 950W RMS at 2 Ohms, and 560W RMS at 4 Ohms, each at <1% distortion.
What is the minimum load for this amplifier?
The stated minimum load is 1 Ohm. Match your system’s load to the amplifier’s requirements.
Can I adjust the subwoofer level from the driver’s seat?
Yes. The amplifier includes a wired remote bass knob with an illuminated power indicator for driver-seat level adjustments.
What are the amplifier’s dimensions?
It measures 12.76” x 7.09” x 2.11” (324 × 180 × 53.5 mm). Compare these measurements with your available mounting space.
What input sensitivity and voltage range does it support?
Input sensitivity is adjustable from 0.15V to 6V, and the working voltage range is 9V–16V.
