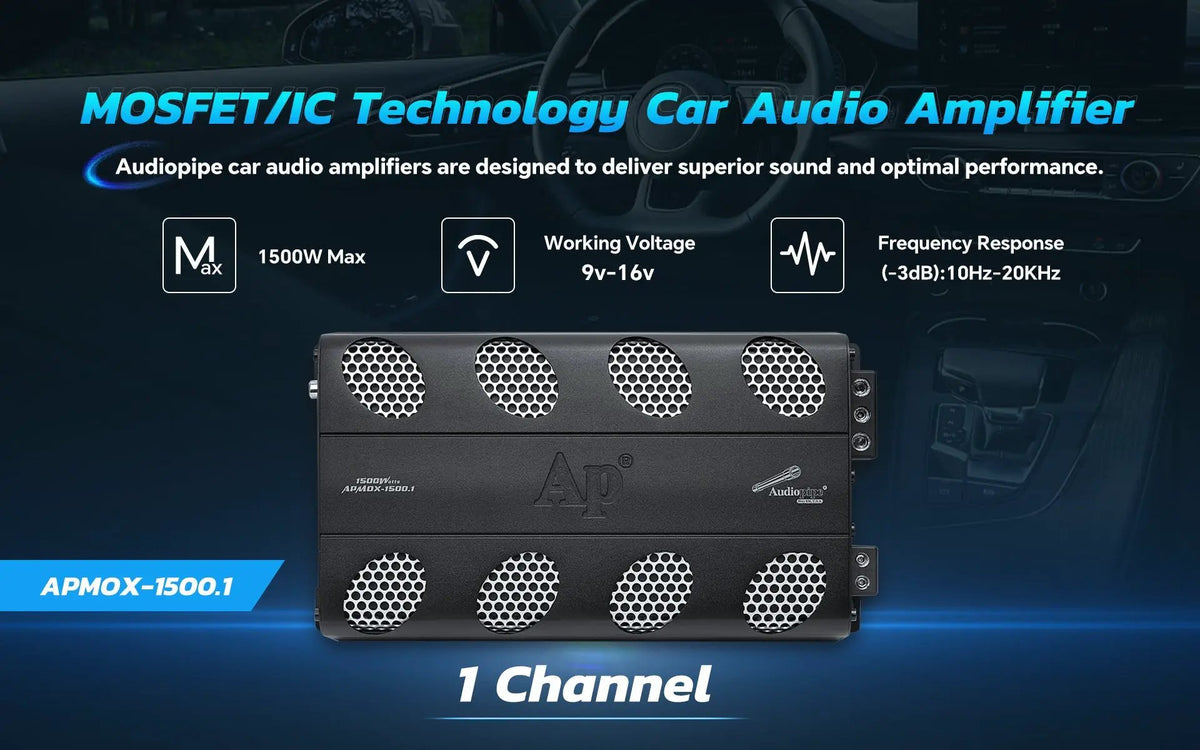

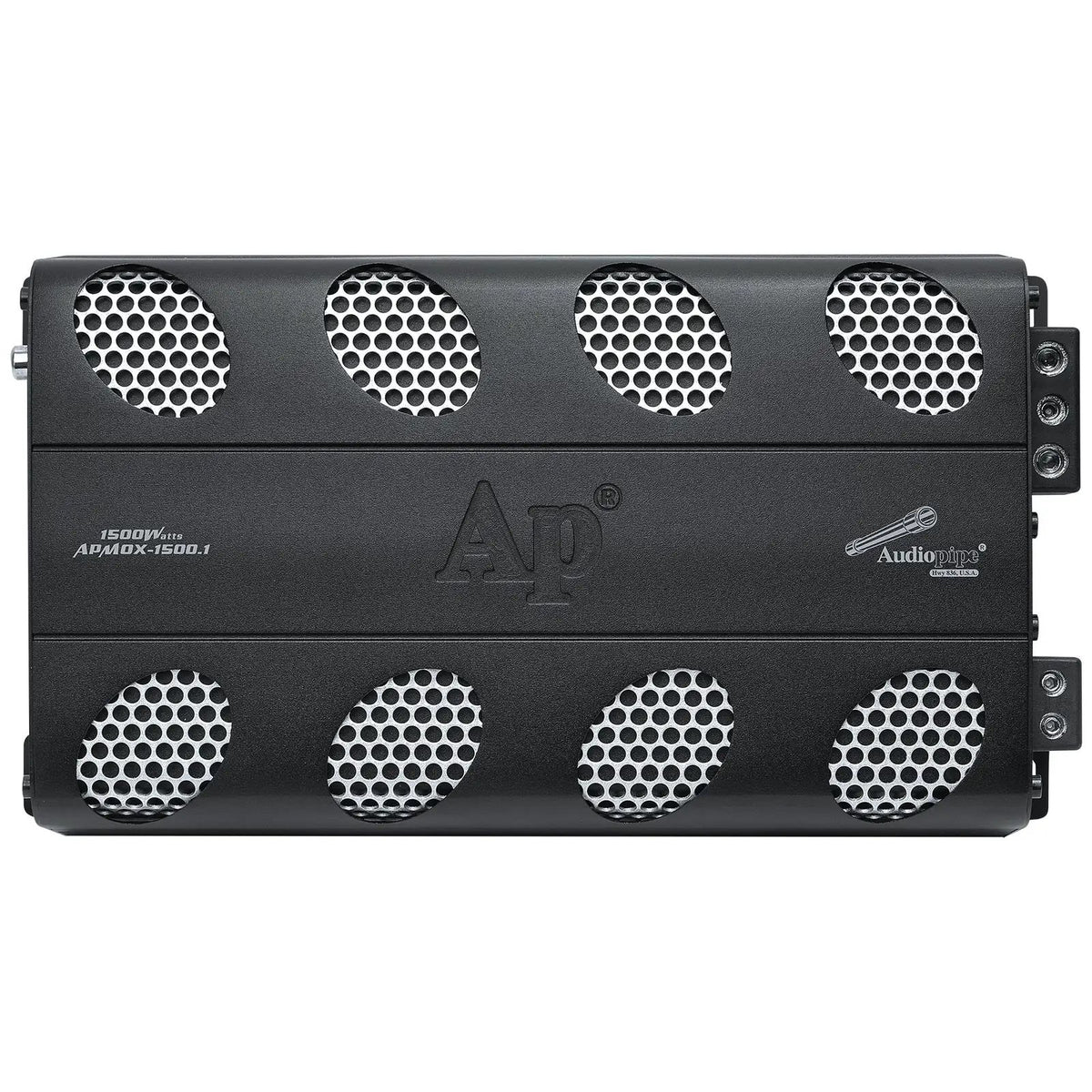

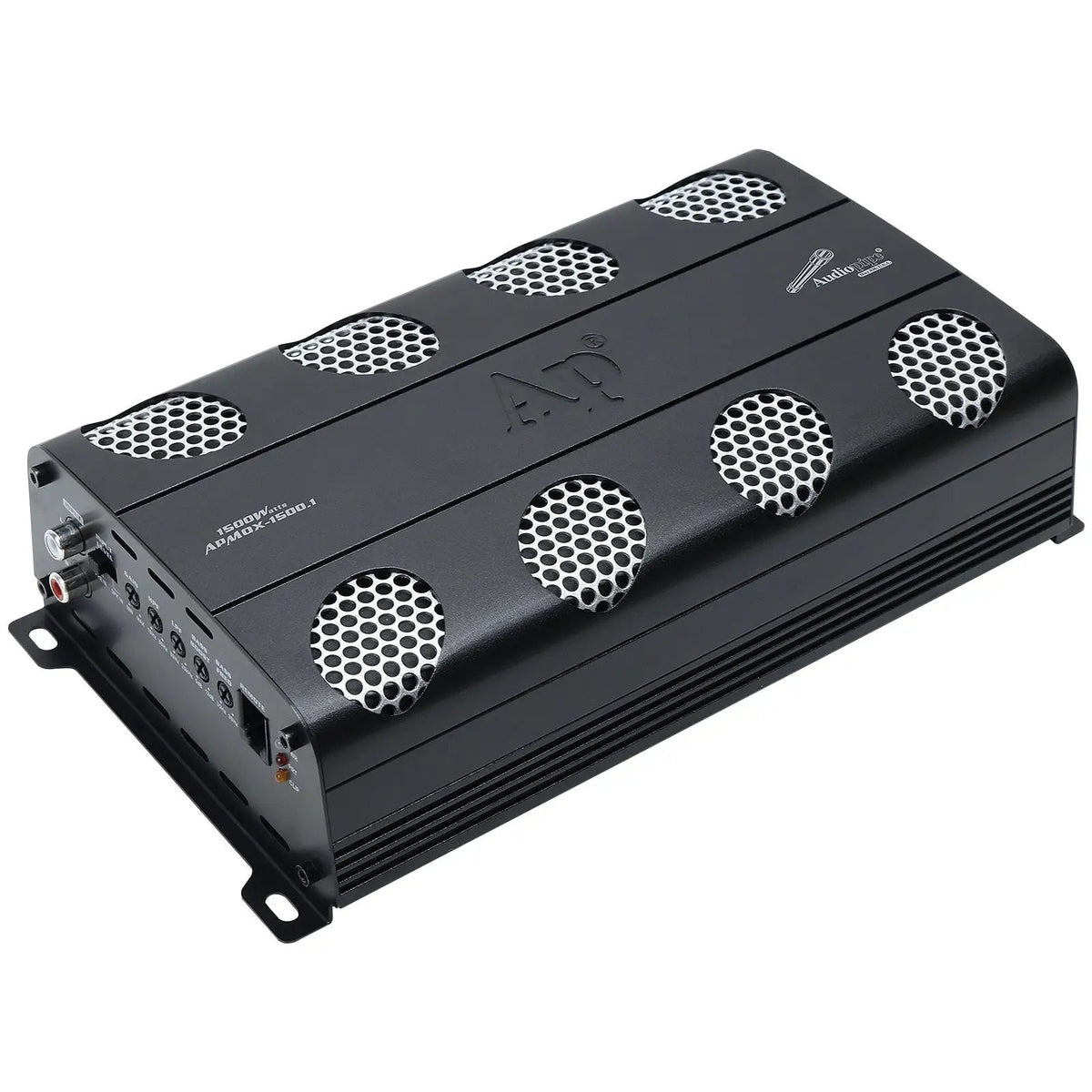

Audiopipe APMOX-1500.1 Mosfet / Ic Technology Car Audio Amplifier
Key features
- Amplifier channels: 1
- RMS output at 4 ohms: 560.0 W
- RMS output at 2 ohms: 1000 W
- RMS output at 1 ohm: 1500 W
- Class D with PWM: The full-range design uses PWM techniques to deliver power efficiently.

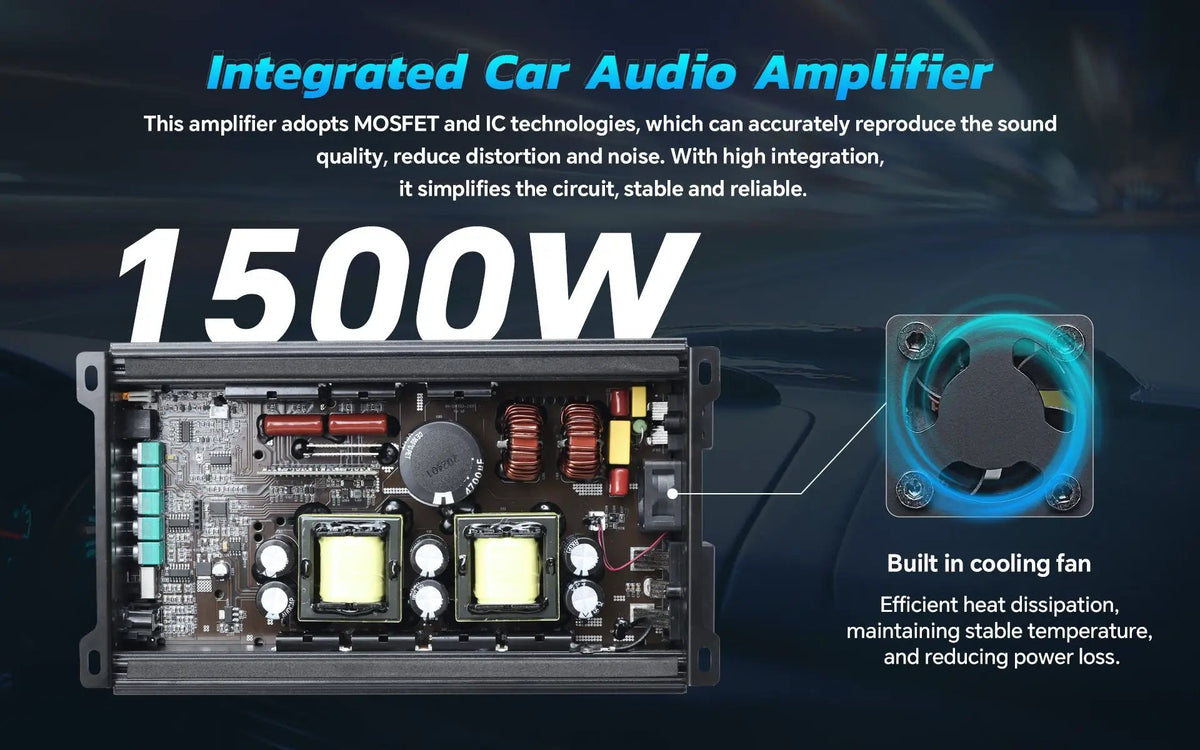

- MOSFET circuitry: Designed for performance with minimal distortion, according to the product details.
Audiopipe APMOX-1500.1 Mosfet / Ic Technology Car Audio Amplifier is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview

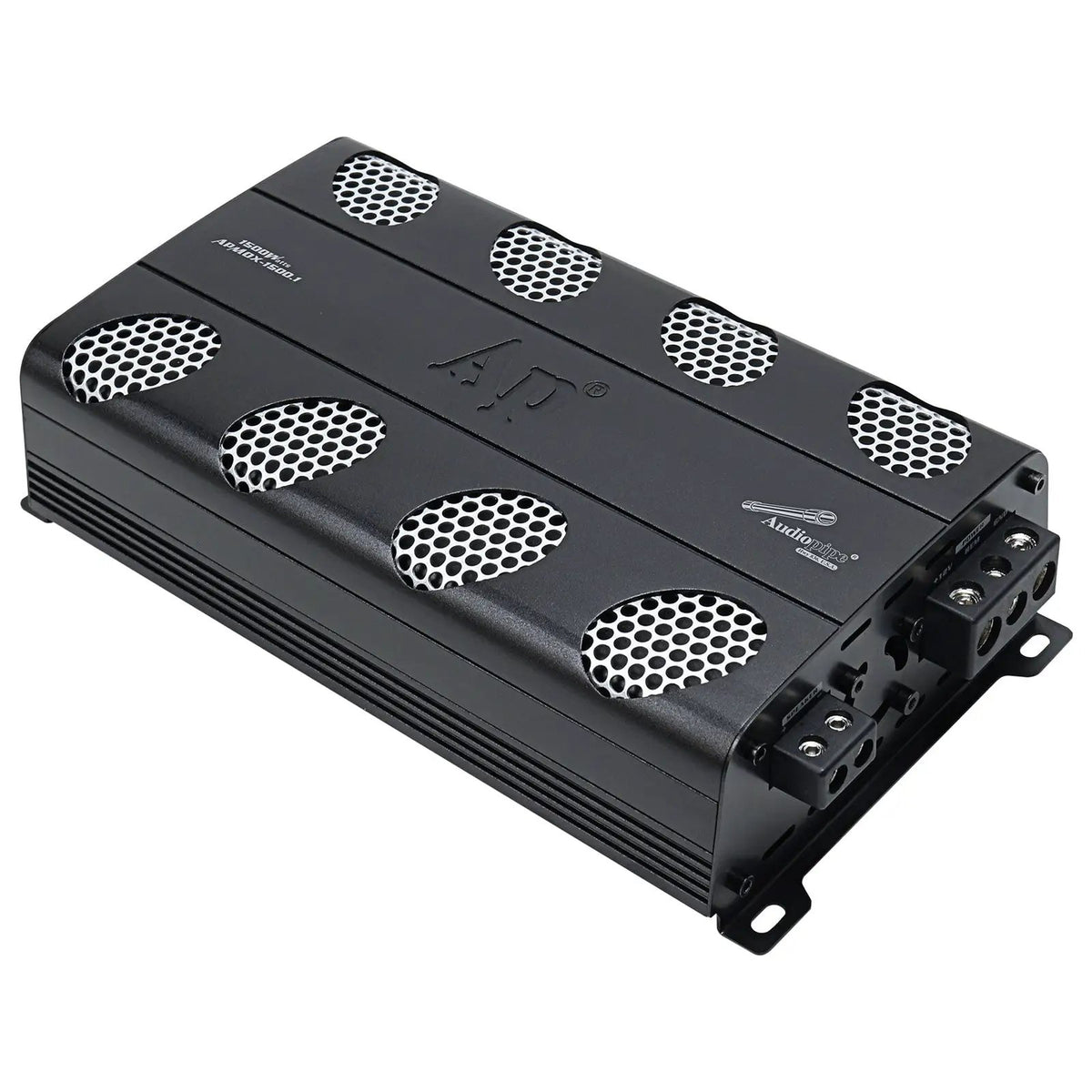

Add a compact, full-range Class D amplifier to your vehicle audio system with the Audiopipe APMOX-1500.1. Its MOSFET circuitry and pulse-width modulation (PWM) design support the stated power outputs, while adjustable bass and crossover controls let you tailor the signal.
Designed for car, motorcycle, golf cart, and off-road vehicle interiors, its compact dimensions can help when installation space is limited.
Key Features & Benefits
- Class D with PWM: The full-range design uses PWM techniques to deliver power efficiently.
- MOSFET circuitry: Designed for performance with minimal distortion, according to the product details.

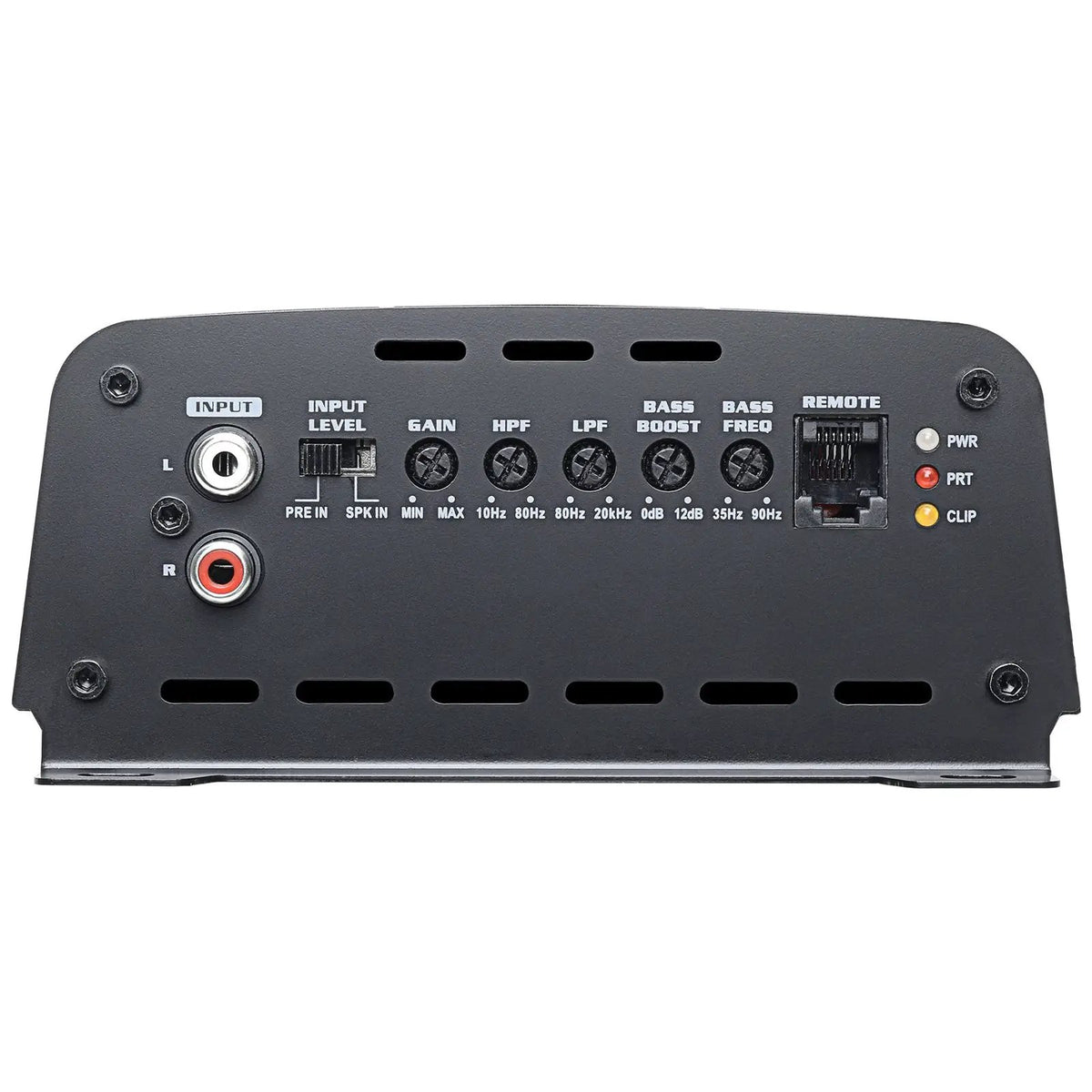

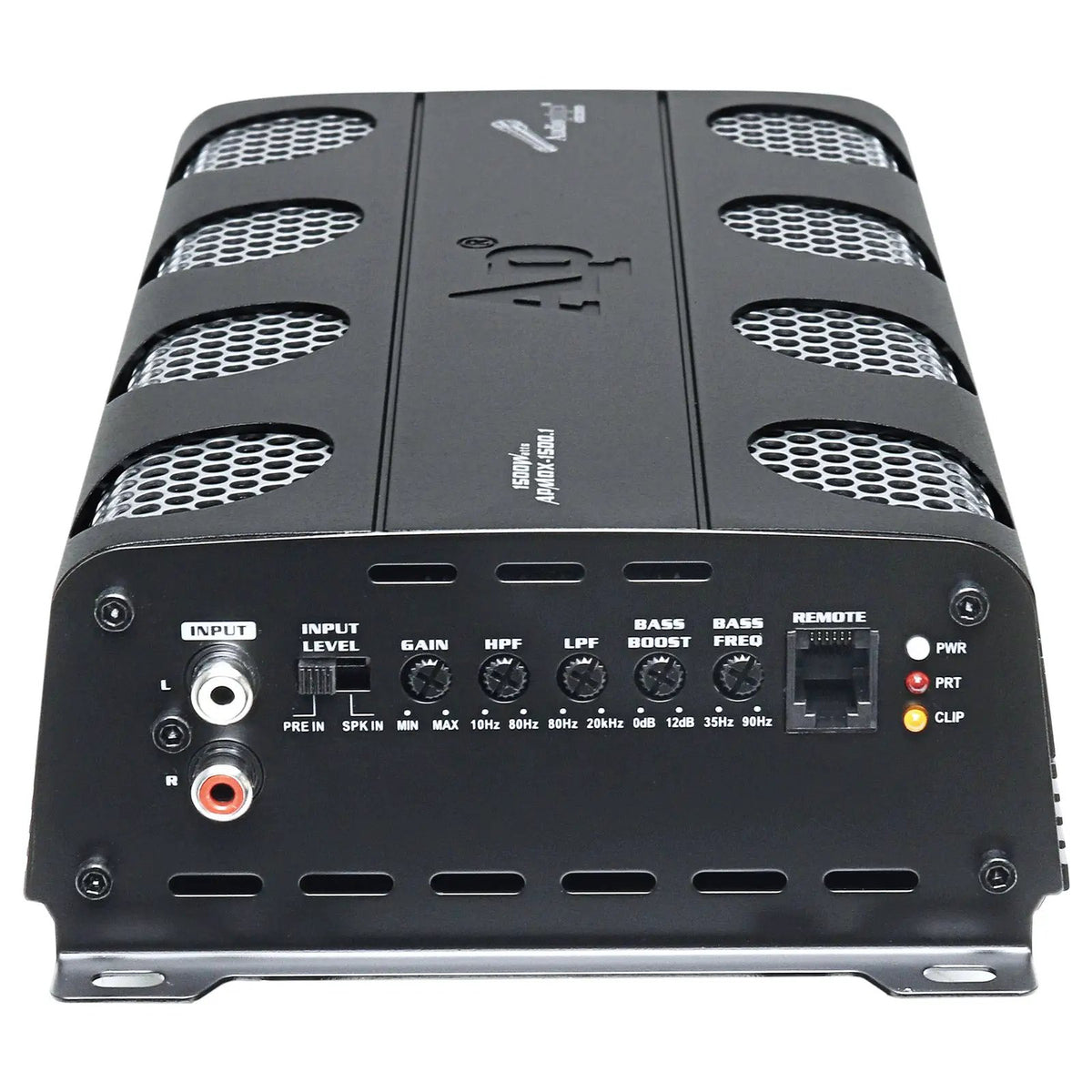

- Adjustable bass boost: Set bass boost from 0dB to 12dB to shape your preferred sound.

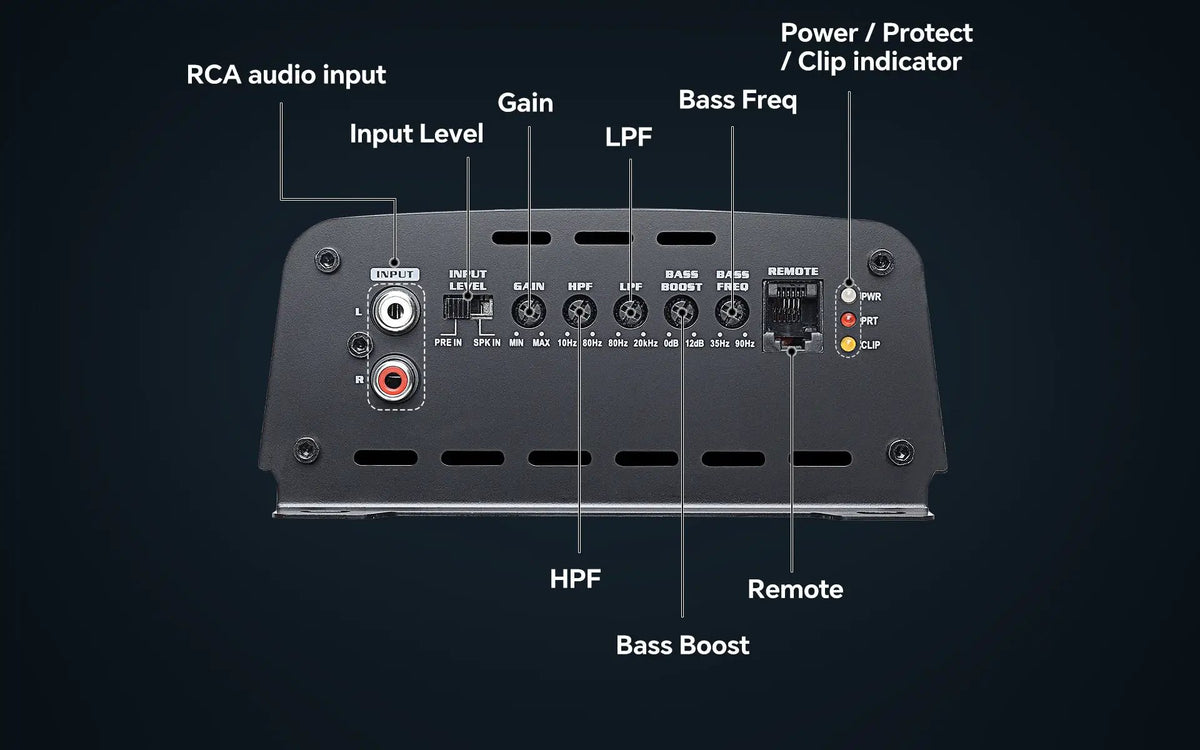

- Frequency controls: High-pass and low-pass filters with crossover control let you adjust the frequency range.
- Built-in protection: Overload protection and a heatsink designed for overheat protection support reliable operation.

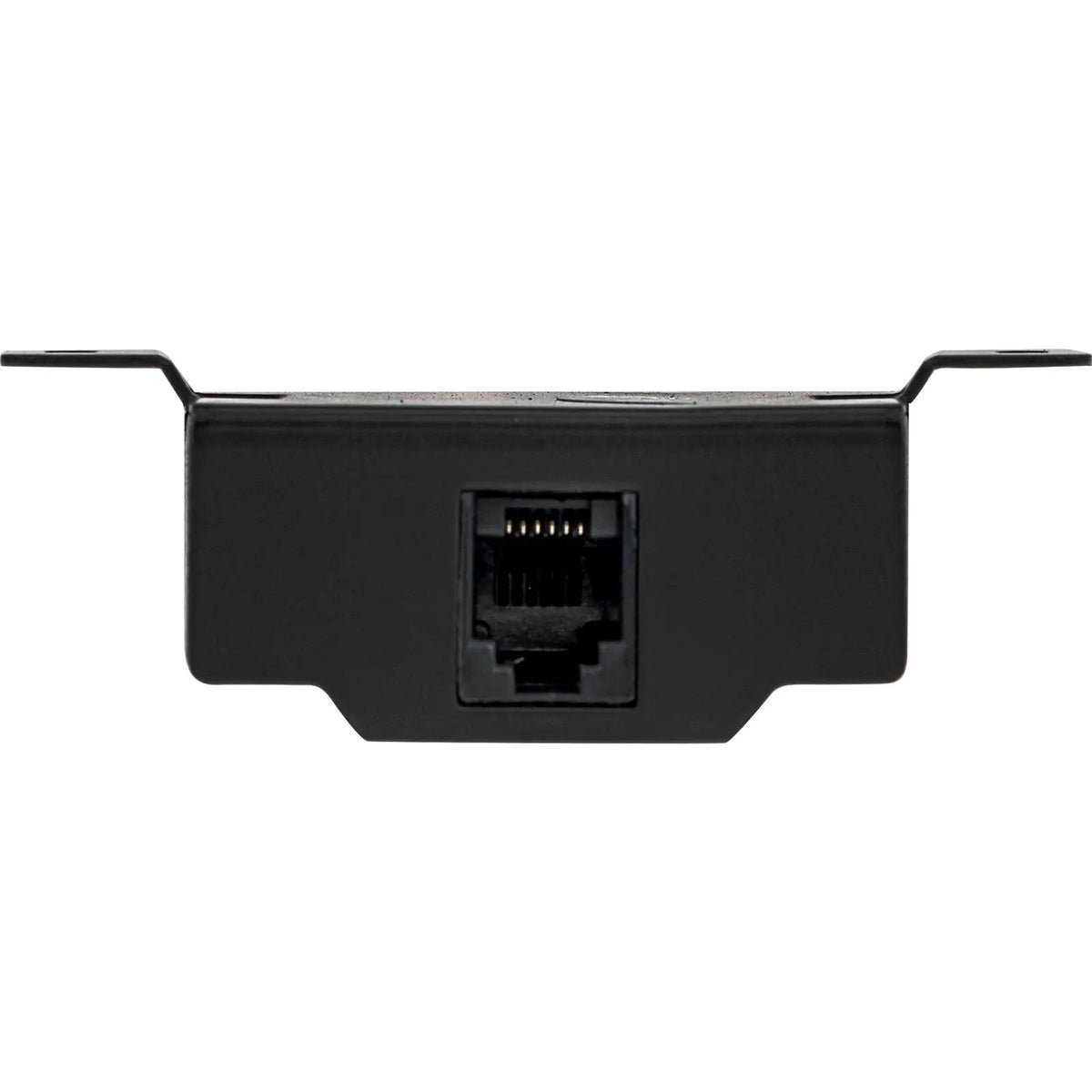

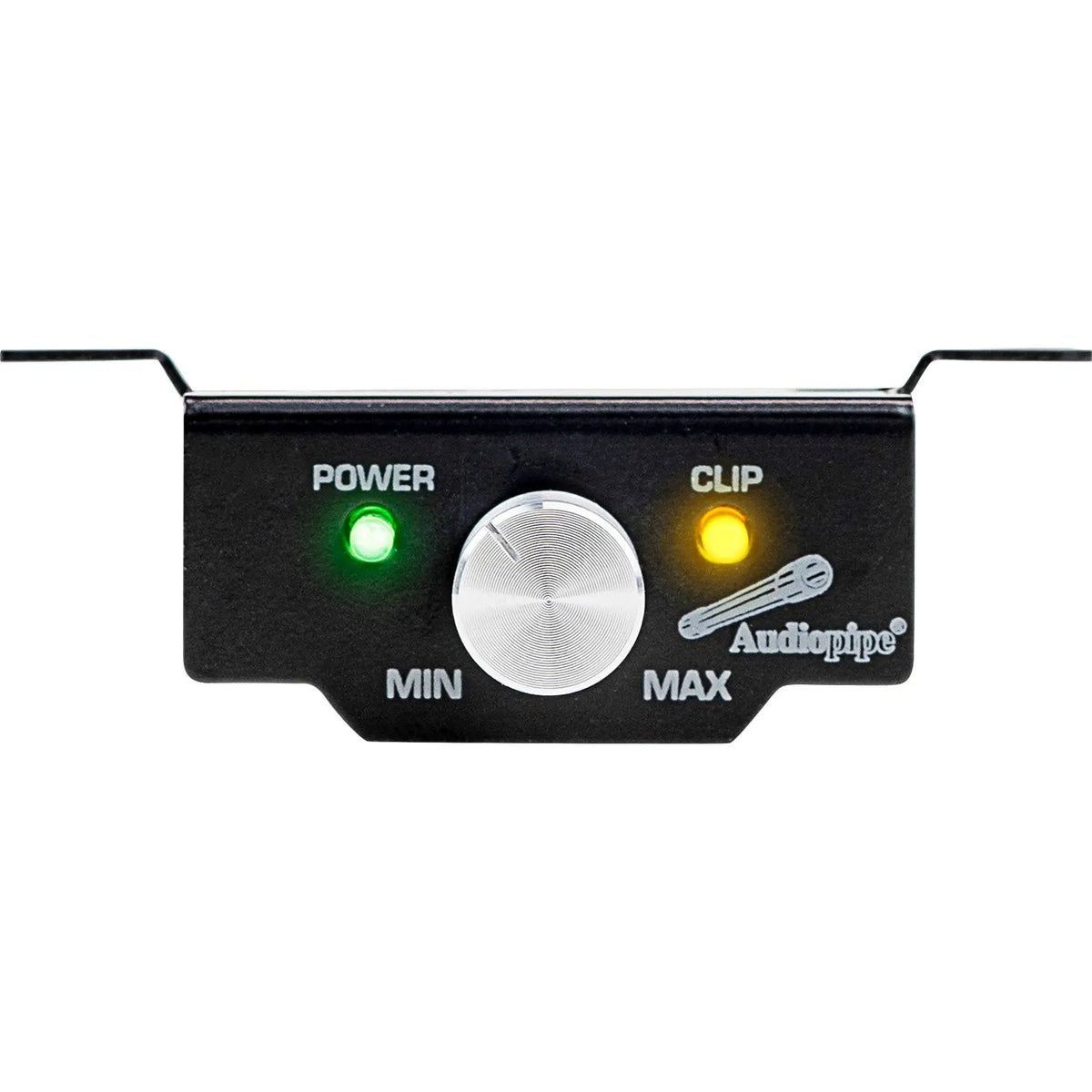

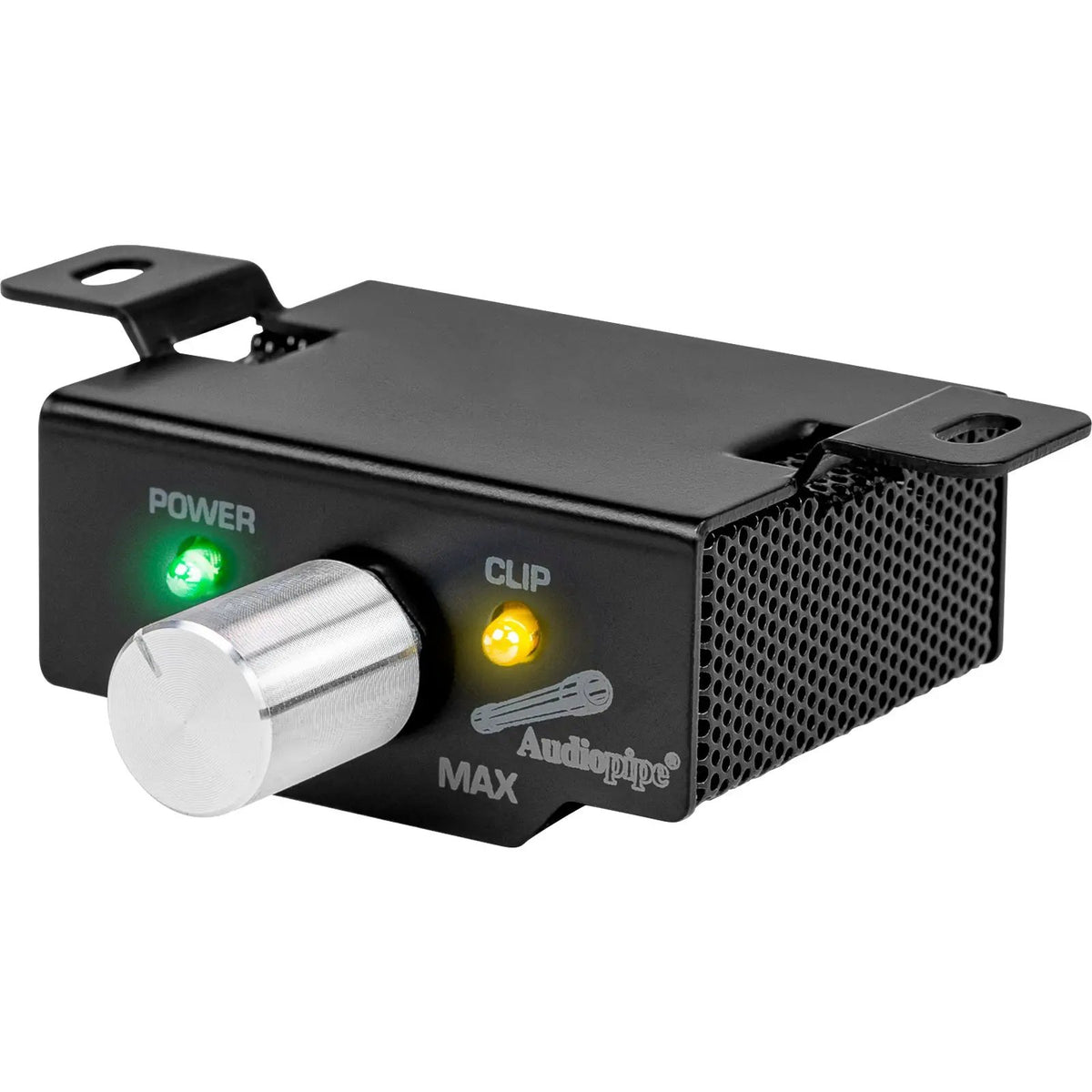

- Remote monitoring: The remote bass control knob, clip LED, and power on/off LED indicator make level adjustment and amplifier monitoring accessible.
Technical Specifications
| Specification | Value |
|---|---|
| Amplifier type | Full range Class D |
| Continuous power output (R.M.S.) @ 1% | |
| Stereo @ 4 Ohms | 1 x 560W |
| Stereo @ 2 Ohms | 1 x 1000W |
| Stereo @ 1 Ohms | 1 x 1500W |
| Frequency response (-1dB) | 10Hz-20KHz |
| Crossover range high and low | HPF: 10Hz-80Hz; LPF: 80Hz-20KHz |
| THD | 0.18% |
| S/N Rated (A WTG) | 85dB |
| Variable subsonic filter | Effectively eliminates sound frequency under 50Hz |
| Variable bass boost | 0dB to 12dB |
| Protection | Overload protection; heatsink designed for overheat protection |
| Working voltage | 9-16V |
| Dimensions (L x W x H) | 9.1” x 5.7” x 2.5”; 230 x 144 x 64 mm |
Why Choose This Product?
The APMOX-1500.1 combines a compact footprint with multiple power ratings at different impedances. Its adjustable bass boost, subsonic filter, and high-pass and low-pass controls give you options for shaping the sound to your system.
The listed RMS outputs are specified at 1%. Compare the rating for your intended load with your system requirements before choosing an amplifier.
Installation & Compatibility Notes

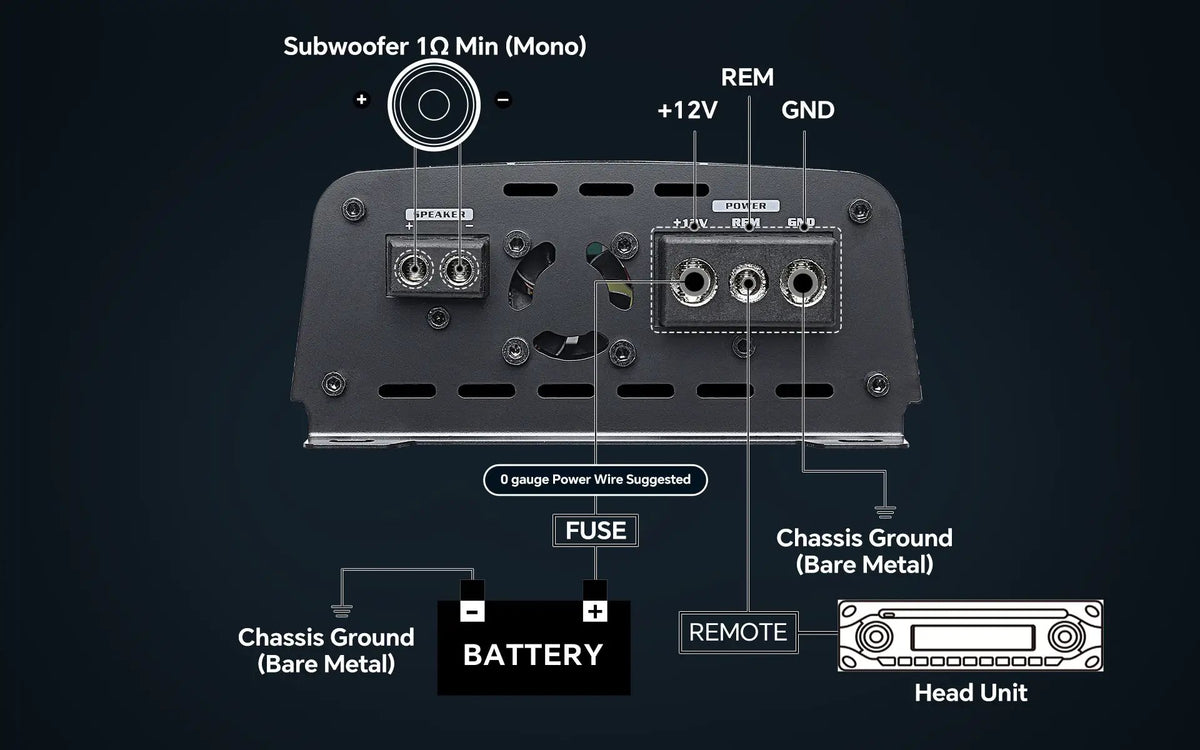

The stated working voltage is 9-16V. The amplifier measures 9.1” x 5.7” x 2.5” (230 x 144 x 64 mm), so check available mounting space and electrical requirements before installation.
It is designed for integration into car, motorcycle, golf cart, and off-road vehicle interiors. Confirm the specific vehicle and system requirements before purchase.
Frequently Asked Questions
What are the APMOX-1500.1’s RMS power ratings?
At 1%, the listed outputs are 1 x 560W at 4 Ohms, 1 x 1000W at 2 Ohms, and 1 x 1500W at 1 Ohms.
What frequency controls does this amplifier have?
It has an HPF range of 10Hz-80Hz and an LPF range of 80Hz-20KHz, plus a variable subsonic filter and crossover control.
Can I adjust bass boost?
Yes. The variable bass boost control ranges from 0dB to 12dB.
What is included for remote adjustment and monitoring?
The amplifier comes equipped with a remote bass control knob, clip LED, and power on/off LED indicator.
What should I check before installation?
Check that the mounting space accommodates its dimensions and that the system’s working voltage is within 9-16V.
