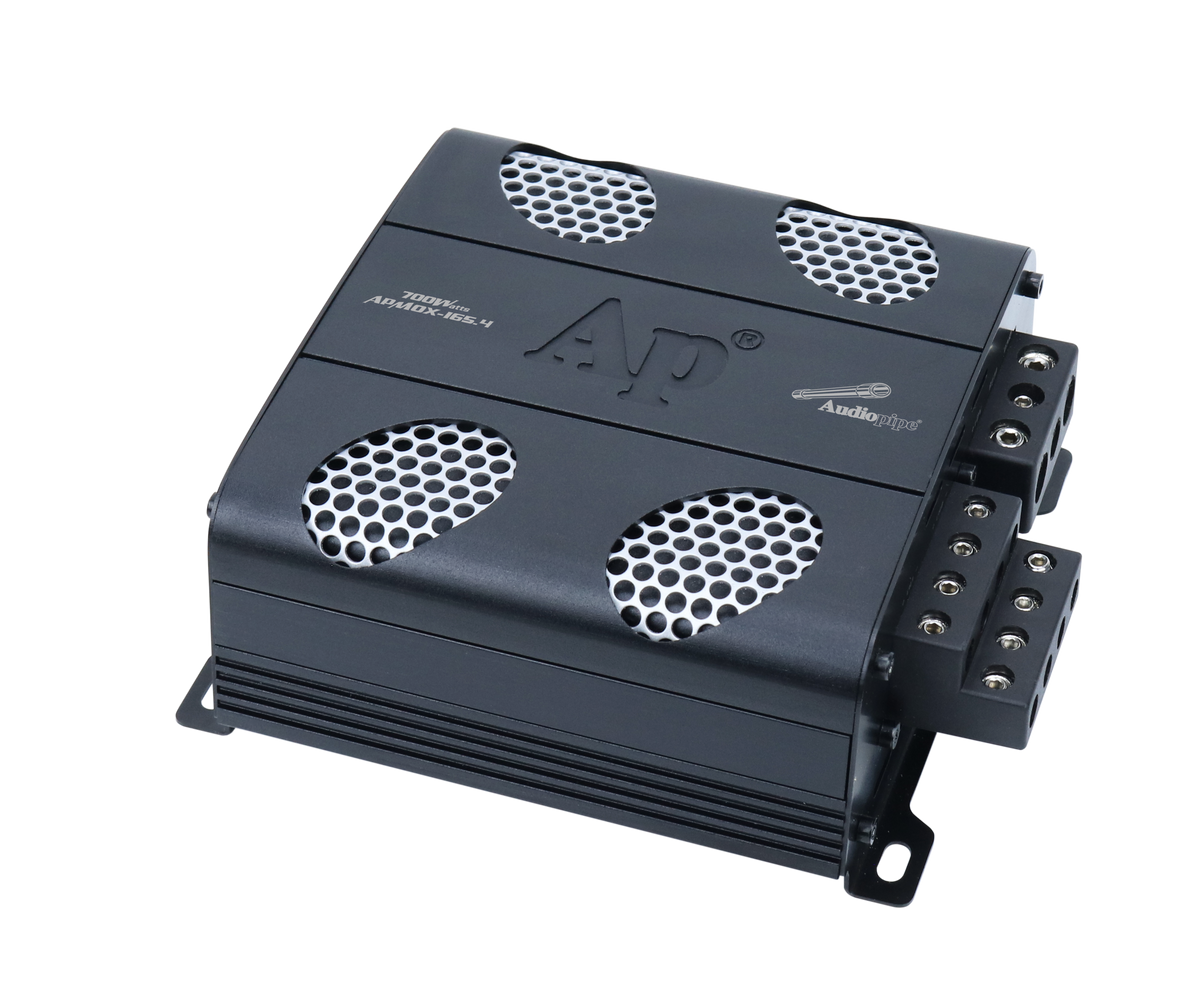

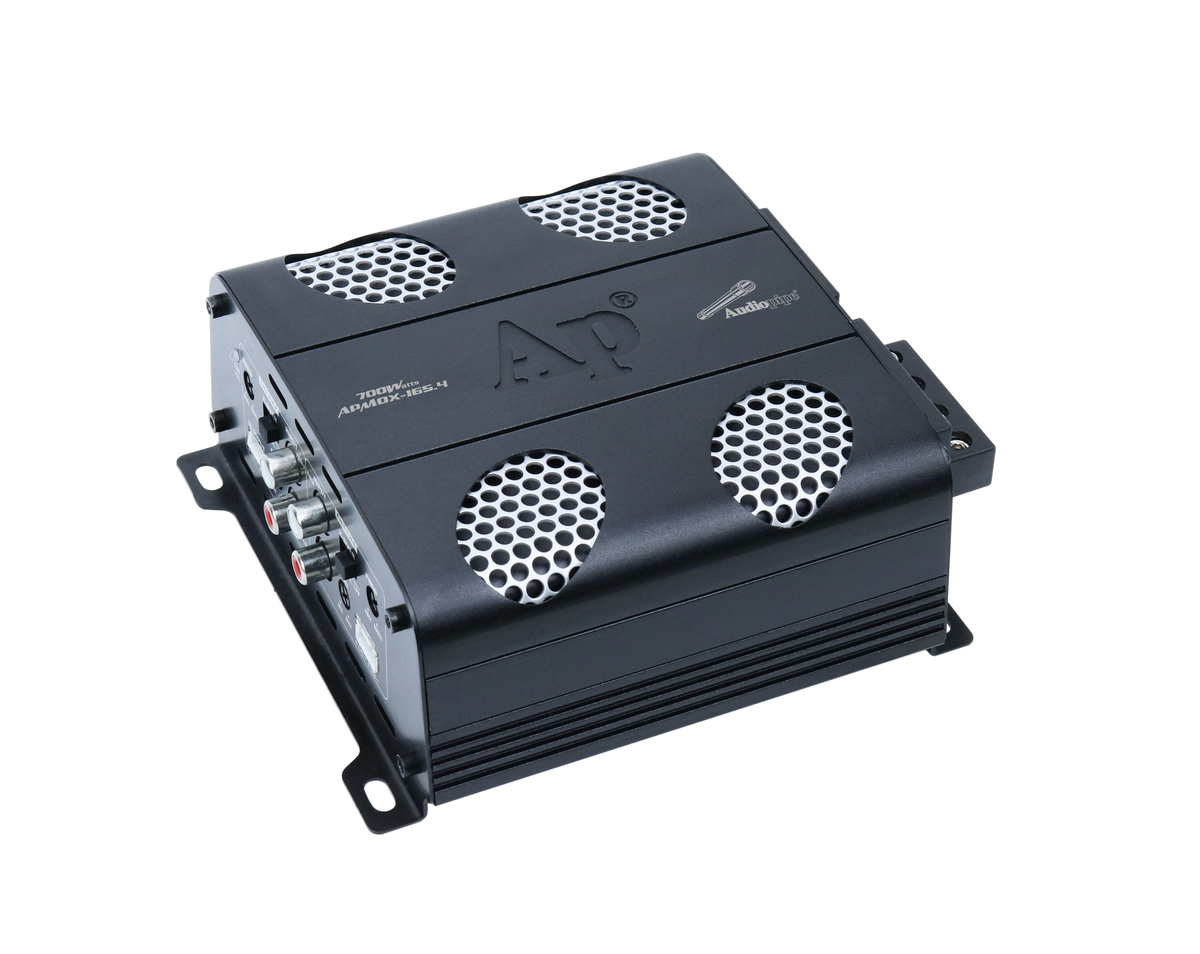

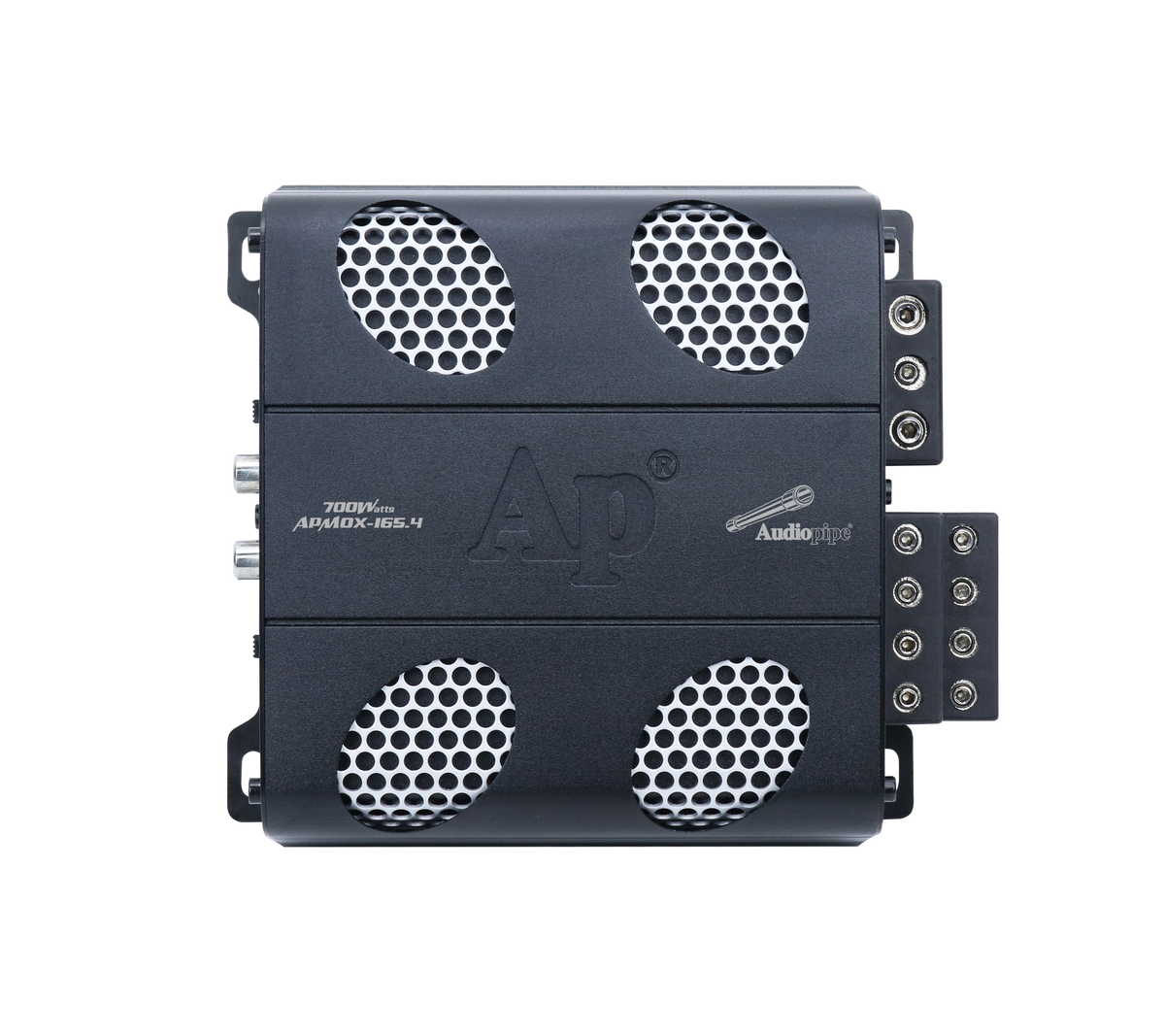

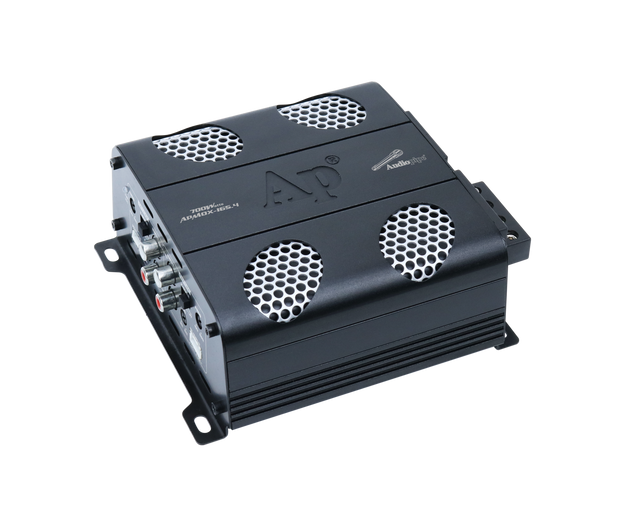

Audiopipe APMOX-165.4 165 Watts Full Range Class D Mini Amplifier
Key features
- Amplifier channels: 4
- RMS per channel at 4 ohms: 110 W
- RMS per channel at 2 ohms: 165 W
- Class D design: PWM techniques deliver power efficiently to your speakers.
- Compact size: The small chassis can fit into limited interior space in cars, motorcycles, golf carts, and off-road vehicles.
- MOSFET circuitry: The design is intended to provide performance with minimal distortion.
Audiopipe APMOX-165.4 165 Watts Full Range Class D Mini Amplifier is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview
Add four-channel amplification to a space-limited vehicle audio system with the Audiopipe APMOX-165.4 165 Watts Full Range Class D Mini Amplifier. Its compact design, variable bass boost, and adjustable high-pass and low-pass filters give you useful control in a small package.
Key Features & Benefits
- Class D design: PWM techniques deliver power efficiently to your speakers.
- Compact size: The small chassis can fit into limited interior space in cars, motorcycles, golf carts, and off-road vehicles.
- MOSFET circuitry: The design is intended to provide performance with minimal distortion.

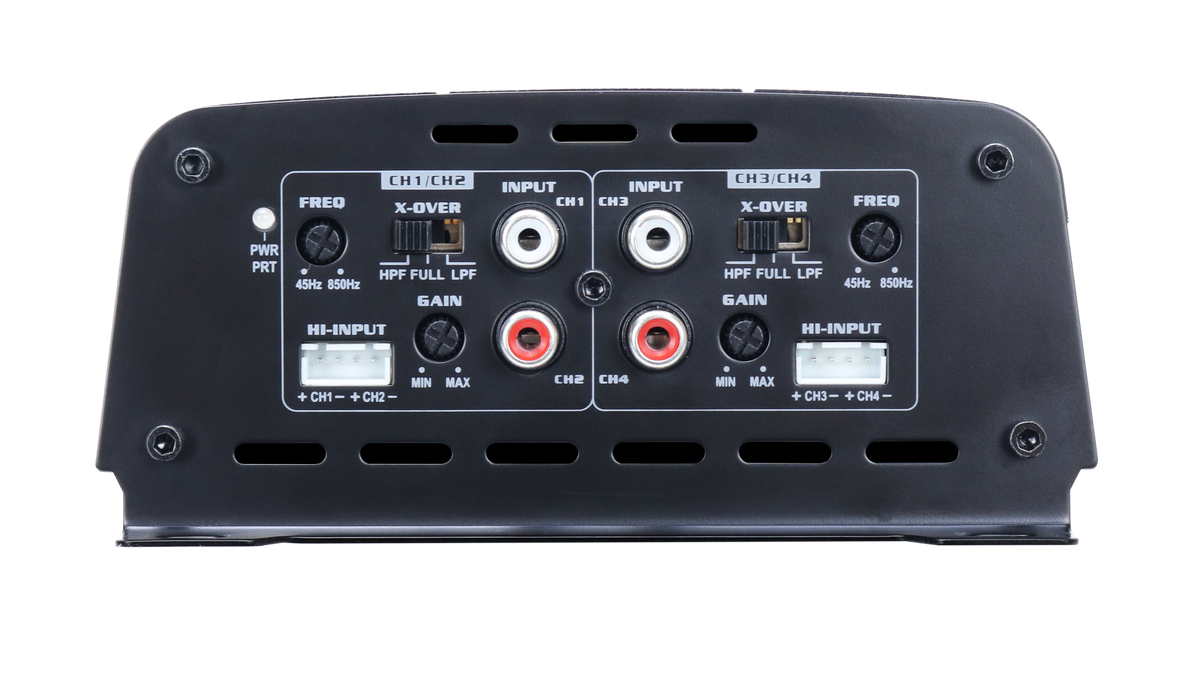

- Adjustable sound: Variable bass boost and crossover controls let you tailor bass and frequency selection.
- Cooling and protection: A cooling fan, heatsink, overload protection, and overheat protection support reliable operation.
Technical Specifications
| Specification | Value |
|---|---|
| Model | APMOX-165.4 |
| Amplifier type | Full range Class D |
| Continuous power output (R.M.S.) @ 1%, Stereo @ 4 Ohms | 4 x 110W |
| Continuous power output (R.M.S.) @ 1%, Stereo @ 2 Ohms | 4 x 165W |
| Continuous power output (R.M.S.) @ 1%, Bridged @ 4 Ohms | 2 x330W |
| Crossover range, high and low | 45Hz-850Hz |
| PASS: S/N Rated (A WTG) | 85dB |
| Variable bass boost | 0dB to 12dB |
| High-pass and low-pass filters | Switchable; X-over control |
| Protection | Overload protection; overheat protection |
| Cooling | Cooling fan; advanced heatsink |
| Working voltage | 9-16V |
| Dimensions (L x W x H) | 4.9” x 5.7” x 2.5”; 125 x 144 x 64 mm |
Why Choose This Product?
The APMOX-165.4 combines flexible channel power options with a compact chassis. Its crossover controls and bass boost let you adjust the signal to suit your listening preferences, while built-in cooling and protection features address heat and overload concerns.
Its small footprint is intended for vehicle interiors where installation space is limited. Use the listed power ratings to compare the amplifier with your speaker setup and desired configuration.
Installation & Compatibility Notes
The amplifier is designed for car, motorcycle, golf cart, and off-road vehicle interiors. Check the available mounting space against its dimensions and confirm that your electrical system operates within the stated 9-16V working range.
Match your planned speaker configuration to the listed stereo or bridged ratings before installation. The product details do not specify included installation accessories.
Frequently Asked Questions
What power does the APMOX-165.4 provide?
Its continuous RMS ratings at 1% are listed for stereo operation at 4 and 2 Ohms, and bridged operation at 4 Ohms. See the specifications table for each output rating.
Can I adjust bass and crossover settings?
Yes. Bass boost is variable from 0dB to 12dB, and high-pass and low-pass filter switching is paired with an X-over control.
Will it fit my vehicle?
It is intended for use in car, motorcycle, golf cart, and off-road vehicle interiors. Compare the listed dimensions with your available installation space.
What voltage does it require?
The stated working voltage is 9-16V. Confirm your installation meets this range.
