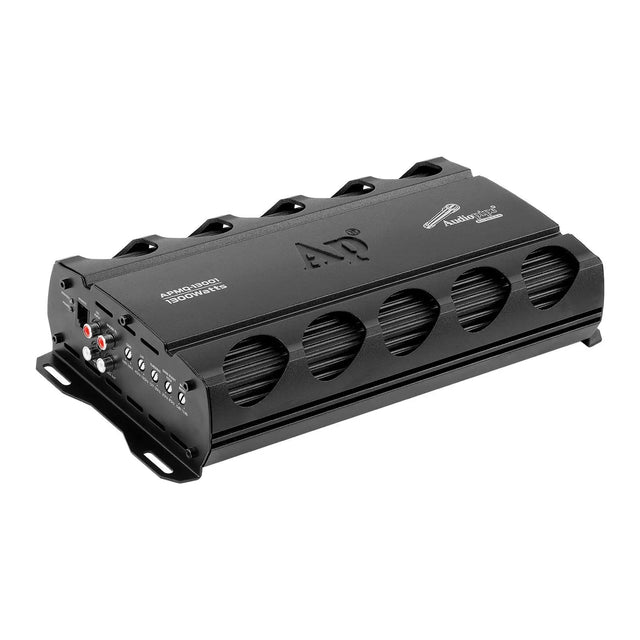

Audiopipe APMQ-13001 Mini Design Class D Mono Mosfet Amplifier
Key features
- Amplifier channels: 1
- RMS output at 4 ohms: 380.0 W
- RMS output at 2 ohms: 580 W
- RMS output at 1 ohm: 1000 W
- FREQUENCY RESPONSE: 15Hz~180Hz
Audiopipe APMQ-13001 Mini Design Class D Mono Mosfet Amplifier is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview

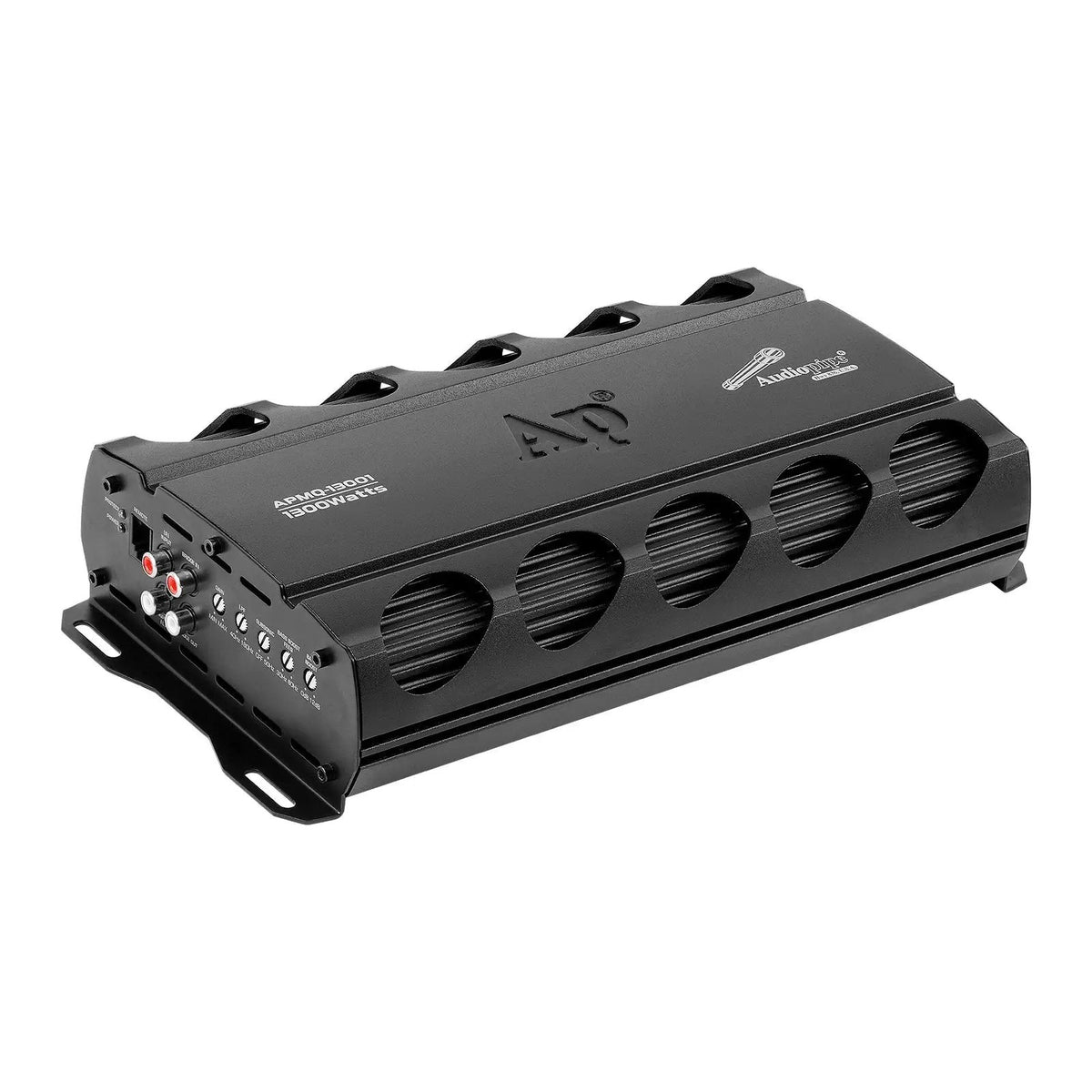

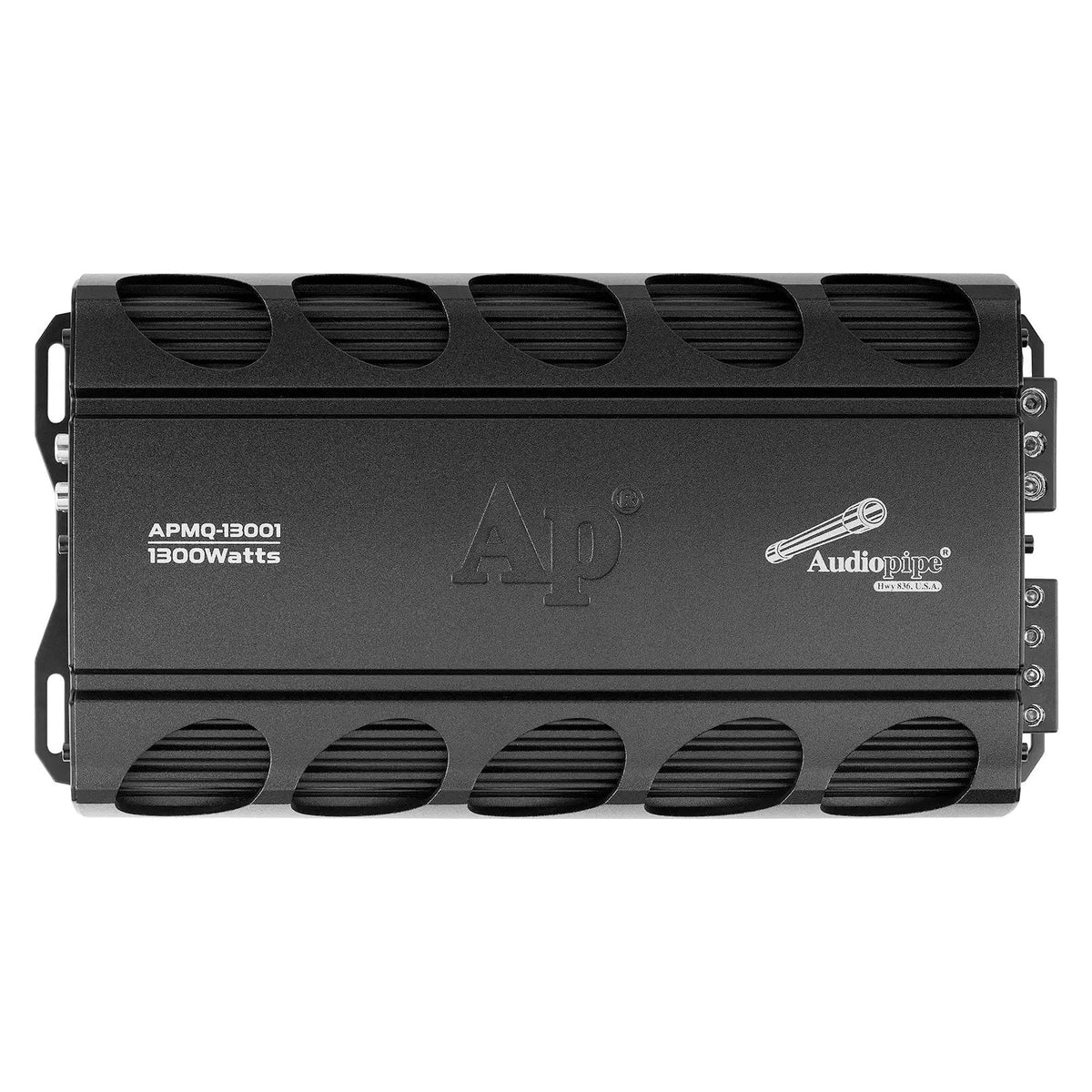

The Audiopipe APMQ-13001 is a compact Class D mono MOSFET car amplifier for powering a subwoofer. Its variable low-pass filter and remote bass knob give you control over frequency settings and bass level.
Key Features & Benefits
- Compact design: Its small profile offers flexible placement when planning an amplifier installation.
- Class D circuitry: The design delivers efficient power for your audio system.
- MOSFET circuitry: This amplifier is designed to deliver performance with minimal distortion.

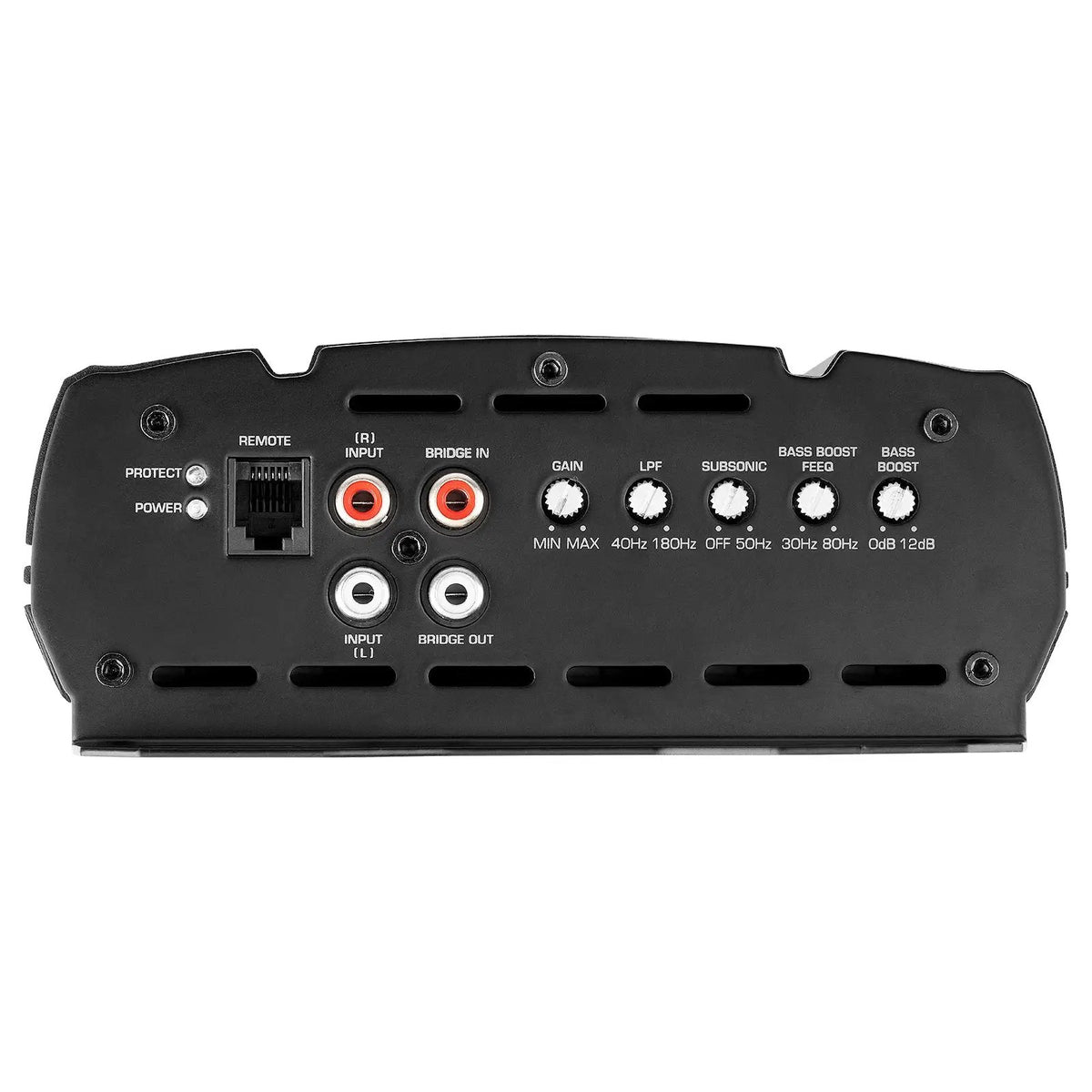

- Variable low-pass filter: Adjust frequency control to suit your audio setup.
- Built-in protection: Overload, overheat, short-circuit, and low-voltage protection are included.

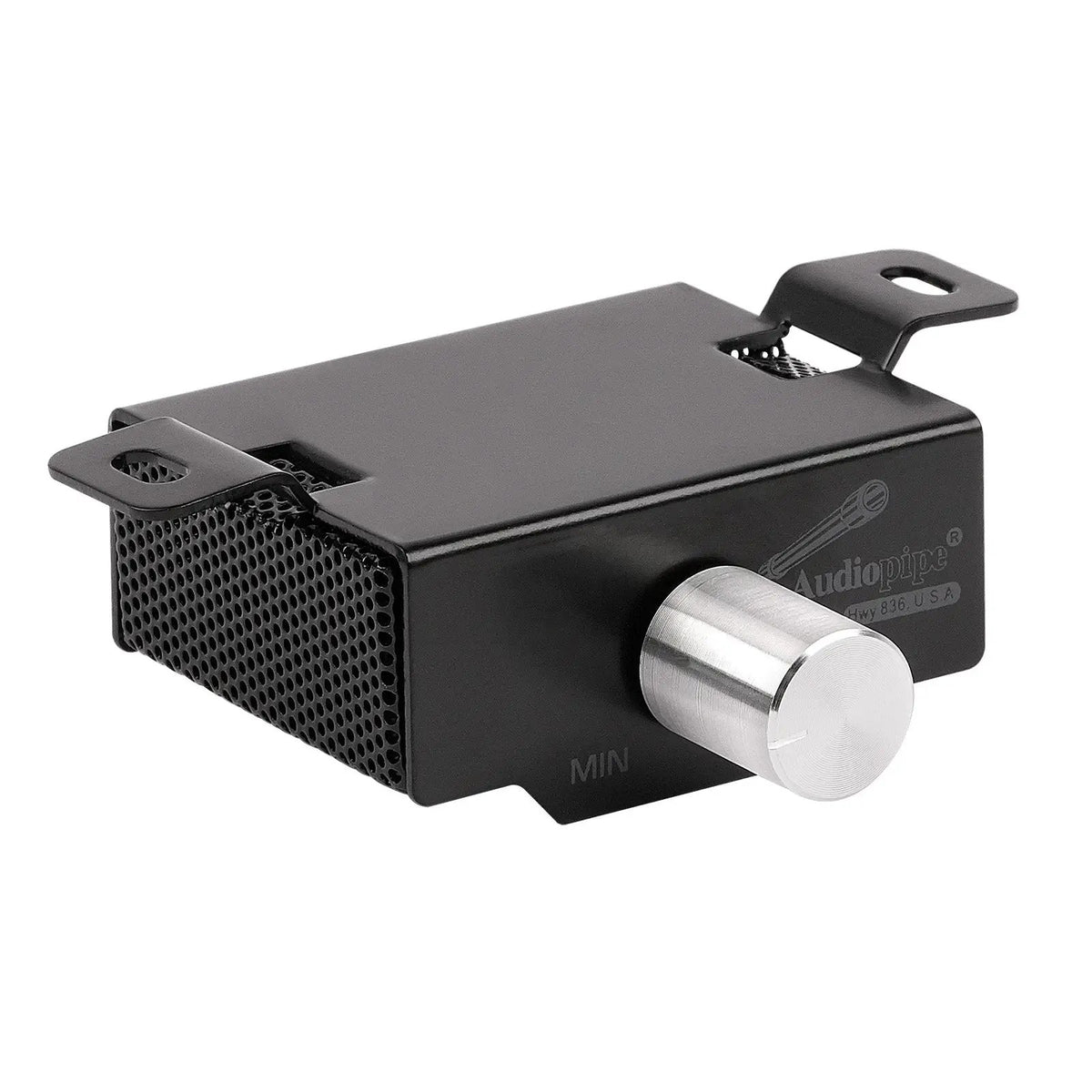

- Remote bass knob: Adjust subwoofer volume remotely from your dashboard.
Technical Specifications
| Specification | Value |
|---|---|
| Amplifier type | Class D mono MOSFET |
| Peak power | 1000 watts |
| Continuous power | RMS @ 1 Ohm (<1% Distortion): 1000W |
| Continuous power | RMS @ 2 Ohm (<2% Distortion): 580W |
| Continuous power | RMS @ 4 Ohm (<1% Distortion): 380W |
| Frequency response | 15Hz~180Hz |
| S/N ratio | >90dB |
| Input sensitivity | 0.2-6V |
| Variable subsonic filter | 15Hz-180Hz; described as eliminating sound frequency within this range |
| Variable low-pass filter | Variable |
| Protection | Overload, overheat, short circuit, and low voltage |
| Remote bass control | Remote bass knob included |
| THD | ≤0.9% |
| Working voltage | 9V~16V |
| Dimensions (L x W x H) | 10.5” x 6.3“ x 2.3” (L x W x H); 266 x 160 x 57mm |
Why Choose This Product?
The APMQ-13001 combines a compact chassis with adjustable filtering and a remote bass control. You can set the low-pass filter on the amplifier, then adjust subwoofer volume from the dashboard using the included knob.
Its listed RMS output varies by impedance and distortion condition. Use those ratings when comparing the amplifier with the subwoofer and other equipment in your system.
Installation & Compatibility Notes
Allow space for the amplifier’s 10.5” x 6.3“ x 2.3” dimensions, and plan around its 9V~16V working-voltage range. Check the subwoofer’s impedance against the amplifier’s listed 1 Ohm, 2 Ohm, and 4 Ohm power ratings before choosing a system configuration.
Confirm installation space, electrical requirements, and connections for your vehicle and audio system before installation.
Frequently Asked Questions
How much RMS power does the APMQ-13001 produce?
It is rated at 1000W RMS at 1 Ohm (<1% distortion), 580W RMS at 2 Ohm (<2% distortion), and 380W RMS at 4 Ohm (<1% distortion).
What is the amplifier’s frequency response?
The listed frequency response is 15Hz~180Hz.
Can I adjust bass from the dashboard?
Yes. A remote bass knob is included for remote subwoofer-volume control from the dashboard.
What protection features are listed?
The amplifier includes overload, overheat, short-circuit, and low-voltage protection.
What installation space should I allow?
The listed dimensions are 10.5” x 6.3“ x 2.3” (L x W x H), or 266 x 160 x 57mm.
