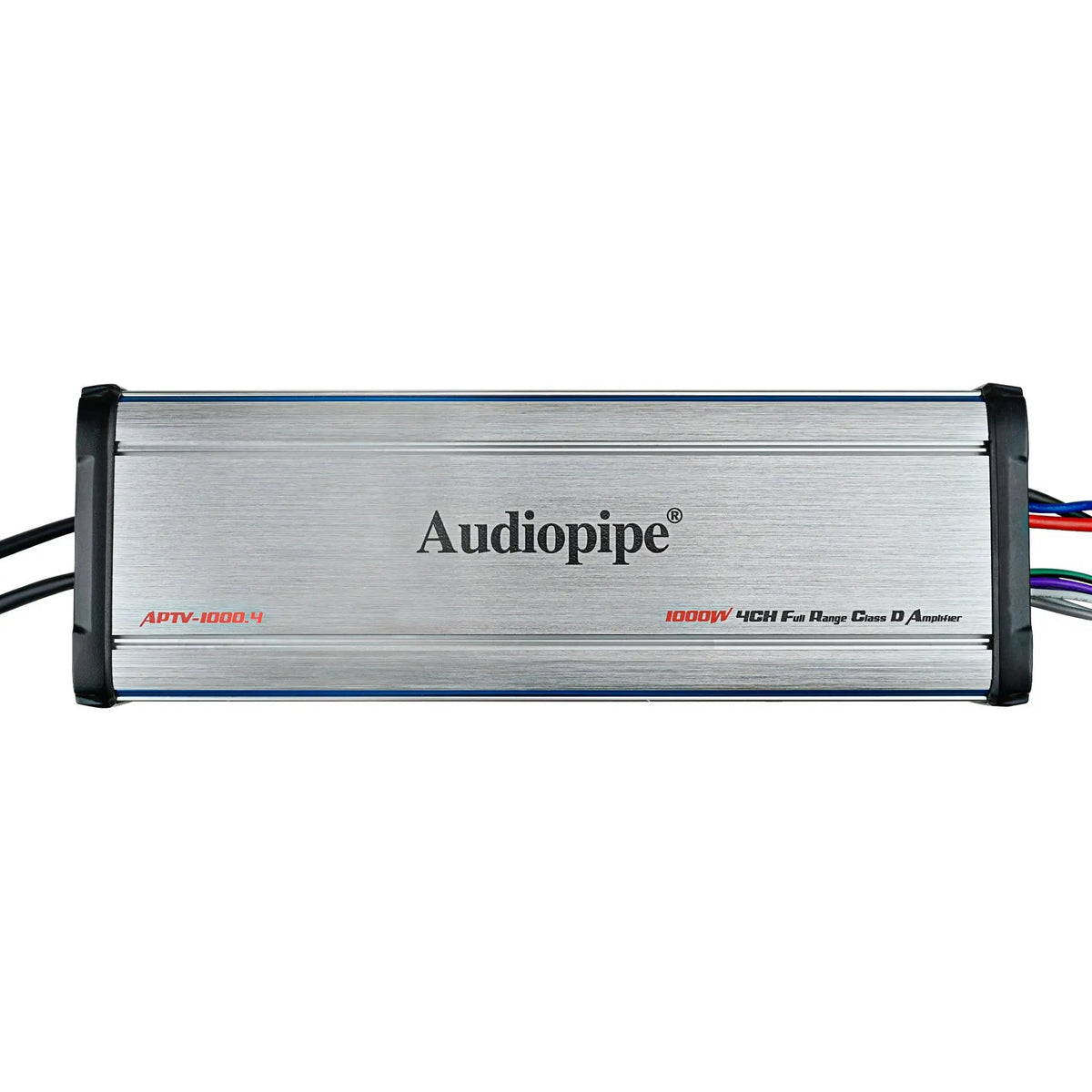

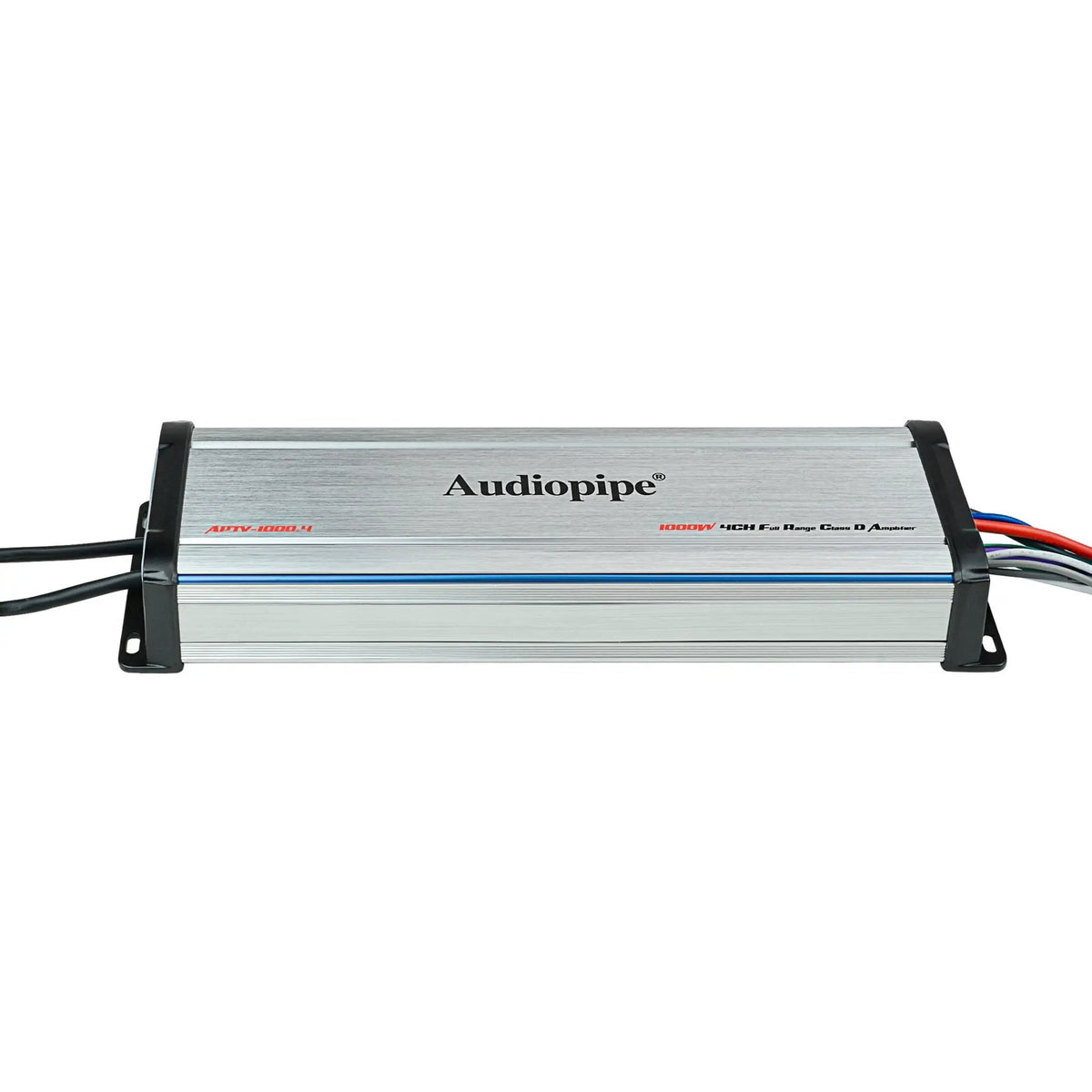

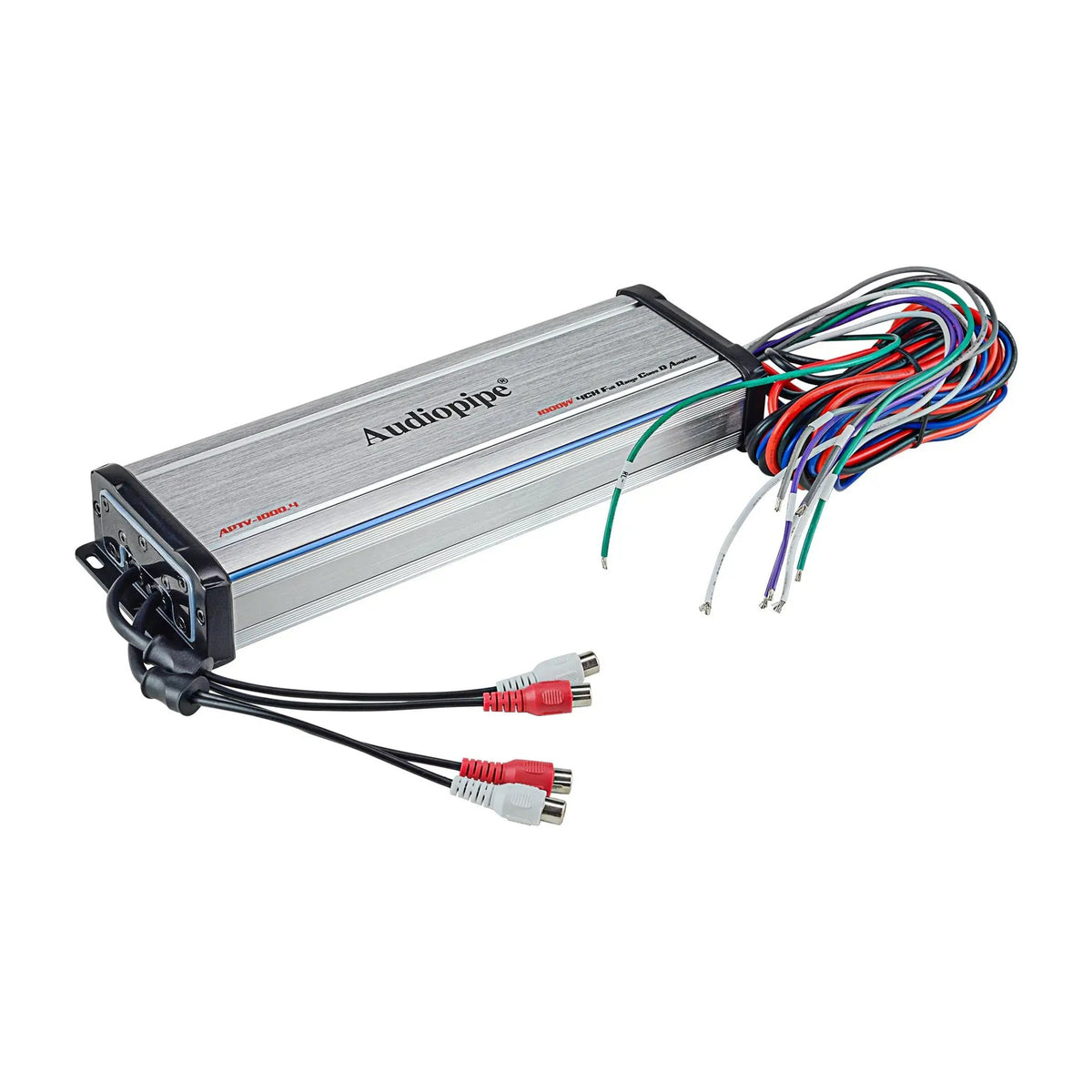

Audiopipe APTV-1000.4 4 Channel Full Range Class D Amplifier
Key features
- Amplifier channels: 4
- RMS per channel at 4 ohms: 100 W
- RMS per channel at 2 ohms: 150 W
- Three power ratings: Choose from the listed RMS outputs to match your system’s supported load and configuration.
- Adjustable crossovers: Set a high-pass or low-pass crossover from 40Hz to 400Hz to shape the signal for your setup.
- Wide input sensitivity: The 0.25V–10V range accommodates different input signal levels.
Audiopipe APTV-1000.4 4 Channel Full Range Class D Amplifier is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview
The Audiopipe APTV-1000.4 4-channel full range Class D amplifier gives you several rated power options for configuring a car audio system. Its adjustable high-pass and low-pass crossovers help tailor the signal, while its IP67 rating adds protection in demanding installation environments.
Key Features & Benefits
- Three power ratings: Choose from the listed RMS outputs to match your system’s supported load and configuration.
- Adjustable crossovers: Set a high-pass or low-pass crossover from 40Hz to 400Hz to shape the signal for your setup.
- Wide input sensitivity: The 0.25V–10V range accommodates different input signal levels.
- IP67 rating: Its stated anti-dust and waterproof protection suits demanding installation environments.
- Full-range response: A 20Hz–20kHz frequency response covers a broad audio range.
Technical Specifications
| Brand | Audiopipe |
|---|---|
| Model | APTV-1000.4 |
| Product type | 4-channel full range Class D amplifier |
| Power output | 4 x 100 Watts RMS @ 4 Ohms |
| Power output | 4 x 150 Watts RMS @ 2 Ohms |
| Power output | 2 x 280 Watts RMS @ 4 Ohms |
| High-pass and low-pass crossover range | 40Hz–400Hz |
| Crossover slope | 13dB/OCT |
| Input sensitivity | 0.25V–10V |
| Working voltage | 9V–16V |
| Signal-to-noise ratio | Greater than 90dB |
| IP rating | IP67 anti-dust and waterproof level |
| Frequency response (-3dB) | 20Hz–20kHz |
Why Choose This Product?
The APTV-1000.4 offers multiple stated output ratings, giving you options to consider when planning a four-channel car audio system. Its adjustable crossover range and broad input sensitivity also provide flexibility for system setup.
The greater-than-90dB signal-to-noise ratio is a useful specification to compare when evaluating amplifier noise performance. The IP67 rating is another consideration for installations exposed to demanding conditions.
Installation & Compatibility Notes
Check your speakers’ impedance and intended system configuration against the amplifier’s listed power ratings before installation. The stated working voltage range is 9V–16V, and input sensitivity is 0.25V–10V.
Confirm that your installation environment and planned connections are appropriate for this amplifier. The product details do not establish vehicle-specific fitment or included installation accessories.
Frequently Asked Questions
What power does the Audiopipe APTV-1000.4 produce?
Its listed outputs are 4 x 100 Watts RMS at 4 Ohms, 4 x 150 Watts RMS at 2 Ohms, or 2 x 280 Watts RMS at 4 Ohms.
What crossover range does this amplifier provide?
It has adjustable high-pass and low-pass crossovers covering 40Hz–400Hz, with a 13dB/OCT slope.
What input sensitivity and working voltage does it support?
Input sensitivity is 0.25V–10V, and the working voltage range is 9V–16V.
What should I check when matching it to speakers?
Compare your speaker impedance and system configuration with the amplifier’s listed power ratings before choosing connections.
