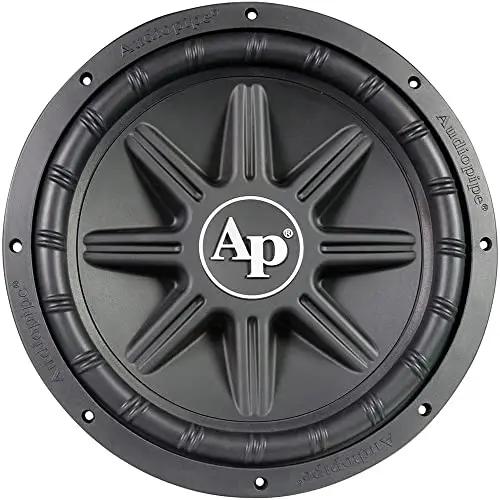

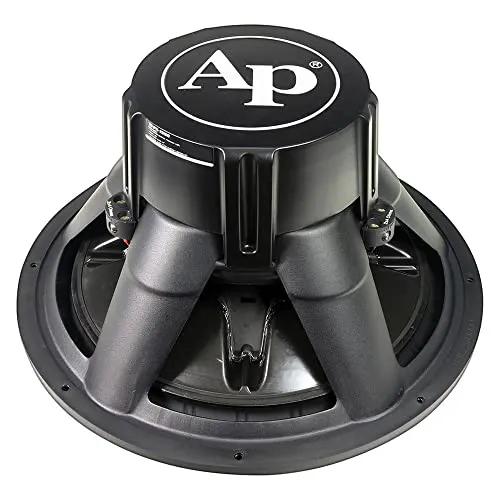

Audiopipe TS-PX-1550 15" PP Cone Subwoofer, Sold Individually
Key features
- Subwoofer size: 15.0 inches
- RMS power per subwoofer: 500 W
- Voice-coil options: D4
- FREQUENCY RESPONSE: 20-1000Hz
- SENSITIVITY: 89dB
- MAGNET: This subwoofer includes a 73 Oz magnet for strong power handling and superior performance.
Audiopipe TS-PX-1550 15" PP Cone Subwoofer, Sold Individually is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview
Add a 15-inch subwoofer to your audio system with the Audiopipe TS-PX-1550. Its PP cone, rubber surround, and dual 4-ohm voice coils define this subwoofer’s design.
Key Features & Benefits
- Power ratings: 500 watts RMS continuous power and 1000 watts PMPO peak power distinguish its continuous and peak ratings.
- Dual voice coils: The dual 4-ohm, 2.5-inch, 4-layer high-temperature Kapton voice coil supports series or parallel wiring options.
- PP cone and rubber surround: This combination provides the cone and surround construction specified for the subwoofer.
- Steel basket: The powdered black paint steel basket provides a steel frame for the driver.
- Multi-connect terminals: The patented pipe terminals allow wiring in series or parallel configurations.
Technical Specifications
| Model | Audiopipe TS-PX-1550 |
|---|---|
| Product type | 15" PP Cone Subwoofer |
| Power, peak | 1000 WATTS (P.M.P.O) |
| Power, continuous | 500 WATTS (R.M.S) |
| Frequency response | 20-1000Hz |
| Sensitivity | 89dB |
| Voice coil | Dual 4 ohms, 2.5 inch, 4-layer high-temperature Kapton voice coil |
| Impedance | 2*4 Ohms |
| Magnet | 73 Oz |
| Cone and surround | PP cone with rubber surround |
| Basket | Powdered black paint steel basket |
| Terminals | Patented pipe multi-connect terminals |
| Mounting depth | 7-5/8" (196mm) |
| Quantity | Sold individually |
Why Choose This Product?
The TS-PX-1550 combines a 15-inch PP cone with a rubber surround and a 73 Oz magnet. Its stated frequency response is 20-1000Hz, with 89dB sensitivity.
The dual voice-coil design and multi-connect terminals offer series or parallel wiring options. The subwoofer is sold individually, so you can plan your system around one driver.
Installation & Compatibility Notes
Allow for the listed 7-5/8" (196mm) mounting depth when checking available space. Confirm that your enclosure and installation location provide the required clearance.
Check that your amplifier supports the final load created by the dual 4-ohm voice coils and that its output suits the subwoofer’s 500-watt RMS continuous rating. The terminals support series or parallel wiring; select a configuration compatible with your system.
Frequently Asked Questions
What are the subwoofer’s power ratings?
It is listed at 500 watts RMS continuous power and 1000 watts PMPO peak power. These are separate ratings.
What is the impedance?
The TS-PX-1550 has dual 4-ohm voice coils, listed as 2*4 Ohms. Its terminals allow series or parallel wiring.
How much mounting depth should I allow?
The listed mounting depth is 7-5/8" (196mm). Check the available space before installation.
How many subwoofers are included?
This product is sold individually.
