Audiopipe TXX-APD-12RD 12" Eye Candy Aluminum Cone Subwoofer, Sold individually
Key features
- Subwoofer size: 12.0 inches
- RMS power per subwoofer: 800 W
- Voice-coil options: D4
- MAGNET: Boasting a 120Oz magnet for strong power handling.
- FREQUENCY RESPONSE: 25-800Hz
- SENSITIVITY: 96 dB
Audiopipe TXX-APD-12RD 12" Eye Candy Aluminum Cone Subwoofer, Sold individually is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview

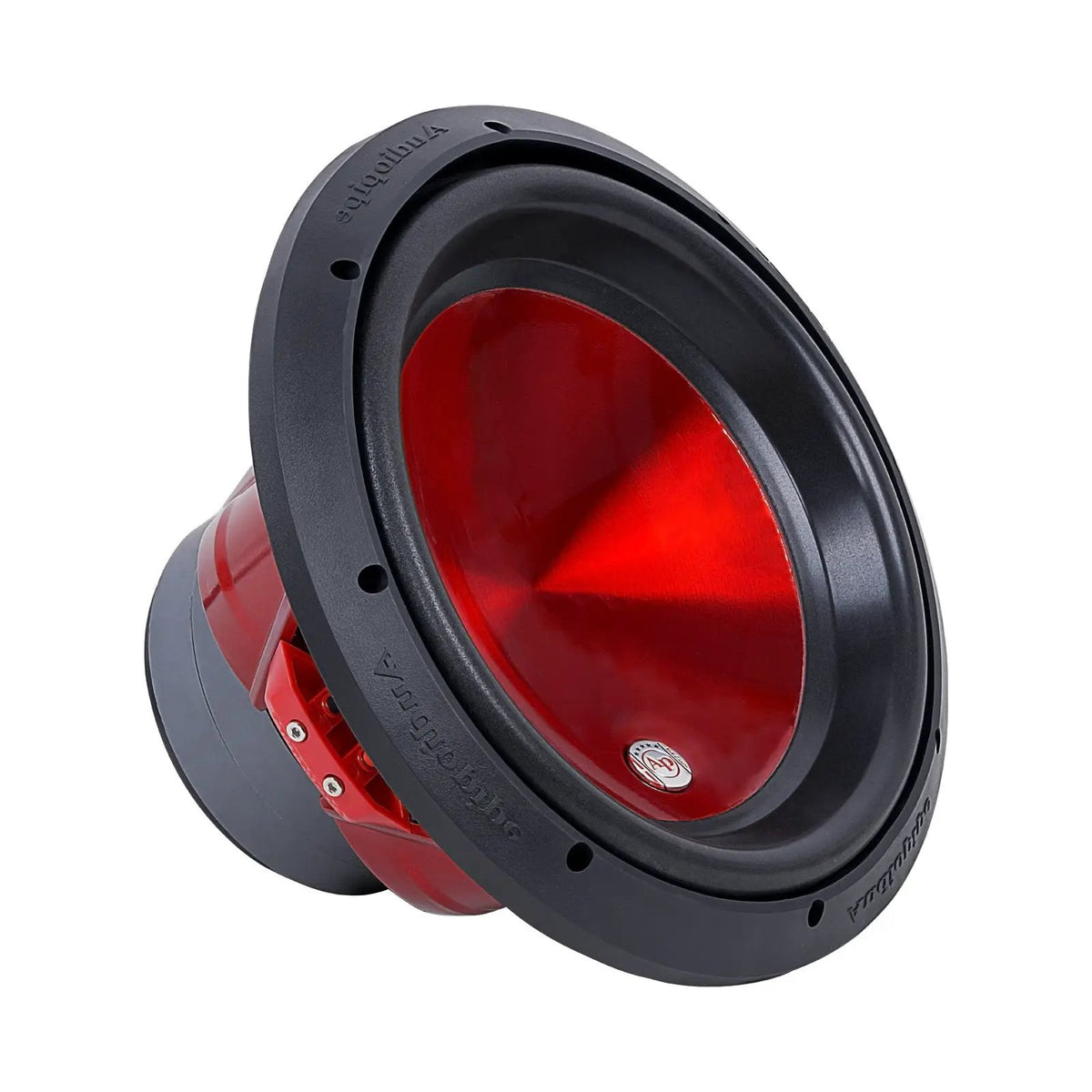

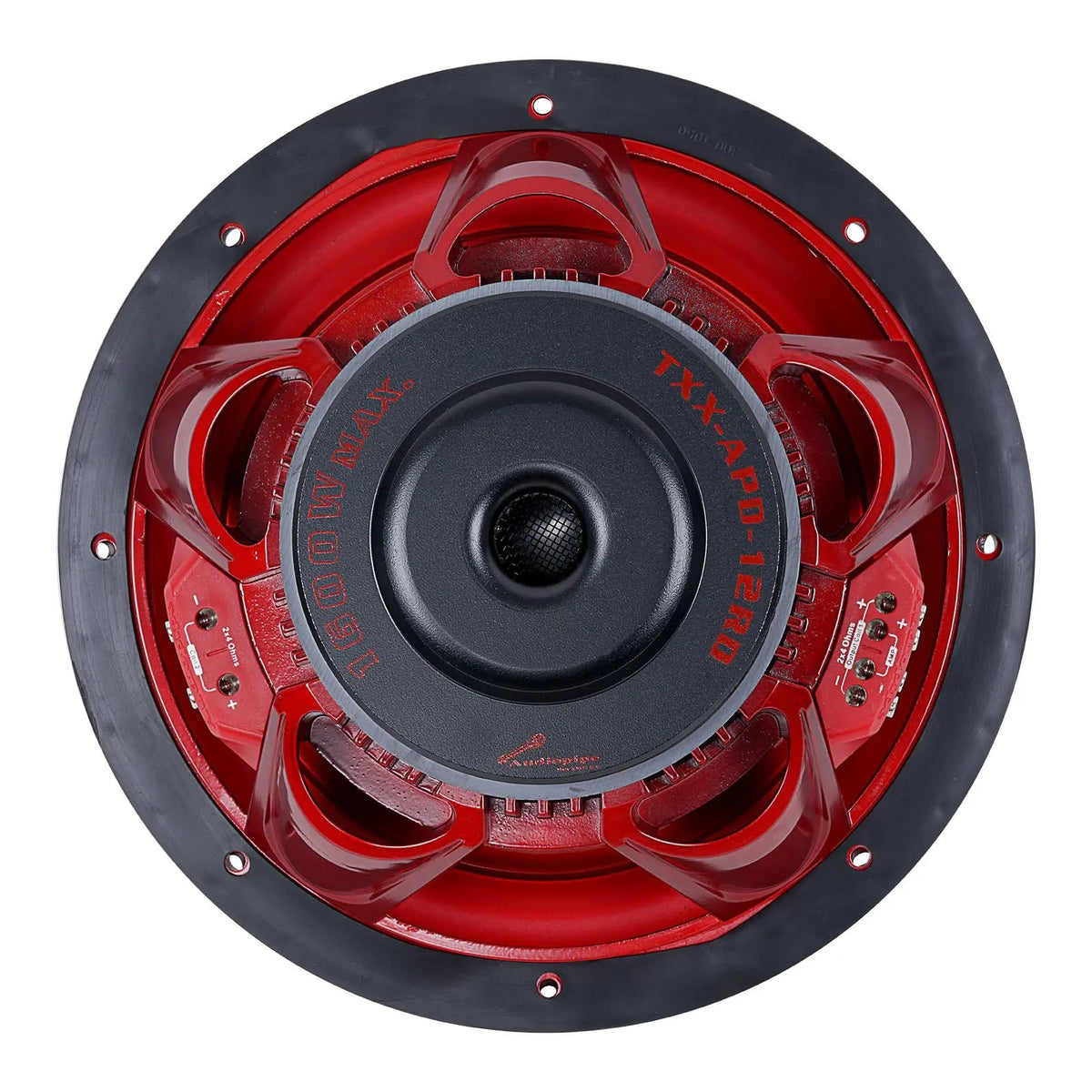

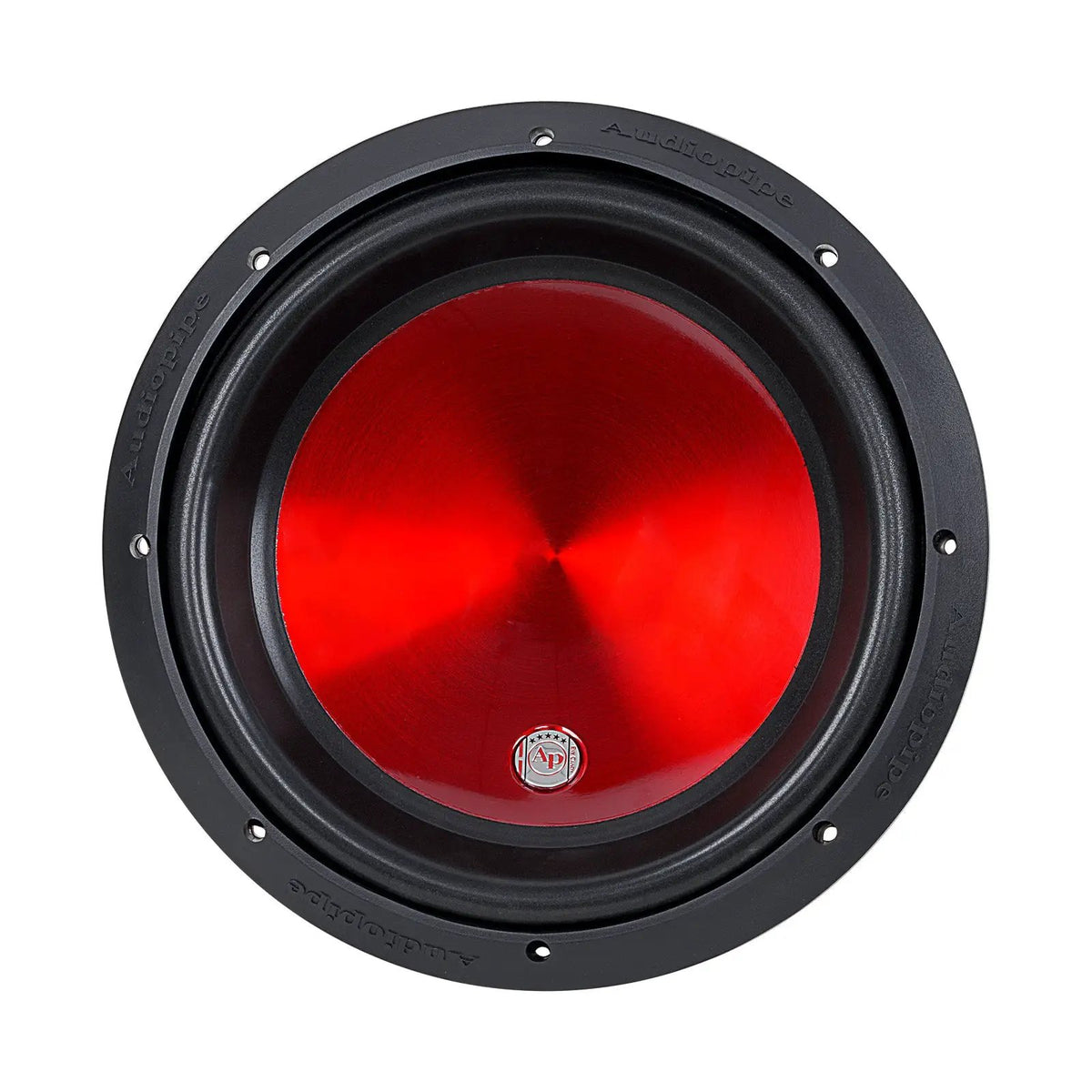

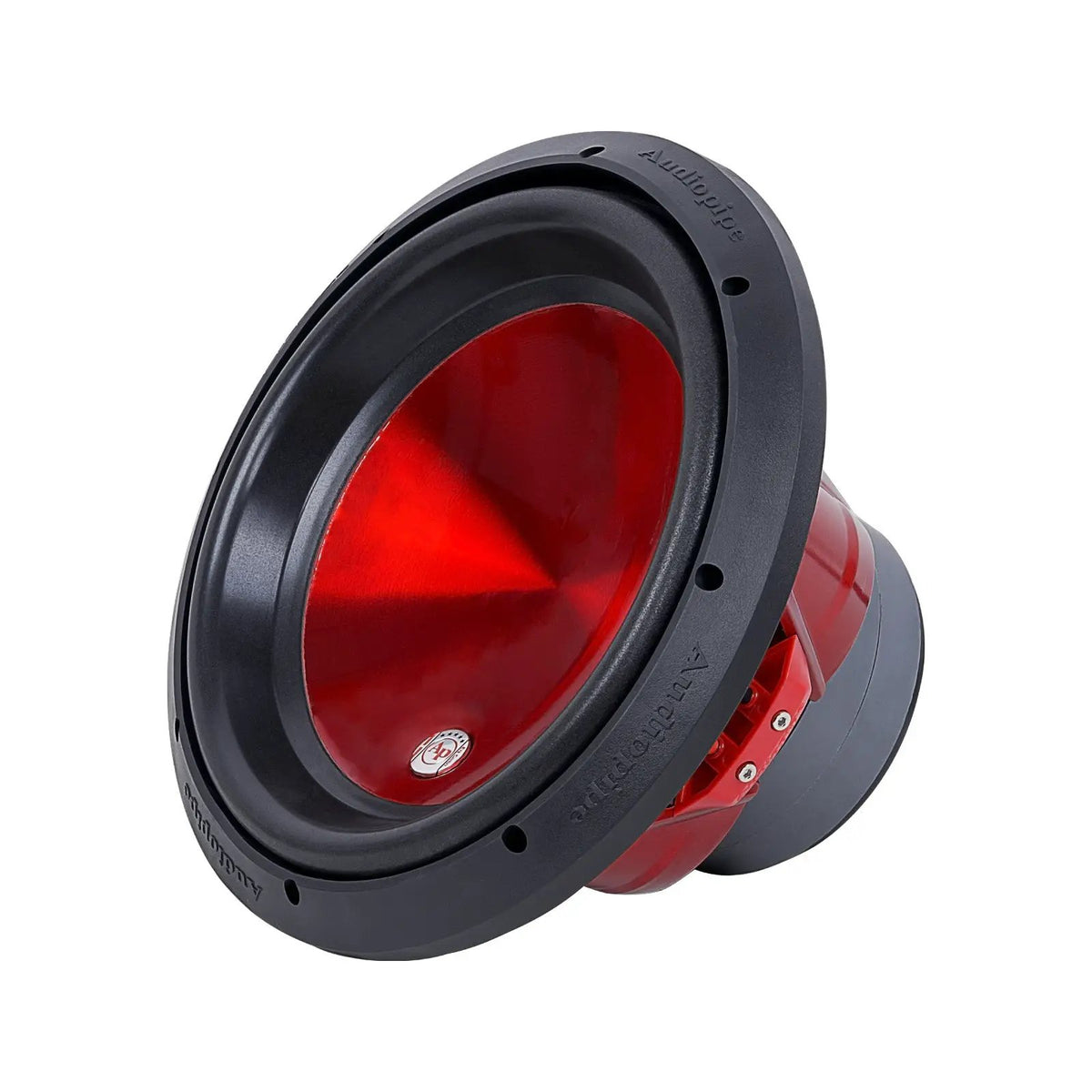

The Audiopipe TXX-APD-12RD is a 12-inch Eye Candy aluminum cone subwoofer rated for 800 watts RMS and 1,600 watts peak. Its dual 4-ohm voice coils and patented multi-connect terminals give you series and parallel wiring options for system planning.
Key Features & Benefits
- 800 watts RMS power: Provides the continuous power rating to consider when matching the subwoofer with an amplifier.
- Dual 4-ohm voice coils: Gives you wiring flexibility when planning the system’s final load.
- Ventilated 3-inch voice coil: The 4-layer, high-temperature black aluminum BASV coil is designed with increased ventilation.

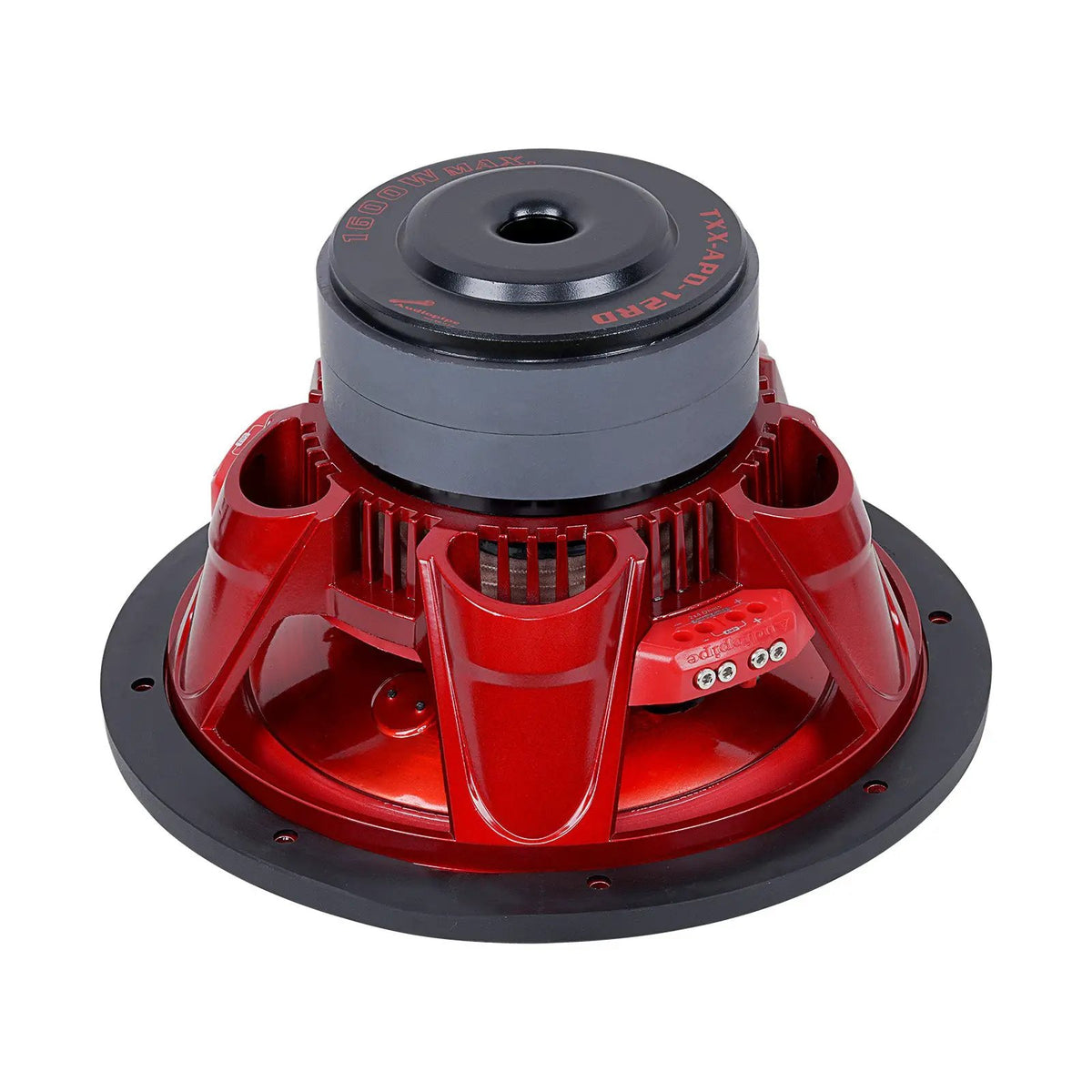

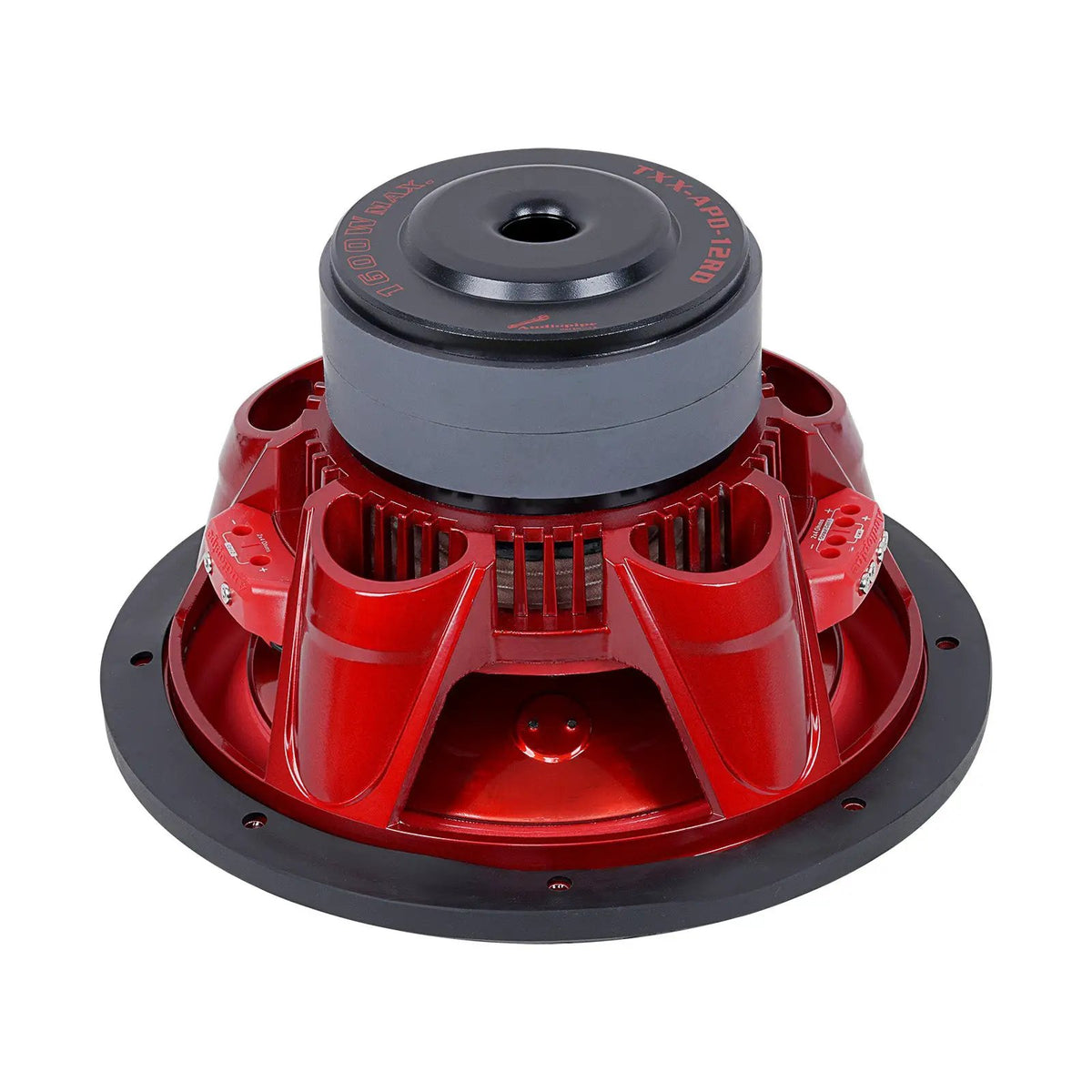

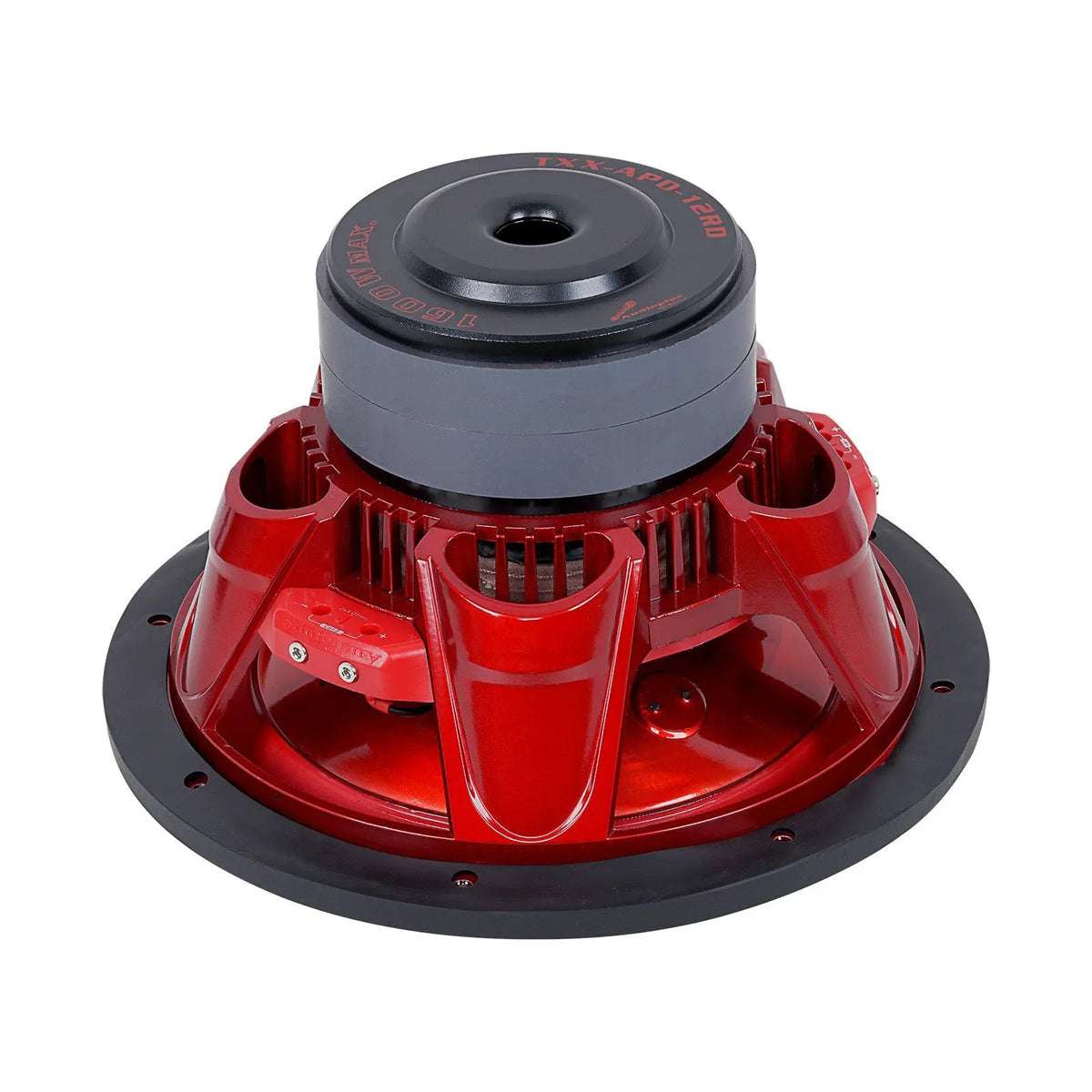

- Cast aluminum basket: The powdered pipe-shape design is intended to handle heat while maintaining structural integrity.
- Multi-connect terminals: Support parallel or series wiring configurations.
Technical Specifications
| Specification | Detail |
|---|---|
| Brand | Audiopipe |
| Model | TXX-APD-12RD |
| Product type | 12-inch subwoofer |
| Power handling | 1,600 watts peak; 800 watts RMS |
| Magnet | 120 oz |
| Frequency response | 25–800 Hz |
| Sensitivity | 96 dB |
| Voice coil | Dual 4 ohm; 3-inch, 4-layer, high-temperature black aluminum (BASV) |
| Cone | Inverted aluminum |
| Basket | Powdered pipe-shape cast aluminum |
| Terminals | Patented pipe multi-connect terminals; parallel or series configurations |
| Mounting depth | 178 mm (7 inches) |
| Sale quantity | Sold individually |
Why Choose This Product?
The TXX-APD-12RD combines an 800-watt RMS rating with a 120-ounce magnet and a ventilated voice coil. Its cast aluminum basket and inverted aluminum cone make the design’s materials clear, while the multi-connect terminals offer wiring choices for your system plan.
The subwoofer is sold individually, so you can select the quantity that suits your setup. Check the RMS rating, impedance, and available mounting space as you choose supporting equipment.
Installation & Compatibility Notes
Allow for the listed 178 mm (7-inch) mounting depth, and confirm that the installation location has sufficient clearance. The dual 4-ohm coils can be wired in series or parallel using the supplied terminal design; confirm the resulting load is suitable for your amplifier before connecting.
Frequently Asked Questions
What are the power ratings?
The TXX-APD-12RD is rated at 800 watts RMS and 1,600 watts peak. Use the RMS figure when comparing continuous amplifier output.
What impedance are the voice coils?
It has dual 4-ohm voice coils. The terminals support series or parallel wiring, so account for the final load when planning the amplifier connection.
How much mounting depth should I allow?
The listed mounting depth is 178 mm (7 inches). Check available space at the intended mounting location.
Is this subwoofer sold as a pair?
No. The product is sold individually.
