Audiopipe TXX-BDC-II-10 10“ Double Stack Composite Cone Subwoofer
Key features
- Subwoofer size: 10.0 inches
- RMS power per subwoofer: 600 W
- Voice-coil options: D4
- MAGNET: Boasting 2 magnets for strong power handling, 100 Oz
- FREQUENCY RESPONSE: 24-1,000Hz
- SENSITIVITY: 86dB
Audiopipe TXX-BDC-II-10 10“ Double Stack Composite Cone Subwoofer is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview

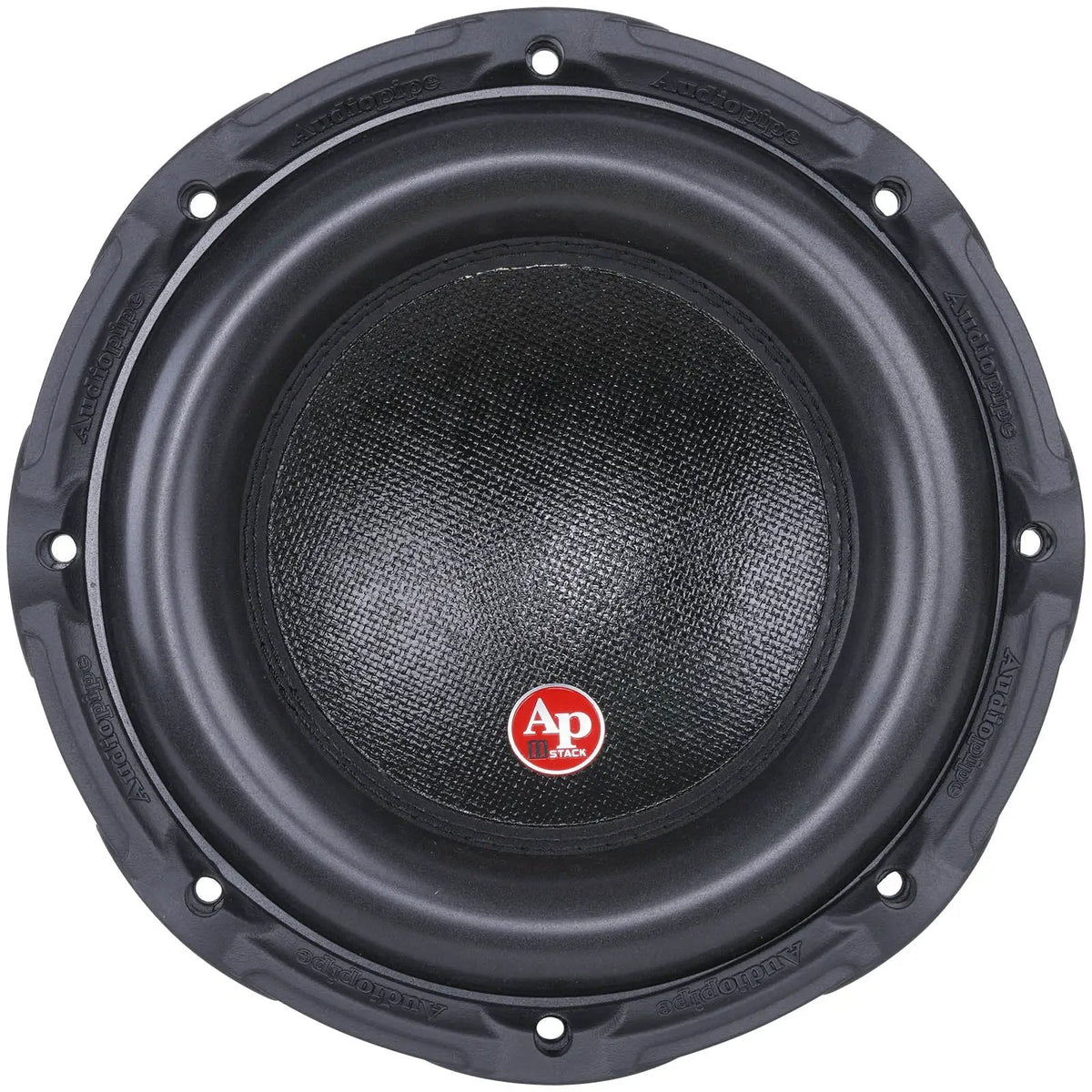

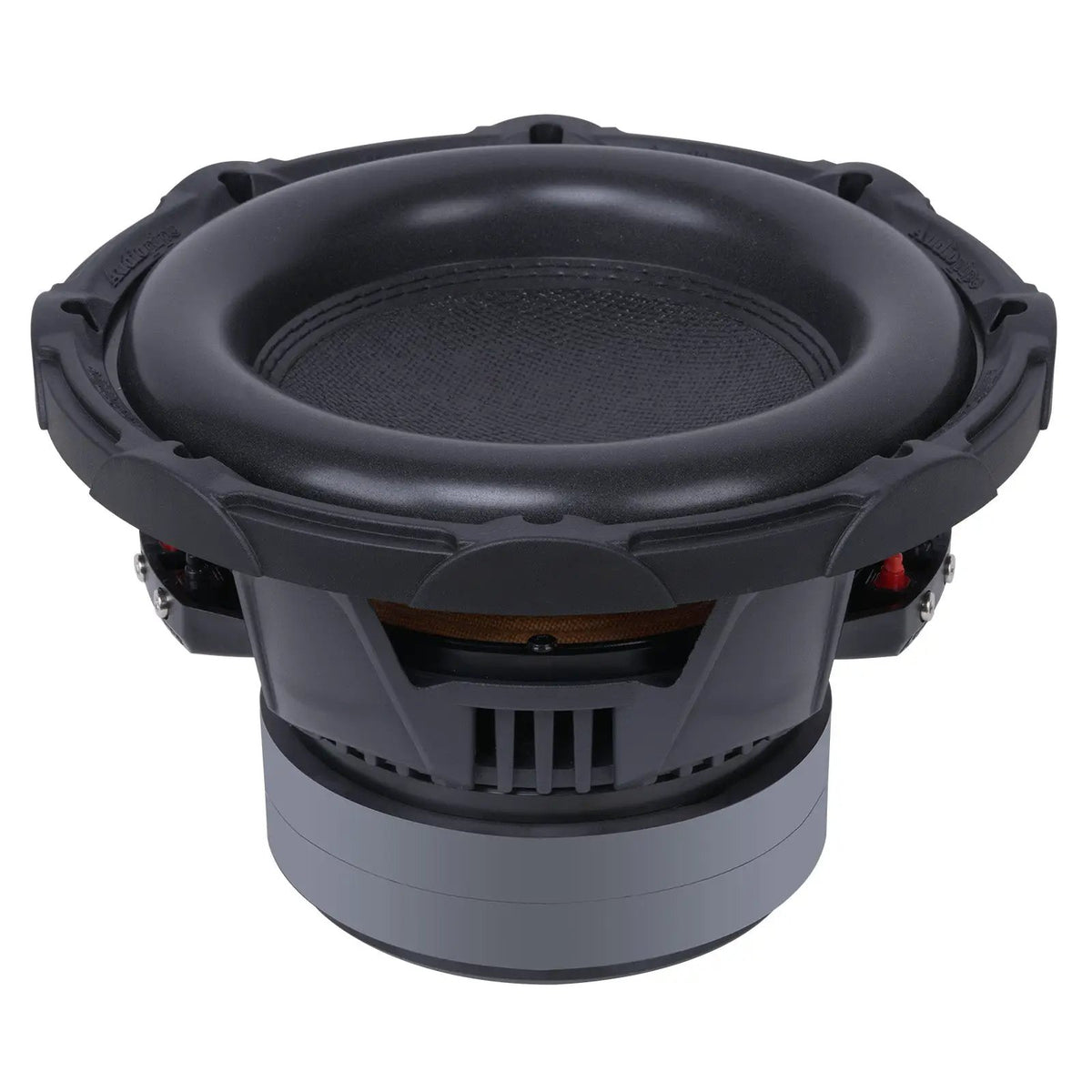

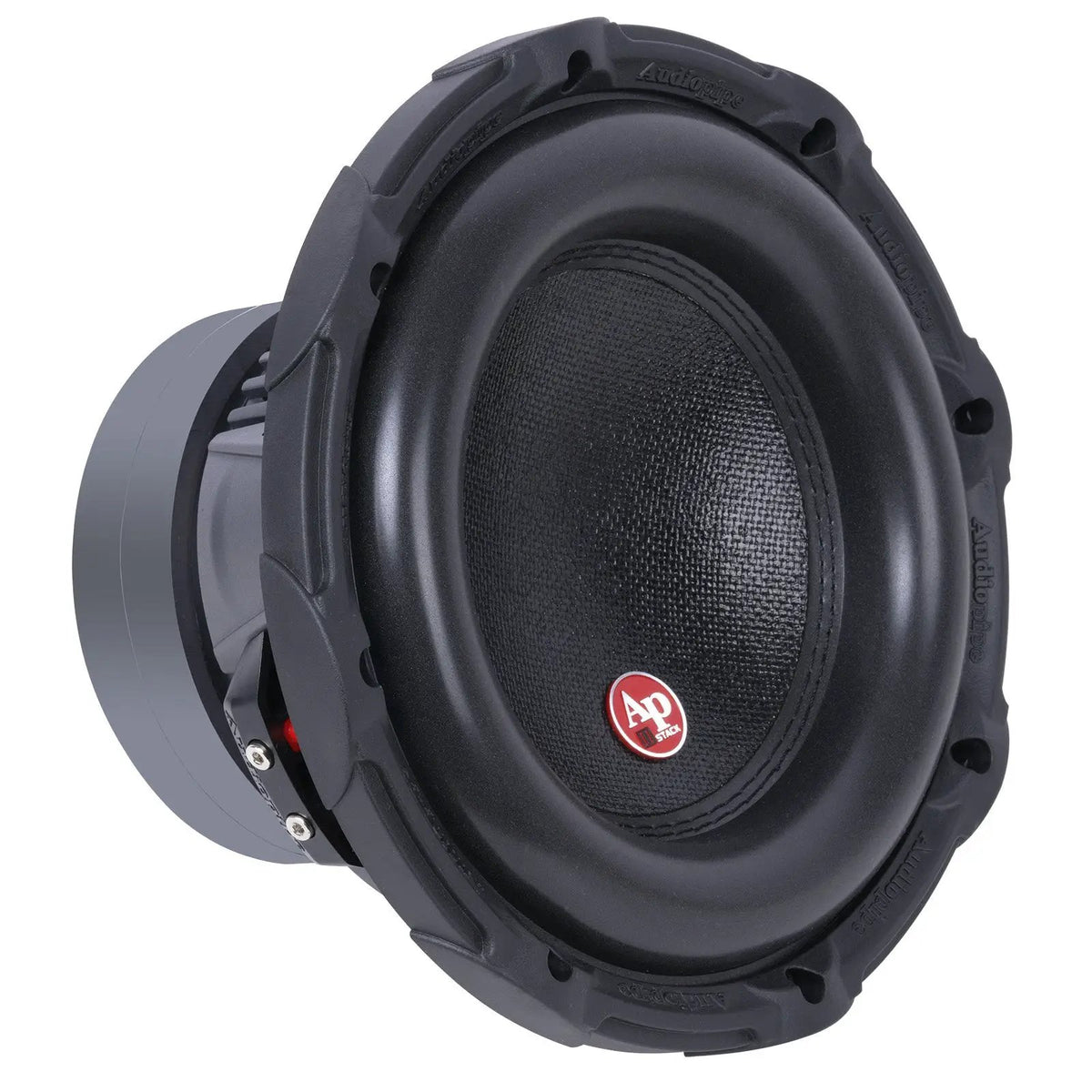

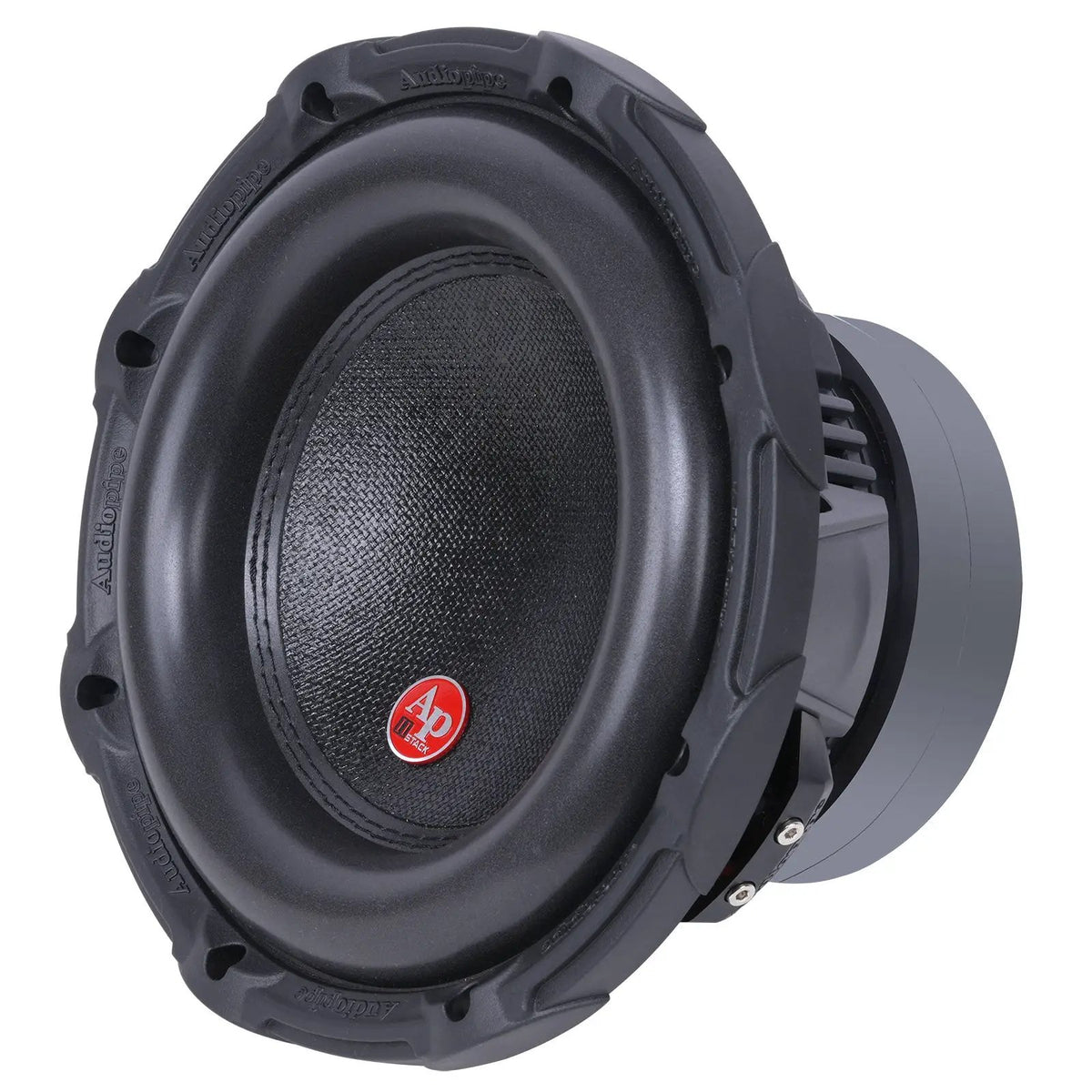

Add a 10-inch subwoofer to your car audio system with the Audiopipe TXX-BDC-II-10 Double Stack Composite Cone Subwoofer. It combines a dual 4-ohm voice coil, 600 watts RMS power handling, and a Kevlar fiber composite cone.

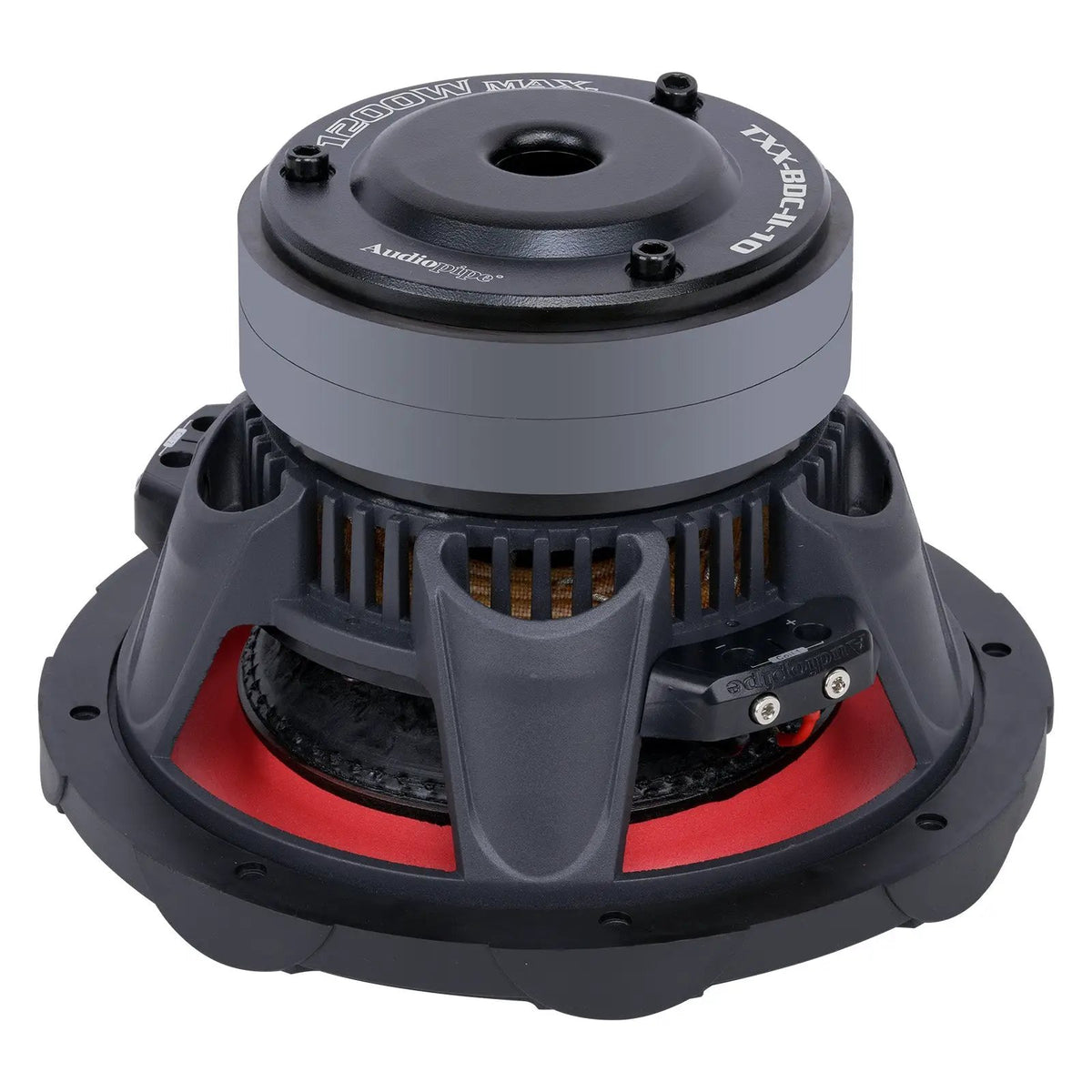

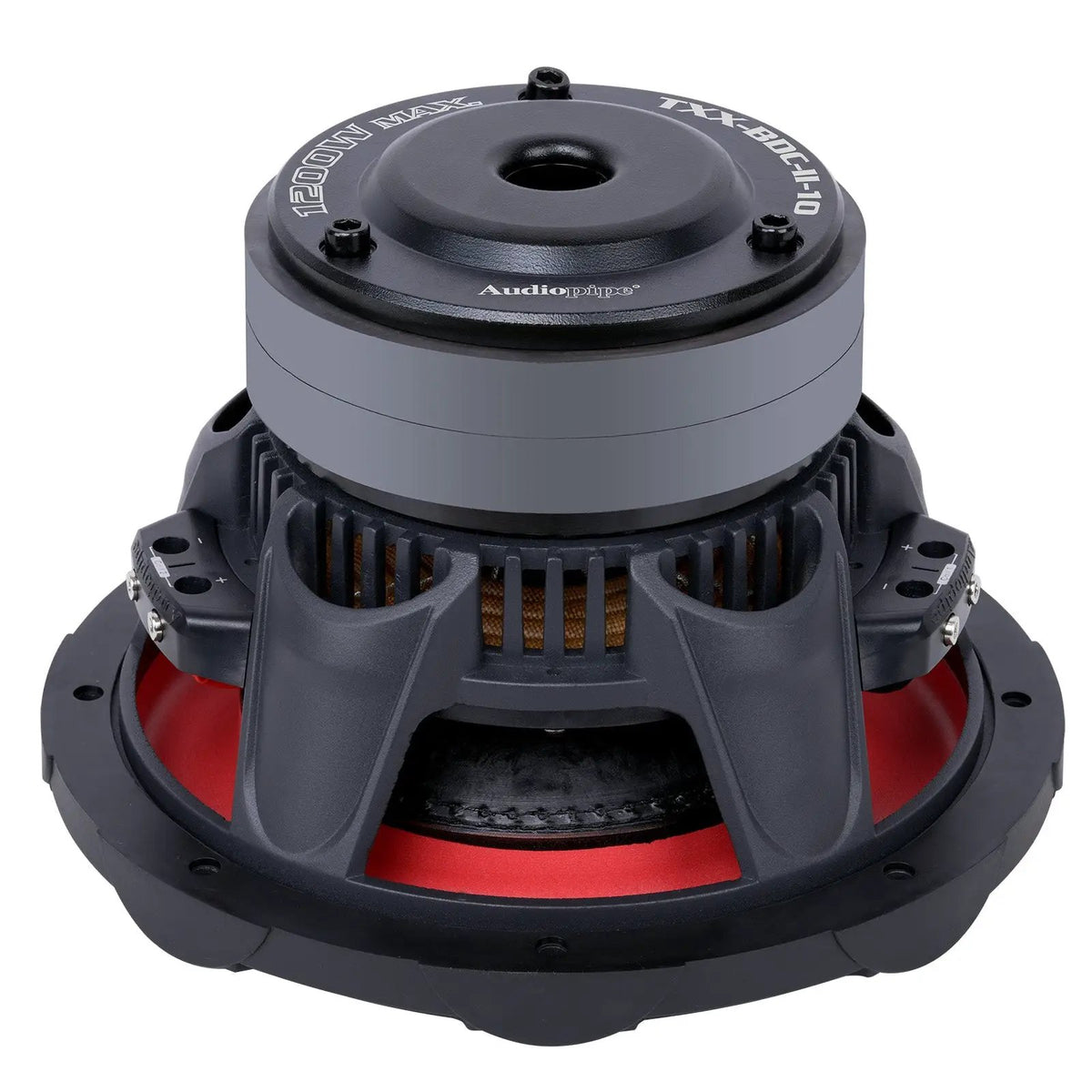

Its dual magnets and increased voice coil ventilation are designed for power handling and endurance. The multi-connect terminals support parallel or series wiring configurations.
Key Features & Benefits
- 600 watts RMS: This power rating helps you match the subwoofer to an appropriate system.
- Dual 4-ohm voice coil: The two voice coils give you parallel or series wiring options through the multi-connect terminals.
- Kevlar fiber composite cone: Its textured, non-press paper construction is designed for improved cone rigidity.
- Increased voice coil ventilation: The design supports performance and endurance during use.

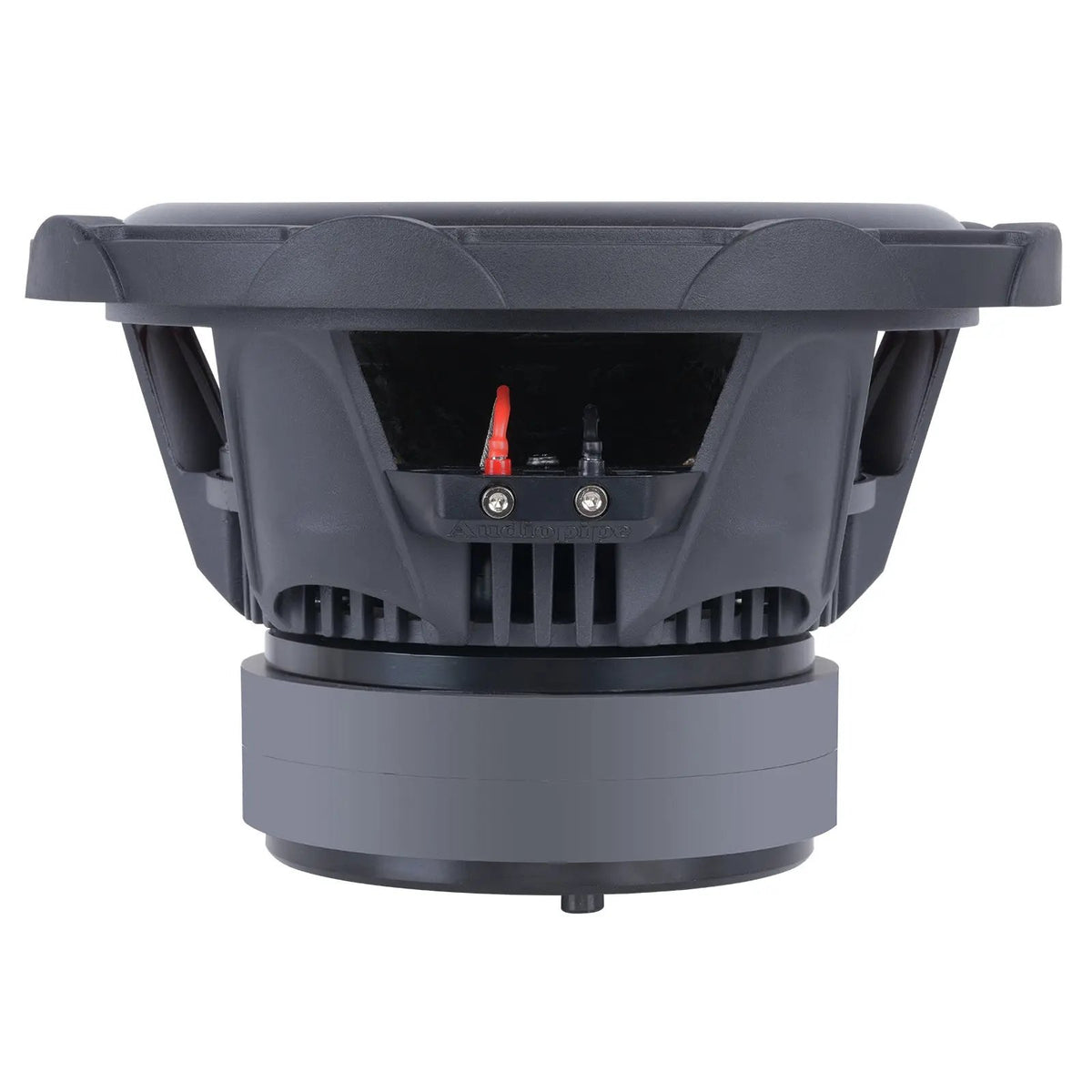

- Powder-coated aluminum basket: The black-painted basket is paired with a composite glass fiber dust cap and dust-proof heat sink.

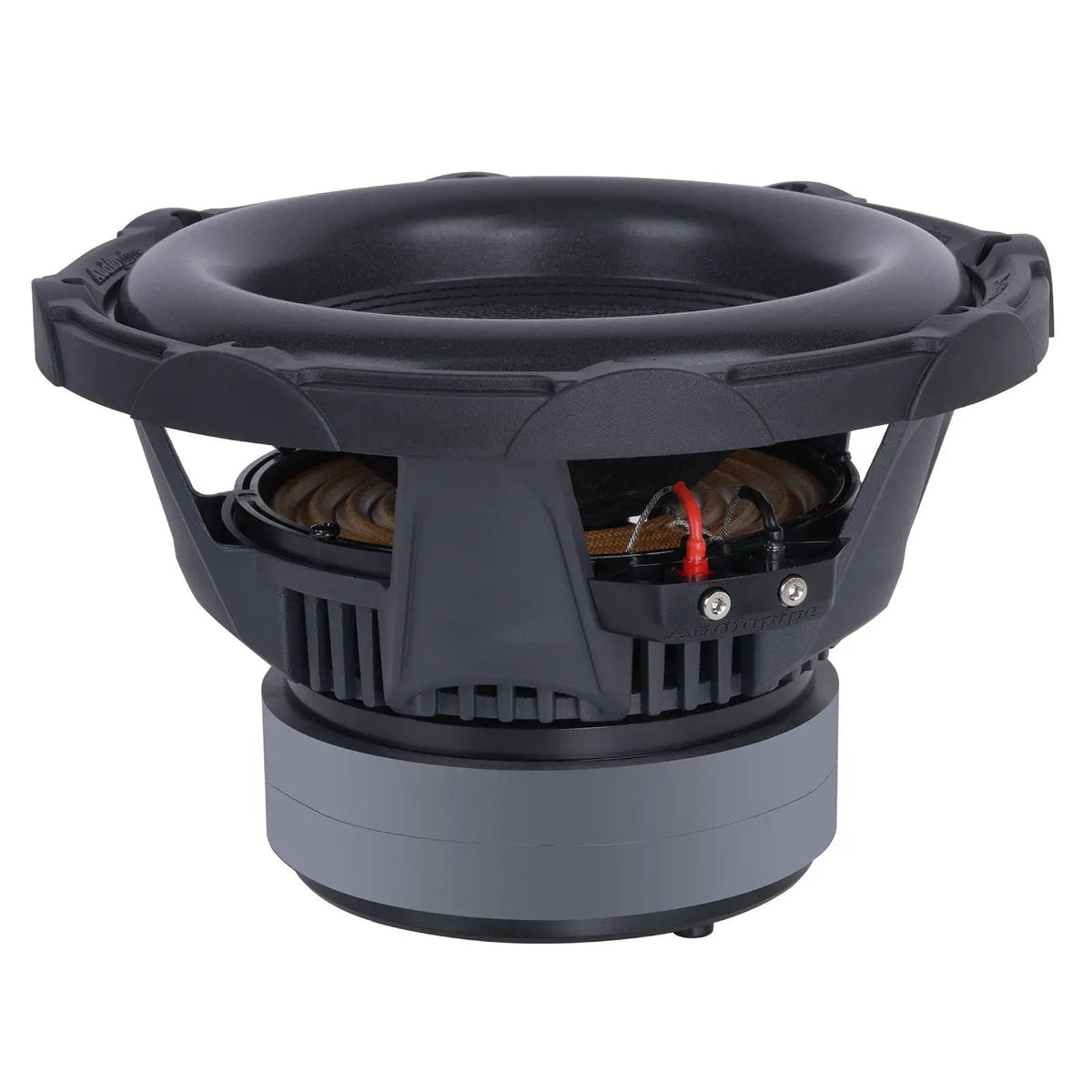

- Quad-weaved tinsel leads: Progressive woven leads on each side are designed for sound quality and durability.
Technical Specifications
| Model | TXX-BDC-II-10 |
|---|---|
| Subwoofer size | 10 inches |
| Peak power | 1200 watts |
| RMS power | 600 watts |
| Magnet | 2 magnets, 100 Oz |
| Frequency response | 24-1,000Hz |
| Sensitivity | 86dB |
| Voice coil | Dual 4 ohm, 2.5 inch, 4-layer high temperature black aluminum (BASV) |
| Impedance | 2 x 4 Ohms |
| Basket | Powdered black paint aluminum |
| Dust cap | Composite glass fiber |
| Cone | Kevlar Fiber Composite Non-press Paper Cone with Texture finish |
| Leads | Quad weaved tinsel leads |

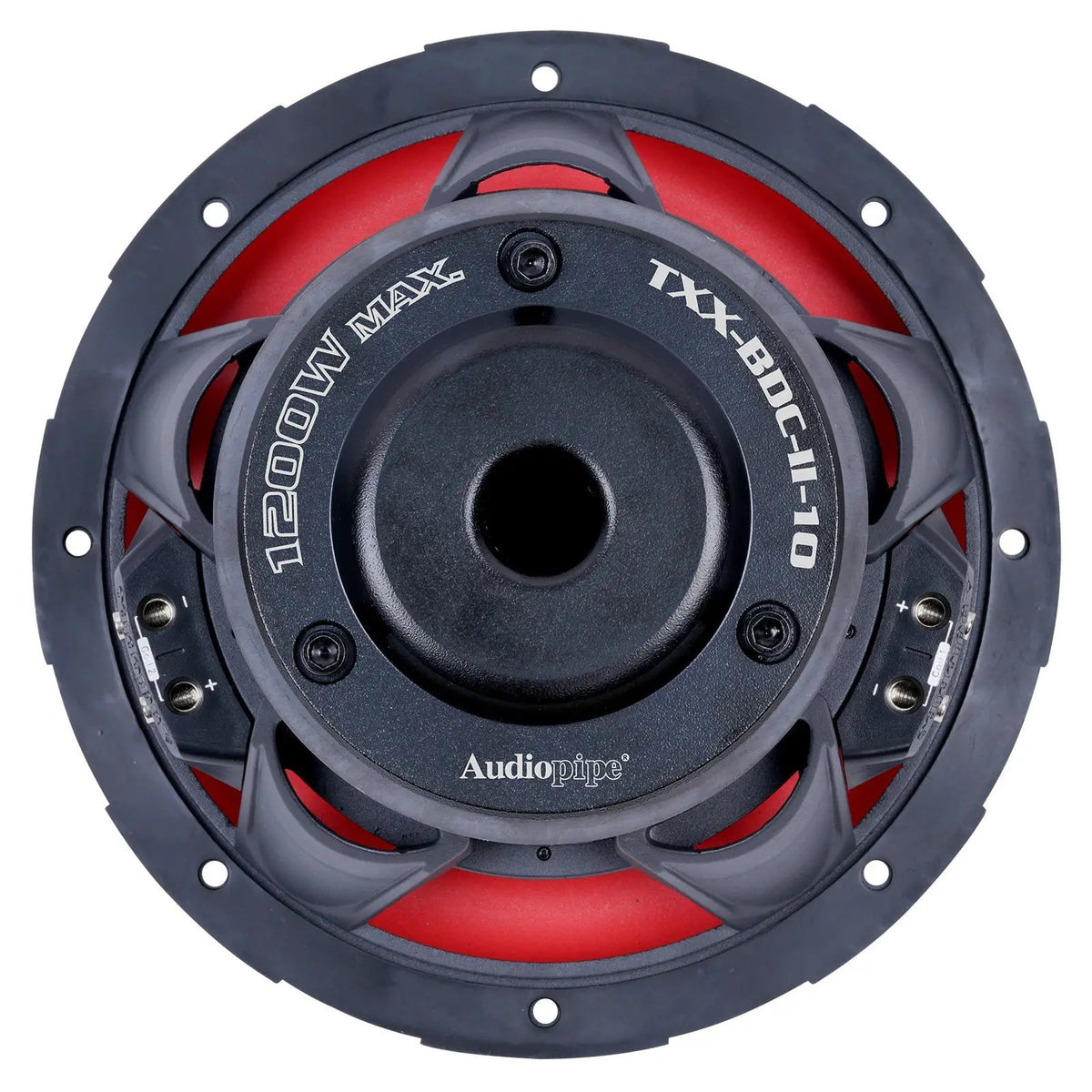

| Terminals | Patented pipe multi-connect terminals; supports parallel or series configurations |
| Mounting depth | 159 mm (6-1/4”) |
Why Choose This Product?
The TXX-BDC-II-10 brings together a composite cone, dual magnets, and a ventilated voice coil in a 10-inch car audio subwoofer. Its dual 4-ohm voice coil and multi-connect terminals offer wiring options, while the published RMS and peak ratings help you assess amplifier matching.
Installation & Compatibility Notes
Allow for the listed 159 mm (6-1/4”) mounting depth when checking enclosure space. Confirm your amplifier and planned wiring configuration are appropriate for the subwoofer’s dual 4-ohm voice coils before installation.
Frequently Asked Questions
What are the power ratings of the TXX-BDC-II-10?
It is rated for 600 watts RMS and 1200 watts peak power.
What does dual 4-ohm voice coil mean for wiring?
The subwoofer has two 4-ohm voice coils. Its multi-connect terminals support parallel or series configurations.
How much mounting depth should I allow?
The listed mounting depth is 159 mm (6-1/4”). Check the available mounting space before installation.
What cone material does this subwoofer use?
It uses a textured Kevlar Fiber Composite Non-press Paper Cone, designed to improve cone rigidity.
