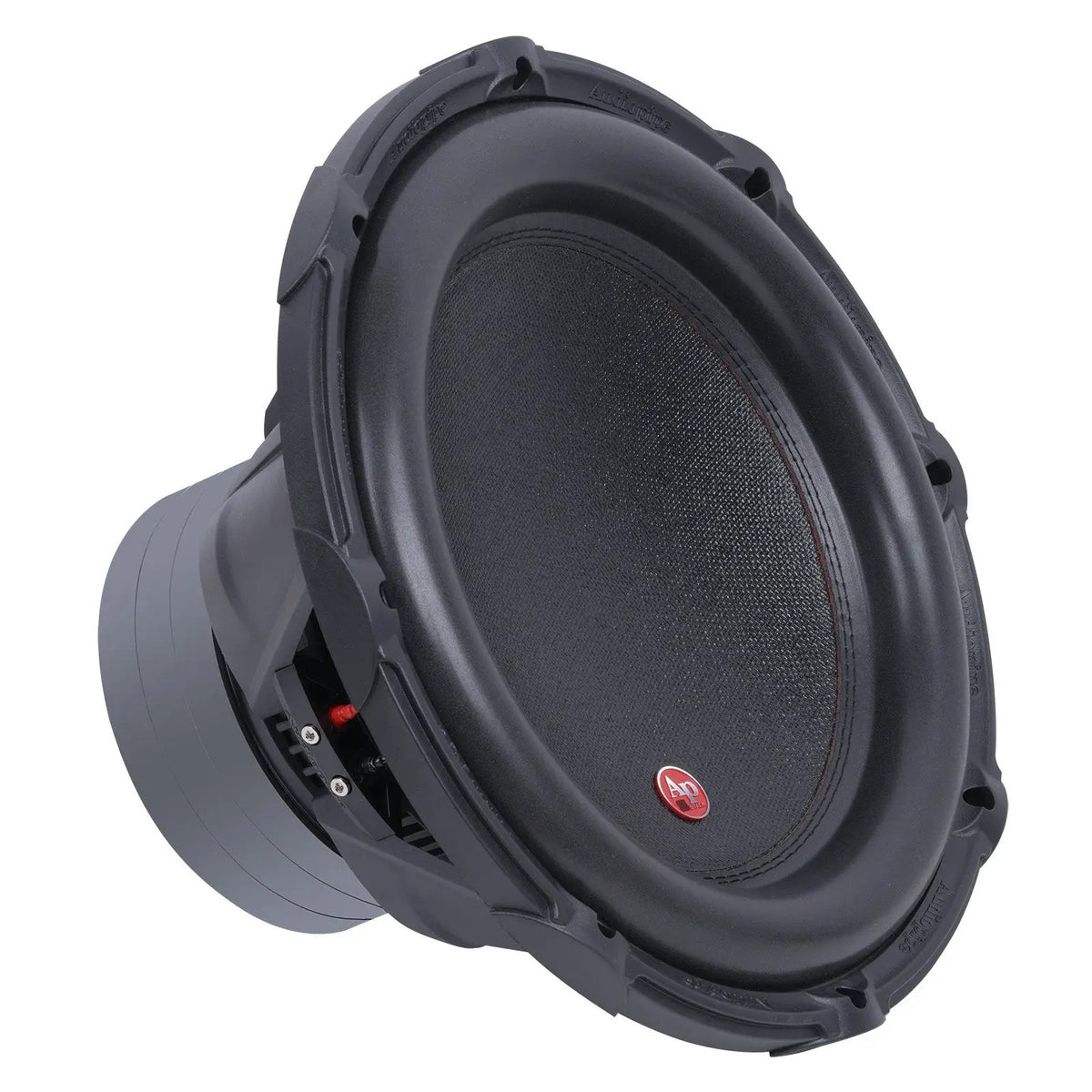

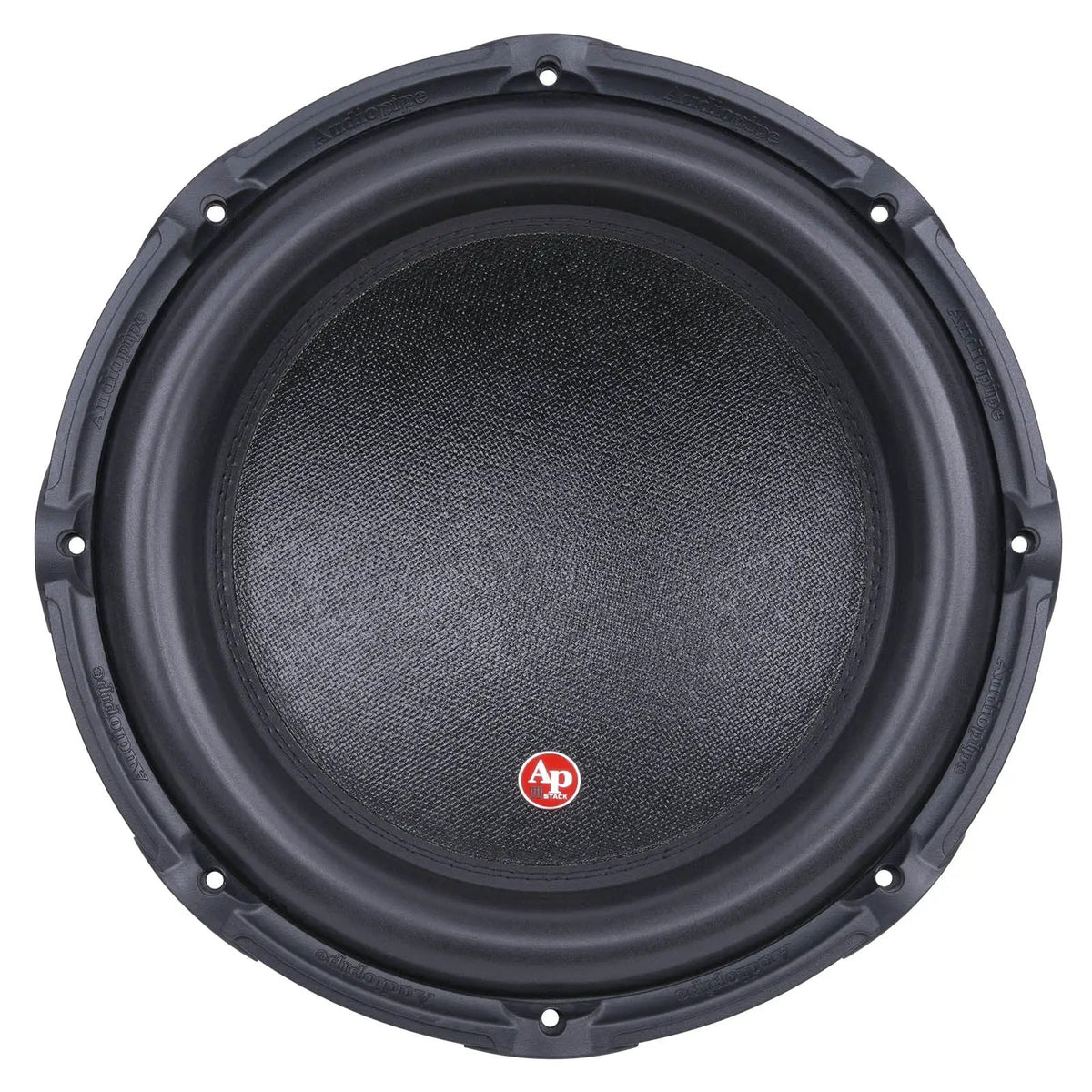

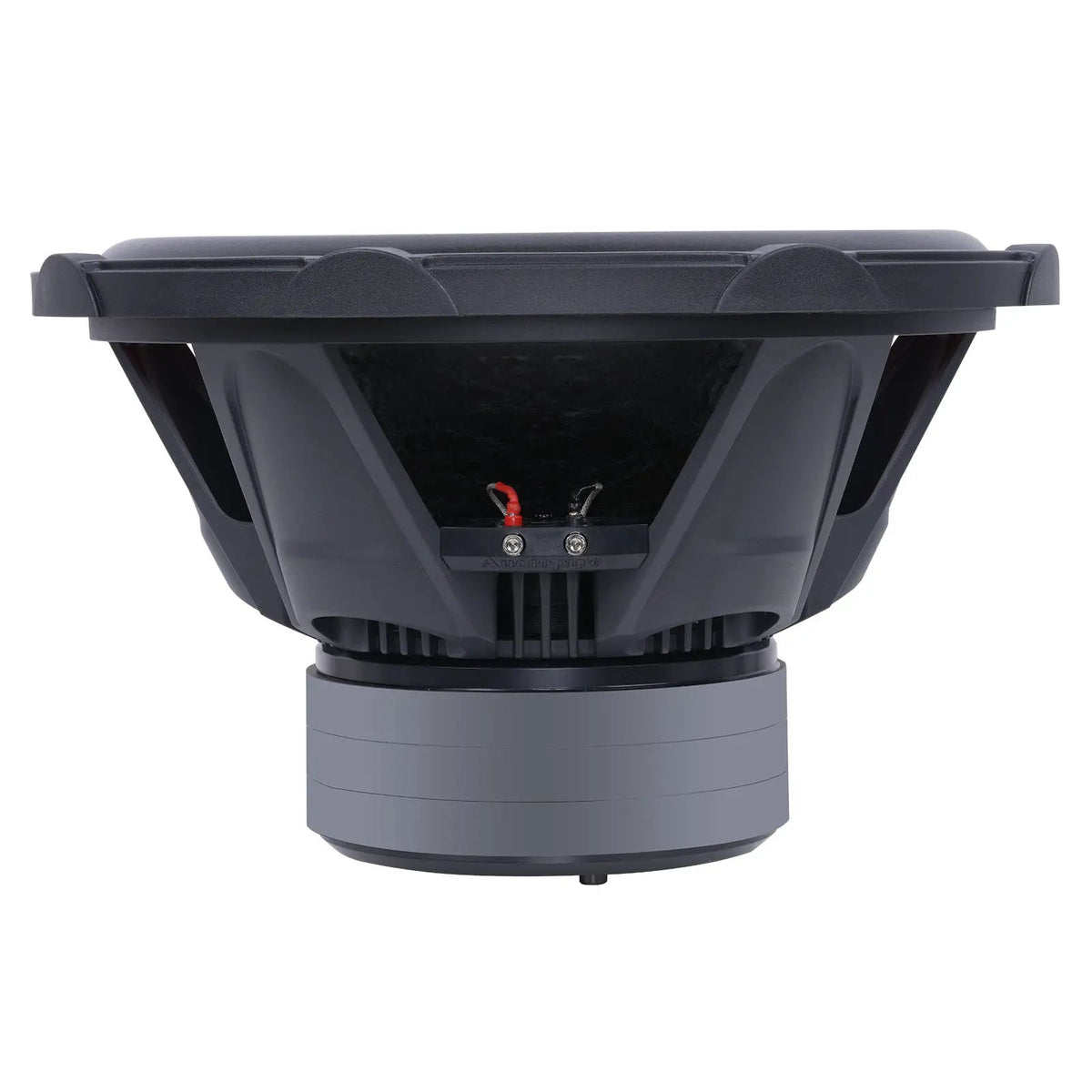

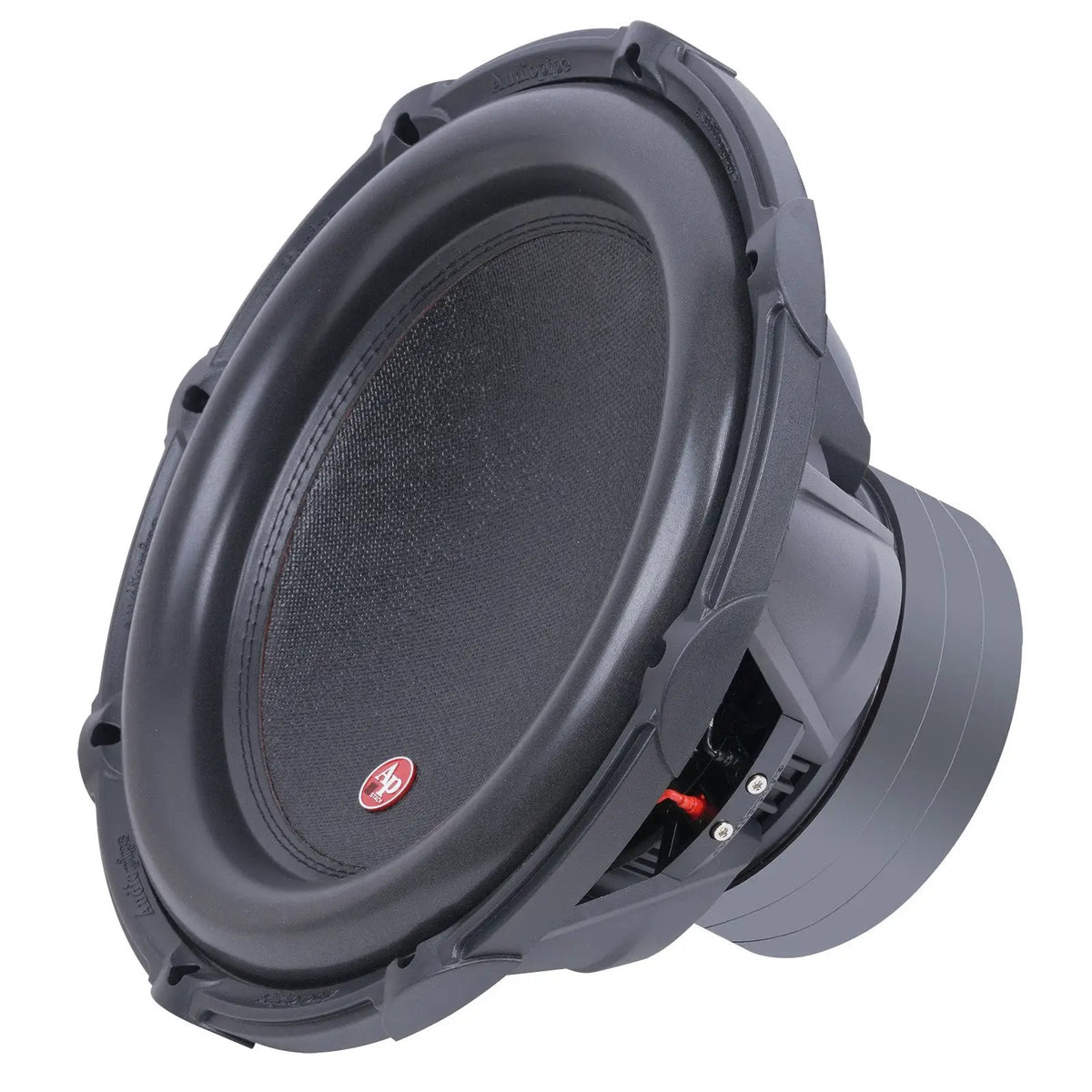

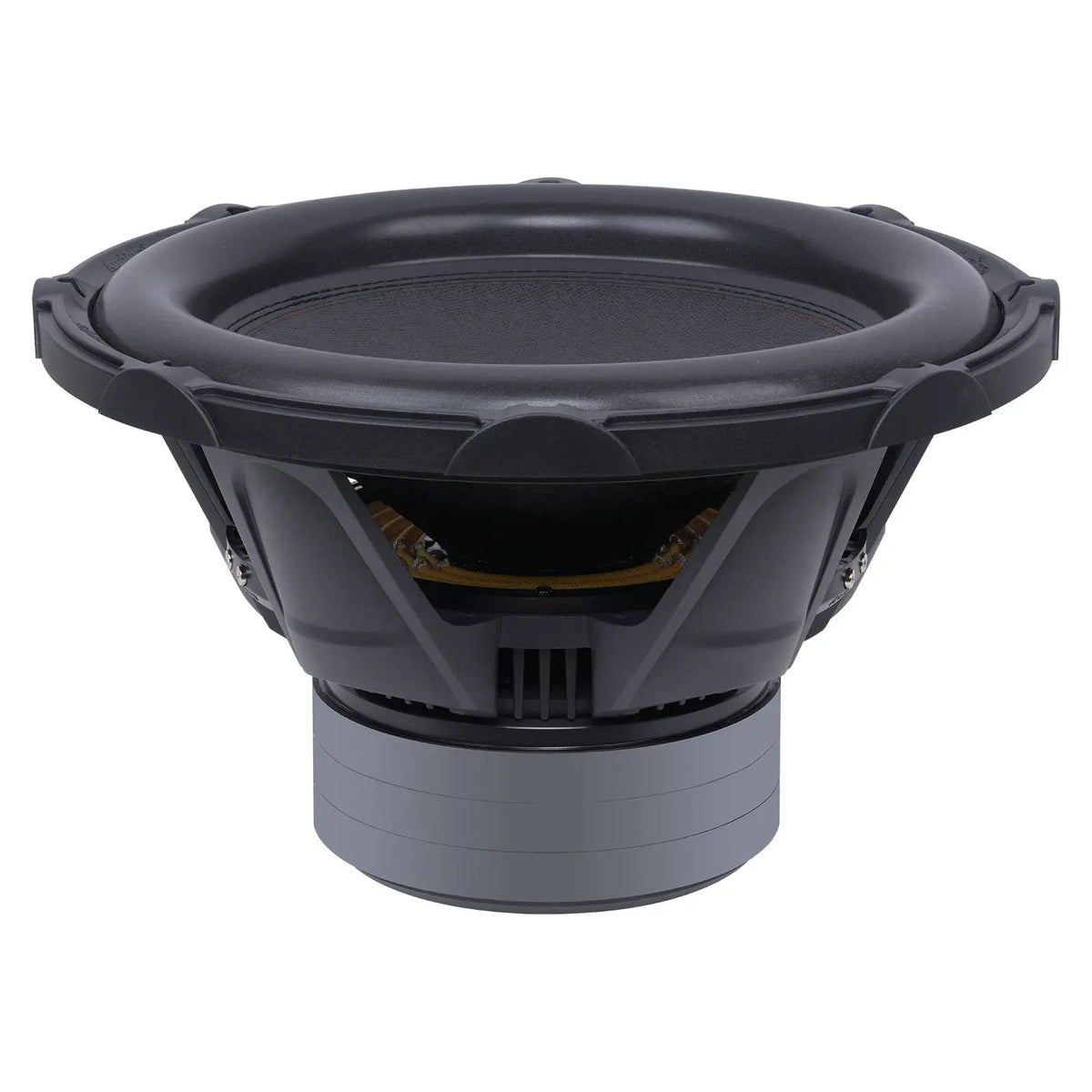

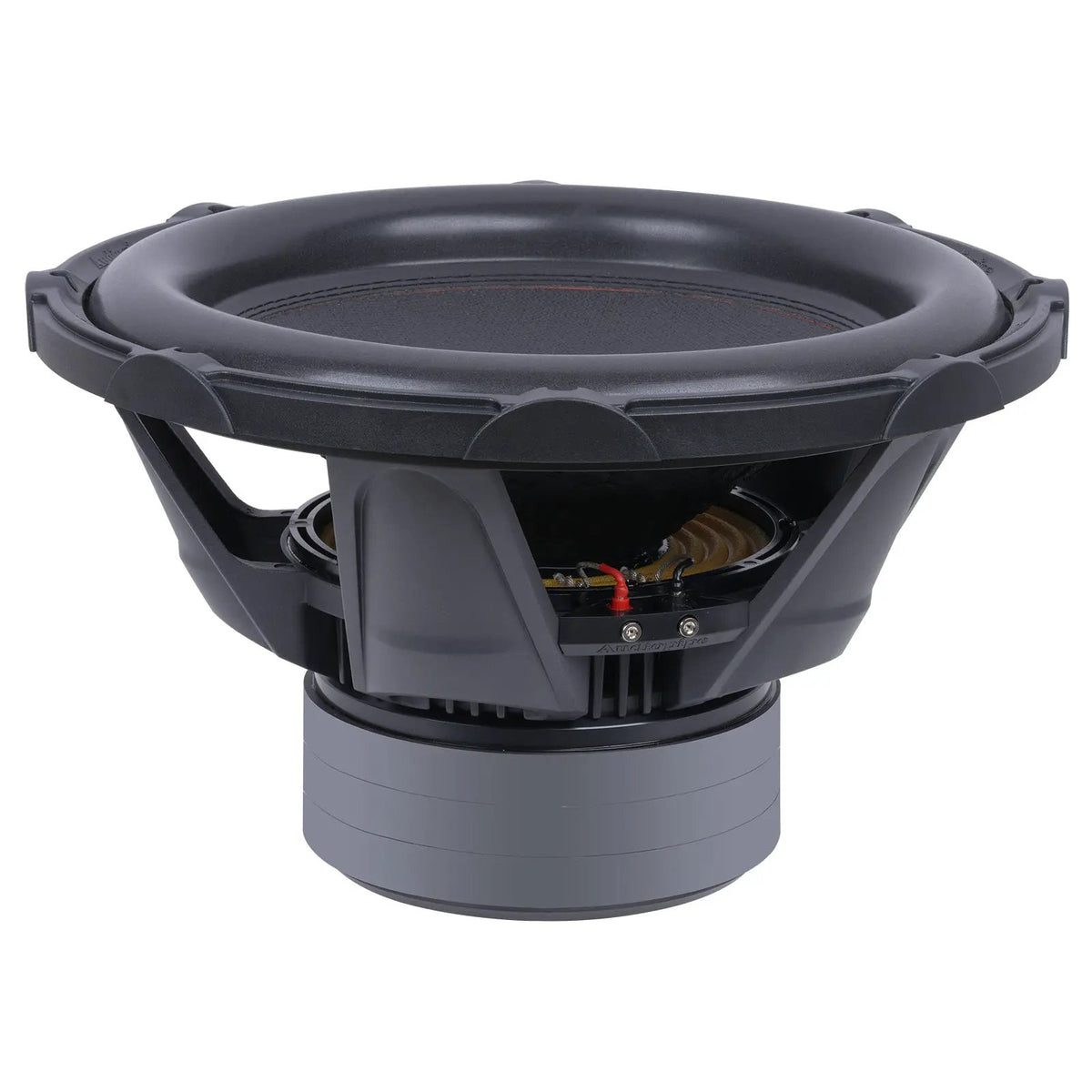

Audiopipe TXX-BDC-III-10 10" Triple Stack Composite Cone Subwoofer
Key features
- Subwoofer size: 10.0 inches
- RMS power per subwoofer: 700 W
- Voice-coil options: D4
- MAGNET: Boasting 3 magnets for strong power handling, 132 Oz
- FREQUENCY RESPONSE: 24-1500Hz
- SENSITIVITY: 93dB
Audiopipe TXX-BDC-III-10 10" Triple Stack Composite Cone Subwoofer is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview
Add high-output bass to your car audio system with the Audiopipe TXX-BDC-III-10 10-inch triple stack composite cone subwoofer. It combines 700 watts RMS power handling, a dual 4-ohm voice coil, and a textured Kevlar fiber composite non-press paper cone.
Its three-magnet design, increased voice coil ventilation, and reinforced cone construction are built for performance and endurance. The multi-connect terminals support series or parallel wiring configurations.
Key Features & Benefits
- 700 watts RMS: Gives you the continuous power-handling rating for planning your car audio system.
- Three-magnet design: Uses a 132 oz magnet configuration.
- Dual 4-ohm voice coil: Offers series and parallel connection options through the multi-connect terminals.
- Ventilated voice coil: Increased ventilation is designed to support performance and endurance.
- Textured composite cone: Kevlar fiber composite non-press paper construction is designed to improve cone rigidity.
- Aluminum basket: The powdered black paint finish and dust-proof heat sink are designed for sound quality and endurance.
Technical Specifications
| Model | TXX-BDC-III-10 |
|---|---|
| Subwoofer size | 10" |
| Peak power | 1400 Watts |
| RMS power | 700 watts |
| Magnet | 3 magnets; 132 Oz |
| Frequency response | 24-1500Hz |
| Sensitivity | 93dB |
| Voice coil | Dual 4 ohm, 2.6 inch, 4-layer high temperature black aluminum (BASV); increased voice coil ventilation |
| Impedance | 2 x 4 Ohms |
| Cone | Kevlar Fiber Composite Non-press Paper Cone with Texture finish |
| Basket | Powdered black paint aluminum basket |
| Dust cap | Composite glass fiber |
| Heat sink | Dust-proof heat sink |
| Tinsel leads | Quad weaved; progressive weaved tinsel leads on each side of the subwoofer |
| Terminals | Patented pipe multi-connect terminals for parallel or series configurations |
| Mounting depth | 173mm (6-13/16”) |
Why Choose This Product?
The TXX-BDC-III-10 brings together a triple-stack magnet design, a ventilated voice coil, and a rigid composite cone. Its dual 4-ohm voice coil and multi-connect terminals give you series or parallel wiring options when planning your system.
The textured cone, composite glass fiber dust cap, and powdered black aluminum basket give this subwoofer a distinctive combination of materials and construction details.
Installation & Compatibility Notes
Allow for the listed 173mm (6-13/16”) mounting depth when checking your installation space. Confirm that your system design supports the subwoofer’s dual 4-ohm voice coil and intended series or parallel wiring configuration.
Frequently Asked Questions
What are the power ratings of the TXX-BDC-III-10?
It is rated for 1400 watts peak power and 700 watts RMS power.
What is the voice coil impedance?
The subwoofer has a dual 4-ohm voice coil, listed as 2 x 4 Ohms.
Can I wire the subwoofer in series or parallel?
Its patented pipe multi-connect terminals are designed to support either series or parallel configurations.
How much mounting depth should I allow?
Allow for a mounting depth of 173mm (6-13/16”). Check your available installation space before purchase.
What cone material does this subwoofer use?
It uses a textured Kevlar fiber composite non-press paper cone designed to improve cone rigidity.
