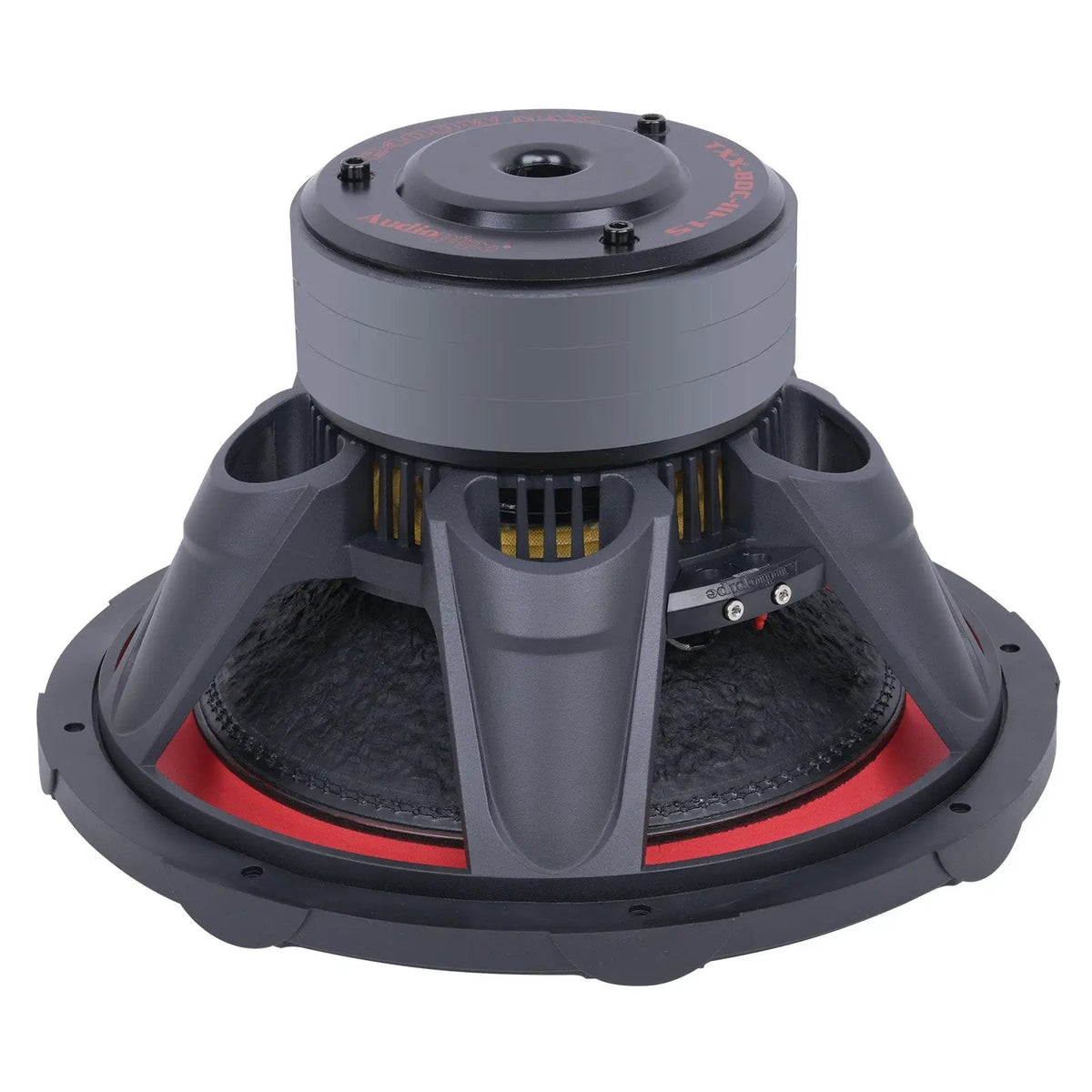

Audiopipe TXX-BDC-III-15 15" Triple Stack Composite Cone Subwoofer
Key features
- Subwoofer size: 15.0 inches
- RMS power per subwoofer: 1200 W
- Voice-coil options: D4

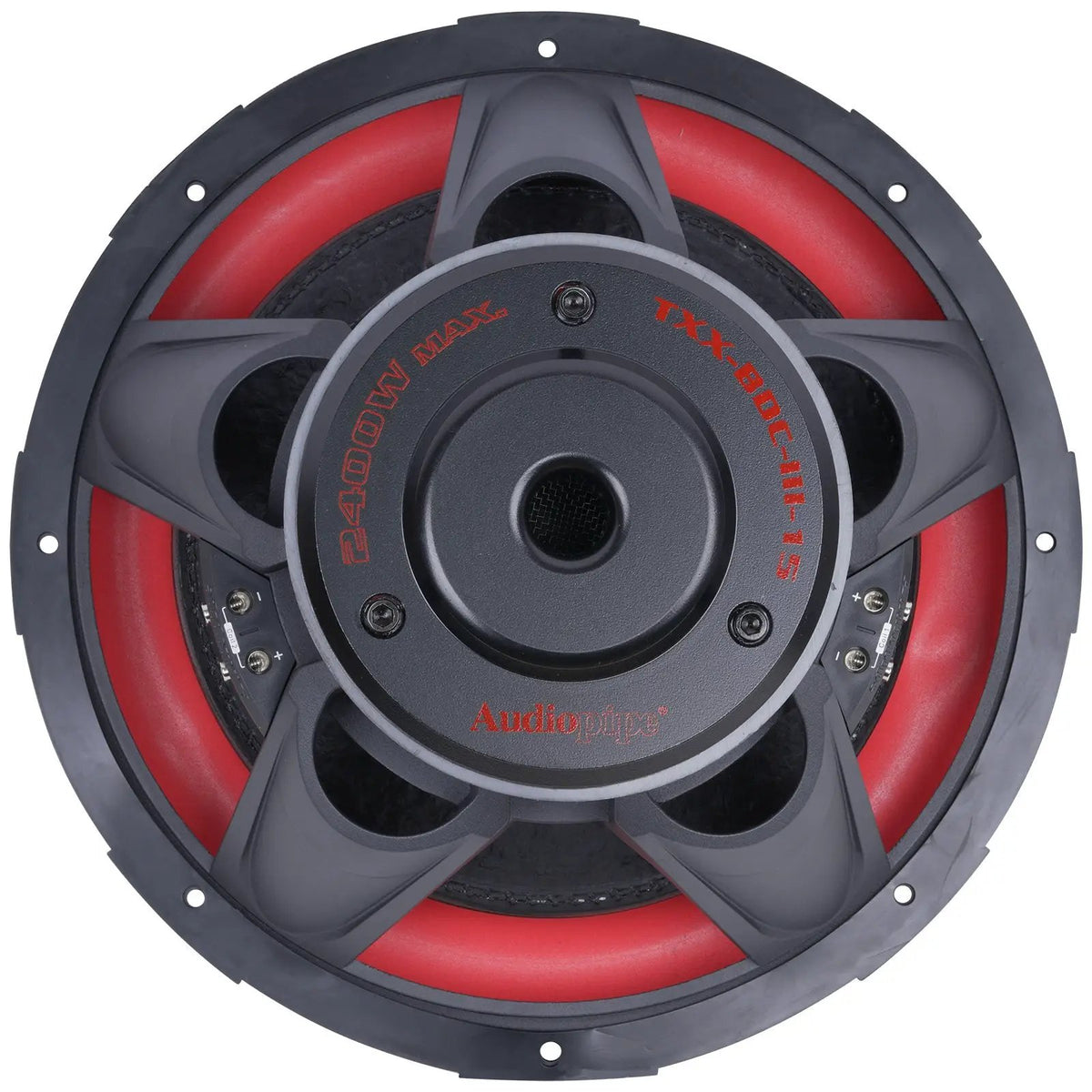

- MAGNET: Boasting 3 magnets for strong power handling, 220 Oz
- FREQUENCY RESPONSE: 18-800Hz
- SENSITIVITY: 97dB
Audiopipe TXX-BDC-III-15 15" Triple Stack Composite Cone Subwoofer is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview
Add a high-power 15-inch subwoofer to your car audio system with the Audiopipe TXX-BDC-III-15 Triple Stack Composite Cone Subwoofer. Its 1,200-watt RMS rating, dual voice coil, and textured Kevlar fiber composite cone give you key details to consider when planning a system upgrade.
Key Features & Benefits

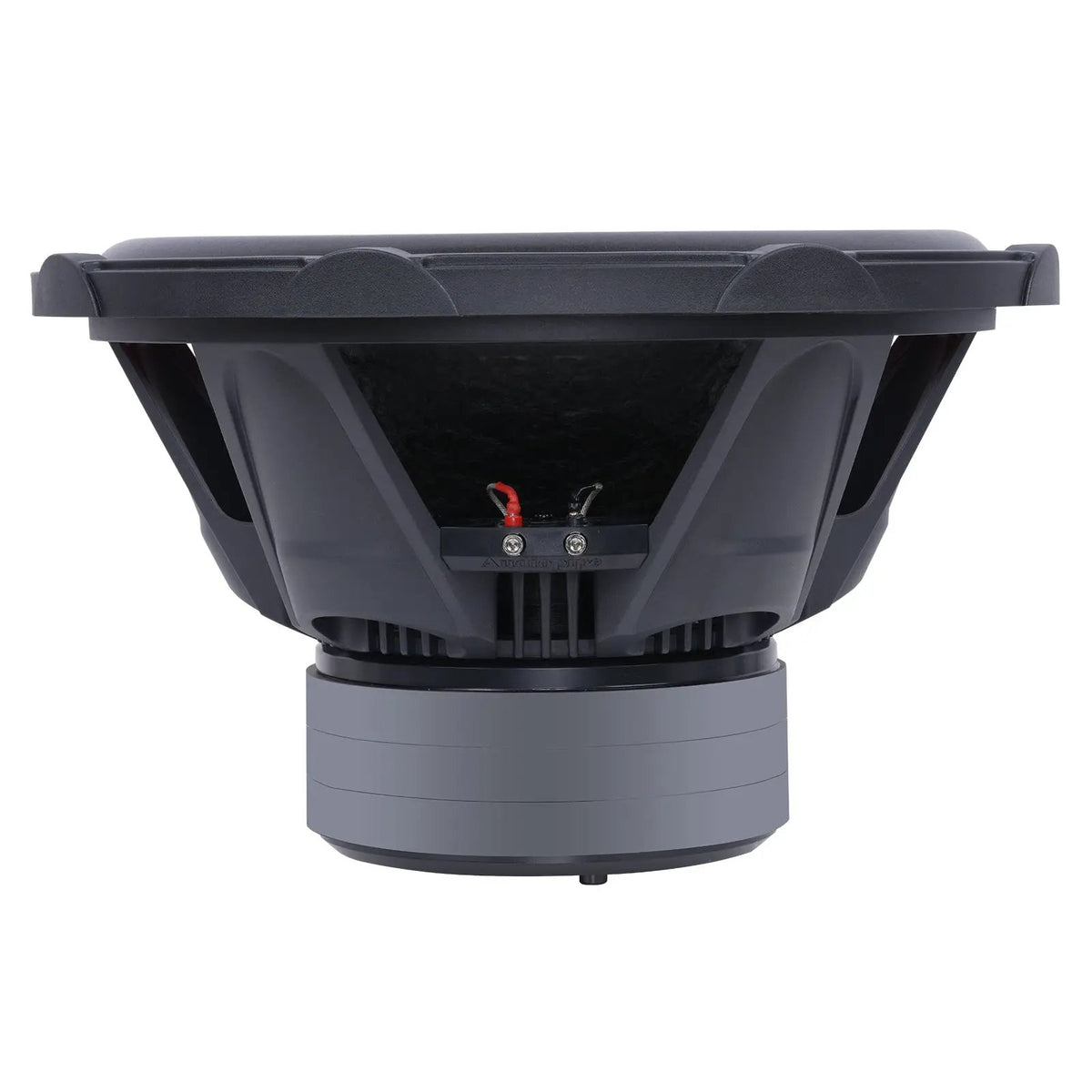

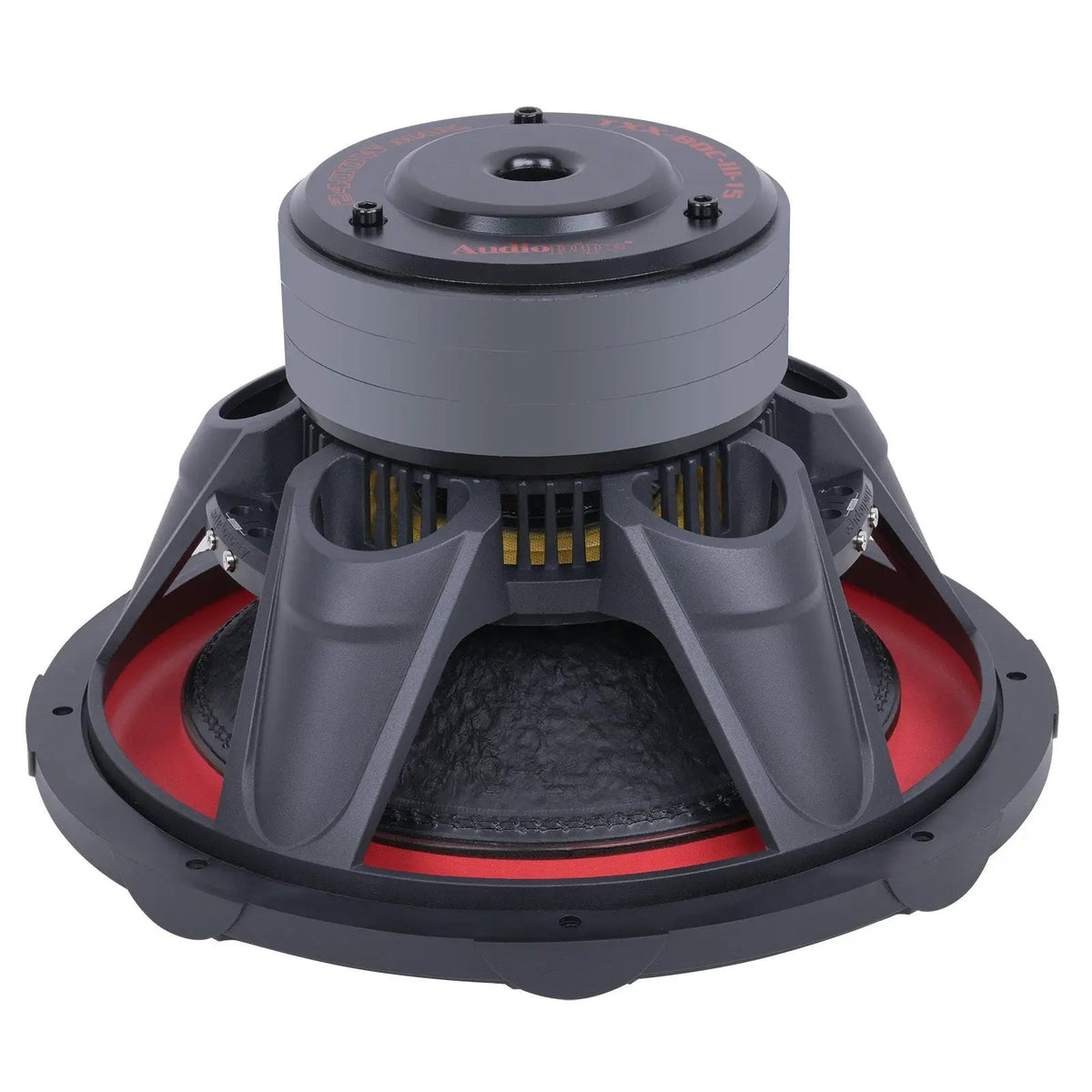

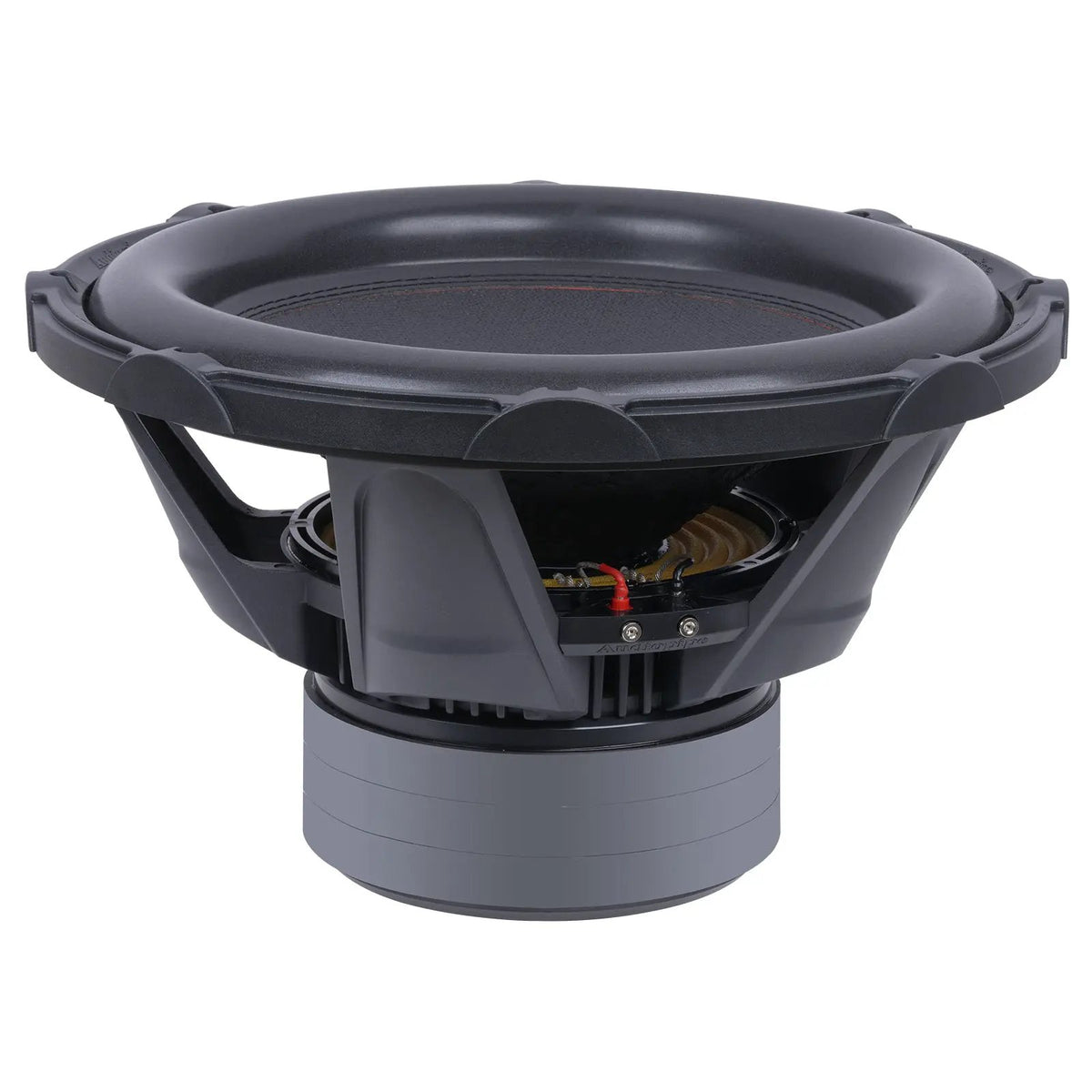

- Triple-magnet design: Three magnets with a 220-ounce magnet weight support the subwoofer’s power-handling design.
- Ventilated voice coil: Increased voice coil ventilation is designed to support performance and endurance.

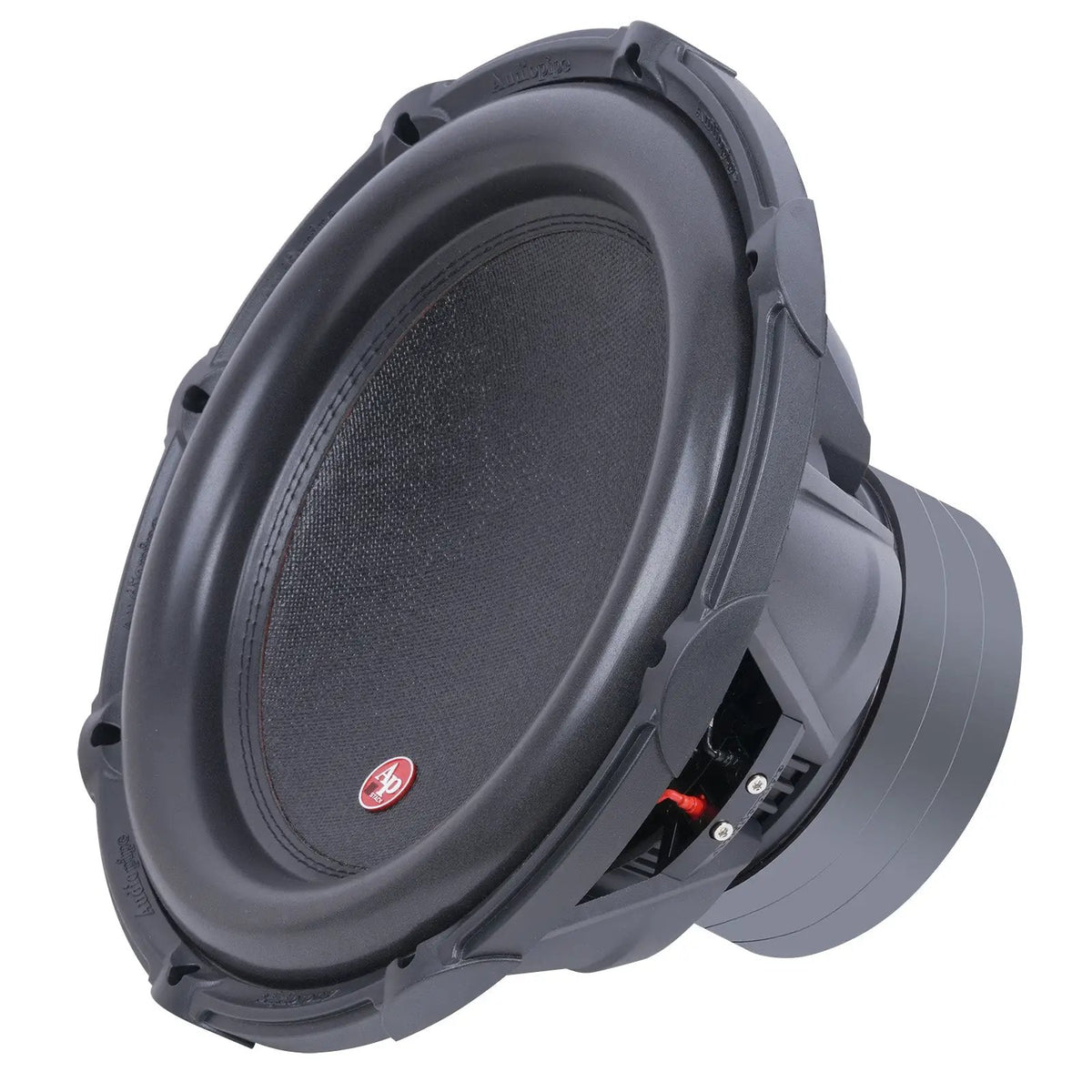

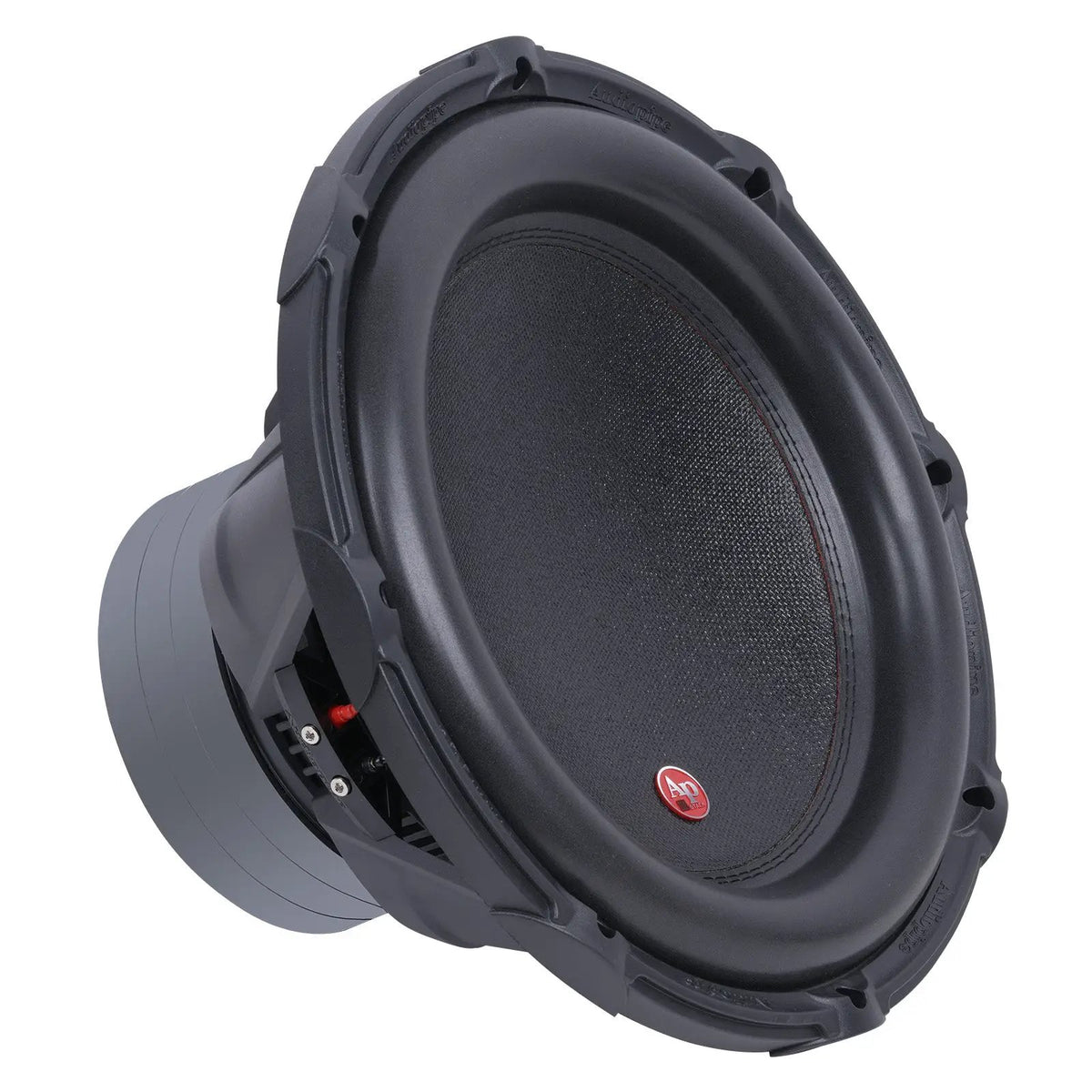

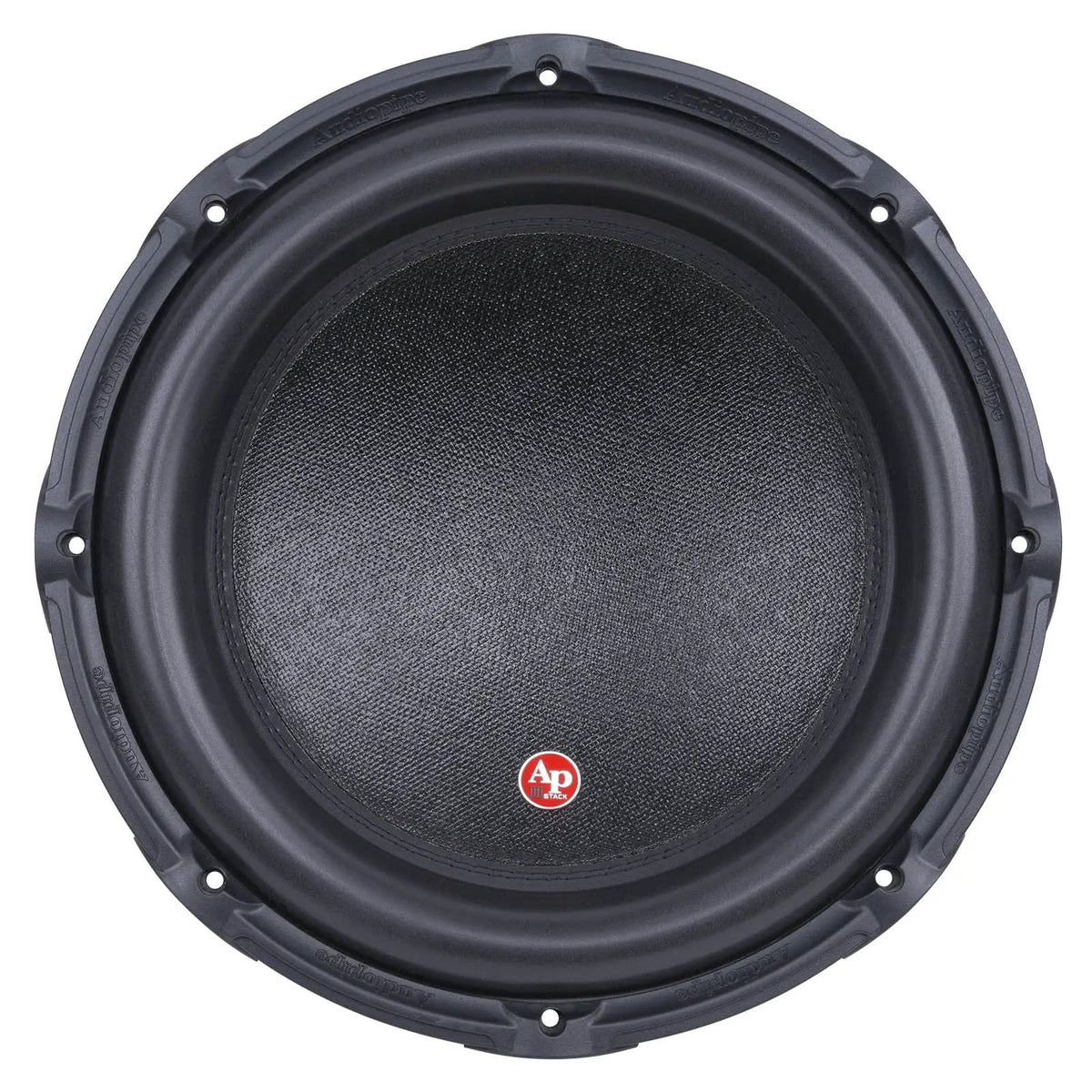

- Composite cone: The textured Kevlar fiber composite non-press paper cone is designed for improved rigidity.

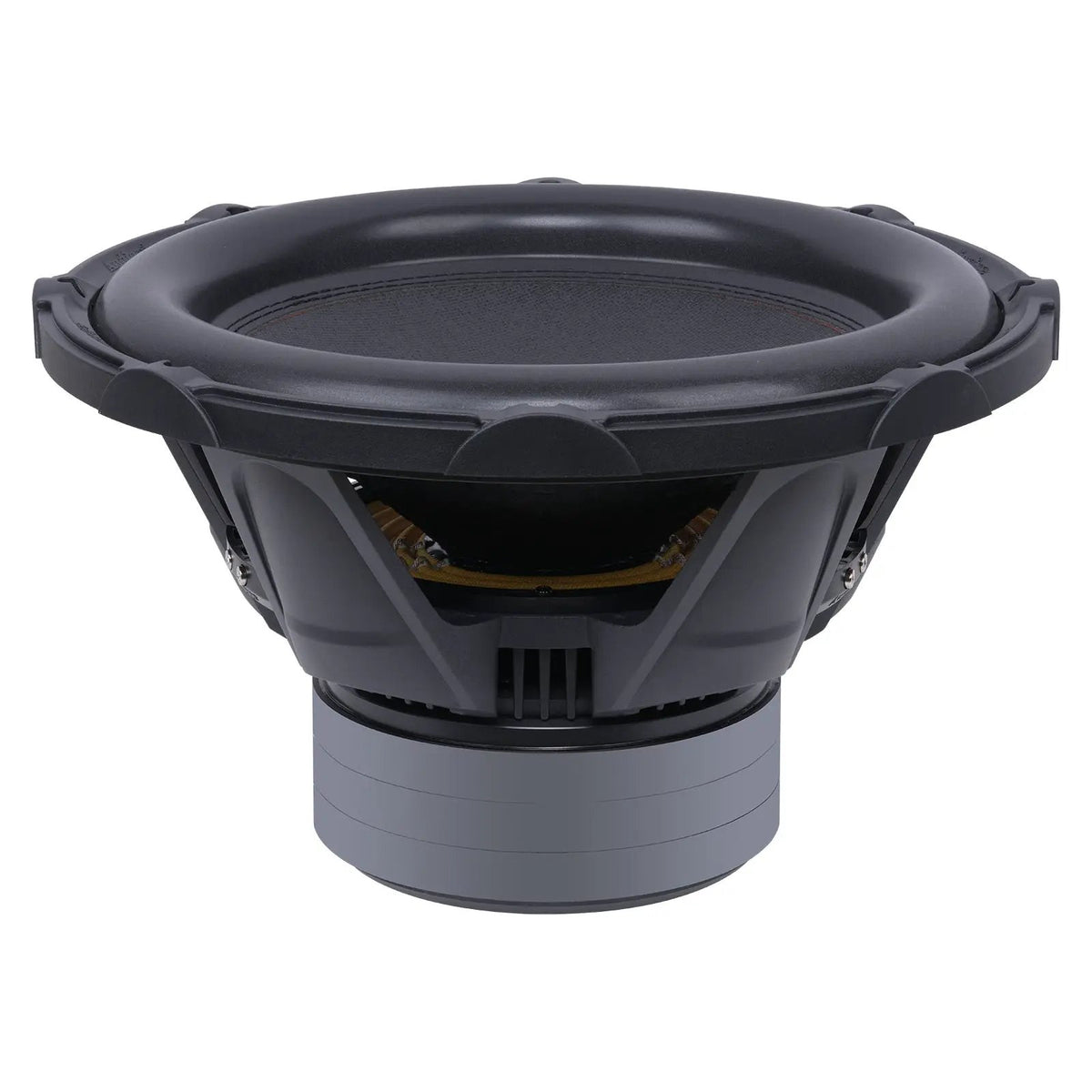

- Aluminum basket: The powdered black paint basket includes a dust-proof heat sink and composite glass fiber dust cap.
- Flexible terminal connections: Pipe multi-connect terminals allow parallel or series wiring configurations.
- Weaved tinsel leads: Progressive weaved leads on each side are designed for sound quality and durability.
Technical Specifications
| Product | Audiopipe TXX-BDC-III-15 15" Triple Stack Composite Cone Subwoofer |
|---|---|
| Peak power | 2400 Watts |
| RMS power | 1200 watts |
| Magnet | 3 magnets; 220 Oz |
| Frequency response | 18-800Hz |
| Sensitivity | 97dB |
| Voice coil | Dual 4 ohm; 3.3 inch; 4-layer high temperature black aluminum (BASV) |
| Impedance | 2 x 4 Ohms |
| Mounting depth | 213mm (8-5/8”) |
| Cone | Kevlar Fiber Composite Non-press Paper Cone with Texture finish |
| Basket and dust cap | Powdered black paint aluminum basket; composite glass fiber dust cap |
| Terminals | Patented pipe multi-connect terminals for parallel or series configurations |
Why Choose This Product?
The TXX-BDC-III-15 combines a dual 4-ohm voice coil with terminals that support parallel or series wiring. This gives you configuration options when planning the subwoofer’s connection to your system.
Its textured composite cone, ventilated voice coil, and dust-proof heat sink are specific design features to consider if you are comparing high-power 15-inch subwoofers.
Installation & Compatibility Notes
Allow for the listed 213mm (8-5/8”) mounting depth when checking your installation space. Confirm your amplifier and planned wiring configuration are appropriate for a dual 4-ohm subwoofer before installation.
The multi-connect terminals support parallel or series wiring. The final impedance depends on the wiring configuration, so plan the connection around your system requirements.
Frequently Asked Questions
What do the peak and RMS power ratings mean?
The TXX-BDC-III-15 is rated at 2400 Watts peak power and 1200 watts RMS power. Use the RMS rating when comparing continuous power handling with amplifier specifications.
What is the subwoofer’s impedance?
It has a dual 4-ohm voice coil, listed as 2 x 4 Ohms. Its terminals allow parallel or series wiring configurations.
How much mounting depth should I allow?
The listed mounting depth is 213mm (8-5/8”). Check the available space in your intended installation location.
What cone material does this subwoofer use?
It uses a textured Kevlar Fiber Composite Non-press Paper Cone, designed to improve cone rigidity.
What terminal connections does it have?
It has patented pipe multi-connect terminals for wiring in parallel or series configurations.
