Audiopipe TXX-BDC-IV-10D2 10" Quad Stack Composite Cone Subwoofer
Key features
- Subwoofer size: 10.0 inches
- RMS power per subwoofer: 900 W
- Voice-coil options: D2
- MAGNET: Boasting 4 magnets for strong power handling, 170 Oz
- FREQUENCY RESPONSE: 30-1,300Hz
- SENSITIVITY: 85dB
Audiopipe TXX-BDC-IV-10D2 10" Quad Stack Composite Cone Subwoofer is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview
Add substantial rated output to your car audio system with the Audiopipe TXX-BDC-IV-10D2 10-inch subwoofer. Its dual 2-ohm voice coils, increased coil ventilation, and textured Kevlar fiber composite cone are designed for high-power use.
Key Features & Benefits

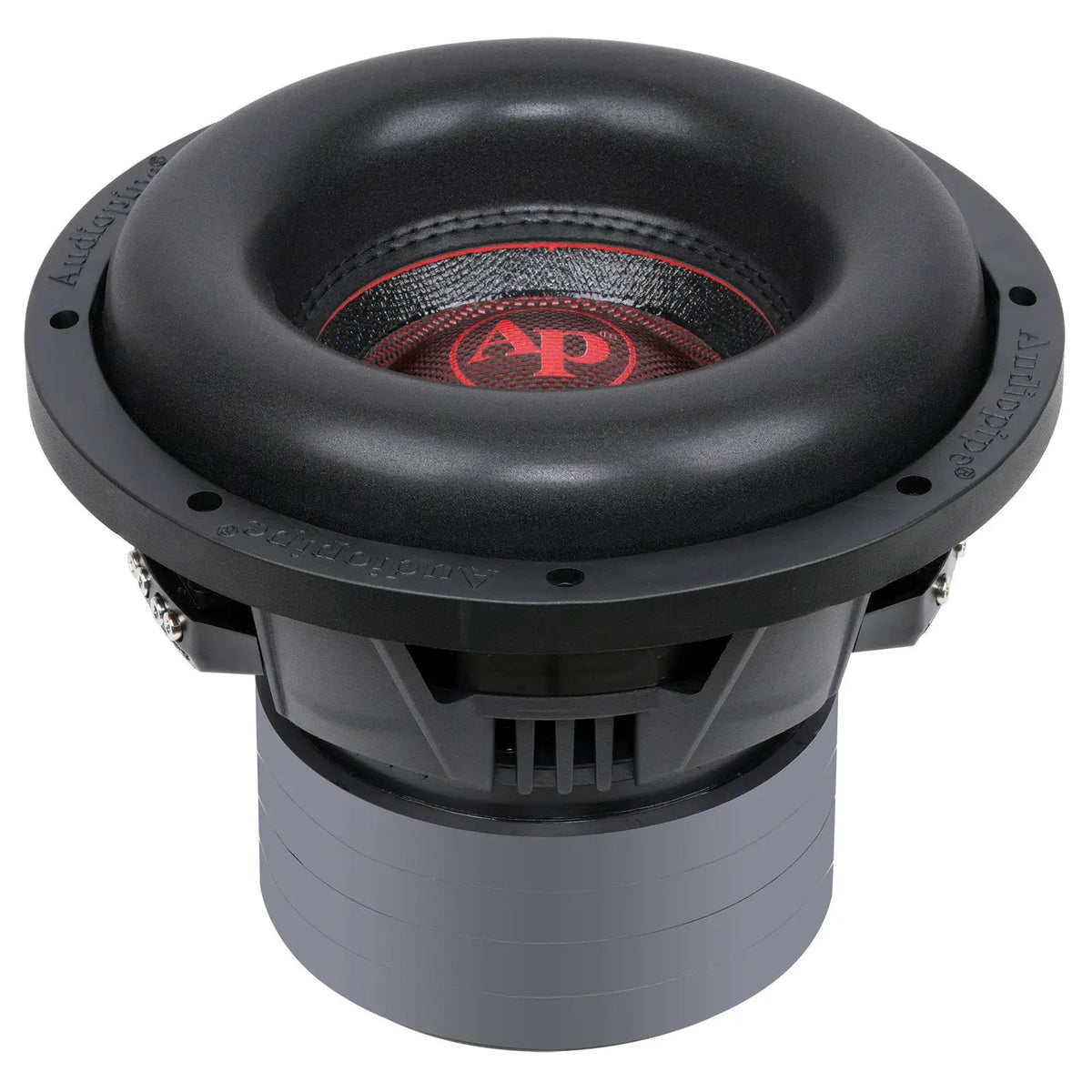

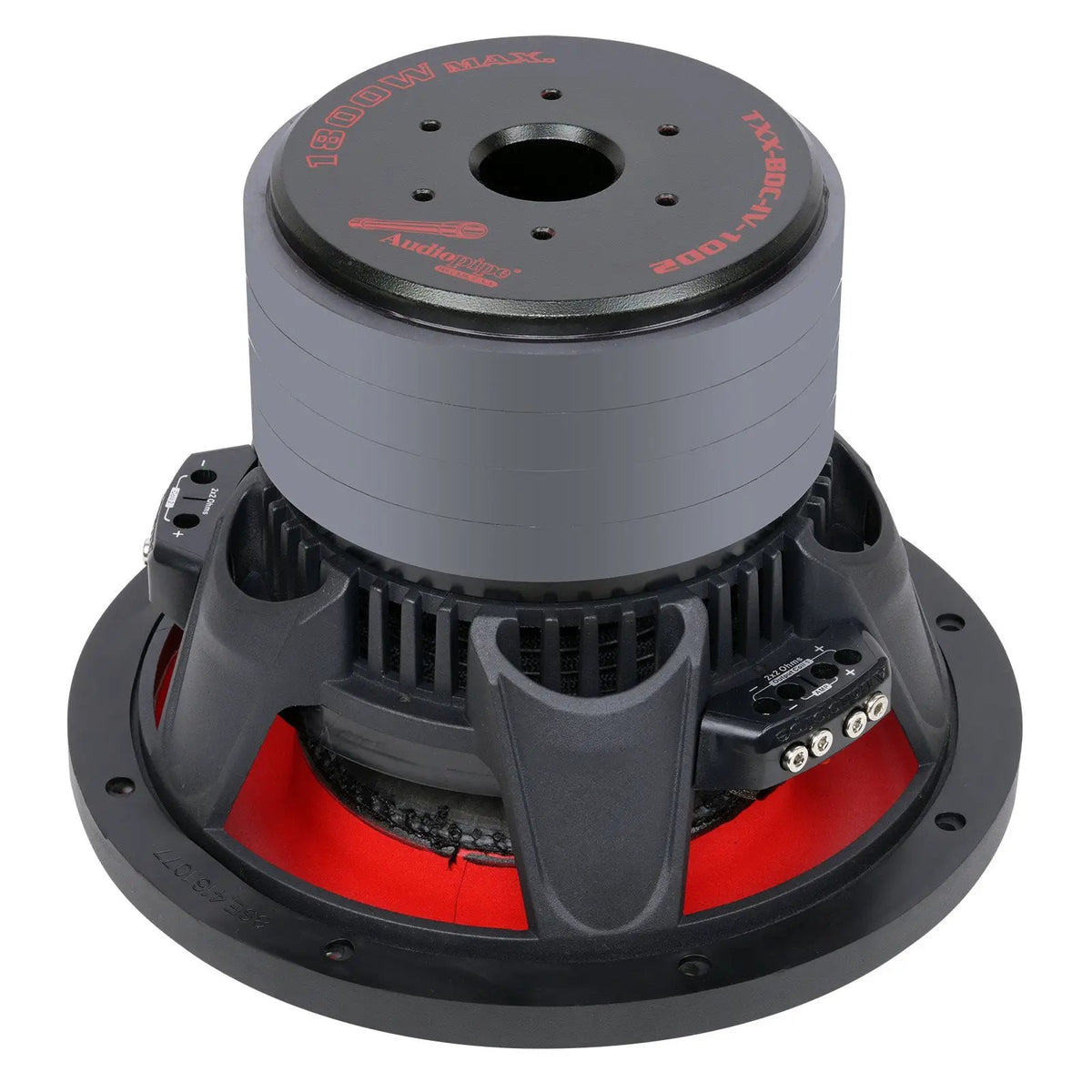

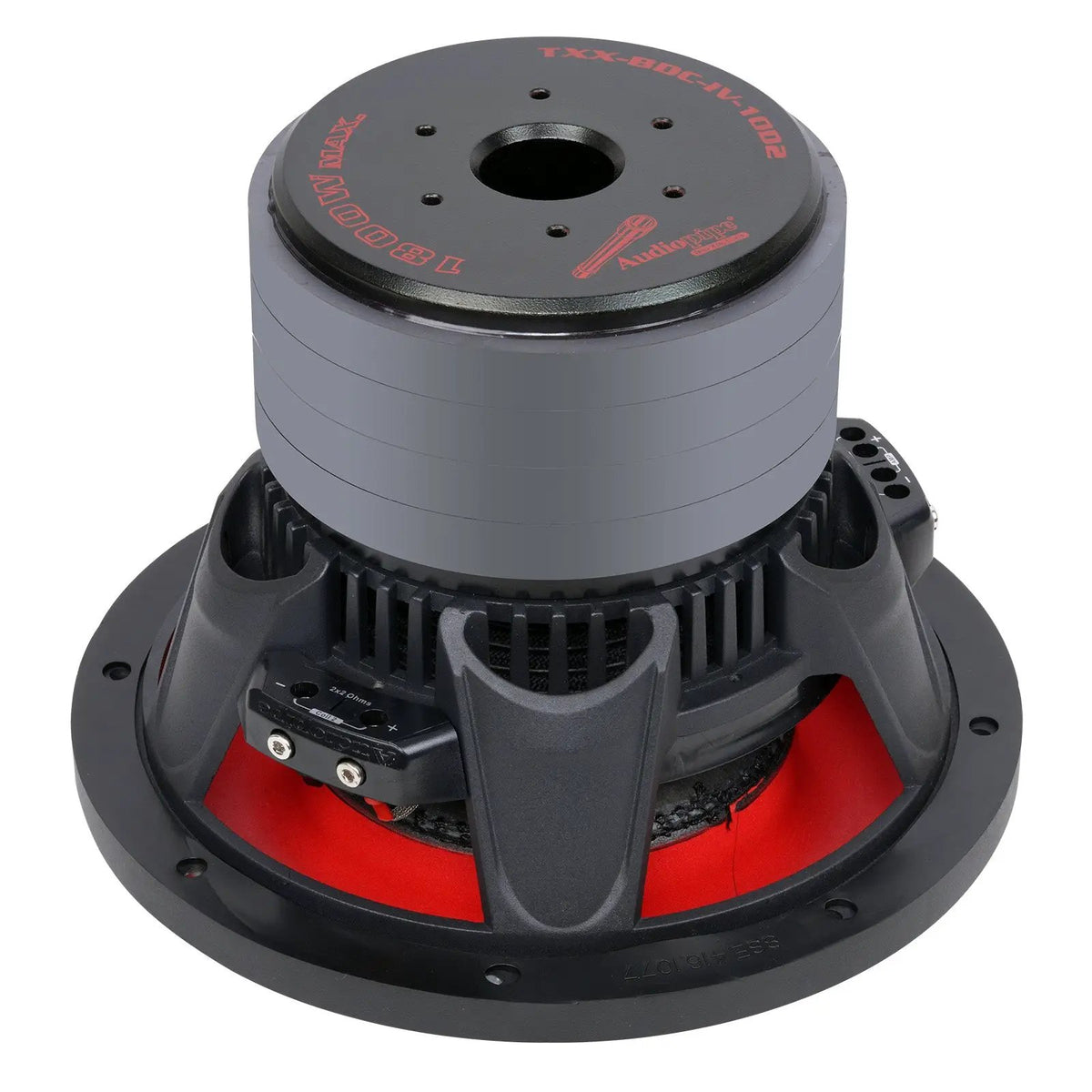

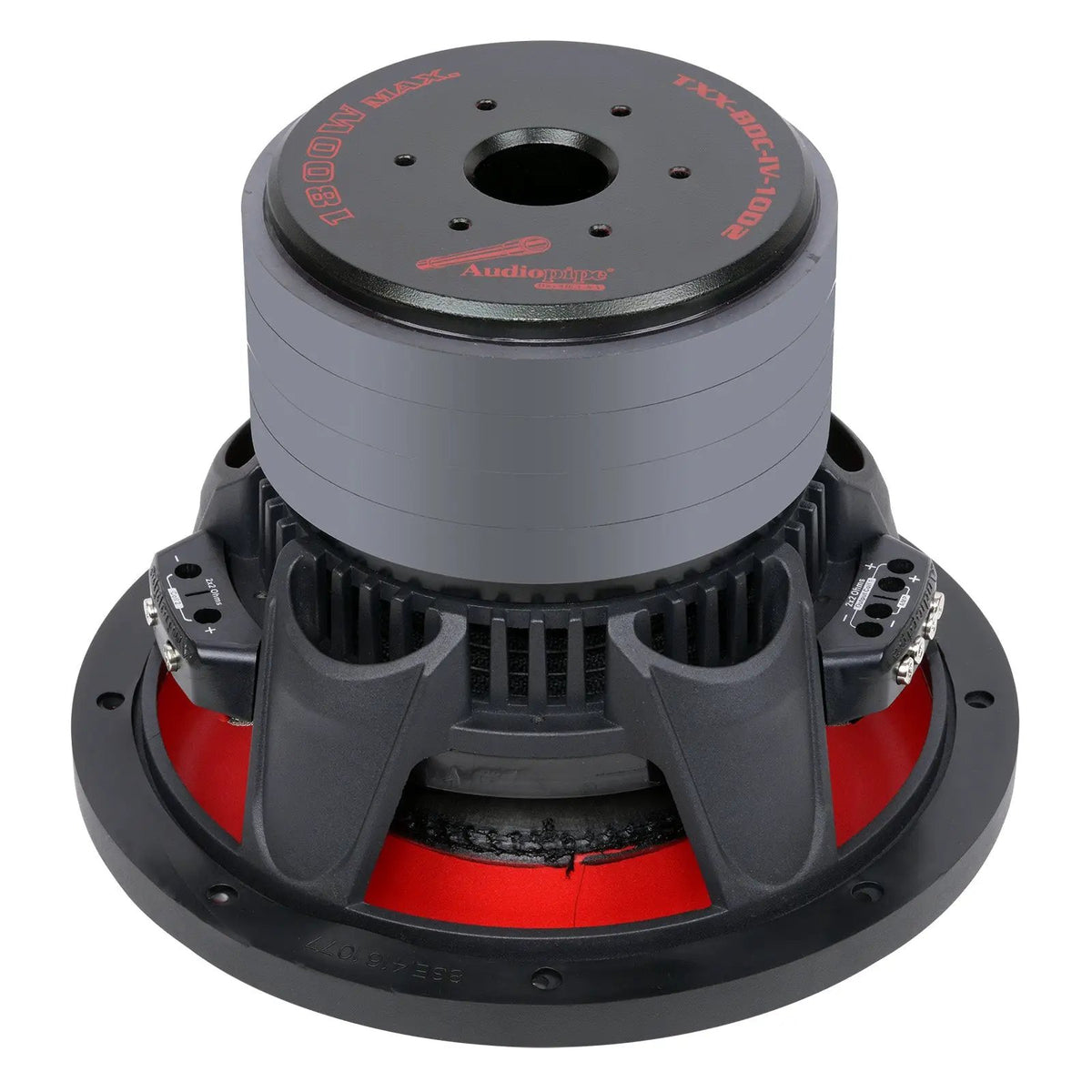

- Quad-stack magnet assembly: Four magnets provide a combined 170 oz magnet weight.
- Ventilated voice coil: The 2.5-inch, four-layer high-temperature black aluminum BASV coil is designed with increased ventilation for endurance.

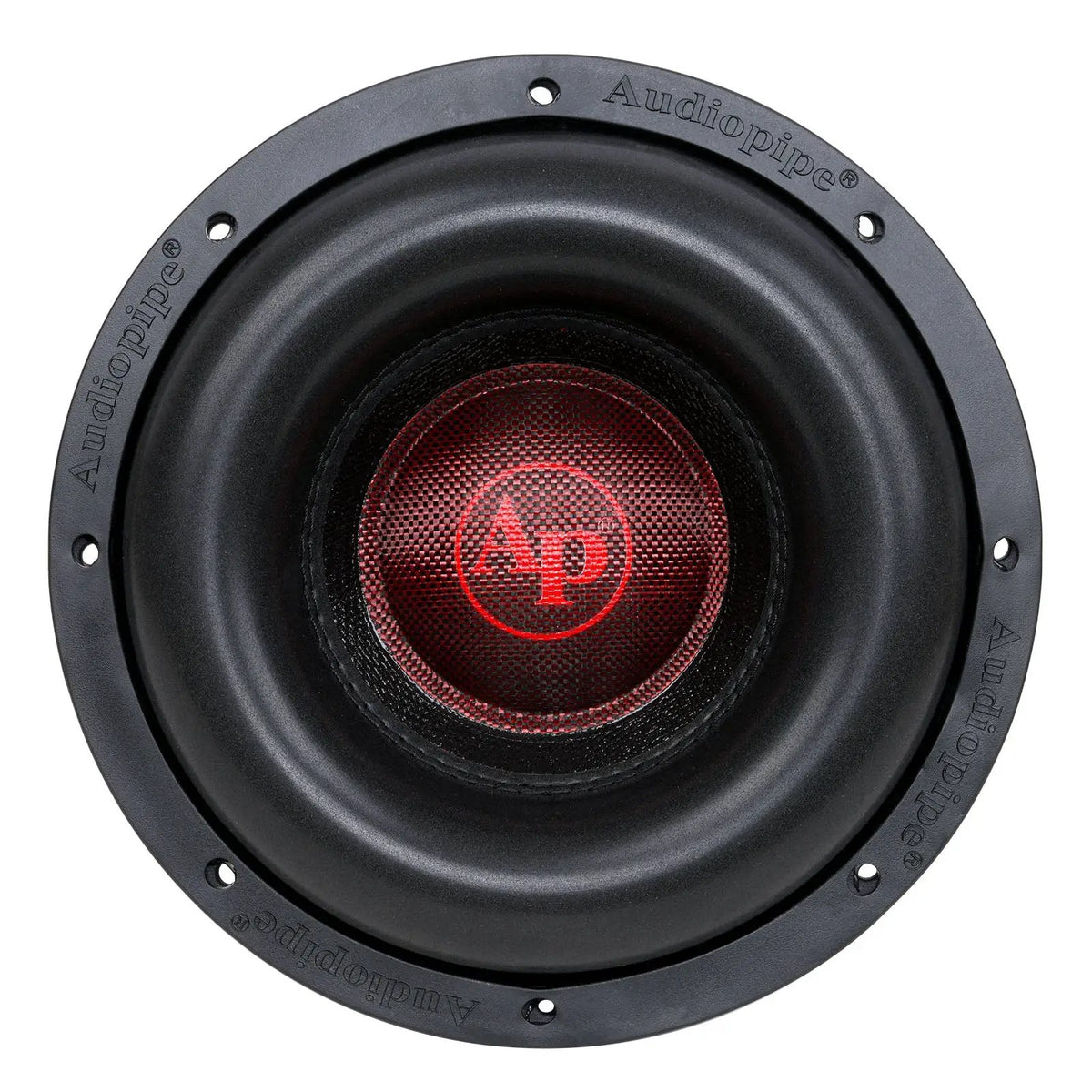

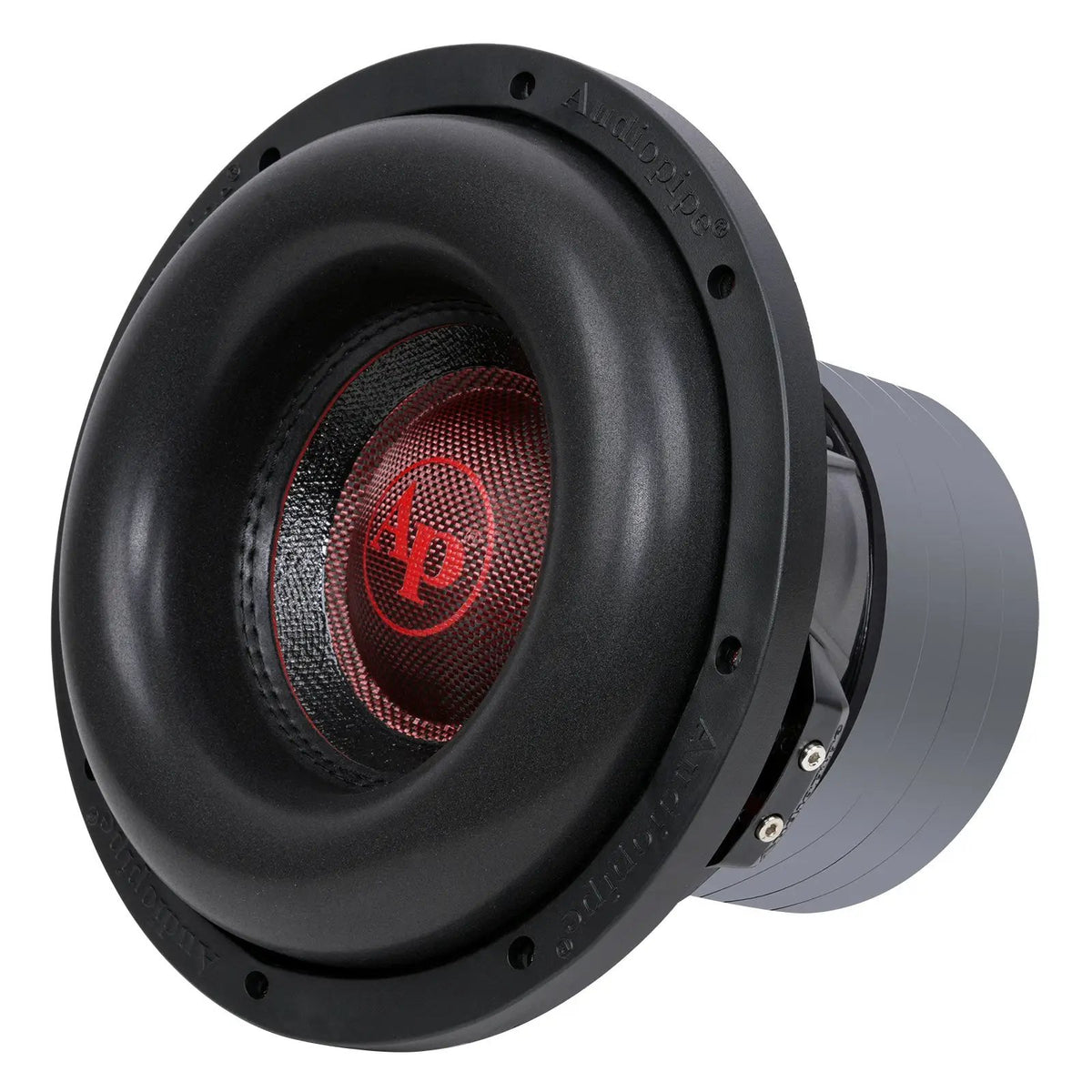

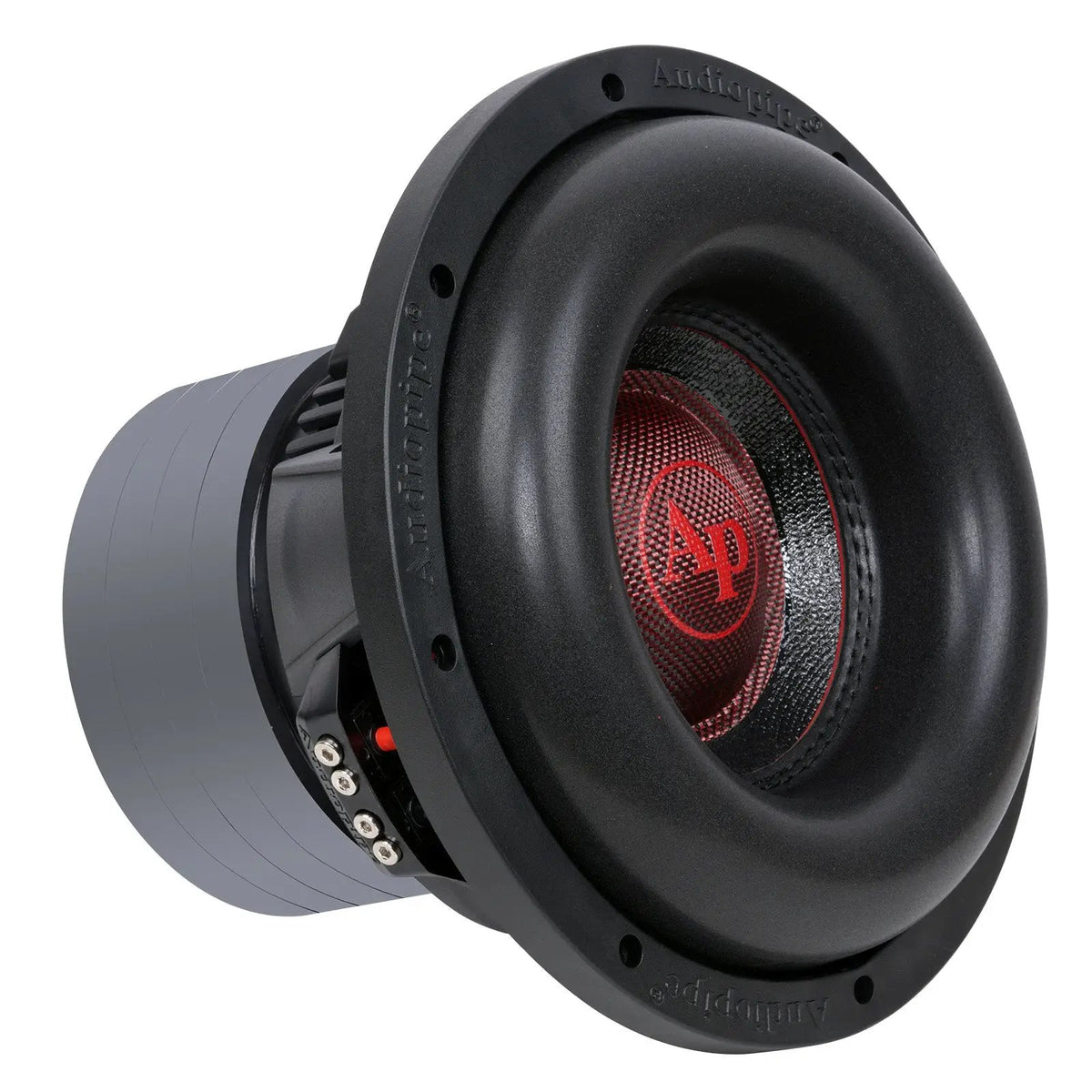

- Rigid cone construction: The textured Kevlar fiber composite non-press paper cone is designed to improve cone rigidity.

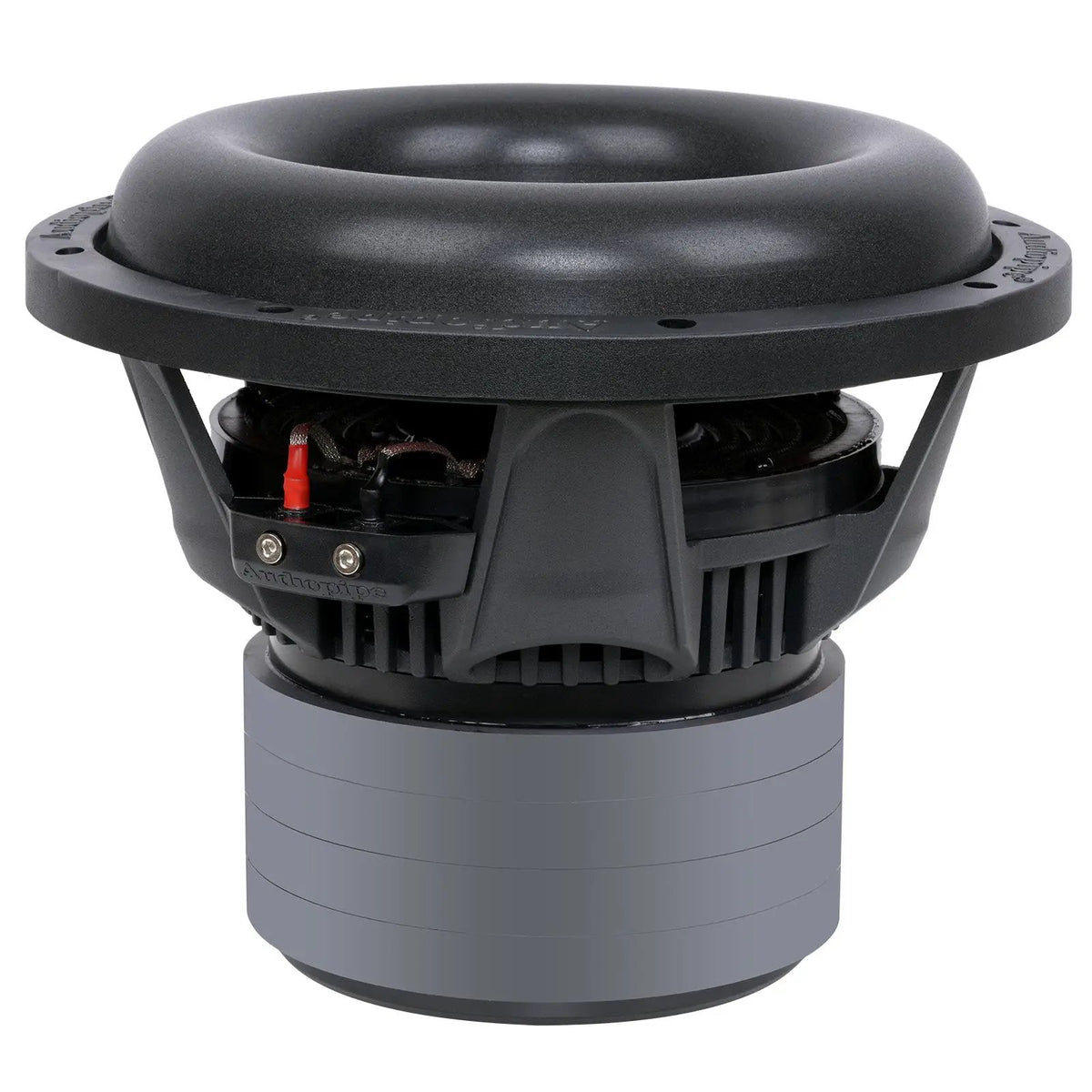

- Ventilated aluminum basket: The powdered black paint basket includes a dust-proof heat sink designed for high ventilation.

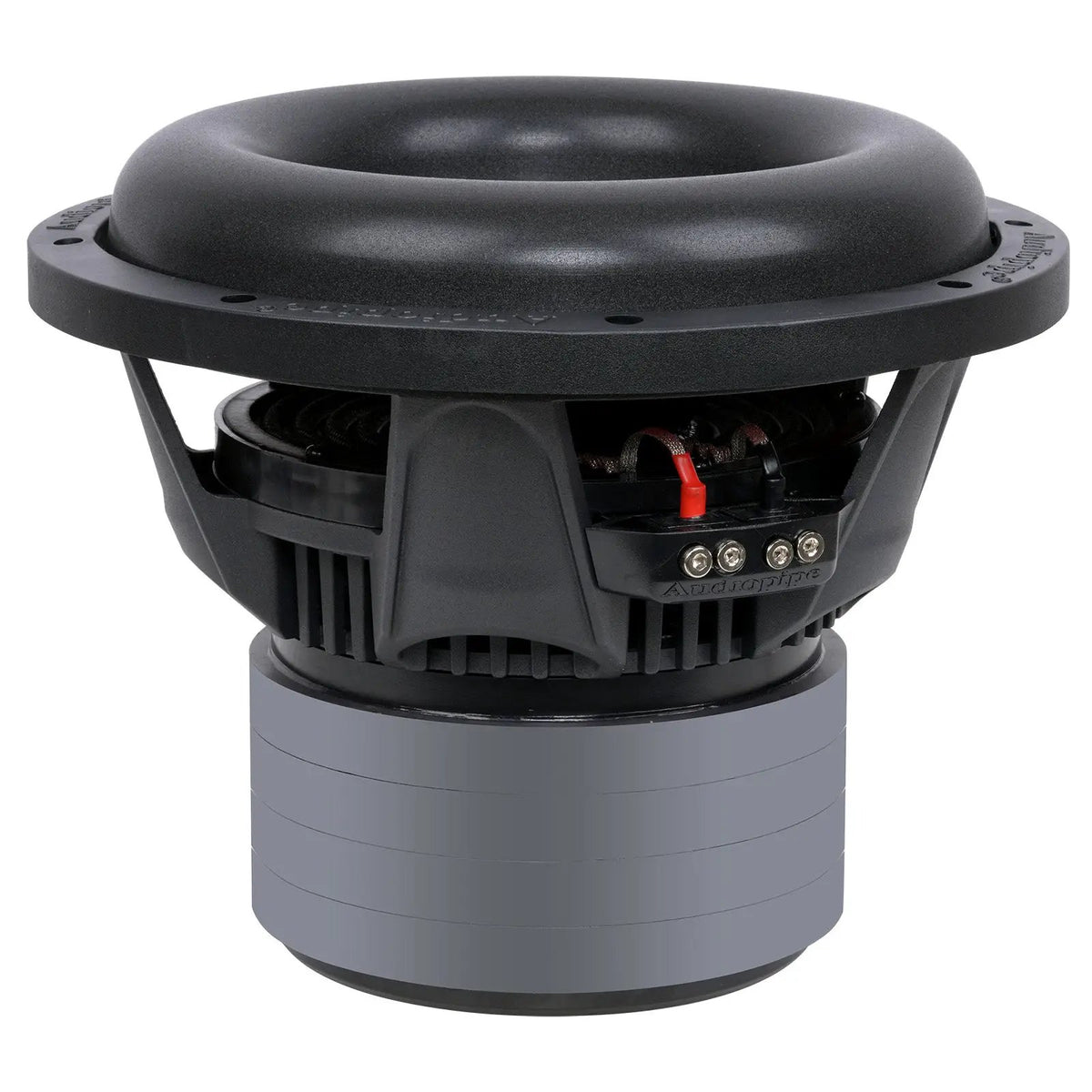

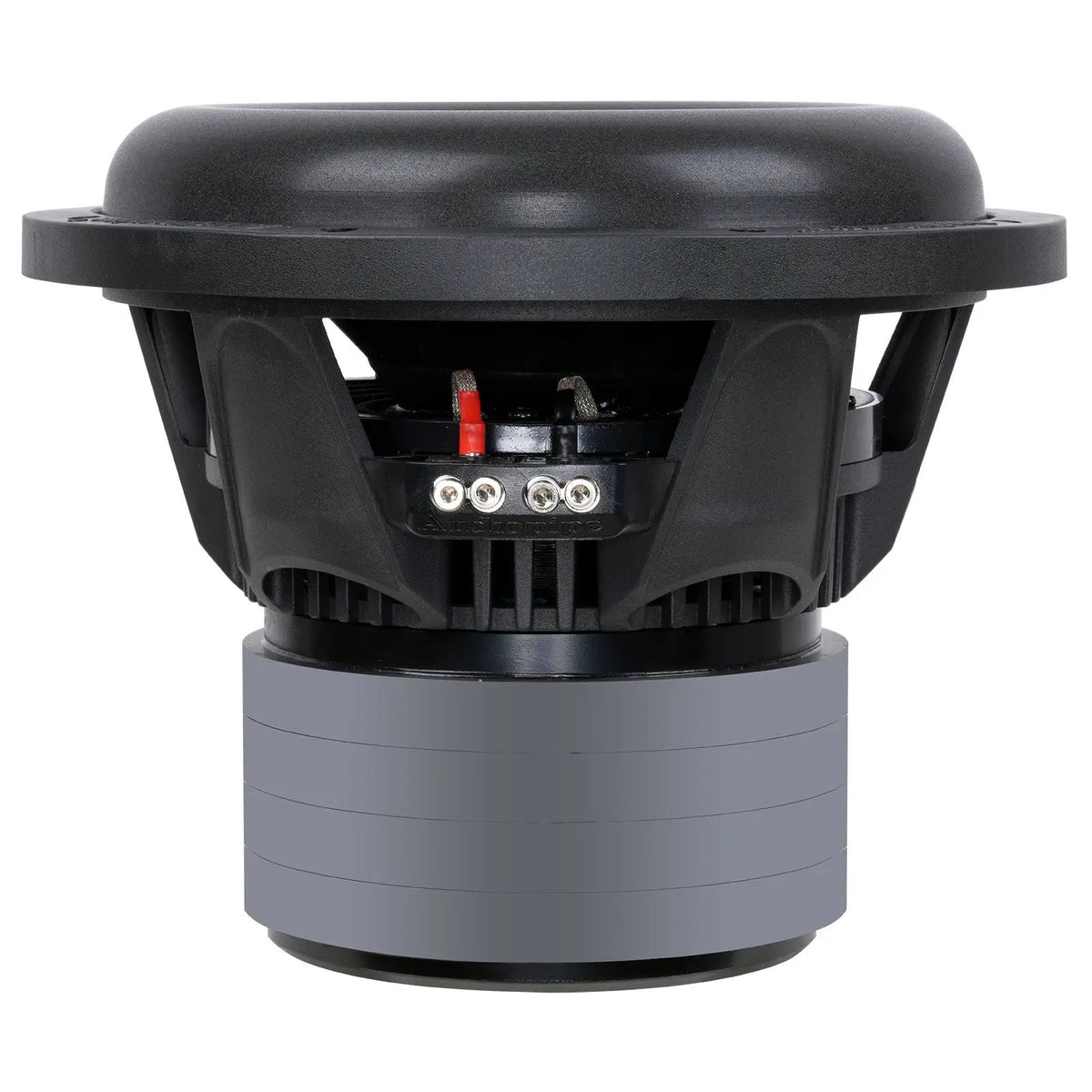

- Flexible coil connections: Patented pipe multi-connect terminals support series or parallel wiring and accept speaker wire up to 8 gauge.
- Progressive tinsel leads: Quad-weaved leads on each side are designed for sound quality and durability.
Technical Specifications
| Specification | Value |
|---|---|
| Model | TXX-BDC-IV-10D2 |
| Subwoofer size | 10" |
| Peak power | 1800 Watts |
| RMS power | 900 Watts |
| Magnet | 4 magnets; 170 Oz |
| Frequency response | 30-1,300Hz |
| Sensitivity | 85dB |

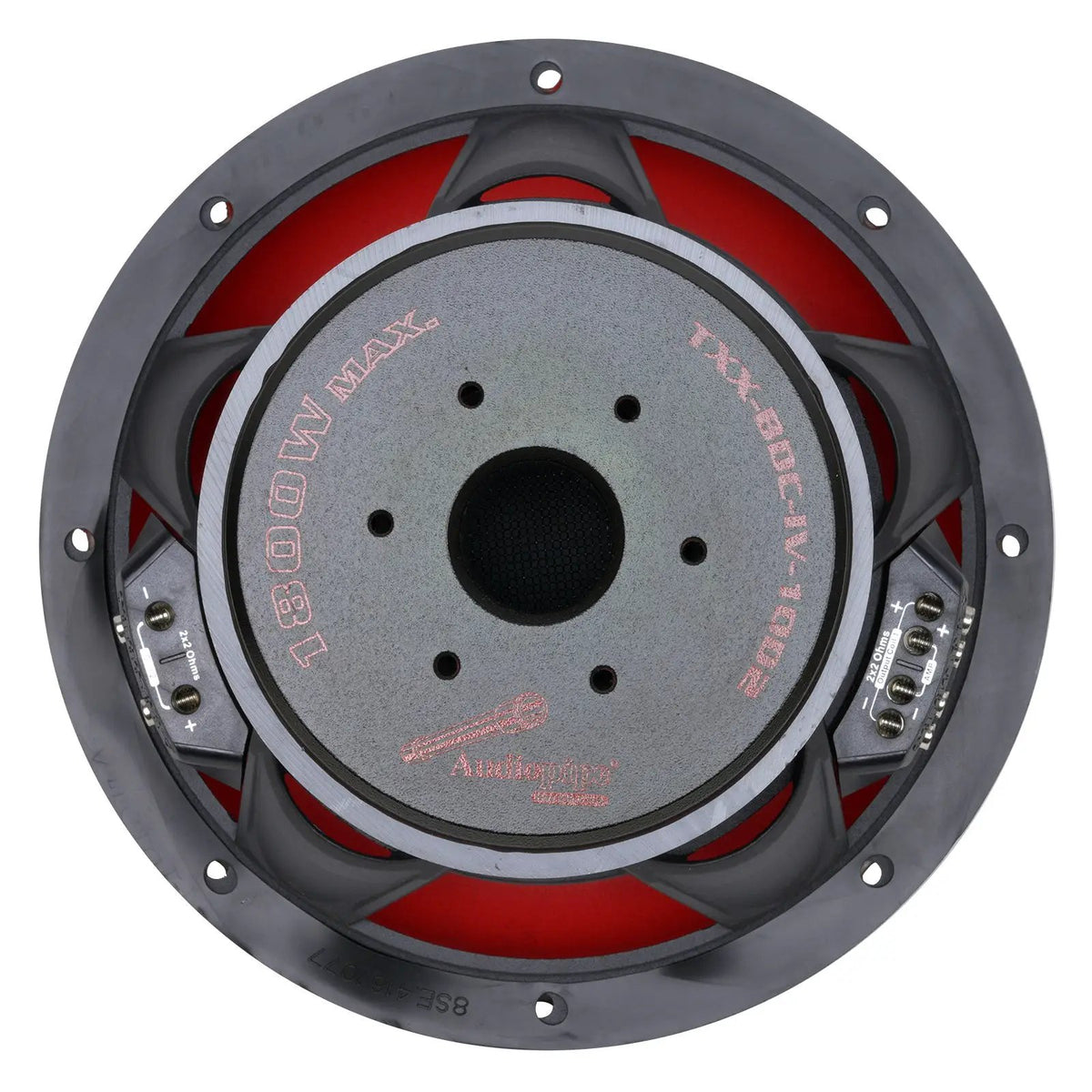

| Impedance | 2 x 2 Ohms |
| Voice coil | 2.5 inch, 4-layer high temperature black aluminum (BASV) |
| Mounting depth | 175mm (6-7/8”) |
| Cone | Kevlar Fiber Composite Non-press Paper Cone with Texture finish |
| Basket and heat sink | Powdered black paint aluminum basket; dust-proof heat sink |
| Dust cap | Composite glass fiber |
| Tinsel leads | Quad-weaved progressive tinsel leads on each side |
| Terminals | Patented pipe multi-connect terminals; accept up to 8 gauge speaker wire |
| Coil wiring | Series or parallel configurations |
Why Choose This Product?
The TXX-BDC-IV-10D2 combines a high-power rating with construction details focused on ventilation and cone rigidity. Its multiple connection points make series or parallel coil wiring possible, while the textured composite cone and ventilated basket support the design’s emphasis on performance and endurance.
Installation & Compatibility Notes
Check your enclosure’s available mounting depth against the subwoofer’s 175mm (6-7/8”) depth. Confirm the enclosure cutout and overall clearance suit this 10-inch subwoofer before installation. Plan the wiring around the dual 2-ohm coils and your system’s requirements; the terminals accept up to 8 gauge speaker wire.
Frequently Asked Questions
What do the peak and RMS power ratings mean?
The subwoofer is rated at 1800 Watts peak and 900 Watts RMS. Keep the two ratings distinct when comparing it with system components.
Can the voice coils be wired in series or parallel?
Yes. The patented pipe multi-connect terminals are designed for either series or parallel coil wiring.
What speaker wire can the terminals accept?
The terminals accept speaker wire up to 8 gauge.
What should I check before choosing an enclosure?
Check the enclosure cutout and clearance, including space for the 175mm (6-7/8”) mounting depth.
