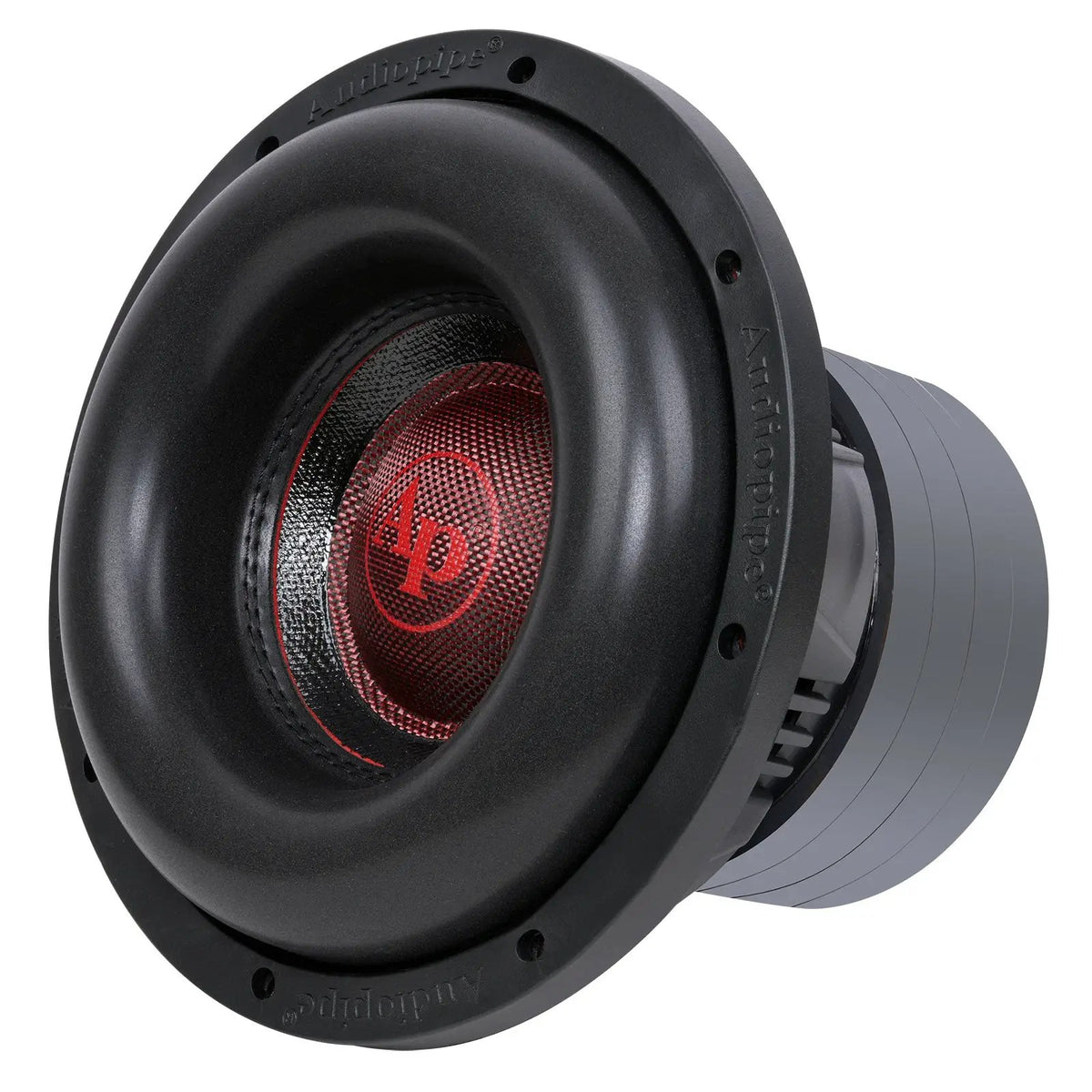

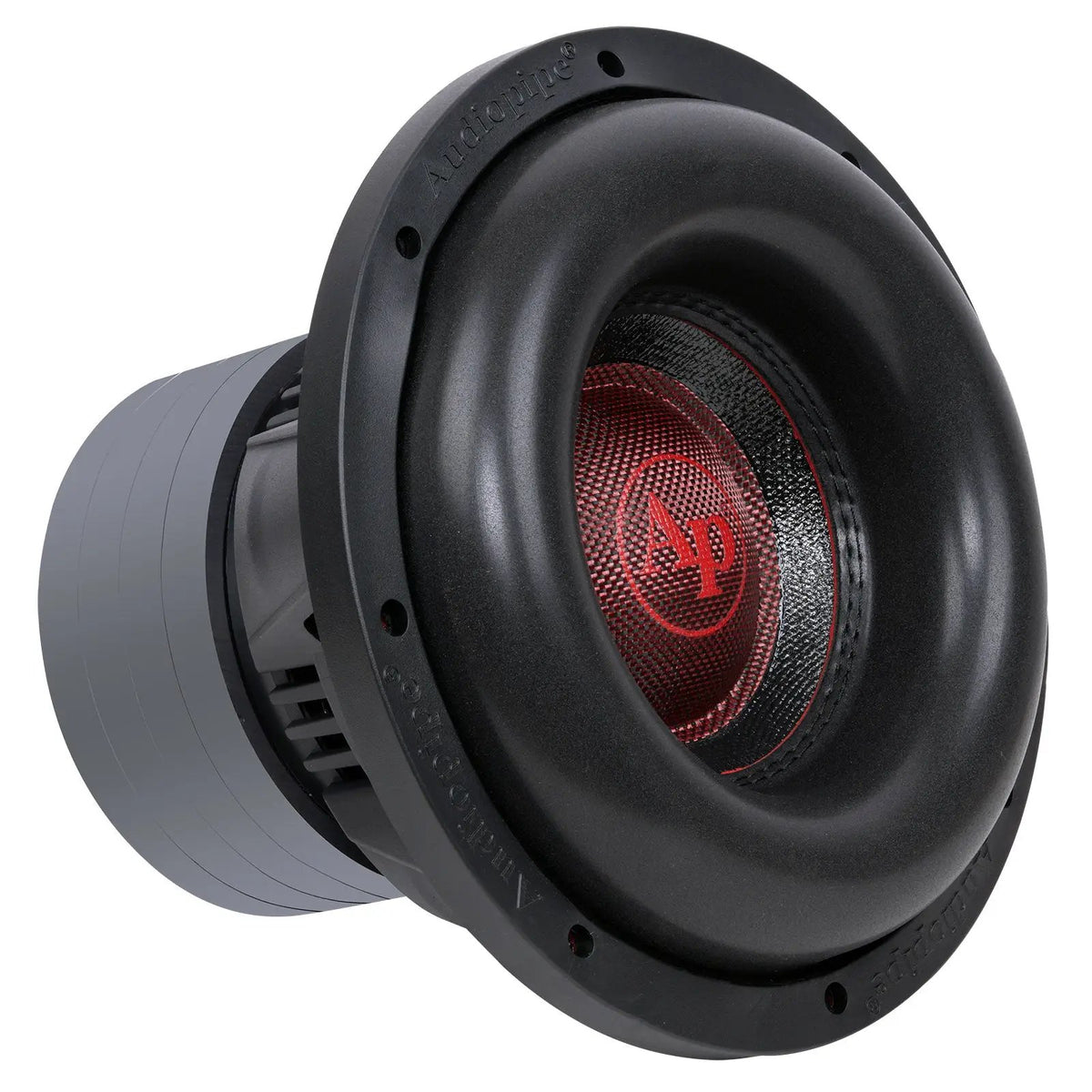

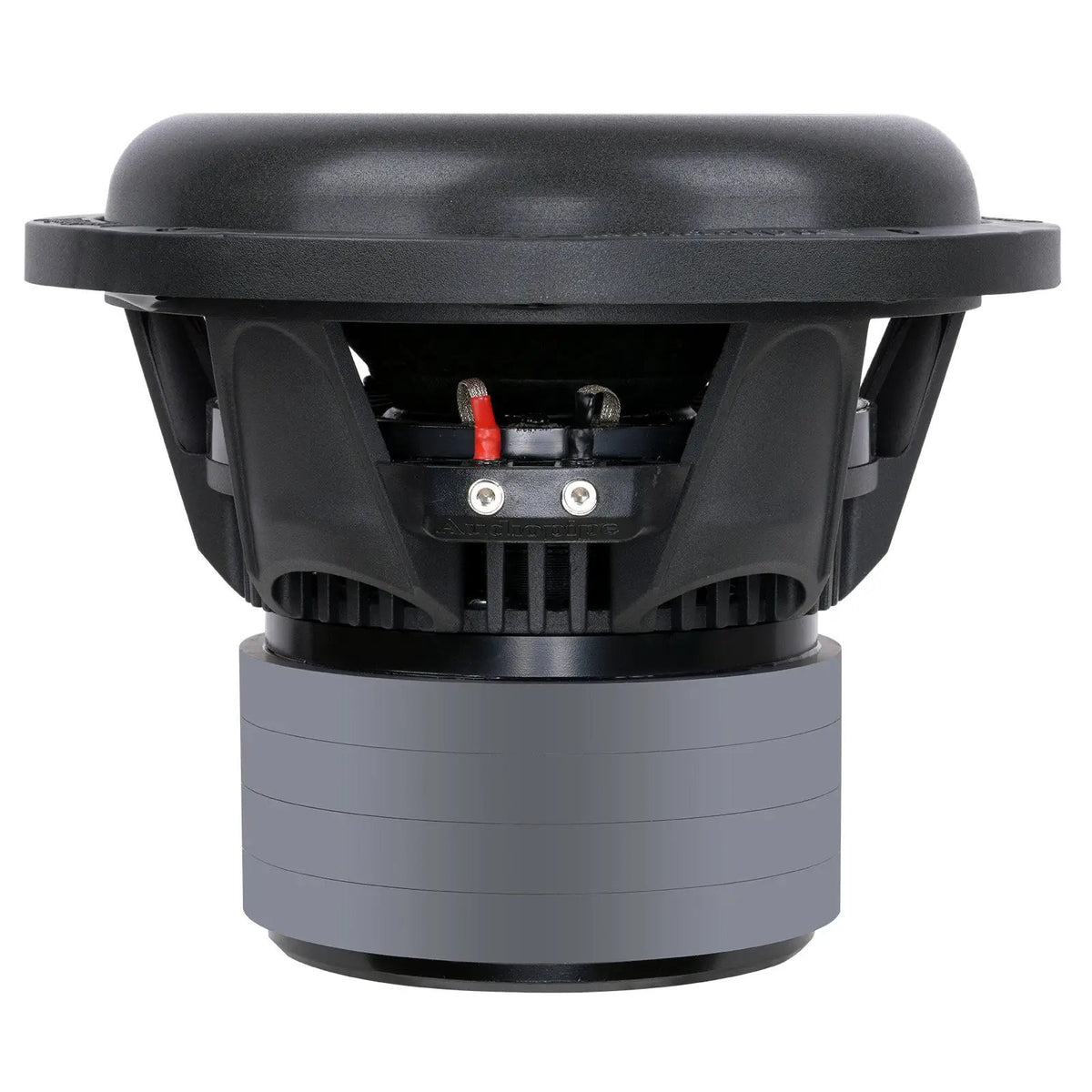

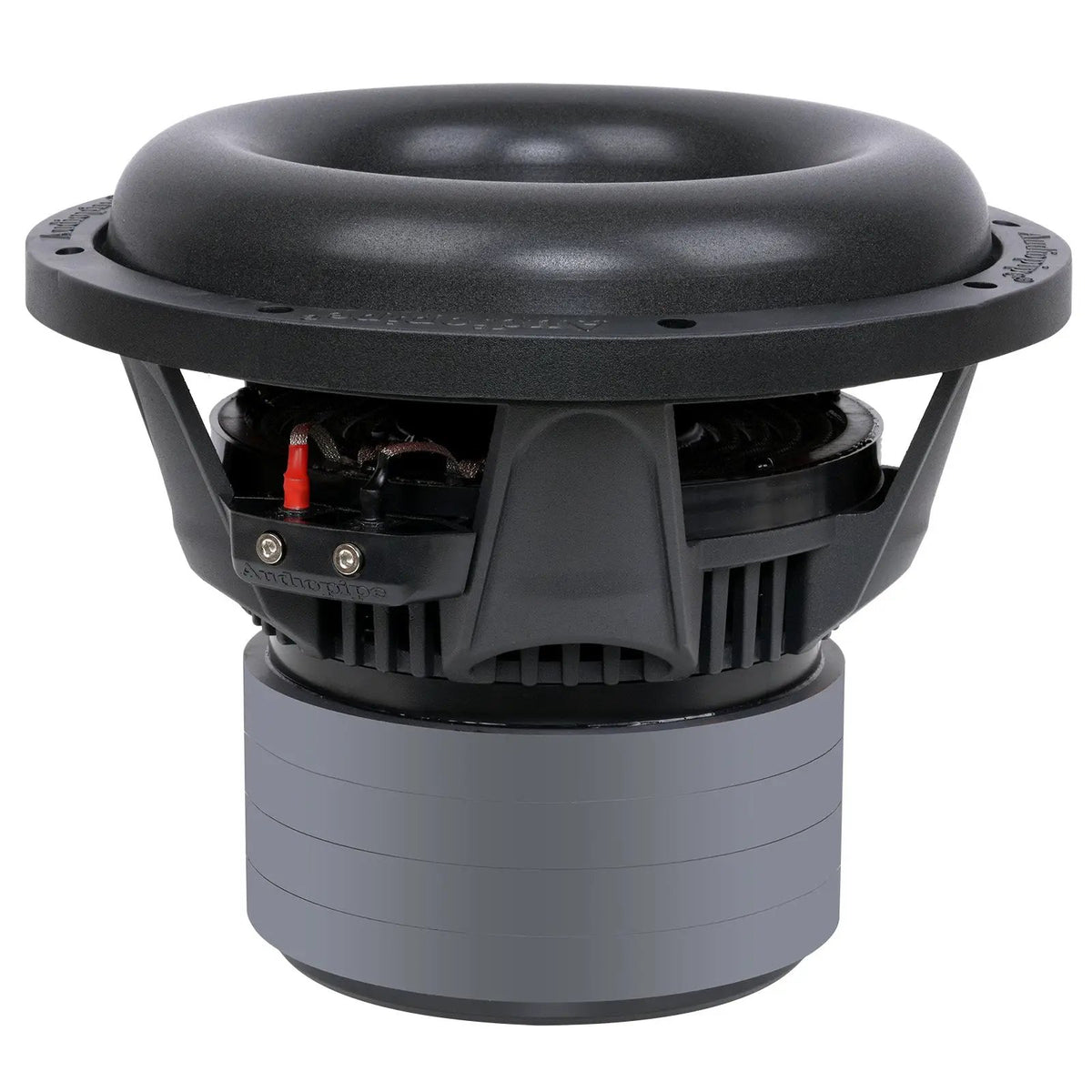

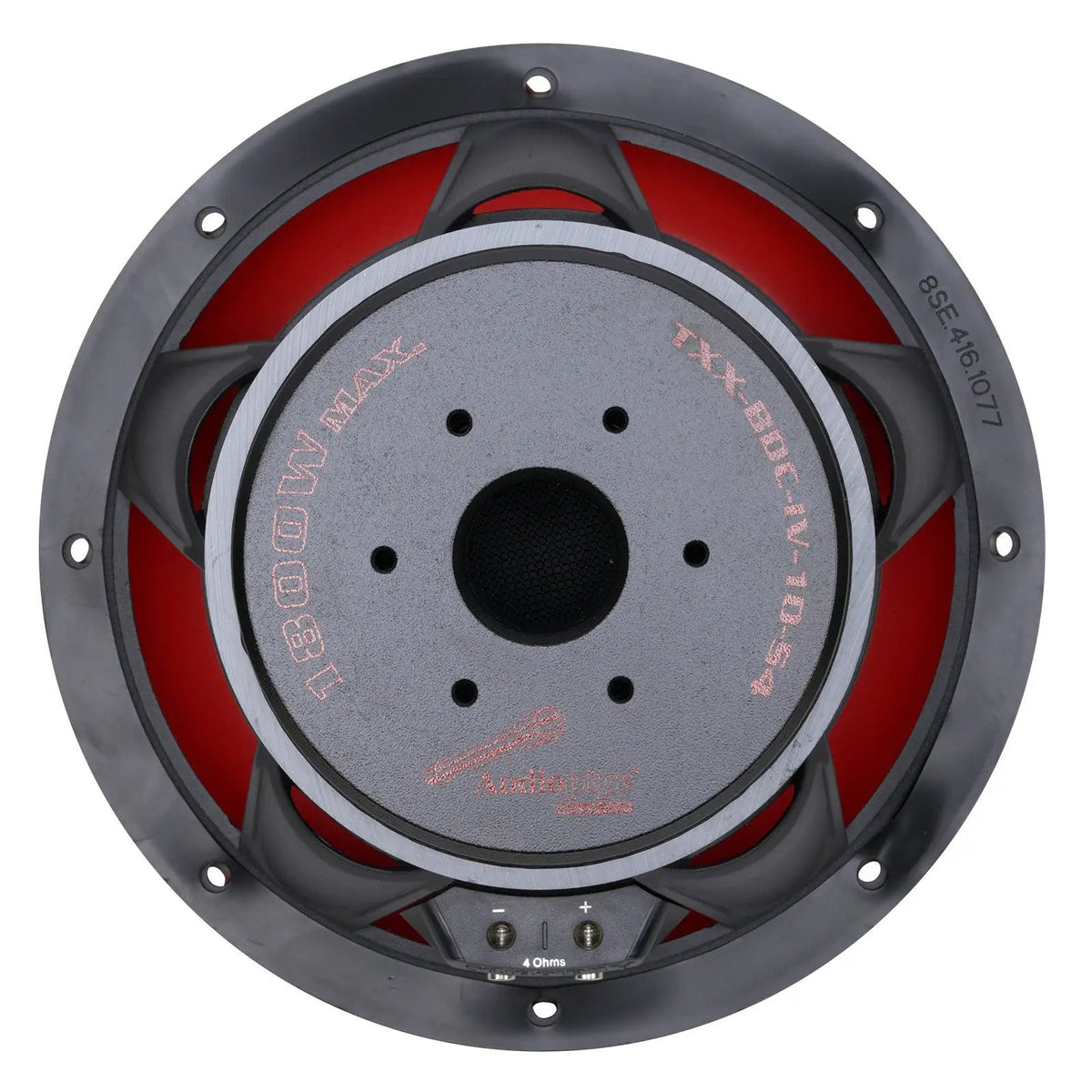

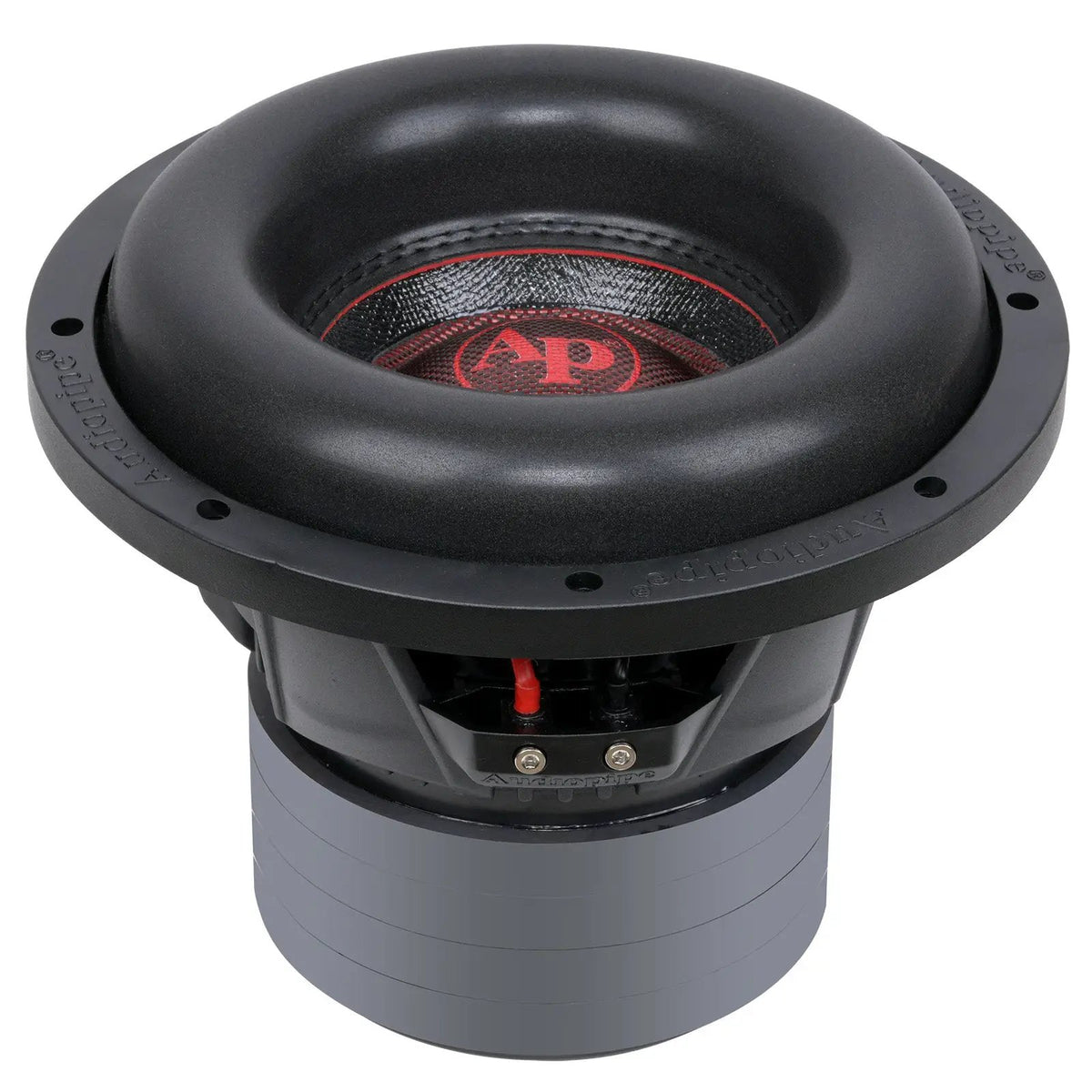

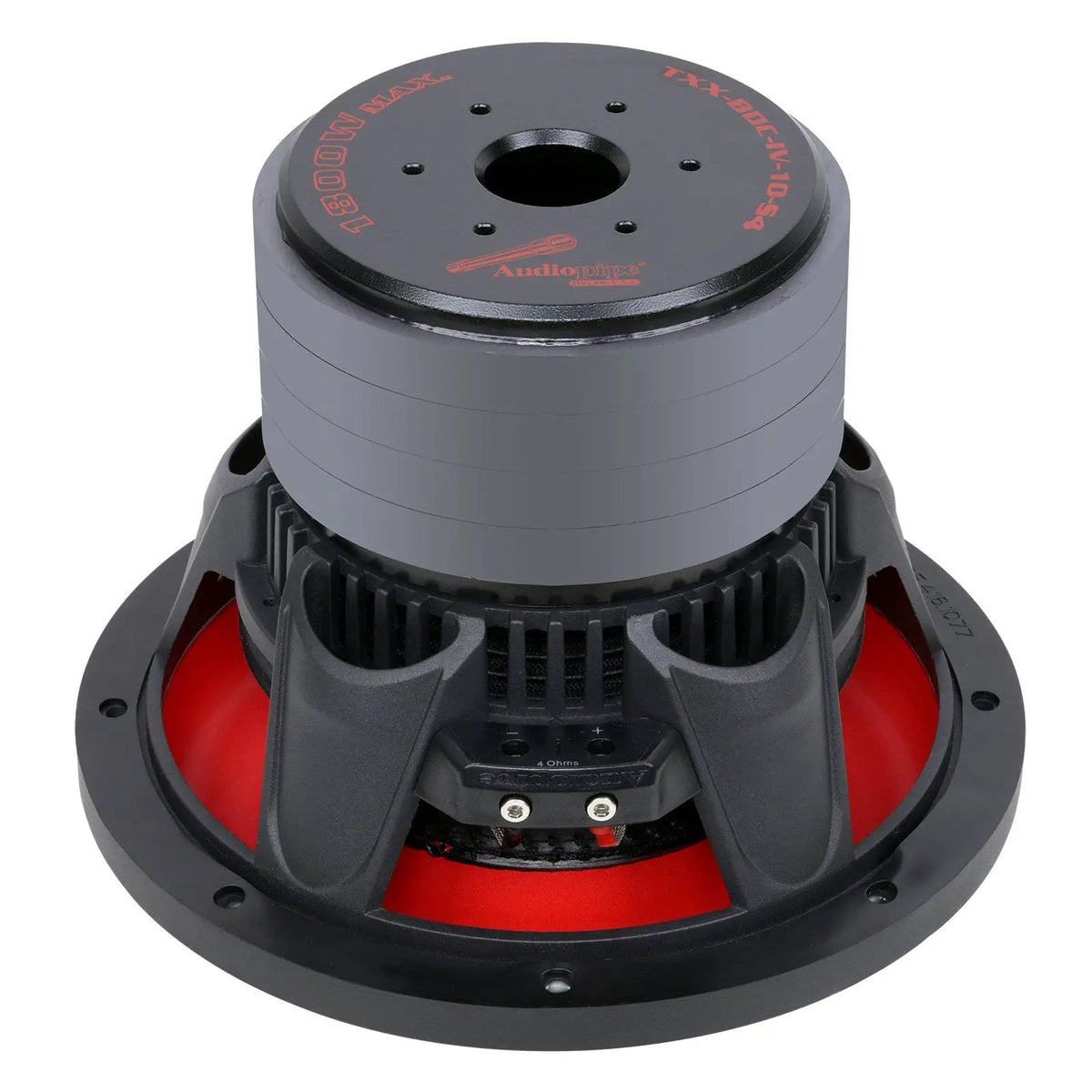

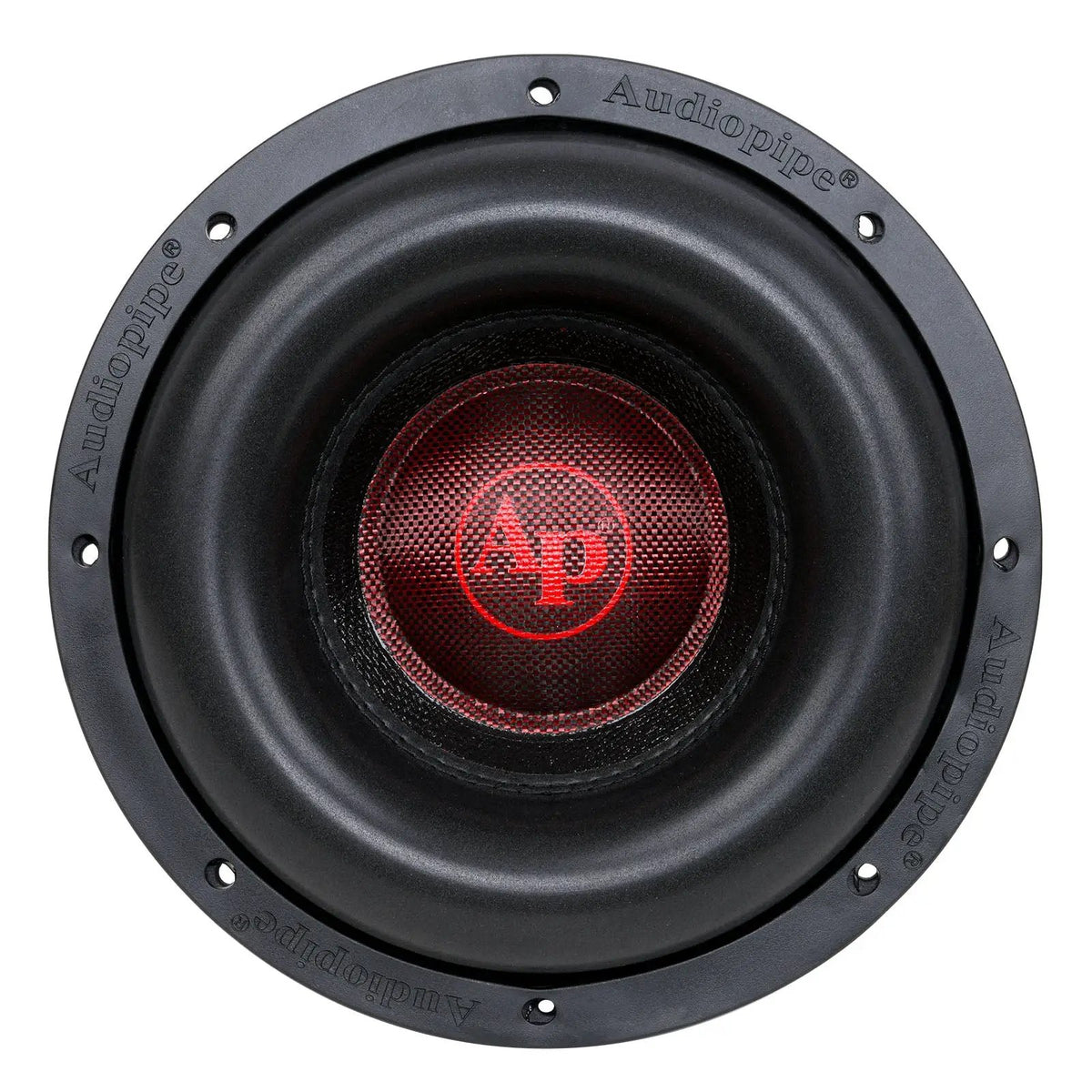

Audiopipe TXX-BDC-IV-10-S4 10" Quad Stack Composite Cone Subwoofer
Key features
- Subwoofer size: 10.0 inches
- RMS power per subwoofer: 900 W
- Voice-coil options: S4
- MAGNET: Boasting 4 magnets for strong power handling, 170 Oz
- FREQUENCY RESPONSE: 30-1,300Hz
- SENSITIVITY: 85dB
Audiopipe TXX-BDC-IV-10-S4 10" Quad Stack Composite Cone Subwoofer is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview
Bring strong bass to your car audio system with the Audiopipe TXX-BDC-IV-10-S4 10-inch quad stack subwoofer. Its Kevlar fiber composite cone, four-magnet design, and ventilated voice coil are built for demanding bass playback.
Key Features & Benefits

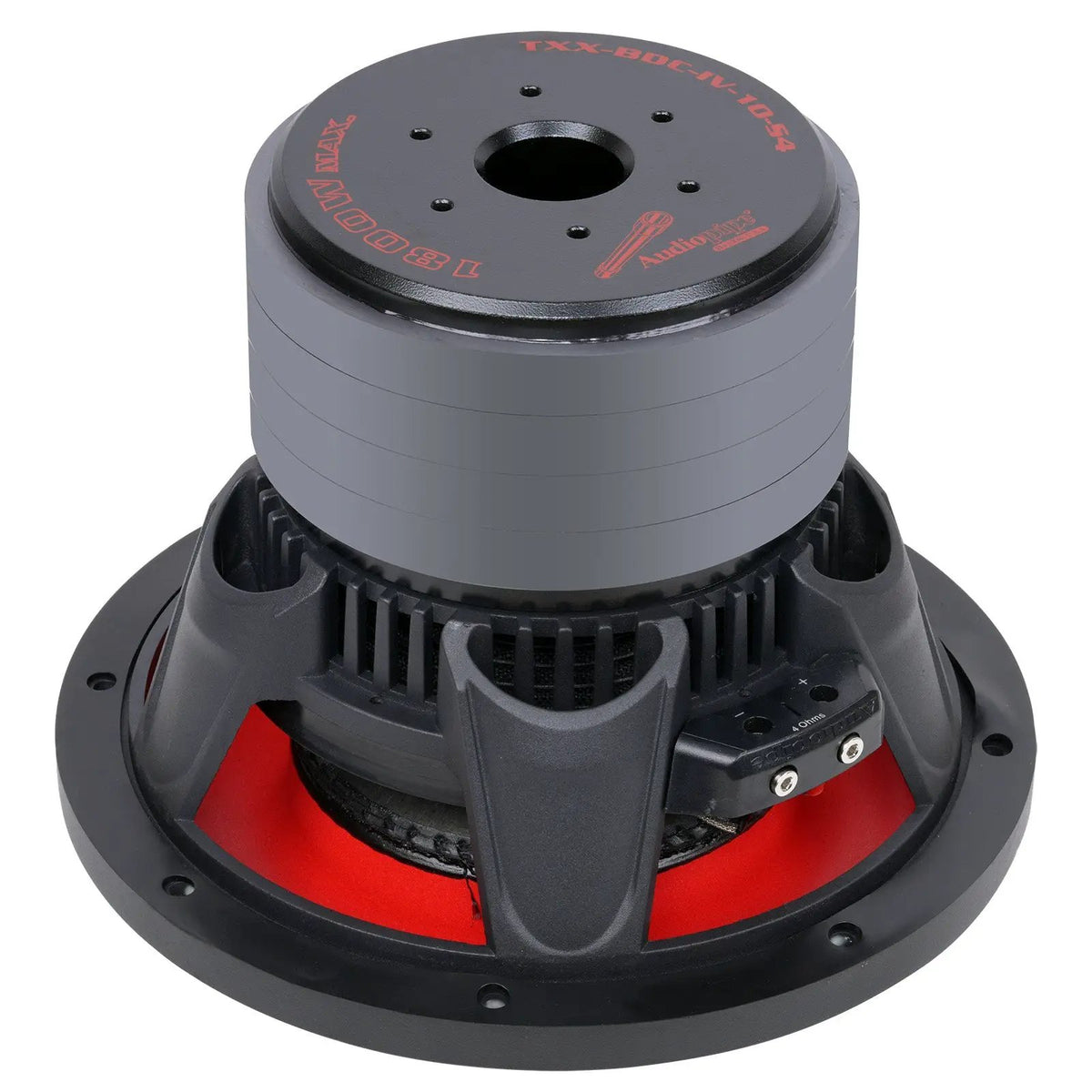

- Four-magnet motor: The 170-ounce magnet assembly supports the subwoofer’s high power ratings.
- Composite cone: The textured Kevlar fiber composite non-press paper cone is designed for increased rigidity.
- Ventilated voice coil: The 2.5-inch, four-layer high-temperature aluminum coil has improved ventilation for demanding use.
- Aluminum basket: The powdered black-paint basket pairs with a composite glass fiber dust cap and dust-proof heat sink.
- Weaved tinsel leads: Progressive weaved leads on each side are designed for durability.
- Spring-loaded terminals: Silver push terminals provide convenient connections with standard speaker wire.
Technical Specifications
| Specification | Value |
|---|---|
| Brand | Audiopipe |
| Model | TXX-BDC-IV-10-S4 |
| Product type | 10-inch quad stack composite cone subwoofer |
| Peak power | 1800 Watts |
| RMS power | 900 Watts |
| Magnets | 4 magnets; 170 Oz |
| Frequency response | 30-1,300Hz |
| Sensitivity | 85dB |
| Voice coil | 2.5 inch, 4-layer high temperature black aluminum (BASV) |
| Basket | Powdered black paint aluminum |
| Dust cap | Composite glass fiber |
| Cone | Kevlar Fiber Composite Non-press Paper Cone with Texture finish |
| Terminals | Silver push spring-loaded terminals |
| Mounting depth | 175 mm (6-7/8") |
| Impedance | 4 Ohms |
Why Choose This Product?
This Audiopipe subwoofer combines a 900-watt RMS rating with a reinforced composite cone and quad-stack motor design. Its construction details, including the ventilated coil and heat sink, make it a practical option to consider for a system built around substantial bass output.
Installation & Compatibility Notes
Allow for the stated 175 mm (6-7/8") mounting depth and check the available mounting space before installation. Match the subwoofer’s 4-ohm impedance and power ratings with your amplifier and system design. The spring-loaded terminals accept standard speaker wire.
Frequently Asked Questions
What do the 1800-watt peak and 900-watt RMS ratings mean?
The subwoofer is rated for 1800 Watts peak power and 900 Watts RMS power. Use the RMS rating when comparing continuous power requirements for your system.
What impedance is the TXX-BDC-IV-10-S4?
This model has a 4-ohm impedance. Check that your amplifier supports the load used in your system.
How much mounting depth should I allow?
The listed mounting depth is 175 mm (6-7/8"). Confirm that your installation space can accommodate it.
What type of speaker wire connection does it use?
It has silver push spring-loaded terminals designed for standard speaker wire.
