Audiopipe TXX-BDC-IV-15D2 15" Quad Stack Composite Cone Subwoofer
Key features
- Subwoofer size: 15.0 inches
- RMS power per subwoofer: 1400 W
- Voice-coil options: D2
- MAGNET: Boasting 4 magnets for strong power handling, 250 Oz
- FREQUENCY RESPONSE: 23-1,000Hz
- SENSITIVITY: 90dB
Audiopipe TXX-BDC-IV-15D2 15" Quad Stack Composite Cone Subwoofer is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview
Add a 15-inch subwoofer with a dual 2-ohm voice coil to your car audio system with the Audiopipe TXX-BDC-IV-15D2 quad stack composite cone subwoofer. It combines a Kevlar fiber composite non-press paper cone, four magnets, and increased voice coil ventilation in a design rated for 1,400 watts RMS.
Key Features & Benefits
- Power ratings: 1,400 watts RMS and 2,800 watts peak give you clear figures to consider when matching system components.
- Dual voice coil: The two 2-ohm coils can be wired in series or parallel using the multi-connect terminals.

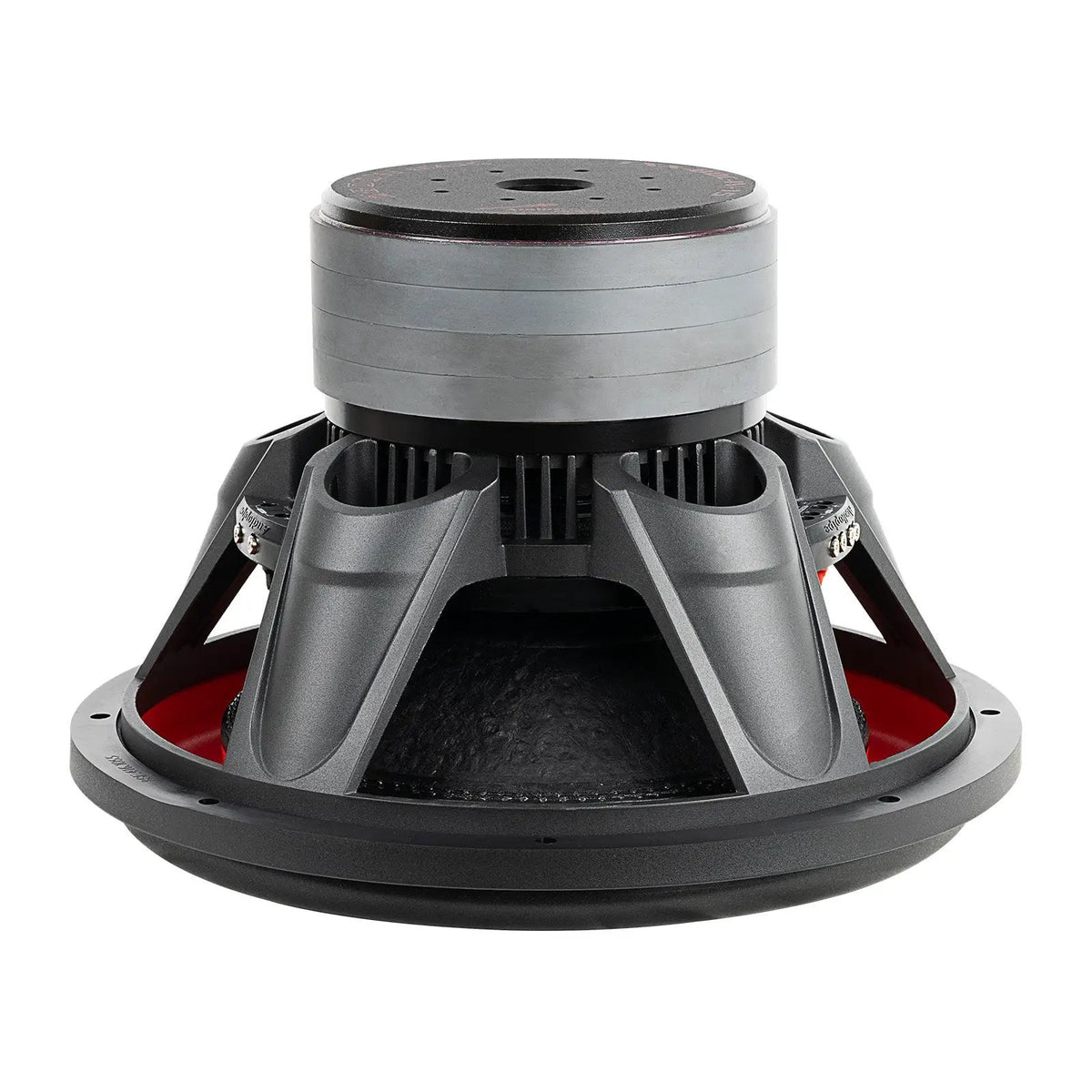

- Ventilated construction: Four 250-ounce magnets, increased voice coil ventilation, and a dust-proof heat sink support the subwoofer’s performance and endurance.
- Composite cone: The textured Kevlar fiber composite non-press paper cone is designed for improved rigidity.

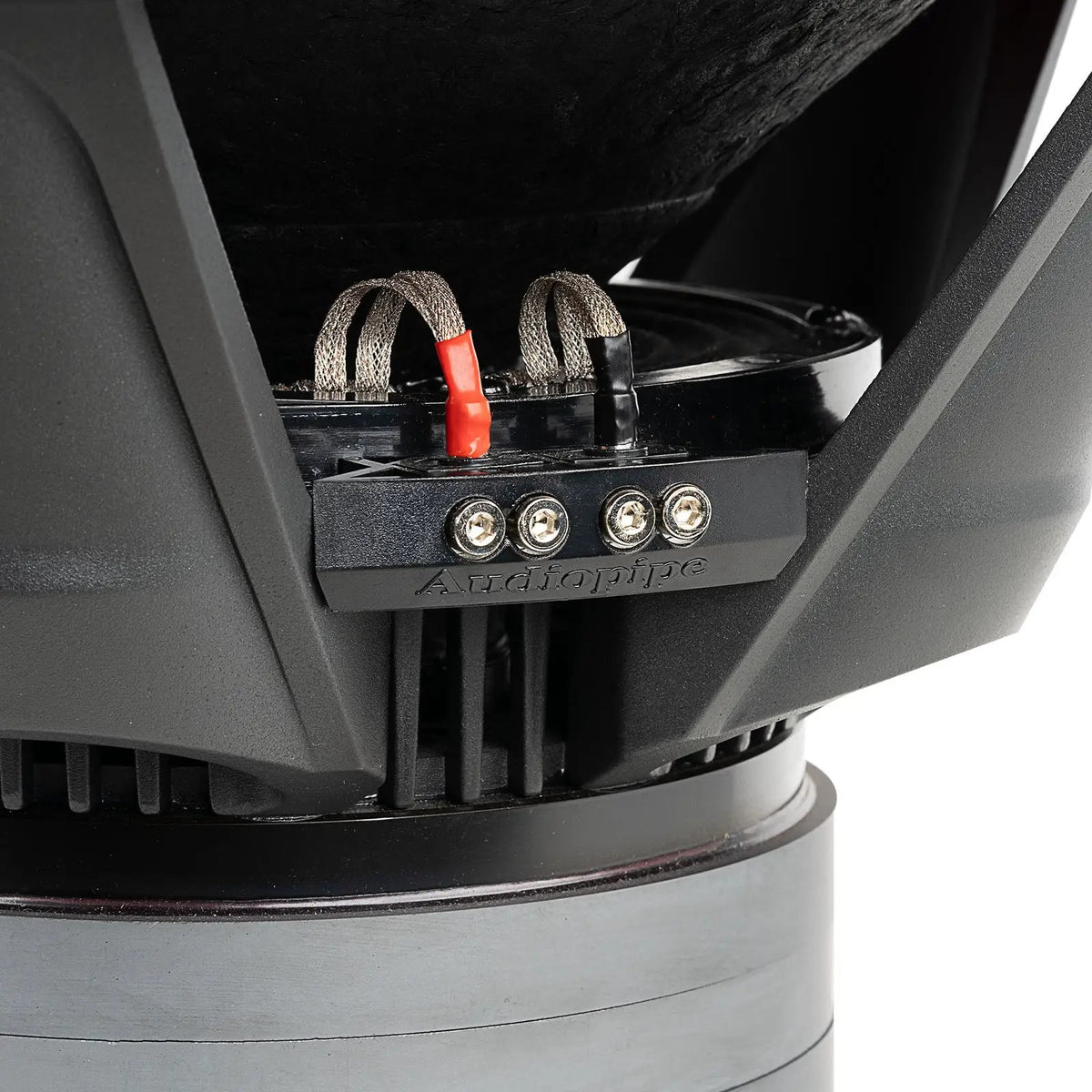

- Connection options: Patented pipe multi-connect terminals accept speaker wire up to 8 gauge for series or parallel wiring.
- Aluminum basket: The powdered black paint basket provides the subwoofer’s mounting structure.
Technical Specifications
| Product category | 15-inch quad stack composite cone subwoofer |
|---|---|
| Peak power | 2,800 watts |
| RMS power | 1,400 watts |
| Magnet | 4 magnets; 250 Oz |
| Frequency response | 23-1,000Hz |
| Sensitivity | 90dB |
| Voice coil | Dual 2 ohm; 3.3” inch; 4-layer high temperature black aluminum (BASV) |
| Basket | Powdered black paint aluminum |
| Dust cap | Composite glass fiber |
| Heat sink | Dust-proof, strongly constructed, designed for high ventilation |
| Tinsel leads | Progressive weaved tinsel leads on each side |
| Terminals | Patented pipe multi-connect terminals; accept up to 8 gauge speaker wire; series and parallel wiring |
| Cone | Kevlar Fiber Composite Non-press Paper Cone with Texture finish |
| Mounting depth | 225mm (8-7/8”) |
| Impedance | 2 x 2 Ohms |
Why Choose This Product?
The TXX-BDC-IV-15D2 brings together a large composite cone, four-magnet motor, and dual voice coils in one 15-inch subwoofer. Its ventilation-focused design and sturdy aluminum basket make construction details part of the decision, alongside its power ratings and wiring options.
Installation & Compatibility Notes
Allow for the listed 225mm (8-7/8”) mounting depth when planning the installation. The terminals support series or parallel wiring and accept speaker wire up to 8 gauge. Check your amplifier’s supported load and power ratings against the final wiring configuration before connecting the subwoofer.
Frequently Asked Questions
What are the power ratings?
The subwoofer is rated at 1,400 watts RMS and 2,800 watts peak.
What is the voice coil impedance?
It has two 2-ohm voice coils, listed as 2 x 2 Ohms.
Can the voice coils be wired in series or parallel?
Yes. The multi-connect terminals are designed for series or parallel wiring.
How much mounting depth should I allow?
The listed mounting depth is 225mm (8-7/8”).
What is the maximum speaker wire size accepted by the terminals?
The terminals accept speaker wire up to 8 gauge.
