Audiopipe TXX-BDC-IV-18D2 18" Quad Stack Composite Cone Subwoofer
Key features
- Subwoofer size: 18.0 inches
- RMS power per subwoofer: 1700 W
- Voice-coil options: D2
- MAGNET: Boasting 4 magnets for strong power handling, 340 Oz
- FREQUENCY RESPONSE: 15-800Hz
- SENSITIVITY: 90dB
Audiopipe TXX-BDC-IV-18D2 18" Quad Stack Composite Cone Subwoofer is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview

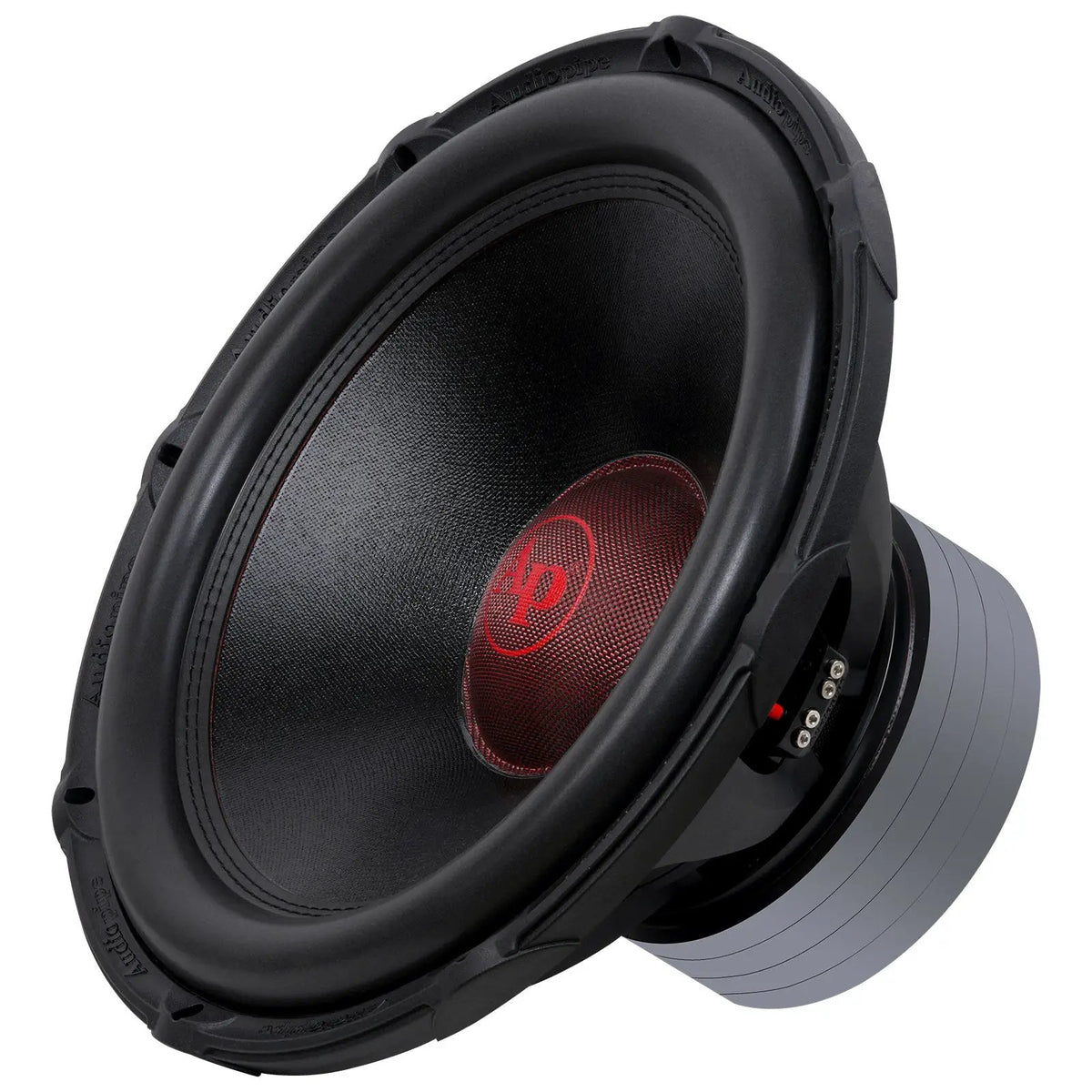

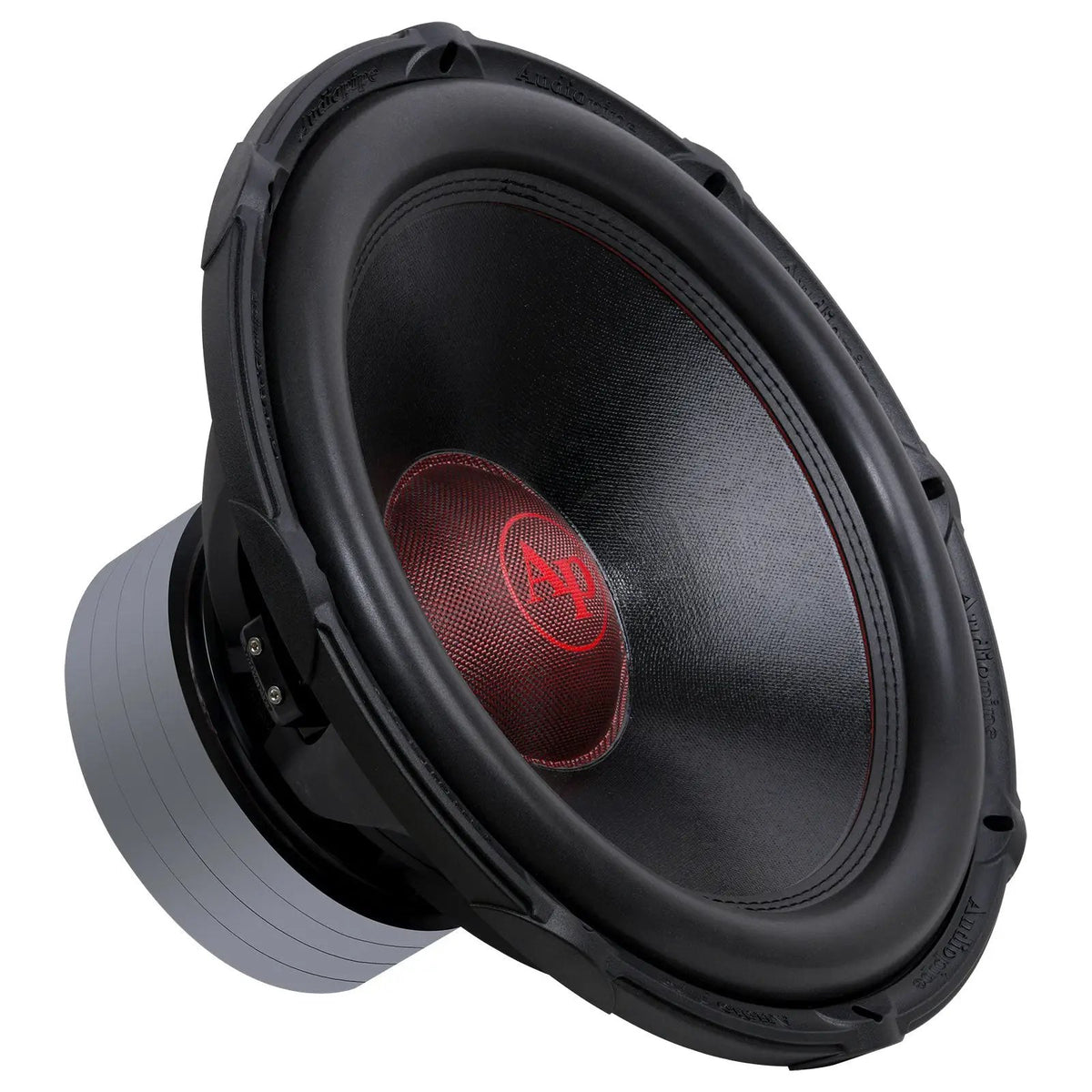

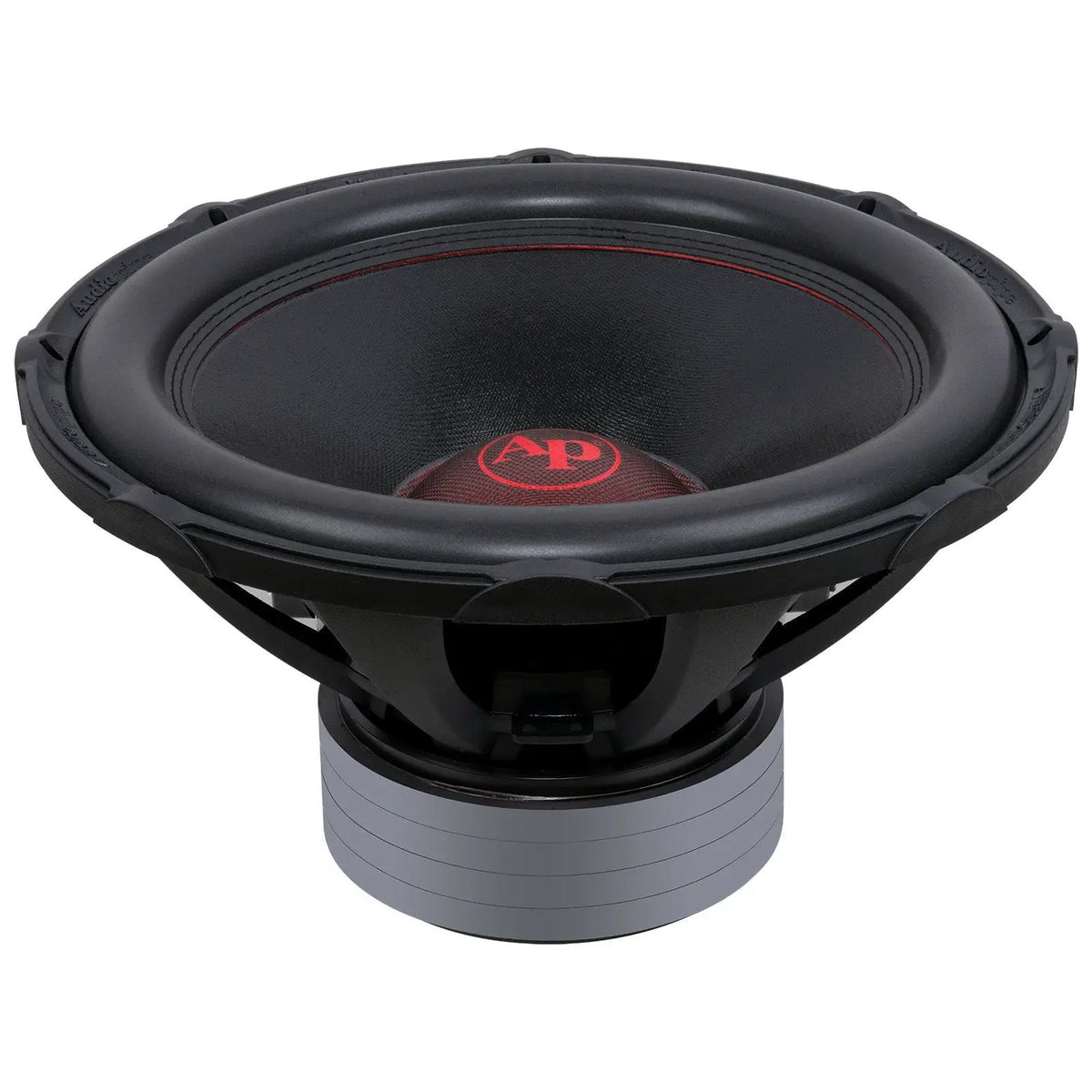

Add a high-output 18-inch subwoofer to your car audio system with the Audiopipe TXX-BDC-IV-18D2. Its 3400-watt peak rating, dual 2-ohm voice coils, and textured Kevlar fiber composite cone are built for a powerful low-frequency setup.

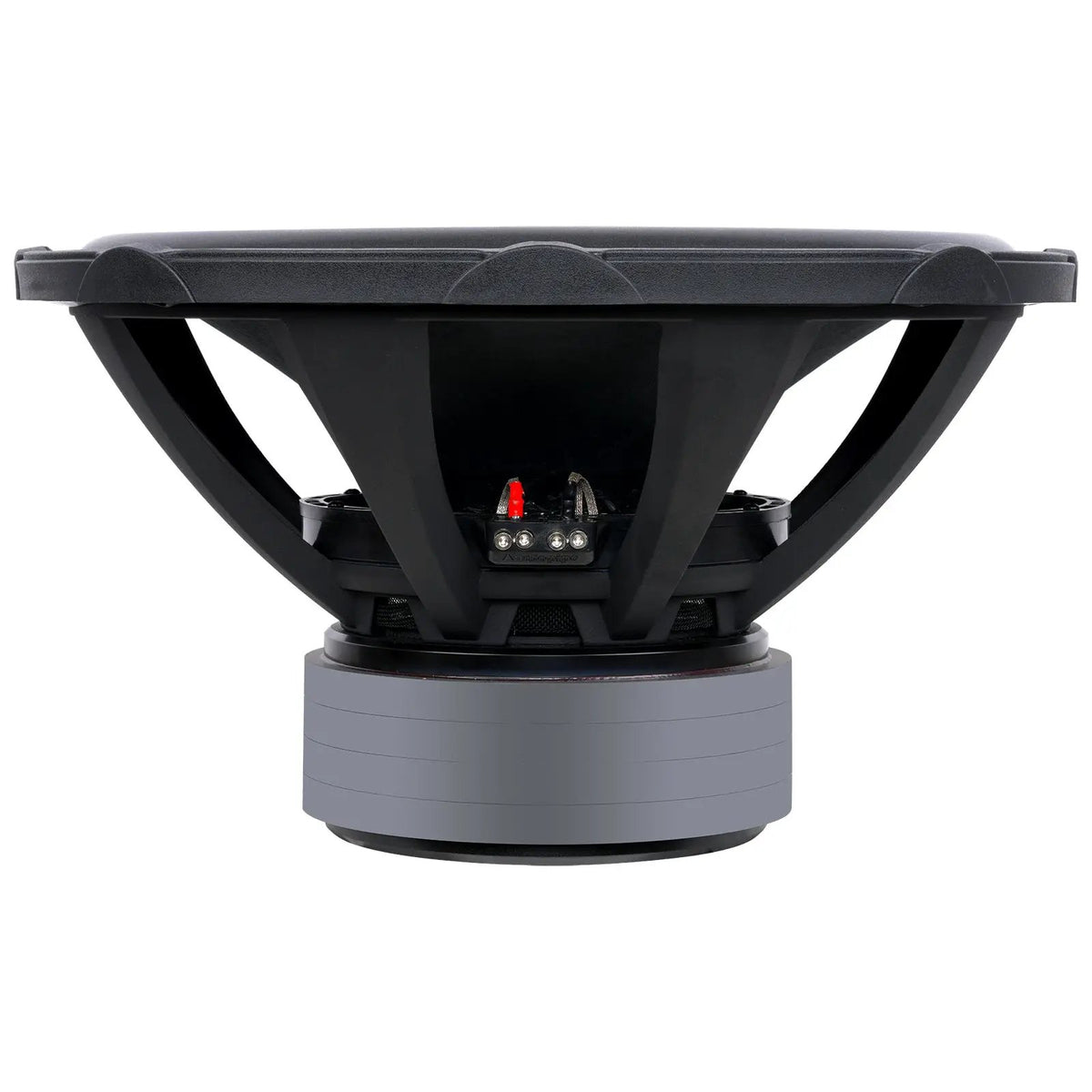

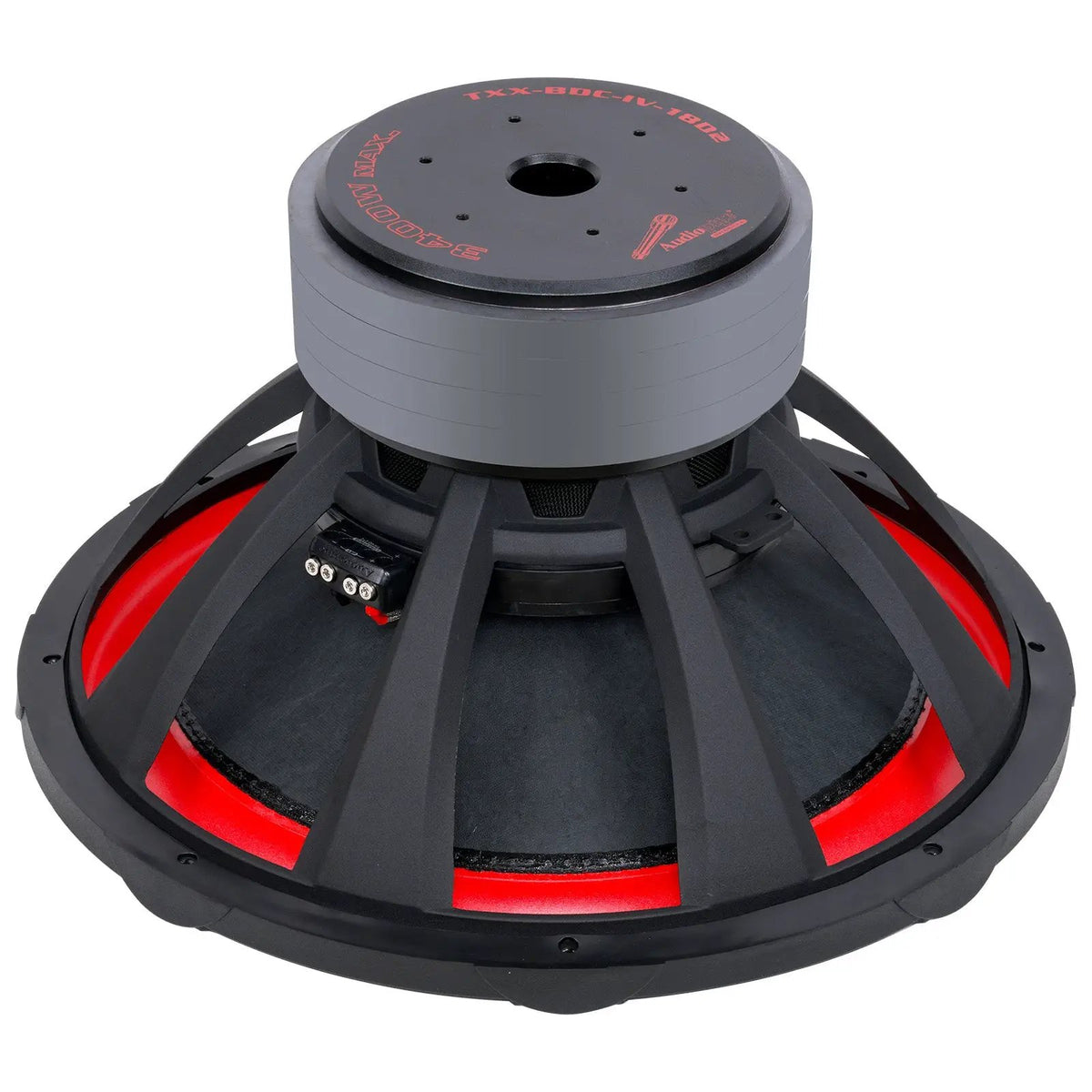

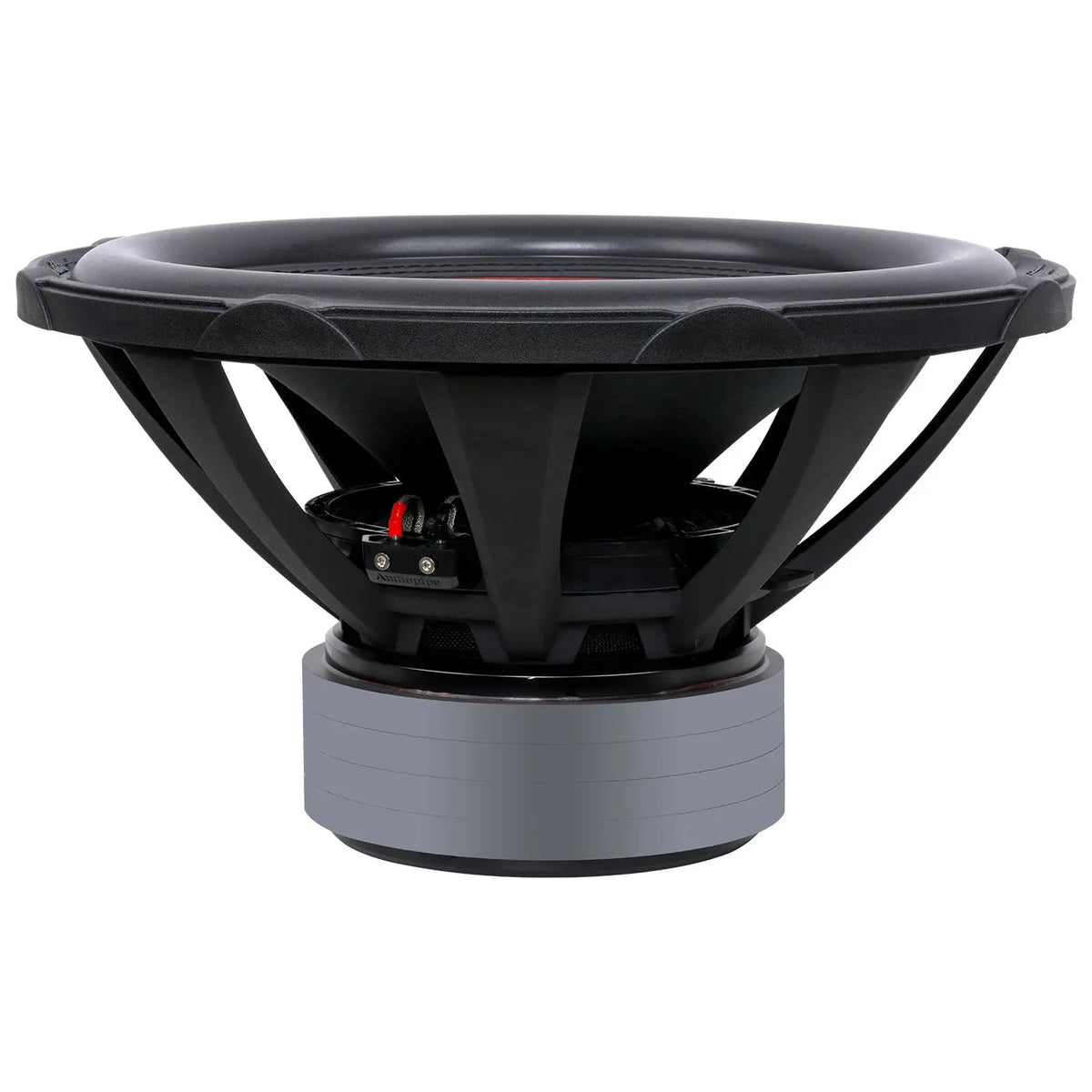

Four magnets, added voice-coil ventilation, and a ventilated aluminum basket support the subwoofer’s design for power handling and endurance.
Key Features & Benefits
- High power ratings: Rated at 1700 watts RMS and 3400 watts peak for planning a high-output system.
- Dual voice coils: The 2-ohm coils can be wired in series or parallel using the multi-connect terminals.

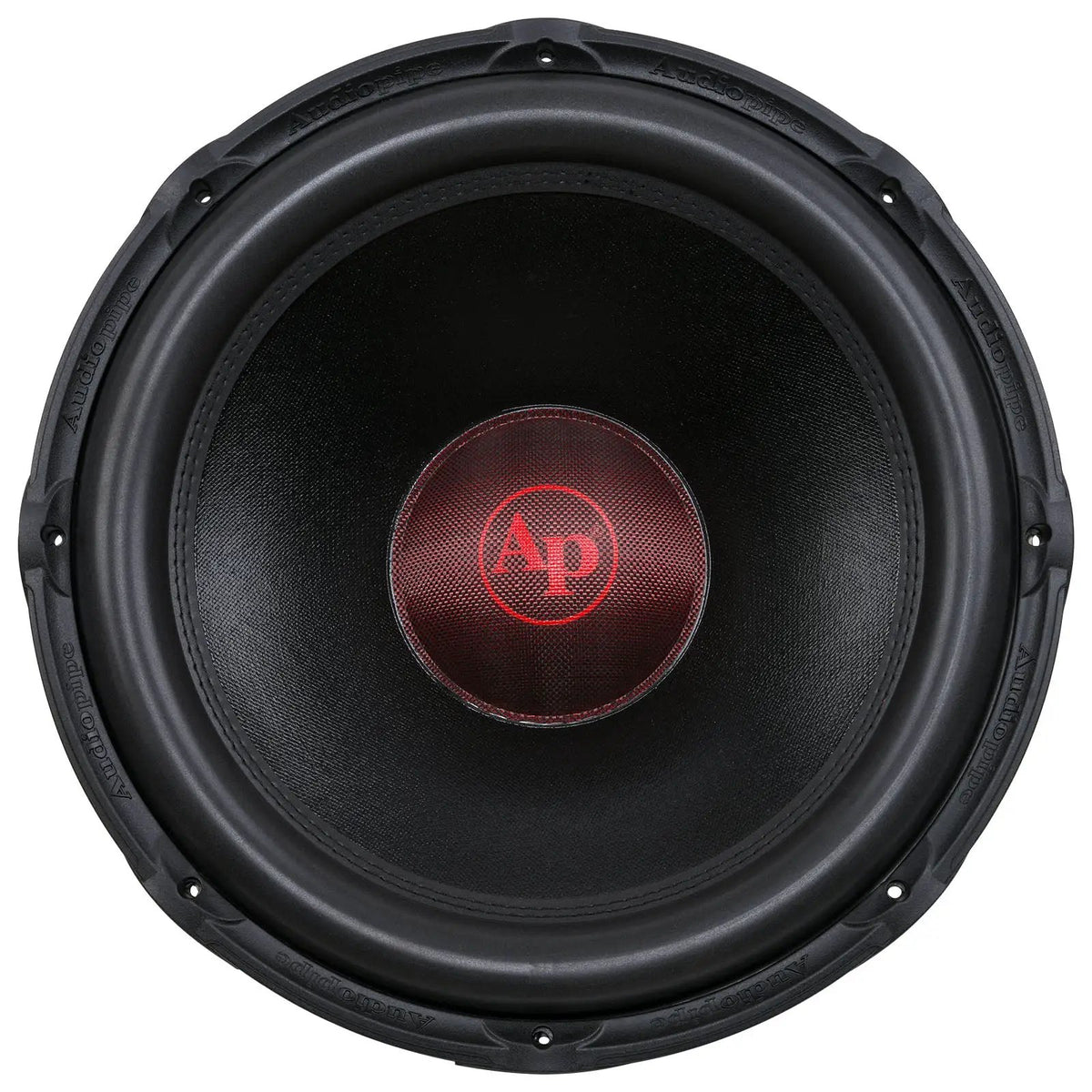

- Textured composite cone: Kevlar fiber composite non-press paper is designed for improved cone rigidity.

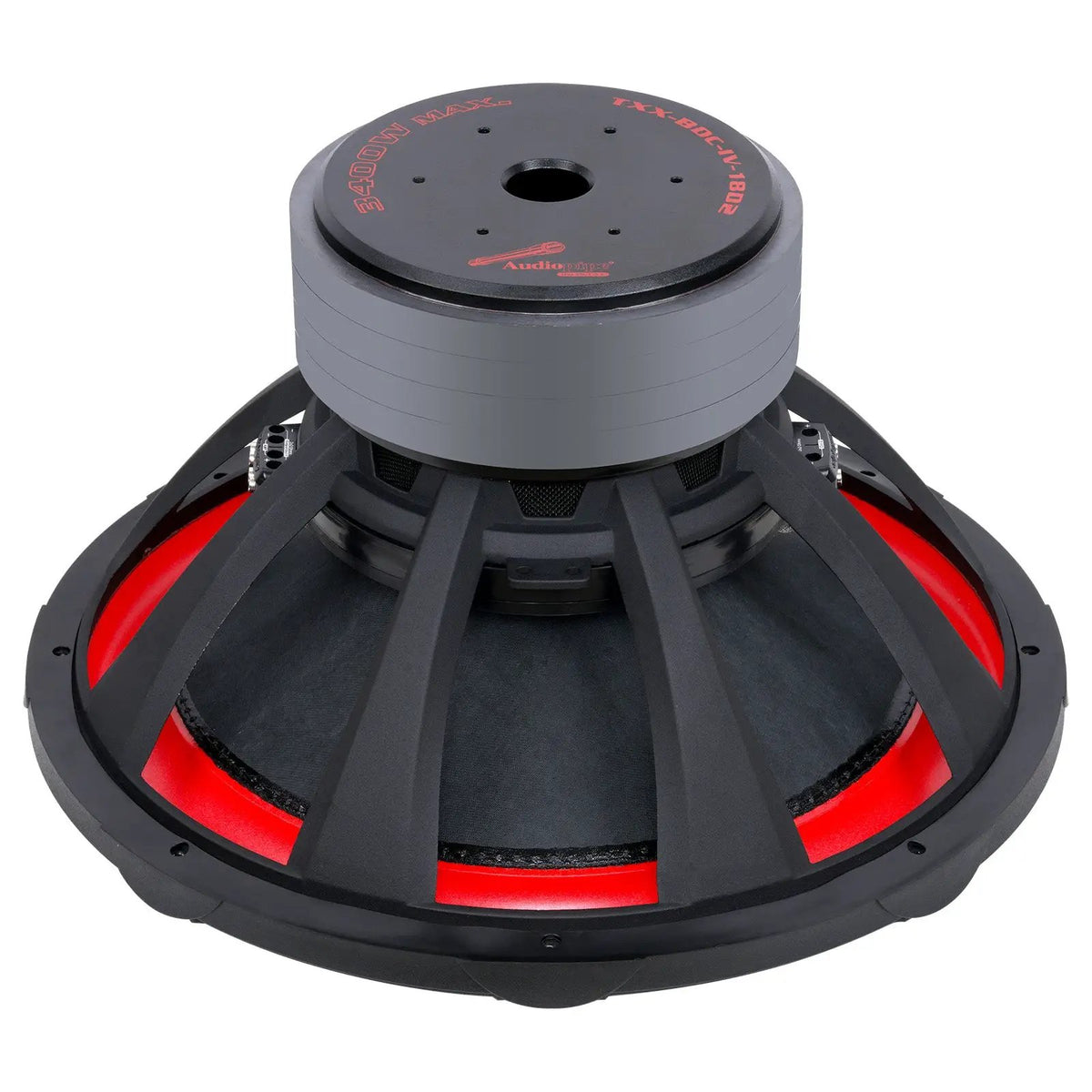

- Ventilated construction: Four magnets, increased voice-coil ventilation, and a heat-sink design support airflow.
- 8-gauge terminal capacity: The patented multi-connect terminals accept speaker wire up to 8 gauge.
Technical Specifications
| Brand | Audiopipe |
|---|---|
| Model | TXX-BDC-IV-18D2 |
| Product type | 18" Quad Stack Composite Cone Subwoofer |

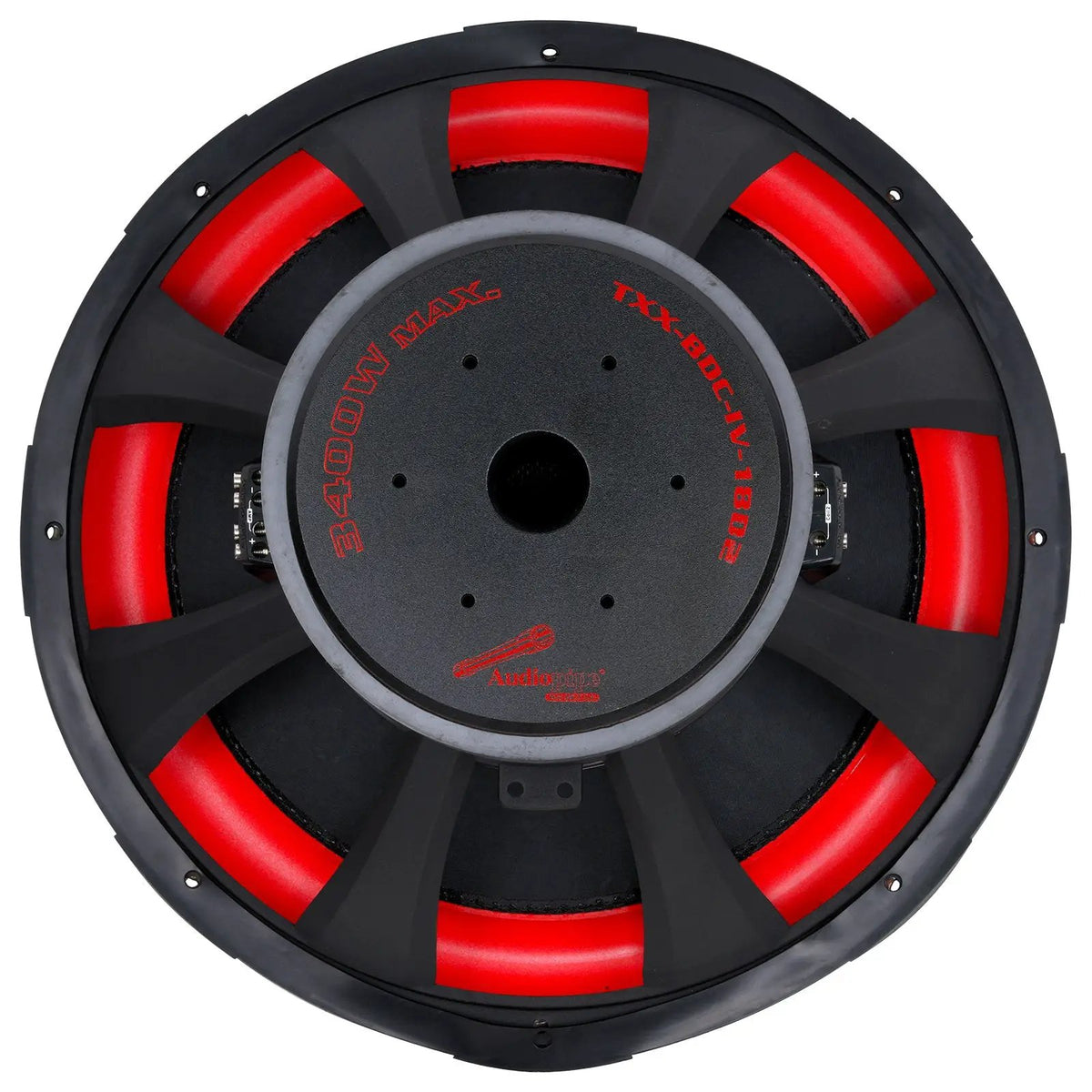

| Peak power | 3400 Watts |
| RMS power | 1700 Watts |

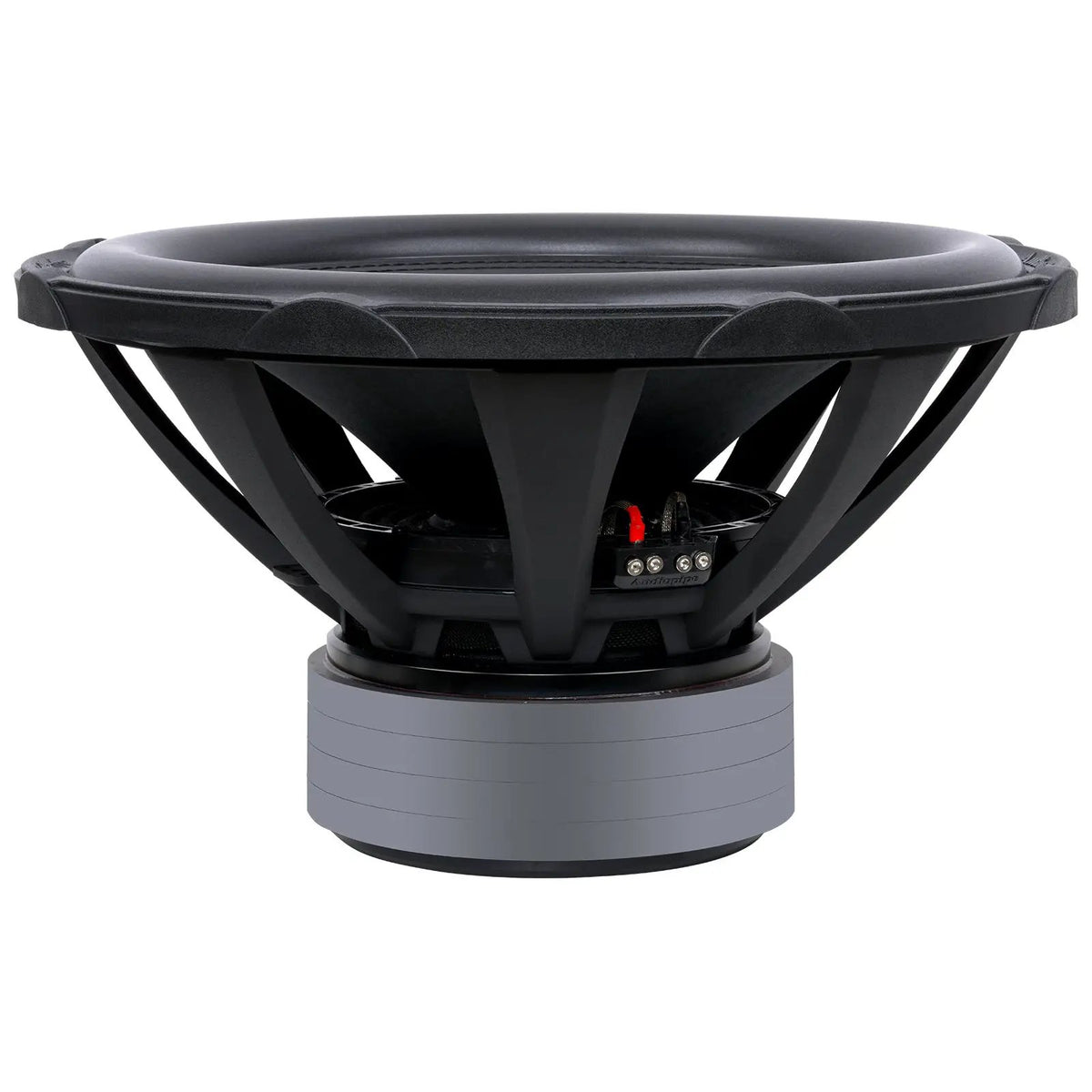

| Magnet | 4 magnets, 340 Oz |
| Frequency response | 15-800Hz |
| Sensitivity | 90dB |
| Voice coil | Dual 2 ohms; 4 inch; 4-layer high temperature black aluminum (BASV); increased voice coil ventilation |
| Basket | Powdered black paint aluminum basket |
| Dust cap | Composite glass fiber |
| Heat sink | Dust-proof heat sink |
| Tinsel leads | Quad weaved tinsel leads on each side |

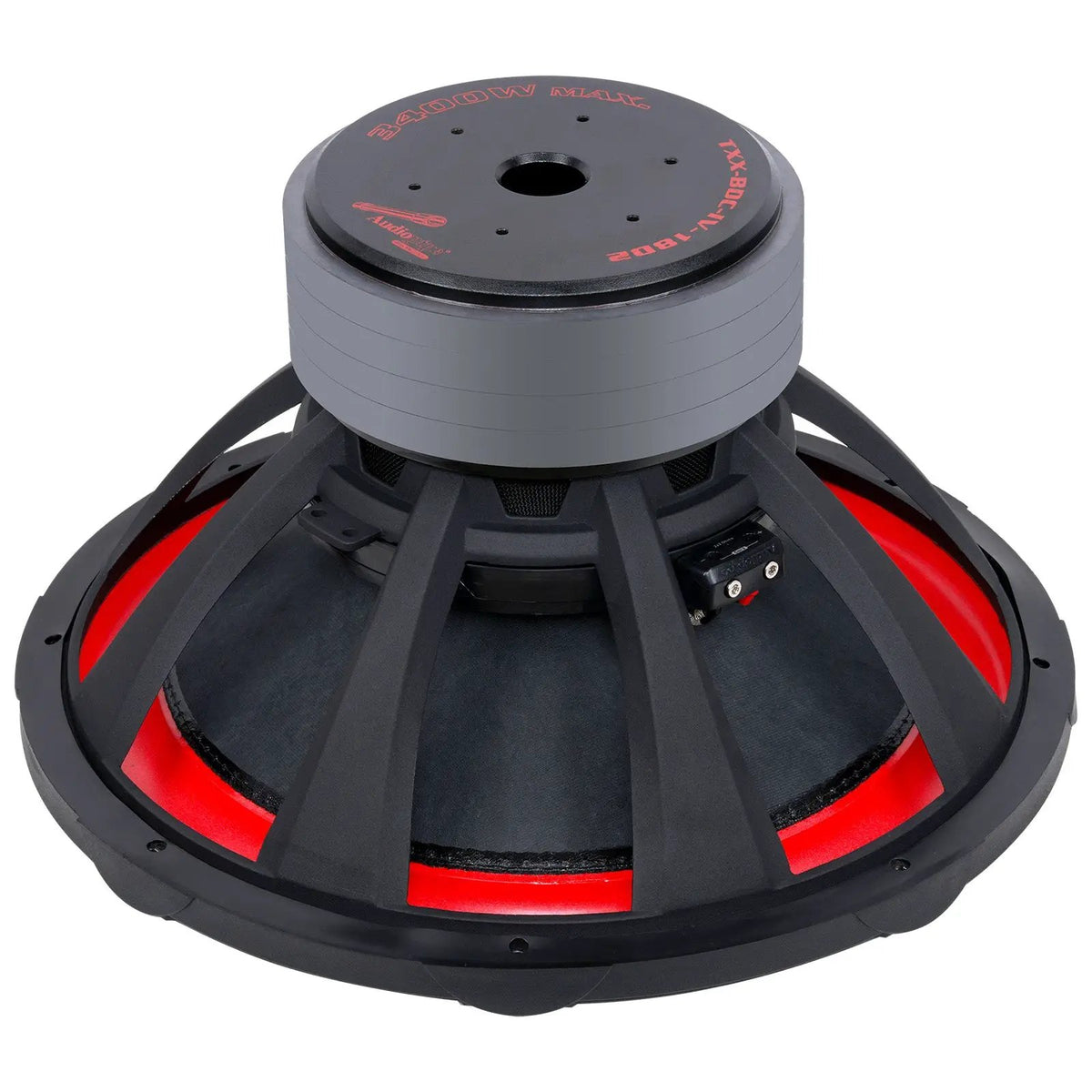

| Terminals | Patented pipe multi-connect terminals; accept up to 8 gauge speaker wire; support series or parallel wiring |
| Cone | Kevlar Fiber Composite Non-press Paper Cone with Texture finish |
| Mounting depth | 245mm (9-5/8”) |
| Impedance | 2 x 2 Ohms |
Why Choose This Product?
The TXX-BDC-IV-18D2 combines a large 18-inch cone with dual voice coils and connection terminals designed for series or parallel wiring. Its composite cone, aluminum basket, and ventilated construction make those design details central when choosing a subwoofer for a high-output car audio build.
The 1700-watt RMS rating is a key figure to consider when matching the subwoofer with an amplifier. The peak rating is listed separately, so keep both ratings distinct when planning your system.
Installation & Compatibility Notes
Allow for the stated 245mm (9-5/8”) mounting depth and confirm the available mounting space before installation. Plan the final wiring configuration around the dual 2-ohm voice coils, then confirm that your amplifier supports the resulting load.
The multi-connect terminals accept speaker wire up to 8 gauge. Check the subwoofer’s mounting and enclosure requirements against your installation plan.
Frequently Asked Questions
What does the 2 x 2-ohm impedance mean?
The subwoofer has two 2-ohm voice coils. Its terminals support series or parallel wiring, so select a configuration that your amplifier can support.
What is the difference between the RMS and peak power ratings?
The listed RMS power is 1700 watts, while peak power is 3400 watts. Keep these ratings separate when selecting supporting equipment.
How much mounting depth should I allow?
The listed mounting depth is 245mm (9-5/8”). Check the available space in your planned installation.
What speaker wire can the terminals accept?
The patented pipe multi-connect terminals accept speaker wire up to 8 gauge and allow series or parallel connections.
