Audiopipe TXX-BDC-IV-6 6" Quad Stack Composite Cone Subwoofer
Key features
- Subwoofer size: 6.0 inches
- RMS power per subwoofer: 250 W
- Voice-coil options: D4
- MAGNET: Boasting 4 magnets for strong power handling, 80 Oz
- FREQUENCY RESPONSE: 50-1600Hz
- SENSITIVITY: 84dB
Audiopipe TXX-BDC-IV-6 6" Quad Stack Composite Cone Subwoofer is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview
Add a compact 6-inch subwoofer to your car audio system with the Audiopipe TXX-BDC-IV-6 Quad Stack Composite Cone Subwoofer. Its dual 4-ohm voice coils, four-magnet design, and 250-watt RMS power rating give you key details to consider when planning your system.
The textured Kevlar fiber composite non-press paper cone is designed for improved rigidity. Increased voice coil ventilation is part of the design for performance and endurance.
Key Features & Benefits
- 250-watt RMS power: Use the RMS rating when assessing the subwoofer for your audio system.
- Four-magnet design: The 80-ounce magnet assembly is a defining part of this quad-stack subwoofer.
- Dual 4-ohm voice coils: The separate coils support parallel or series wiring through the multi-connect terminals.
- Textured composite cone: The Kevlar fiber composite non-press paper cone is designed for improved rigidity.
- Aluminum basket: The powdered black paint basket is paired with a composite glass fiber dust cap and dust-proof heat sink.

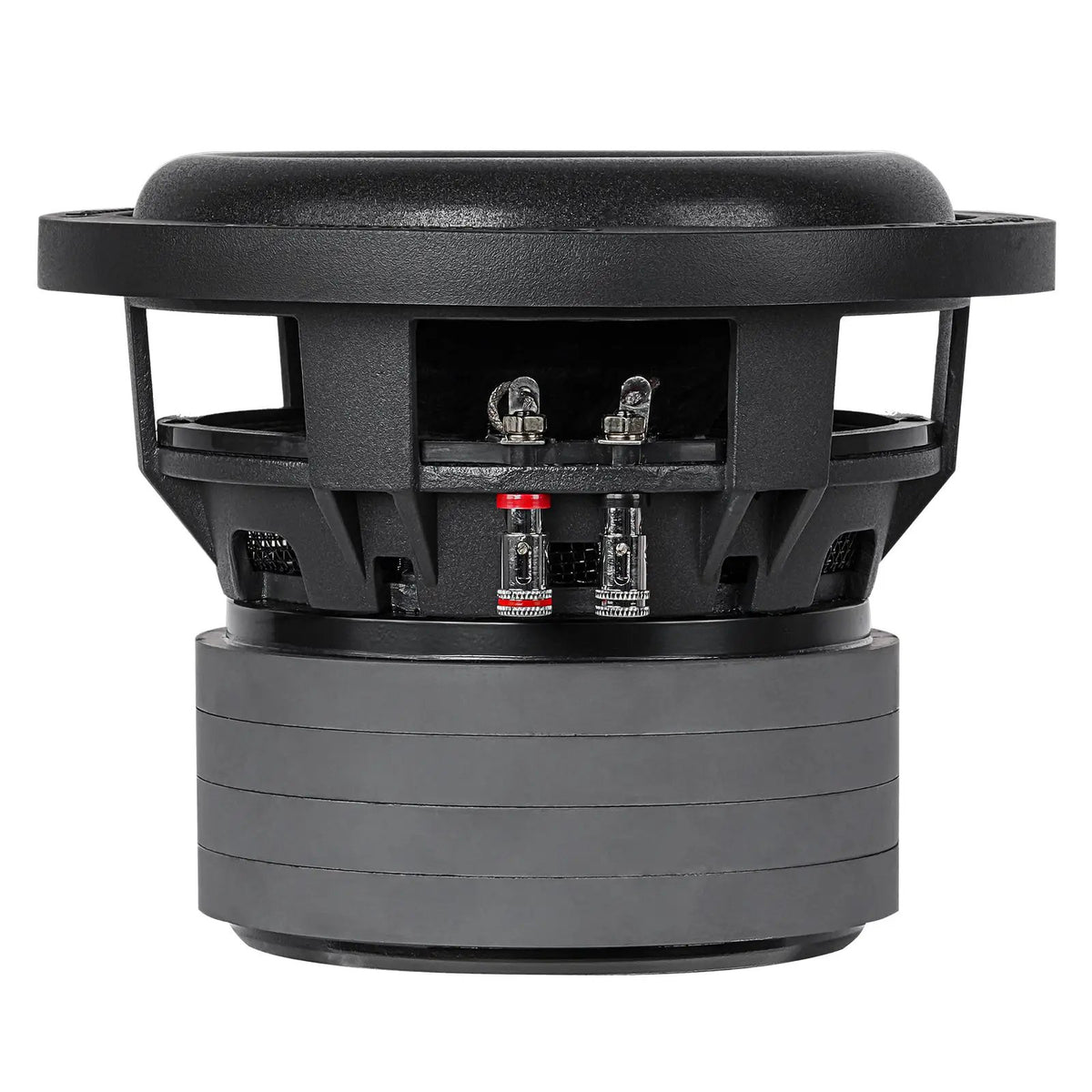

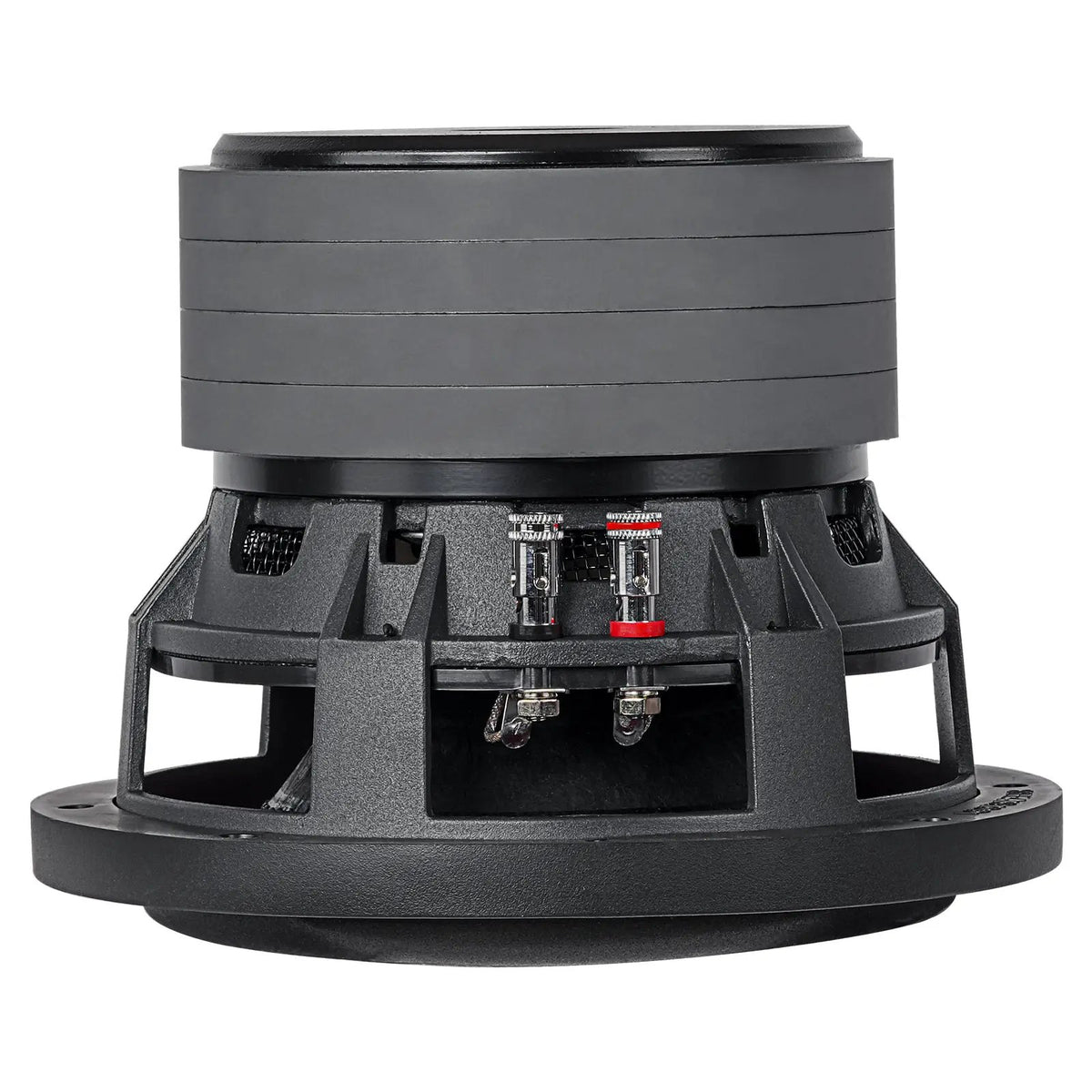

- Multi-connect terminals: Terminals accept speaker wire up to 8 gauge for wiring the dual coils.
Technical Specifications
| Product | Audiopipe TXX-BDC-IV-6 6" Quad Stack Composite Cone Subwoofer |
|---|---|
| Peak power | 500 Watts |
| RMS power | 250 Watts |
| Magnet | 4 magnets, 80 Oz |
| Frequency response | 5 0-1600Hz |
| Sensitivity | 84dB |
| Voice coil | Dual 4 ohm, 2.5 inch, 4-layer high temperature black aluminum (BASV) |
| Impedance | 2 x 4 Ohms |
| Mounting depth | 148mm (5-7/8”) |
| Cone | Kevlar Fiber Composite Non-press Paper Cone with Texture finish |
| Basket | Powdered black paint aluminum |
| Dust cap | Composite glass fiber |
| Terminals | Patented pipe multi-connect terminals; accept up to 8 gauge speaker wire |
Why Choose This Product?
The TXX-BDC-IV-6 combines a 6-inch format with a 250-watt RMS rating, four magnets, and a ventilated dual voice coil. Its cone and basket materials distinguish its construction, while the multi-connect terminals provide a defined way to wire the coils in parallel or series.
Installation & Compatibility Notes
Check that your planned mounting location can accommodate the 148mm (5-7/8”) mounting depth. Confirm your system’s wiring plan and amplifier requirements for the subwoofer’s dual 4-ohm coils before installation. The terminals accept speaker wire up to 8 gauge.
Frequently Asked Questions
What are the subwoofer’s power ratings?
It is rated for 250 Watts RMS and 500 Watts peak power.
What impedance are the voice coils?
The subwoofer has dual 4-ohm voice coils, listed as 2 x 4 Ohms.
Can the coils be wired in parallel or series?
Yes. The multi-connect terminals are designed for parallel or series wiring of the dual coils.
How much mounting depth should I allow?
The listed mounting depth is 148mm (5-7/8”). Check the available space at your intended mounting location.
