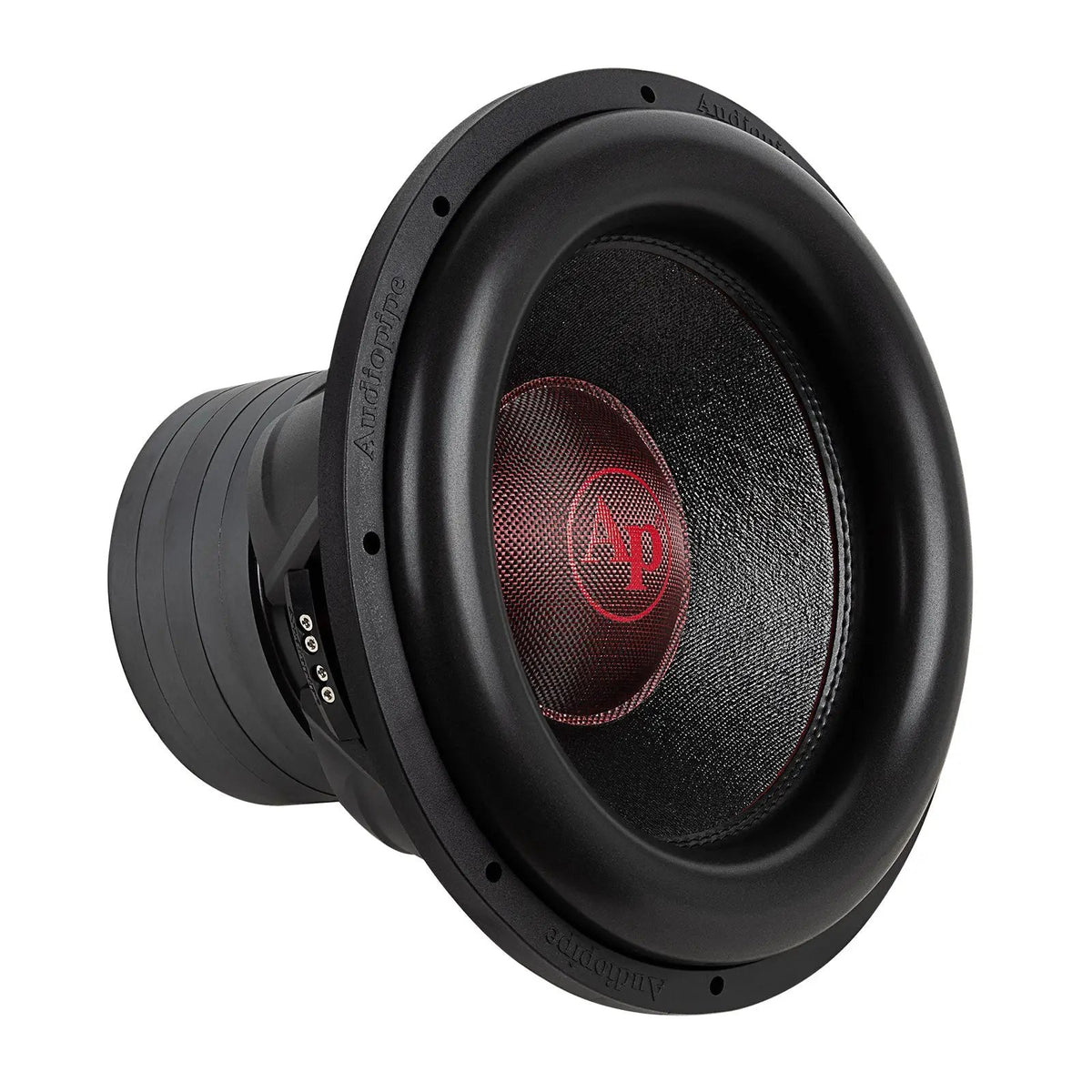

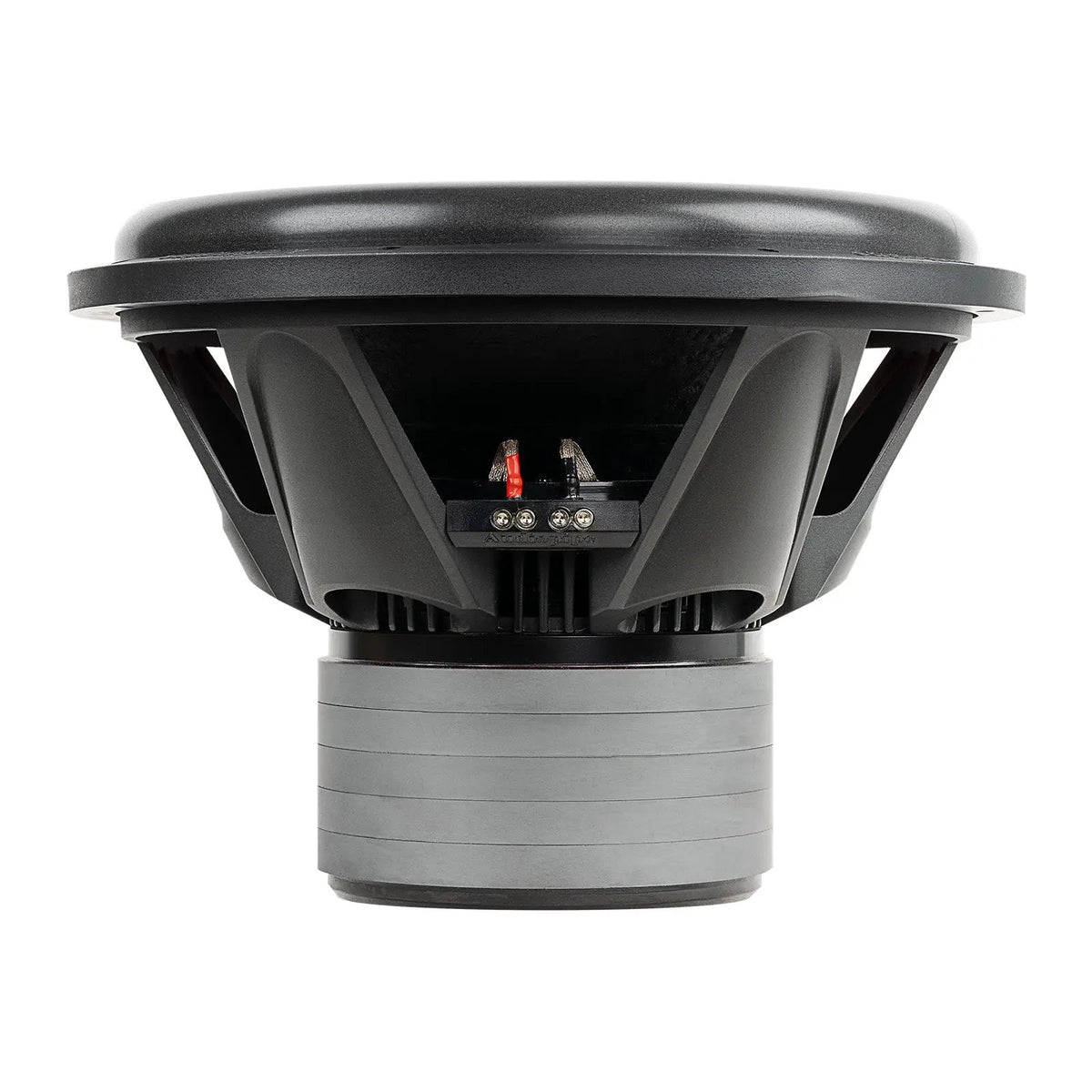

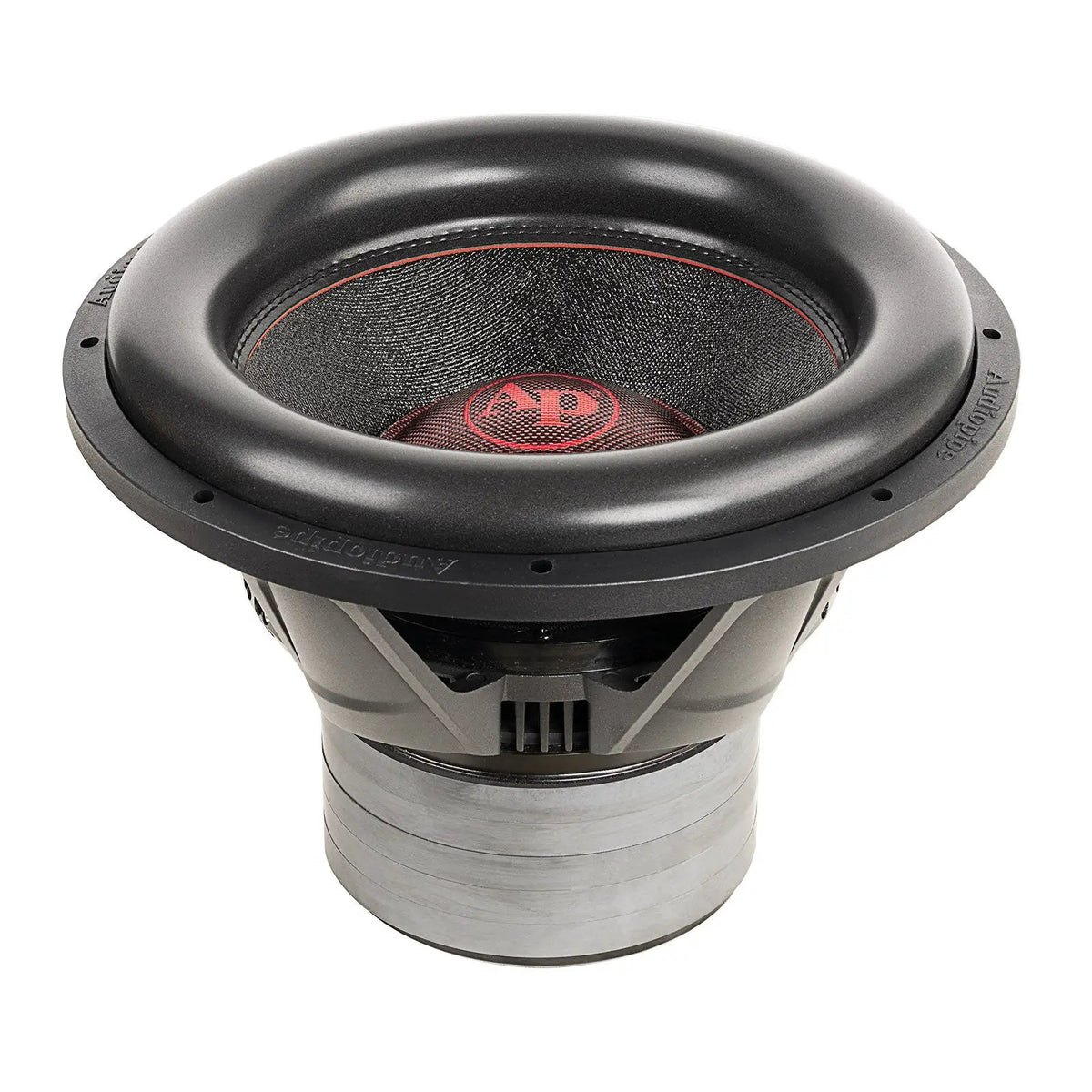

Audiopipe TXX-BDC-V-15 15" Quinta Stack Composite Cone Subwoofer
Key features
- Subwoofer size: 15.0 inches
- RMS power per subwoofer: 1500 W
- Voice-coil options: D4
- MAGNET: Boasting 5 magnets for strong power handling, 310 Oz
- FREQUENCY RESPONSE: 20-1,000Hz
- SENSITIVITY: 87dB
Audiopipe TXX-BDC-V-15 15" Quinta Stack Composite Cone Subwoofer is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview
Build a high-output car audio system around the Audiopipe TXX-BDC-V-15 15-inch subwoofer, rated for 1500 watts RMS and 3000 watts peak. Its textured Kevlar fiber composite non-press paper cone and ventilated voice coil design bring together rigidity and heat management for demanding audio use.
Key Features & Benefits

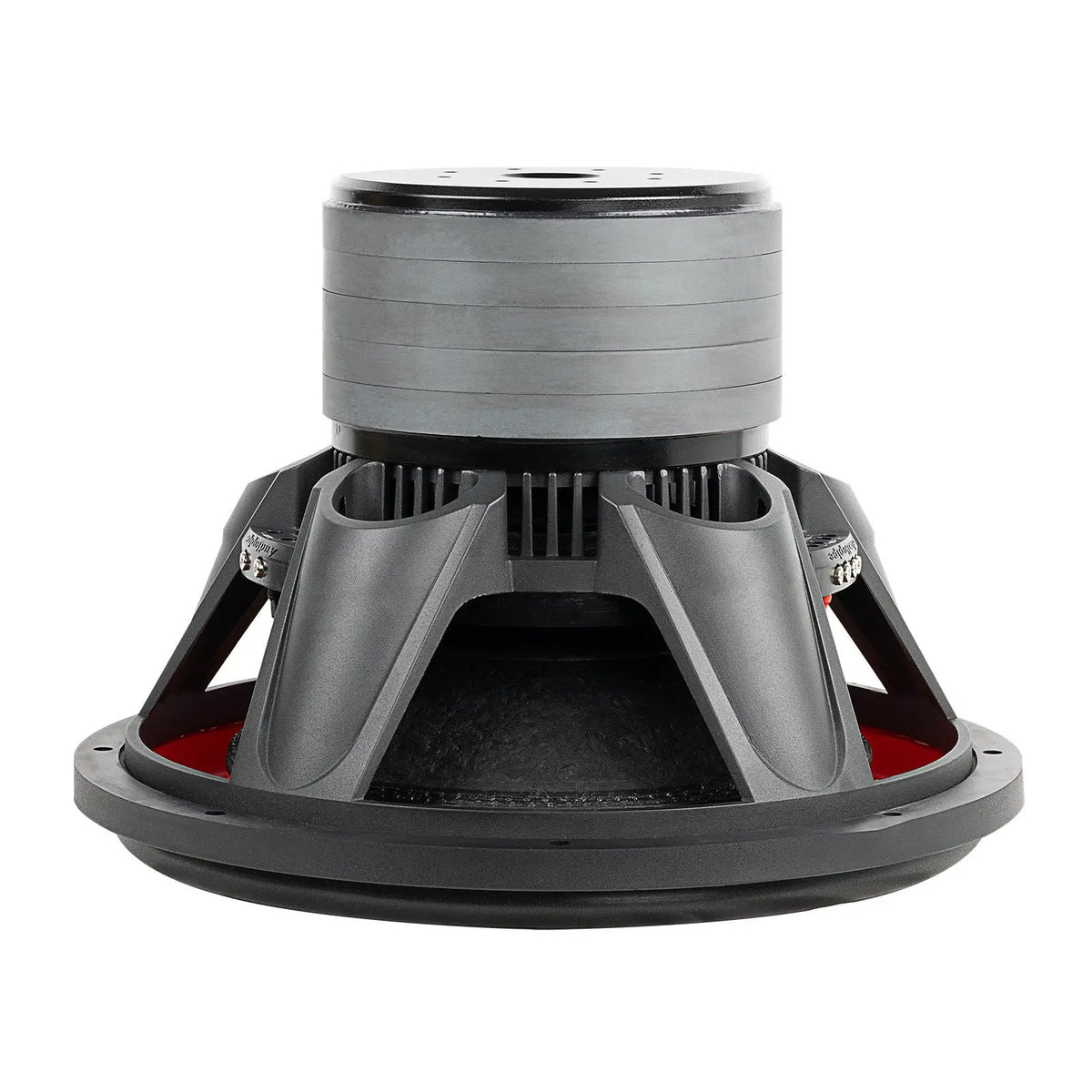

- Quinta Stack motor: Five magnets totaling 310 oz support the subwoofer’s power-handling design.
- Ventilated voice coil: Increased ventilation is designed to support performance and endurance.

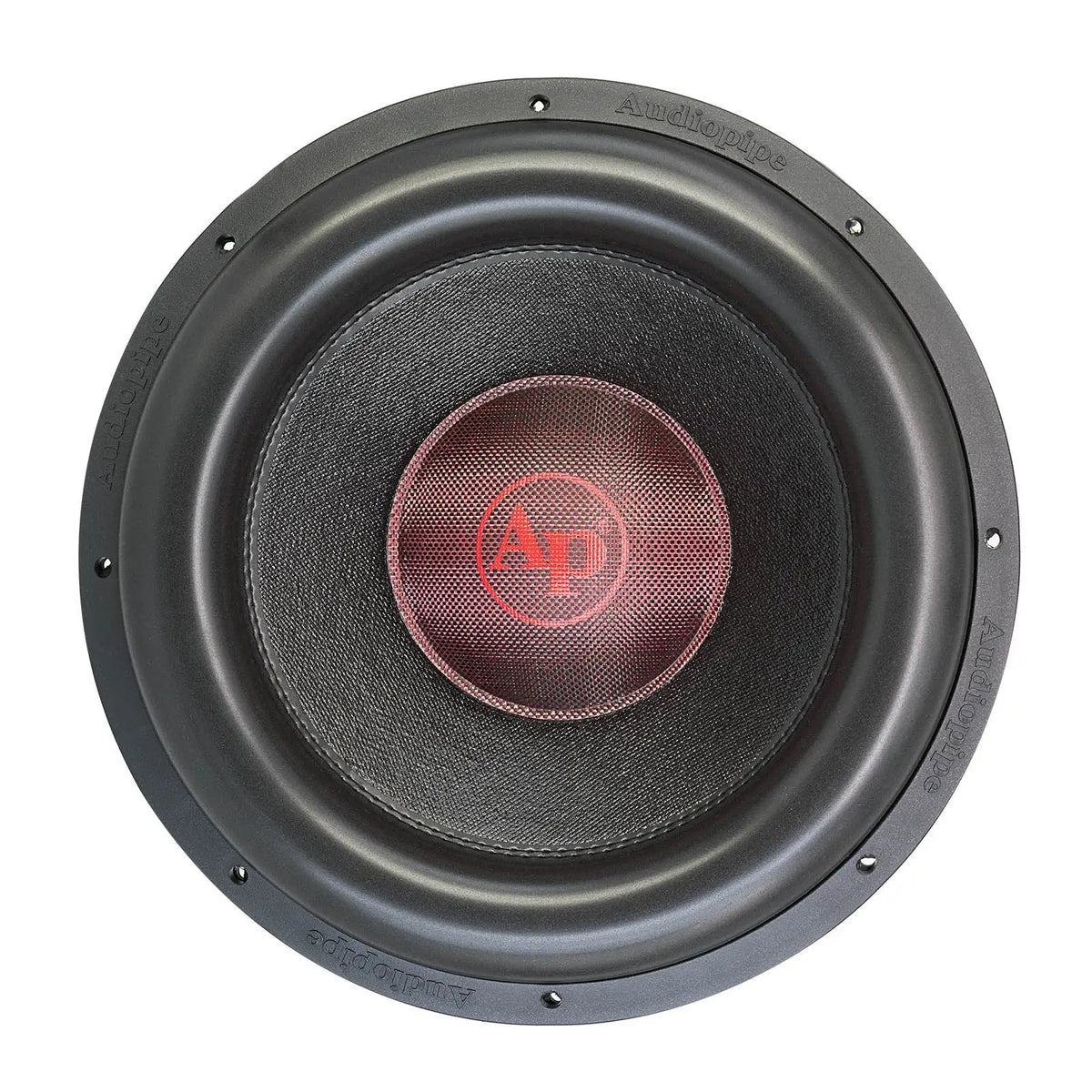

- Rigid cone construction: The textured Kevlar fiber composite non-press paper cone is designed for improved rigidity.

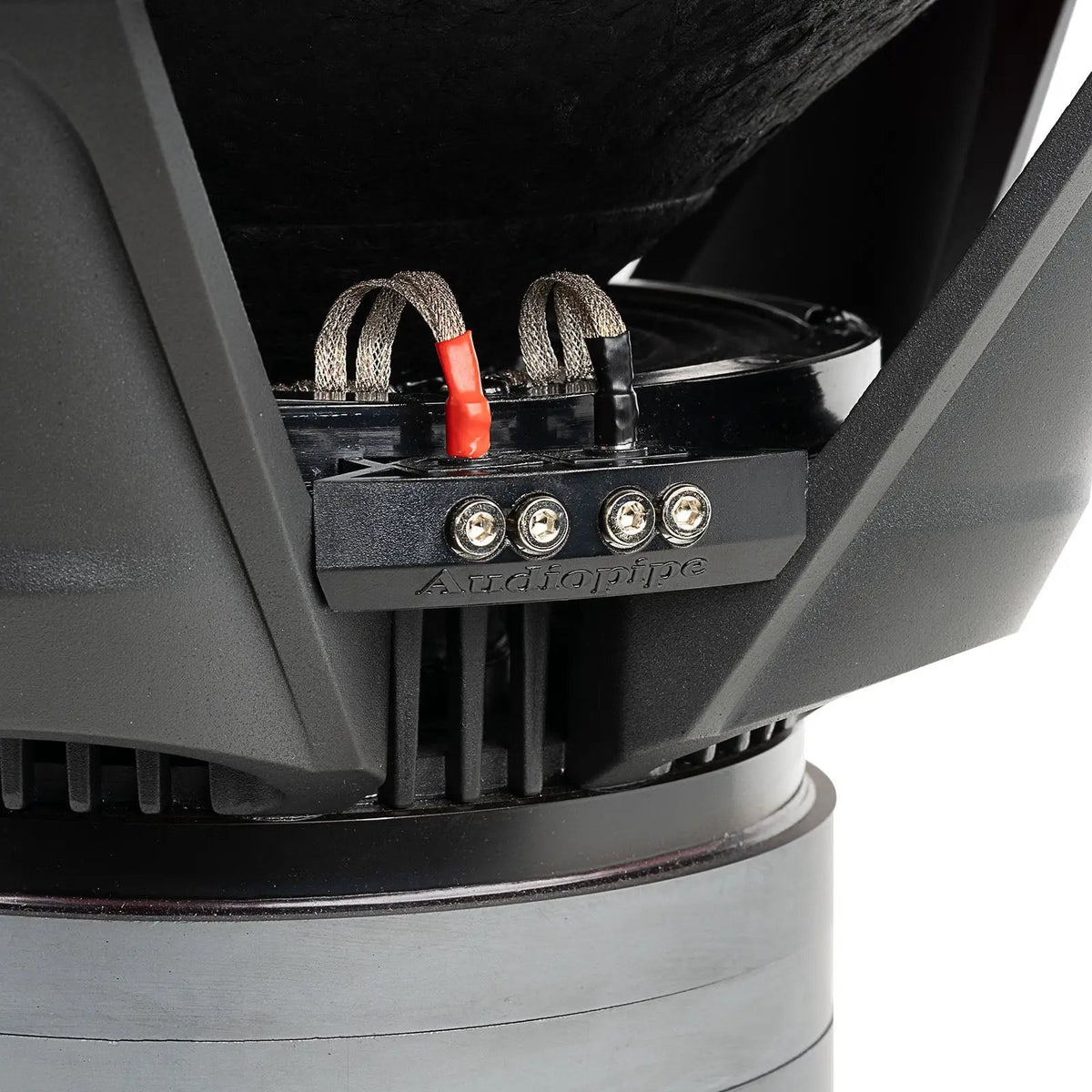

- Multi-connect terminals: Patented terminals accept up to 8-gauge speaker wire and allow series or parallel coil wiring.
- Aluminum basket: The powdered black paint basket features a dust-proof heat sink designed for high ventilation.
- Quad weaved tinsel leads: Progressive leads on each side are designed for durability and sound quality.
Technical Specifications
| Product category | 15-inch subwoofer |
|---|---|
| Peak power | 3000 watts |
| RMS power | 1500 watts |
| Magnets | 5 magnets; 310 oz |
| Frequency response | 20–1,000 Hz |
| Sensitivity | 87 dB |
| Voice coil | Dual 4 ohm; 3.3-inch, 4-layer, high-temperature black aluminum (BASV), high-winding-length voice coil |
| Impedance | 2 x 4 Ohms |
| Basket | Powdered black paint aluminum basket |
| Dust cap | Composite glass fiber |
| Cone | Kevlar fiber composite non-press paper cone with texture finish |
| Terminals | Patented pipe multi-connect terminals; accept up to 8 gauge speaker wire; support series or parallel wiring |
| Mounting depth | 242mm (9-1/2”) |
Why Choose This Product?
The TXX-BDC-V-15 combines a high-winding-length dual voice coil with multi-connect terminals, giving you series or parallel wiring options for system planning. Its composite cone, glass fiber dust cap, and ventilated aluminum basket make the construction details clear for shoppers choosing a 15-inch subwoofer for a car audio build.
Installation & Compatibility Notes
Allow for the 242mm (9-1/2-inch) mounting depth and check the subwoofer’s fit against your intended enclosure and installation space. Plan the amplifier and wiring around the 1500-watt RMS rating and dual 4-ohm coils. The terminals accept up to 8-gauge speaker wire and support series or parallel wiring.
Frequently Asked Questions
What are the power ratings of the Audiopipe TXX-BDC-V-15?
It is rated at 1500 watts RMS and 3000 watts peak. These are separate power ratings.
What impedance are the voice coils?
The subwoofer has dual 4-ohm voice coils, listed as 2 x 4 Ohms.
Can I wire the coils in series or parallel?
Yes. The patented pipe multi-connect terminals support series or parallel wiring and accept up to 8-gauge speaker wire.
How much mounting depth should I allow?
The listed mounting depth is 242mm (9-1/2 inches). Check your installation space and enclosure before choosing a mounting location.
What is the cone made from?
It uses a textured Kevlar fiber composite non-press paper cone. The dust cap is composite glass fiber.
