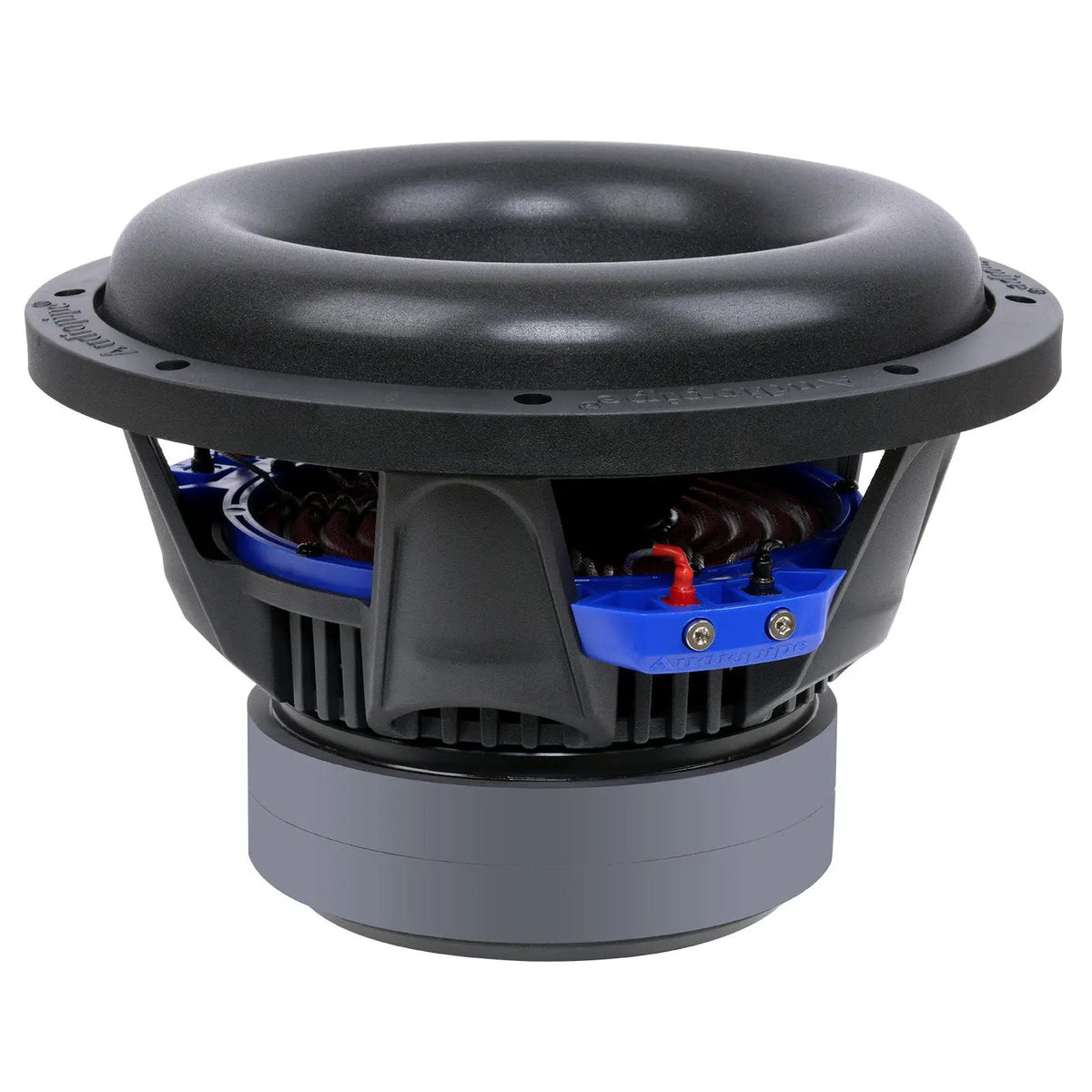

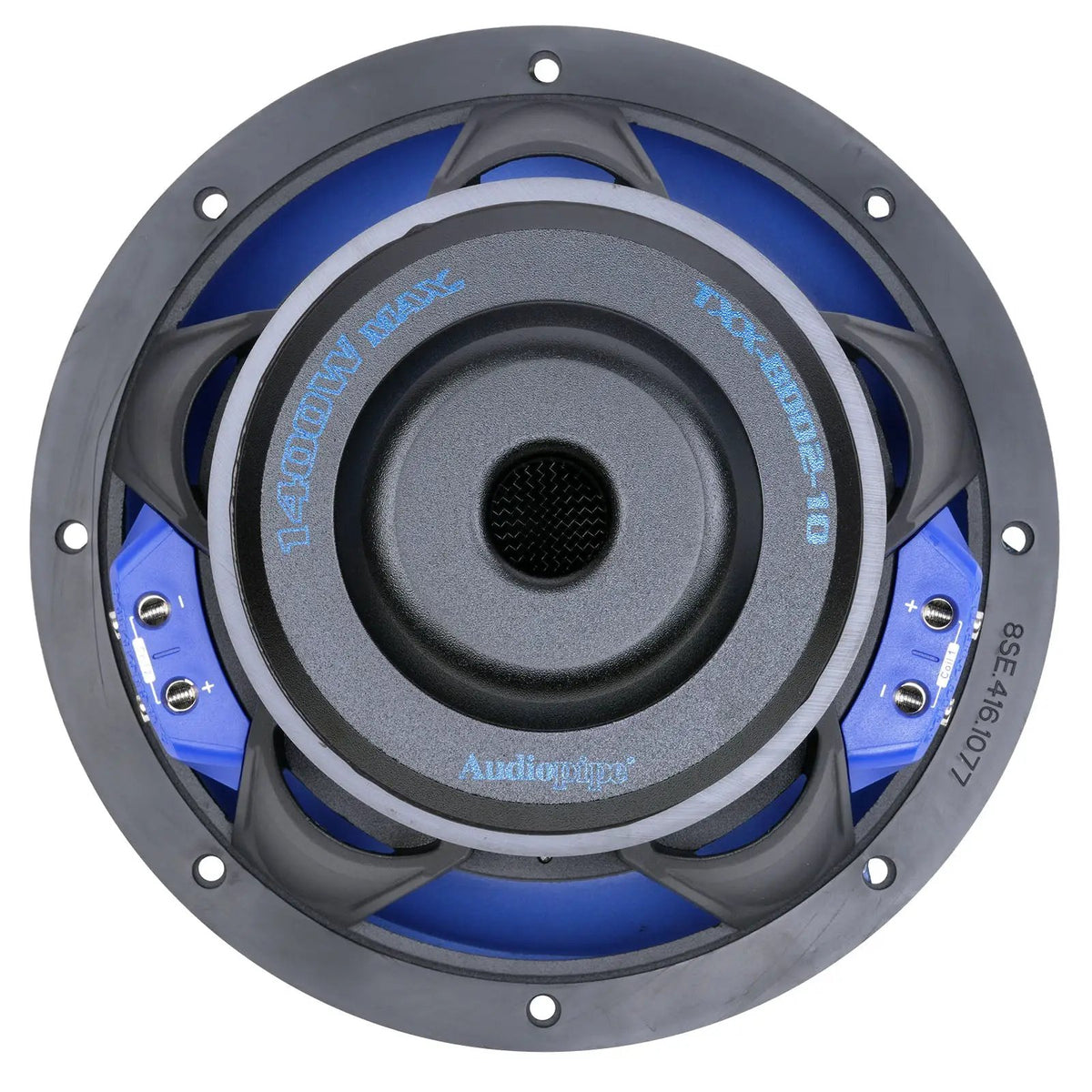

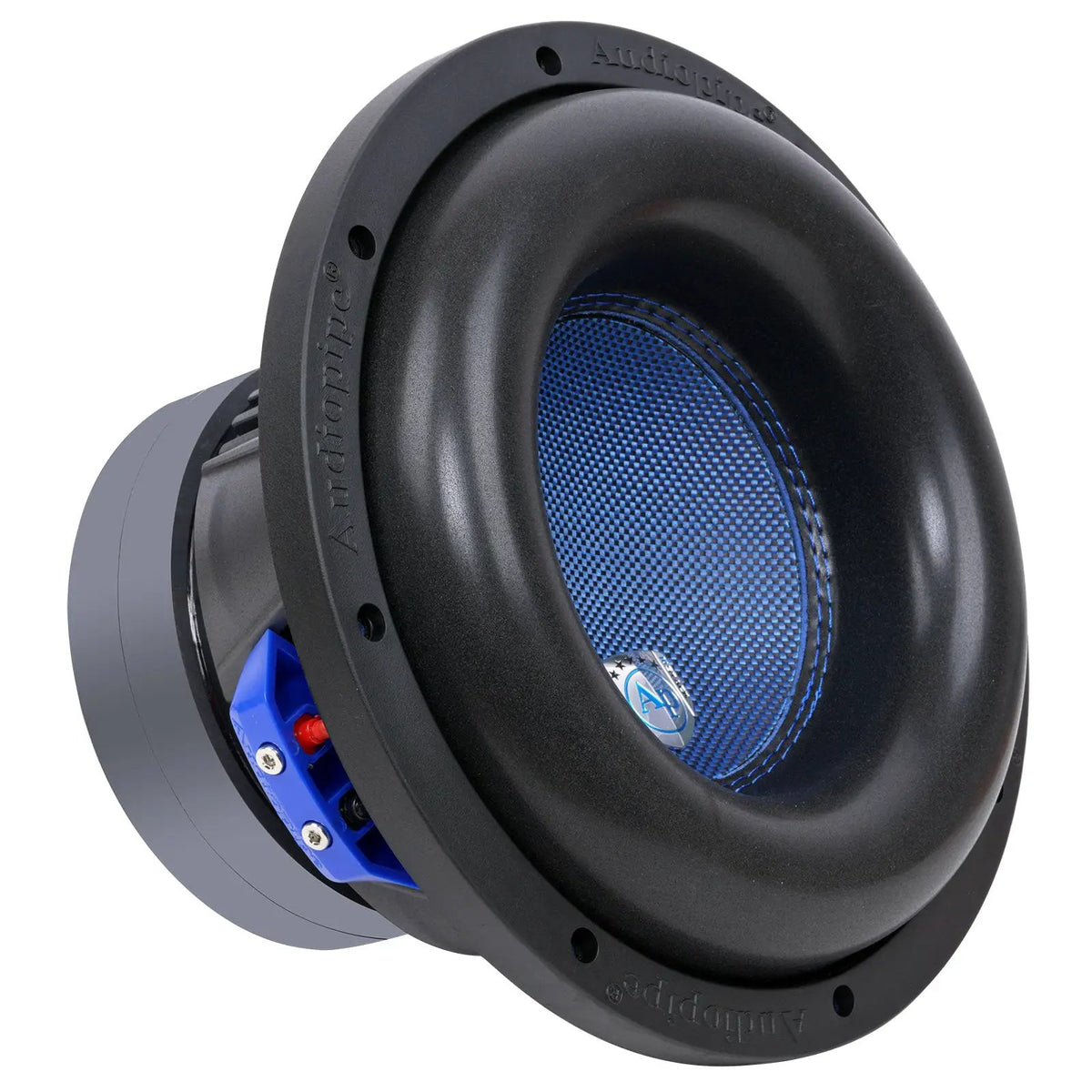

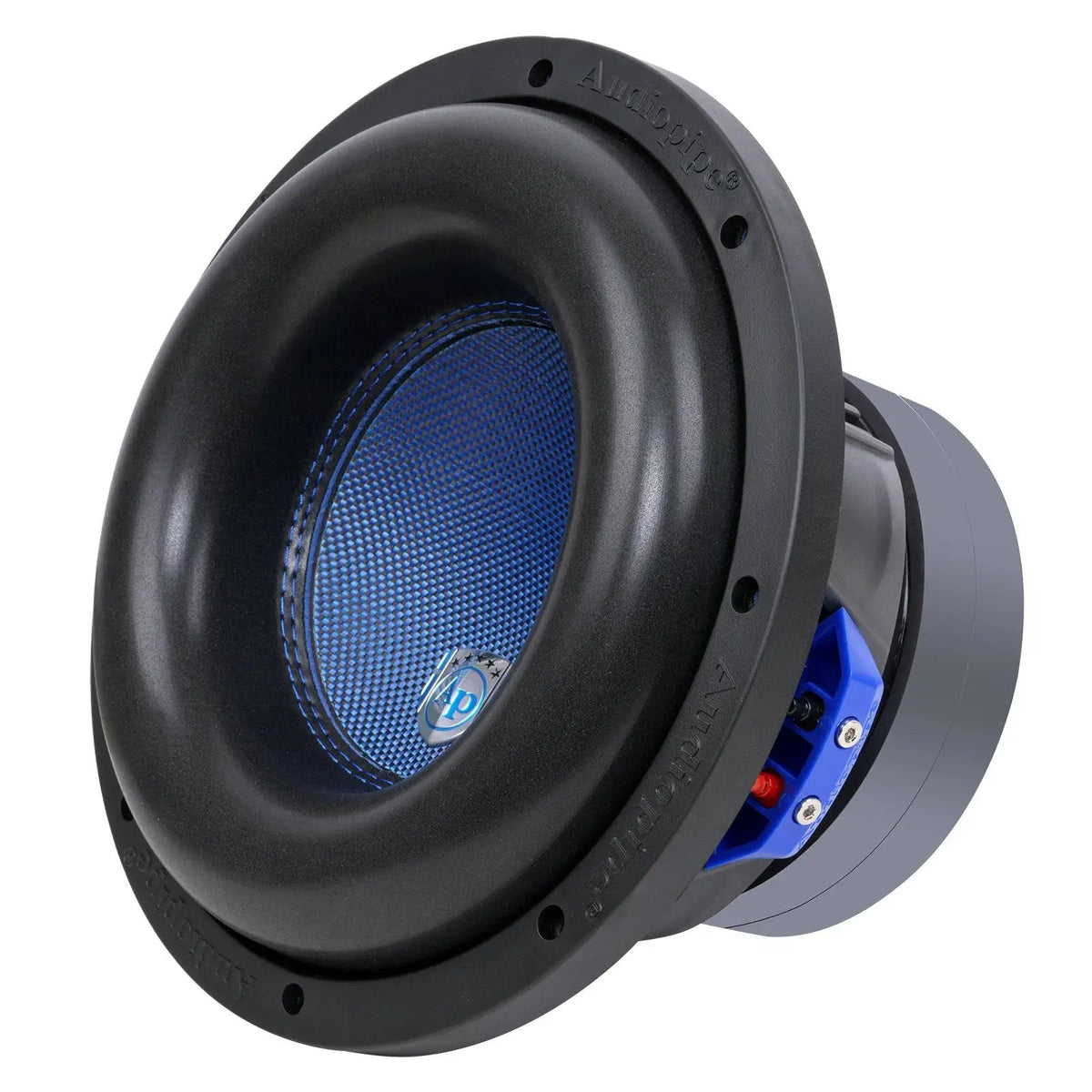

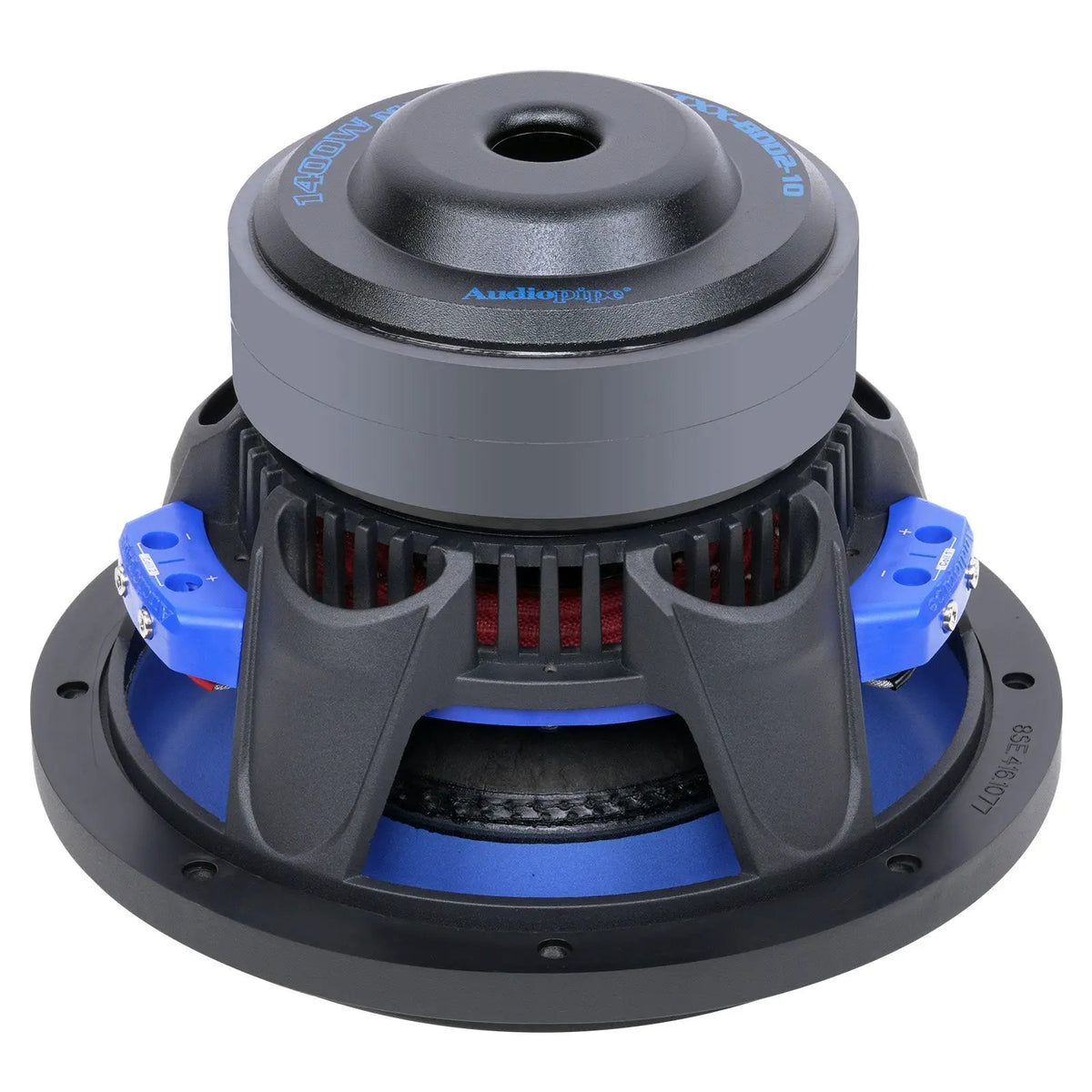

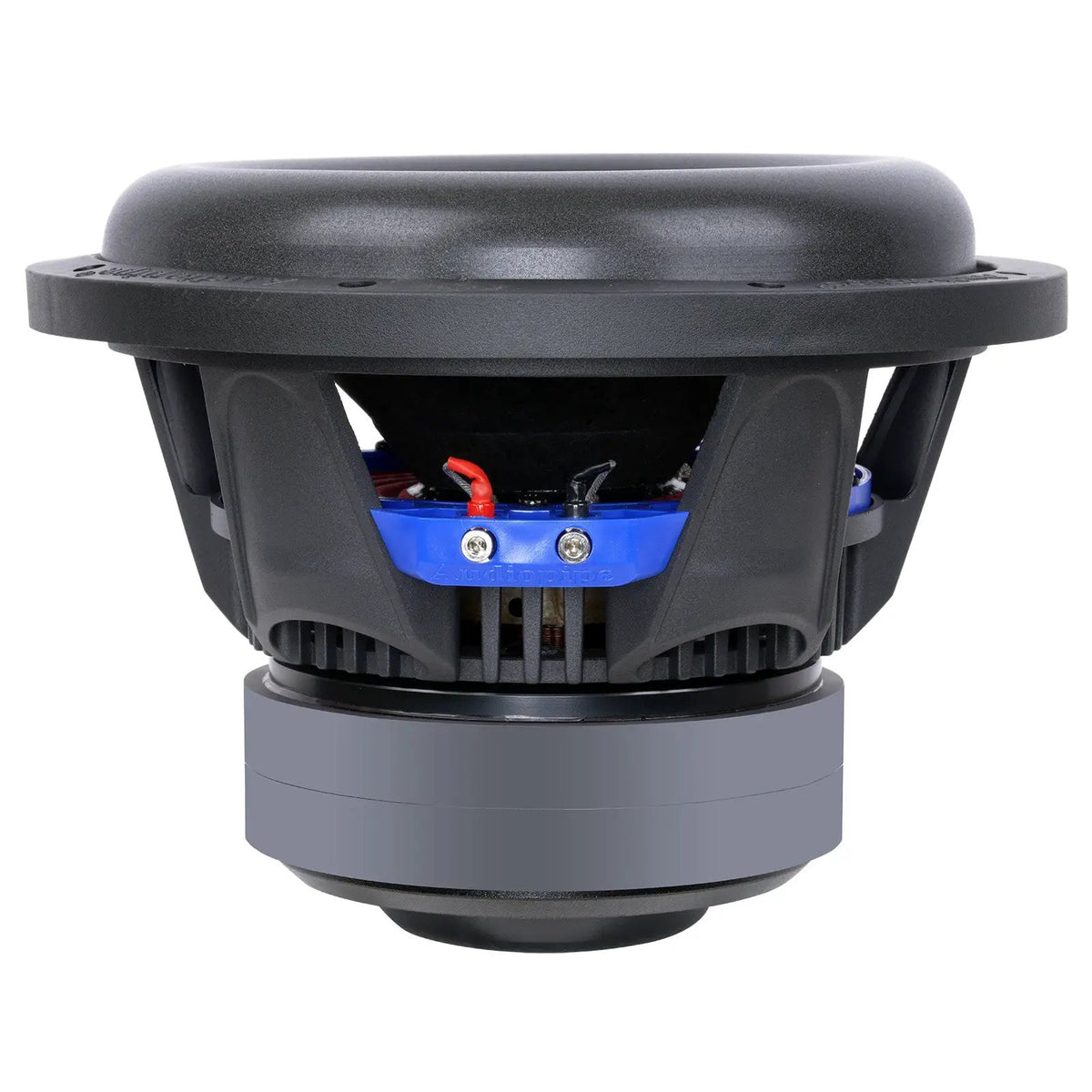

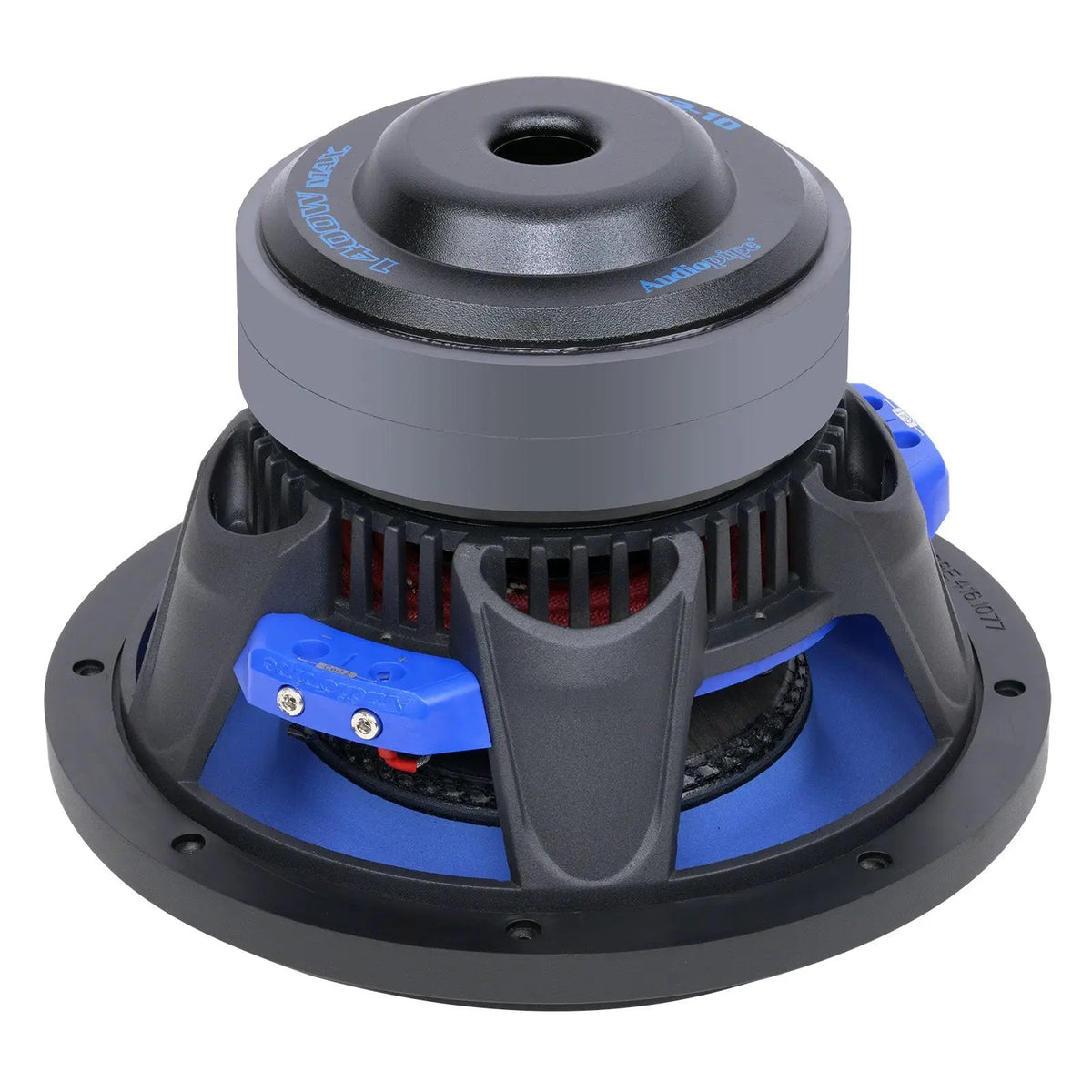

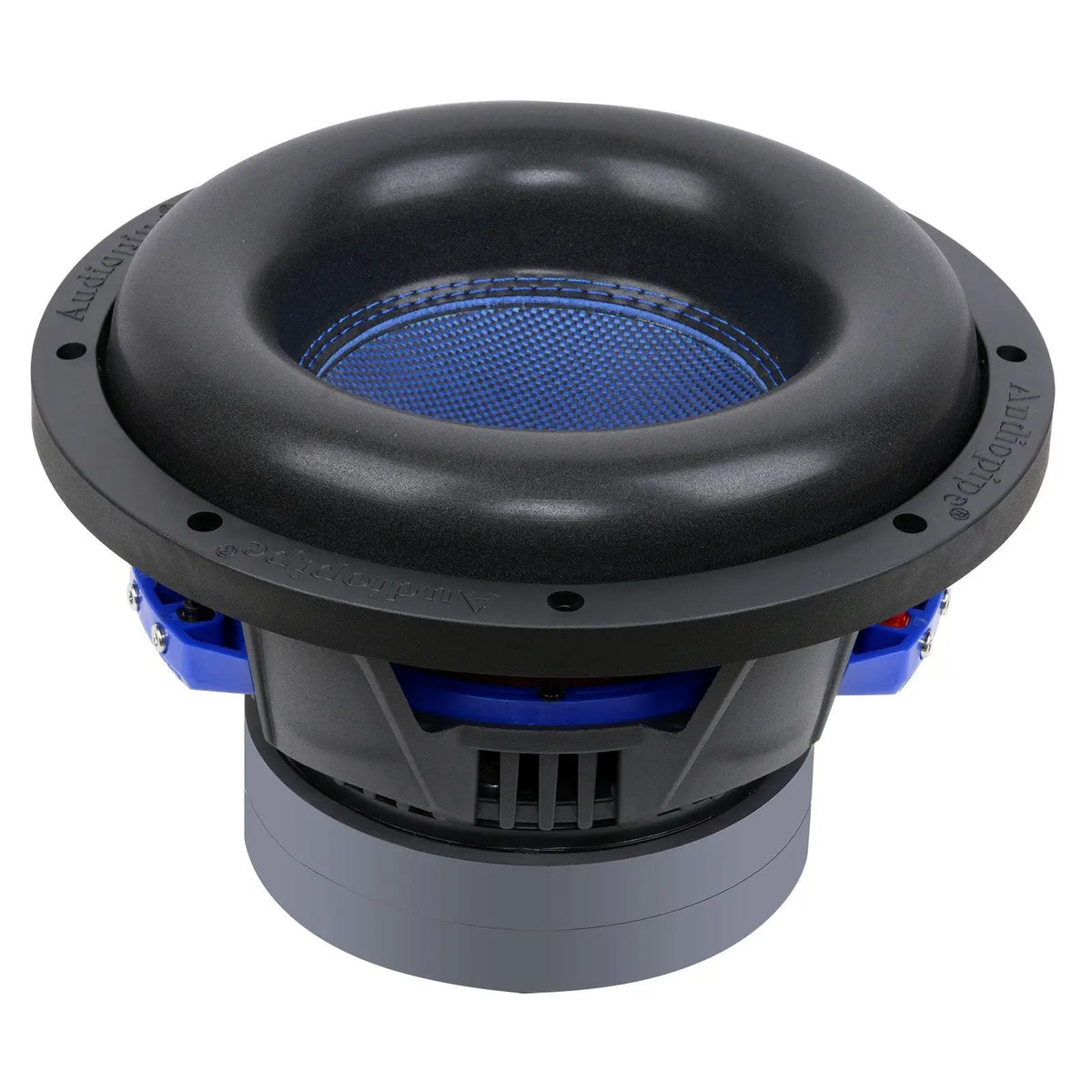

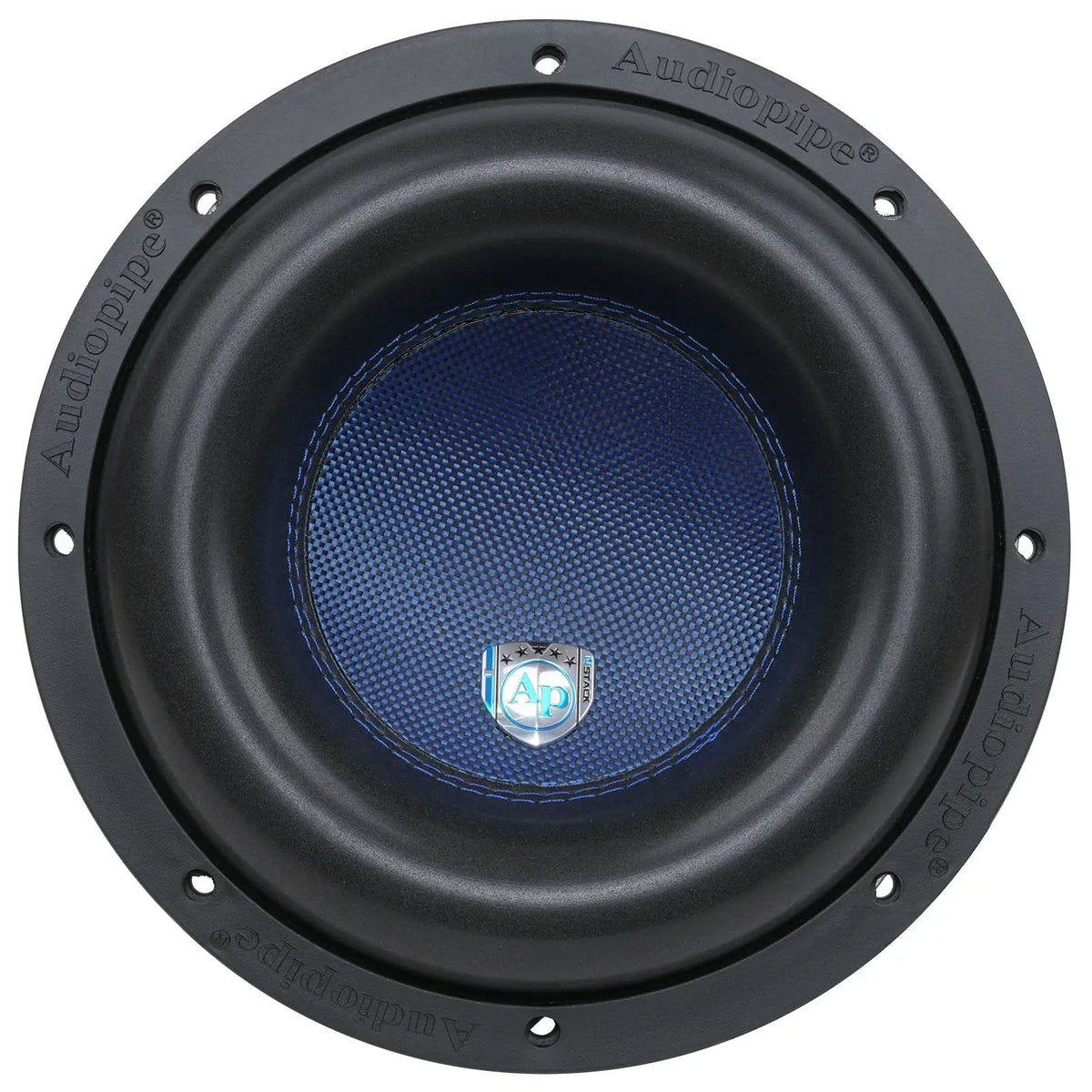

Audiopipe TXX-BDD2-10 10” Double Stack High Power Subwoofer

Product Overview

Add substantial low-frequency output to your car audio system with the Audiopipe TXX-BDD2-10 10-inch double stack subwoofer. Its dual voice coil, composite cone, and high-excursion foam surround are built for high-powered bass applications.

Key Features & Benefits

• Paper and fiberglass composite cone: Combines the listed cone materials for stable, accurate bass response.
• Air cushion foam surround: Supports high excursion for greater bass output.
• Dual voice coil: The 2.5-inch, four-layer black aluminum BASV coil supports high power output.
• Inverted fiberglass dust cap: The composite cap is designed to aid cooling and structural durability while supporting low-frequency sound.
• Multi-connect terminals: Allow series or parallel wiring configurations.
• Die-cast aluminum basket: The powdered black finish and basket design are intended to reduce unwanted resonance and support durability.

Technical Specifications

• Brand: Audiopipe
• Model: TXX-BDD2-10
• Size: 10 inches
• Magnets: 2 magnets (100 Oz)
• Peak power: 1400 watts
• Power (P.M.P.O.): 1400 watts
• RMS power: 700 watts
• Frequency response: 22–900 Hz
• Sensitivity: 88 dB
• Voice coil: 2.5-inch, 4-layer black aluminum (BASV), dual voice coil
• Impedance: 2×4 Ohms
• Mounting depth: 6.07 inches (154 mm)
• Sealed enclosure: 1.0 cu Ft.
• Vented enclosure: 1.5 cu ft.
• Port: 2 inches × 10 inches × 20 inches
• Other construction details: Deep bumped T-yoke with oversized pipe shape; large inverted composite fiberglass dust cap; blue quad-stitched surround.

Why Choose This Product?

The TXX-BDD2-10 pairs a dual voice coil with terminals that support series or parallel wiring, giving you wiring options when planning your system. Its listed sealed and vented enclosure volumes help you compare enclosure plans before choosing a setup.

Installation & Compatibility Notes

Allow for the 6.07-inch mounting depth and check that your planned enclosure matches the listed volume and port dimensions. Confirm your amplifier supports the final impedance and power requirements for your chosen wiring configuration.

Frequently Asked Questions

What are the power ratings?

The listed rating is 700 watts RMS, with 1400 watts peak power. The description also identifies 1400 watts as P.M.P.O.

What impedance does this subwoofer have?

It is listed as 2×4 Ohms and has a dual voice coil. Confirm the resulting load is suitable for your amplifier before wiring.

What enclosure sizes are listed?

The listed volumes are 1.0 cu Ft. sealed or 1.5 cu ft. vented. The vented specification also lists a 2-inch × 10-inch × 20-inch port.

How much mounting depth should I allow?

Allow for the listed mounting depth of 6.07 inches (154 mm), then check the available space in your installation location.
