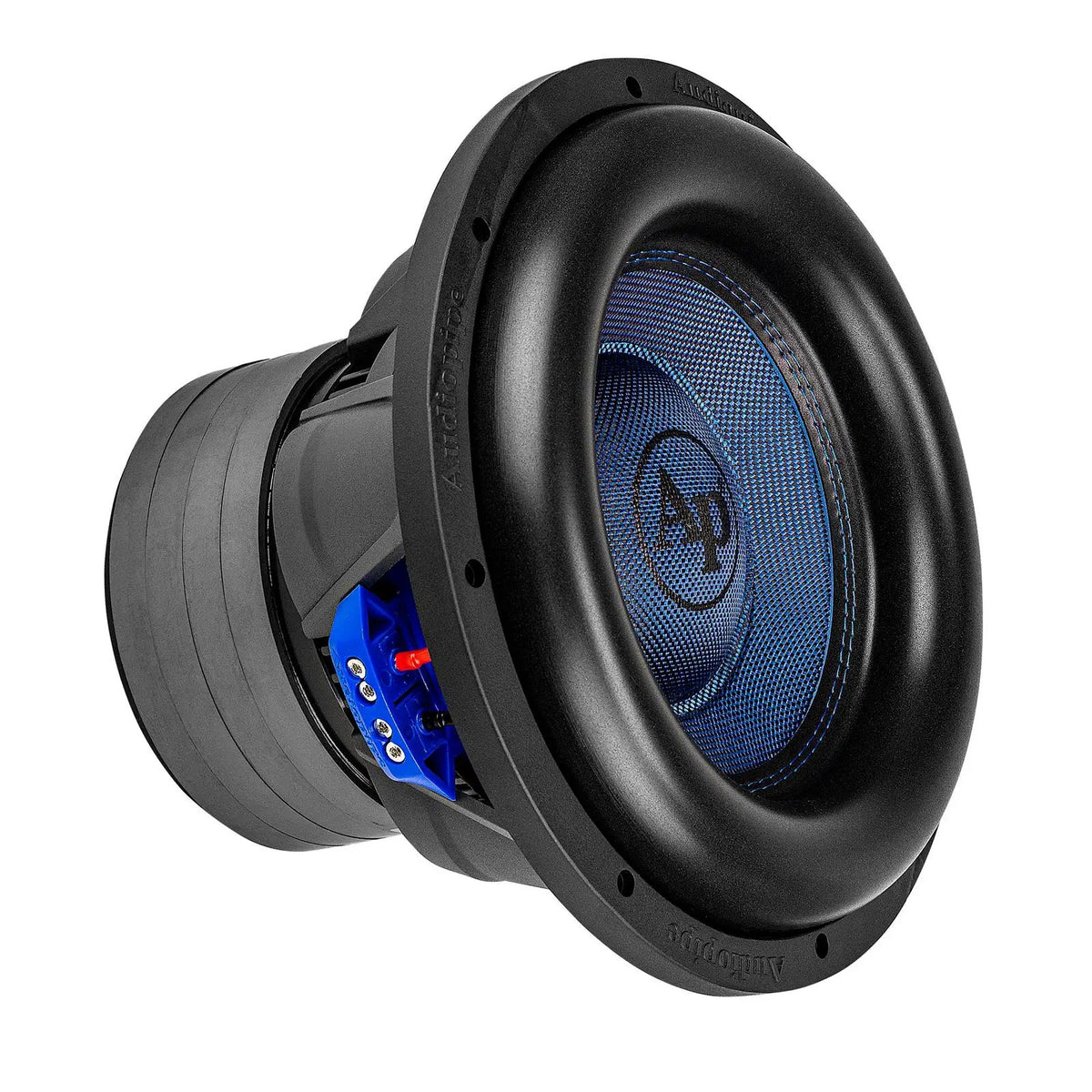

Audiopipe TXX-BDD4-12 12” Quad Stack High Power Subwoofer
Key features
- Subwoofer size: 12.0 inches
- RMS power per subwoofer: 1200 W
- Voice-coil options: D4
- Frequency response: 28–1,200 Hz
- Sensitivity: 86 dB
- Mounting depth: 7-7/8 in (200 mm)
Audiopipe TXX-BDD4-12 12” Quad Stack High Power Subwoofer is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview

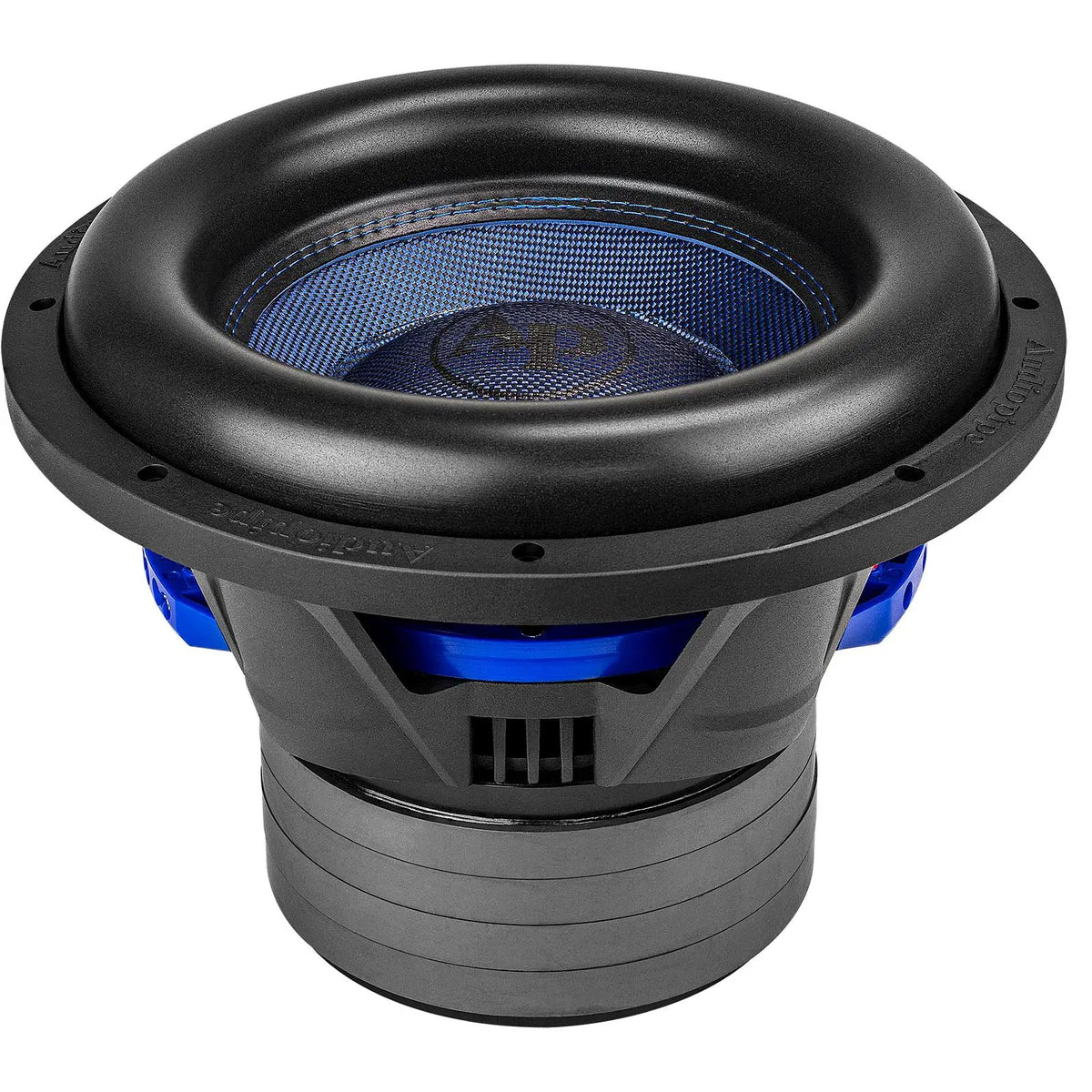

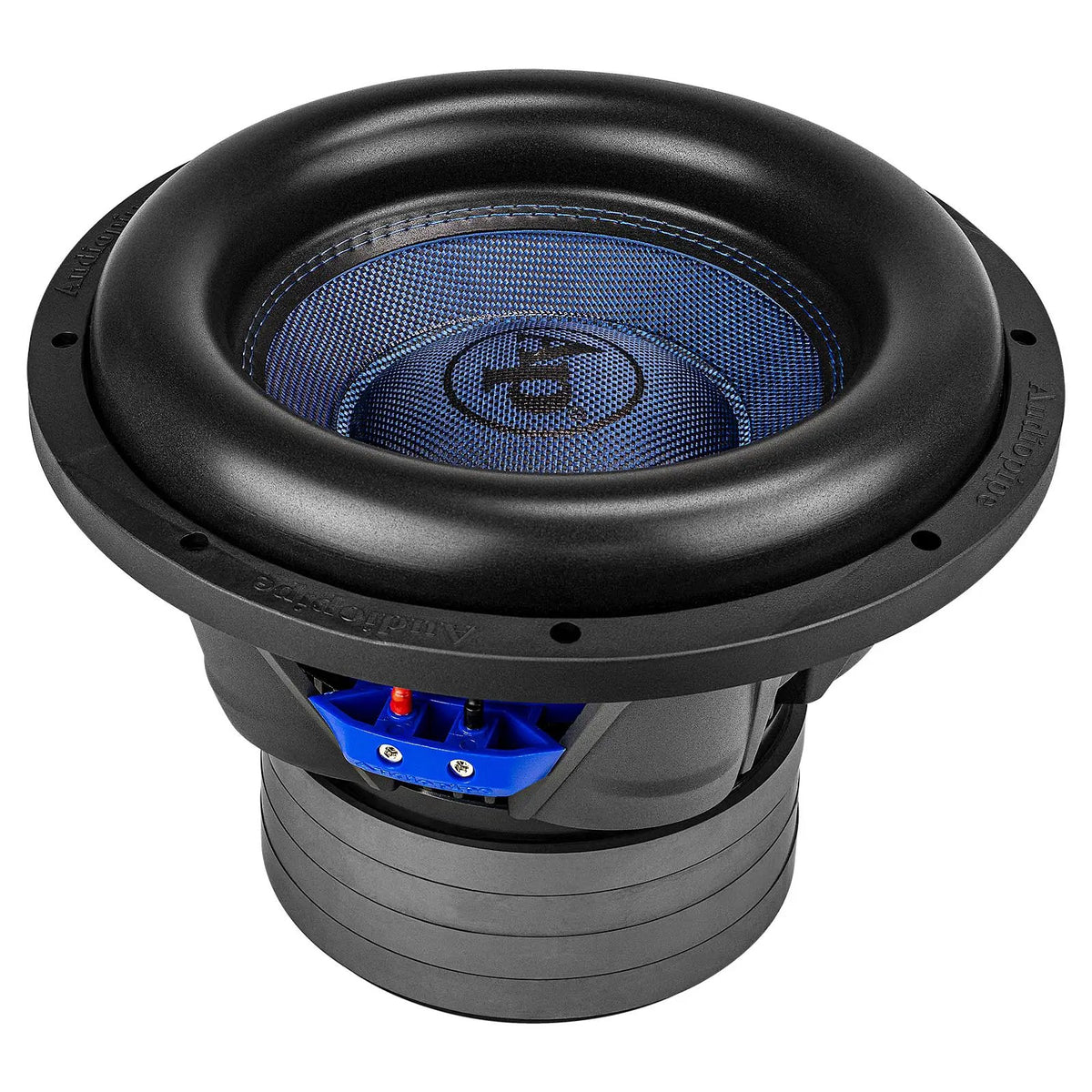

Bring substantial low-frequency output to your car audio system with the Audiopipe TXX-BDD4-12 12-inch quad stack subwoofer. Its 1,200-watt RMS rating, four-magnet design and dual voice coil are built for high-power bass applications.
Key Features & Benefits

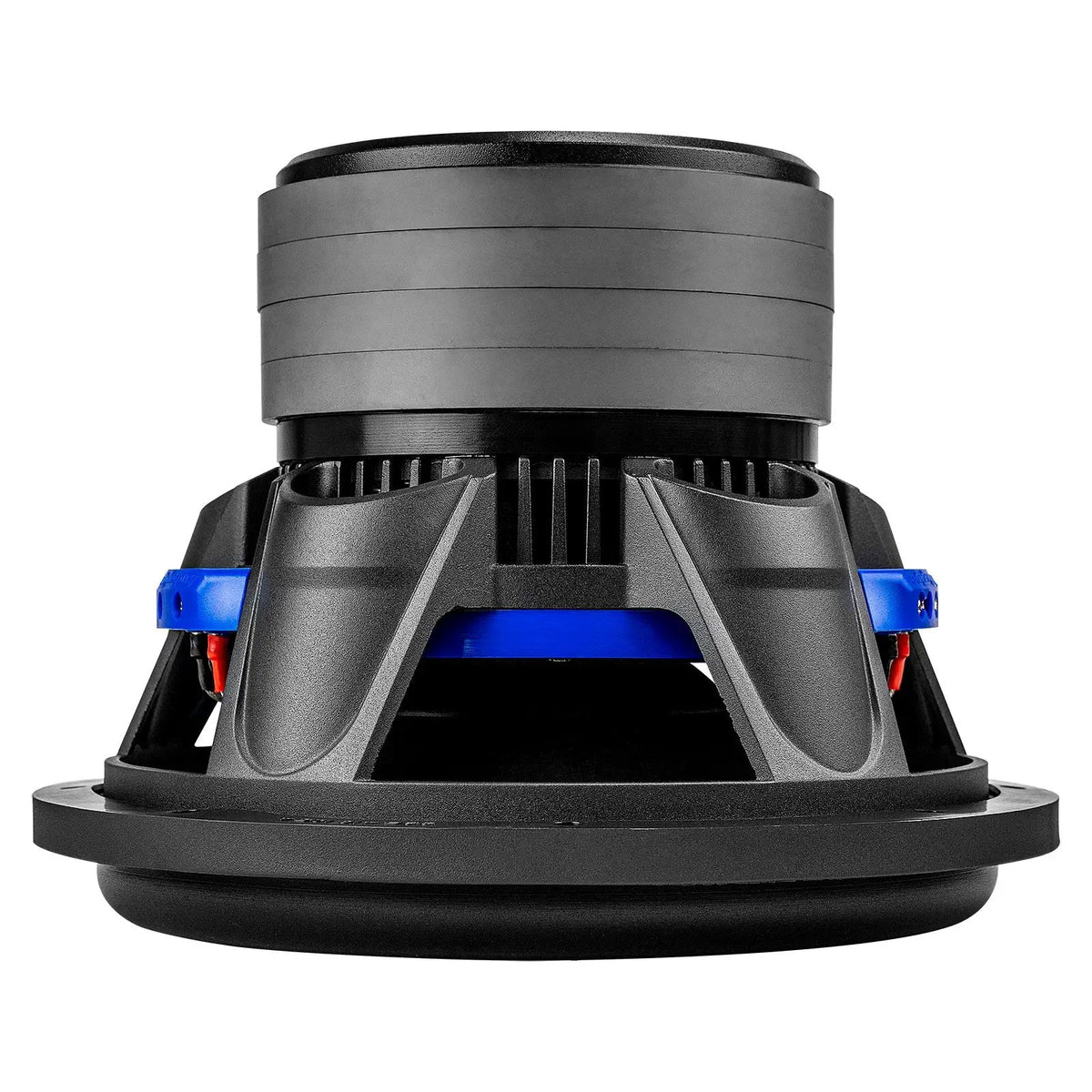

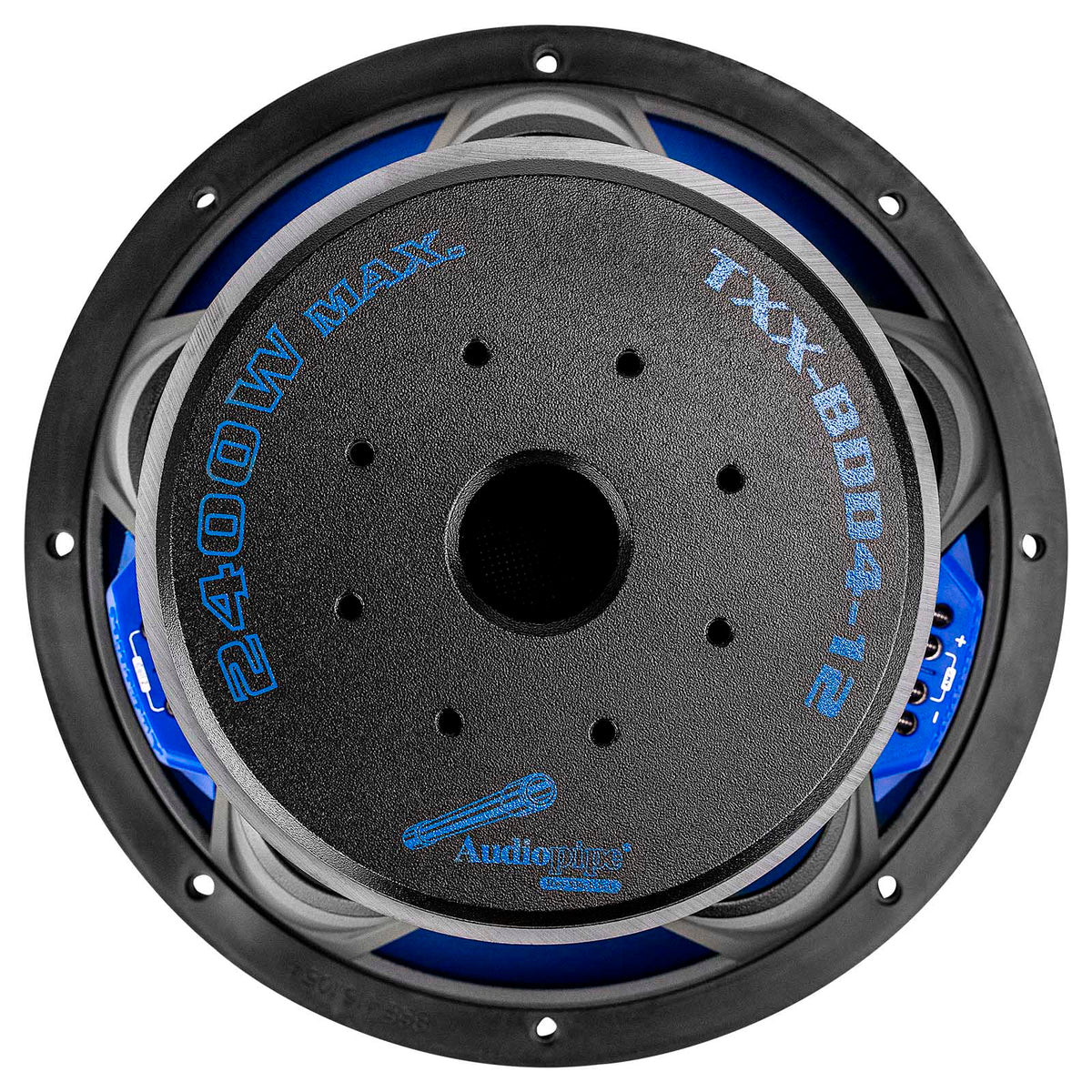

- Four-magnet design: Four magnets with a stated 220-ounce weight support the subwoofer’s high-power design.

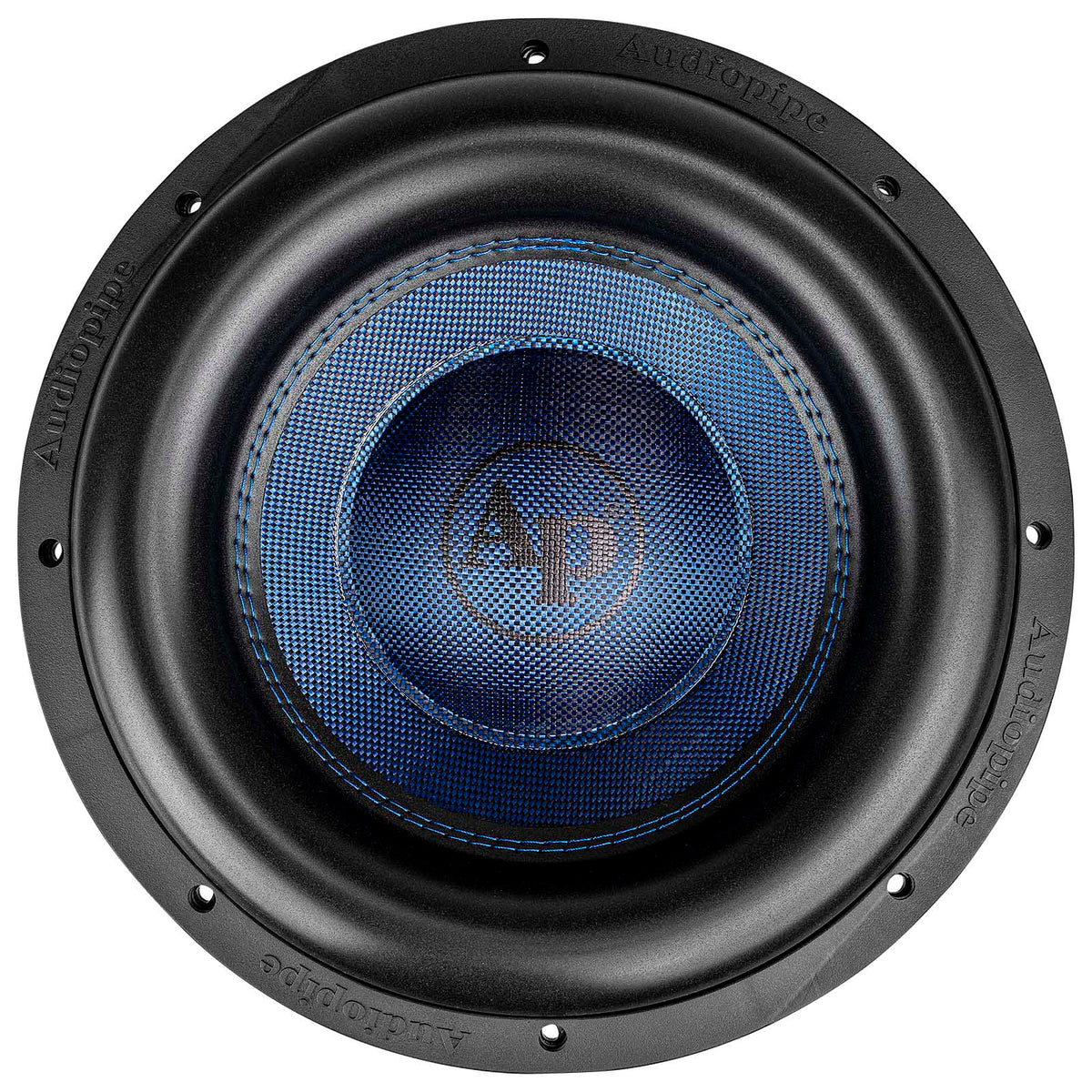

- Paper and fiberglass composite cone: The large inverted cone is designed to support stable, accurate bass response.
- Air cushion foam surround: High excursion supports substantial cone movement for bass output.
- 3-inch, four-layer dual voice coil: The black aluminum BASV coil is designed for high-power output.

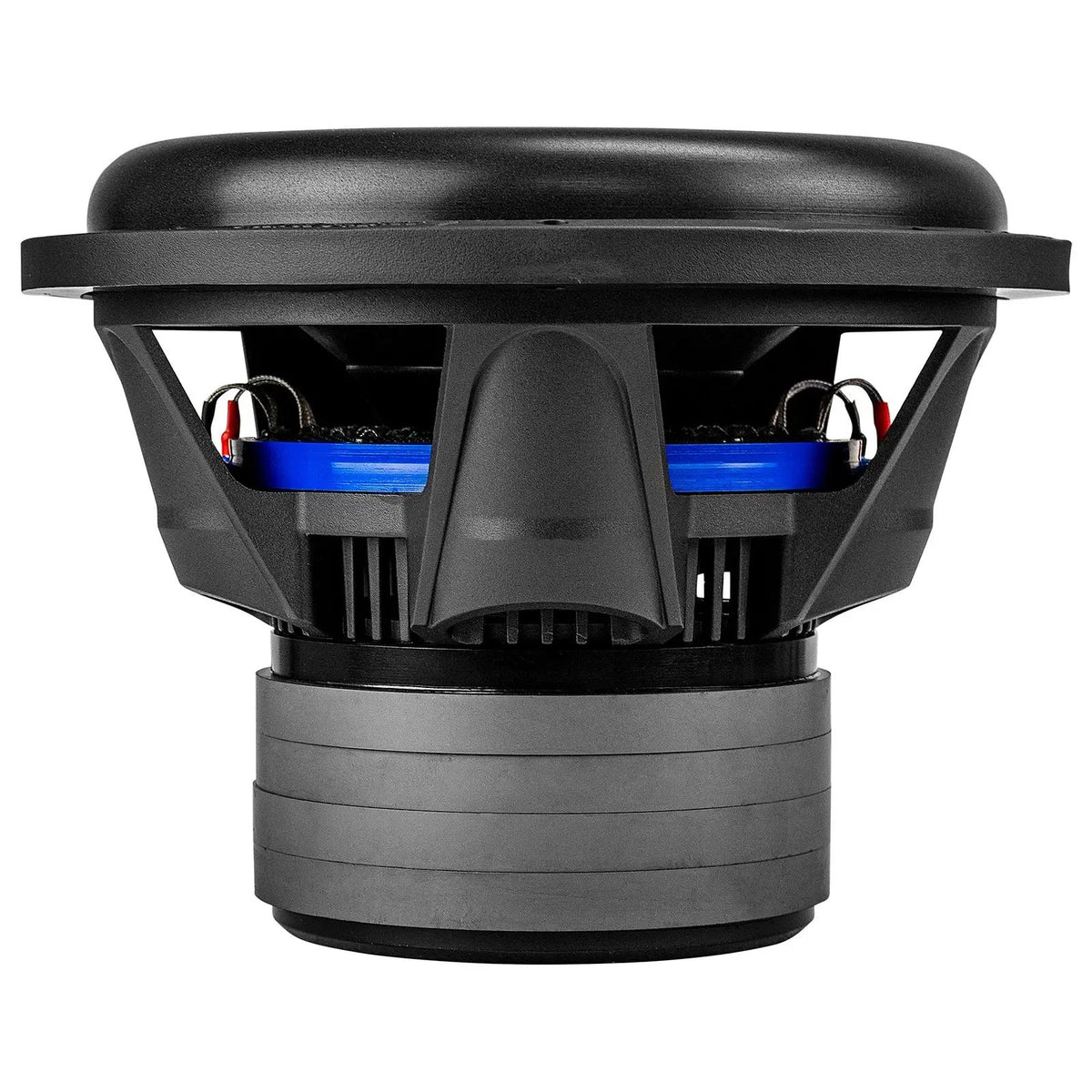

- Die-cast aluminum basket: Its powdered black finish and rigid construction help limit unwanted resonance and manage heat.

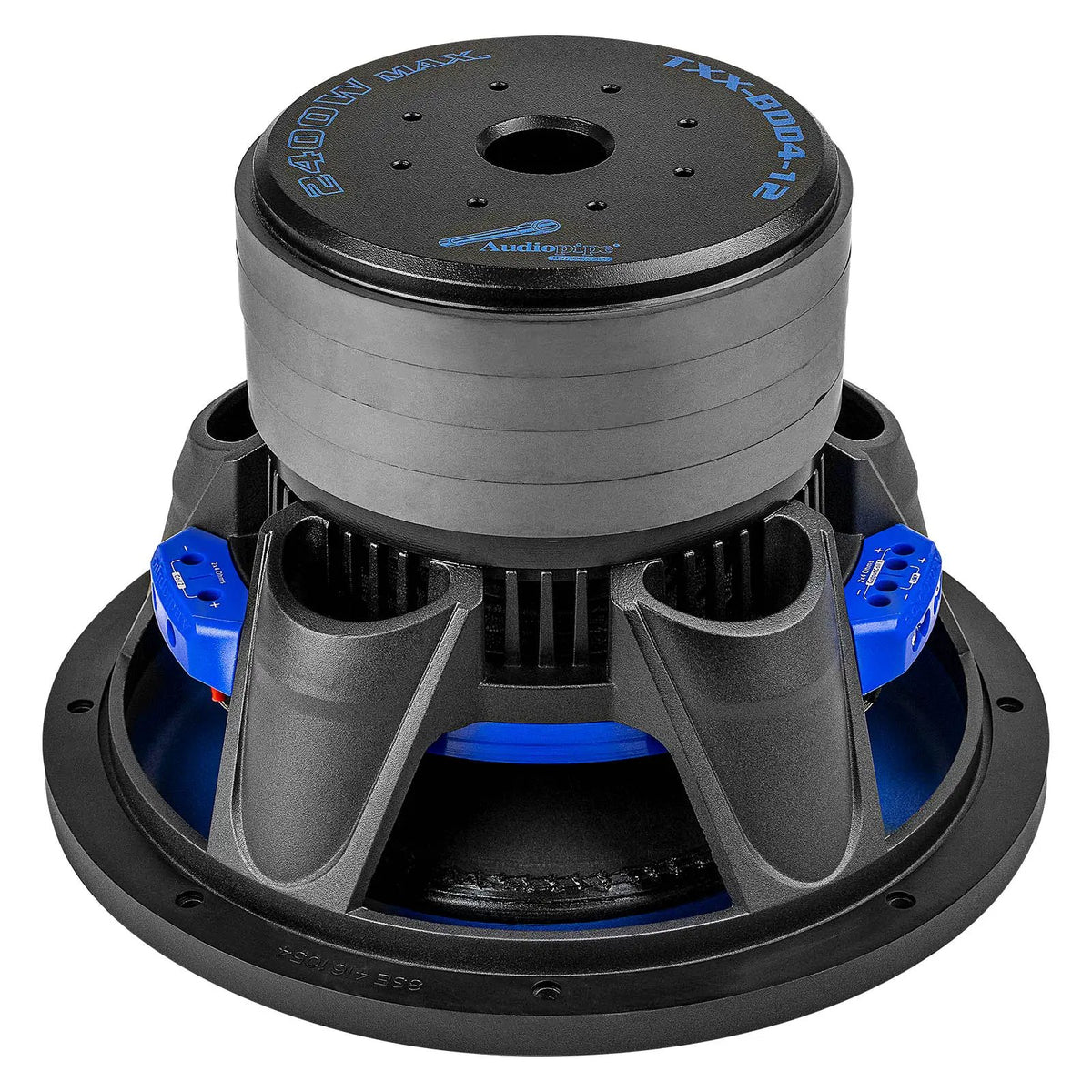

- Multi-connect terminals: Wire the subwoofer in parallel or series to suit your system configuration.
Technical Specifications
| Product | Audiopipe TXX-BDD4-12 12” Quad Stack High Power Subwoofer |
|---|---|
| Peak power | 2400 watts |
| RMS power | 1200 watts |
| Frequency response | 28- 1,200Hz |
| Sensitivity | 86dB |
| Magnets | 4 magnets (220 Oz) |
| Cone | Paper + fiberglass composite; large inverted composite fiberglass cone |
| Surround | Air cushion foam surround; quad-stitched with blue stitching |
| Voice coil | 3" 4-layer black aluminum (BASV) dual voice coil |
| Basket | Powdered black paint die-cast aluminum |
| Terminals | Multi-connect terminals for parallel or series configurations |
| Mounting depth | 7-7/8” (200mm) |
| Impedance | 2×4 Ohms |
Why Choose This Product?
The TXX-BDD4-12 combines a high RMS power rating with a dual voice coil and terminals that allow series or parallel wiring. Its reinforced, quad-stitched surround and die-cast aluminum basket provide construction details worth considering when choosing a subwoofer for a high-power system.
Installation & Compatibility Notes
Check that your available mounting space accommodates the 7-7/8-inch (200mm) mounting depth. Plan the series or parallel wiring configuration around the subwoofer’s 2×4-ohm impedance and the amplifier’s supported load.
Frequently Asked Questions
What are the peak and RMS power ratings?
The TXX-BDD4-12 is rated at 2400 watts peak power and 1200 watts RMS power.
What does 2×4-ohm impedance mean?

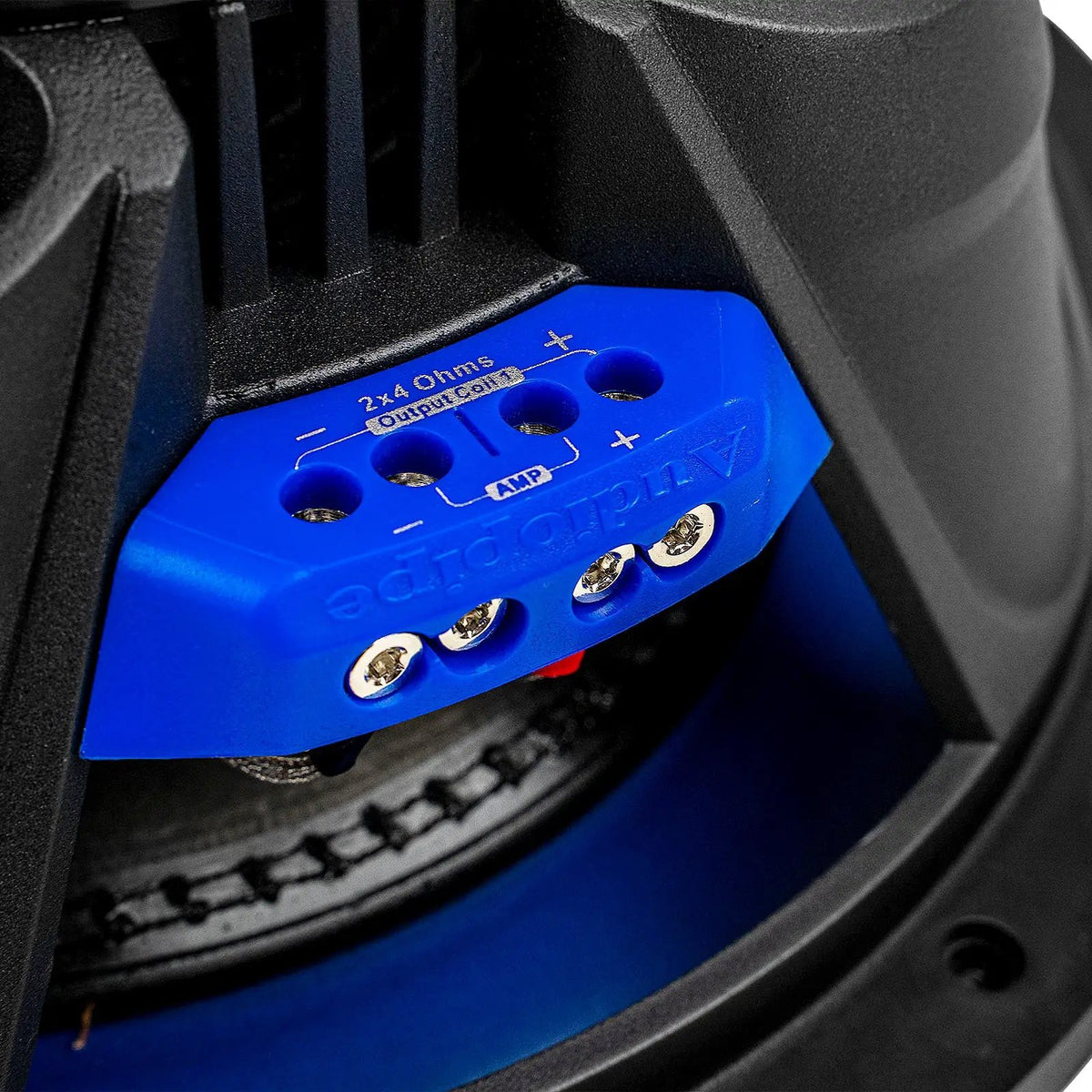

The subwoofer has a dual voice coil rated at 4 ohms per coil. Its multi-connect terminals support series or parallel wiring configurations.
How much mounting depth should I allow?
Its stated mounting depth is 7-7/8 inches (200mm). Check available space before installation.
What materials are used in the cone and surround?
The cone is a paper and fiberglass composite, and the surround is air cushion foam with blue quad stitching.
What frequency range is listed?
The stated frequency response is 28- 1,200Hz.
