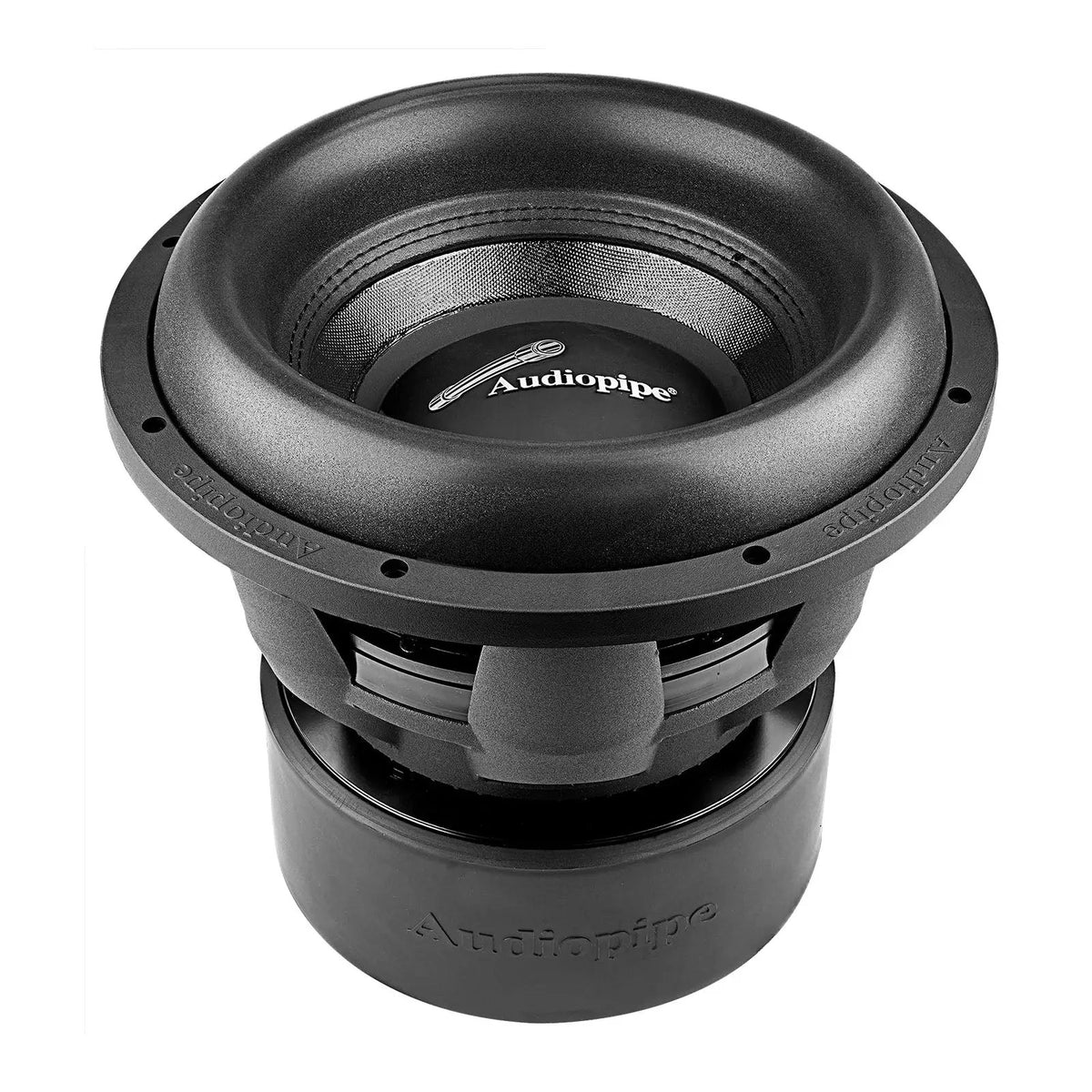

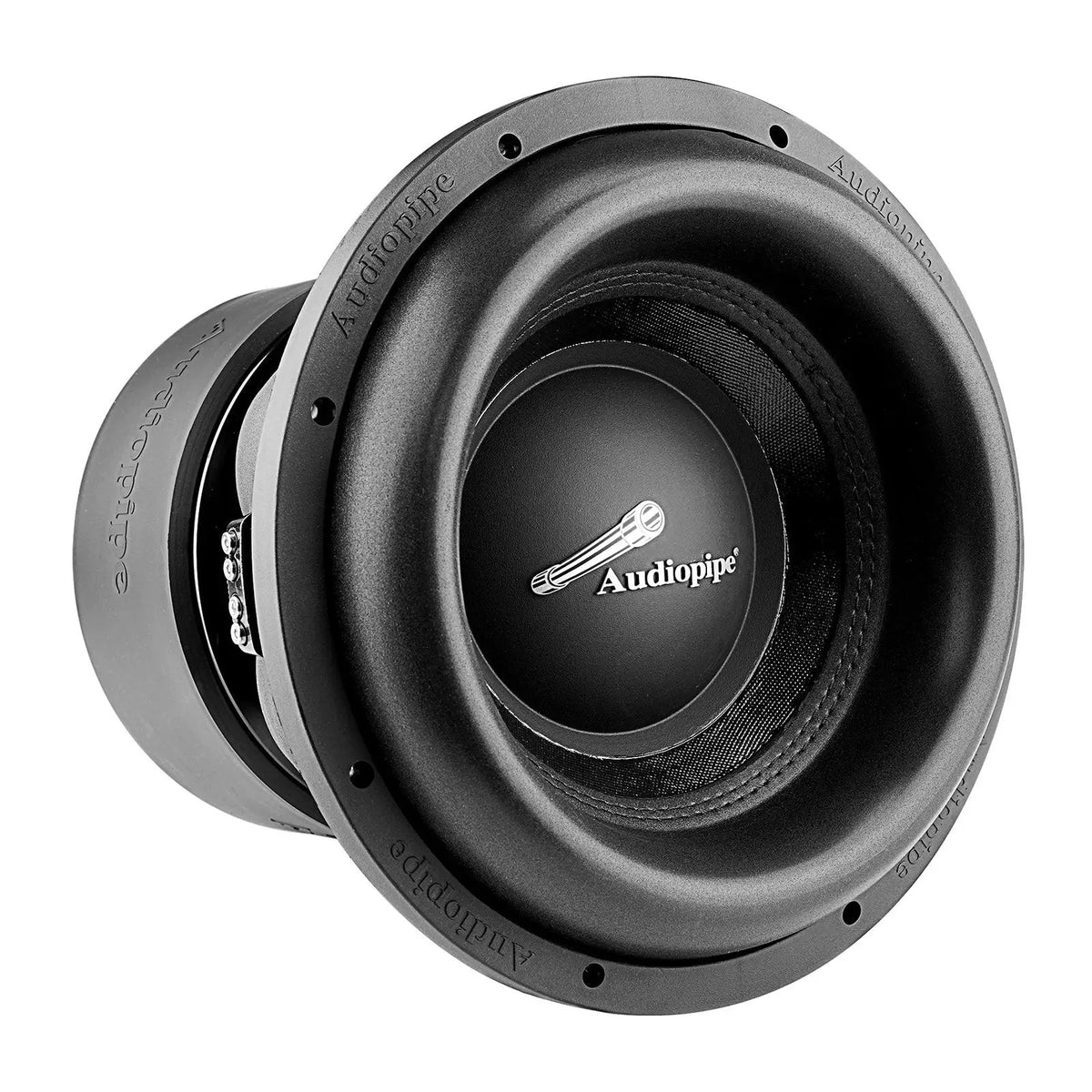

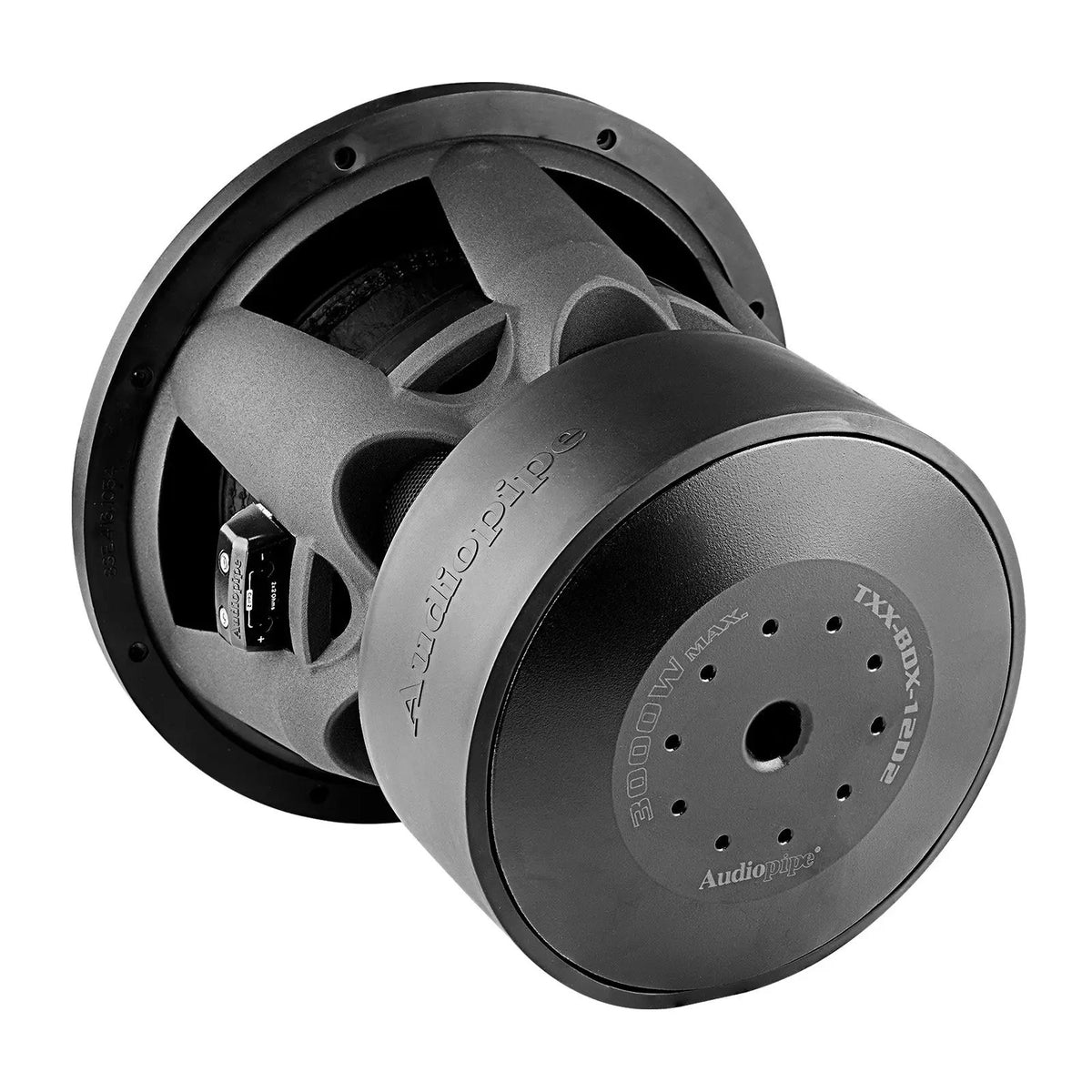

Audiopipe TXX-BDX-12D2 12" Competition Subwoofer
Key features
- Subwoofer size: 12.0 inches
- RMS power per subwoofer: 1500 W
- Voice-coil options: D2

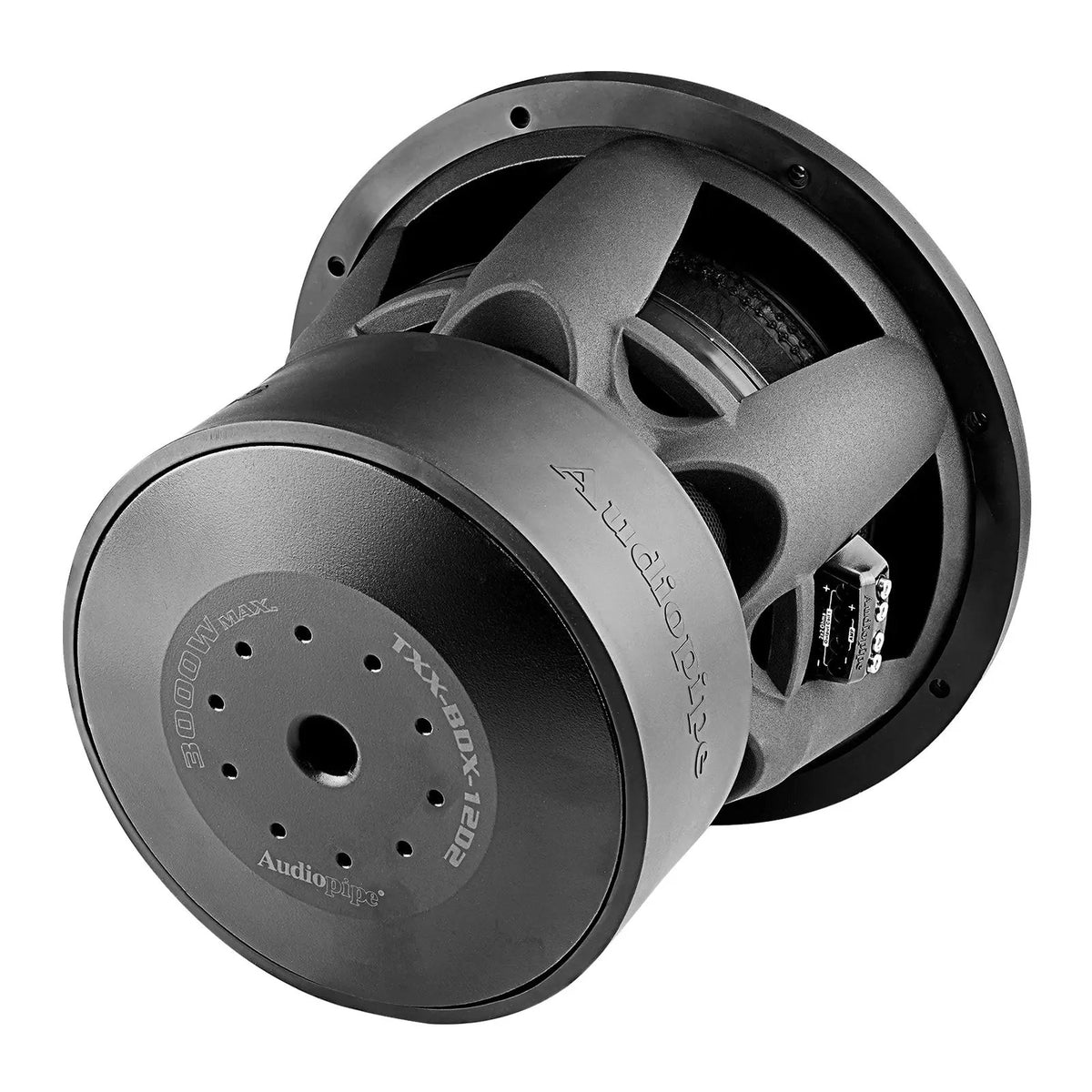

- MAGNET: Boasting 3 magnets for strong power handling, 375 Oz
- FREQUENCY RESPONSE: 30-1,200Hz
- SENSITIVITY: 86dB
Audiopipe TXX-BDX-12D2 12" Competition Subwoofer is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview
The Audiopipe TXX-BDX-12D2 is a 12-inch competition subwoofer built for high-power car audio systems. Its dual 2-ohm voice coil, three-magnet assembly, and vented design give you key details to consider when planning your subwoofer setup.
Key Features & Benefits
- Three-magnet assembly: The 375 oz magnet structure supports the subwoofer’s stated power handling.

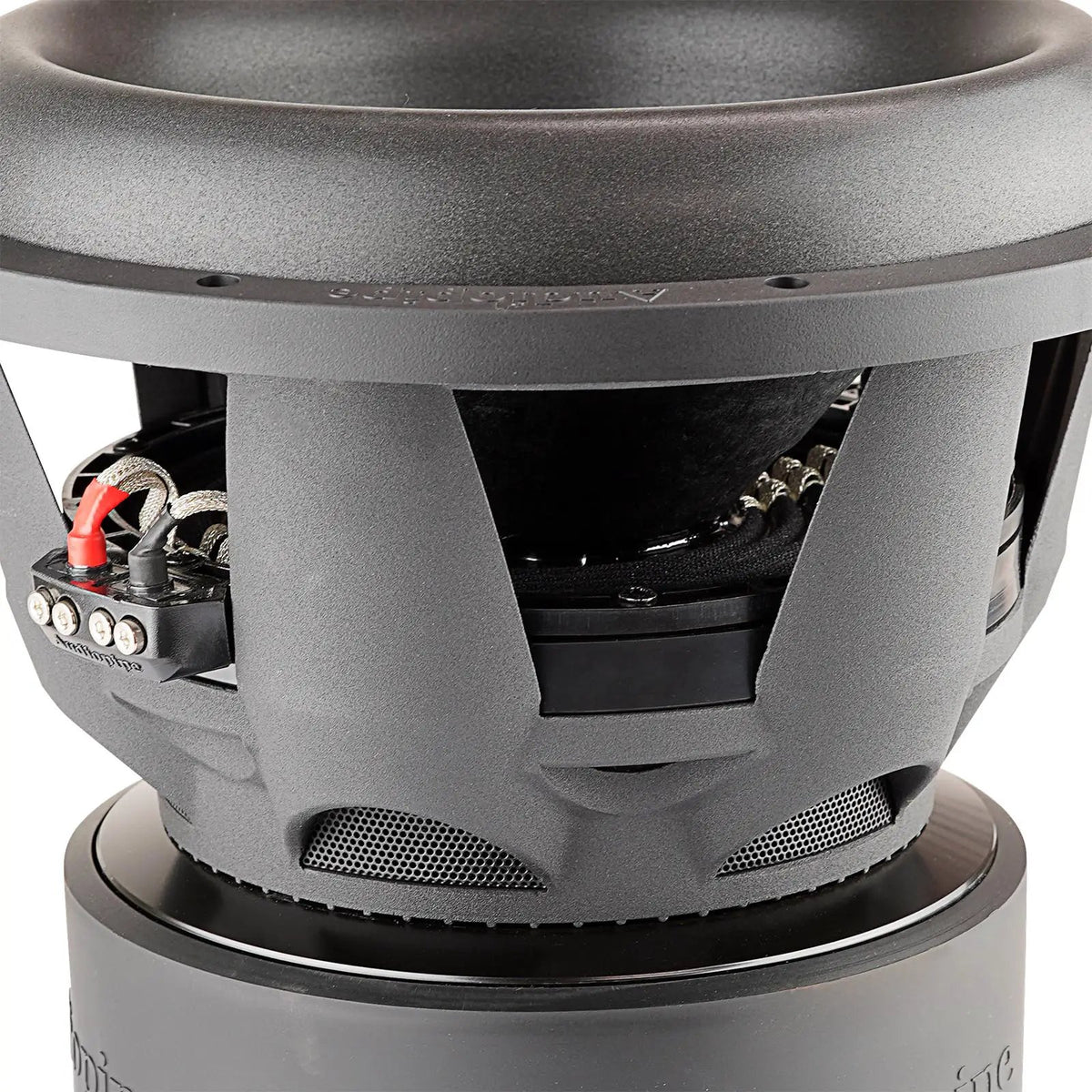

- Ventilated voice coil and T-yoke: Airflow-focused details are designed to aid heat dissipation during use.

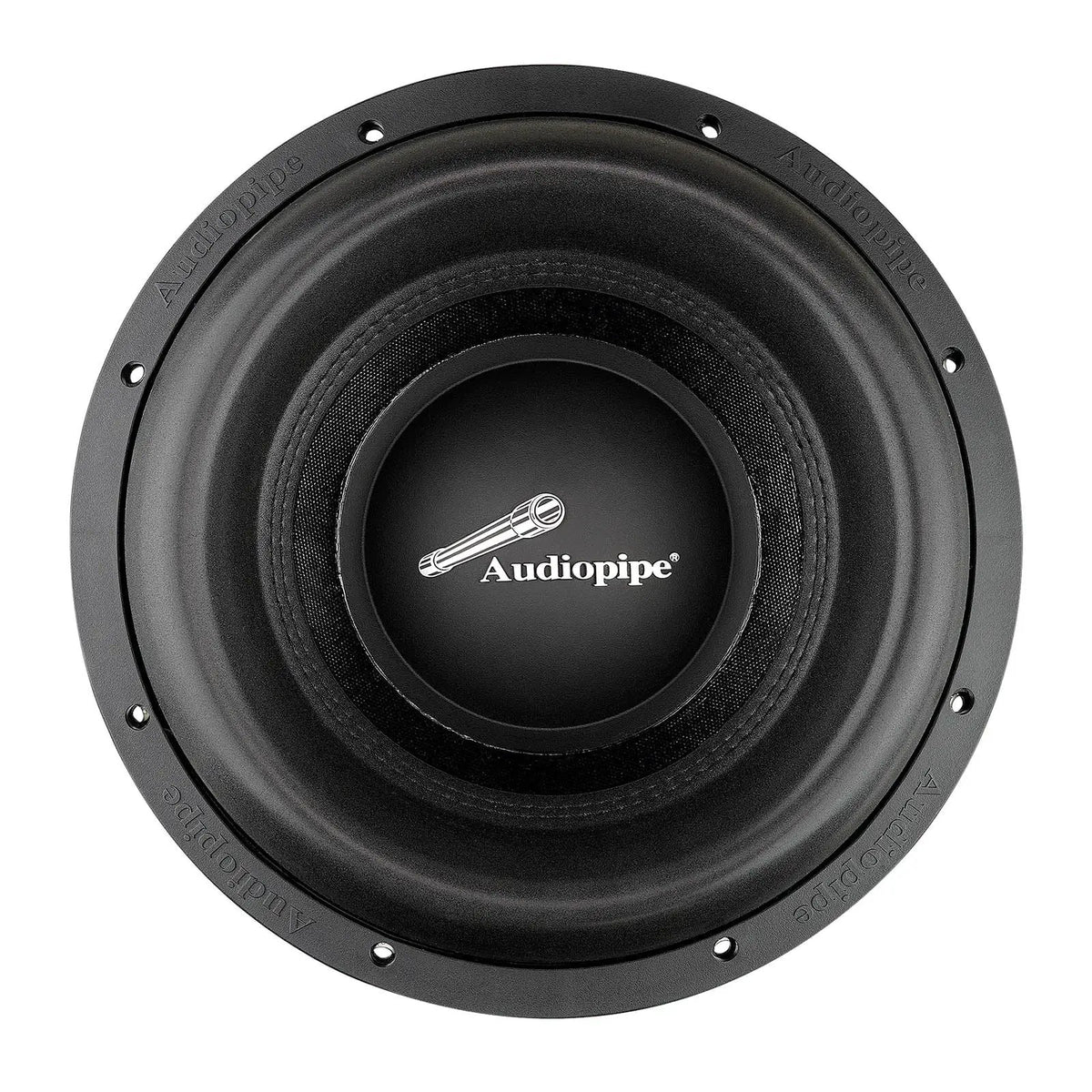

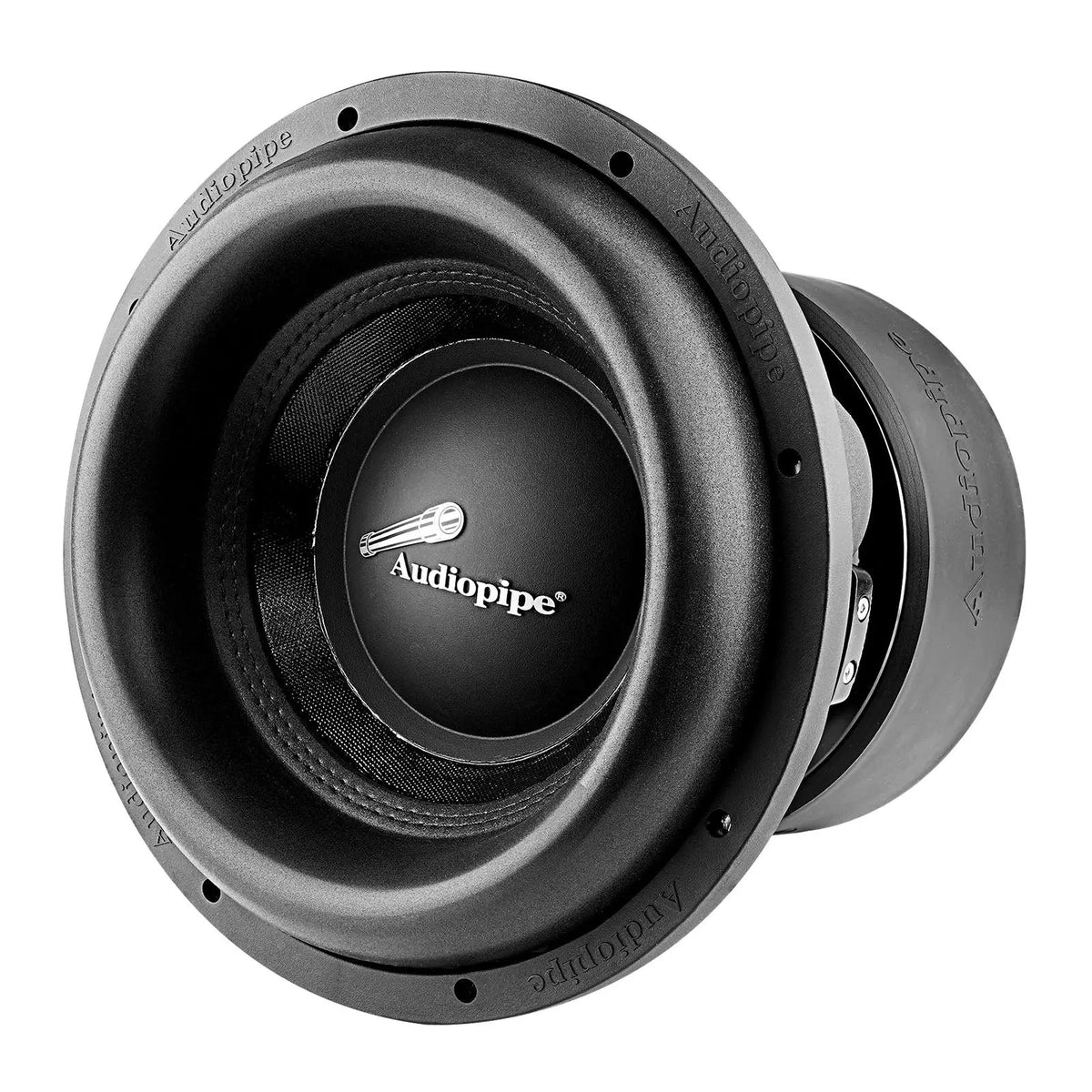

- Reinforced cone and surround: The black non-press paper cone and black stitching surround are designed for added rigidity and reinforcement.

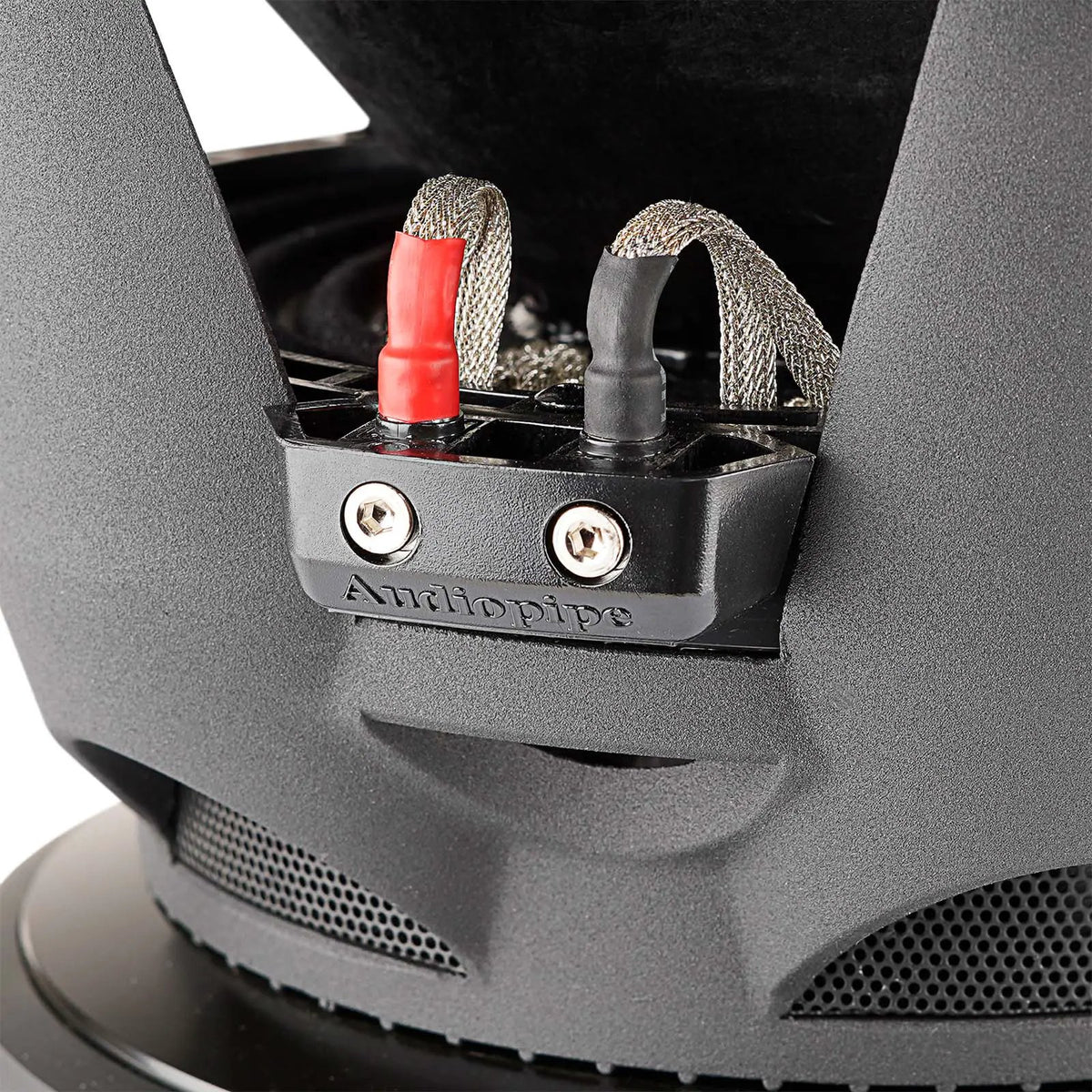

- Multi-connect terminals: The terminals allow parallel or series wiring configurations.

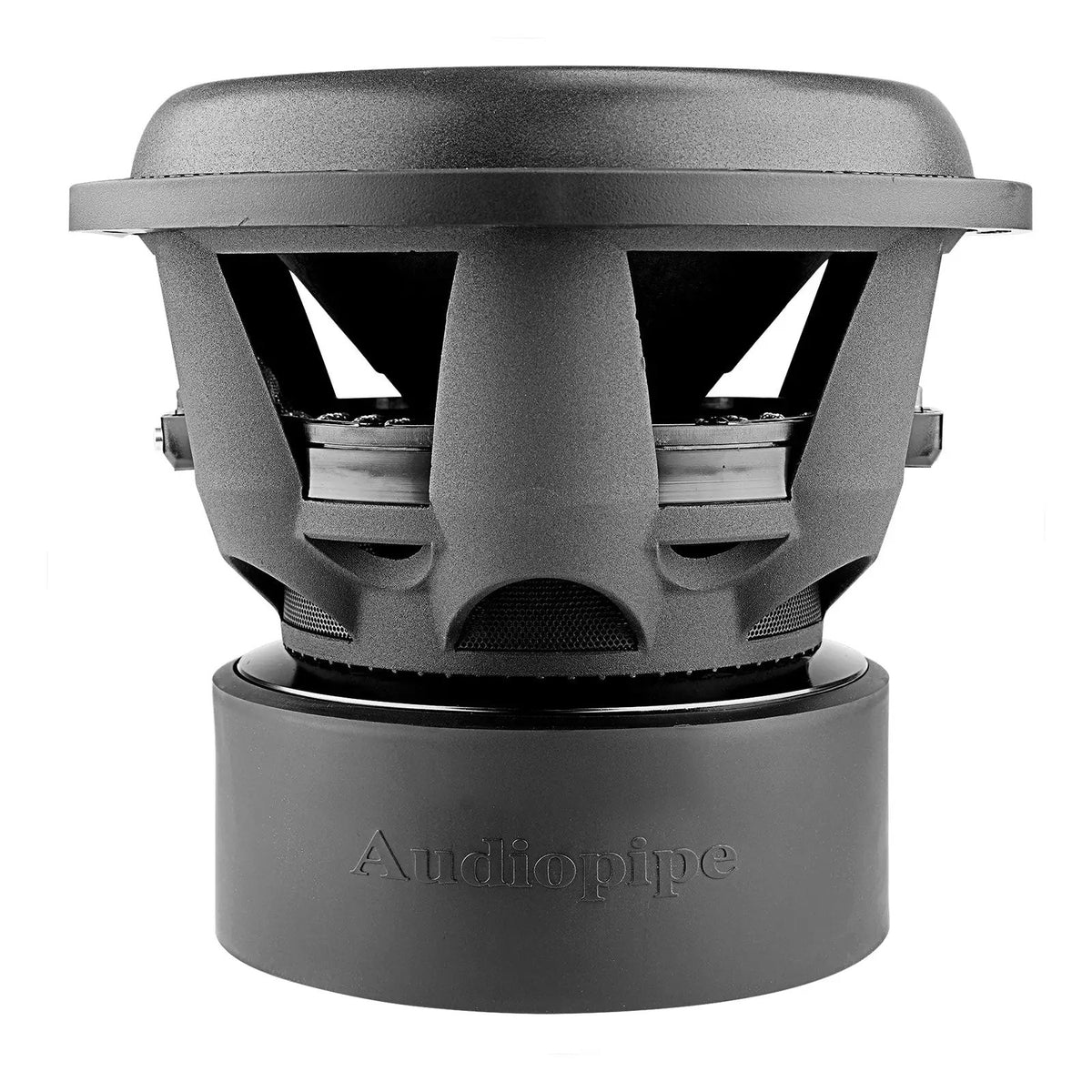

- Aluminum basket and dust cap: The powdered black paint basket and injection-molded PP dust cap form part of the subwoofer’s construction.
Technical Specifications
| Specification | Details |
|---|---|
| Product category | 12-inch competition subwoofer |
| Peak power | 3,000 watts |
| RMS power | 1,500 watts |
| Magnet | Three magnets; 375 oz |
| Frequency response | 30–1,200 Hz |
| Sensitivity | 86 dB |
| Voice coil | Dual 2 ohm; 3-inch, 4-layer, high-temperature black aluminum (BASV) |
| Basket | Powdered black paint aluminum |
| Dust cap | Ultra-stiff injection-molded PP (IMPP) |
| Heat sink | Dust-proof |
| Surround | Black stitching |
| Cone | Black non-press paper with sand-blasted finish |
| Terminals | Patented pipe multi-connect terminals; parallel or series wiring configurations |
| T-yoke | Vented holes |
| Mounting depth | 242 mm (9-1/2”) |
| Impedance | 2 x 2 Ohms |
Why Choose This Product?
The TXX-BDX-12D2 combines a high stated RMS rating with construction details aimed at managing heat and reinforcing the cone. Its dual 2-ohm voice coil and multi-connect terminals give you parallel and series wiring options to consider when planning the system.
Installation & Compatibility Notes
Allow for the listed 242 mm (9-1/2”) mounting depth, and check the available space and mounting opening before installation. Match your amplifier to the subwoofer’s 1,500-watt RMS rating and confirm it supports the impedance created by your chosen wiring configuration.
Frequently Asked Questions
What do the 3,000-watt peak and 1,500-watt RMS ratings mean?
The product lists 3,000 watts peak power and 1,500 watts RMS power. Use the RMS rating when comparing amplifier output for system planning.
What is the voice coil impedance?
This model has dual 2-ohm voice coils. Its terminals support parallel or series wiring configurations.
How much mounting depth should I allow?
The listed mounting depth is 242 mm (9-1/2”). Check the available space and mounting opening in your intended location.
What construction features support heat management?
The subwoofer has increased voice coil ventilation and vented holes on the T-yoke, both designed to aid heat dissipation.
What is the cone made from?
It uses a black non-press paper cone with a sand-blasted finish, described as designed to improve cone rigidity.
