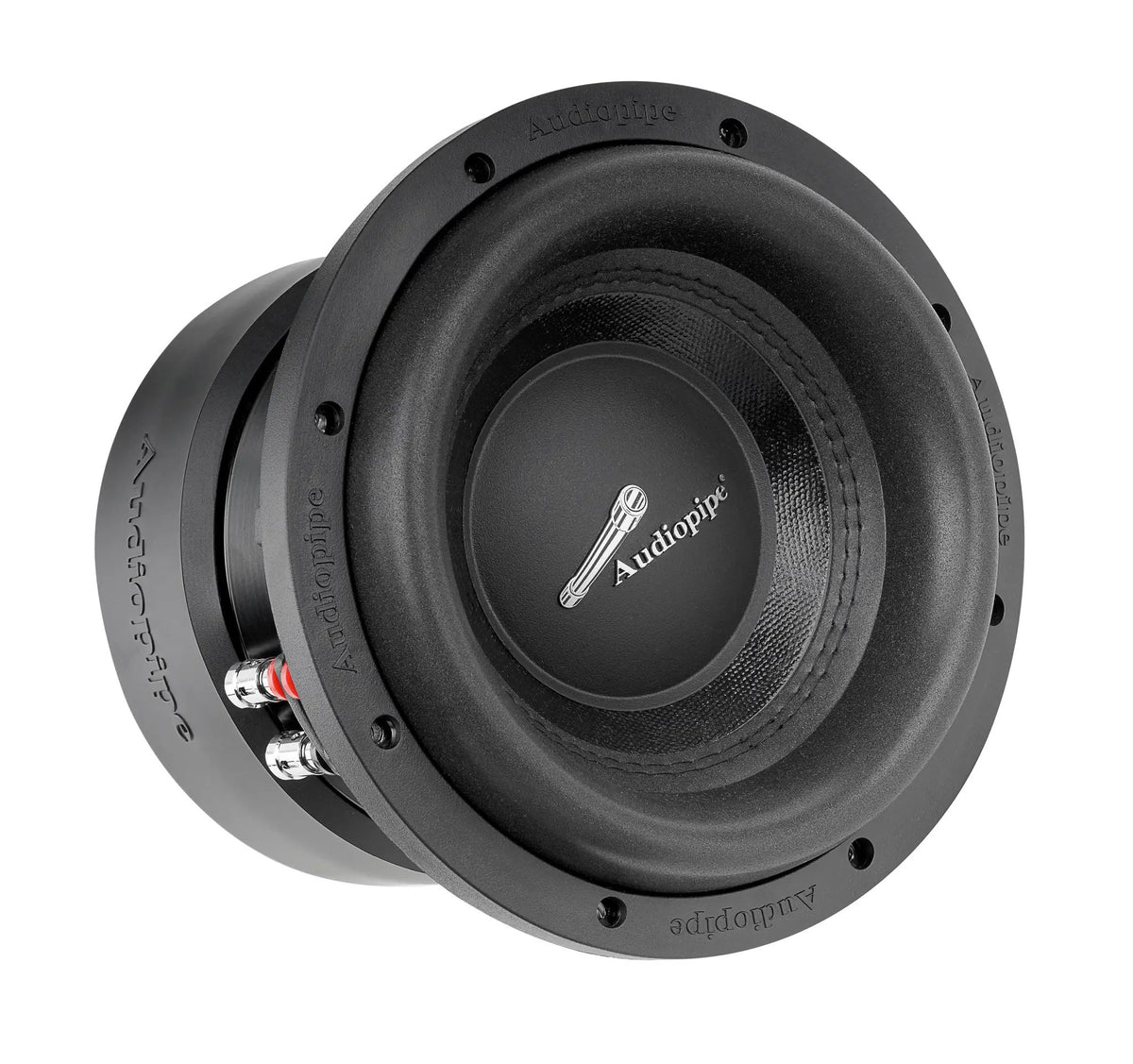

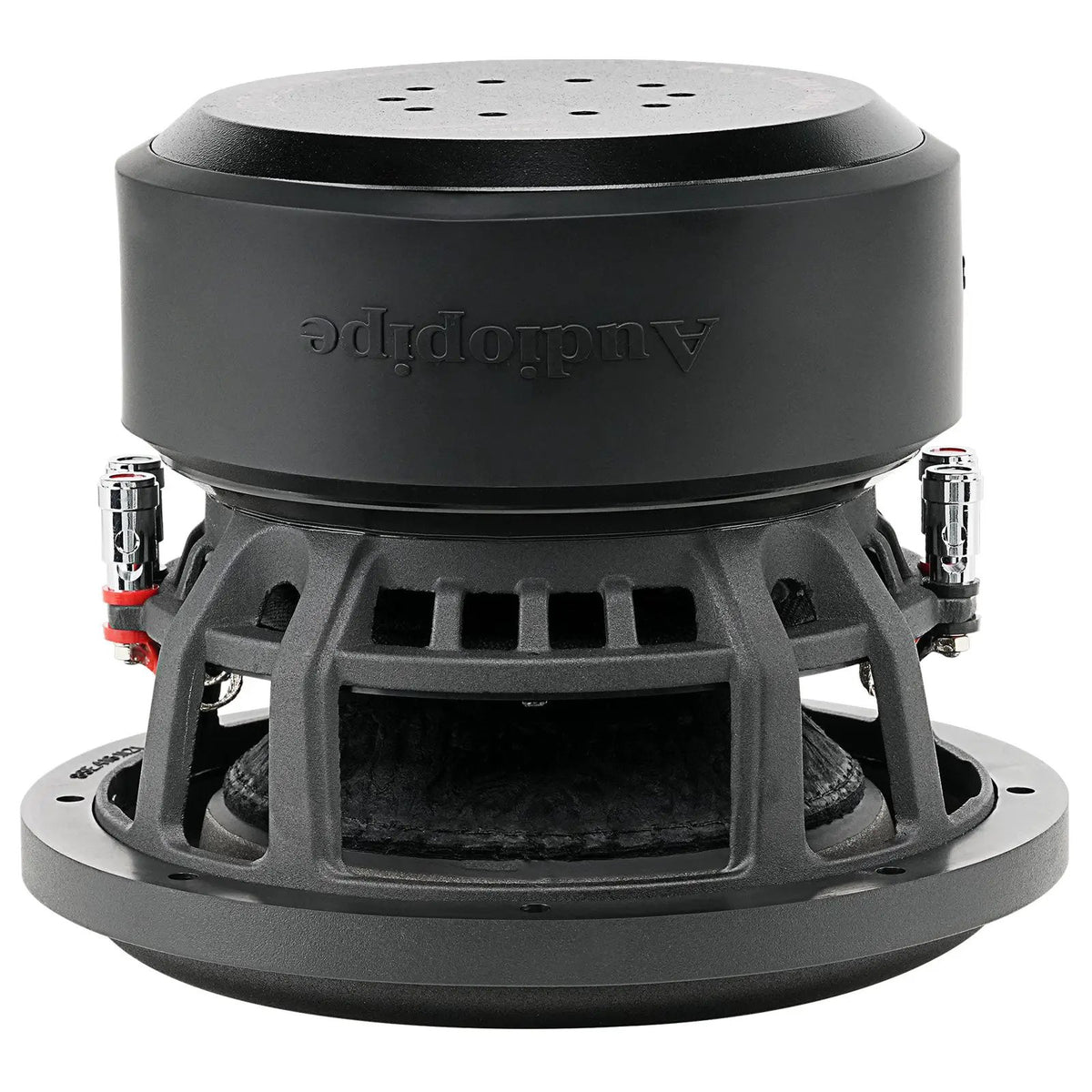

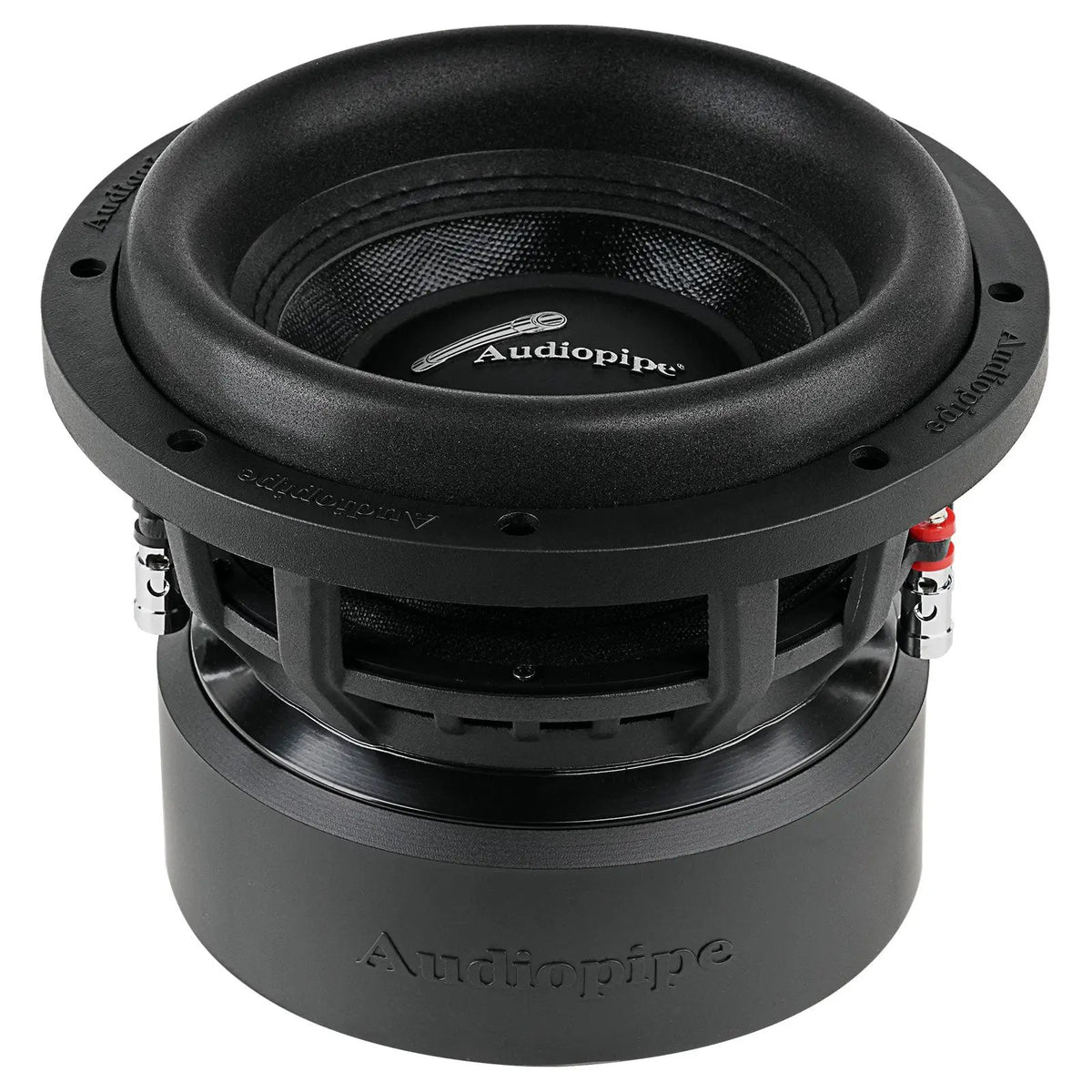

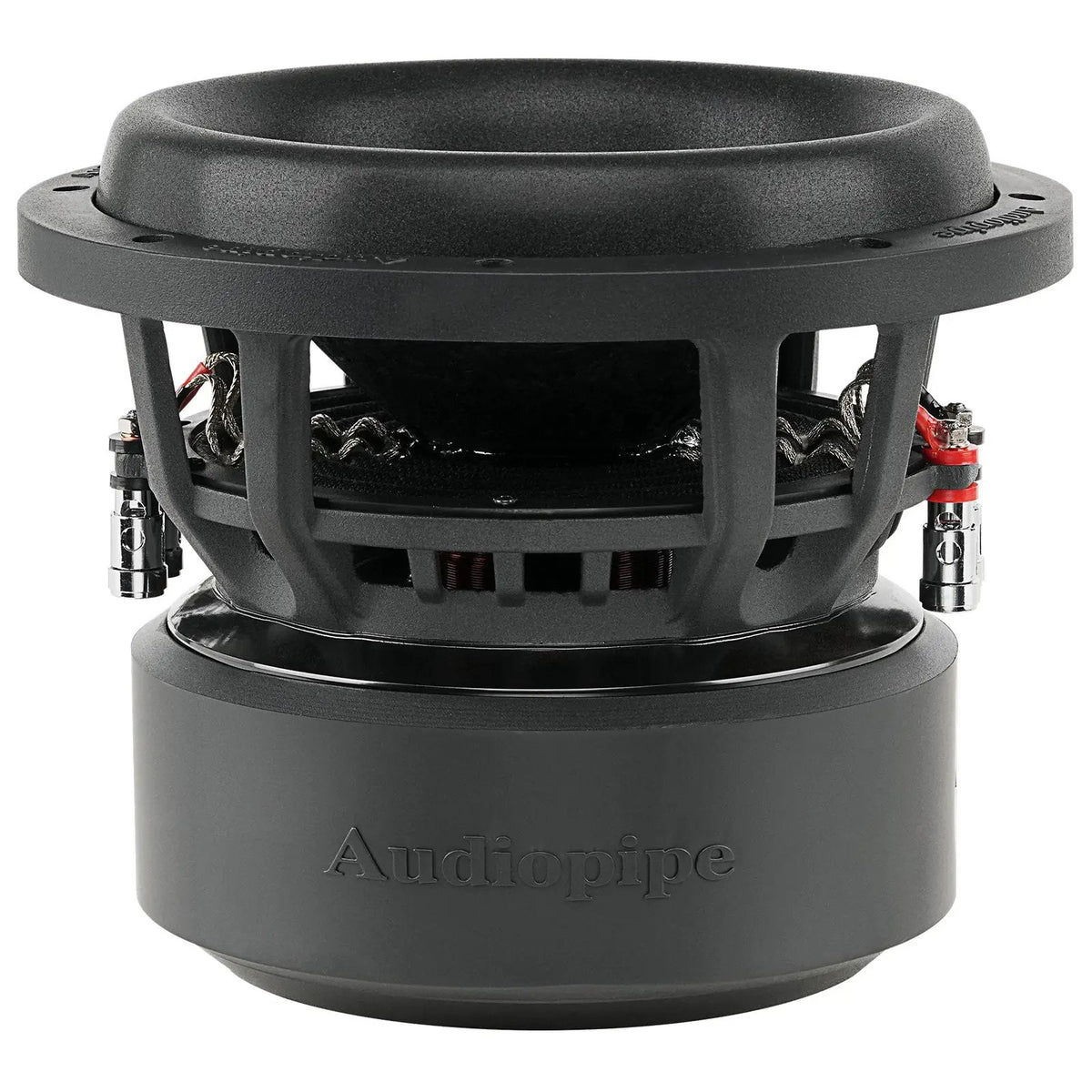

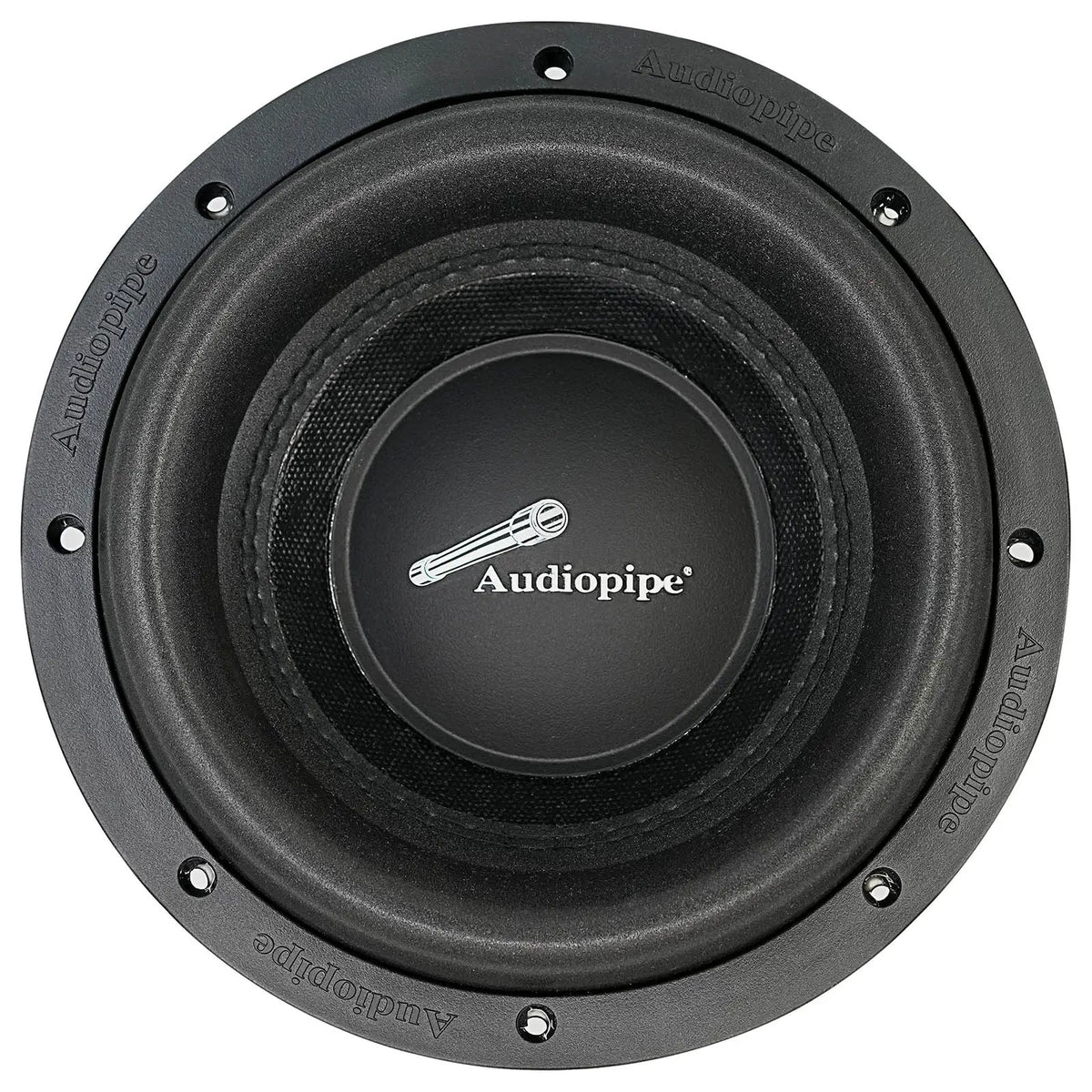

Audiopipe TXX-BDX-8 8" Competition Subwoofer
Key features
- Subwoofer size: 8.0 inches
- RMS power per subwoofer: 500 W
- Voice-coil options: D4
- MAGNET: Boasting 2 magnets for strong power handling, 150 Oz
- FREQUENCY RESPONSE: 40-2,000Hz
- SENSITIVITY: 85dB
Audiopipe TXX-BDX-8 8" Competition Subwoofer is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview
The Audiopipe TXX-BDX-8 8-inch competition subwoofer brings a 500-watt RMS rating and dual 4-ohm voice coils to a compact subwoofer format. Its dual magnets, ventilated voice coil, and vented T-yoke are designed to support power handling and heat dissipation.
Key Features & Benefits
- Power ratings: 500 watts RMS and 1,000 watts peak give you clear figures to consider when matching an amplifier.
- Dual voice coils: Two 4-ohm coils support series or parallel wiring through the multi-connect terminals.
- Ventilation features: Increased voice-coil ventilation and vented T-yoke holes are designed to help manage heat.
- Reinforced construction: The black stitching surround reinforces the cone, while the sand-blasted non-press paper cone is designed for added rigidity.
- Built-in components: A powdered black aluminum basket, IMPP dust cap, and dust-proof heat sink complete the subwoofer’s construction.
Technical Specifications
| Specification | Value |
|---|---|
| Model | TXX-BDX-8 |
| Category | 8" competition subwoofer |
| Peak power | 1000 Watts |
| RMS power | 500 Watts |
| Magnet | 2 magnets, 150 Oz |
| Frequency response | 40 -2,000Hz |
| Sensitivity | 85dB |
| Voice coil | Dual 4 ohm, 2 inch, 4-layer high-temperature black aluminum (BASV) |
| Impedance | 2 x 4 Ohms |
| Basket | Powdered black paint aluminum |
| Dust cap | Injection molded PP (IMPP) |
| Cone | Black non-press paper cone with sand-blasted finish |
| Mounting depth | 148 mm (5-7/8”) |

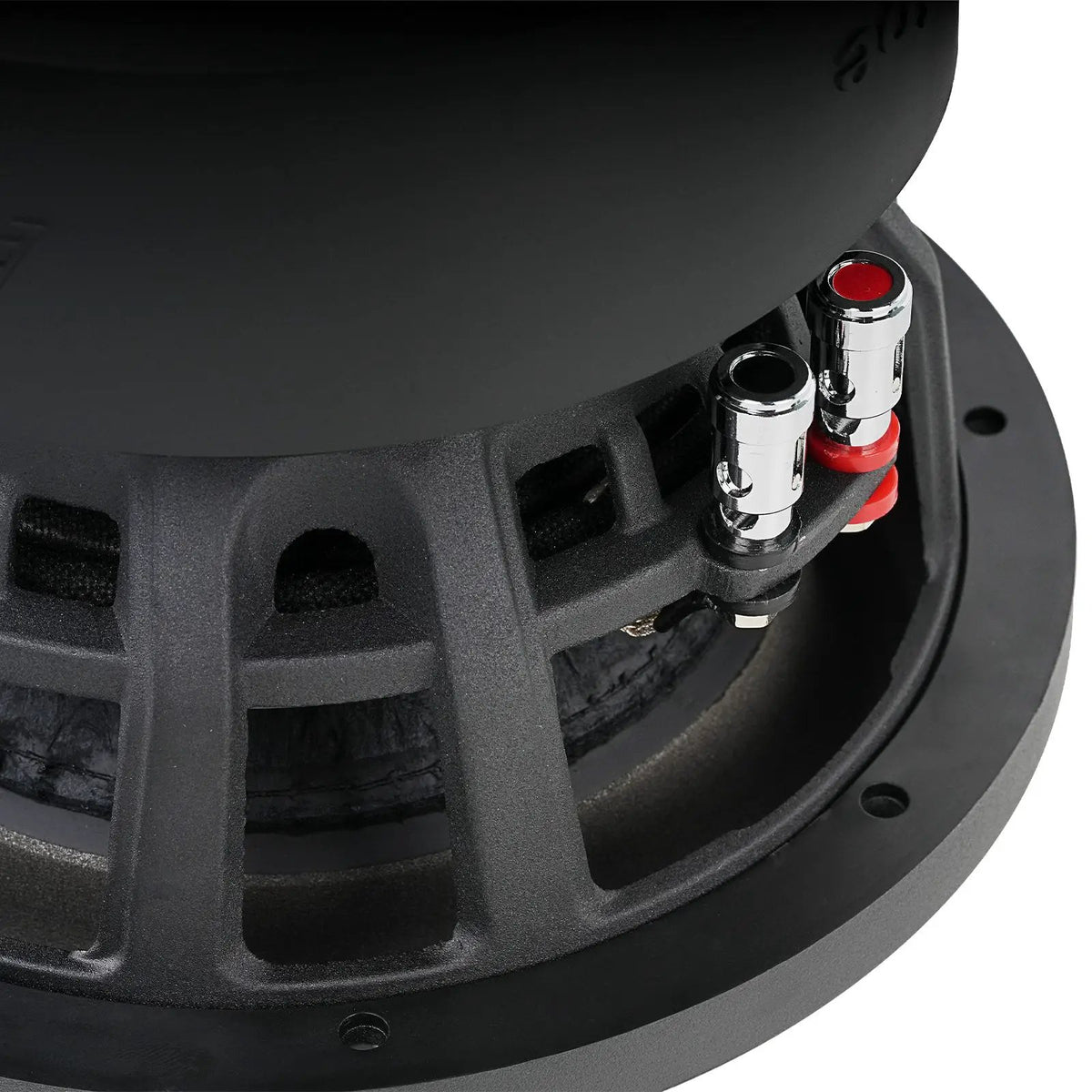

| Terminals | Pipe multi-connect push spring-loaded terminals for parallel or series configurations |
Why Choose This Product?
The TXX-BDX-8 combines its 8-inch size with dual voice coils and terminals that allow series or parallel wiring. That gives you wiring options when planning a system around the subwoofer’s two 4-ohm coils.
Its cone, stitched surround, aluminum basket, and dust-proof heat sink are specific construction details to consider when choosing a competition subwoofer. The listed 500-watt RMS rating is the relevant power figure to compare with an amplifier’s RMS output.
Installation & Compatibility Notes
Allow for the 148 mm (5-7/8”) mounting depth when checking available installation space. Confirm your enclosure and mounting clearance before installation.
The subwoofer has dual 4-ohm voice coils and supports series or parallel wiring. Check the amplifier’s supported load and planned wiring configuration before connecting it.
Frequently Asked Questions
What are the power ratings of the Audiopipe TXX-BDX-8?
It is rated at 500 watts RMS and 1,000 watts peak. Compare the RMS rating with your amplifier’s RMS output.
What impedance does this subwoofer have?
It has two 4-ohm voice coils. Its multi-connect terminals support series or parallel wiring; confirm the resulting load is supported by your amplifier.
How much mounting depth should I allow?
The listed mounting depth is 148 mm (5-7/8”). Check the available space at the installation location before fitting the subwoofer.
What construction features are included?
The listed components include a powdered black aluminum basket, an injection-molded PP dust cap, a sand-blasted black non-press paper cone, a stitched surround, and a dust-proof heat sink.
