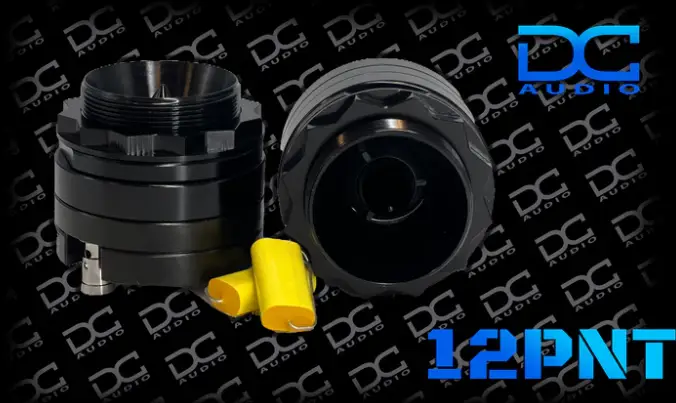

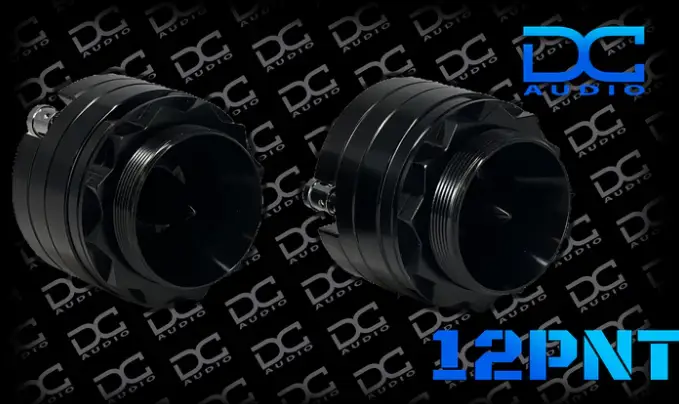

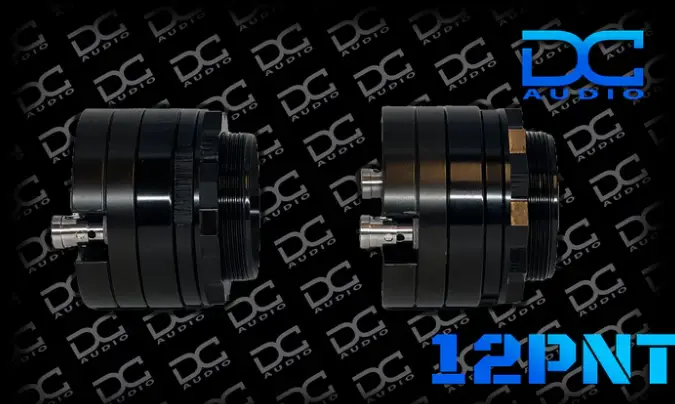

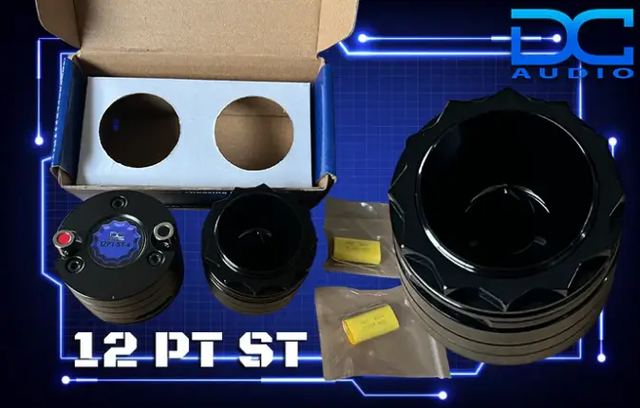

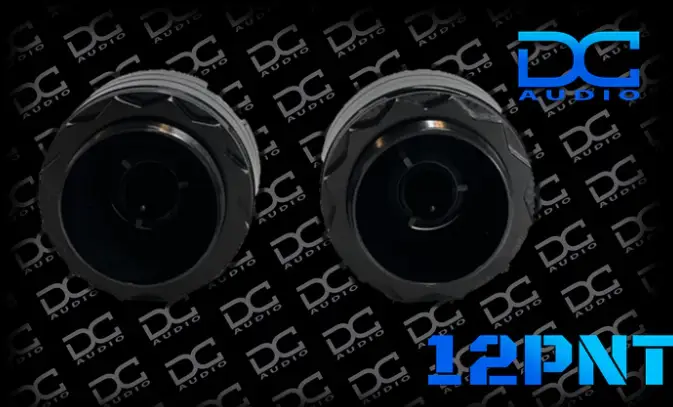

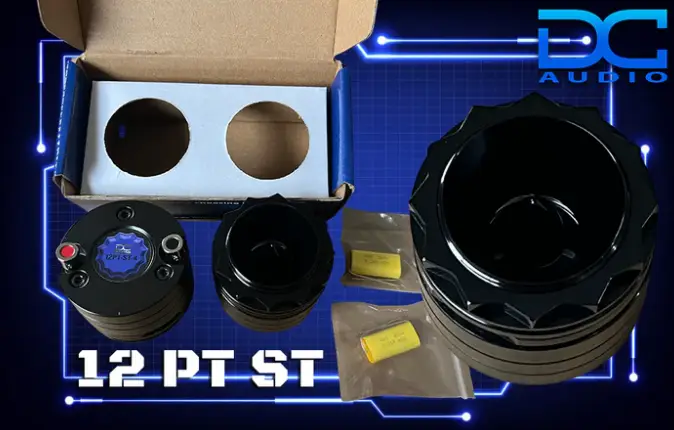

DC Audio Pro Audio 12pt NEO Bullet Super Tweeter
Key features
- RMS power per speaker: 60 W
- Mounting depth: 1.35 inches
- Cutout diameter: 1.7 inches
- Diaphragm material: Titanium
- Magnet material: Neodymium
- Frequency range: 1.5–20 kHz; passive crossover included
DC Audio Pro Audio 12pt NEO Bullet Super Tweeter is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview
Add clear, detailed high-frequency sound to a premium car audio system with the DC Audio Pro Audio 12pt NEO Bullet Super Tweeter. Its titanium diaphragm and neodymium magnet support fast response in a compact design, and it is sold as a pair for left- and right-side installation.
Key Features & Benefits
- 60W RMS / 120W MAX: The power ratings help you match the tweeters to your system’s power demands.
- 4 Ω or 8 Ω options: Choose the impedance that suits your amplifier and crossover design.
- Titanium diaphragm: Its stiffness supports crisp, fast high-frequency response.
- Neodymium magnet: Strong magnetic flux in a compact form helps keep installation space in mind.
- Included passive crossover: The 100V 2.2µF crossover supports integration with the tweeter’s frequency range.
Technical Specifications
| Product | DC Audio Pro Audio 12pt NEO Bullet Super Tweeter |
|---|---|
| Power handling | 60W RMS / 120W MAX |
| Impedance options | 4 Ω or 8 Ω |
| Voice coil | 1" |
| Former material | CCAW |
| Diaphragm material | Titanium |
| Magnet | Neodymium |
| Frequency response | 1.5 kHz – 20 kHz (includes passive crossover 100V 2.2µF) |
| Sensitivity | 100 dB |
| Cutout | 1.7" |
| Mounting depth | 1.35" |
| Total depth | 2.00" |
| Sold in | Pairs |
Why Choose This Product?
The 12pt NEO pairs a compact neodymium magnet with a 1" voice coil and titanium diaphragm. Together, these specified components support controlled, detailed high-frequency output and fast transient response for car audio listening at highway or urban levels.
Its 100 dB sensitivity is suited to systems seeking strong output from less input. The included passive crossover adds a defined component for integration into your system.
Installation & Compatibility Notes
Check the panel opening and available space against the listed cutout, mounting depth, and total depth before installation. Select the 4 Ω or 8 Ω version to match your amplifier and crossover design. The pair is intended for symmetrical left- and right-side installation.
Frequently Asked Questions
What do the power ratings mean?
The tweeter is rated for 60W RMS and 120W MAX. Use these ratings when matching it to your system’s power output.
Which impedance option should I choose?
It is available in 4 Ω or 8 Ω. Match the selected option to your amplifier and crossover design.
Is a passive crossover included?
Yes. The frequency-response specification includes a passive crossover rated at 100V 2.2µF.
What should I check before mounting?
Compare the dashboard or panel opening and available installation space with the cutout, mounting-depth, and total-depth measurements above.
How many tweeters are included?
This product is sold in pairs for left- and right-side installation.
