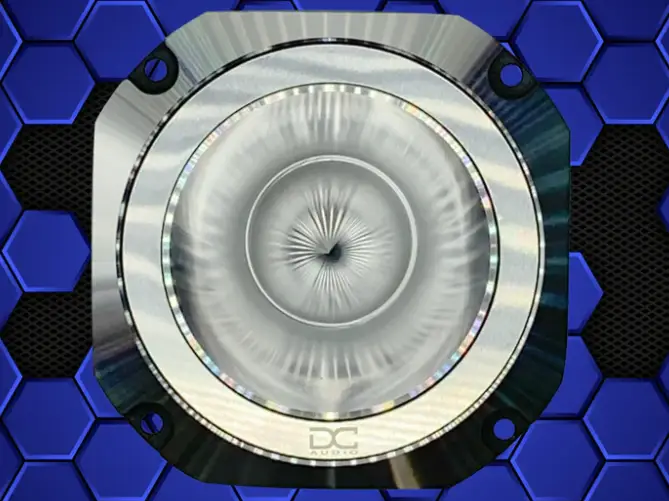

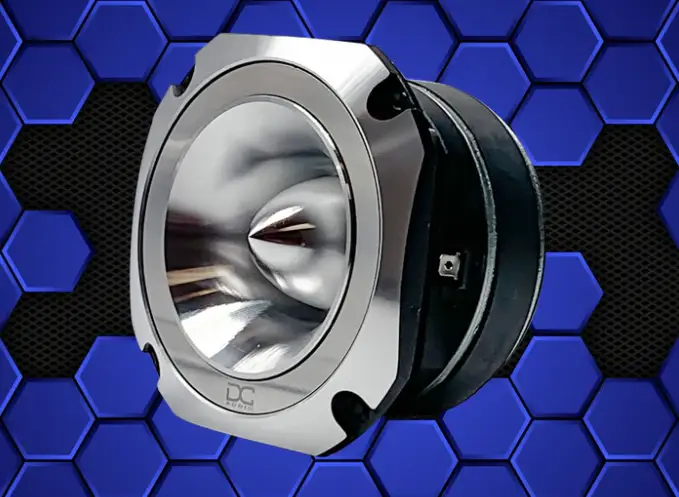

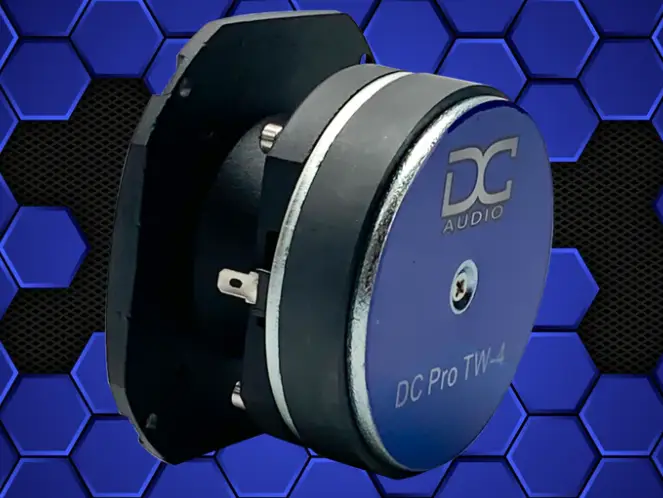

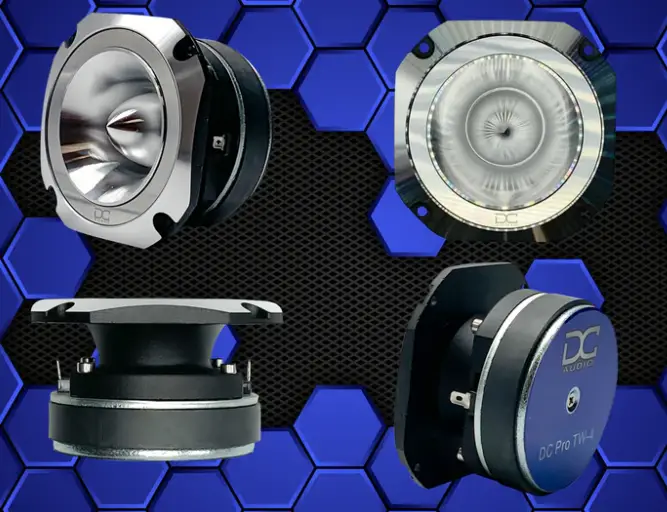

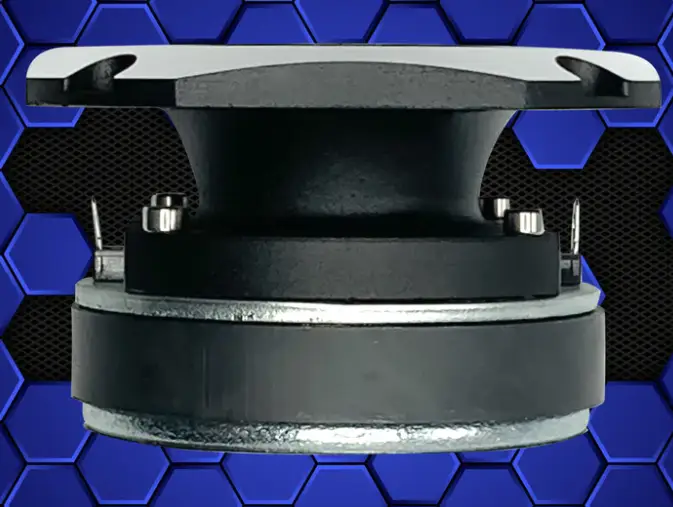

DC Audio Pro Audio Tweeter
Key features
- Speaker size: 4″
- Speaker impedance: 4.0 ohms
- Mounting depth: 2.15 inches
- Cutout diameter: 3.5 inches
- Diaphragm material: Titanium
- Frequency range: 3–30 kHz; passive crossover included
DC Audio Pro Audio Tweeter is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview
Add detailed high frequencies to your car-audio system with the DC Audio Pro Audio Tweeter. Its titanium diaphragm, 100 dB sensitivity, and included passive crossover give you key details for planning your system’s high-frequency setup.
Key Features & Benefits
- Titanium diaphragm: A lightweight, stiff diaphragm supports fast transient response and extended high-frequency performance.
- 50-watt power handling: The rating is associated with a 1.5-inch voice coil.
- 4- or 8-ohm options: Choose the impedance that suits your amplifier load and crossover design.
- 3 kHz–30 kHz frequency response: This range describes the frequencies the tweeter is intended to reproduce.
- 100 dB sensitivity: This sensitivity rating describes output relative to input power.
- Passive crossover included: The crossover supports integration with other drivers in your system.
Technical Specifications
| Power Handling | 50 watts (via the 1.5-inch voice coil) |
|---|---|
| Diaphragm Material | Titanium |
| Impedance | 4 ohms or 8 ohms |
| Frequency Response | 3 kHz–30 kHz |
| Passive Crossover | Included |
| Sensitivity | 100 dB |
| Cutout | 3.5 inches |
| Mounting Depth | 2.15 inches |
| Sold As | Individual |
Why Choose This Product?
This DC Audio tweeter combines a compact mounting footprint with an included passive crossover and two impedance options. It is sold individually, giving you flexibility when planning your system’s tweeter count and channel configuration.
Installation & Compatibility Notes
Allow for a 3.5-inch cutout and 2.15 inches of mounting depth. Select the 4-ohm or 8-ohm option based on your amplifier load and crossover design, and check the mounting location before installation.
Each purchase includes one tweeter. A passive crossover is included.
Frequently Asked Questions
What impedance options are available?
The tweeter is offered in 4-ohm or 8-ohm options. Match your selection to your amplifier load and crossover design.
What are the mounting dimensions?
It requires a 3.5-inch cutout and 2.15 inches of mounting depth.
What does the 50-watt rating refer to?
The listed power handling is 50 watts, via the 1.5-inch voice coil.
Is a passive crossover included?
Yes. A passive crossover is included with the tweeter.
How many tweeters are included?
It is sold individually, so each purchase includes one tweeter.
