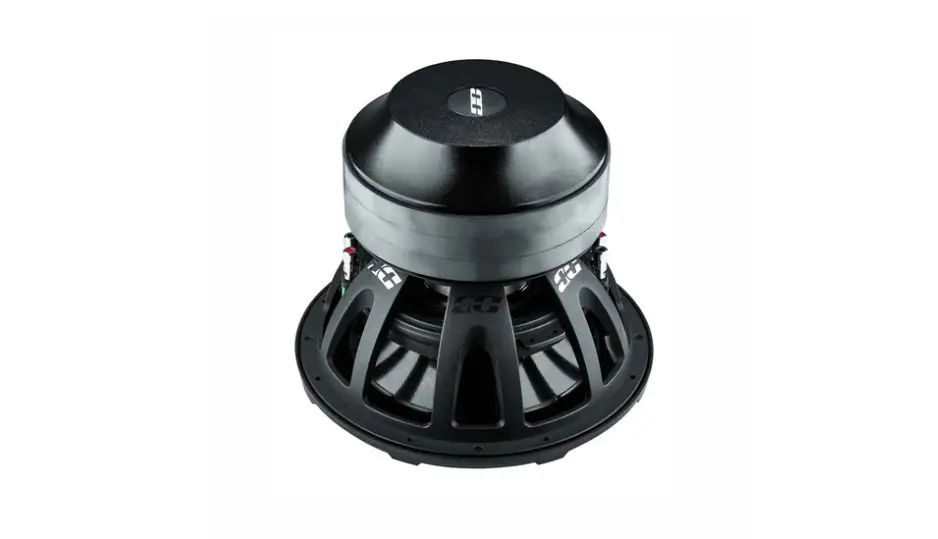

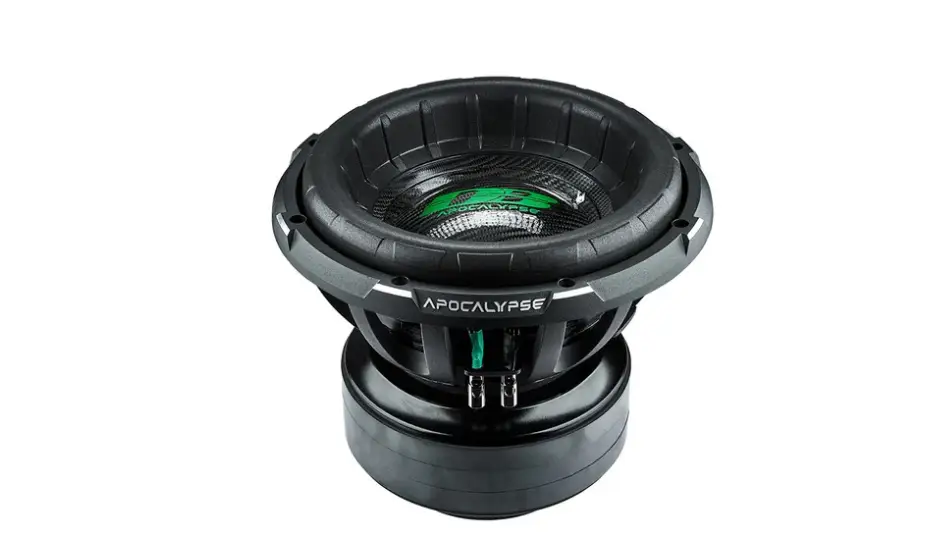

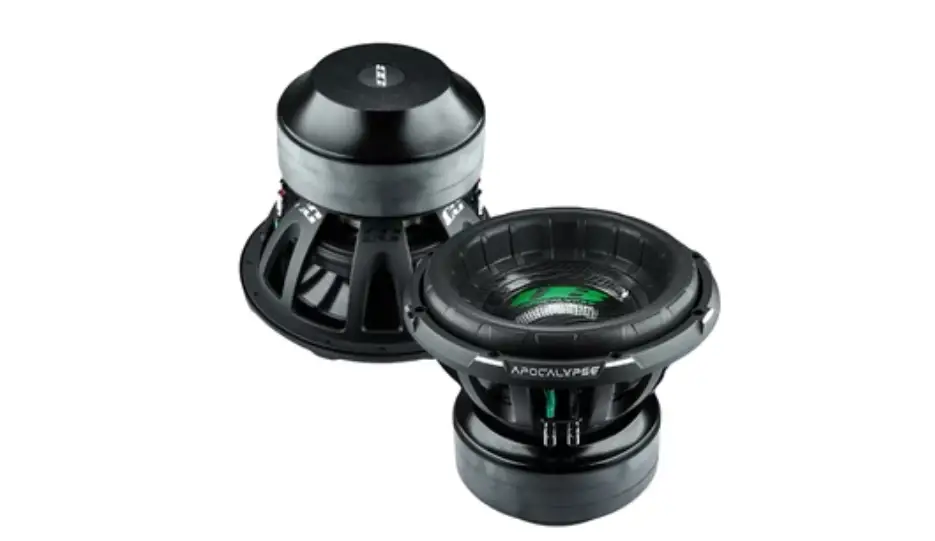

Deaf Bonce Apocalypse 4512R 4500 Watt RMS 12" D1/D2
Key features
- Subwoofer size: 12.0 inches
- RMS power per subwoofer: 4500 W
- Voice-coil diameter: 4.5 inches
- Magnet: Ferrite
- Cone: Carbon
- Surround: Foam
Deaf Bonce Apocalypse 4512R 4500 Watt RMS 12" D1/D2 is backordered and will ship as soon as it is back in stock.
Deaf Bonce Apocalypse 4512R 4500 Watt RMS 12" D1/D2 is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview
Build serious low-end into your car audio system with the Deaf Bonce Apocalypse 4512R 12-inch subwoofer. Its carbon cone, 4.50-inch voice coil and 4500 W RMS power rating are designed for high-power audio builds.
Dual-impedance options offer flexibility when matching the subwoofer to an amplifier and enclosure setup.
Key Features & Benefits
- 4500 W RMS power: Supports high-output systems with appropriate amplification.
- Carbon cone: Combines low weight and stiffness for controlled cone movement.
- 4.50-inch voice coil: Provides a large voice coil for demanding playback.
- Dual impedance: Offers 2+2 or 1+1 Ohm options for system-matching flexibility.
- Foam surround: Supports long-throw cone movement.
Technical Specifications
| Model | DB-4512R D2 / DB-4512 D1 |
| Type | Subwoofer |
| Size | 12 inch |
| Voice coil size | 4.50 inch |
| Cone | Carbon |
| Magnet | Ferrite |
| Surround | Foam |
| RMS Power | 4500 W |
| MAX Power | 9000 W |
| Frame | Alu |
| Impedance | 2+2 / 1+1 Ohm |
| SPL | 85.4 / 85.8 dB |
| Fs | 39.00 / 40.00 Hz |
| Qts | 0.57 / 0.59 |
| BL | 25.10 / 26.10 |
| Vas | 37.00 / 38.20 L |
| Xmeh | 45.00 45.00 / 45.00 mm |
| Xmax | 22.50 / 22.50 mm |
Why Choose This Product?
The Apocalypse 4512R pairs a carbon cone with a ferrite magnet system and aluminum frame for a high-power subwoofer build. Its listed Thiele-Small parameters can help guide enclosure planning for sealed or ported setups. The 9000 W MAX rating describes peak power handling, while 4500 W RMS is its continuous power rating.
Installation & Compatibility Notes
Match the subwoofer’s impedance option to your amplifier and planned system configuration. Check the enclosure design against the listed Fs, Qts and Vas values before installation. The specifications identify a 12-inch subwoofer; confirm the available mounting space and installation requirements for your build.
Frequently Asked Questions
What is the difference between the RMS and MAX power ratings?
The subwoofer is rated for 4500 W RMS continuous power and 9000 W MAX peak power for brief musical transients.
What impedance options are listed?
The specifications list 2+2 Ohm and 1+1 Ohm options. Match the selected option to your amplifier and system configuration.
Can I use this subwoofer in a sealed or ported enclosure?
The listed Thiele-Small parameters support enclosure planning for either sealed or ported setups. Choose an enclosure design suited to your system goals.
What enclosure information is included in the specifications?
Fs, Qts and Vas are listed to help guide enclosure planning.
What size subwoofer is the Apocalypse 4512R?
It is a 12-inch subwoofer with a 4.50-inch voice coil.
