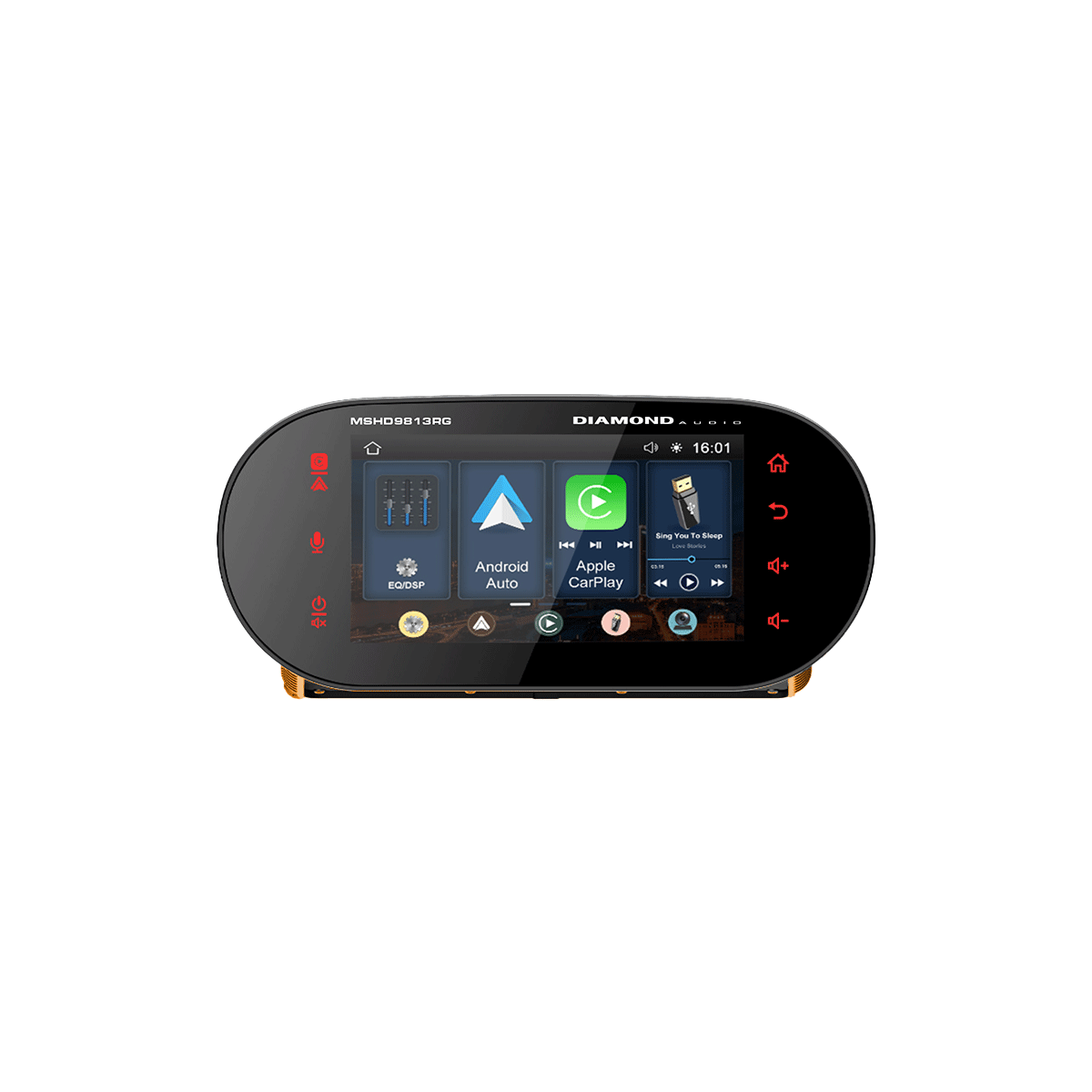

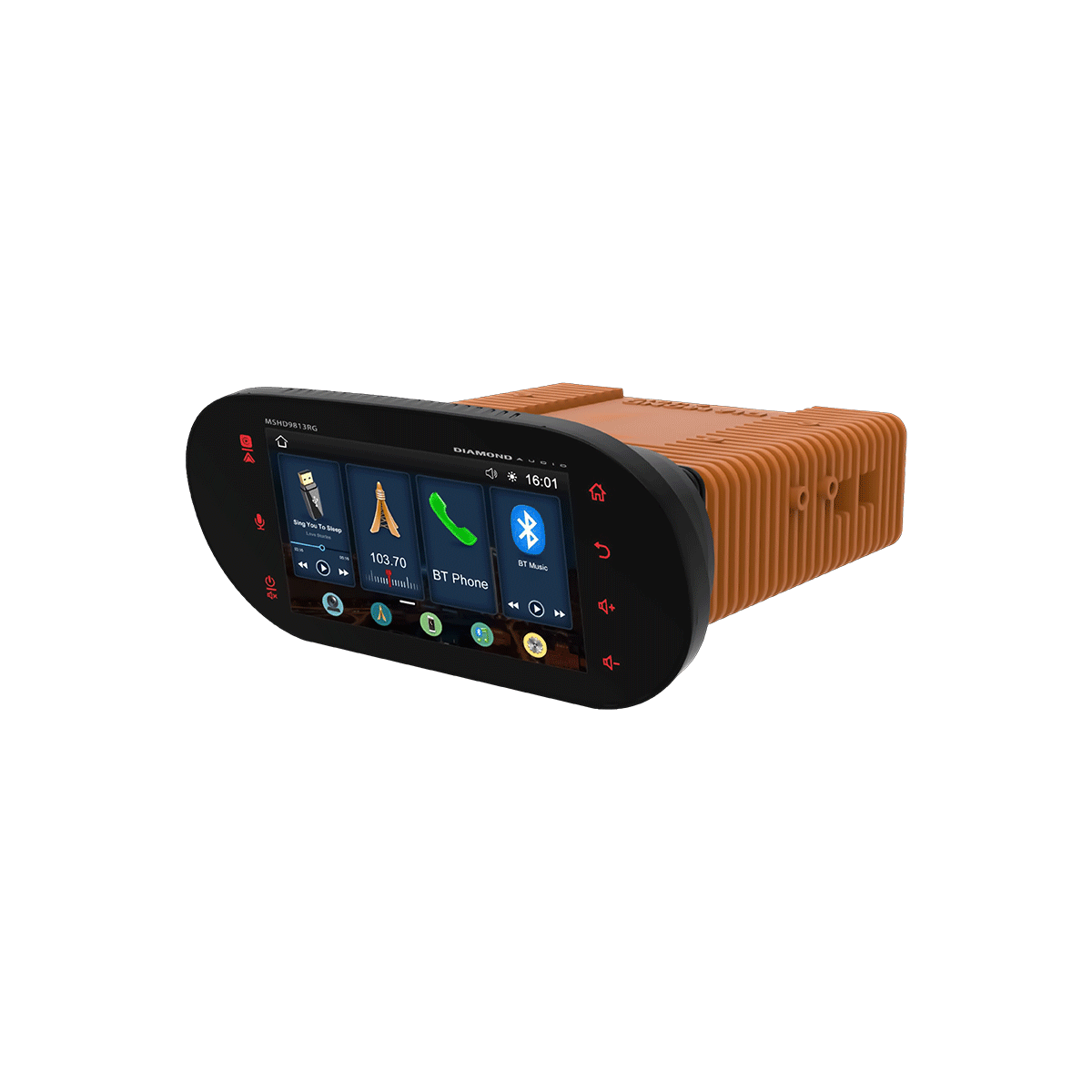

Diamond Audio 1998-2013 Plug N-Play Digital Media Receiver for Harley Davidson® Road Glide - MSHD9813RG

The Diamond Audio MSHD9813RG replaces the factory receiver in the listed 1998–2013 Harley-Davidson Road Glide applications, combining touchscreen media control with built-in audio processing.

Features and specifications

• 7-inch, 1,000-nit glove-friendly LCD touchscreen.
• Wireless Apple CarPlay.
• Ten independent output channels: six 5-volt RMS RCA outputs plus four amplified outputs rated 50 watts × 4 at 2 ohms or 25 watts × 4 at 4 ohms.
• Ten-channel DSP with time delay and high-pass, low-pass and band-pass crossovers; 6/12/18/24 dB slopes.
• Six independent EQ configurations: one global and five setup EQs.
• Factory handlebar-control retention with programmable configuration.
• IPX6 water resistance; weatherproof trim gasket included.
• AM/FM/weather-band reception and USB media playback.
• Bluetooth 5.2 streaming and hands-free calling; microphone included.
• USB charging output: 2.1 amps.
• Backup camera input.

Confirm the exact motorcycle model, model year and factory audio system before installation.
