DS18 EXL-P2000X1D EXL Power 1-Channel Class D Amplifier 2000 x 1 @ 1-Ohm Watts Rms Made In Korea
Key features
- Amplifier channels: 1
- RMS output at 4 ohms: 800.0 W
- RMS output at 2 ohms: 1400 W
- RMS output at 1 ohm: 2000 W
DS18 EXL-P2000X1D EXL Power 1-Channel Class D Amplifier 2000 x 1 @ 1-Ohm Watts Rms Made In Korea is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview
Take control of a high-output subwoofer system with the DS18 EXL-P2000X1D, a Korean-made, one-channel Class D car amplifier. It delivers 2000 watts RMS at 1 ohm and includes onboard tuning controls, a remote bass-level knob, and a heatsink-equipped chassis with no fan.
Key Features & Benefits
- Three RMS power ratings: Choose from 2000 watts at 1 ohm, 1400 watts at 2 ohms, or 800 watts at 4 ohms to match your subwoofer system’s load.

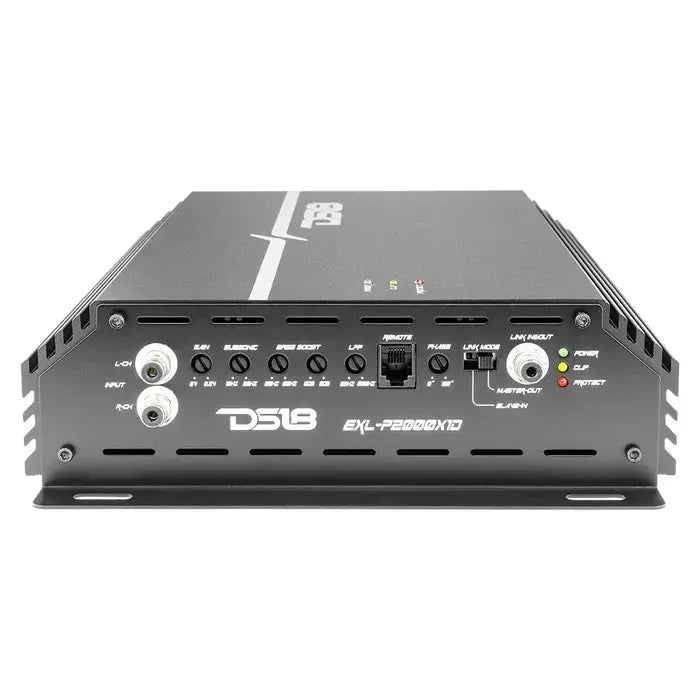

- Onboard bass tuning: Adjust the low-pass filter, bass boost, infrasonic filter, and phase to shape subwoofer output.

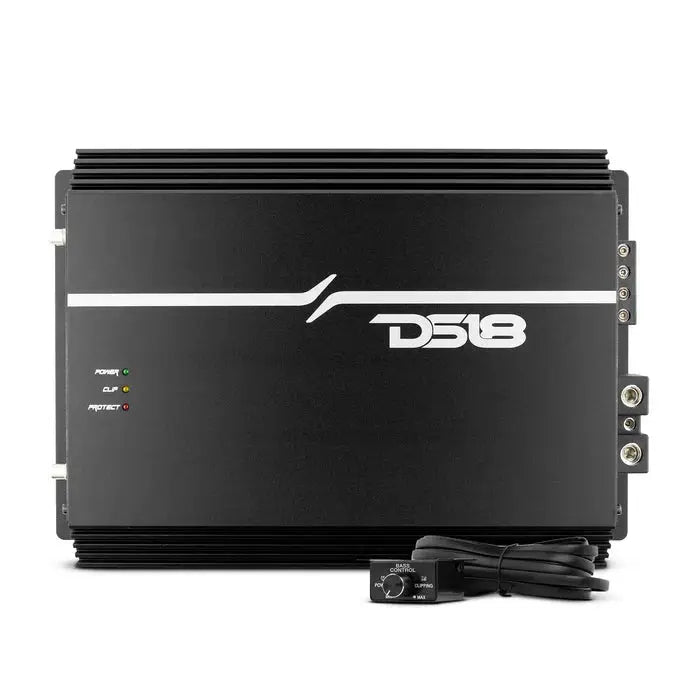

- Remote level control: Use the included bass knob for convenient level adjustments from the dashboard.
- Status LEDs: Power, clip, and protect indicators make amplifier status visible at a glance.
- Protection circuits: Overload, DC output, short circuit output, input voltage, clipping, and thermal protection help guard the amplifier and connected system.
Technical Specifications
| Amplifier Type | Monoblock |
|---|---|
| Subwoofer Channels | 1 CH |
| RMS Power @ 1 Ohm | 2000W x 1 CH |
| RMS Power @ 2 Ohm | 1400W x 1 CH |
| RMS Power @ 4 Ohm | 800W x 1 CH |
| Minimum Impedance | 1 Ohm |
| Frequency Response | 15Hz–250Hz |
| Signal/Noise Ratio | > 98dB |
| Efficiency @ 4 Ohm | > 87% |
| THD | < 0.02% |
| Damping Factor | 200 |
| Low Level Input Range | 200mV–6V |
| X-Over | LPF Fixed; 35–250Hz range |
| Bass Boost | 0–+9dB; 30–60Hz |
| Infrasonic Filter | 10–30Hz |
| Phase Selector | 0–180° |
| LED Indicator | PWR / CLIP / PROTECT |
| Remote Level Control | Yes |
| Cooling | No fan; heatsink-equipped chassis |
| Thermal Protection | Yes >75°C / 167°F |
| Protection | Over-Load, DC Output, Short Circuit Output, Voltage Input, Clipping |

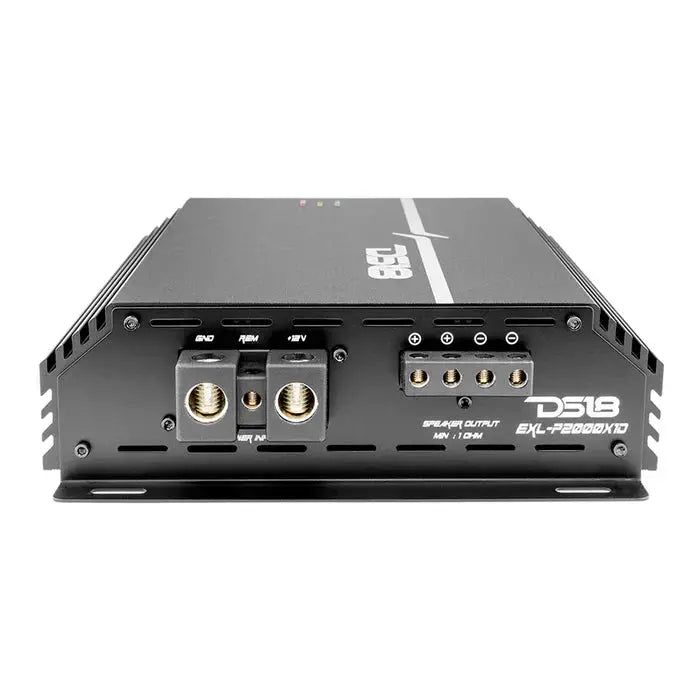

| Power Wiring | 1/0 AWG inputs for power/ground; 8 AWG speaker input terminals |
| Body Color / Finish | Black |
| Dimensions | 12.67 x 8.77 x 2.67 inches (L x W x H) |
| Made In | Korea |
Why Choose This Product?
The EXL-P2000X1D is designed for a dedicated subwoofer channel, with power ratings at three impedance loads and controls for adjusting the bass response. Its fanless, heatsink-equipped design avoids fan noise, while the status indicators and protection features offer useful visibility during system operation.
Installation & Compatibility Notes
Match the connected subwoofer load to the amplifier’s 1-ohm minimum impedance and select the power rating for the applicable load. Plan for 1/0 AWG power and ground inputs and 8 AWG speaker input terminals.
Before installation, check that the 12.67 x 8.77 x 2.67-inch chassis fits your planned location and that your system’s connections and electrical requirements are suitable.
Frequently Asked Questions
How much RMS power does the EXL-P2000X1D provide?
It is rated at 2000W x 1 CH at 1 ohm, 1400W x 1 CH at 2 ohms, and 800W x 1 CH at 4 ohms.
What is the amplifier’s minimum impedance?
The minimum impedance is 1 ohm. Confirm your subwoofer system’s load before connecting it.
Can I adjust the bass from the dashboard?
Yes. The amplifier has a remote level control, and the product description states that a bass knob is included.
What tuning controls are available?
It has a fixed low-pass filter with a 35–250Hz range, bass boost from 0–+9dB at 30–60Hz, an infrasonic filter from 10–30Hz, and a 0–180° phase selector.
What wiring terminals does it use?
Power and ground inputs are specified for 1/0 AWG wiring, and the speaker input terminals are specified for 8 AWG.
How much space should I allow for installation?
The amplifier measures 12.67 x 8.77 x 2.67 inches. Compare these dimensions with your intended mounting space before installation.
