DS18 G3600.1D GEN-X Class D 1-Channel Amplifier 3600 Watts
Key features
- Amplifier channels: 1
- RMS output at 4 ohms: 500.0 W
- RMS output at 2 ohms: 900 W
- RMS output at 1 ohm: 1200 W
DS18 G3600.1D GEN-X Class D 1-Channel Amplifier 3600 Watts is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview
Add a dedicated bass channel to your car audio system with the DS18 G3600.1D GEN-X Class D 1-channel amplifier. It delivers 1200W RMS at 1Ω, with adjustable filtering and a remote level control for tuning bass to your setup.
Key Features & Benefits
- Multiple power ratings: Choose among the listed 1Ω, 2Ω, and 4Ω RMS ratings to match your system’s speaker load.
- Adjustable bass filtering: Low-pass and subsonic controls let you tailor the signal for bass-focused use.

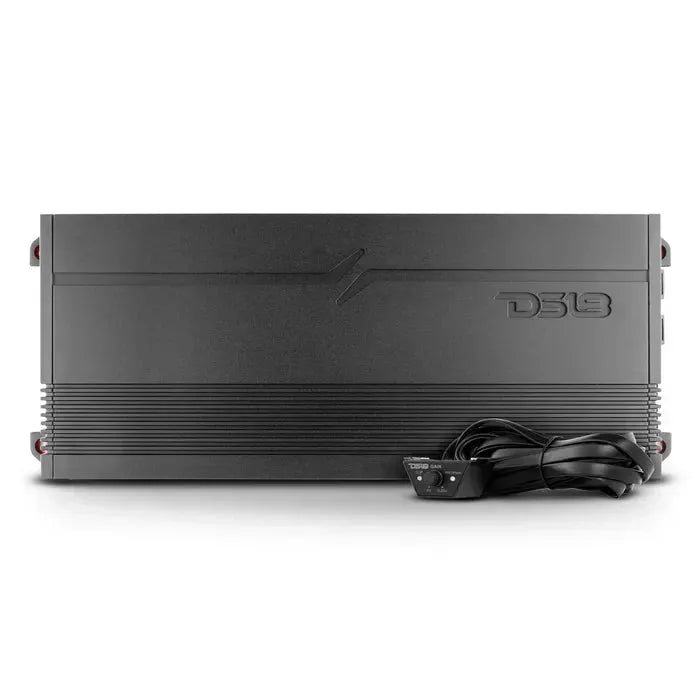

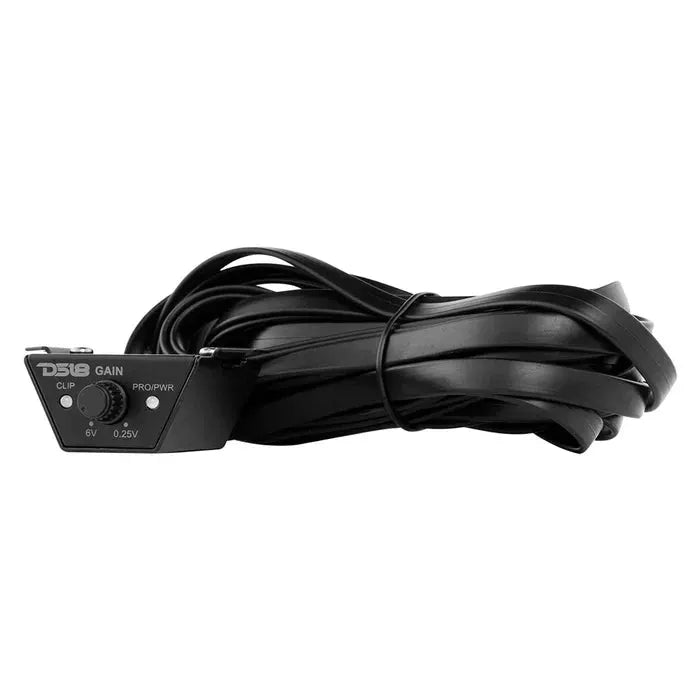

- Remote level control: Adjust the amplifier’s level from the included remote control.
- High-level input compatibility: Supports integration with a radio unit or factory harness.
- Protection and indicators: Short-circuit, thermal, and voltage protection work alongside Power, Protection, and Clip LEDs.
Technical Specifications
| Specification | Value |
|---|---|
| Brand / Model | DS18 G3600.1D GEN-X |
| Amplifier type | Monoblock Class D, 1-channel |
| Peak power | 3600W |
| RMS power at 1Ω / 2Ω / 4Ω | 1200W / 900W / 500W respectively |
| Minimum impedance | 1 Ohm |
| Operation voltage | 9 - 15V |
| Frequency response | 10Hz - 500Hz |

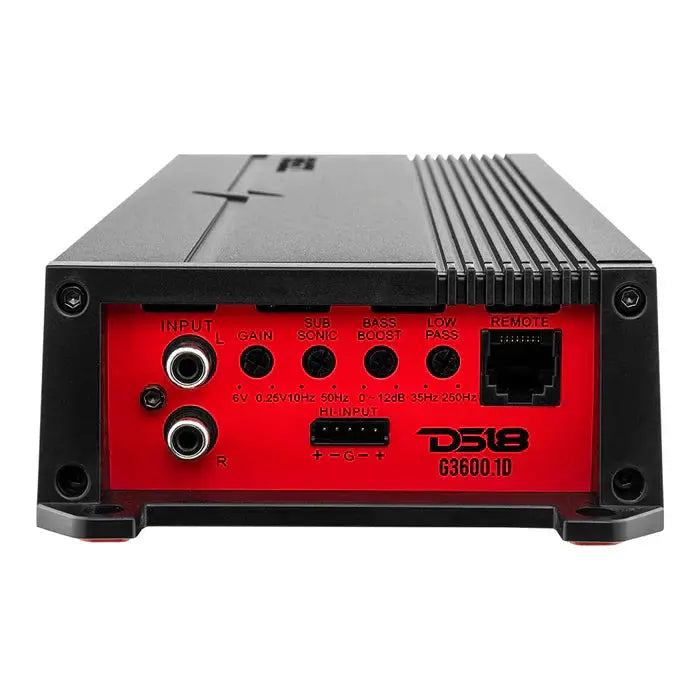

| Low pass filter | Fixed LPF 35Hz - 250Hz |
| Subsonic | Yes, 10Hz - 50Hz |
| Bass boost | 0 - 9dB at 45Hz |
| Remote level control | Yes |
| High-level input compatibility | Yes |
| Input sensitivity | 0.25V - 6V |
| X-Over / filtering | Fixed LPF 35 - 250 Hz; X-Over Range 35 - 250 Hz |
| Phase | Phase Selector NO |
| Protection & LEDs | Short circuit, thermal, and voltage protection with Power | Protection | Clip LED indicators |
| Efficiency | 90% at 4 Ohm |
| S/N ratio | >93dB |
| THD | 0.0014% |

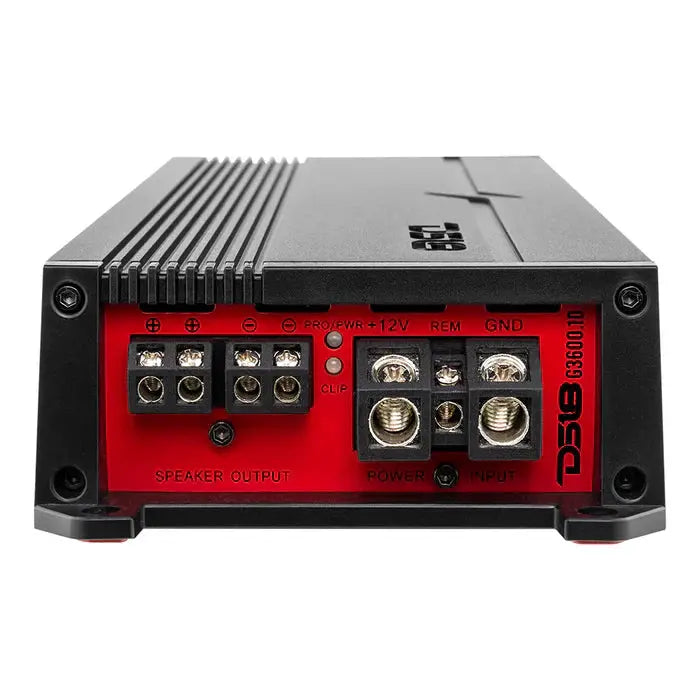

| Power input / fuse | 4GA power input; Fuse rating 120A |

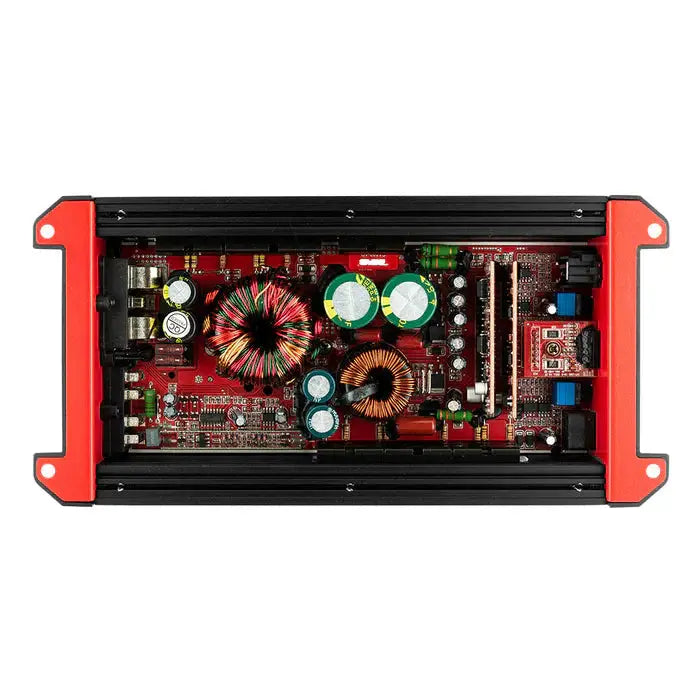

| Surface Mount Technology | Yes |

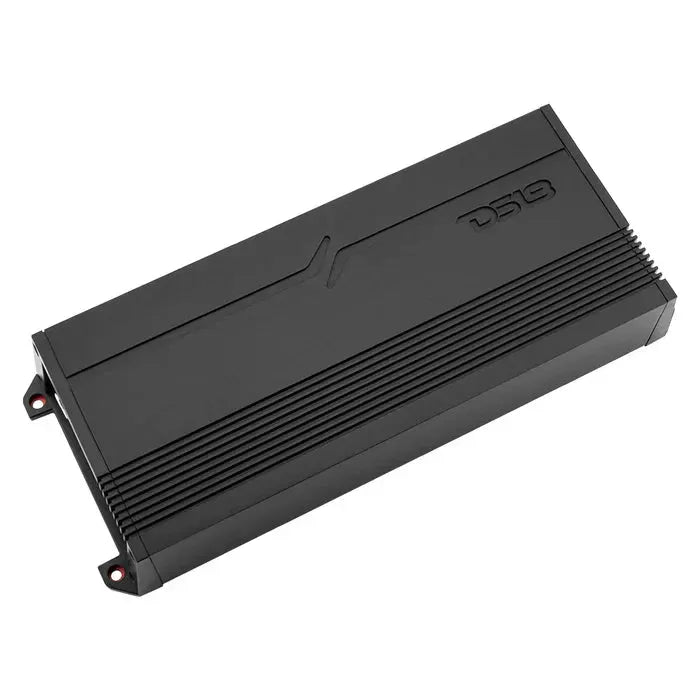

| Finish | Matte Black |
| Dimensions (L × W × H) | 14.25 x 7.25 x 3.25 inches |
| Weight | 5.5 lb |
Why Choose This Product?
This single-channel amplifier is built for bass-focused car audio systems. Its range of RMS ratings, adjustable crossover controls, and bass boost give you several ways to shape the signal for your setup.
Subsonic adjustment and built-in protection are useful considerations when planning a system around a subwoofer. The matte black finish and surface-mount construction suit a range of installation layouts.
Installation & Compatibility Notes
Allow for the amplifier’s 14.25 x 7.25 x 3.25-inch dimensions when planning its mounting location. Check that your electrical system operates within the stated 9 - 15V range and that your speaker load meets the 1 Ohm minimum impedance.
The amplifier has a 4GA power input and supports high-level input. Confirm your system’s connections and installation requirements before purchase.
Frequently Asked Questions
What is the amplifier’s RMS power output?
It is rated at 1200W RMS at 1Ω, 900W RMS at 2Ω, and 500W RMS at 4Ω. Peak power is listed as 3600W.
What is the minimum supported impedance?
The stated minimum impedance is 1 Ohm. Match the connected speaker load to the amplifier’s ratings.
Can I connect it to a factory radio?
High-level input compatibility is listed, supporting connection to a radio unit or factory harness.
Can I adjust the bass signal?
Yes. It has a fixed low-pass filter range of 35Hz - 250Hz, subsonic adjustment from 10Hz - 50Hz, and bass boost of 0 - 9dB at 45Hz.
What are the amplifier’s dimensions?
It measures 14.25 x 7.25 x 3.25 inches (L × W × H) and weighs 5.5 lb.
What protection features are listed?
Short-circuit, thermal, and voltage protection are listed, along with Power, Protection, and Clip LED indicators.
