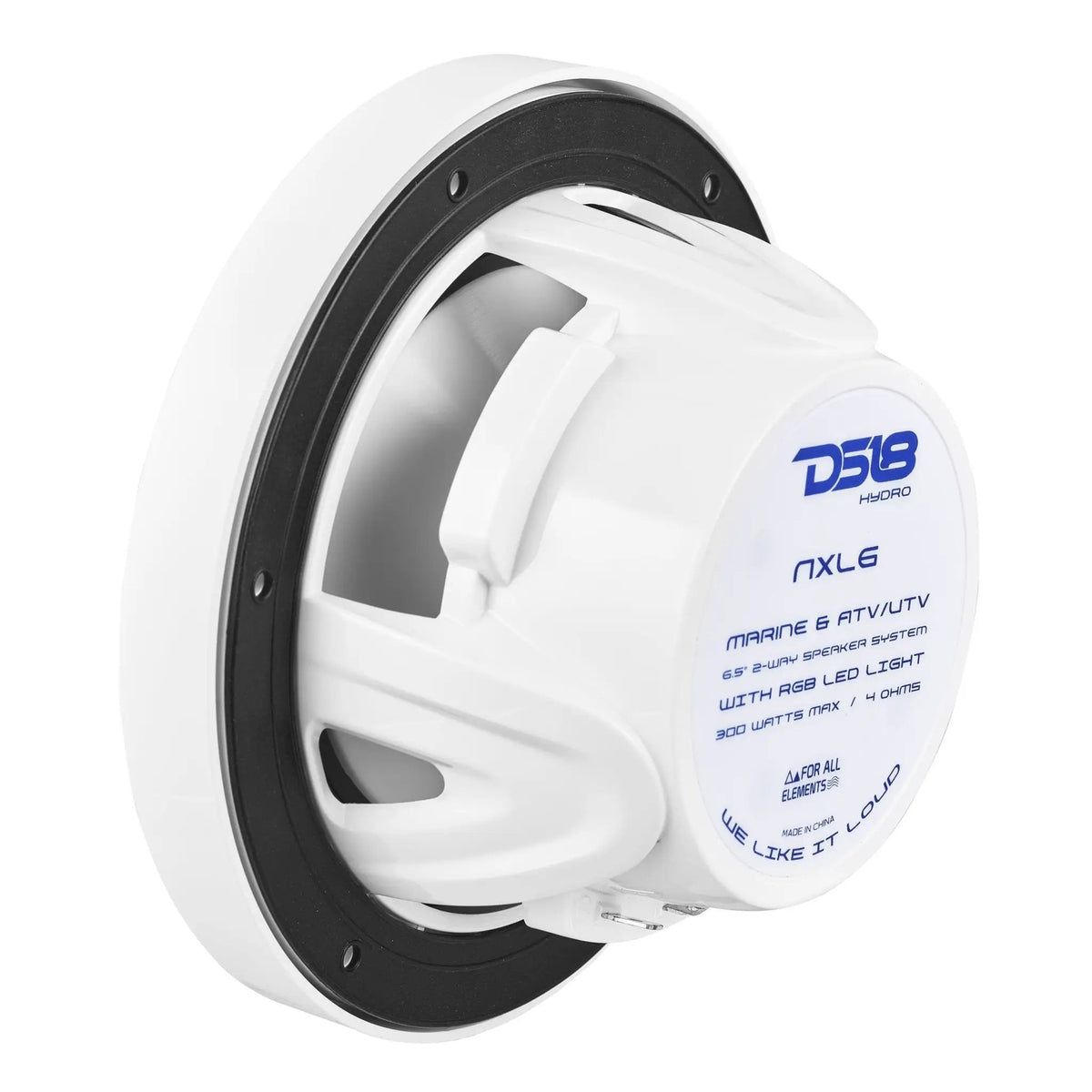

DS18 NXL-6 6.5-Inch Marine Coaxial Speakers - White
Key features
- Speaker size: 6.5″
- RMS power per speaker: 100 W
- Speaker impedance: 4.0 ohms
- 6.5-inch marine coaxial speaker
- 4-ohm impedance
- 100W RMS power handling
DS18 NXL-6 6.5-Inch Marine Coaxial Speakers - White is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview
Add white 6.5-inch marine coaxial speakers and integrated RGB lighting to your audio setup with the DS18 NXL-6. This two-way speaker pair has a built-in tweeter, 4-ohm nominal impedance, and 100W RMS power handling per the listed rating.
The white finish and grille lighting bring a coordinated look to a marine audio installation. Check the speaker opening and available depth before ordering.
Key Features & Benefits
- Two-way design: A built-in tweeter adds high-frequency output alongside the speaker’s midrange sound.

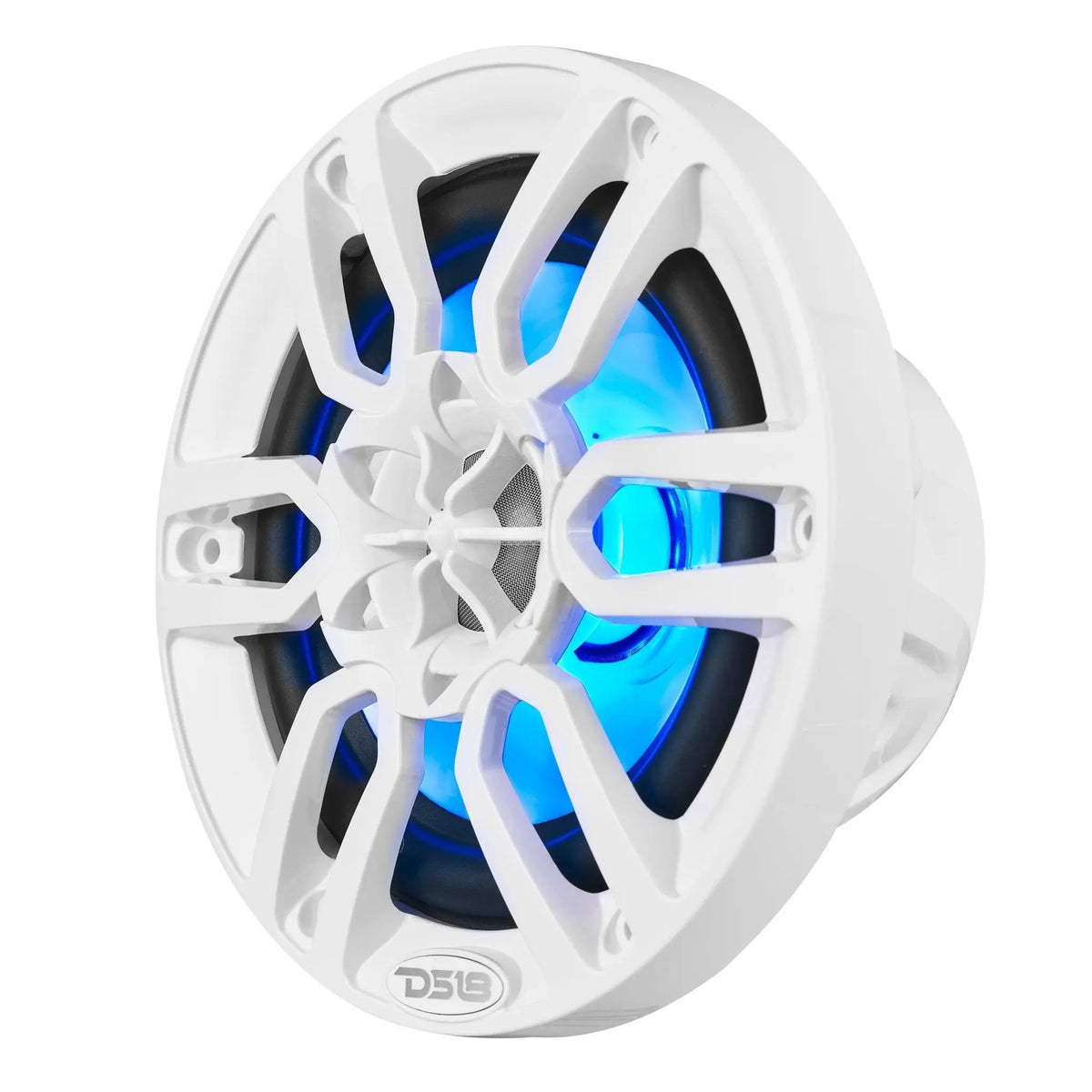

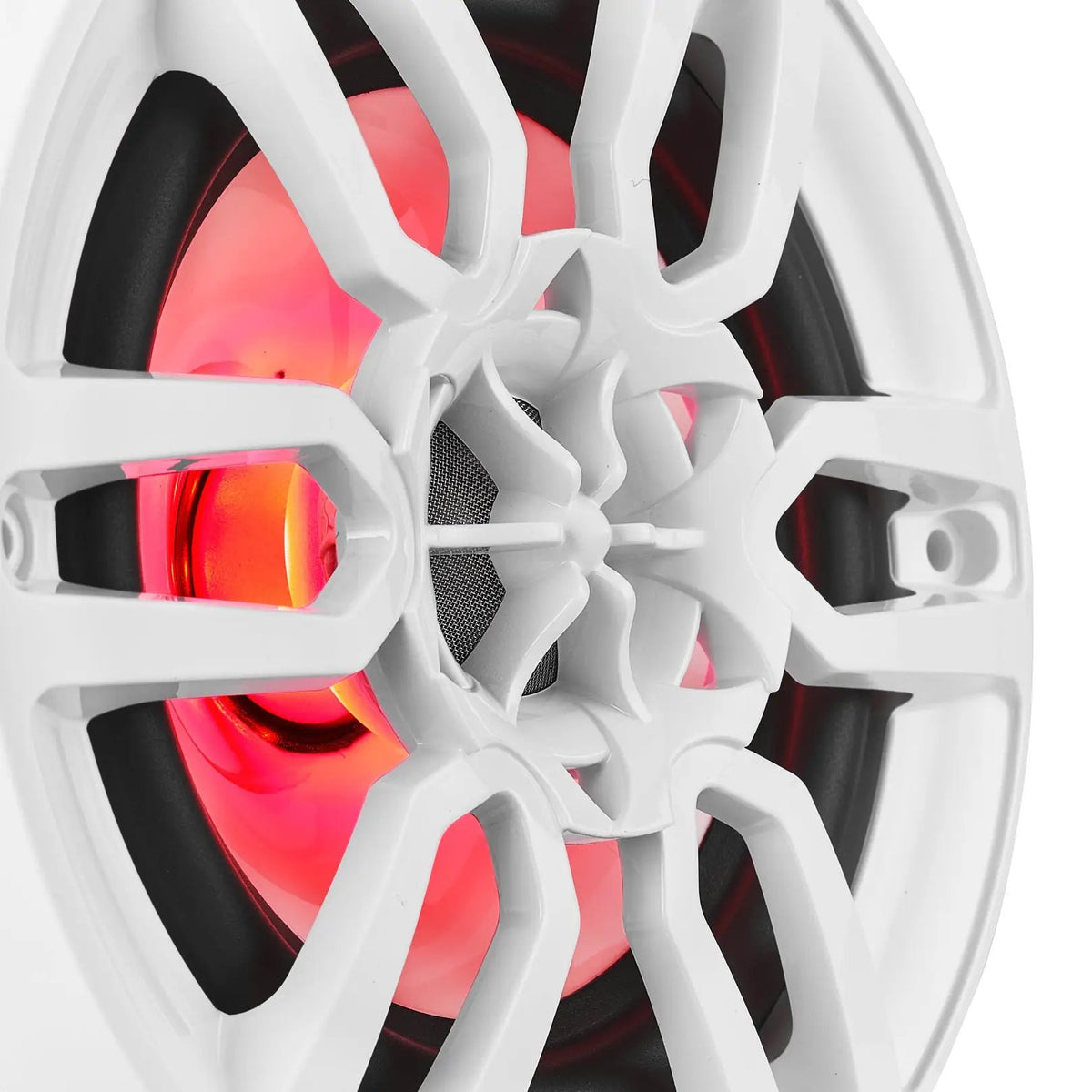

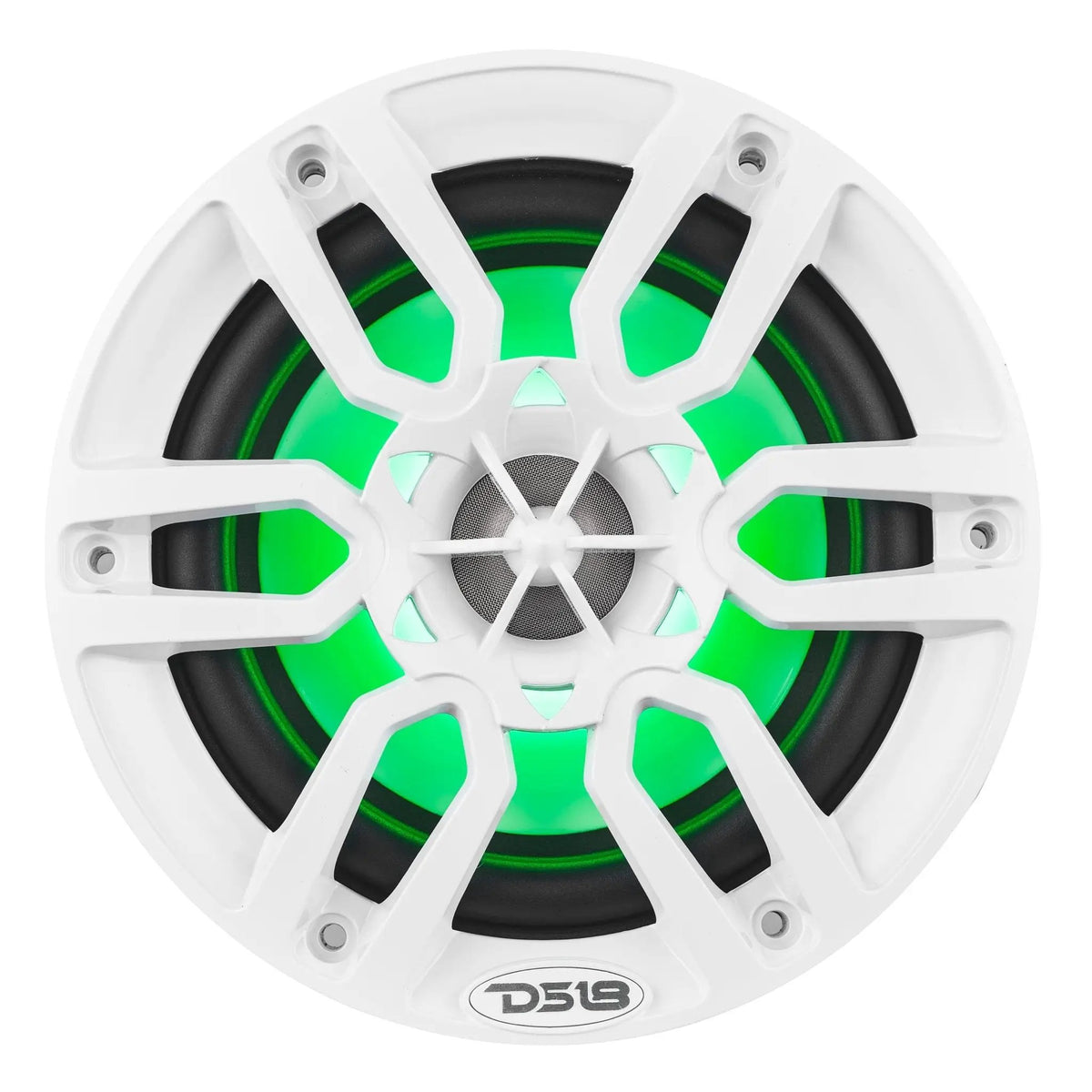

- Integrated RGB lighting: Light on the grille lets you add color to your setup.
- Marine rating: The product description lists an IP65 waterproof rating for use around the elements.
- Power handling: The 100W RMS and 300W maximum ratings help you compare the speakers with your audio system.

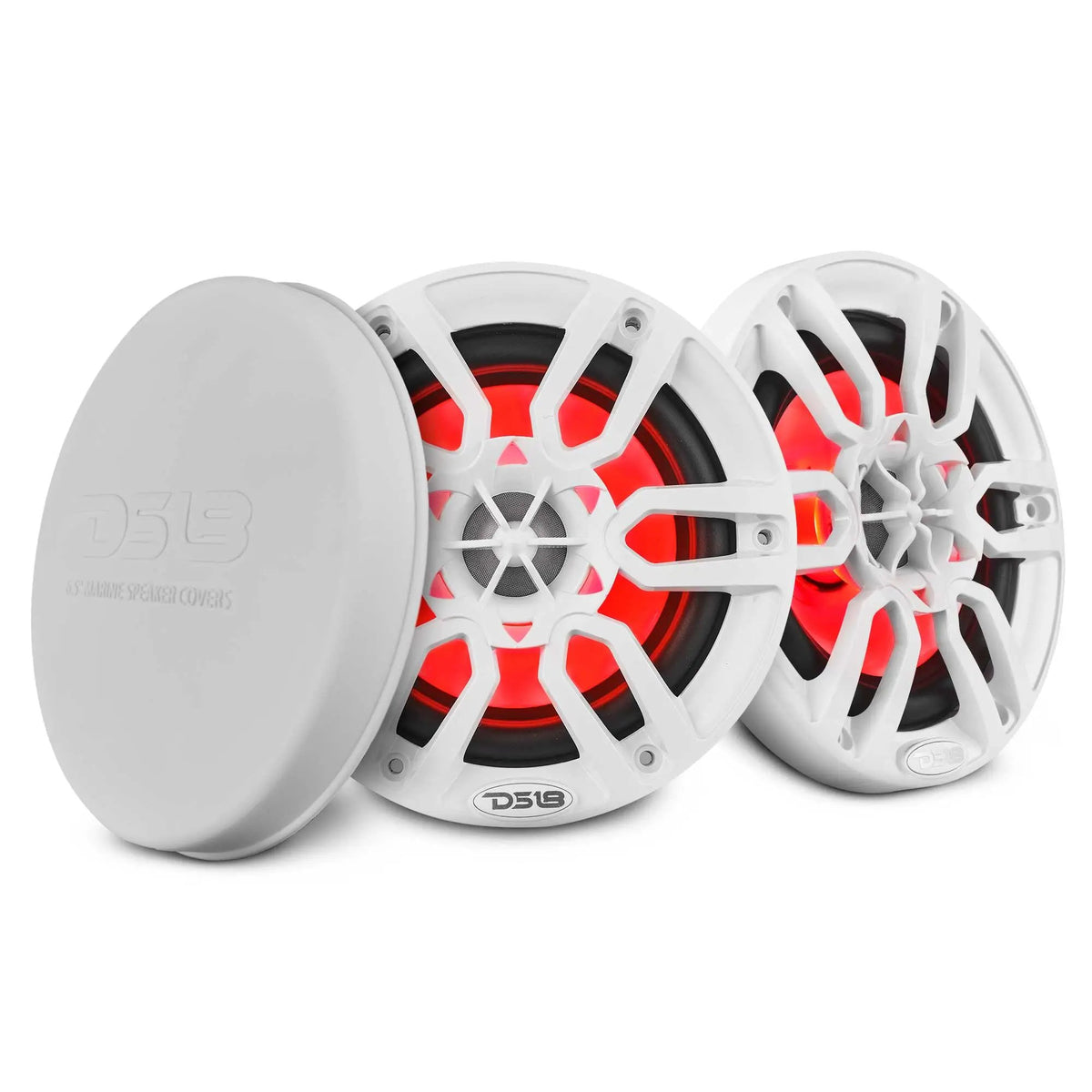

- Sold as a pair: You receive two speakers for a matching left-and-right installation.
Technical Specifications
| Model: | NXL6 |
| Size: | 6.5" |
| RMS Power: | 100W |
| MAX Power: | 300W |
| Magnet Type: | Y35 Ferrite Main Magnet & Reverse Neodymium |
| Sensitivity: | 91dB at 1 w/m |
| Nominal Impedance: | 4 Ohms |
| Frequency Response: | 45Hz - 23KHz |

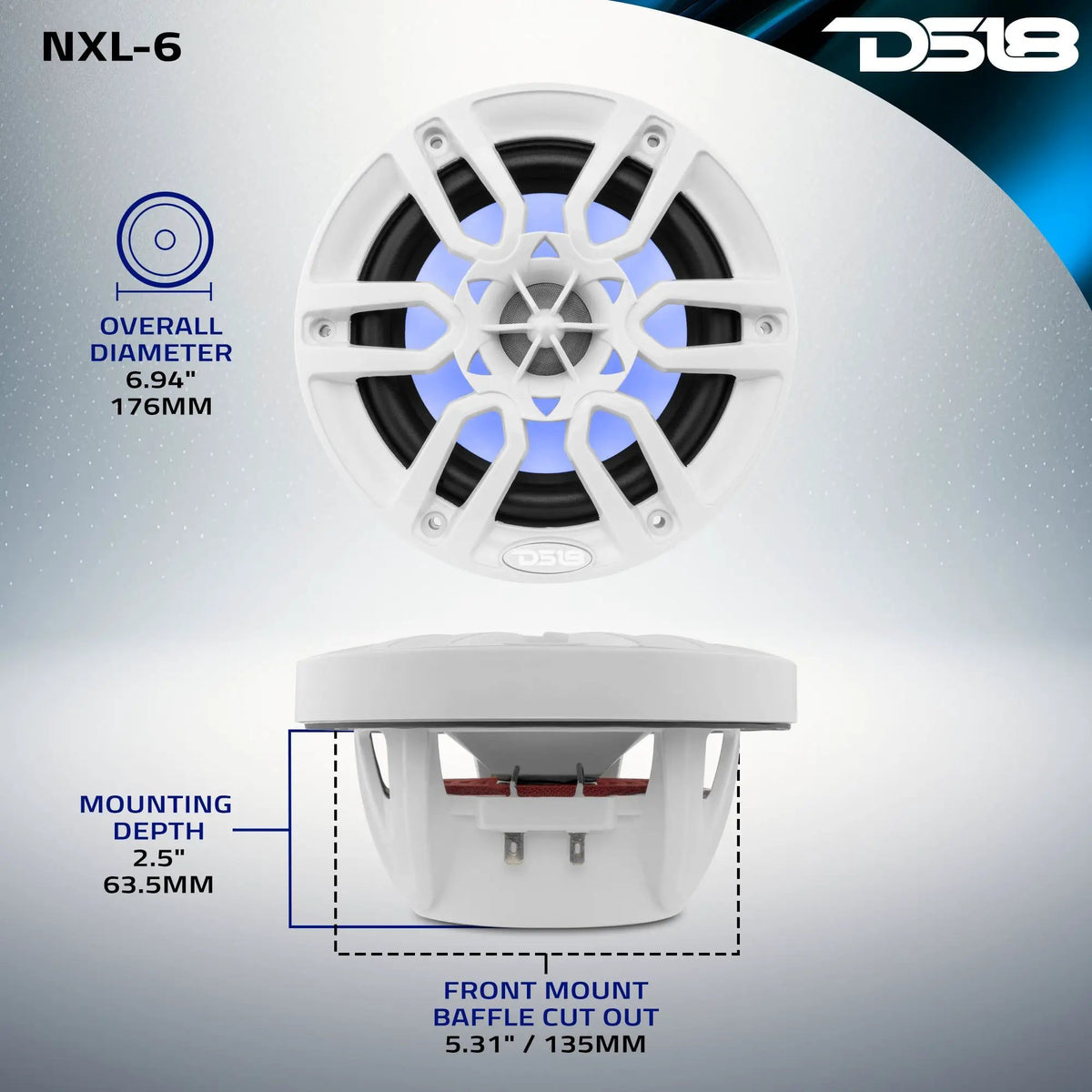

| Mounting Depth: | 2.25"/64mm |
| Cut-out Diameter: | 5.39"/137mm |
| Overall Diameter: | 6.93"/176mm |
| Overall Height: | 3.7"/94mm |
| Tweeter Size: | 25mm Titanium Dome PEI Surround |
Why Choose This Product?
The NXL-6 combines coaxial sound and RGB grille lighting in one marine speaker pair. Its listed frequency response is 45Hz–23KHz, and its sensitivity is 91dB at 1 w/m. These details help you assess how it fits the sound and lighting goals of your setup.
Installation & Compatibility Notes
Before installation, compare the 6.5-inch speaker size, 5.39-inch cut-out diameter, and 2.25-inch mounting depth with your available space. Confirm that your audio system suits a 4-ohm speaker.
The RGB lighting is compatible with the DS18 LED-BTC or another RF, Bluetooth, or Wi-Fi controller. The LED-BTC controller is sold separately.
Frequently Asked Questions
What are the power ratings for the DS18 NXL-6?
Each speaker is listed at 100W RMS power and 300W maximum power. Compare the RMS rating with your system’s requirements.
What impedance should my system support?
The speakers have a nominal impedance of 4 ohms. Check that your audio equipment supports that load.
What mounting space do I need?
Allow for a 5.39-inch cut-out diameter and 2.25-inch mounting depth. The overall diameter is 6.93 inches.
Is an RGB controller included?
The lighting can be used with a compatible controller, including the DS18 LED-BTC. The LED-BTC is sold separately.
