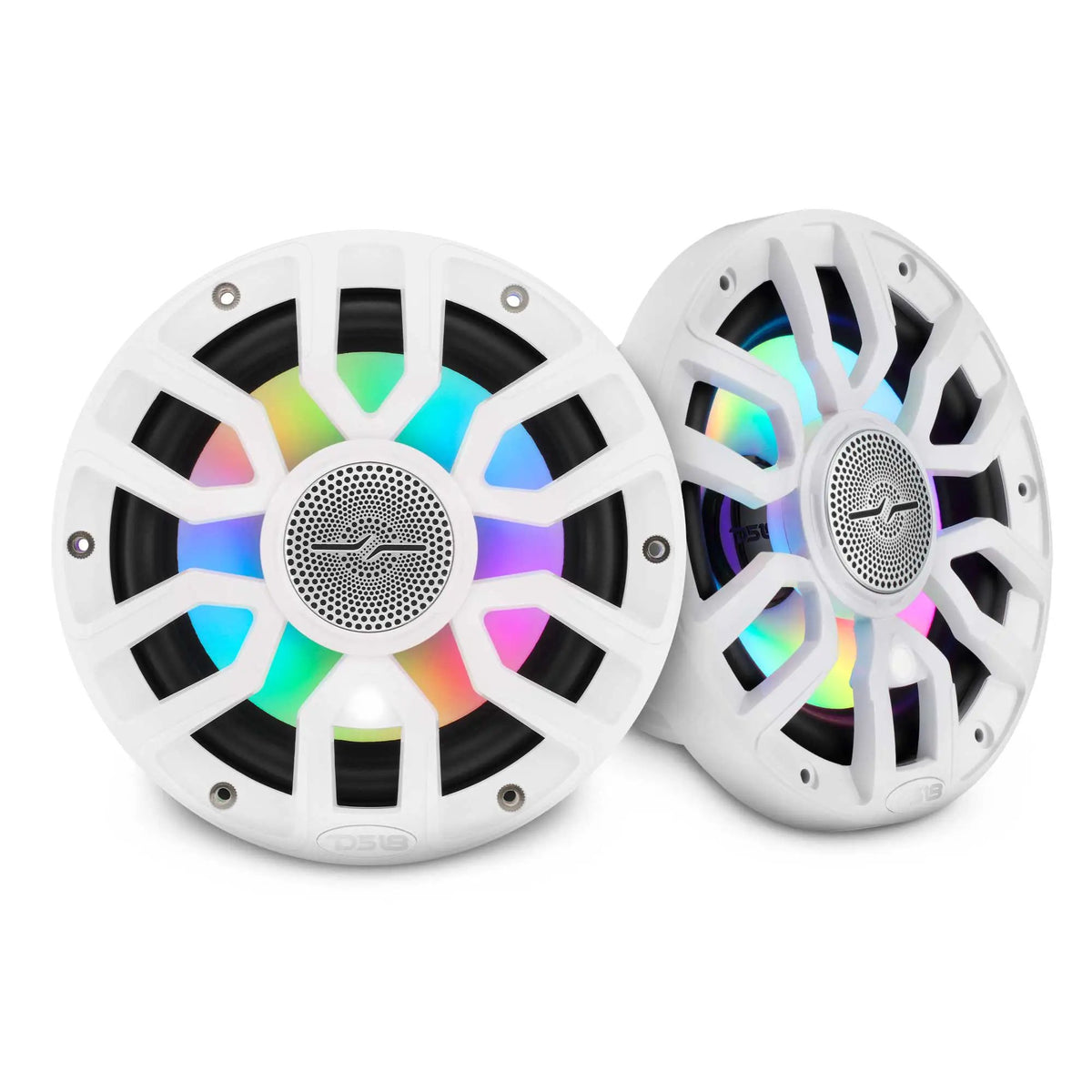

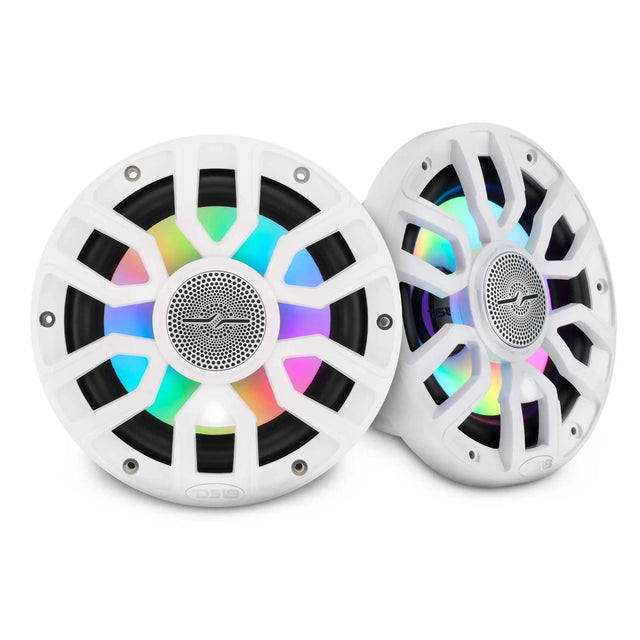

DS18 NXL-IQ7.7/WH 7.7-Inch Marine Coaxial Speakers - White
Key features
- Speaker size: 7.7″
- RMS power per speaker: 175 W
- Speaker impedance: 4.0 ohms
- 7.7-inch marine coaxial speaker
- 4-ohm impedance
- 175W RMS power handling
DS18 NXL-IQ7.7/WH 7.7-Inch Marine Coaxial Speakers - White is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview
Add sound and integrated lighting to your marine audio system with the DS18 NXL-IQ7.7/WH 7.7-inch marine coaxial speakers. This white pair combines a glass fiber woofer and floating bullet tweeter with white deck LEDs and RGB lighting behind the cone.
Key Features & Benefits
- Two-way speaker design: The woofer and tweeter handle different parts of the sound, with the tweeter providing high-frequency control.
- Integrated lighting: White deck LEDs and RGB backlighting add illumination without relying on separate speaker lighting.
- Marine-focused construction: IP65 water resistance, UV-protected housings, and rubber surrounds suit marine installations.
- Hybrid motor system: Ferrite and neodymium components are part of the speaker’s motor design.
- Sold as a pair: You receive two speakers for your installation.
Technical Specifications
| Specification | Details |
|---|---|
| Brand | DS18 |
| Model | NXL-IQ7.7/WH |
| Speaker size | 7.7 inches |
| Speaker type | Marine coaxial |
| Impedance | 4 ohms |
| Power handling | 175W RMS / 350W MAX |
| Sensitivity | 96dB |
| Frequency response detail | Down to 40Hz |
| Woofer | 1.5-inch glass fiber |

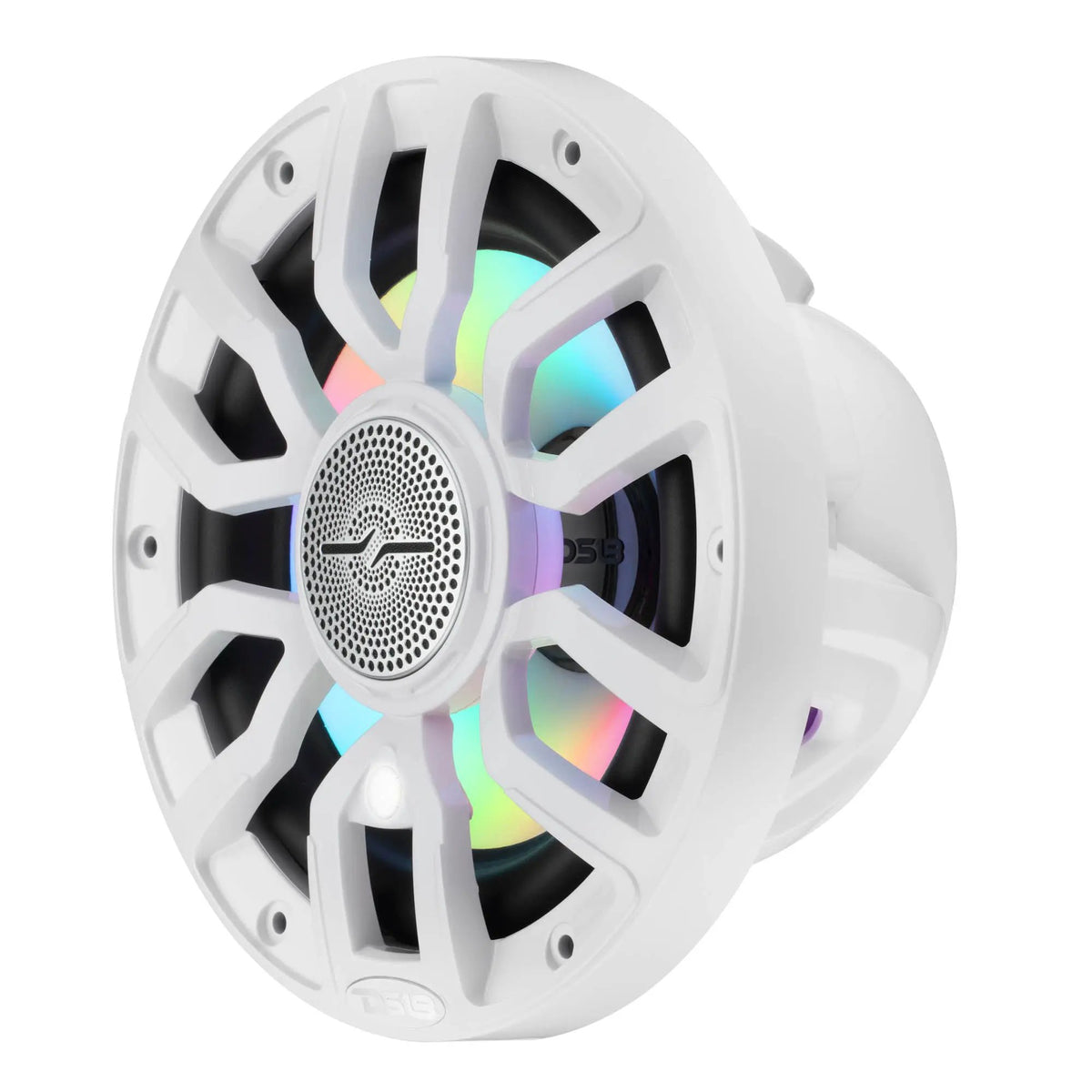

| Tweeter | 1-inch floating bullet tweeter |
| Speaker components | CCAW coils; PPI spiders; hybrid Ferrite + Neodymium motor system |

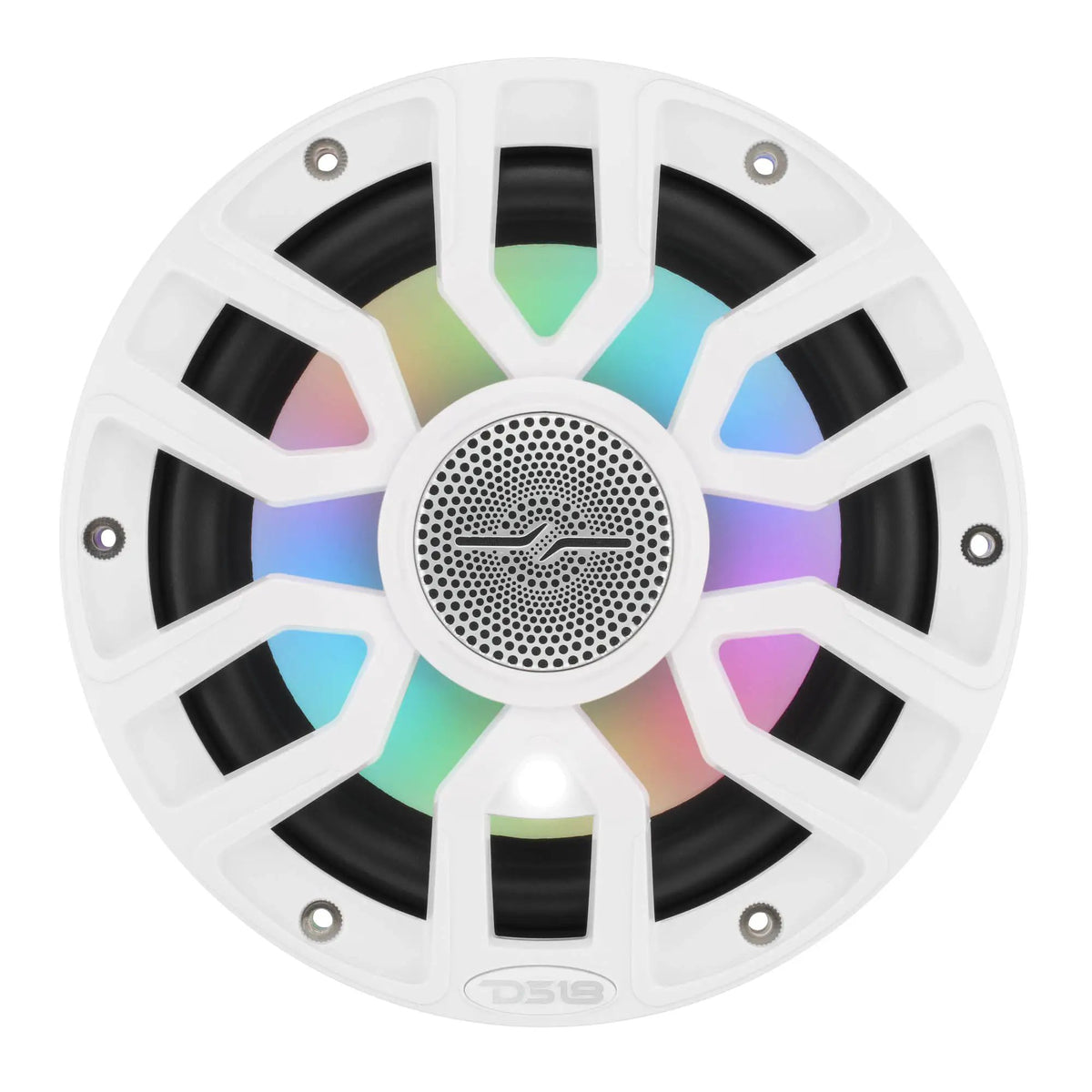

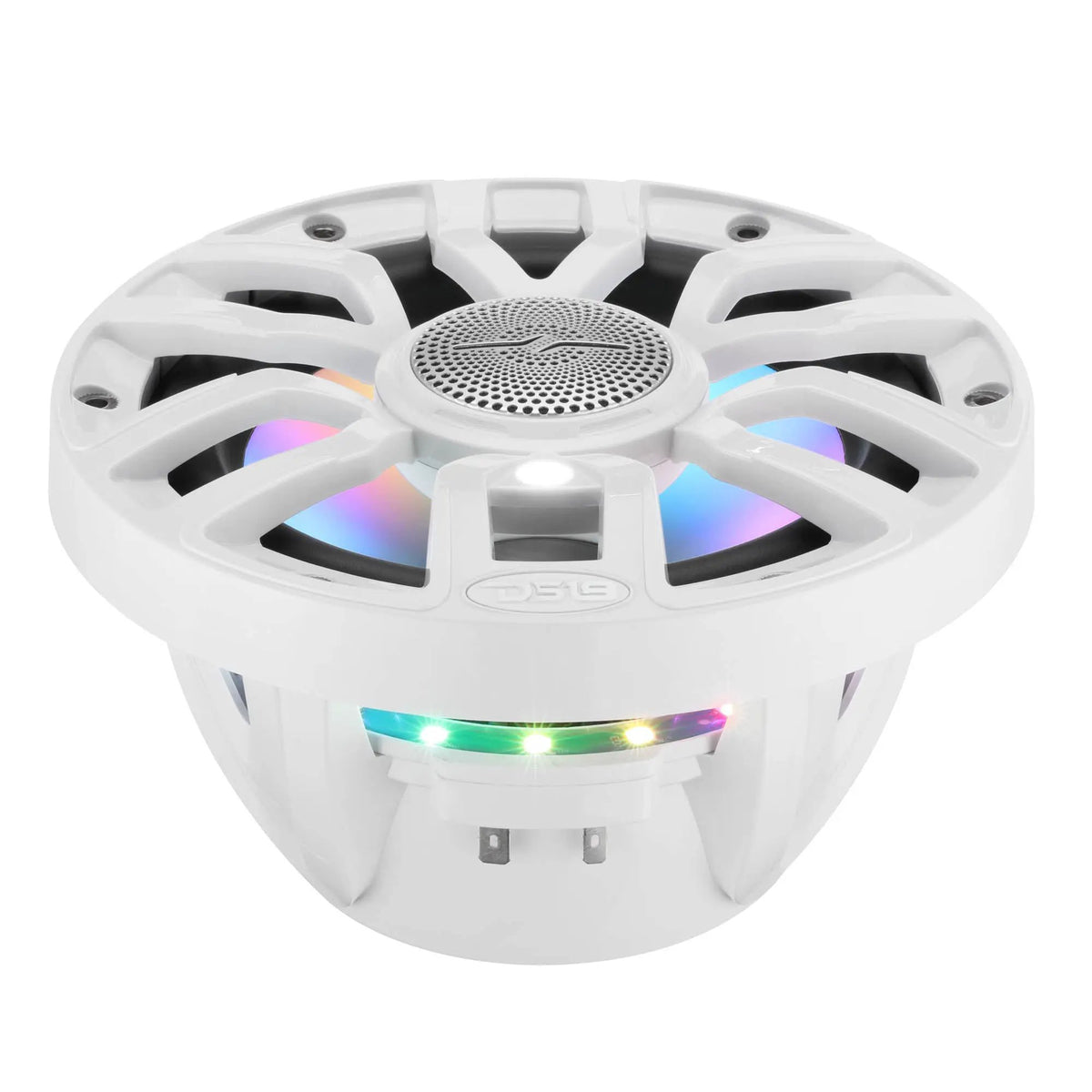

| Lighting | White deck LEDs and digital RGB LED backlighting behind the cone |
| Lighting control input | 12V or digital LED controller input |
| Protection | IP65 water resistance; UV-protected injection-molded housings; rubber surround |
| Color | White |
| Quantity | Sold as a pair |
Why Choose This Product?
The NXL-IQ7.7/WH brings speaker audio and lighting together in one marine coaxial design. Its glass fiber woofer, bullet tweeter, and hybrid motor system provide a specific combination of components for shoppers comparing 7.7-inch marine speakers.
With separate white deck LEDs and RGB backlighting, you can choose a lighting setup that suits your boat. The stated 175W RMS handling and 96dB sensitivity also help you compare it with the requirements of your audio system.
Installation & Compatibility Notes

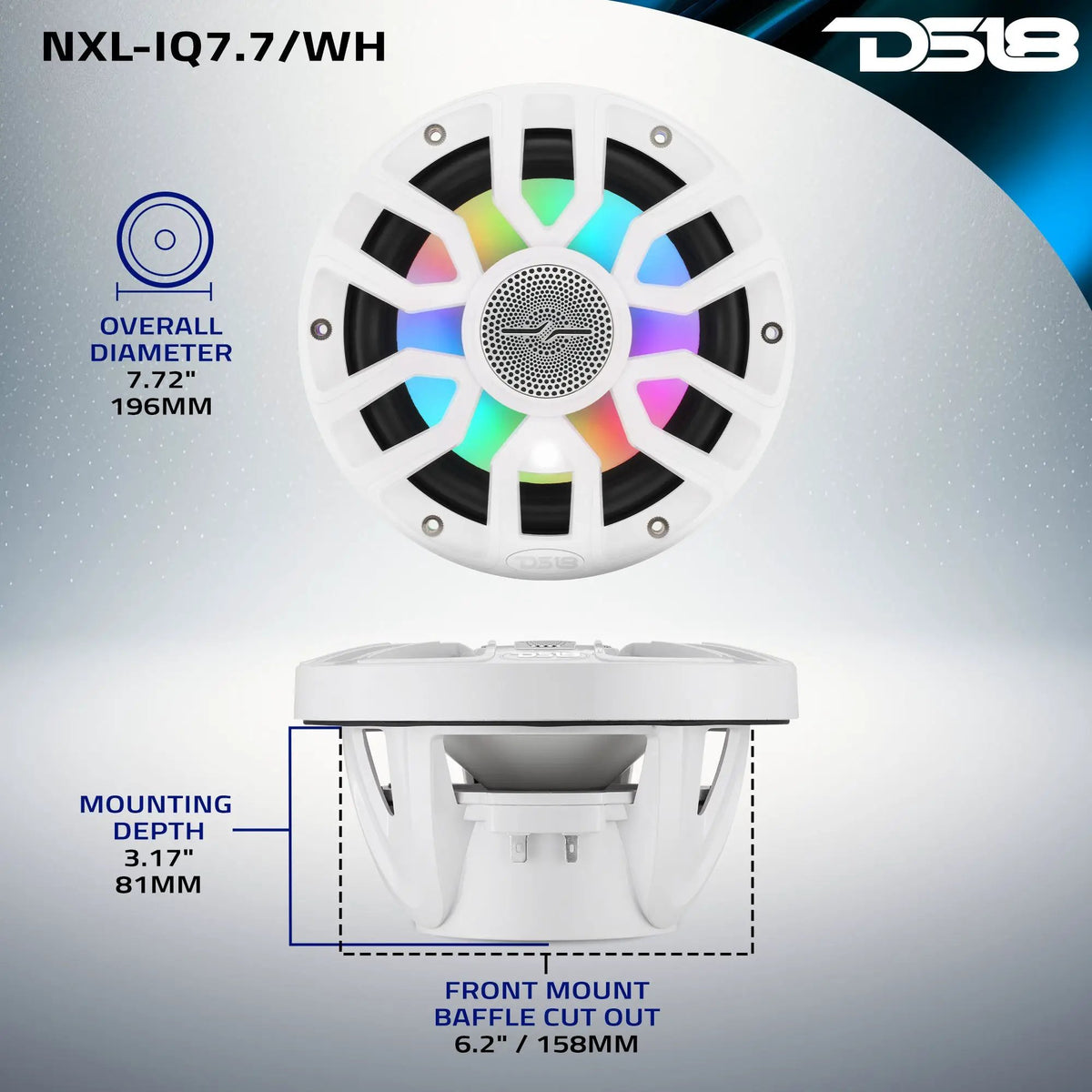

Before ordering, match the 7.7-inch speaker size and 4-ohm impedance to your installation and audio system. Check the available mounting space and installation requirements for your vessel.
The lighting is described as controllable through a 12V or digital LED controller input. Confirm that your planned lighting connection matches one of these inputs.
Frequently Asked Questions
How many speakers are included?
This product is sold as a pair.
What impedance should my system support?
Each speaker is rated at 4 ohms. Check that this matches your system’s requirements.
What does the power rating mean?
The speakers are rated for 175W RMS and 350W MAX power handling.
How is the lighting controlled?
The integrated white deck LEDs and RGB backlighting are described as controllable through a 12V or digital LED controller input.
What should I check for fitment?
Confirm that your installation accommodates 7.7-inch speakers and matches the stated 4-ohm impedance.
