DS18 NXL-XDT/BK Marine Driver Tower with 1.75-inch Voice Coil and RGB LEDs
Key features
- Sold as a single driver tower
- Rated power handling: 300W RMS / 900W maximum
- 4-ohm nominal impedance
- Sensitivity with horn: 110dB at 1W/1m
- Frequency response: 1kHz–20kHz; recommended high-pass crossover: 1.5kHz
- 1.75-inch voice coil with Kapton former and CCAW winding
DS18 NXL-XDT/BK Marine Driver Tower with 1.75-inch Voice Coil and RGB LEDs is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview

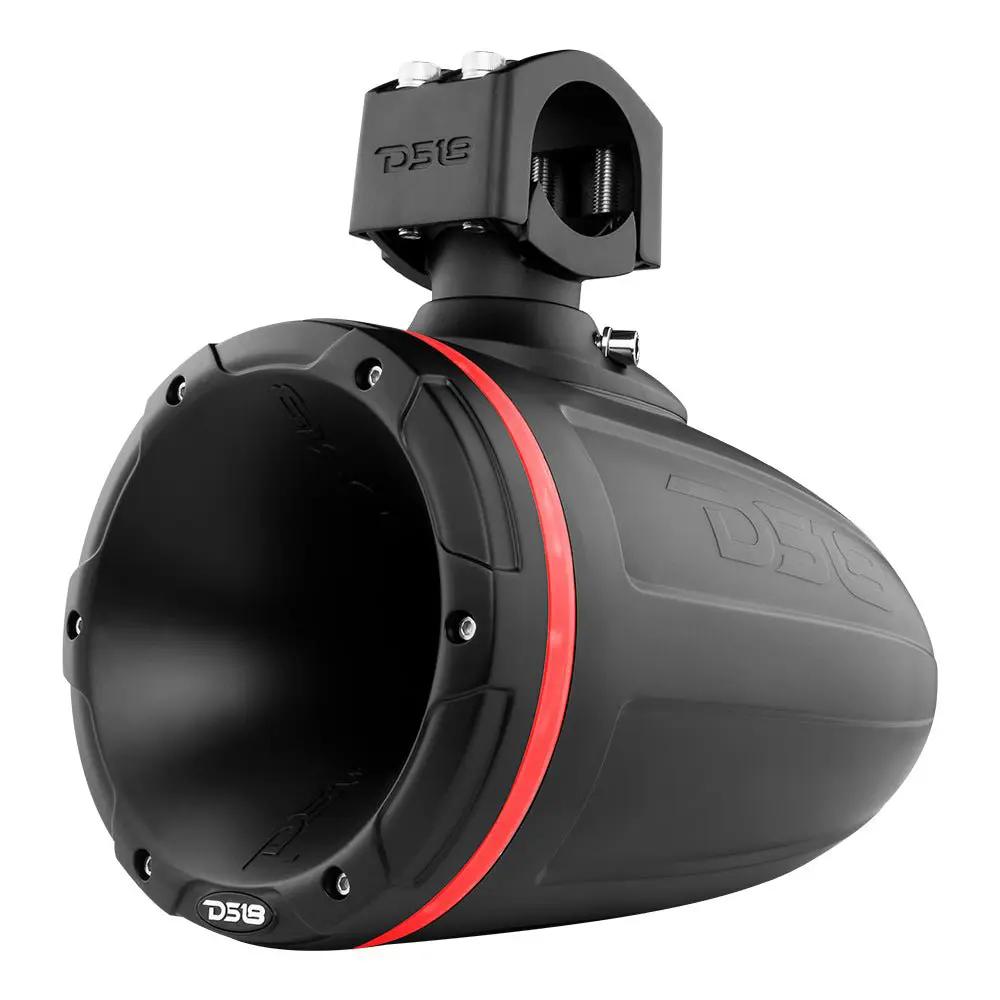

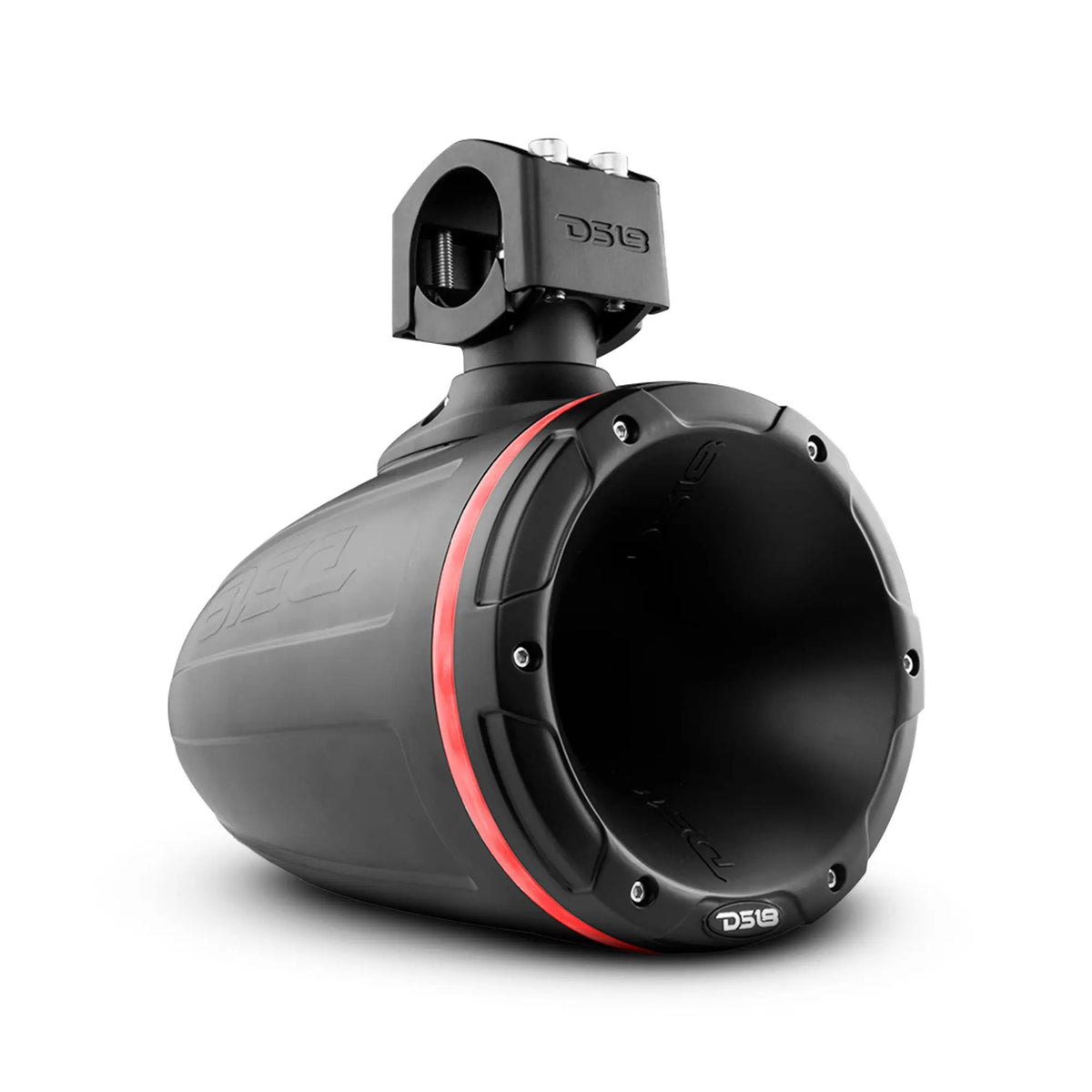

Add focused high-frequency output and RGB lighting to a marine tower setup with the DS18 NXL-XDT/BK horn-loaded marine driver tower. It combines a titanium diaphragm with a circular horn and comes as one matte-black driver tower.
Key Features & Benefits

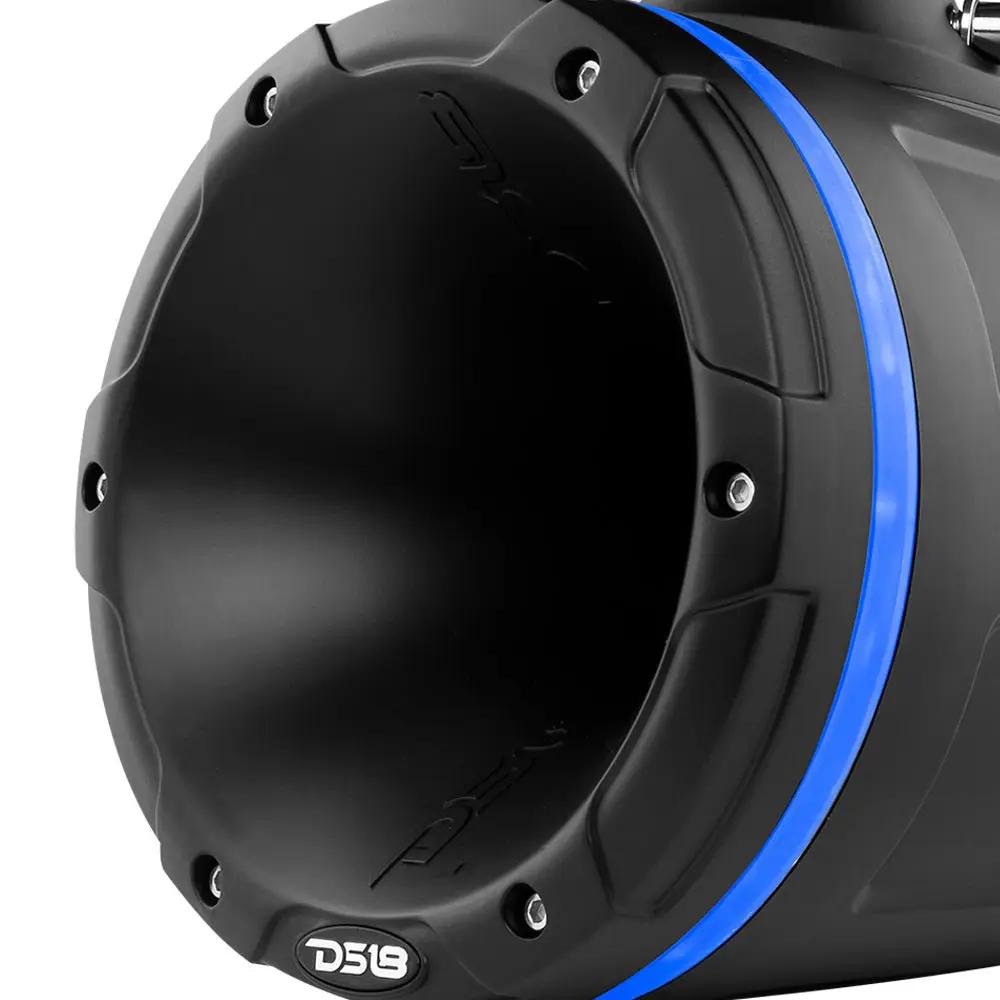

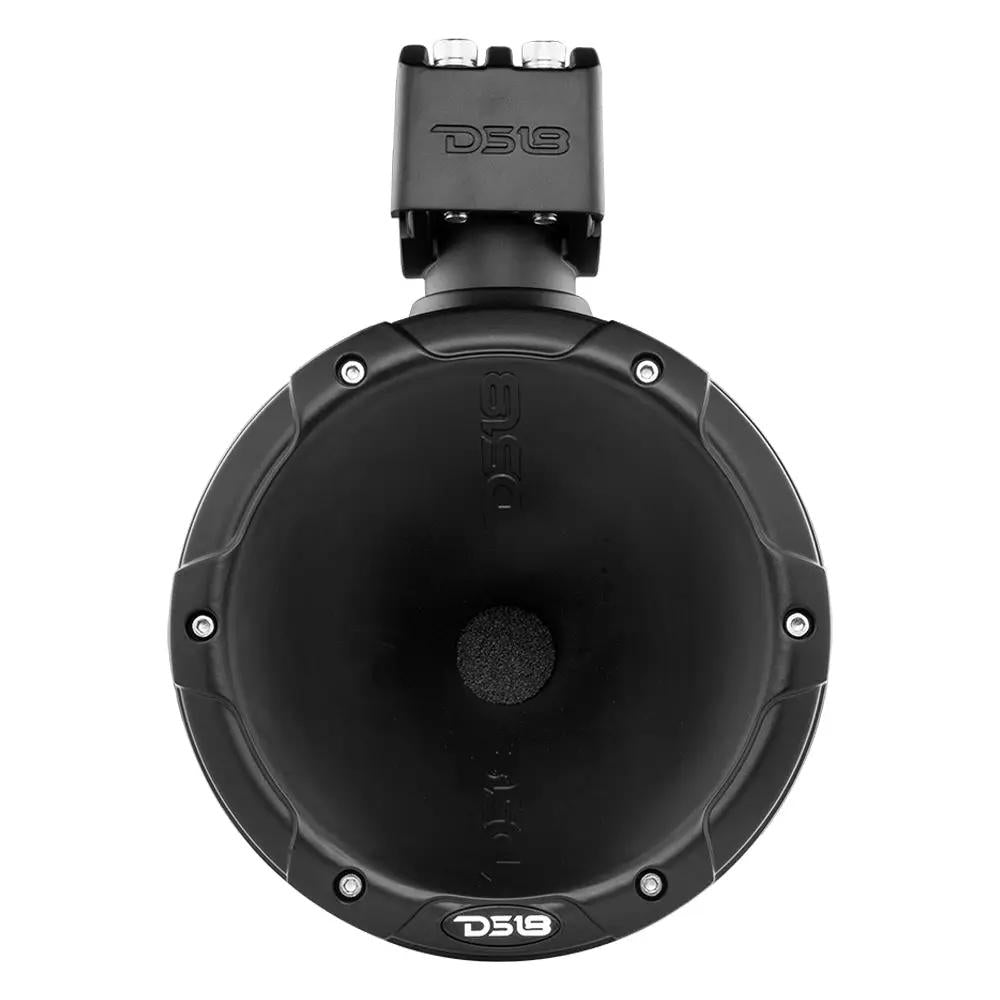

- Horn-loaded design: The 110-degree coverage helps direct high-frequency sound across the listening area.

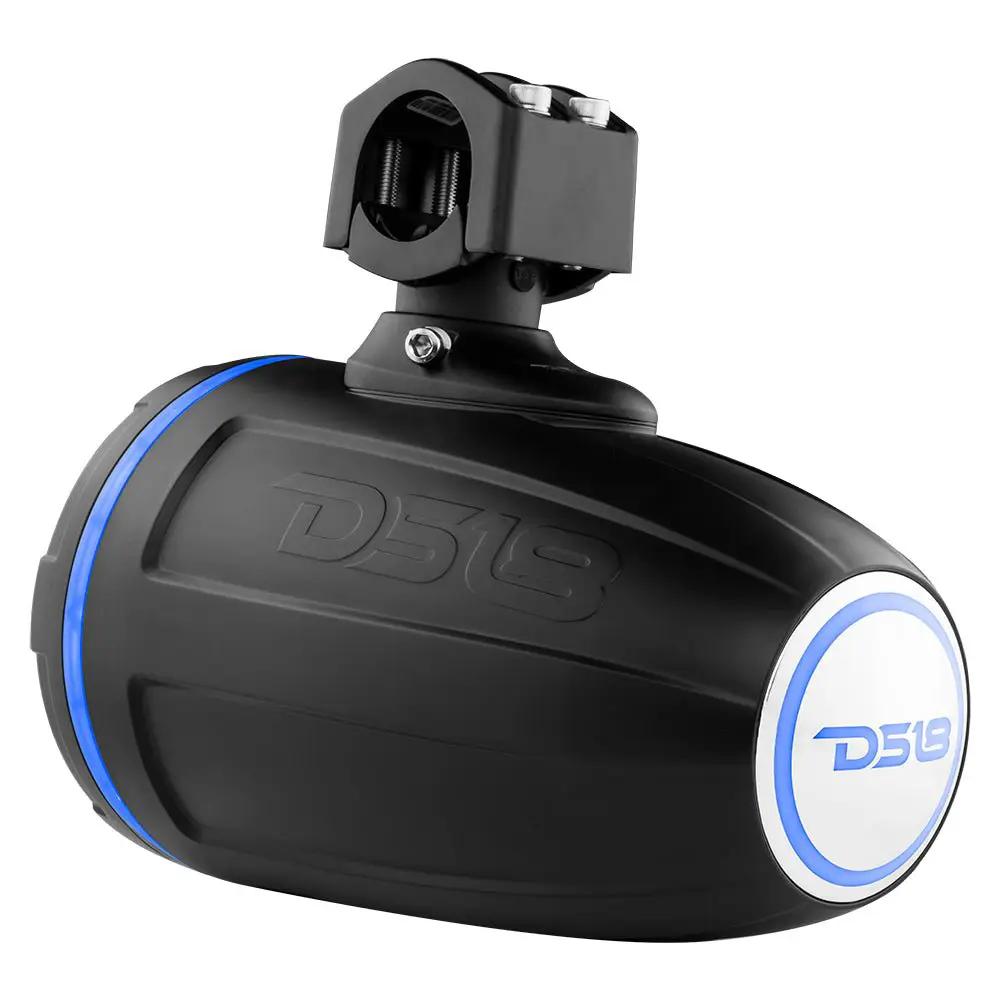

- RGB accents: Lighting in the acrylic ring and rear logo adds color to the tower installation.

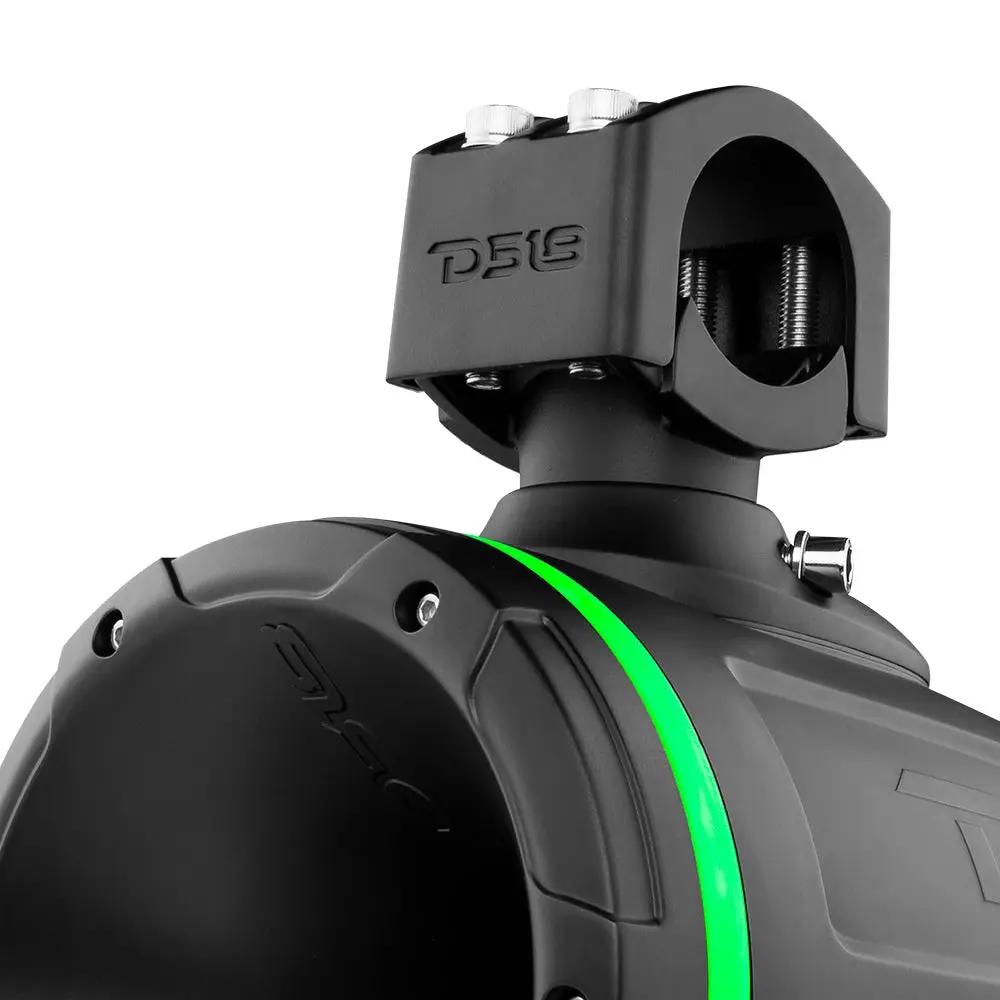

- Adjustable clamps: The clamps rotate through 360 degrees and fit tubing from 1 to 2 inches.
- Mounting items included: Pads, stainless mounting hardware, and a safety rope come with the driver tower.
- Separate lighting control: The LED-BTC controller is sold separately, so plan for it if you want to control the lighting.
Technical Specifications
| Model | NXL-XDT/BK |
|---|---|
| Product type | Horn-loaded marine driver tower |
| Quantity | Single driver tower |
| Color | Matte black |
| Rated power handling | 300W RMS / 900W maximum |
| Nominal impedance | 4 ohms |
| Sensitivity with horn | 110dB at 1W/1m |
| Frequency response | 1kHz–20kHz |
| Recommended high-pass crossover | 1.5kHz |
| Voice coil | 1.75 inches, Kapton former, CCAW winding |
| Diaphragm | Titanium |
| Magnet | Ferrite |
| Horn | Circular; 1-inch throat; 110-degree coverage |
| Enclosure | PC/ABS; IP65-rated; UV-stable |
| Lighting | RGB lighting at acrylic ring and rear logo |
| Clamps | Die-cast; 360-degree rotation; fits 1–2-inch tubing |
| Included items | Pads, stainless mounting hardware, and safety rope |
| Lighting controller | LED-BTC sold separately |
Why Choose This Product?
The NXL-XDT/BK is designed for high-frequency output, not as a full-range speaker. Its horn, diaphragm, and voice coil are specified for a 1kHz–20kHz range, helping you assess how it fits into your system before choosing amplification and crossover settings.
The matte-black tower pairs its marine-ready enclosure with RGB accents, bringing sound and lighting together in one tower-mounted unit.
Installation & Compatibility Notes
Check that your tower tubing measures between 1 and 2 inches before installation. The adjustable die-cast clamps rotate through 360 degrees, and pads, stainless mounting hardware, and a safety rope are included.
Plan amplification and crossover settings for a high-frequency driver. The recommended high-pass crossover is 1.5kHz; the LED-BTC lighting controller is sold separately.
Frequently Asked Questions
Is the DS18 NXL-XDT/BK a full-range speaker?
No. It is a horn-loaded marine driver tower intended for high-frequency output.
What tubing size do the clamps fit?
The clamps fit tubing from 1 to 2 inches and rotate through 360 degrees.
What power and impedance should I account for?
Rated power handling is 300W RMS / 900W maximum, with a 4-ohm nominal impedance.
What crossover setting is recommended?
The listed recommended high-pass crossover is 1.5kHz.
Is the lighting controller included?
No. The LED-BTC lighting controller is sold separately.
