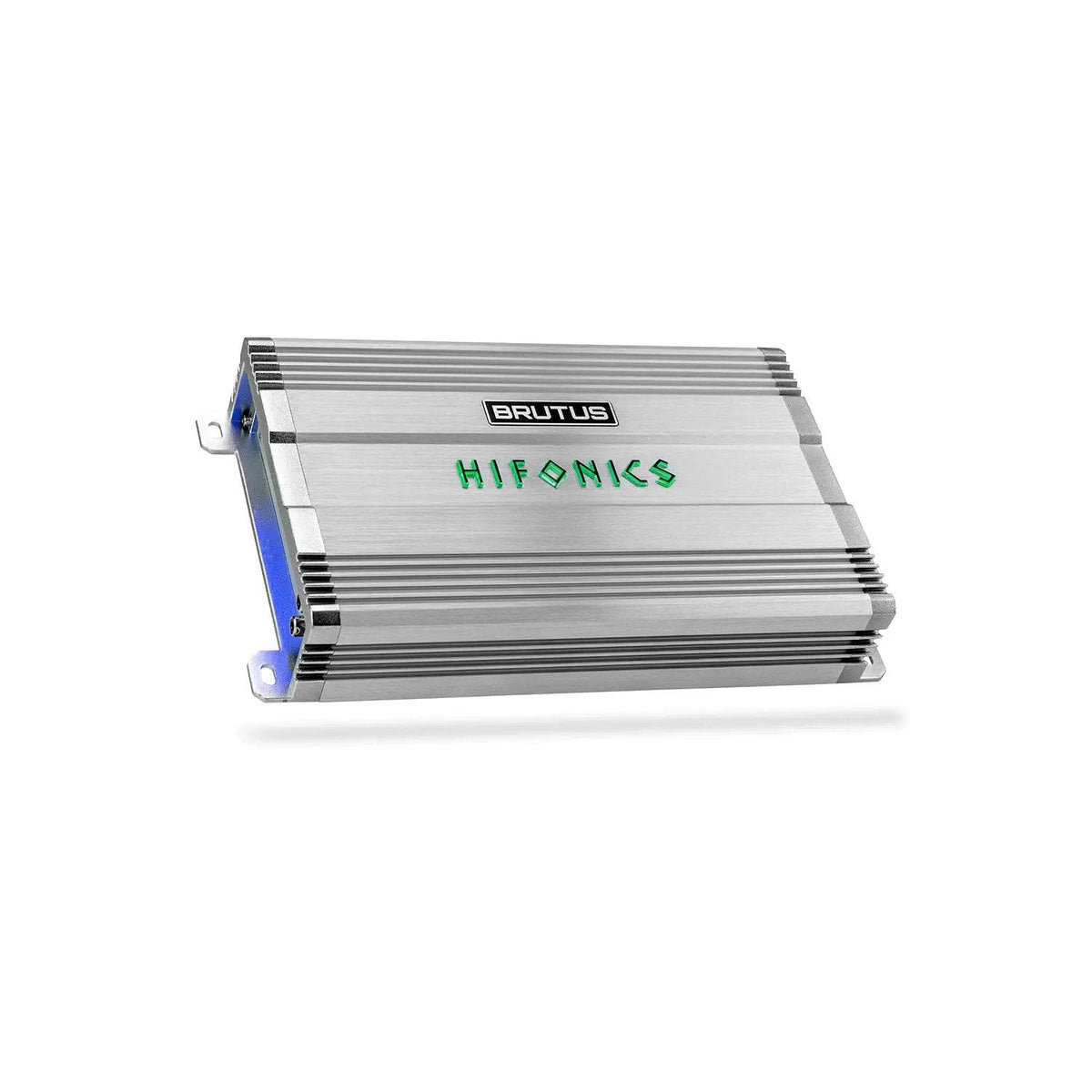

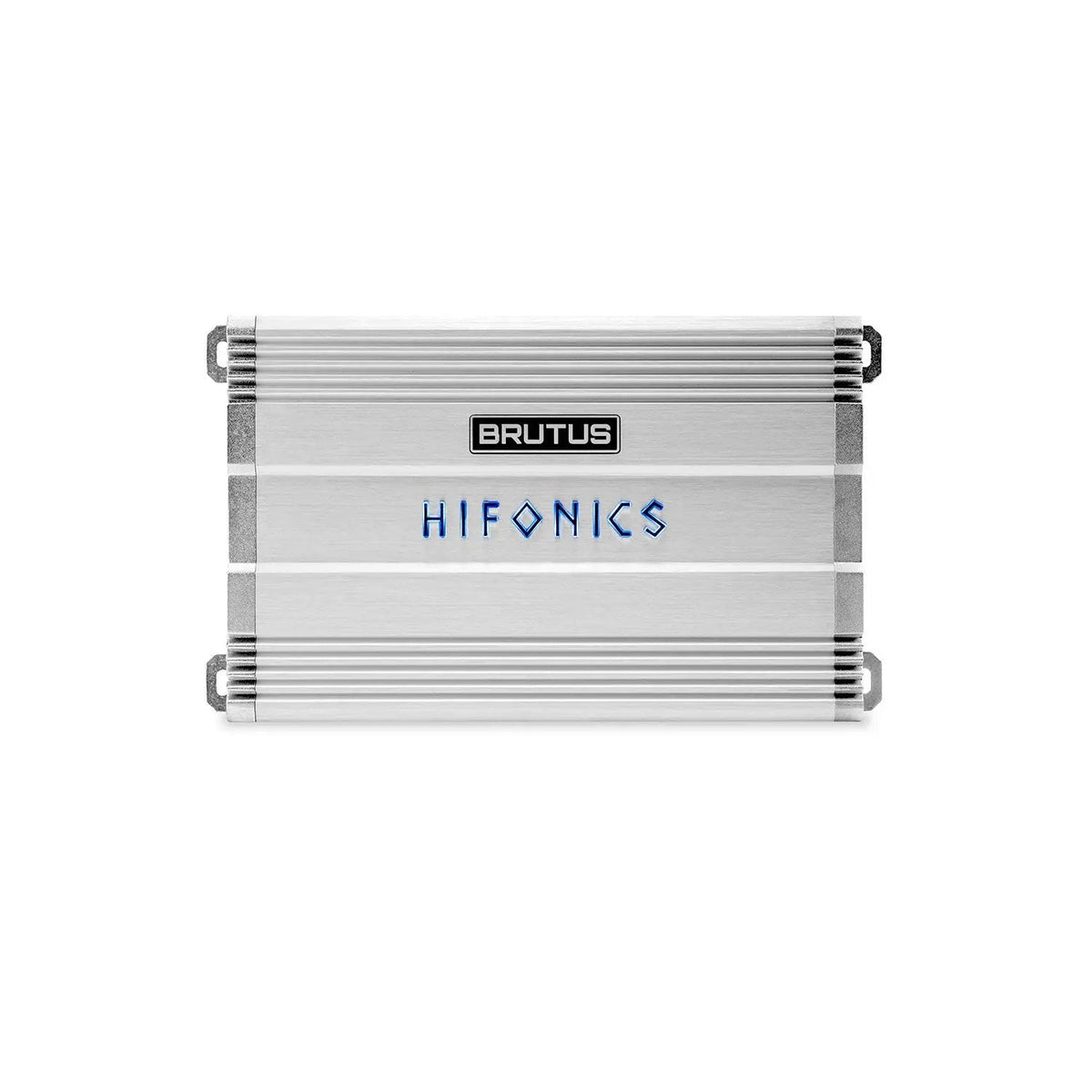

Hifonics BG-1000.1 BRUTUS BG 1000 Watt Mono Block Amplifier
Key features
- Amplifier channels: 1
- Amplifier class: Class D
- Frequency response: 10Hz-180Hz
- Low-pass crossover (12 dB/octave): 40Hz-150Hz
- Subsonic filter: Switched On/Off
- Power/ground terminal wire size: 4 AWG
Hifonics BG-1000.1 BRUTUS BG 1000 Watt Mono Block Amplifier is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview
Add dedicated mono-block power to your car audio system with the Hifonics BG-1000.1 BRUTUS BG amplifier. Its Super D Class™ design delivers up to 1000 watts, with rated output at 1, 2, and 4 ohms for matching the amplifier to your system.
Frequency-shaping controls, an included wired bass remote, and illuminated badging with a VU meter mode give you useful adjustment options during setup and listening.
Key Features & Benefits

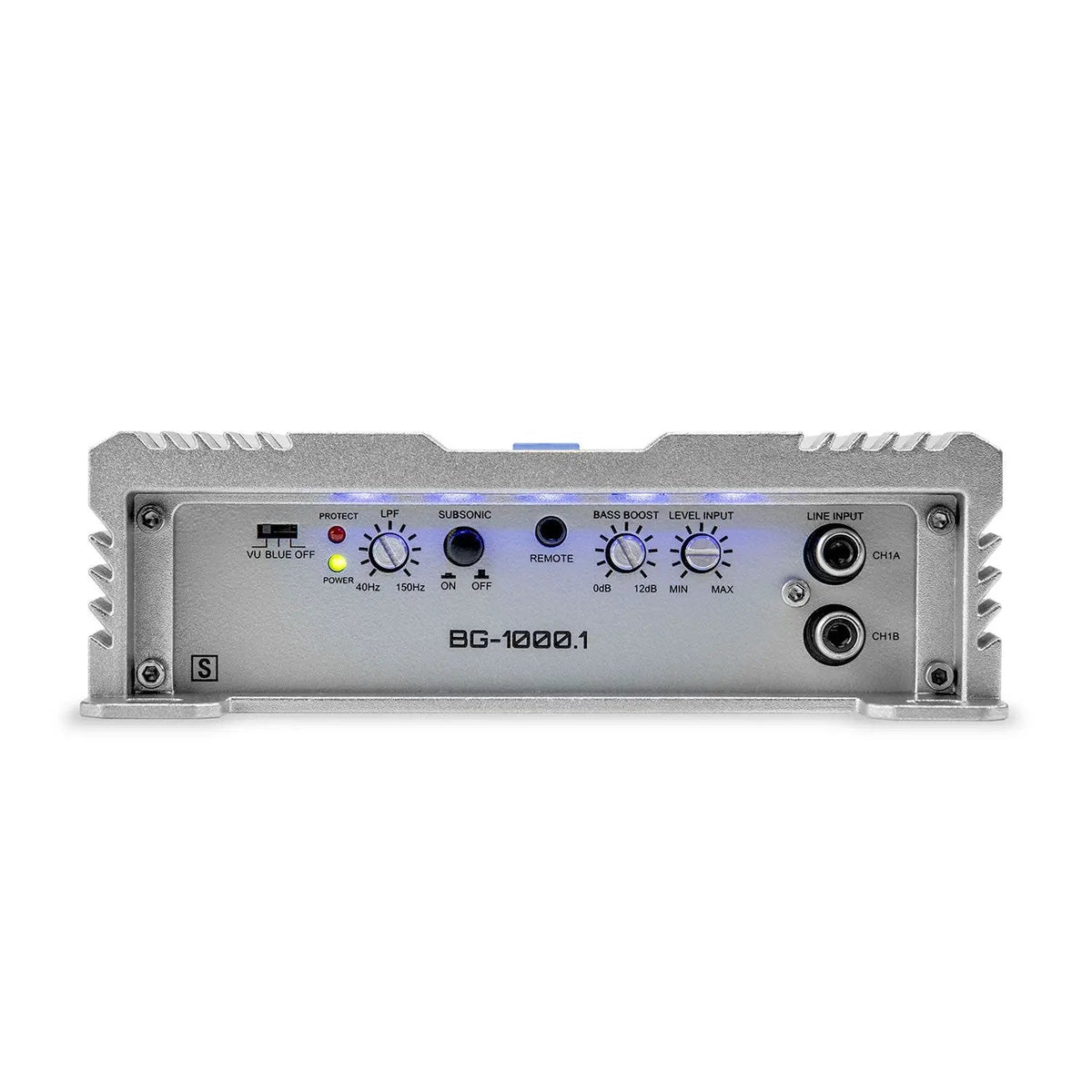

- Variable crossover: Adjust the low-pass crossover from 40Hz to 150Hz to shape the signal for your audio setup.
- Bass and subsonic controls: Variable bass boost and switched subsonic filtering provide additional frequency-shaping options.

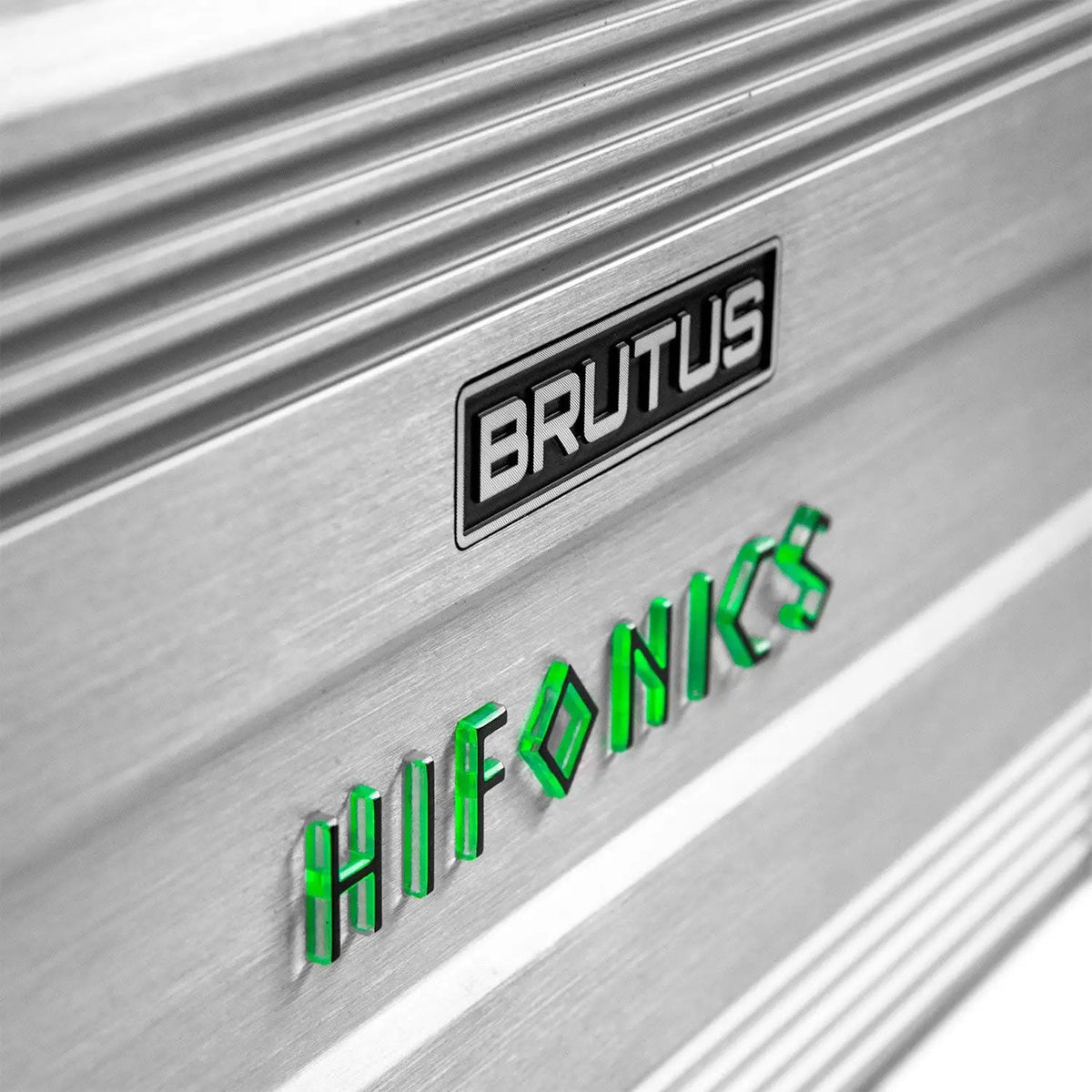

- VU meter badging: Choose VU meter mode to view audio levels while matching gain.

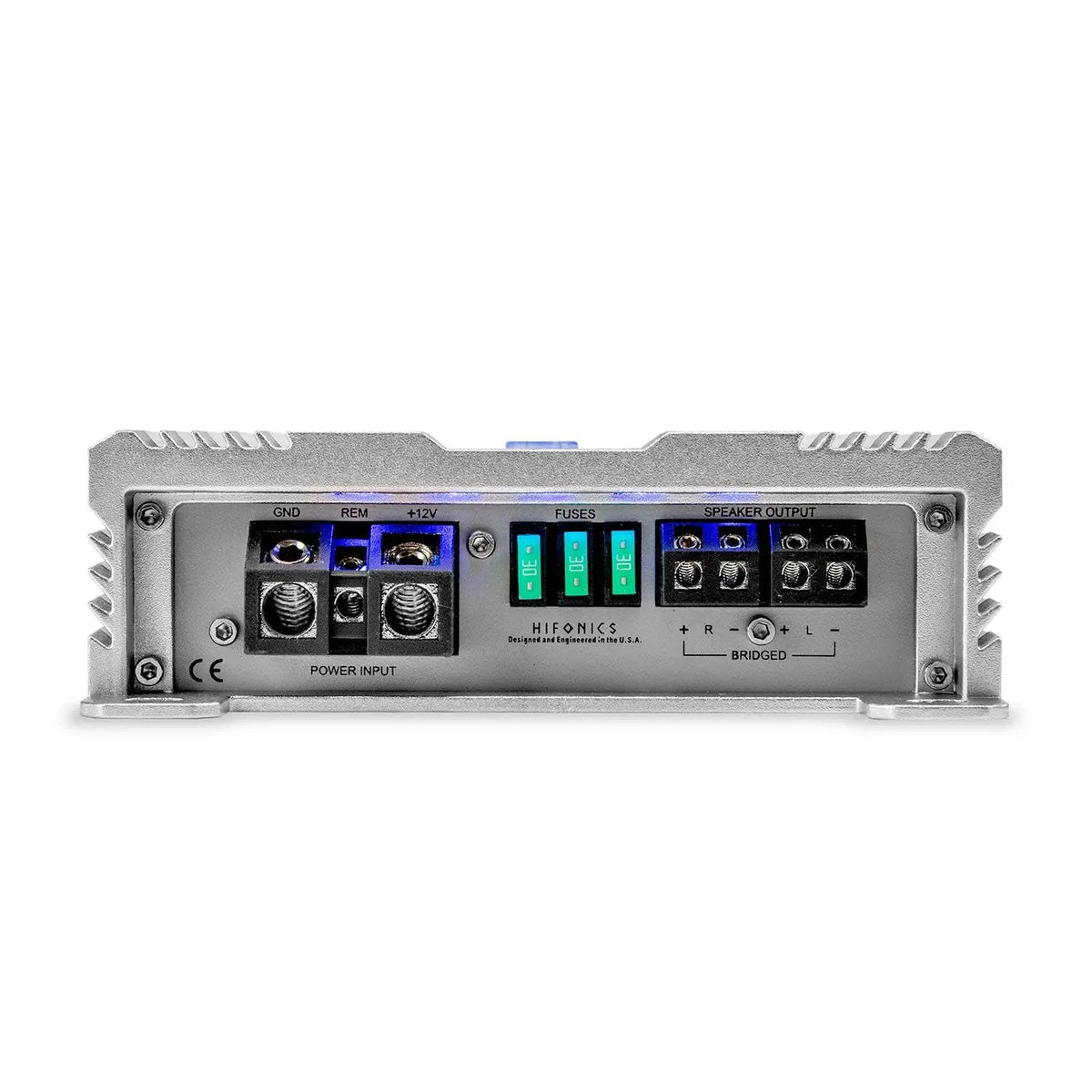

- Angled terminals: Connections accommodate 4 AWG power and ground wire and 12 AWG speaker wire for cable routing.

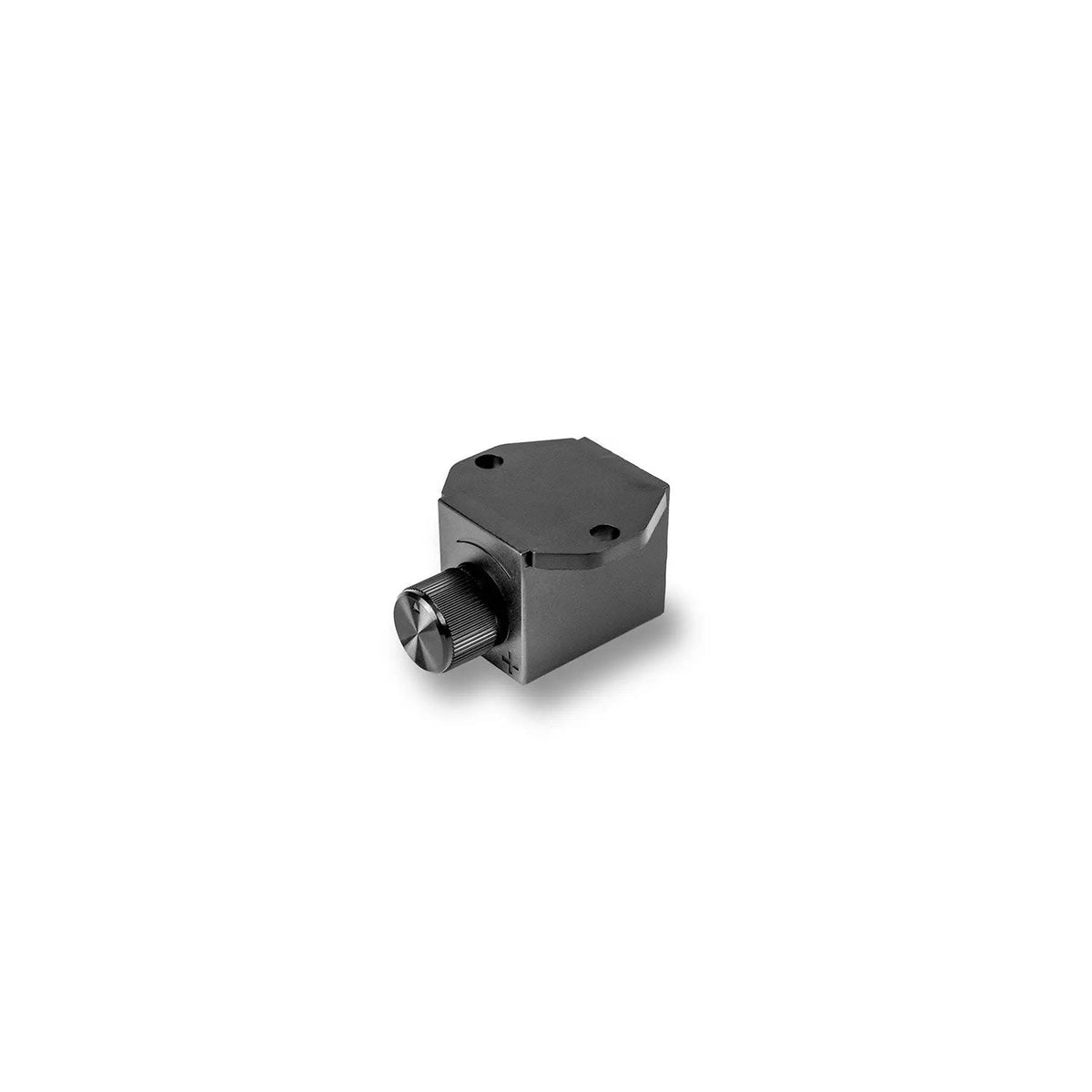

- Included bass remote: Make gain adjustments from the driver’s seat using the wired control.
- Protection circuitry: Integrated triple-protection circuitry is part of the amplifier’s design.
Technical Specifications
| Brand | Hifonics |
|---|---|
| Model | BG-1000.1 |
| Series | BRUTUS BG |
| Amplifier Class | Super D Class™ |
| Total Channels | 1 |
| Max Power | 1000 W |
| Power Output @ 1 Ohm | 1 x 1000 W |
| Power Output @ 2 Ohms | 1 x 800 W |
| Power Output @ 4 Ohms | 1 x 550 W |
| Frequency Response | 10Hz - 180Hz |
| Signal to Noise Ratio | 75 dB |
| Total Harmonic Distortion (THD) | < 0.1% |
| Low Pass Crossover | 40Hz - 150Hz (12dB/Octave) |
| Bass Boost | 0 - 12 dB Variable |
| Voltage Input | 0.2V - 6.5V |
| Power/Ground Terminal Gauge | 4 AWG |
| Speaker Terminal Gauge | 12 AWG |
| Fusing | 3 x 30A |
| Product Dimensions | 26.9 x 13 x 4.8 cm |
| Product Weight | 2.2 kg |
| Package Dimensions | 34.3 x 20.8 x 9.3 cm |
| Package Weight | 2.5 kg |
| Color | Silver |
| Warranty | 1 Year manufacturer's warranty |
The design includes a dual toroidal transformer PWM power supply, a 4-layer PCB, an extruded aluminum heat sink, low-EMI MOSFET output devices, and nickel-plated RCA inputs.
Why Choose This Product?
The BG-1000.1 combines a range of rated outputs with built-in crossover and bass controls, giving you adjustment options in one mono-block amplifier. Its active LED badging can be set to constant blue illumination, turned off, or switched to VU meter mode for visual gain matching.
Installation & Compatibility Notes
The amplifier is compatible with standard 12V automotive electrical systems and car audio source units through its RCA inputs. Its terminals accommodate 4 AWG power and ground wire and 12 AWG speaker connections. Check your system’s impedance, available installation space, and electrical requirements before installation.
Frequently Asked Questions
What power does the BG-1000.1 deliver at different impedances?
Its rated output is 1 x 1000 W at 1 ohm, 1 x 800 W at 2 ohms, and 1 x 550 W at 4 ohms. Maximum power is listed as 1000 W.
Can I adjust the bass from the driver’s seat?
Yes. A wired bass remote is included for gain adjustments from the driver’s seat.
What can the illuminated badge display?
It can provide constant blue LED illumination, be turned off, or operate in VU meter mode to display audio levels for gain adjustment.
What comes with the amplifier?

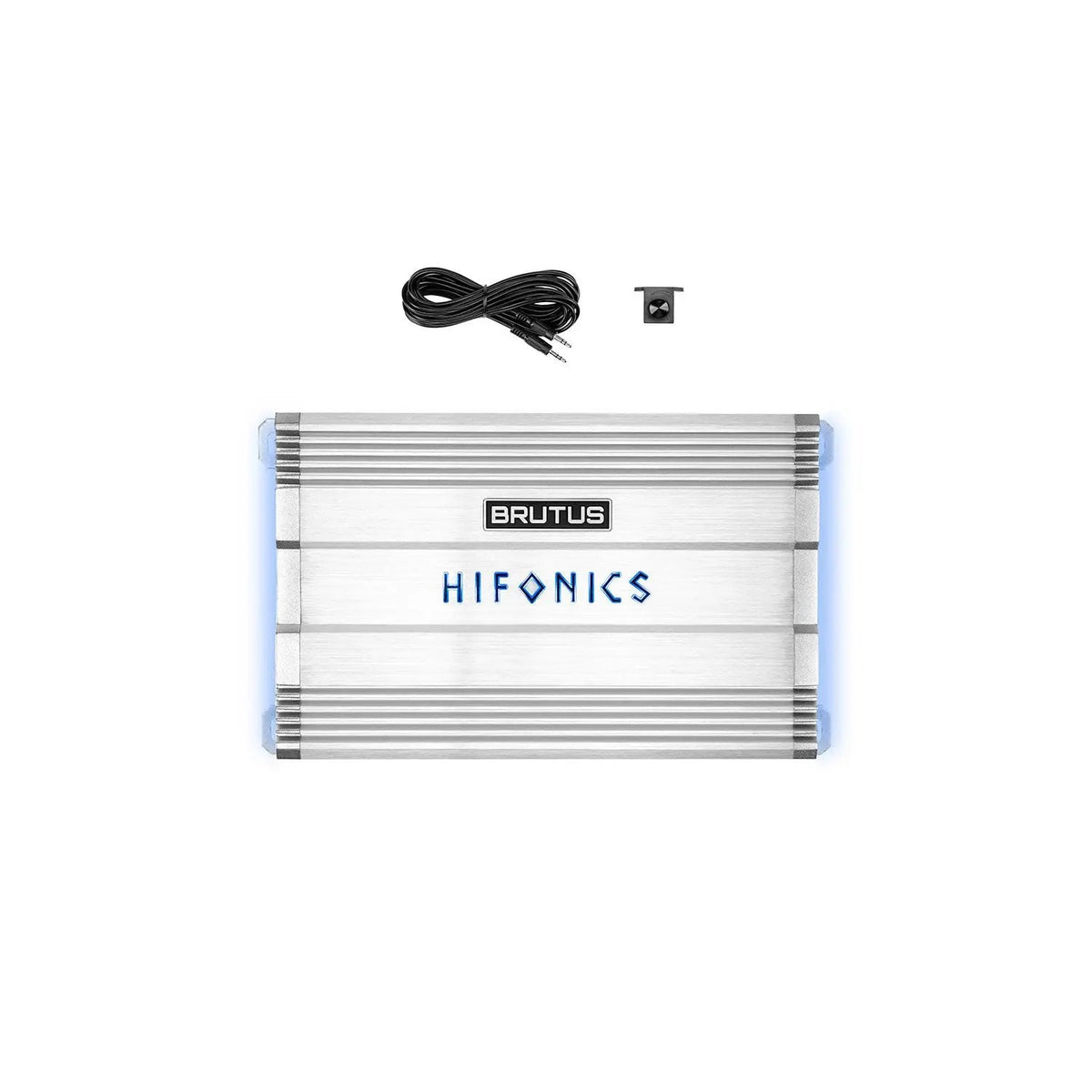

The package includes the Hifonics BG-1000.1 mono-block amplifier, a wired bass remote control, and a quick start guide.
What is the warranty period?
The product details list a 1 Year manufacturer's warranty.
Explore More
Want to learn more about Hifonics? Explore our Hifonics brand profile. Shop 12 Volt Outlet for car audio equipment and accessories.
| Brand | Hifonics |
| Model | BG-1000.1 |
| Series | BRUTUS BG |
| Amplifier Class | Super D Class™ |
| Total Channels | 1 |
| Max Power | 1000 W |
| Power Output @ 1 Ohm | 1 x 1000 W |
| Power Output @ 2 Ohms | 1 x 800 W |
| Power Output @ 4 Ohms | 1 x 550 W |
| Frequency Response | 10Hz - 180Hz |
| Signal to Noise Ratio | 75 dB |
| Total Harmonic Distortion (THD) | < 0.1% |
| Low Pass Crossover | 40Hz - 150Hz (12dB/Octave) |
| Bass Boost | 0 - 12 dB |
| Variable Voltage Input | 0.2V - 6.5V |
| Power/Ground Terminal Gauge | 4 AWG |
| Speaker Terminal Gauge | 12 AWG |
| Fusing | 3 x 30A |
| Product Dimensions | 26.9 x 13 x 4.8 cm |
| Product Weight | 2.2 kg |
| Package Dimensions | 34.3 x 20.8 x 9.3 cm |
| Package Weight | 2.5 kg |
| Color | Silver |
