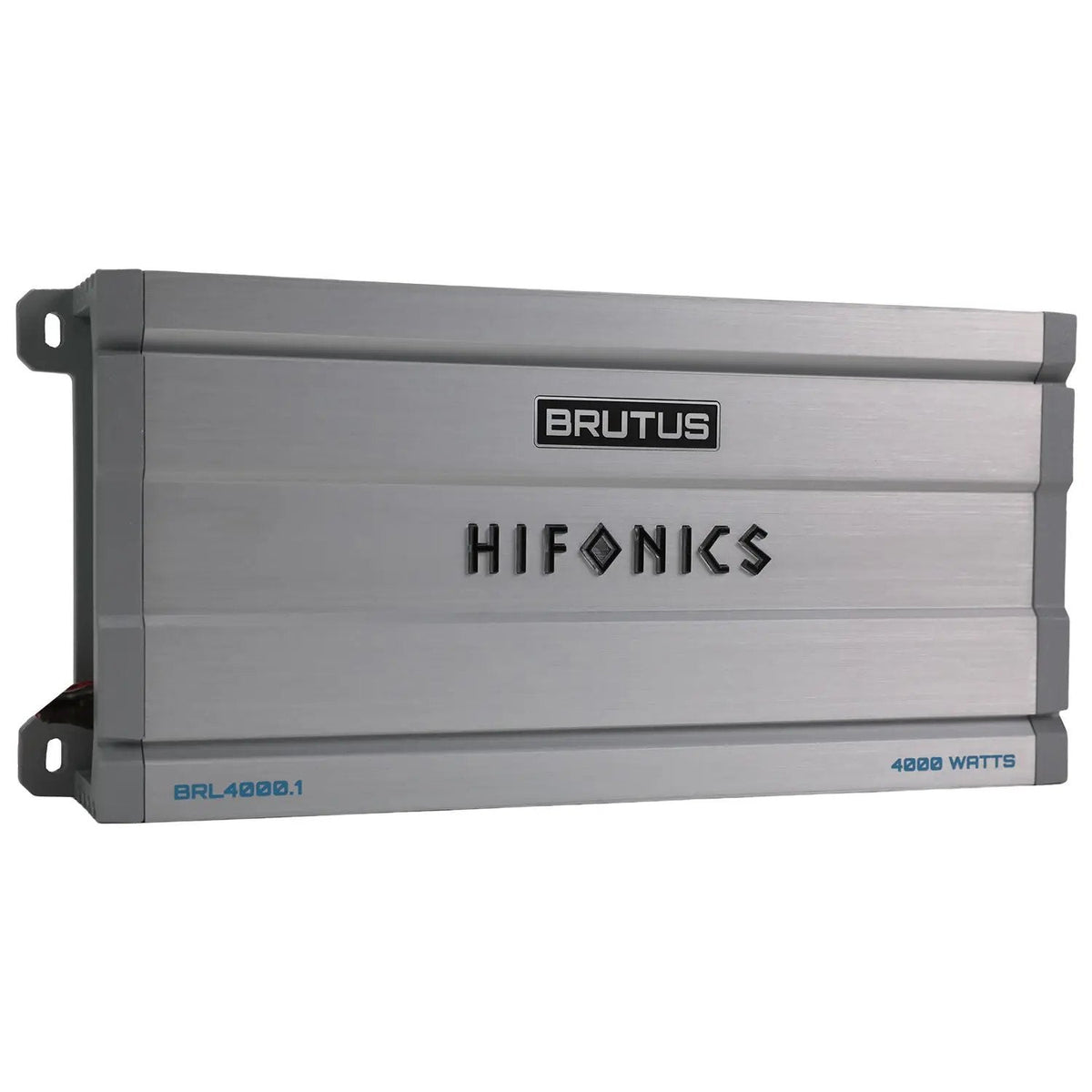

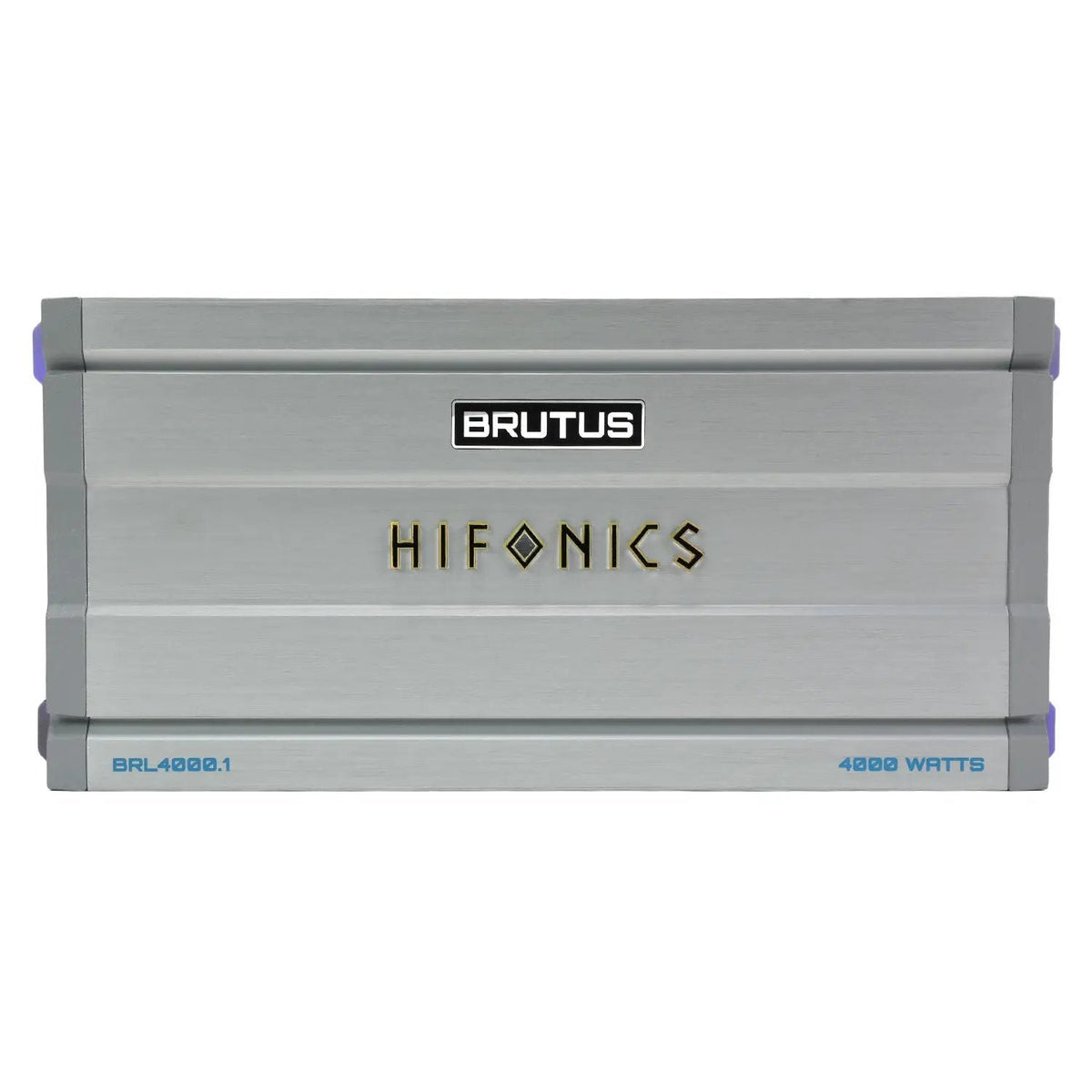

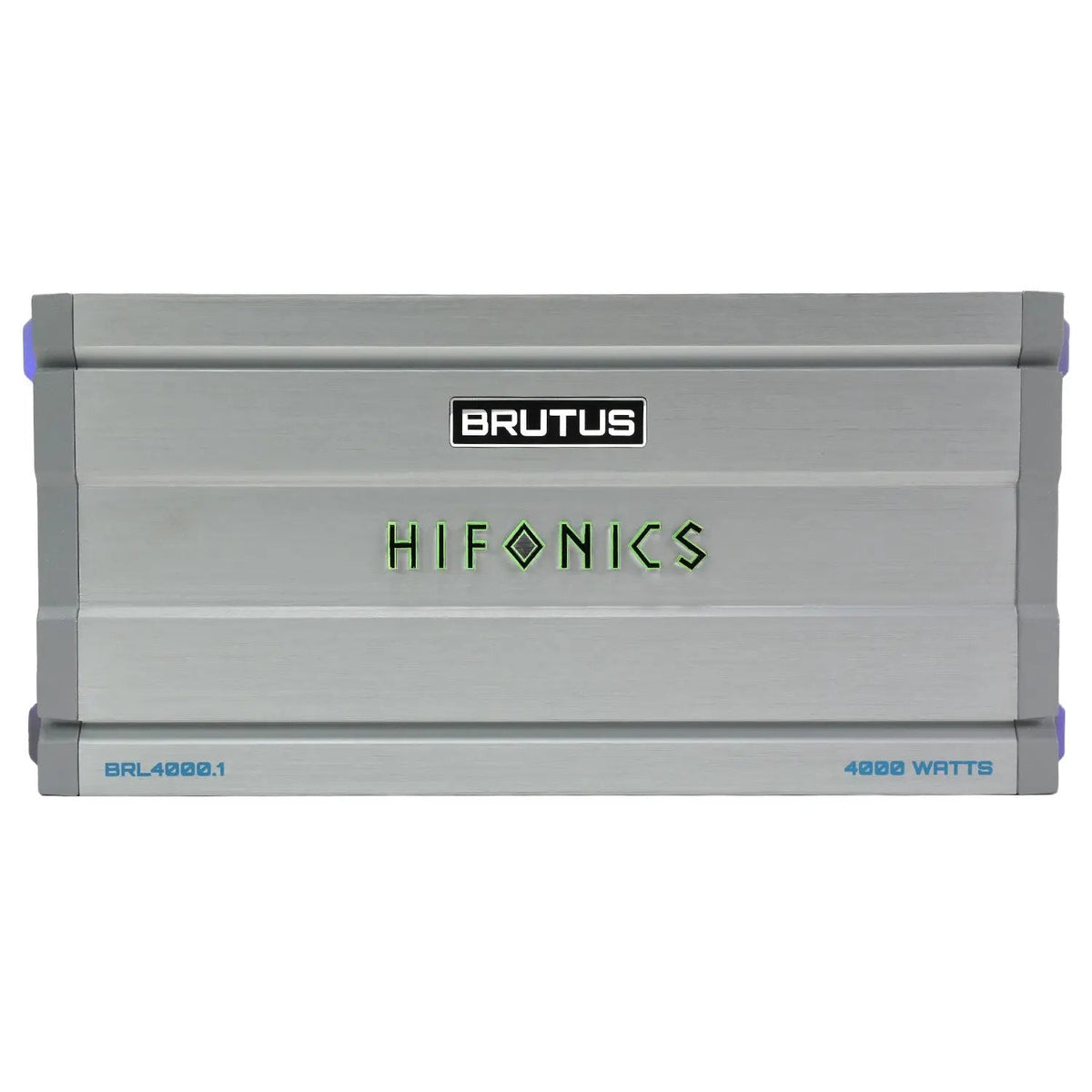

Hifonics BRL4000.1 BRUTUS BRL 4000 Watt Mono Block Amplifier
Key features
- Amplifier channels: 1
- RMS output at 4 ohms: 1500.0 W
- RMS output at 2 ohms: 2800 W
- RMS output at 1 ohm: 4000 W
Hifonics BRL4000.1 BRUTUS BRL 4000 Watt Mono Block Amplifier is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview
Power a mono subwoofer setup with the Hifonics BRL4000.1 BRUTUS BRL mono block amplifier. Its Super D Class™ design, selectable illuminated badge, and wired bass remote give you output and adjustment options in one amplifier.
Key Features & Benefits
- Efficient amplifier design: Super D Class™ circuitry and a half-bridge design deliver high output with fewer components.
- Thermal management: A mass-loaded extruded aluminum heat sink supports heat control during demanding use.

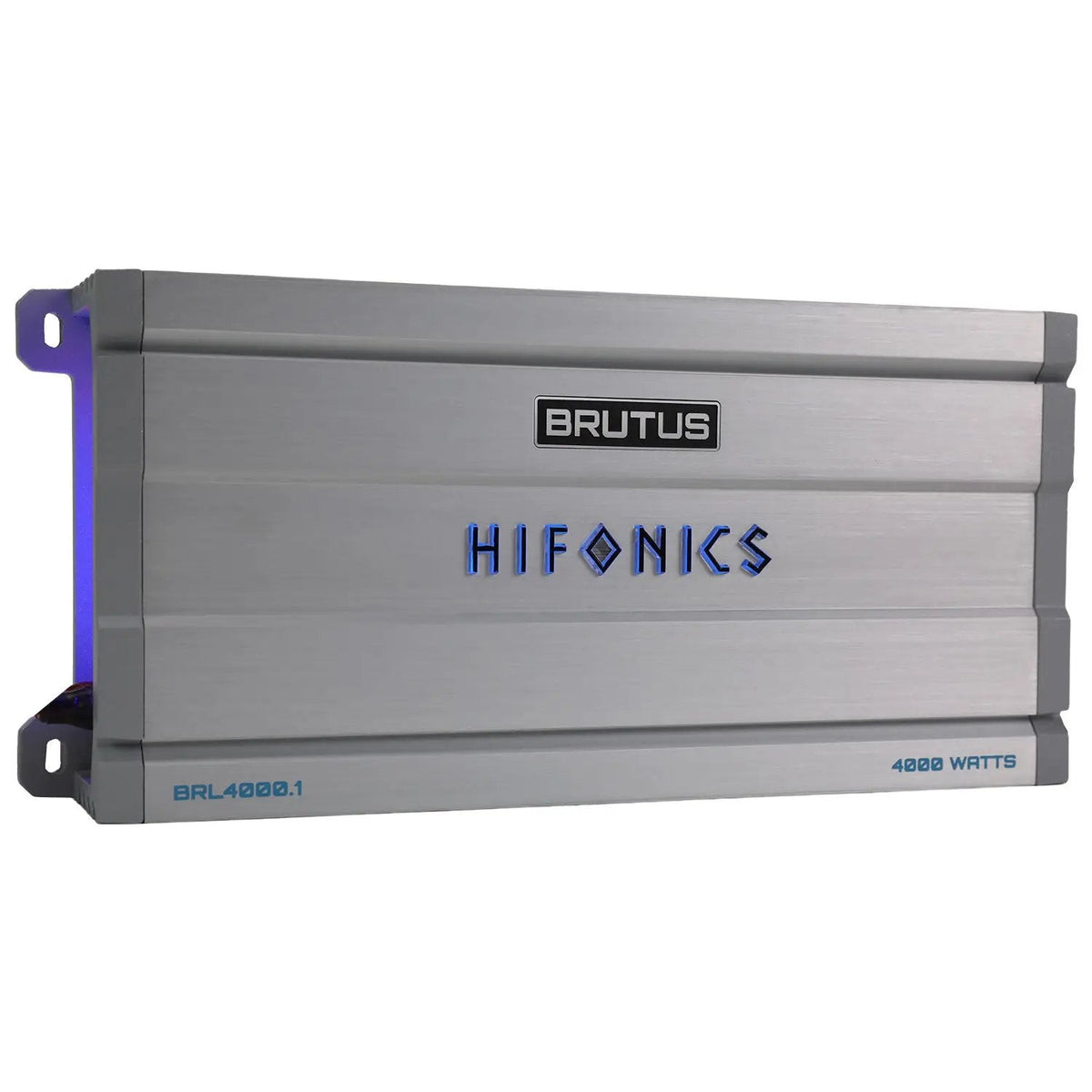

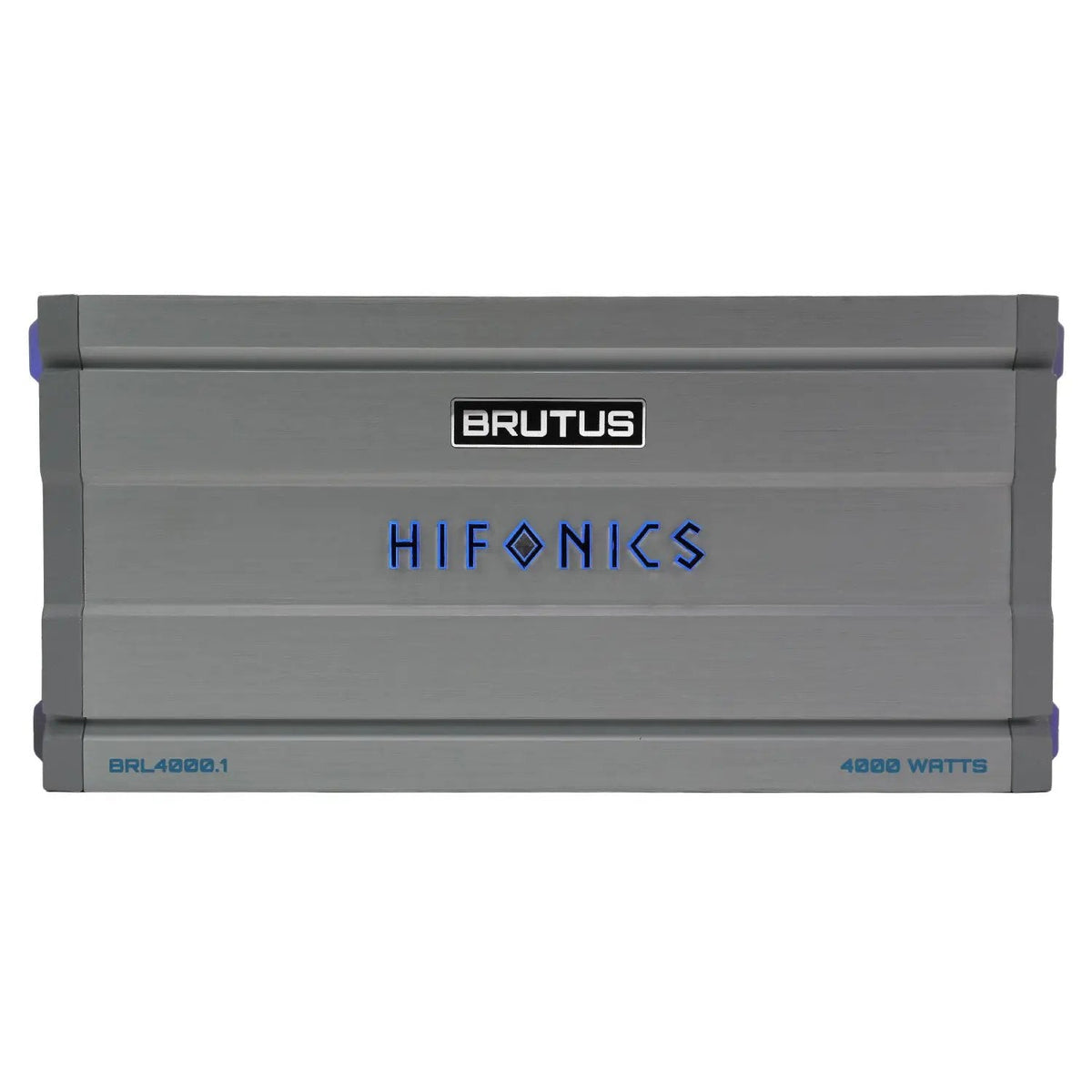

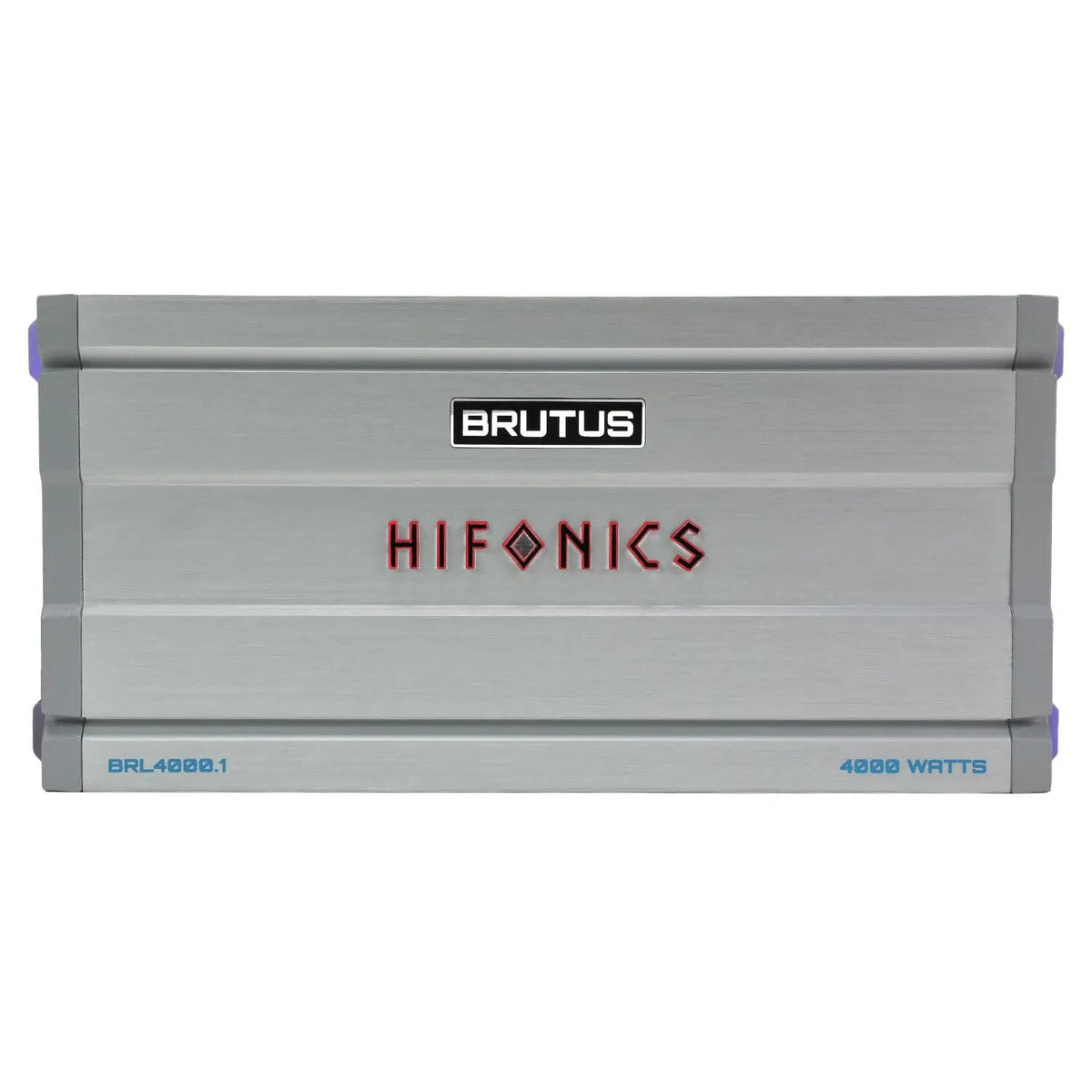

- Selectable badge lighting: Choose solid blue illumination, VU meter mode, or no lighting; the VU display can help you adjust gain.

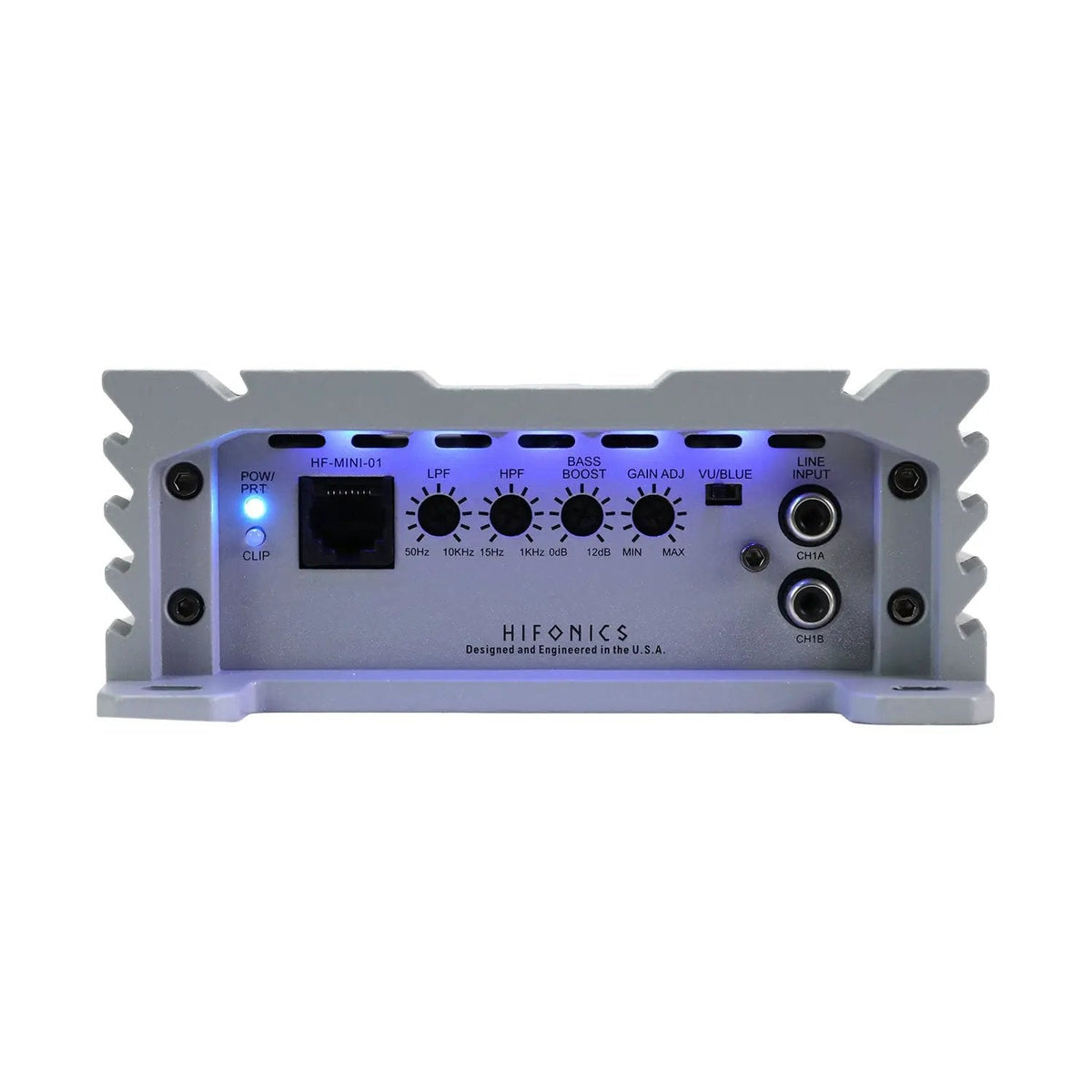

- Onboard tuning: Variable crossover filters and bass boost let you adjust the signal for your system.

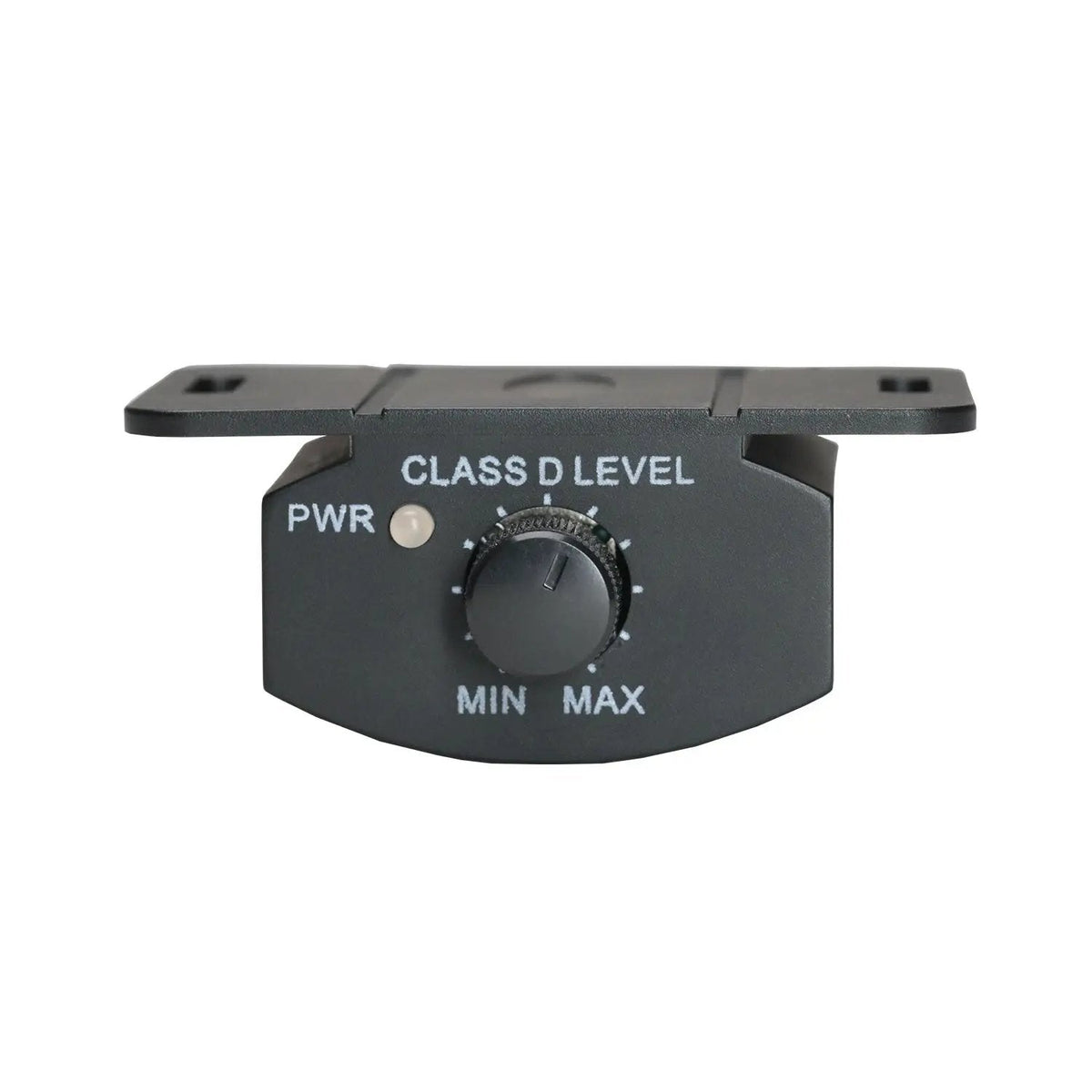

- Wired bass remote: Adjust bass level from the driver area relative to the amplifier’s end-panel setting.
- Built-in protection: Protection circuits address voltage anomalies, short circuits, overcurrent, and overheating.
Technical Specifications
| Specification | Details |
|---|---|
| Brand | Hifonics |
| Series | BRUTUS BRL |
| Product type | Mono Block Amplifier |
| Amplifier class | Super D Class™ |
| Total channels | 1 |
| Operation mode | Mono only |
| Maximum power | 4000 W |
| Power output @ 1 Ohm | 1 x 4000 W |
| Power output @ 2 Ohms | 1 x 2800 W |
| Power output @ 4 Ohms | 1 x 1500 W |
| Frequency response | 10Hz - 10kHz |
| Signal-to-noise ratio | 101 dB |
| Total harmonic distortion (THD) | < 0.5% |
| Variable voltage | 0.2 - 9 V |
| Bass boost | 0 - 12 dB |
| Low-pass crossover | 50Hz - 10kHz (12dB/Octave) |
| High-pass crossover | 15Hz - 1kHz (12dB/Octave) |
| Power/ground terminal gauge | 2 AWG |
| Speaker terminal gauge | 12 AWG |
| External fusing | 350 A |
| Dimensions | 32.7 × 14.6 × 5.7 cm |
| Product weight | 2.8 kg |
| Package dimensions | 44.5 × 18.7 × 9.2 cm |
| Package weight | 3.3 kg |
| Color | Black |
| Power supply | Iron core transformer |
| Input connection | Nickel-plated RCA jacks |

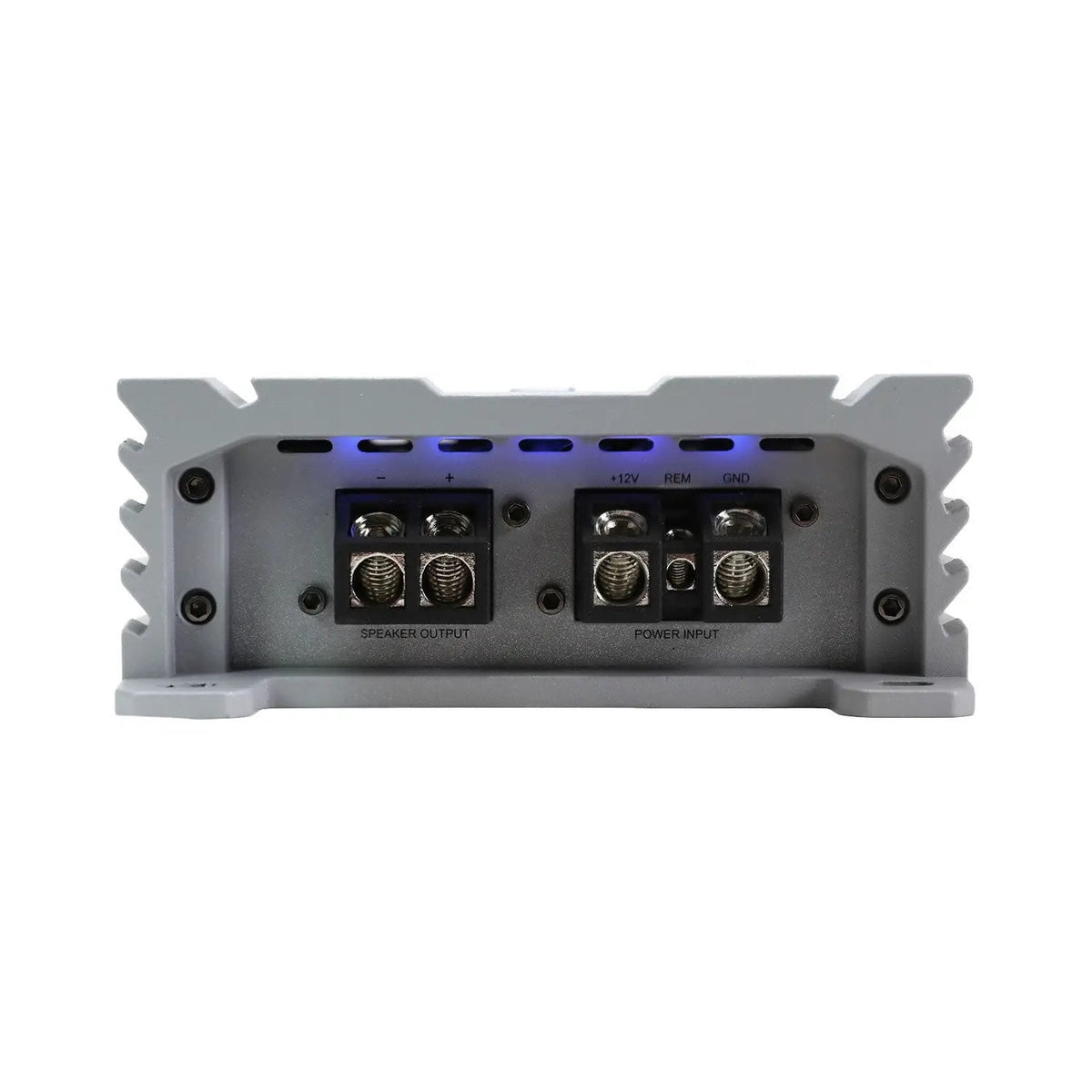

| Connection terminals | Secure molded Power, Ground, and Speaker terminals; angled for access and wire management |
| Included items | Hifonics BRL4000.1 Mono Block Amplifier, wired bass remote control, Quick Start Guide |
Why Choose This Product?
The BRL4000.1 combines an iron core transformer and Ultra-Fi MOSFET power supply with multi-layer surface-mount circuitry. Its low-EMI design is intended to minimize interference with other vehicle electronic systems, while the high-end preamplifier circuit accepts a wider range of input signals.
Nickel-plated RCA jacks provide a corrosion-resistant connection. A delayed turn-on function helps prevent unwanted hisses and pops when the amplifier starts or shuts down. The wired remote’s indicator displays green when the amplifier is powered on and red if it enters protect.
Installation & Compatibility Notes
This amplifier is specified for 12V mobile audio electrical systems and supports 1-Ohm, 2-Ohm, and 4-Ohm subwoofer configurations. Check your subwoofer load and available installation space against the ratings and dimensions above before purchase.
The molded terminals accommodate 2 AWG power and ground wire and 12 AWG speaker wire. The amplifier requires 350 A external fusing. Follow the Quick Start Guide and confirm your system’s electrical requirements during installation.
Frequently Asked Questions
How much power does the BRL4000.1 deliver at 1 Ohm?
Its listed output at 1 Ohm is 1 x 4000 W. The product information also identifies this as up to 4000 watts RMS at a 1-Ohm load.
Which subwoofer impedance configurations does it support?
It supports 1-Ohm, 2-Ohm, and 4-Ohm subwoofer configurations, with a separate power rating listed for each load.
What is included with the amplifier?
The package includes the Hifonics BRL4000.1 mono block amplifier, a wired bass remote control, and a Quick Start Guide.
Can I adjust bass from the driver area?
Yes. The included wired remote adjusts bass level relative to the setting on the amplifier’s end panel.
What do the illuminated badge modes show?
You can select constant blue lighting, switch the badge off, or use VU meter mode to display audio levels.
Explore More
Shop the Hifonics BRL4000.1 at 12 Volt Outlet. Want to learn more about Hifonics? Explore our Hifonics brand profile.
| Brand | Hifonics |
| Series | BRUTUS BRL |
| Product Type | Mono Block Amplifier |
| Amplifier Class | Super D Class™ |
| Total Channels | 1 |
| Max Power | 4000 W |
| Power Output @ 1 Ohm | 1 x 4000 W |
| Power Output @ 2 Ohms | 1 x 2800 W |
| Power Output @ 4 Ohms | 1 x 1500 W |
| Frequency Response | 10Hz - 10kHz |
| Signal to Noise Ratio | 101 dB |
| Total Harmonic Distortion (THD) | < 0.5% |
| Variable Voltage | 0.2 - 9 V |
| Bass Boost | 0 - 12 dB |
| Low Pass Crossover | 50Hz - 10kHz (12dB/Octave) |
| High Pass Crossover | 15Hz - 1kHz (12dB/Octave) |
| Power/Ground Terminal Gauge | 2 AWG |
| Speaker Terminal Gauge | 12 AWG |
| External Fusing | 350 A |
| Dimensions | 32.7 × 14.6 × 5.7 cm |
| Product Weight | 2.8 kg |
| Package Dimensions | 44.5 × 18.7 × 9.2 cm |
| Package Weight | 3.3 kg |
| Color | Black |
| Feature | Description |
|---|---|
| Ultra-High Efficient Design | A power supply design coupled with carefully selected parts results in an ultra-high efficient amplifier. |
| Half Bridge Design | An efficient design with fewer components results in higher power output. |
| Ultra-Low EMI Design | Minimal interference with other vehicle electronic systems. |
| Mass-Loaded Heat Sink | The mass-loaded extruded aluminum heat sink results in improved thermal management and output performance. |
| High-End Preamplifier Circuit | Accepts a wider range of input signals. |
| RCA Inputs | Nickel-plated RCA jacks create an efficient connection that is corrosion-resistant. |
| High Tolerance Output Device | Ultra-Fi MOSFETS are designed for high output power and thermal dissipation through a proprietary coupling method. |
| Operation Mode | Mono only |
| Clean Board Construction | Multi-layer printed circuit boards (PCB) with surface mount components require fewer parts and result in a cleaner design. |
| Class / Topology | BRL amplifiers feature a Class-D chipset, making them more efficient and allowing for a wide frequency range. |
| Power Supply | Iron core transformer assists in the ultra-low EMI design while providing high power. |
| Delayed Turn-On Function | Ensures compatibility with a wide range of source units to eliminate unwanted turn-on/off noises like hisses and pops. |
| Connection Type | Secure molded connection terminal for all Power, Ground and Speaker connections. Angled for ease of access while creating a clean wire management profile. |
| Stylized Badging | Switch between full constant blue LED lights, VU Meter mode, or full off. When switched to VU Meter mode, the amplifier’s logo reflects the audio level, useful for gain adjustment. |
| Triple Protection Circuits | Over/under voltage, short circuit, overcurrent, and thermal protection circuits are built-in safeguards to protect the audio system and vehicle. |
| Bass Remote Included | The included bass remote on mono models allows adjustment of the bass level relative to the setting on the amplifier’s end panel. The LED indicator light displays green when the amplifier is powered on and red if the amplifier enters protect. |
